D a s h b o a r d

Lateral air vents.

Side window demister vent.

Loudspeaker (Tweeter).

Passenger’s airbag.

Interior temperature sensor.

Locking of the rear electric

windows.

Centre air vents.

Controls:

• Air conditioning automatic.

• Hazard warning lamps.

• Doors and tailgate central

locking control (vehicle with

ESP).

Sunlight sensor.

Digital display.

Controls:

• Air conditioning.

• Rear screen demister.

• Doors and tailgate central

locking

control

(vehicle

without ESP).

• ESP.

Controls:

• Lighting

• Direction indicators

• Front foglamps

• Foglamp

• Navigation recall.

Driver's airbag.

Horn.

Loudspeaker (Tweeter).

Radio control under the steer-

ing wheel.

Side window demister vent.

Controls:

• Windscreen wiper

• Screen wash

• Rear screen wiper

• Trip computer.

Side air vent.

Key-operated switch:

• Passenger's airbag activa-

tion/deactivation.

Electric door mirrors adjust-

ment.

Fuse box and glasses holder

cover.

• Dashboard lighting rheo-

stat.

• Headlamps adjustment.

Rear electric window controls.

Steering

lock

and

ignition

switch.

Steering column adjustment

lever.

Front electric window controls.

Cigar lighter.

Control:

• Heated seats.

Ashtray.

Centre console storage box.

Control:

• Heated seats.

Gear lever.

Radio housing or oddments

pocket.

Glovebox.

Bonnet release lever.

Cruise฀control฀/฀speed฀limiter.

W A R N I N G L A M P S

Sidelamps
See “Signalling”

Dipped beam
See “Signalling”

Main beam
See “Signalling”

Foglamps
See “Signalling”

Front foglamps
See “Signalling”

LH direction indicator
RH direction indicator
See “Signalling”

All the direction indicators flash

simultaneously when the hazard

warning lamps are switched on.

Front passenger’s air-

bag deactivation warn-

ing lamp

See “Airbags”

Airbag warning lamp
A warning lamp in the instru-

ment panel lights for a few

seconds each time the igni-

tion is switched on. If there is a fault, it

flashes for a few minutes then remains

permanently on. In this case, or if it does

not light at all, consult your CITROËN

Dealer at the earliest opportunity.

Engine autodiagnosis

If it flashes or lights while

the engine is running, it indicates a

fault within the fuel injection, igni-

tion or anti- pollution systems.
Consult a CITROËN dealer as soon

as possible.

Handbrake

and

low

brake fluid level warn-

ing

When the engine is running, this

warning lamp indicates that the

handbrake is applied or incom-

pletely released, that the brake fluid

level is insufficient, or that the brak-

ing system is malfunctioning.
If the warning lamp lights, stop im-

mediately and contact the nearest

CITROËN dealer.
See Chapter “Brakes” and Chapter

“Levels”.

W A R N I N G L A M P S

Battery charge
Should not be lit when the

engine is running. If it

lights permanently, contact

a CITROËN Dealer.

Antilock Braking Sys-

tem
The ABS warning lamp

lights when the ignition is

switched on and should go out af-

ter a few seconds.
If the warning lamp does not go

out, there may be a system mal-

function. (See Chapter “Brakes”).

Engine oil pressure
If it lights while you are

driving, stop the engine,

check

the

level,

(see

Chapter “Levels”). If it remains lit

despite the level being correct,

contact a CITROËN Dealer.

Low fuel level warning

lamp

Diesel Preheater
See the instructions for

starting the engine.
Refer to Chapter II “Start-

ing”.

ESP warning lamp

In operation
If either the ESP or traction control (ASR) is active, the ESP warning lamp

flashes.

In the event of a problem
When the vehicle is moving, the lighting of the ESP warning lamp, accompa-

nied by the message “ESP/ASR NOT IN USE” on the multifunction screen,

indicates a malfunctioning of the system. Contact a CITROËN dealer

Deactivation
Lighting of the ESP warning lamp on deactivation of the system is accom-

panied by the message “ESP/ASR DEACTIVATED” on the multifunction

screen.

Coolant

temperature

warning lamp
If the red warning lamp

lights, stop immediately,

turn off the engine, the

cooling fan may con-

tinue to operate for a certain

time. Let the engine cool down,

taking the precautions indicated

(see Chapter “Levels”).
Contact a CITROËN dealer.

If฀ this฀ comes฀ on฀ per-

manently,฀ on฀ horizontal฀

ground,฀there฀remain฀

around฀8฀litres฀in฀the฀case฀of฀a฀pe-

trol฀vehicle,฀approx.฀5฀litres฀for฀a฀

diesel฀vehicle.

S i g n a l l i n g

Direction indicators
Left: move the stalk downwards.

Right: move the stalk upwards.

Movement of the steering wheel re-

turns the stalk to the off position au-

tomatically.

Headlamp flash
Pull the stalk towards you to flash

headlamps.
The headlamp flash operates even

with the ignition off.

Horn
Press one of the spokes of the

steering wheel.

Lighting control switch

All lighting off

Turn the barrel A forward.

Sidelamps

Turn the barrel A forward.

Dipped/main

beam

Dipswitch

Pull the stalk towards you to change

from dipped beam to main beam

and vice versa.
Audible warning - lamps left on
If the lamps have been left on when

a front or rear door is opened and

the ignition is off, a warning buzzer

sounds. This warning will stop on

closing the door, on turning the

lamps off or on switching on the igni-

tion.
Timed lighting of the headlamps
With the ignition switched off, the

headlamps can be switched on for

one minute by pulling the stalk to-

wards you, after which they are auto-

matically turned off. This function is

of particular use for leaving the vehi-

cle when parked in a poorly lit area.

Automatic lighting of headlamps
Sidelamps and dipped beam light

automatically whenever natural

light conditions are poor or when

the windscreen wipers are in con-

tinuous operation.
They extinguish when natural light

is sufficient or when the wipers

cease operating.

To activate or deactivate the

function
- With the engine switched off,

place the ignition key in the “Ac-

cessories” position.

- Place the lighting stalk in posi-

tion 0.

-฀Press฀at฀the฀end฀of฀the฀control.฀A฀sound฀

signal฀(beep)฀accompanied฀by฀a฀message฀

conﬁrms฀that฀the฀function฀is฀activated.

Do฀not฀cover฀the฀brightness฀detector฀

located฀at฀the฀bottom฀of฀the฀centre฀of฀the฀

windscreen,฀visible฀from฀outside฀the฀vehicle.

S i g n a l l i n g

A - Dashboard lighting
The lighting intensity of the dashboard display can be adjusted.
Move the rheostat control.

B - Headlamps adjustment
You are advised to adjust the aim of the headlamps in accord-

ance with vehicle load.
Position 0: Driver only, or driver + one passenger.

Position –: Driver + 2 passengers.

Position 1: Driver + 4 passengers.

Position 2: Driver + 4 passengers + luggage.

Position 3: Driver only + maximum authorised load.

Hazard warning lamps
Operates the direction indicators si-

multaneously.
Use only in case of danger,

emergency stop or in hazardous

conditions.
Also operates with the ignition off.

Emergency lighting of hazard

warning lamps
Sudden braking or abrupt deceler-

ation will provoke automatic opera-

tion of the hazard warning lamps.
These will go out automatically

on acceleration or manually by

pressing the hazard warning

lamp button on the dashboard.

The direction indicators will not work when the hazard

warning lamps are in use.

S i g n a l l i n g

Vehicles with

REAR FOGLAMPS

(Barrel B)

Rear foglamps off

Turn the barrel B forward.

Rear foglamps on

The warning lamp will illuminate.

The rear foglamps will only operate

if the dipped or main beam head-

lamps are on.
Switch off automatically when the

sidelamps are turned off.

Vehicles with

FRONT AND REAR FOGLAMPS

(Barrel C)

Front and rear foglamps

off

Turn the barrel C forward.

Front foglamps on

The front foglamps will only operate if the sidelamps, dipped or main beam

headlamps are switched on.
Turn barrel C towards the front.

Front and rear foglamps on

These will only operate with sidelamps or dipped beams on.
Switching off lamps:
1st action rearwards: rear foglamps switch off.
2nd action rearwards: front and rear foglamps off.

NOTE: The rear foglamps must only be used when visibility is severely re-

duced (fog, snow).

In foggy conditions, if ambient light is not poor enough for the lamps

to come on automatically, it is up to the driver to switch on dipped

beams manually, and to select foglamps if required.

฀B

Windscreen฀wiper฀stalk

฀Fast฀speed

฀Normal฀speed

฀Intermittent฀or฀automatic฀wipe

฀Stop

฀Single฀ wipe฀ –฀ Press฀ the฀ stalk฀

downwards

Vehicle฀ not฀ ﬁtted฀ with฀ a฀ rain฀

sensor.

Position฀1:

฀The฀timing฀of฀the฀in-

termittent฀wipe฀adjusts฀automati-

cally฀to฀the฀speed฀of฀the฀vehicle.

Note:

฀ In฀ position฀

฀ or฀

:฀ when฀

stationary,฀ the฀ windscreen฀ wiper฀

speed฀automatically฀reduces.

For฀ safety,฀ the฀ wiper฀ sys-

tem฀ is฀ deactivated฀ when฀

the฀ignition฀is฀switched฀off.

Vehicle฀ ﬁtted฀ with฀ a฀ rain฀ sen-

sor.

Position฀ 1:

฀ Intermittent฀ wipe฀ in-

tervals฀ adjust฀ automatically฀ ac-

cording฀to฀rain฀intensity.

Note:

฀ In฀ position฀

฀ or฀

:฀ when฀

sta฀tionary,฀the฀windscreen฀wiper฀

speed฀automatically฀reduces.

For฀safety,฀the฀wiper฀system฀is฀

deactivated฀ when฀ the฀ ignition฀

is฀switched฀off.

When฀ switching฀ the฀ ignition฀ on,฀

to฀reactivate฀the฀function:

-฀฀return฀to฀the฀

Stop฀position,

-฀ change฀ to฀ the฀

desired฀ posi-

tion.

The฀ activation฀ of฀ the฀ function฀ is฀

signalled฀by฀one฀wipe.

WARNING:

Do฀ not฀ cover฀ the฀ rain฀ sensor,฀

which฀is฀situated฀at฀bottom฀cen-

tre฀of฀the฀windscreen฀and฀visible฀

from฀the฀driving฀position.

Advice

Washing฀the฀vehicle:

฀ switch฀ off฀

the฀ignition.฀

A฀ sound฀ alert฀ (beep)฀ accom-฀

panied฀ by฀ a฀ message฀ when฀ you฀

activate฀ the฀ automatic฀ wipe฀

mode,฀indicates฀that฀this฀system฀

is฀malfunctioning.

Advice

The฀windscreen฀wipers฀can฀be฀stopped฀in฀

maintenance฀position

฀(for

repairs).
For฀this,฀switch฀off฀ignition,฀push฀the฀wash/wipe฀control฀stalk฀downwards.
To฀return฀to฀the฀stop฀position,฀simply฀move฀the฀stalk฀again.

V I S I B I L I T Y

V I S I B I L I T Y

Windscreen washer
Pull the stalk towards you to oper-

ate a timed wash/wipe sequence

(three cycles).

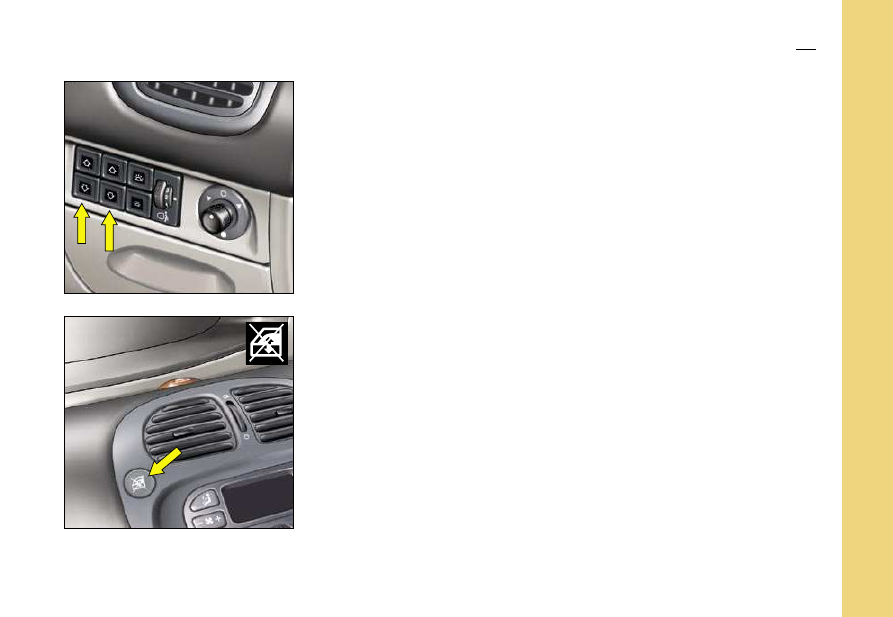

Rear screen demister
Only operates if the engine is run-

ning.
Press the control once to start elec-

tric demisting of the rear screen

(and exterior rear view mirrors).
Switches off automatically after ap-

prox. twelve minutes to prevent ex-

cessive consumption of power.
Press the control once to stop de-

misting.

Always check that the windscreen and rear screen wipers can

operate freely, for example if fitting a bicycle carrier,

or in freezing temperatures.

Remove any accumulation of snow from the base

of the windscreen.

Rear฀screen฀wipe฀
1st฀position฀-฀

Stop

2nd฀position฀–฀

Intermittent฀rear฀฀

฀

wipe

3rd฀position฀-฀฀

Wash฀and฀timed฀฀

฀

rear฀wipe

Automatic฀operation

When฀the฀windscreen฀wipers฀are฀

operating฀and฀on฀engaging฀reverse฀

gear.

F R O N T S E A T S

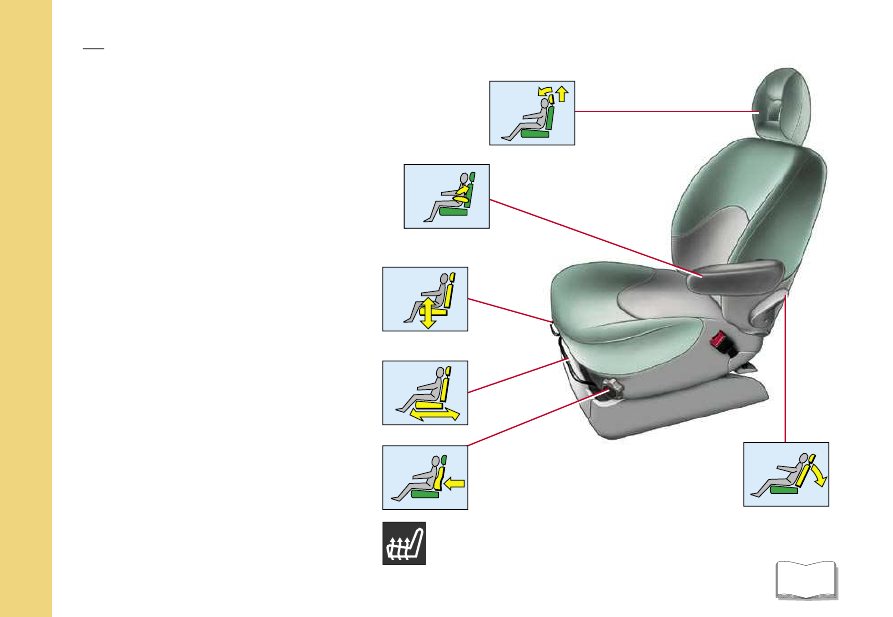

Head restraint
Height and angle adjustable.
To remove, press on the unlocking button and pull up-

wards.

Armrest
Can be lifted up and removed : tilt to 45°, press

the button located between the armrest and the

side of the backrest, and pull out.

Driver's seat height
Use the control to adjust to the required po-

sition.

Reach
Lift the control bar and adjust to the desired

position.

Lumbar supports
Turn the control and adjust to the desired

position.

Backrest angle
Use the control to adjust the back-

rest angle.

Heated seats
The front seats can be heated individually. Use the controls

located on the dashboard.

The temperature is automatically regulated.

The heated seats will only operate when the engine is

running.

฀B

W I N D O W S

Electric operation
From the driver’s position, the

switches on the centre console al-

low the front windows of the vehicle

to be opened and closed.

Driver's window
Sequential control
One touch on A makes the window close or open fully, a second touch stops

the movement.
A long press causes a window movement which stops as soon as you re-

lease.

Anti-pinch on the driver’s window
An anti- pinch device stops the window from rising if it meets an obstacle, and

reverses the direction.
After a battery disconnection or a malfunction, you should re- initialise

the anti-pinch function:
- Press control A to open the window fully, then press to close it again, it will

rise only a few centimetres. Press A again until the window closes fully.
If the window re-opens in an erratic manner when you try to close it, press

control A repeatedly until the window closes fully.

Warning: during this operation the anti-pinch protection is not in force.

Always remove the ignition key when leaving the vehicle,

even for short periods.

If pinching occurs during operations on the electric windows,

you should reverse the movement of the glass. To do this,

press on the control concerned.

When the driver actions the controls of the passenger windows,

he should first make sure that passengers are not obstructing

the closing of the glass.

The driver should ensure that the passengers operate

the electric windows correctly.

ALWAYS PAY ATTENTION TO WHERE CHILDREN

ARE WHEN OPENING OR CLOSING WINDOWS.

฀B

฀B

V E N T I L A T I O N ฀ – ฀ H E A T I N G

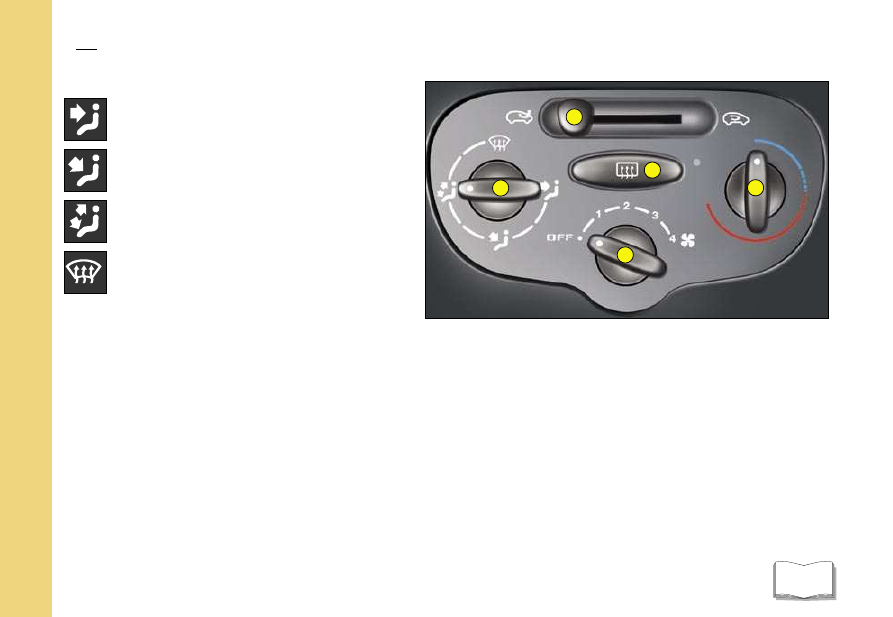

1฀-฀Air฀distribution

Air฀ﬂow฀to฀the฀face฀level฀vents.

Air฀ ﬂow฀ to฀ the฀ footwells฀ and฀ rear฀

seat฀positions.

Air฀ﬂow฀to฀the฀footwells฀and฀winds-

creen฀and฀side฀windows.

Air฀ﬂow฀to฀the฀windscreen฀and฀side฀

windows.
Deicing฀-฀demisting

The฀air฀distribution฀from฀the฀blower฀can฀be฀adjusted฀at฀will฀by฀placing฀the฀control฀

1฀in฀any฀intermediate฀position.฀

Whatever฀the฀position฀chosen,฀it฀is฀always฀possible฀to฀obtain฀air฀from฀the฀air฀vents.

2฀-฀Entry฀of฀exterior฀air฀/฀Air฀recirculation

3฀-฀Adjustment฀of฀the฀air฀blower฀speed

4฀-฀Adjustment฀of฀the฀blown฀air฀temperature

5฀-฀Demisting฀of฀rear฀screen

฀B

V E N T I L A T I O N ฀ – ฀ H E A T I N G

M A N U A L ฀ A I R ฀ C O N D I T I O N I N G

Air฀conditioning

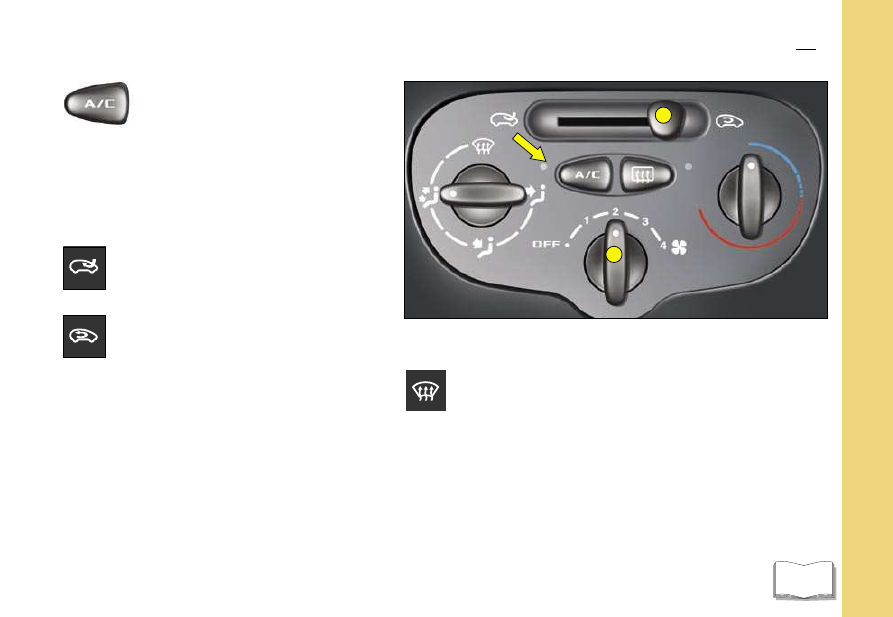

The฀ air฀ conditioning฀ only฀ operates฀ when฀ the฀

engine฀is฀running.
Press฀the฀switch฀on฀the฀dashboard.
Warning฀lamp฀on฀=฀in฀operation�

Entry฀of฀exterior฀air

Air฀recirculation

This฀position฀prevents฀the฀entry฀of฀unpleasant฀

odours฀into฀the฀vehicle.
It฀should฀be฀cancelled฀as฀soon฀as฀possible฀to฀

renew฀the฀air฀in฀the฀passenger฀compartment฀

as฀well฀as฀to฀allow฀demisting.
To฀enhance฀the฀efﬁciency฀and฀rapidity฀of฀the฀

air฀ conditioning฀ in฀ very฀ hot฀ weather,฀ use฀ the฀

air฀recirculation฀position.
Move฀the฀control

฀2฀fully฀to฀the฀right฀and฀pla-

ce฀the฀air฀blower฀control฀

3฀in฀an฀intermediate฀฀

position.
This฀ function฀ should฀ be฀ cancelled฀ when฀ it฀ is฀

no฀longer฀needed,฀to฀allow฀renewal฀of฀the฀air฀

in฀the฀cabin.

Deicing฀–฀demisting฀of฀the฀windscreen฀and฀

front฀side฀windows

-฀Place฀the฀controls฀for฀temperature฀and฀air฀flow฀on฀฀

maximum,

-฀close฀the฀central฀air฀vents,
-฀operate฀the฀air฀conditioning.

Note฀:฀you฀should฀not฀be฀in฀Air฀Recirculation.

Deicing฀–฀demisting฀of฀the฀windscreen฀and฀

front฀side฀windows

-฀Place฀the฀controls฀for฀temperature฀and฀air฀flow฀on฀฀

maximum,

-฀close฀the฀central฀air฀vents,
-฀operate฀the฀air฀conditioning.

Note฀:฀you฀should฀not฀be฀in฀Air฀Recirculation.

฀B

฀

For฀฀...

฀

All฀cold

฀

to฀start฀with,

฀

MAX.฀to฀start฀with,฀

฀

COLD฀

฀

then฀personal

฀

then฀personal฀

ON฀

฀

adjustments

฀

adjustments฀

฀

To฀start฀with

฀

All฀hot

฀

to฀start฀with,

฀

MAX.฀to฀start฀with,฀

฀

HOT฀

฀

then฀personal

฀

then฀personal฀

–฀

฀

adjustments

฀

adjustments฀

฀

To฀start฀with

฀

DEICING฀

฀

All฀hot฀

MAX.฀

ON฀

฀

DEMISTING฀

฀

V E N T I L A T I O N ฀ – ฀ H E A T I N G

M A N U A L ฀ A I R ฀ C O N D I T I O N I N G

To฀obtain฀the฀best฀results฀from฀the฀system,฀we฀recommend฀:

Note฀:฀with฀automatic฀air฀conditioning,฀we฀recommend฀you฀to฀select฀AUTO฀operation.

Citroen Xsara Picasso (2005 year). Manual - part 1
