SET

Accesses

ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.

This warning light is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.

If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a CITROËN
dealer .

Good practice

Do not make any modifications to the
electronic immobiliser system.
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential

card,

- have the keys memorised by a CITROËN

dealer to ensure that the keys in your
possession are the only ones which can
start the vehicle.

Driving with the doors locked may
make access to the passenger

compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition
when leaving the vehicle, even for a short
time.

ALARM

This provides:
- exterior perimeter protection by means of

detectors on the doors and bonnet and
on the electrical supply,

- interior protection,

- anti-lift protection,

- protection against the unauthorised

insertion of a key in the starter.

The equipment includes a siren.

Activation of the alarm

First ensure that all of the accesses are
closed correctly.

The alarm is activated by pressing
this control, the protection is
active after a few seconds.
While the alarm is monitoring, any

intrusion triggers the siren for approximately
30 seconds, accompanied by lighting of the
direction indicators.
The alarm then returns to monitoring mode.
The alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.

Accesses

Deactivation using the remote
control

When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.

Deactivation using the key

Unlock the doors using the key and enter
the vehicle. Switch on the ignition to the
RUNNING position, identification of the key
code will switch off the alarm.

CONFIDENTIAL CARD

This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a  CITROËN
dealer  on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.

Deactivation of the anti-lift protection

To deactivate the anti-lift protection, press
the button located on the vehicle’s courtesy
light.

Good practice

To quickly deactivate the siren following
unwanted triggering, unlock the vehicle
using the remote control.

To avoid setting the alarm, before washing
the vehicle for example, lock the vehicle
using the key.

Signalling of attempted intrusion

When you return to your vehicle,
the electronic immobiliser
warning lamp flashes or a
warning message appears on the

instrument panel display, to indicate to you
that an attempted intrusion has occurred in
your absence.

Accesses

Deactivation using the remote
control

When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.

Deactivation using the key

Unlock the doors using the key and enter
the vehicle. Switch on the ignition to the
RUNNING position, identification of the key
code will switch off the alarm.

CONFIDENTIAL CARD

Deactivation of the anti-lift protection

To deactivate the anti-lift protection, press
the button located on the vehicle’s courtesy
light.

Good practice

To quickly deactivate the siren following
unwanted triggering, unlock the vehicle
using the remote control.

To avoid setting the alarm, before washing
the vehicle for example, lock the vehicle
using the key.

Signalling of attempted intrusion

When you return to your vehicle,
the electronic immobiliser
warning lamp flashes or a
warning message appears on the

instrument panel display, to indicate to you
that an attempted intrusion has occurred in
your absence.

SET

Accesses

OPENING FROM THE OUTSIDE

Driver’s door

  Use the remote control to unlock from the
outside.
Pull the handle towards you.
   If the remote control does not work, insert
the metal part of the key in the lock on the
driver’s side.

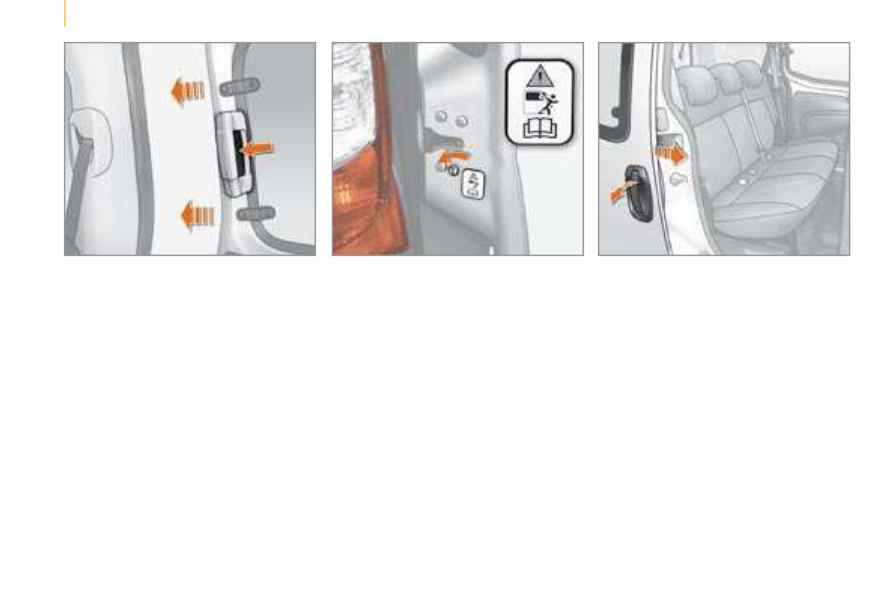

Sliding side door
Pull the handle towards you then towards
the rear.
Slide the door fully to secure it in the open
position (Van) or to trigger the door open
retaining device (Combi).

Hinged rear doors

The 60/40 type asymmetrical hinged rear
doors have four closing points, including a
central closing point.

Pull the handle towards you.
Start by opening the large hinged door, then
unlock by pulling the lever to release and
open the small hinged door.
The two hinged doors open to 90°.

Opening to 180°

Press the catch while opening the door.

When the fuel ﬁ ller ﬂ ap is open, a safety
system checks the sliding of the side door.
As a safety precaution and to

guarantee correct operation, do not drive
with the sliding side door open.

Driving with the small hinged door open is
permitted to make the transportation of long
loads easier. Observe the customary safety
indications, to attract the attention of other
drivers.

Accesses

Sliding side door

Good practice

When opening, take care not to obstruct the
guide space on the floor to allow the door to
slide correctly.
Do not block traffic.

OPENING FROM THE INSIDE

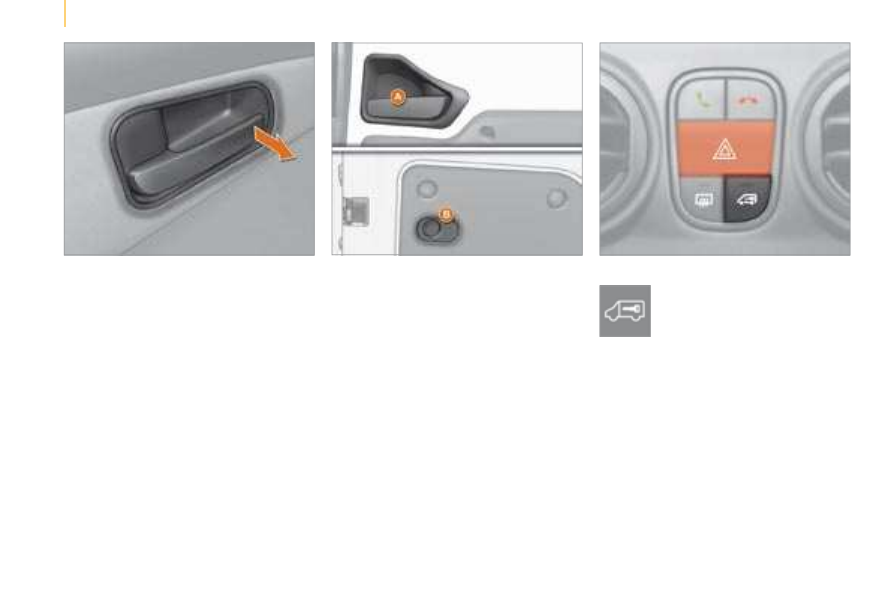

Driver’s door

Pull the interior handle to unlock.
  Active locking : When the vehicle
speed approaches 12 mph (20 km/h), a
characteristic locking noise indicates that
your vehicle has been locked automatically.
   This “AUTOCLOSE” function is activated or
deactivated via the “MENU”.
   This function is deactivated when the vehicle
is delivered.

Pull the handle A towards the rear, slide the
door fully to secure it in the open position
(Van) or to trigger the door open retaining
device (Combi).

Hinged rear doors

To open, slide the control B to the right.

Load space

Press once to unlock the sliding
side doors and the rear doors
(Van) from the cab.

SET

Accesses

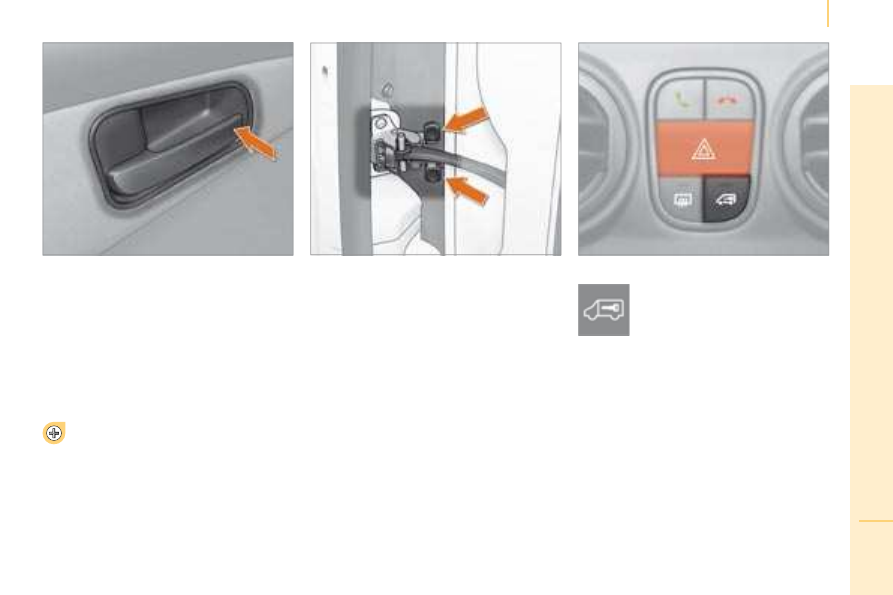

CLOSING FROM INSIDE

Central locking

Push the interior handle to lock the entire
vehicle or the door concerned. However,
if one of the doors is open or is not closed
correctly, the central locking does not work.

Always remove the key from the
ignition when leaving the vehicle, even

for a short time.

Closing from 180°

The check strap will re-attach automatically
when the hinged doors are closed, the small
door being closed first.

Load space

Protection against attack
When the vehicle is started, the system
locks the cab and load space doors
automatically when you reach approximately
12 mph (20 km/h).
This “AUTOCLOSE” function is activated or
deactivated via the “MENU”.
If none of the doors are opened during the
journey, the locking remains active.
This function is deactivated when the vehicle
is delivered.

Press to lock the sliding side
doors and the rear doors (Van)
from the cab.

Accesses

Sliding side door (Combi)

Press on the control to release the door and
pull the handle towards yourself to reclose
the door.

Child lock

This prevents the opening from inside of
each of the rear doors.
 Turn the control for each rear door by a

quarter turn using the ignition key.

CLOSING FROM THE OUTSIDE

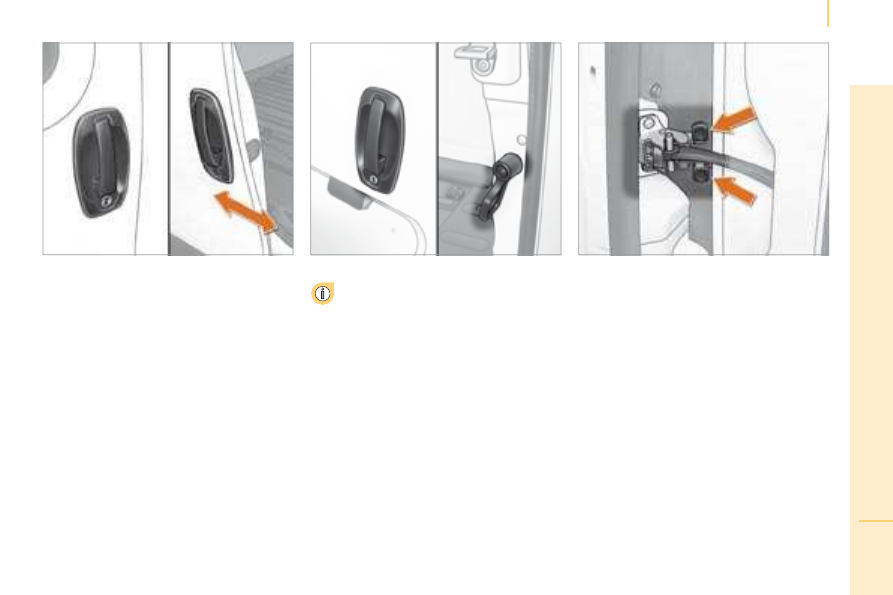

Sliding side door

Pull the handle towards you, then towards
the front to secure it in the open position
(Van) or to trigger the door open retaining
device (Combi).
Slide the door fully until it locks in.

Hinged rear doors

Start by closing the small sliding door, this
locks automatically when it is closed.
Close the large door with its handle.

Accesses

Sliding side door (Combi)

Press on the control to release the door and
pull the handle towards yourself to reclose
the door.

Child lock

This prevents the opening from inside of
each of the rear doors.
 Turn the control for each rear door by a

quarter turn using the ignition key.

CLOSING FROM THE OUTSIDE

Sliding side door

Pull the handle towards you, then towards
the front to secure it in the open position
(Van) or to trigger the door open retaining
device (Combi).
Slide the door fully until it locks in.

Hinged rear doors

Start by closing the small sliding door, this
locks automatically when it is closed.
Close the large door with its handle.

SET

Steering wheel controls

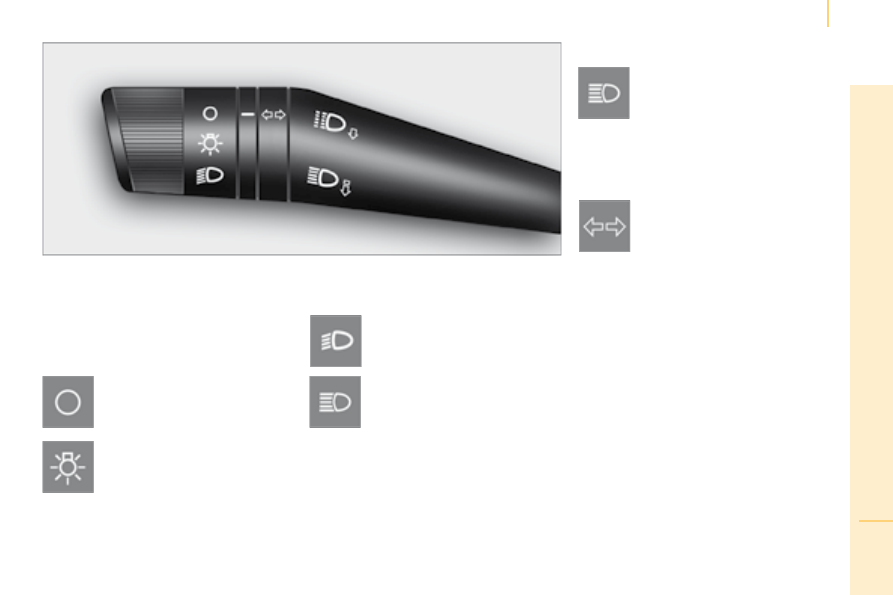

LIGHTING CONTROL

Selection is by rotation of the white mark
on the ring, when the ignition key is in the
“RUNNING” position.

All lights off

Side lights on

This is indicated on the
instrument panel by lighting of the
warning light.

Dipped headlamps/main beam
headlamps on

Dipped headlamps/main beam
headlamps change

Pull the control fully towards you.

Headlamp flash

Direction indicators (green flashing)

“Motorway” function

System which indicates a change of lane on
a motorway.
Press up or down once, without passing
the point of resistance; the corresponding
direction indicators will flash three times.

Pull the control towards you
gently, regardless of the position
of the ring.

Left: downwards. The direction
arrow warning light flashes on the
instrument panel.
Right: upwards. The direction

arrow warning light flashes on the instrument
panel.

Turn the ring into position.

Steering wheel controls

Headlamp beam

You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position.

Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).

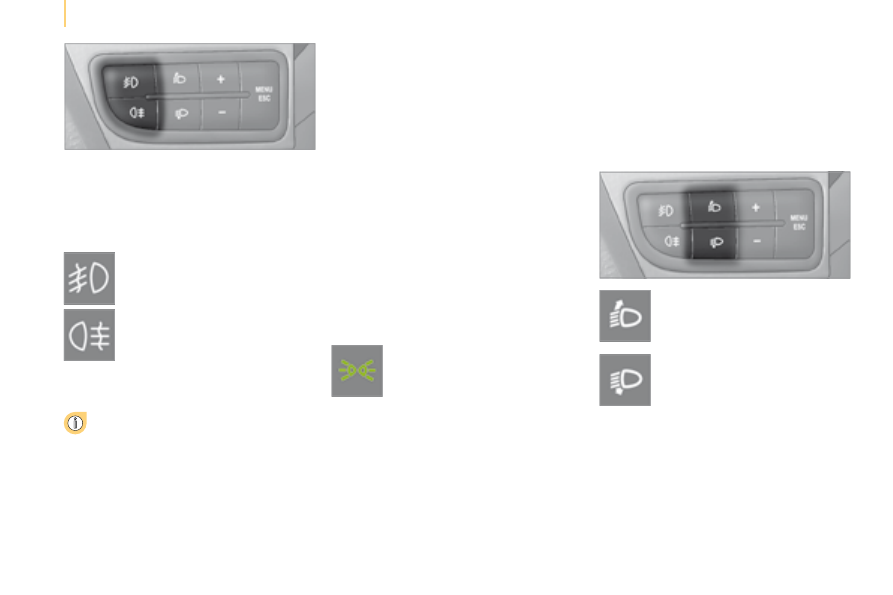

Fog lamps

The controls are located on the fascia panel
control pad.

Front and rear fog lamps

The fog lamps should only be used in
fog or when snow is falling.

In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.

“Follow me home” lighting

The temporary maintaining of the dipped
headlamps, after switching off the vehicle’s
ignition, makes the driver’s exit easier when
the light is poor and lights the space in front
of the vehicle.

Activation
With the ignition key in the STOP position
or removed, pull the lighting control towards
the steering wheel within 2 minutes after
switching off the engine.
Each time the control is operated, the
duration for which the lights will remain on is
extended by 30 seconds, up to a maximum
of 210 seconds. Once this period of time has
elapsed, the lights switch off automatically.

Deactivation
Pull the lighting control towards the steering
wheel for more than 2 seconds.

The front fog lamps operate with
the side lights and the dipped
headlamps.

The rear fog lamps operate with
the dipped headlamps.

Press one of these controls to switch on the
lights.

The warning light comes on,
accompanied by a message
on the display, the first time
the control is operated and

remains on until the function is deactivated
automatically.

Steering wheel controls

Headlamp beam

You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position.

Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).

Fog lamps

The controls are located on the fascia panel
control pad.

Front and rear fog lamps

The fog lamps should only be used in
fog or when snow is falling.

In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.

“Follow me home” lighting

The temporary maintaining of the dipped
headlamps, after switching off the vehicle’s
ignition, makes the driver’s exit easier when
the light is poor and lights the space in front
of the vehicle.

Deactivation
Pull the lighting control towards the steering
wheel for more than 2 seconds.

The front fog lamps operate with
the side lights and the dipped
headlamps.

The rear fog lamps operate with
the dipped headlamps.

Press one of these controls to switch on the
lights.

The warning light comes on,
accompanied by a message
on the display, the first time
the control is operated and

remains on until the function is deactivated
automatically.

SET

Steering wheel controls

WIPERS STALK

Windscreen wipers

Wiping is only active when the ignition key is
in the RUNNING position.
The stalk may have four different positions.
Three speeds can be selected by turning the
ring.

To change the blades, refer to the
“Changing a wiper blade” section of

chapter 7.

Good practice

Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather.

Slow intermittent.

Slow continuous.

Fast continuous.

Single wipe: by pushing up.

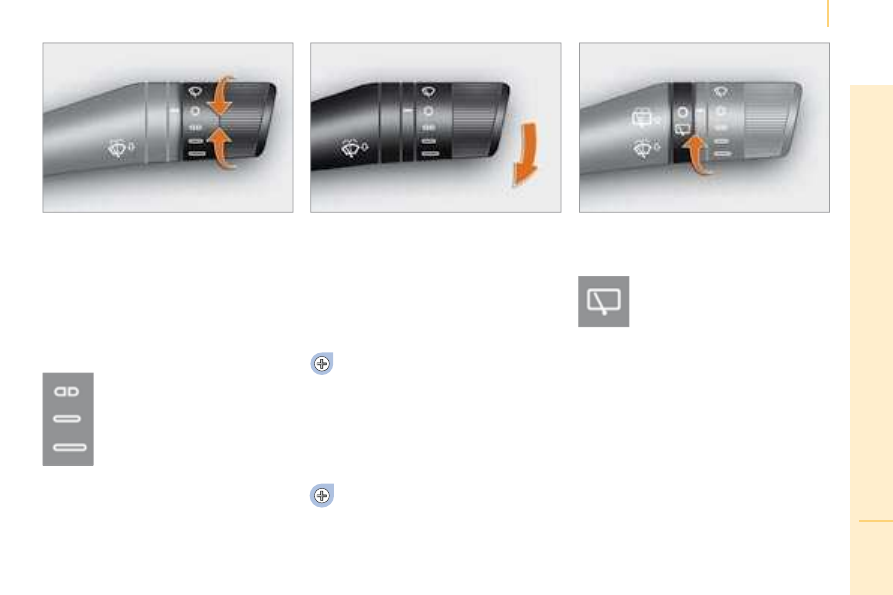

Windscreen wash

Push the stalk down, the windscreen wash
alone is activated.
Hold the stalk down, the windscreen wash
is accompanied by a timed sweep of the
wipers.

To top up the levels, refer to the
“Levels” section of chapter 7.

Rear wiper

This is positioned on the window
of the large rear door.
Turn the ring.

Rear screen wash

The rear screen wash is incorporated next to
the third brake light.
Push the stalk up, the rear screen wash
alone is activated.
Hold the stalk up, the rear screen wash is
accompanied by a timed sweep of the wiper.

Mirrors and windows

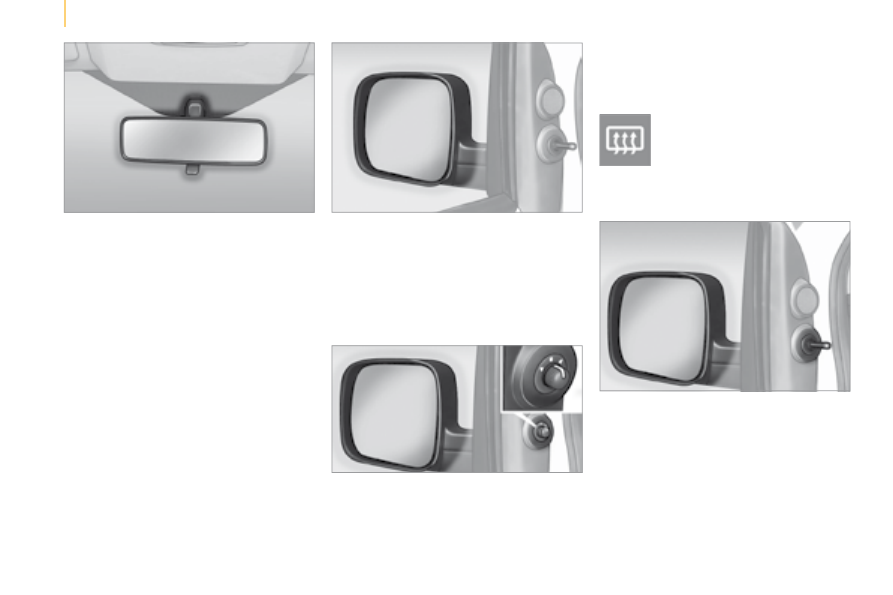

Interior mirror

The lever located on the lower edge moves
the mirror into two positions.
  For the day position , the lever is pushed.
  For the night position  to prevent dazzle,
pull the lever towards you.

Exterior mirrors

The mirror glass is spherical in order to
widen the lateral field of vision. Objects
seen in the mirror are in reality closer than
they appear. Therefore, this must be taken
into account in order to assess the distance
correctly.

Electric controls

The electric control is located on the left-
hand interior side, level with the mirror.

MIRRORS AND WINDOWS

To de-ice the mirrors, press the
rear screen de-icing button.

Select the mirror to be adjusted by turning
the control to the right or to the left, then
move the control in the direction of the
adjustment required.

Manual controls

The right-hand and left-hand manual
controls are located on the interior side of
the base of each mirror.
Move the lever in the direction of the
adjustment required.

SET

Mirrors and windows

ELECTRIC WINDOWS

Electric controls

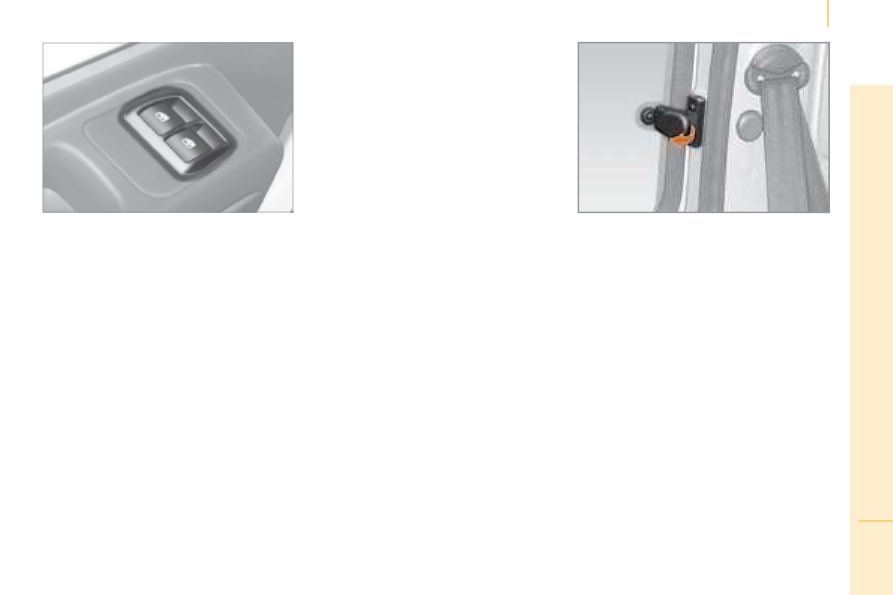

The electric windows have a safety auto-
reverse function and are associated with
one-touch controls for lowering and raising.
From the driver’s seat, the controls placed
on the door operate the vehicle’s front
windows.
On the passenger’s side, the control
operates the passenger’s front window.

One-touch controls

An extended press on the control raises or
lowers the window completely.
Press the control again to stop the window.
Press the control briefly to trigger the
movement of the window.

Manual controls

Turn the window winder located on the door
trim pad.

Good practice

Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
If the electric window meets an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.
When the driver operates the passenger
electric window controls, he must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passenger
uses the electric window correctly.
Be aware of children when operating the
windows.

REAR WINDOWS (COMBI)

To tilt the rear windows, tilt the lever, then
push it fully in to lock the windows in the
open position.

Gearbox and steering wheel

ELECTRONIC GEARBOX SYSTEM

The 5-speed electronic gearbox system
gives you the choice between the comfort of
automatic mode or the driving pleasure of a
manual gearbox.
This gearbox gives you access to two driving
modes :
- an automatic mode for the automatic

management of gear changes, with no
driver intervention necessary,

- a sequential mode for manual gear

changes made by the driver using the
gear lever.

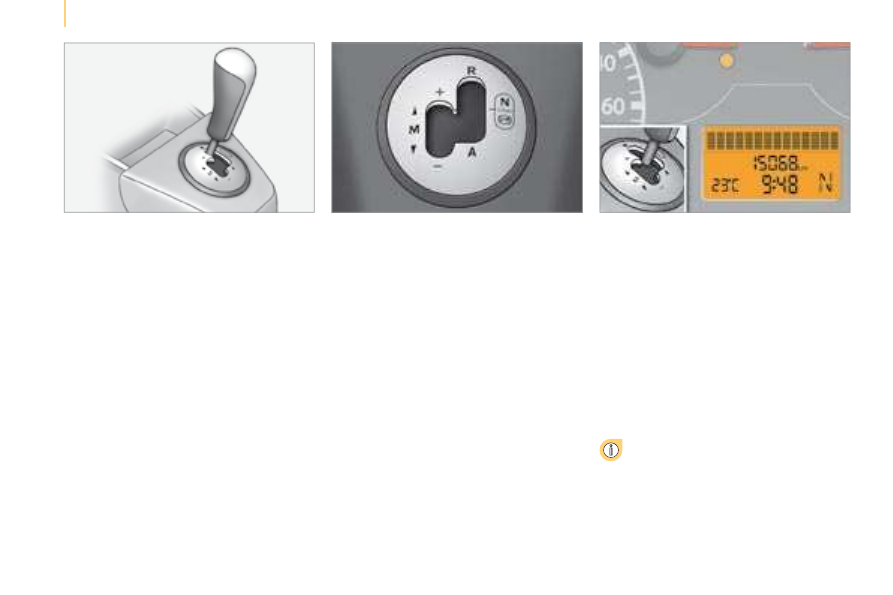

It is comprised of a gear lever 1 on the
central console to select the driving mode,
reverse gear and neutral, or to select
sequential mode.

Gear lever positions

N  : neutral.
With your foot on the brake pedal, select this
position to start the engine.
R  : reverse gear.
With the vehicle stationary, hold your foot
down on the brake pedal and push the gear
lever upwards.
A  : automatic mode.
Move the gear lever downwards to select
this mode.
M  +/- : sequential mode with manual gear
changes.
Move the lever downwards, then to the left
to select this mode, then :
   -  push it forwards to move up a gear,

- pull it backwards to go down a gear.

Starting the vehicle

Select position N .
Press firmly on the brake pedal whilst
starting the engine.
Start the engine. “N” appears on the
instrument panel display.
Select first gear (position M or A) or reverse
gear (position R).
Release the parking brake.
Remove your foot from the brake pedal, then
accelerate.
“AUTO” and “1” or “R” appear on the
instrument panel display.

It is possible to start in second gear,
only in sequential mode.

SET

Gearbox and steering wheel

Stopping – Starting on a gradient

This is an electronic gearbox system without
a clutch pedal.
To immobilise the vehicle on a gradient,
you must use the parking brake and not
the accelerator.
When starting on a gradient, accelerate
gradually while releasing the parking brake.

Changing to sequential mode

Once you have started the engine, you
can go into sequential mode by selecting
position M.

“AUTO” disappears and
the gears selected appear
successively on the instrument
panel display.

Gear change requests are only possible if
the engine speed allows them.
Gently lift your foot from the accelerator
pedal to select the gear.
When driving at low speed (e.g. approaching
a stop sign or at traffic lights), the gearbox
automatically changes down to first gear.

Changing to automatic mode

When in sequential mode, you can return to
automatic mode by selecting position A.

Stopping the vehicle

Before switching off the engine, you can :
- select position N to engage neutral.

- leave a gear engaged, such as first or

reverse gear.

In either case, you must engage the parking
brake to immobilise the vehicle.

Reinitialising

Following a battery disconnection, you must
reinitialise the gearbox :
- switch on the ignition, “AUTO” appears

on the instrument panel display,

- press on the brake pedal,

- wait for about 30 seconds until “N” or

a gear appears on the instrument panel
display,

- release the brake pedal.

The gearbox is now operational again.

Operating anomaly

With the ignition switched on, the
ﬂ ashing of “AUTO” and the lighting
of this warning lamp, accompanied
by a sound signal and a message

on the instrument panel display, indicate a
gearbox malfunction.
Have the system checked by your CITROËN dealer.

You must always press the brake pedal
down when starting the engine.
When the vehicle is moving, never

select neutral N.
Only select reverse gear R with the vehicle
stationary and your foot on the brake pedal.
In all cases, you must engage the parking
brake to immobilise the vehicle.
When on a steep gradient, you are advised
to use sequential mode.

“AUTO” is displayed and the
gear selected appears on the
instrument panel display.
The gearbox operates in

automatic mode, without the need for driver
intervention.
It always selects the gear best suited to the
following parameters :
- driving style,

- road profile,

- vehicle load.

To maximise driving comfort and obtain the
most suitable gear, avoid making rough
movements on the accelerator pedal.
If you press the accelerator beyond the point
of resistance, the gearbox selects the next
gear down to allow for faster acceleration.

Content .. 1 2 3 4 ..
