ELECTRIC WINDOWS

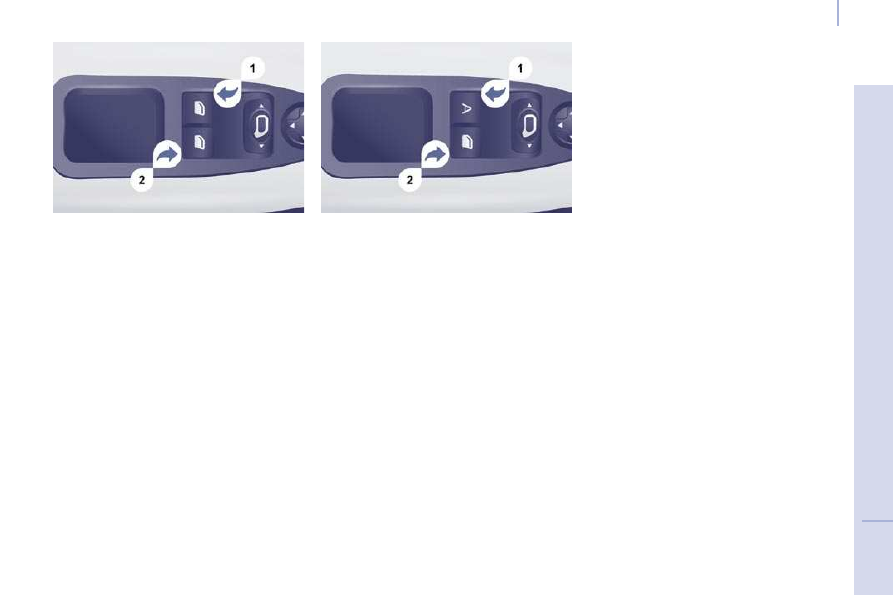

1. Driver's electric window control

2. Passenger electric window control

The electrical functions of the electric
windows are deactivated:

approximately 45 seconds after the
ignition is switched off,

after one of the front doors is opened, if
the ignition is off.

Reinitialisation

Following reconnection of the battery,
the safety auto-reverse function must be
reinitialised.

Lower the window fully, then raise it, it will
rise in steps of a few centimetres each time
the control is pressed. Repeat the operation
until the window is fully closed.

Continue to press the control for at least one
second after the window closed position has
been reached.

The safety auto-reverse does not operate
during these operations.

Manual mode

Press or pull the control, without passing the
point of resistance. The window stops when
you release the control.

Automatic mode

Press or pull the control, beyond the point
of resistance. The window opens or closes
fully when the control is released. Pressing
the control again stops the movement of the
window.

Safety auto-reverse

If your vehicle is fitted with the safety auto-
reverse function, when the window rises
and meets an obstacle, it stops and partially
lowers.

In the event of unwanted opening of the
window on closing, press the control until
the window is fully open. Within the next
4 seconds, pull the control until the window
is fully closed.

The safety auto-reverse does not operate
during these operations.

Good practice

If the electric windows meet an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.

When the driver operates the passenger
electric window controls, he must ensure
that no one is preventing correct closing of
the windows.

The driver must ensure that the passengers
use the electric windows correctly.

Be aware of children when operating the
windows.

There are two operating modes:

Driving safety

HANDBRAKE

When parking on a slope, direct your wheels
towards the pavement and pull the handbrake.

There is no advantage in engaging a gear
after parking the vehicle, particularly if the
vehicle is loaded.

HAZARD WARNING LIGHTS

Press this button, the direction indicators
flash.

They can operate with the ignition off.

The hazard warning lights should only be
used in dangerous situations, when stopping
in an emergency or when driving in unusual
conditions.

DRIVING SAFETY

Applying

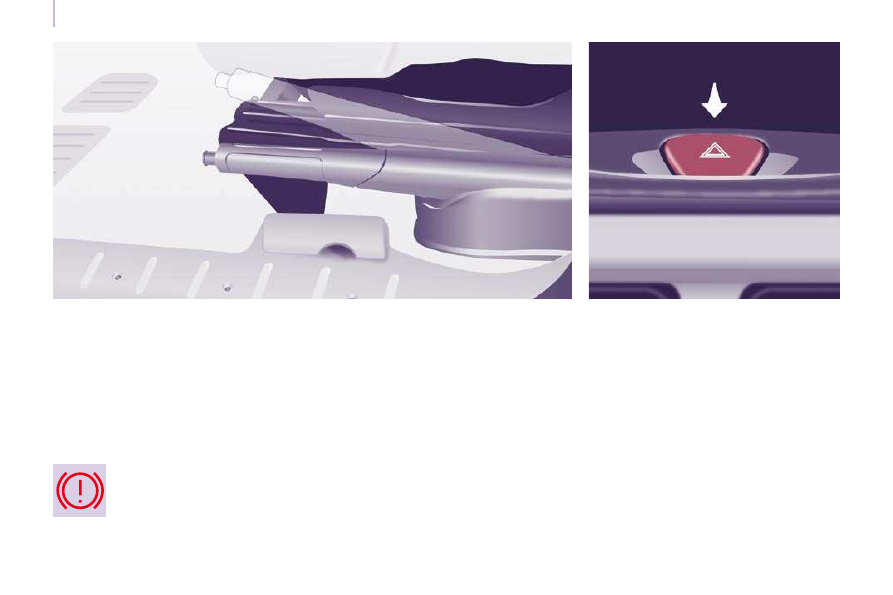

Pull the handbrake to immobilise your
vehicle.

Check that the handbrake is applied firmly
before leaving the vehicle.

If the handbrake is still on or has
not been released properly, this is
indicated by this warning light which
comes on on the instrument panel.

Releasing

Pull the handle and press the button to lower
the handbrake.

Parking assistance

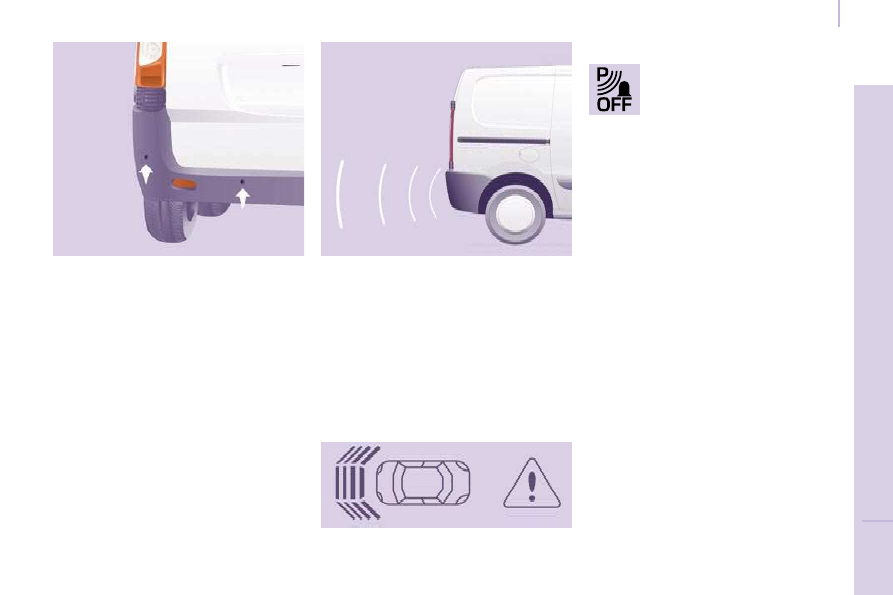

The audible and/or visual rear parking
assistance consists of four proximity
sensors, installed in the rear bumper. The
sensors detect any obstacle which enters
the field: person, vehicle, tree, fence, behind
the vehicle during the manoeuvre.

Certain objects detected at the beginning of
the manoeuvre will no longer be detected
at the end of the manoeuvre due to the
blind spots between and below the sensors.
Examples: stake, roadworks cone or
pavement post.

Engage reverse gear

An audible signal confirms the activation
of the system by engaging reverse gear.
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.

When the distance between the rear of the vehicle
and the obstacle is less than approximately thirty
centimetres, the audible signal becomes continuous.

Stop the assistance

Change to neutral.

REAR PARKING ASSISTANCE

Activation/Deactivation

You can activate or deactivate the
system by pressing this button.

The activation or deactivation of
the system is stored when the
vehicle stops.

Operating fault

In the event of an operating fault, when
reverse gear is engaged the diode on
the button comes on, accompanied by
an audible signal and a message on the
display. Consult a CITROËN dealer.

Good practice

In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.

The system will be deactivated automatically
if a trailer is being towed or if a bicycle
carrier is fitted (vehicle fitted with a
towbar or bicycle carrier recommended by
CITROËN).

The parking assistance cannot, in any
circumstances, take the place of the
vigilance and responsibility of the driver.

Display on the screen

You are advised to deactivate the system if
your vehicle is fitted with a rear ladder or if
you are transporting a load which exceeds
the length of the vehicle.

ABS

Driving safety

HORN

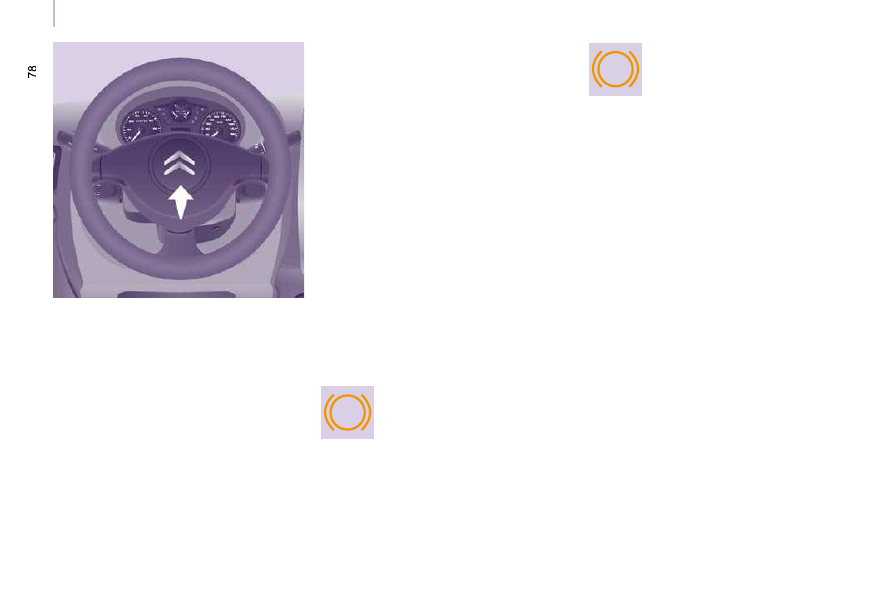

Press the centre of the steering wheel.

ANTI-LOCK BRAKING SYSTEM
(ABS - EBFD)

The ABS and EBFD (electronic brake force
distribution) systems improve the stability
and manoeuvrability of your vehicle on
braking, in particular on poor or slippery
surfaces.

The ABS prevents locking of the wheels,
the EBFD provides control of the braking
pressure wheel by wheel.

Good practice

The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock. It does not reduce the braking
distance.

On very slippery surfaces (ice, oil, etc...)
the ABS may increase the braking distance.
When braking in an emergency, do not
hesitate to press the brake pedal firmly,
without releasing the pressure, even on a
slippery surface, you will then be able to
continue to manoeuvre the vehicle to avoid
an obstacle.

Normal operation of the ABS may be felt by
slight vibration of the brake pedal.

When changing wheels (tyres and rims),
ensure that these are recommended by
CITROËN.

If this warning light comes on,
together with the brake and STOP
warning lights, accompanied by
an audible signal and a message

on the display, it indicates a malfunction of
the electronic brake force distribution which
could result in a loss of control of the vehicle
on braking.

Stop immediately.

EMERGENCY BRAKING
ASSISTANCE SYSTEM (EBA)

In an emergency, this system enables the
optimum braking pressure to be reached
more quickly, press the pedal firmly without
releasing it.

It is triggered by the speed at which the brake
pedal is activated.

This alters the resistance of the brake pedal
under your foot.

If this warning light comes on,
accompanied by an audible signal
and a message on the display,
it indicates a malfunction of the

ABS which could result in a loss of control of
the vehicle on braking.

In both cases, contact a CITROËN dealer.

To prolong the operation of the emergency
braking assistance system: keep your foot
on the brake pedal.

ESP

Driving safety

TRACTION CONTROL (ASR) AND
DYNAMIC STABILITY CONTROL
(ESP)

These systems are linked and complement
the ABS.

The ASR system is very useful for
maintaining optimum drive and avoiding
losses of control of the vehicle on
acceleration.

The system optimises drive to prevent the
wheels skidding, by acting on the brakes of
the drive wheels and on the engine. It also
allows the directional stability of the vehicle
to be improved on acceleration.

acts on the engine and the brake of one
or more wheels, in order to put the vehicle
back on course.

Disarming the ASR/ESP systems

In certain exceptional conditions (starting
the vehicle when stuck in mud or snow, or
on loose ground...), it could prove useful to
disarm the ASR and ESP systems to make
the wheels spin and regain grip.

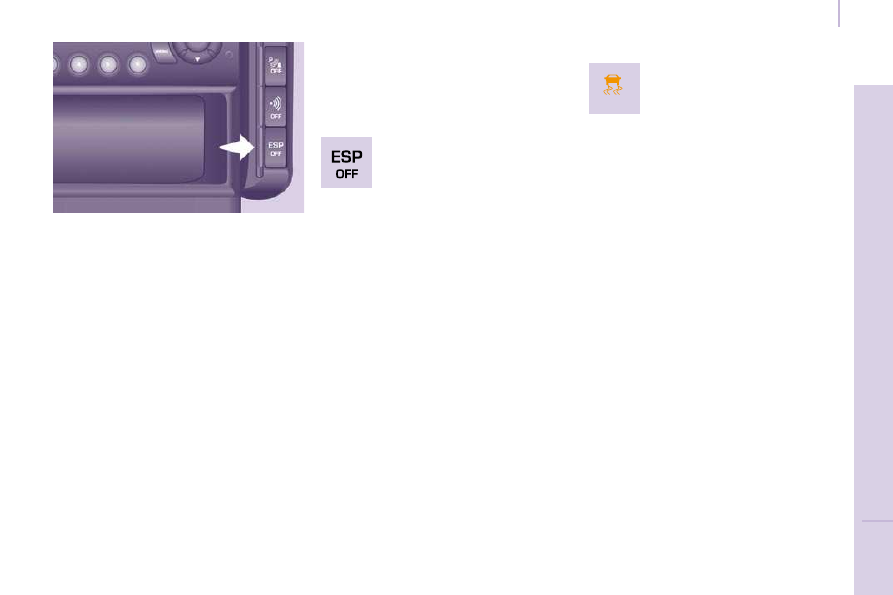

Press the button, located on the centre
console.

The indicator light comes on: the ASR
and ESP systems no longer act.

Operating check

Good practice

The ASR/ESP systems offer increased
safety during normal driving, but should not
incite the driver to take risks or to drive at
high speed.

The operation of these systems is ensured
if the recommendations of the manufacturer
regarding the wheels (tyres and rims),
the braking components, the electronic
components and the fitting and repair
procedures within the CITROËN network are
observed.

After an impact, have these systems
checked by a CITROËN dealer.

Use the ESP to hold your course without
attempting to countersteer.

If there is a variation between the trajectory
followed by the vehicle and that required
by the driver, the ESP system automatically

Operation of the ASR and ESP
systems

The luminous diode flashes when
the ASR or ESP is triggered.

They engage again:

automatically above 30 mph (50 km/h),

manually by pressing the button again.

When a malfunction of the
systems occurs, the indicator light
comes on, accompanied by an
audible signal and a message on
the display.

Contact a CITROËN dealer to have the
system checked.

The warning light may also come on if the
tyres are under-inflated. Check the pressure
of each tyre.

Seat belts

Height adjustment

Squeeze the control with the return and slide
the assembly on the driver's seat side and
on the individual passenger seat side.

If your vehicle is fitted with a front bench,
the height of the seat belt associated with
the centre seat cannot be adjusted.

Unfastening

Press the red button.

SEAT BELTS

Good practice

The driver must ensure that passengers use
the seat belts correctly and that they are all
strapped in securely before moving off.

Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.

The seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size.

Do not use accessories (clothes pegs, clips,
safety pins, etc.) which permit a clearance
with the seat belt straps.

Ensure that the seat belt is rolled up
correctly after use.

After folding or moving a seat or a rear
bench seat, ensure that the seat belt is
rolled up correctly and that the buckle is
ready to accommodate the tongue.

Depending on the nature and seriousness
of any impact, the pretensioning device may
be triggered before and independently of
inflation of the air bags. It instantly tightens
the seat belts against the body of the
occupants.

Triggering of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.

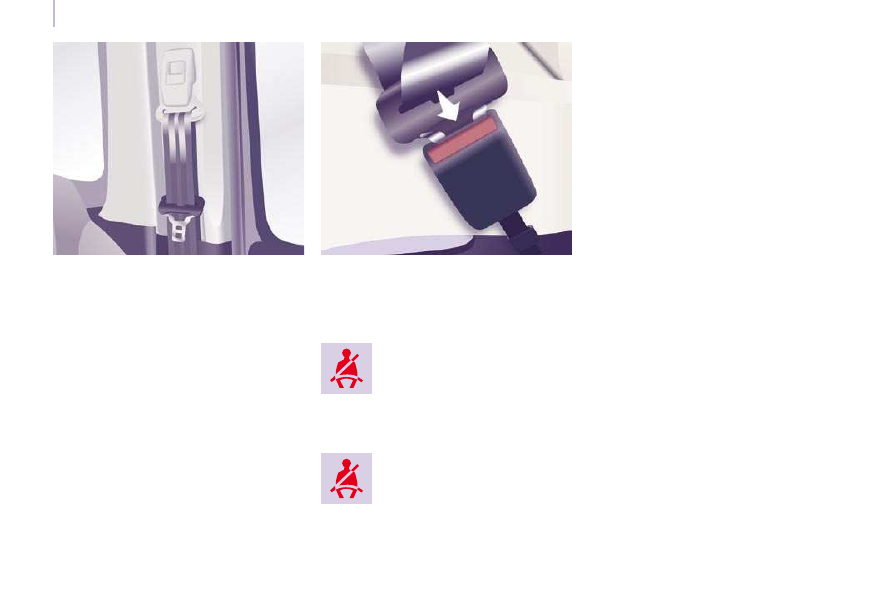

Fastening

Pull the strap, then insert the tongue into the
buckle.

Check that the seat belt is fastened correctly
by pulling the strap.

Driver's seat belt not fastened warning
light

Passenger seat belt not fastened warning
light

When the vehicle is started, this
warning light comes on if the
driver has not fastened his seat
belt.

If your vehicle is fitted with a front
passenger seat, when the vehicle
is started, this warning light
comes on if the passenger has not
fastened his seat belt.

Seat belts

The force limiter reduces the pressure of the
seat belt against the body of the occupants.

The pretensioning seat belts are active when
the ignition is switched on.

The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.

You can unfasten the seat belt by pressing
the red button on the buckle. Guide the seat
belt after unfastening.

The air bag warning light comes on if the
pretensioners are triggered. Consult a
CITROËN dealer.

In order to be effective, a seat belt must:

restrain one person only,

must not be twisted, check by pulling in
front of you with an even movement,

be tightened as close to the body as
possible.

The upper part of the seat belt should be
positioned in the hollow of the shoulder.

The lap part should be placed as low as
possible on the pelvis.

Do not invert the seat belt buckles as they will
not fulﬁ l their role completely. If the seats are

ﬁ tted with armrests, the lap part of the seat belt
should always pass under the armrest.

Recommendations for children:

use a suitable child seat if the
passenger is less than 12 years old or
shorter than one metre fifty,

never allow a child to travel on your lap,
even with the seat belt fastened.

FRONT SEAT BELTS

For further information regarding child
seats, refer to the "Children on board"
section of chapter 4.

In accordance with current safety
regulations, your CITROËN dealer
guarantees all work or any checks, from
testing to maintenance, on your seat belt
equipment.

Have the seat belts checked regularly
(even after a minor impact) by a CITROËN
dealer: they must not show any signs of
wear, cutting or fraying and they must not be
transformed or modified.

Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by CITROËN dealers.

With front air bags

The front seats are fitted with pretensioners
and force limiters.

Without front air bag

If your vehicle is fitted with a front bench
without front air bag, the centre passenger's
seat belt does not have a pretensioner.

With bench seat

If your vehicle is fitted with a front bench
seat, take care to fasten the correct seat belt
using the correct buckle. Do not invert the
driver's seat belt or buckle with the buckle or
seat belt of the centre seat.

Check that the seat belt is fastened correctly
by pulling the strap firmly.

Air bags

The air bags have been designed to
maximise the safety of the occupants in the
event of a serious collision; they work in
conjunction with the force limiting seat belts.

In the event of a serious collision, the
electronic detectors record and analyse the
front and side impacts suffered in the impact
detection zones:

in the event of a serious impact, the air
bags inflate instantly and protect the
occupants of the vehicle. Immediately
after the impact, the air bags deflate
rapidly, so that they do not hinder the
visibility of the occupants nor their
possible exit from the vehicle.

in the event of a minor or rear impact
and in certain roll-over conditions,
the air bags will not be deployed; the
seat belt alone is sufficient to provide
maximum protection in these situations.

The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact.

It is imperative that the passenger
air bag is disarmed if a child seat is

installed facing rearwards. Refer to the
"Children on board" section of chapter 4.

Air bags only operate when the
ignition is switched on.

AIR BAGS

This equipment only operates once. If a
second impact occurs (during the same or
a subsequent accident), the air bag will not
operate.

The triggering of an air bag or air bags
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.

This smoke is not harmful, but sensitive
individuals may experience some irritation.

The noise of the detonation may result in a
slight loss of hearing for a short time.

Air bags

Good practice

Sit in a normal upright position.

Wear a correctly adjusted seat belt.

Do not leave anything between the
occupants and the air bags (a child, pet,
object...). This could hamper the operation
of the air bags or injure the occupants.

After an accident or if the vehicle has been
stolen or broken into, have the air bag
systems checked.

All work on the air bag system is strictly
forbidden unless it is carried out by qualified
personnel of the CITROËN network.

Even if all of the precautions mentioned are
observed, a risk of injury or of minor burns
to the head, chest or arms when an air bag
is triggered cannot be ruled out. In fact, the
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.

Side air bags

Only put recommended covers on the seats.
These will not hinder inflation of the side air
bags. Consult a CITROËN dealer.

Do not fix or glue anything to the seat backs.
This could cause injury to the chest or arms
when the side air bag inflates.

Do not sit with the upper part of the body
any nearer to the door than necessary.

Front air bags

Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.

Do not allow passengers to place their feet
on the fascia, they risk serious injury if the
air bag is triggered.

Smoke as little as possible as deployment of
the air bags can cause burns or the risk of
injury from a cigarette or pipe.

Never remove or pierce the steering wheel
or hit it violently.

Air bags

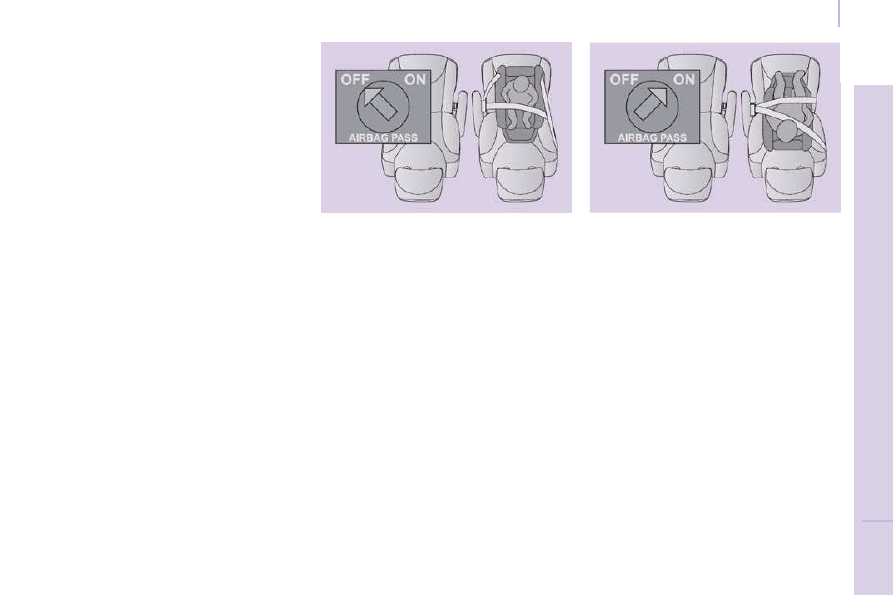

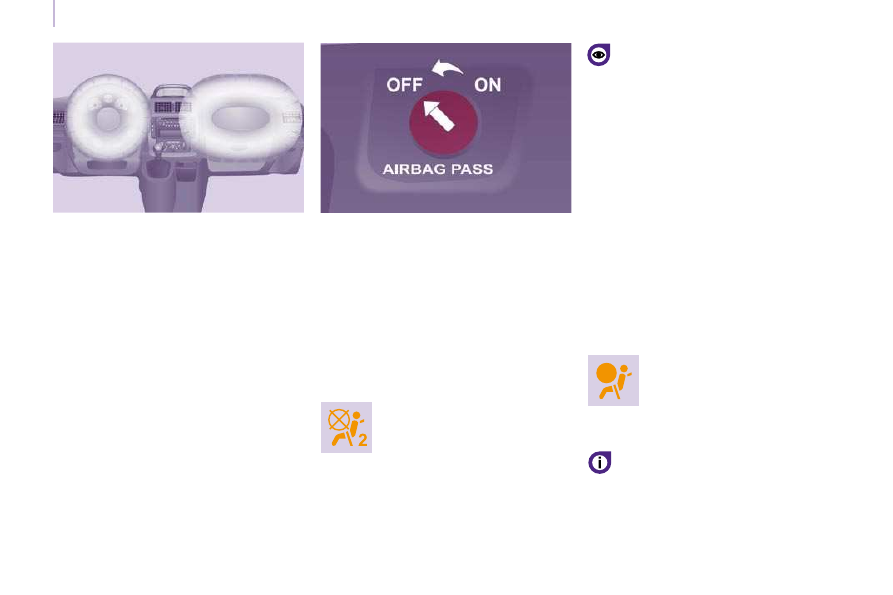

Disarming

The passenger's front air bag alone can be
disarmed:

With the ignition switched off , insert
the key into the passenger air bag
disarming switch,

turn it to the "OFF" position,

then remove the key keeping the slot in
this position.

Front air bags

The front air bags are incorporated in the
centre of the steering wheel for the driver
and in the fascia for the front passenger.

Reactivation

In the "OFF" position, the passenger air
bag will not be triggered in the event of an
impact.

As soon as the child seat is removed, turn
the air bag slot to the "ON" position to
re-activate the air bag and thus ensure the
safety of your passenger in the event of an
impact.

To ensure the safety of your child, it
is essential to disarm the passenger

air bag when you install a rear-facing child
seat on the front passenger seat. Otherwise,
the child would risk being killed or seriously
injured if the air bag were to inflate.

The air bag warning light on the
instrument panel is lit throughout
the period of disarming.

Activation

They are deployed simultaneously, unless the
passenger's front air bag has been disarmed,
in the event of a serious front impact applied
to all or part of the front impact zone A in the
longitudinal centreline of the vehicle on a
horizontal plane directed from the front towards
the rear of the vehicle.

The front air bag inflates between the front
occupant of the vehicle and the fascia to
cushion his forward movement.

If this warning light comes on,
accompanied by an audible signal
and a message on the display,
contact a CITROËN dealer to
have the system checked.

Front air bag fault

If the two air bag warning lights are lit
continuously, do not install a rear-

facing child seat. Consult a CITROËN
dealer.

Air bags

The air bags have been designed to
maximise the safety of the occupants in the
event of a serious collision; they work in
conjunction with the force limiting seat belts.

In the event of a serious collision, the
electronic detectors record and analyse the
front and side impacts suffered in the impact
detection zones:

in the event of a minor or rear impact
and in certain roll-over conditions,
the air bags will not be deployed; the
seat belt alone is sufficient to provide
maximum protection in these situations.

The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact.

It is imperative that the passenger
air bag is disarmed if a child seat is

installed facing rearwards. Refer to the
"Children on board" section of chapter 4.

Air bags only operate when the
ignition is switched on.

AIR BAGS

This equipment only operates once. If a
second impact occurs (during the same or
a subsequent accident), the air bag will not
operate.

The triggering of an air bag or air bags
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.

This smoke is not harmful, but sensitive
individuals may experience some irritation.

The noise of the detonation may result in a
slight loss of hearing for a short time.

Air bags

Good practice

Sit in a normal upright position.

Wear a correctly adjusted seat belt.

Do not leave anything between the
occupants and the air bags (a child, pet,
object...). This could hamper the operation
of the air bags or injure the occupants.

After an accident or if the vehicle has been
stolen or broken into, have the air bag
systems checked.

All work on the air bag system is strictly
forbidden unless it is carried out by qualified
personnel of the CITROËN network.

Side air bags

Only put recommended covers on the seats.
These will not hinder inflation of the side air
bags. Consult a CITROËN dealer.

Do not fix or glue anything to the seat backs.
This could cause injury to the chest or arms
when the side air bag inflates.

Do not sit with the upper part of the body
any nearer to the door than necessary.

Front air bags

Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.

Do not allow passengers to place their feet
on the fascia, they risk serious injury if the
air bag is triggered.

Smoke as little as possible as deployment of
the air bags can cause burns or the risk of
injury from a cigarette or pipe.

Never remove or pierce the steering wheel
or hit it violently.

Air bags

If this warning light comes
on on the instrument panel,
accompanied by an audible signal
and a message on the display,
contact a CITROËN dealer to

have the system checked. The air bags
may no longer be triggered in the event of a
serious impact.

Side air bags

If fitted on your vehicle, this is a system
which protects the driver and front
passenger in the event of a serious side
impact in order to limit the risk of injury to
the chest.

Each side air bag is incorporated in the front
seat back frame, on the door side.

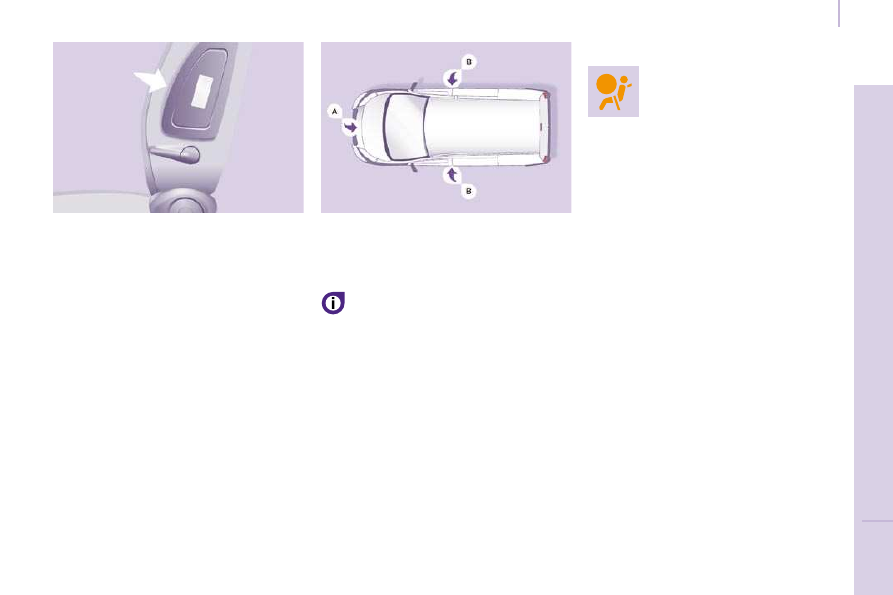

Impact detection zones

A. Front impact zone.

B. Side impact zone.

In the event of a minor impact or bump
on the side of the vehicle or if the

vehicle rolls over, the air bag may not be
triggered.

The air bag is not triggered in the event of a
rear or front collision.

Operating fault

Activation

It is triggered unilaterally in the event of a
serious side impact applied to all or part
of the side impact zone B , perpendicular
to the longitudinal centreline of the vehicle
on a horizontal plane and directed from the
outside towards the inside of the vehicle.

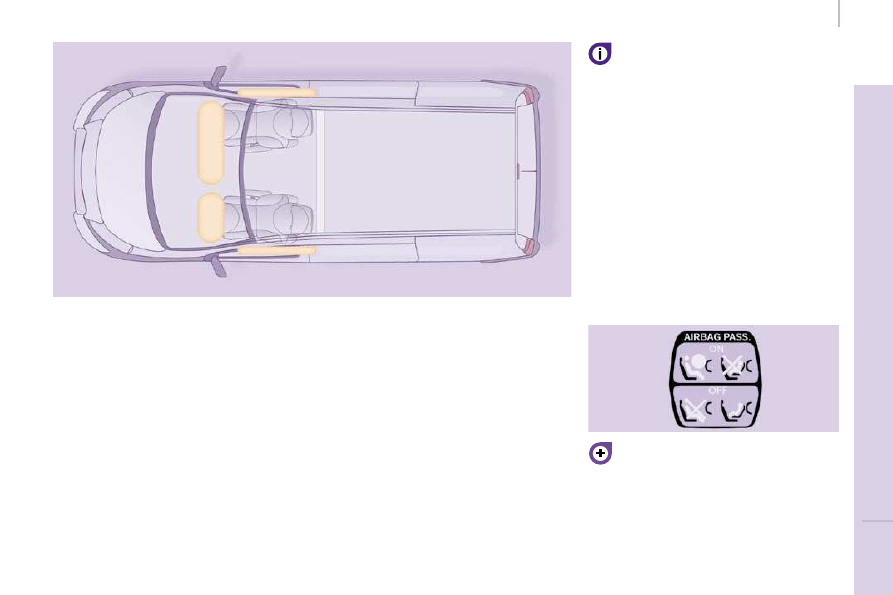

The side air bag inflates between the
front occupant of the vehicle and the
corresponding door trim pad.

Child safety

GENERAL POINTS RELATING TO
CHILD SEATS

"Rearwards-facing"

Recommended on the rear seats up to the
age of 2.

When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger air bag is
disarmed. Otherwise, the child would risk
being seriously injured or killed if the air bag
were to inflate.

"Forwards-facing"

Recommended on the rear seats over the
age of 2.

When a "forwards-facing" child seat is
installed on the front passenger seat, leave
the passenger air bag armed.

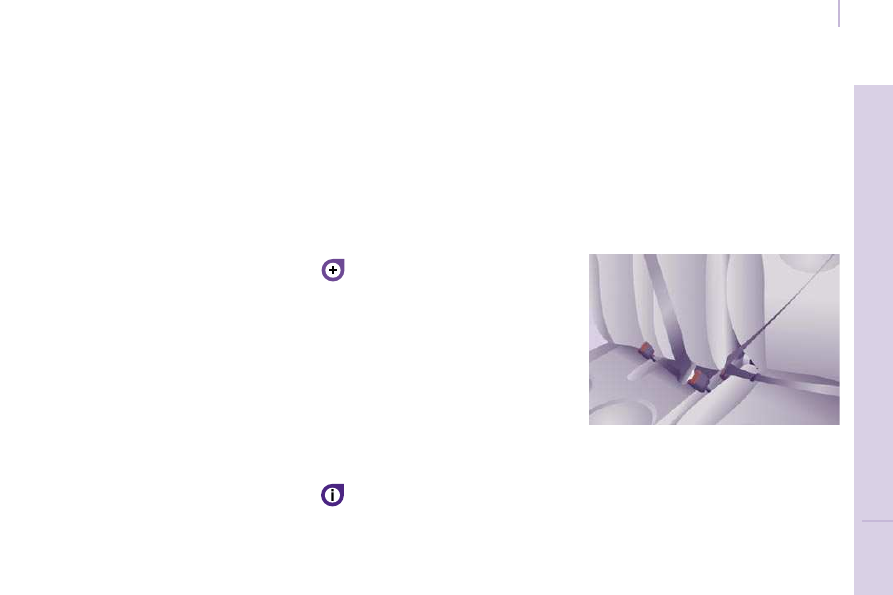

INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT

The rules for transporting children are
specific to each country. Consult the current
legislation in your country.

Please consult the list of seats approved
in your country. The isofix mountings, the
rear seats, the passenger air bag and the
disarming of this air bag depend on the
version sold.

Although one of CITROËN's main criteria
when designing your vehicle, the safety of
your children also depends on you.

For maximum safety, please follow these
precautions:

all children under the age of 12 or less
than one metre fifty tall must travel in
approved child seats suited to their
weight, on seats fitted with a seat belt or
ISOFIX mountings,

statistically, the safest seats in your
vehicle for the transportation of children
are the rear seats,

a child weighing less than 9 kg must
travel in the "rearwards-facing" position
both in the front and in the rear,

the passenger must not travel with a
child on his lap.

Child safety

UNIVERSAL CHILD SEATS RECOMMENDED BY CITROËN

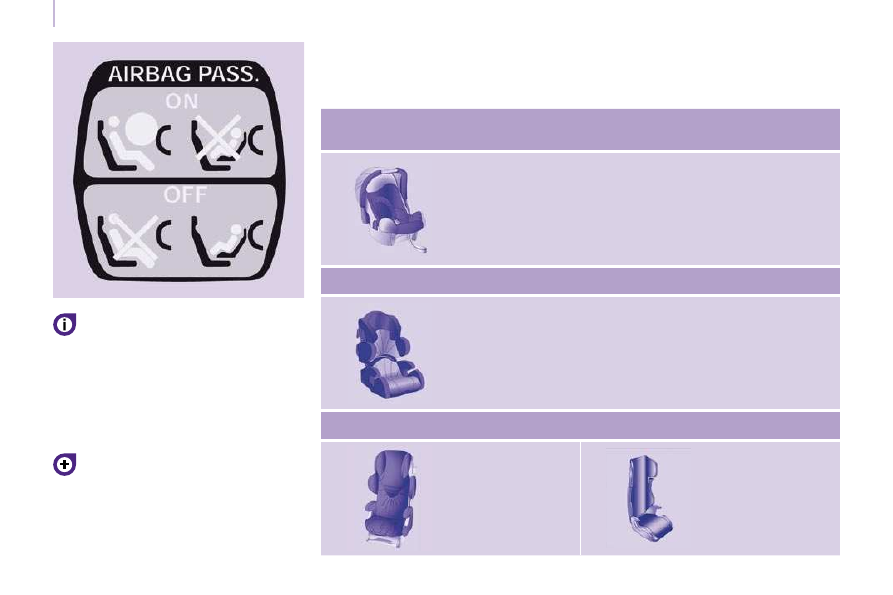

CITROËN offers a complete range of recommended child seats which are secured using a
three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

Use of the restraining cushion is

compulsory for the transportation of young

children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN Optima"

From the age of 6 years

(approximately 22 kg),
the booster is used on

its own.

The child seats function and the
passenger air bag disarming function

are common to the entire CITROËN range.

If the passenger air bag is not disarmed, the
installation of a "rearwards-facing" child seat
in the front is strictly prohibited.

Refer to chapter 4, "Air bags" section.

Citroen Jumpy Dag (2009 year). Manual - part 5
