Citroen Jumper Dag (2008 year). Manual

Battery

The batteries contain harmful
substances such as sulphuric acid and

lead. They must be discarded in accordance
with the provisions of the law and must not,
in any circumstances, be discarded with
household waste.

Take used batteries to a special collection
point.

It is advisable to disconnect the negative (-)
terminal of the battery if the vehicle is not to

be used for a period of more than one month.

Before disconnecting the battery, you must
wait for 2 minutes after switching off the
ignition.

Never disconnect a terminal when the
engine is running.

Never charge a battery without first
disconnecting the terminals.

Close the windows and doors before
disconnecting the battery.

After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight difficulties
are experienced after this, please contact a
CITROËN dealer.

If the battery has been disconnected
for some time, it may be necessary to
reinitialise the following functions:

the display parameters (date, time,
language, distance unit and temperature
unit),

the radio stations,

the central locking.

Some settings are cleared and must be
reprogrammed, consult a CITROËN dealer.

If your vehicle is fitted with a
chronotachograph or an alarm,
disconnection of the negative (-) terminal
of the battery (located under the floor on
the right-hand side) is recommended if the
vehicle is not to be used for a period of more
than 5 days.

ESH

Changing a wheel

1. PARKING THE VEHICLE

As far as possible, park the vehicle on level,
stable and non-slippery ground.

Apply the handbrake, switch off the ignition
and engage first gear.

If possible, place a chock under the
wheel diagonally opposite the wheel to be
changed.

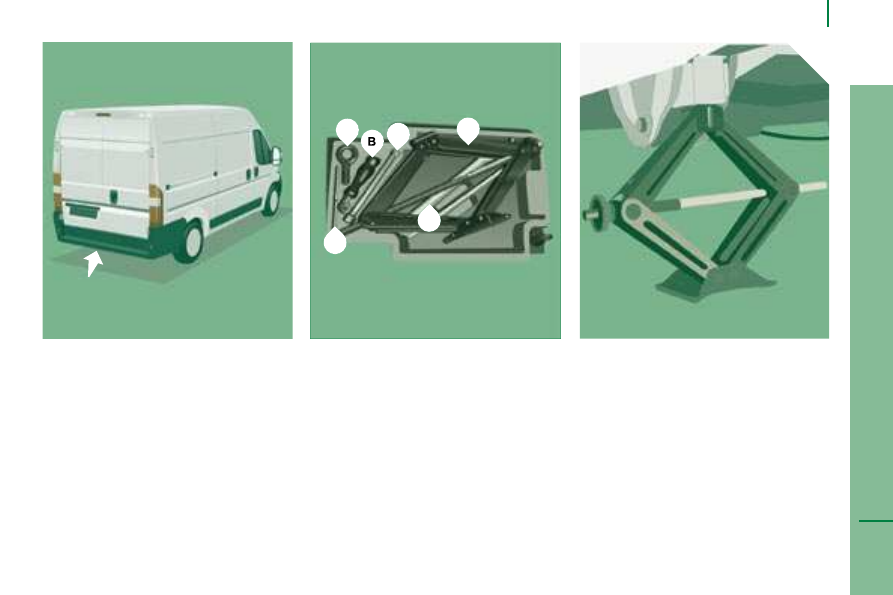

2. TOOLS

These are located under the front passenger
seat cushion.

Turn the button a quarter of a turn then
pull the box.

After use, press the button then turn it a
quarter of a turn to secure the box.

D. Towing hook.

E. Wheelbrace.

F. Screwdriver.

CHANGING A WHEEL

3. SPARE WHEEL

Chassis cab

The spare wheel retaining bolt is located on
the rear right side.

Turn the bolt using the socket A and the
wrench B to release the wheel.

A. Extended socket.

B. Ratchet wrench.

C. Jack.

Changing a wheel

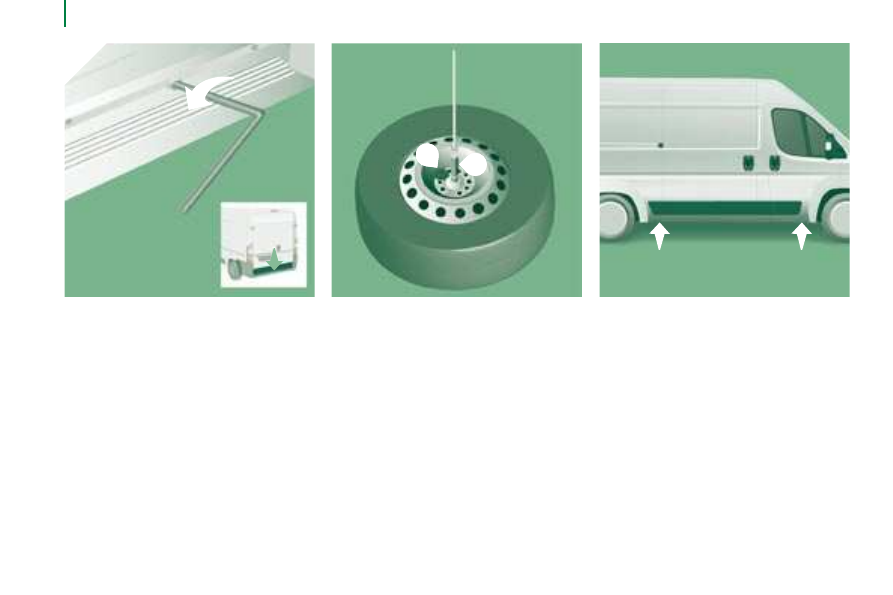

Van

The spare wheel retaining bolt is located on
the outer edge of the rear right floor.

Open the rear doors.

Unclip the protective cover.

Insert the socket A in the hole then
unscrew the bolt, using the ratchet
wrench B , to lower the wheel.

Take out the spare wheel using the
wrench.

Unscrew the handle G and remove the
support H .

Release the spare wheel and place it
near the wheel to be changed.

Position the jack C at one of the four
locations provided on the underframe
near the wheels.

4. OPERATING PROCEDURE

Remove the trim using the screwdriver F
as a lever.

Release the bolts using the wheelbrace E .

If you have a retractable sill, the jack must
be positioned at 45°.

Extend the jack using the ratchet wrench B
until the wheel is a few centimetres off
the ground.

Unscrew the bolts fully and change the
wheel.

ESH

Changing a wheel

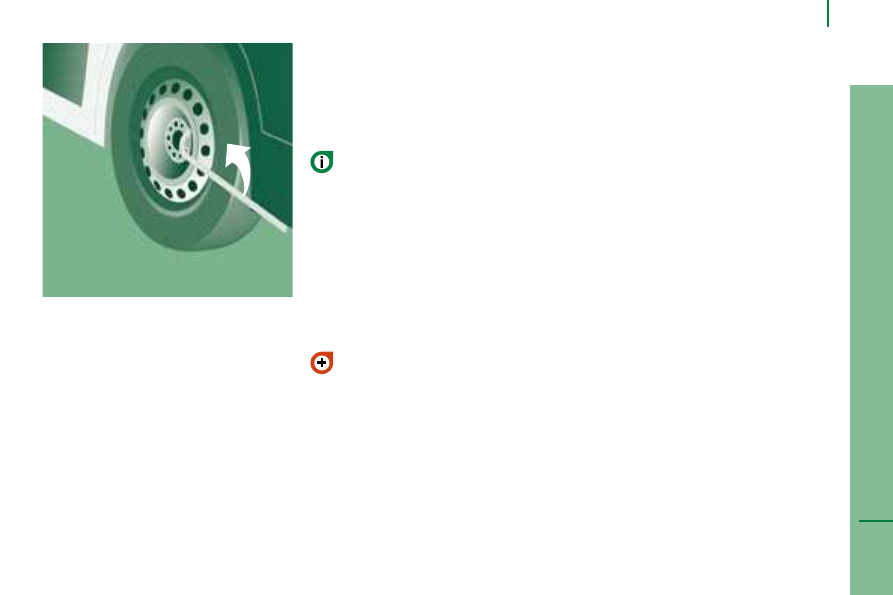

5. FITTING THE SPARE WHEEL

Put the wheel in place on the hub and
start screwing in the bolts by hand.

Carry out an initial tightening of the bolts
using the wheelbrace E .

Lower the vehicle completely by folding
the jack, then remove the jack.

Tighten the bolts again using the
wheelbrace E , tighten them fully without
forcing them.

Stow the wheel to be repaired at the
rear of the vehicle.

Hook the support H and screw in the
handle G .

Insert the socket A in the hole then
screw in the bolt, using the ratchet
wrench B , to raise the wheel.

Stow the tools and the trim.

   The spare wheel is not designed to be used
over long distances. Have the tightening of
the bolts and pressure of the spare wheel
checked by a  CITROËN  dealer without
delay.

   Also, have the original wheel repaired and
refitted by a  CITROËN  dealer as soon as
possible.

Never go underneath a vehicle
supported only by a jack (use an axle
stand).

6. REFITTING THE REPAIRED

WHEEL

Refitting of the wheel is identical to step 5,
do not forget to refit the wheel trim.

Refer to the "Identification features"
section of chapter 9 to locate the tyre
label.

Changing a wheel

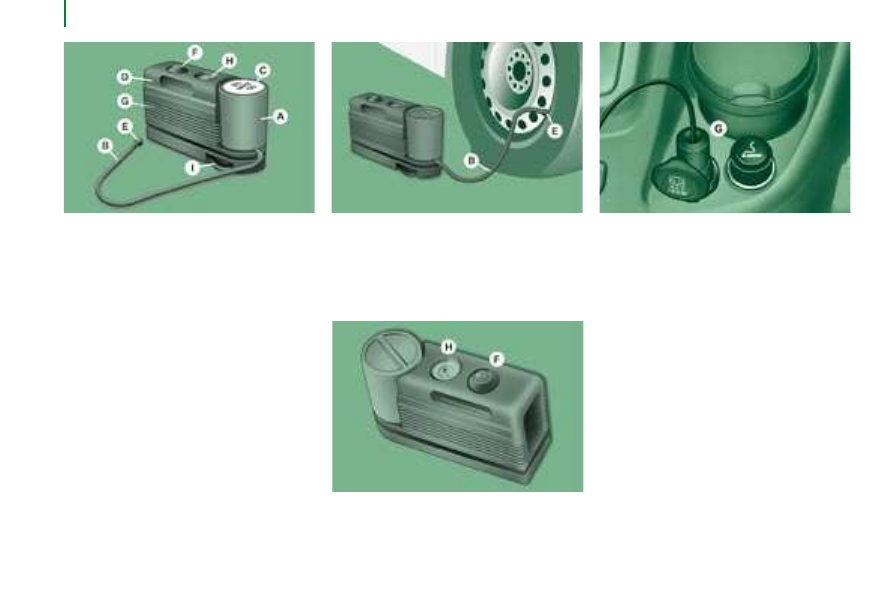

PUNCTURE REPAIR KIT

This kit is located at the front of the
passenger compartment.

It consists of:

a puncture repair cartridge A , containing
the filling fluid, equipped with:

a filling hose B ,
a sticker C indicating "max. 80 km/h",

which the driver must affix in full view
(on the fascia) after repairing the tyre,

a quick guide to use of the repair kit,

a compressor D equipped with a
pressure gauge and unions,

adaptors, for the inflation of various
items.

Procedure

Apply the handbrake. Unscrew the tyre
valve cap, remove the filling hose B and
screw the ring E onto the tyre valve,

start the engine,

insert the connector G into the nearest
power socket on the vehicle,

switch on the compressor by placing the
switch F in position I (on),

inflate the tyre to a pressure of 4 bars.

To obtain a more accurate reading, you are
advised to check the pressure value on the
pressure gauge H , with the compressor off.

check that the switch F on the
compressor is in position 0 (off),

ESH

Changing a wheel

If a pressure of at least 3 bars is not
reached within 5 minutes, disconnect
the compressor from the valve and the
power socket, then move the vehicle
forward by approximately 10 metres to
distribute the filling fluid inside the tyre.

Then repeat the inflating operation:

if a pressure of at least 3 bars is not

reached within 10 minutes, switch off
your vehicle: the tyre has suffered
too much damage and repair has not
been possible. Consult a CITROËN
dealer.

if the tyre has been inflated to a

pressure of 4 bars , set off again
immediately.

After driving for approximately 10 minutes,
stop and check the pressure of the tyre
again.

Adjust the pressure if necessary and contact
a CITROËN dealer as soon as possible.

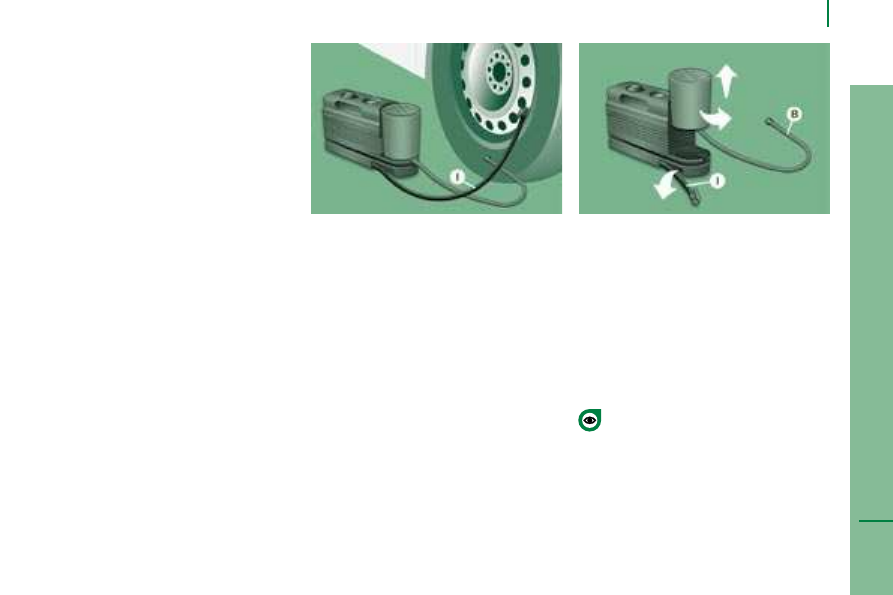

Checking and adjusting the pressure

The compressor can only be used to check
and adjust the pressure.

Disconnect the hose I and connect it to
the tyre valve directly; the cartridge will
then be connected to the compressor
and the filling fluid will not be injected.

If it is necessary to deflate the tyre, connect
the hose I to the tyre valve and press the
yellow button, placed in the centre of the
switch on the compressor.

Replacing the filling fluid cartridge

To replace the cartridge, carry out the
following operations:

disconnect the hose I ,

turn the cartridge to be replaced
anticlockwise and lift it,

insert the new cartridge and turn it
clockwise,

reconnect the hose I and connect the
hose B in its location.

The puncture repair gel cartridge contains
ethylene-glycol, a product which is harmful if

swallowed and which causes irritation to the eyes.

Keep out of reach of children.

After use, do not discard the cartridge in the
environment, take it to a CITROËN dealer or to
an organisation responsible for its collection.

This replacement kit is available from
CITROËN dealers.

Changing a bulb

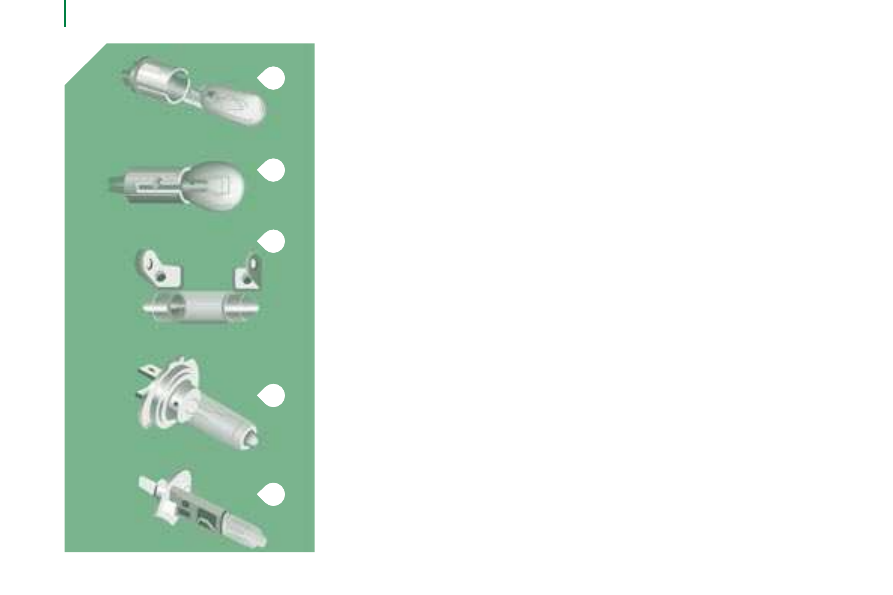

TYPES OF BULB

Various types of bulb are installed on your
vehicle. To remove them:

CHANGING A BULB

Type A Entirely glass bulb: pull gently

as it is fitted by pressure.

Type B Bayonet bulb: press on the bulb

then turn it anticlockwise.

Type C Cylindrical bulb: move aside the

contacts.

Type D - E Halogen bulb: release the

retaining spring from its
housing.

ESH

Changing a bulb

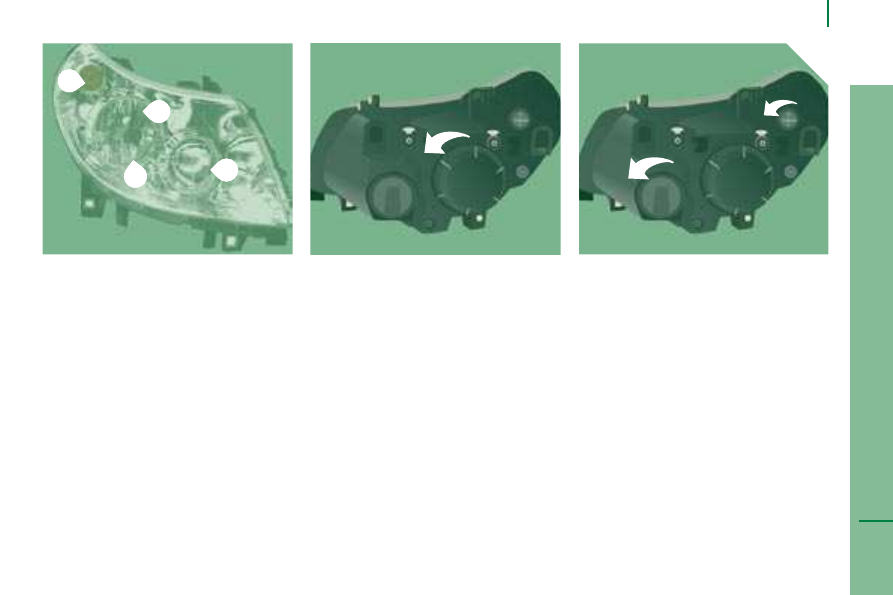

FRONT LIGHTS

Open the bonnet. To access the bulbs, reach
behind the headlamp unit.

Carry out the operations in reverse order to
refit each bulb.

1 - Dipped headlamp

Type D, H7 - 55 W

Remove the cover by turning it
anticlockwise.

Disconnect the electrical connector.

Release the retaining spring by pressing
on the two clips.

Change the bulb taking care to align the
metal part with the grooves on the light.

3 - Main beam headlamp

Type E, H1 - 55 W

Remove the cover by turning it
anticlockwise.

Disconnect the electrical connector.

Release the retaining spring by pressing
on the two clips.

Change the bulb taking care to align the
metal part with the groove on the light.

2 - Side light

Type A, W 5 W - 5 W

Remove the cover by turning it
anticlockwise.

Remove the bulb holder fitted by
pressure.

Change the bulb.

4 - Direction indicators

Type B, PY 21 W - 21 W

Turn the bulb holder a quarter turn
anticlockwise.

Changing a bulb

Remove the bulb by pressing it lightly
while turning it anticlockwise.

Change the bulb.

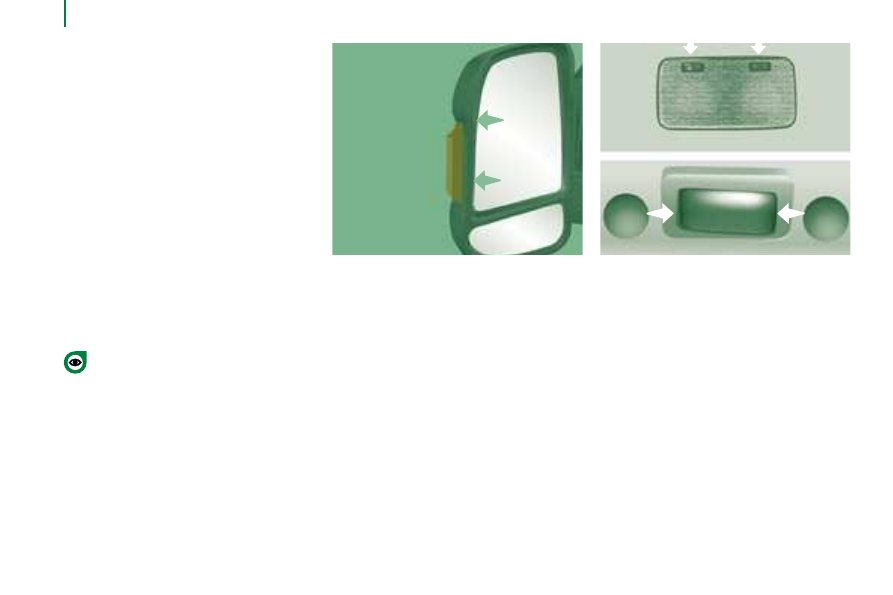

DIRECTION INDICATOR SIDE
REPEATER

Type A, W 16 WF - 16 W

Move the mirror glass to access the
screws.

Unscrew the two screws using the
screwdriver supplied.

Pull the bulb holder to release it from the
dog points.

Pull the bulb then change it.

Front/Rear

5 - Fog lamps

Type D, H1 - 55 W

Turn the steering fully to the left.

Unscrew the screw located in the wheel
arch then open the flap.

Remove the cover.

Disconnect the electrical connector.

Release the retaining spring by pressing
on the two clips.

Change the bulb taking care to align the
metal part with the grooves on the light.

Halogen bulbs must b e changed after
the headlamp has been off for several

minutes (risk of serious burns). Do not touch
the bulb directly with your ﬁ ngers, use lint-free
cloths.

When each operation has been completed,
check the operation of the lights.

When using a high pressure washer
on stubborn dirt, do not persist on the
headlamps, the lights and their periphery to
avoid damaging their varnish and seal.

COURTESY LIGHTS

Type C, 12 V 10 W - 10 W

Press the points, indicated by the
arrows, then remove the courtesy light.

Open the protective flap.

Change the bulb moving aside the two
contacts.

Ensure that the new bulbs are secured
correctly between the two contacts.

Close the protective flap.

Fix the courtesy light in its housing and
ensure that it is secured correctly.

ESH

Changing a bulb

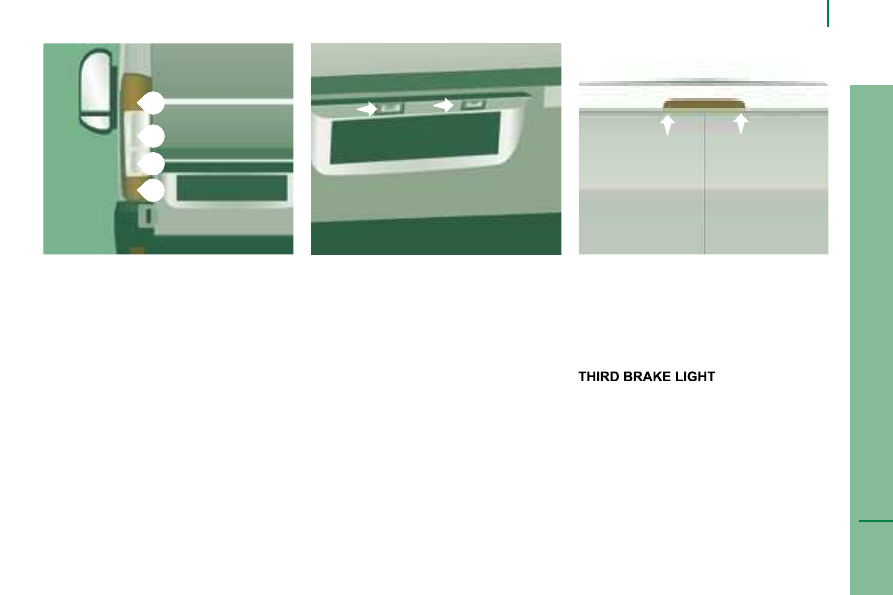

REAR LIGHTS

For further information concerning the bulbs,
refer to the table "Types of bulb".

Remove the two fixing nuts.

Pull the lens block from the outside.

Unscrew the three screws using the
screwdriver supplied (under the front
passenger seat) and extract the bulb
holder.

Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

Change the bulb.

1. Brake/side lights

Type B, P 21/5 W - 5 W

Type B, W 5 W - 5 W

Unscrew the two screws.

Remove the light.

Remove the bulb holder moving aside
the two tabs.

Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

Change the bulb.

2. Direction indicators

Type B, PY 21 W - 21 W

3. Reversing lights

Type B, P 21 W - 21 W

4. Fog lamps

Type B, P 21 W - 21 W

Identify the faulty bulb then open the
rear doors.

Disconnect the electrical connector.

NUMBER PLATE LIGHTS

Type A, C 5 W - 5 W

Press the point, indicated by the arrow,
then remove the plastic lens.

Change the bulb by moving aside the
two contacts.

Ensure that the new bulbs are secured
correctly between the two contacts.

Replace the plastic lens and press on it.

Changing a fuse

The three fuse boxes are placed on the
fascia panel on the driver's side, in the
passenger pillar and in the engine.

The pliers are secured to the fuse box on
the driver's side.

Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.

- Use the pliers.

Always replace a faulty fuse with a fuse
of the same rating.

CHANGING A FUSE

CITROËN does not accept any
responsibility for expenses incurred

by repairs to your vehicle or for any
malfunctions resulting from the installation
of additional accessories which are not
supplied or recommended by CITROËN
and which are not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.

ESH

Changing a fuse

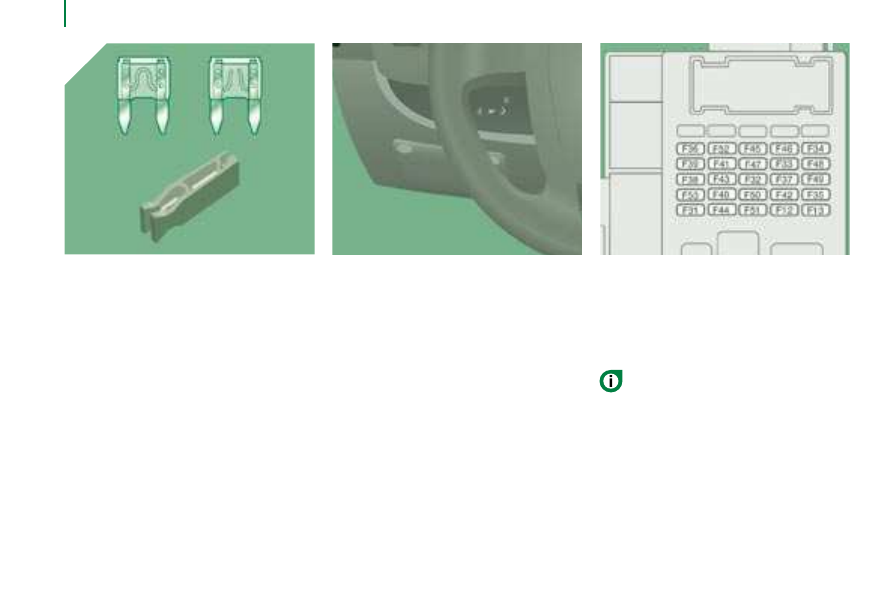

DRIVER'S SIDE FASCIA PANEL FUSES

- Remove the bolts and tilt the box to access the fuses.

Fuses

A (amps)

Allocation

7.5

Right-hand dipped headlamp

7.5

Left-hand dipped headlamp - Headlamp height adjuster

7.5

Relay supply

Minibus interior lighting - Hazard warning lights

Rear 12 V socket

Not used

7.5

Reversing lights - Water in diesel sensor

Door locking/unlocking unit

Brake lights switch - Third brake light - Instrument panel

Interior relays

Audio equipment - Diagnostics socket - Alarm siren - Programmable additional heating controls -
Air conditioning controls - Chronotachograph

De-icing: rear screen (left-hand side), mirror (driver's side)

De-icing: rear screen (right-hand side), mirror (passenger side)

7.5

ABS control unit and sensor - ESP sensor - Brake lights switch

Windscreen wiper motor

7.5

Electric window and mirror switches (driver's side) - Passenger electric window

Not used

Driver's electric window motor

Passenger electric window motor

7.5

Rain/brightness sensor - Audio equipment - Driver's electric window motor - Alarm -

Instrument panel controls

7.5

Air bags and pre-tensioners unit

7.5

Chronotachograph - Cruise control - Air conditioning controls

7.5

Passenger compartment relays

7.5

Instrument panel - Rear fog lamps

Changing a fuse

Fuses A

A (amps)

Allocation

Not used

Heated seats

Rear 12 V socket - Lighter

Ventilation/heating motor under the driver's seat

Direction indicators

Not used

Programmable additional heating switch

Not used

Rear blower

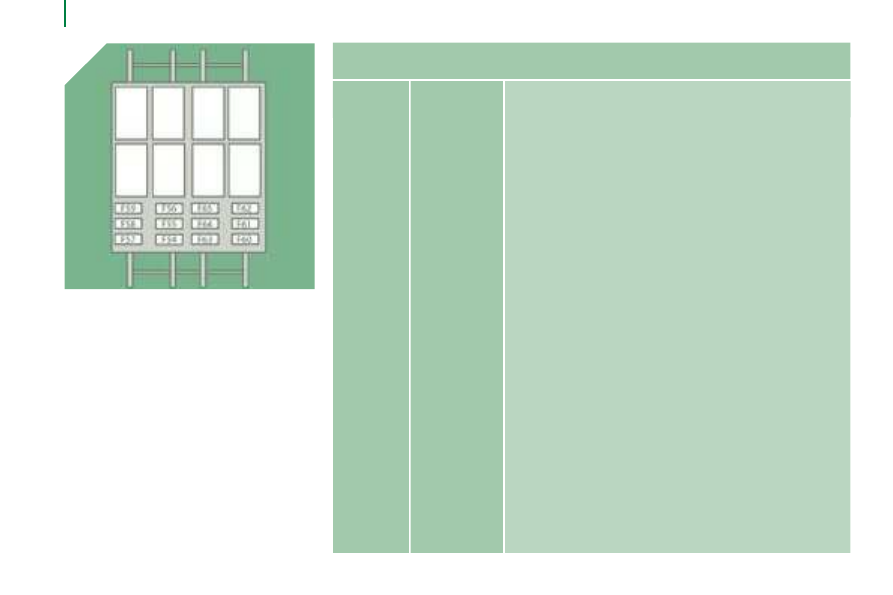

PASSENGER PILLAR FUSES

- Unclip the cover

When you have finished, close the cover
carefully.

ESH

Changing a fuse

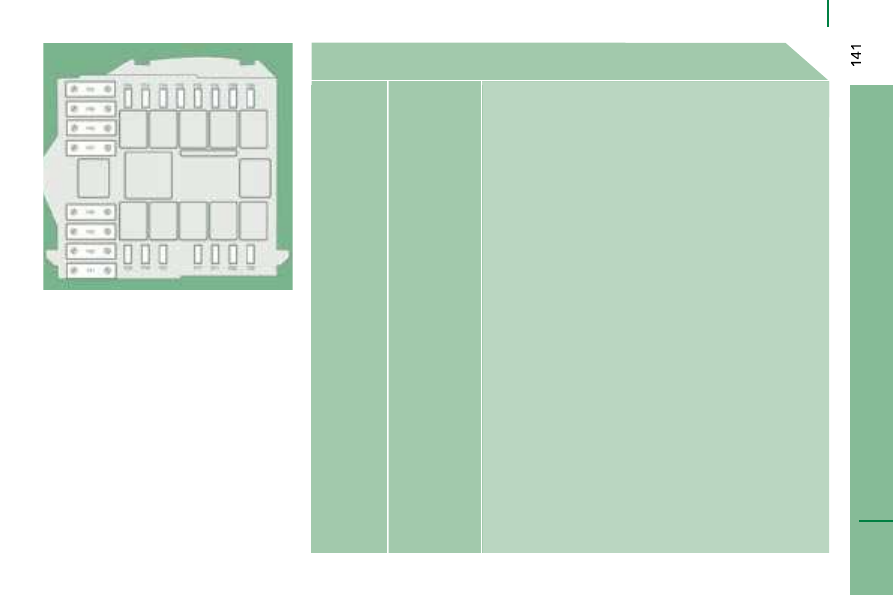

FUSES IN THE ENGINE

- Remove the nuts and tilt the box to access

the fuses.

Fuses

A (amps)

Allocation

ABS/ESP pump supply

Diesel pre-heat unit

Ignition switch

Programmable additional heating burner

Programmable additional heating controls relay

40/60

Fan assembly (high speed)

40/50

Fan assembly (low speed)

Air conditioning

Windscreen wash pump

Horn

Diesel pre-heat unit and relay

7.5

Right-hand main beam headlamp

7.5

Left-hand main beam headlamp

7.5

Engine control unit

7.5

Engine control unit

7.5

Air conditioning compressor

Headlamp wash pump

Fuel pump supply

Engine control unit

ABS/ESP solenoid valves supply

Not used

Front fog lamps

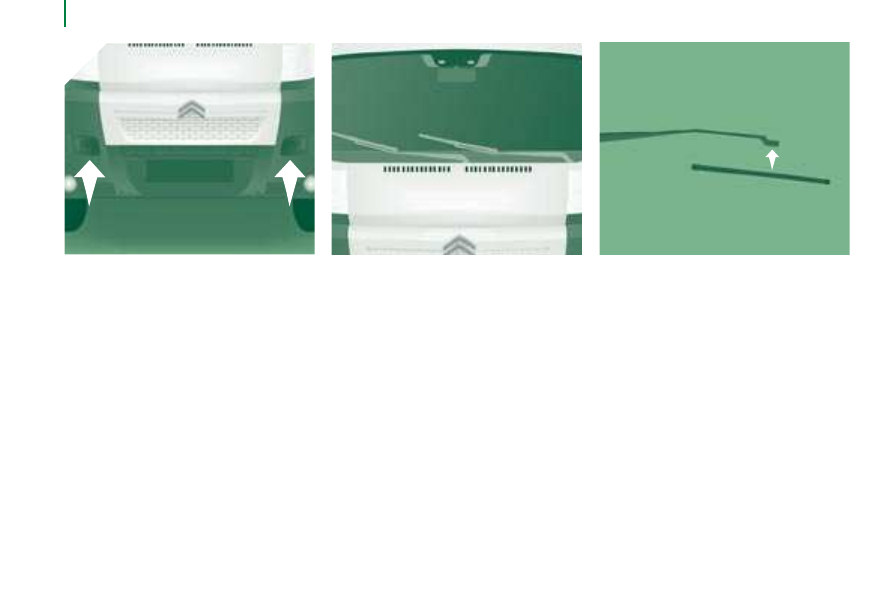

CHANGING A WIPER
BLADE

The sills, located in the lower front panel,
enable you to access the blades and the
wash-wipe nozzles.

Changing a front wiper blade

Lift the wiper arm.

Unclip the blade by pressing the button and
remove it by pulling it outwards.

Fit the new blade and ensure that it is
secured correctly.

Push back the wiper arm.

Changing the rear wiper blade

Lift the wiper arm, then unclip the blade and
remove it.

Fit the new blade and push back the wiper arm.

To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wipers stalk.

Check that the wash-wipe or headlamp wash
nozzles are not blocked.

Changing a wiper blade

ESH

Having your vehicle towed

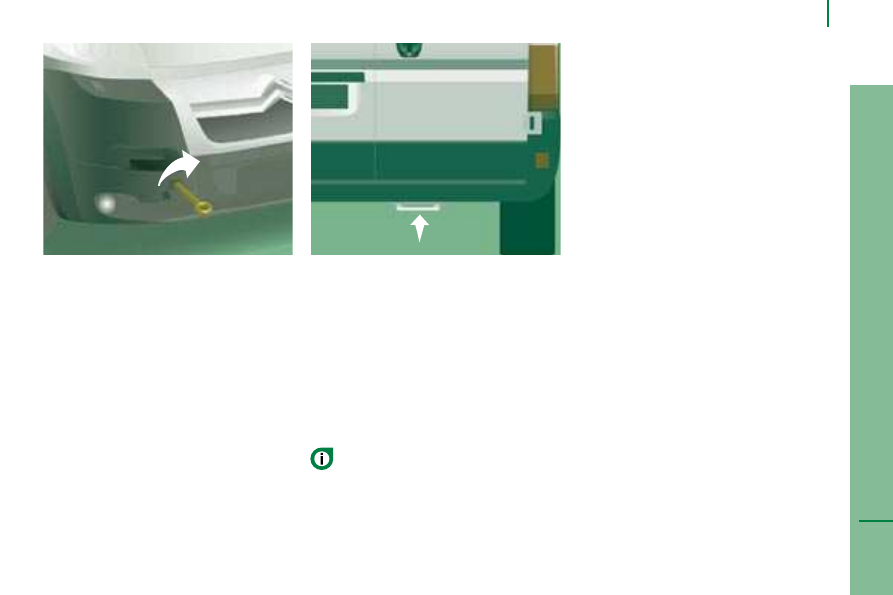

BEING TOWED

Without lifting
(four wheels on the ground)

You must always use a towbar.

From the rear

Hook the bar onto the rigid eye located
under the bumper.

From the front

The removable towing eye is located in the
box under the front passenger seat.

Unclip the cover using a flat tool.

Screw the removable towing eye in fully.

Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started.

With lifting
(2 wheels only on the ground)

It is preferable to lift the vehicle using
professional lifting equipment.

When being towed with the engine
off, there is no braking or steering
assistance.

Citroen Jumper Dag (2008 year). Manual - part 9
