Citroen C2 (2008 year). Manual

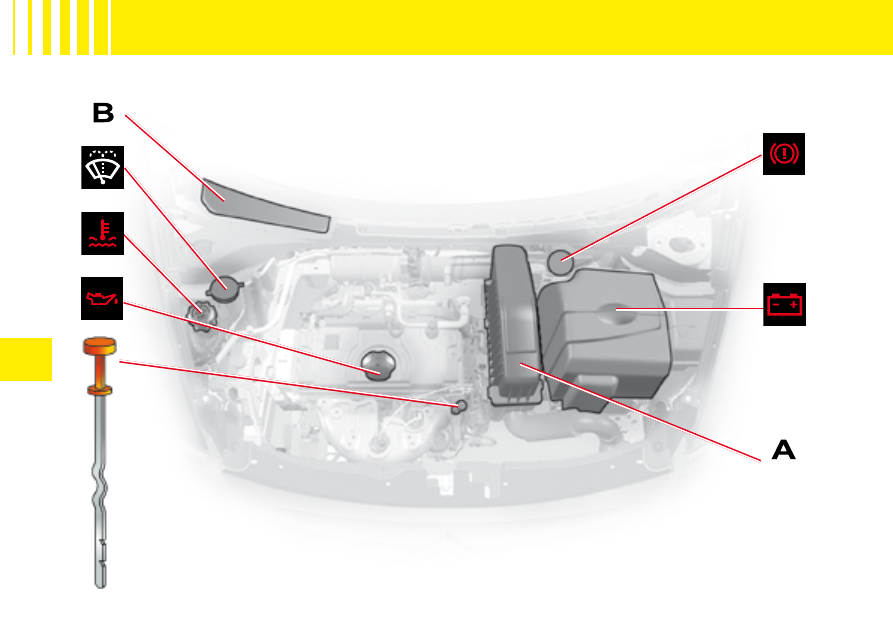

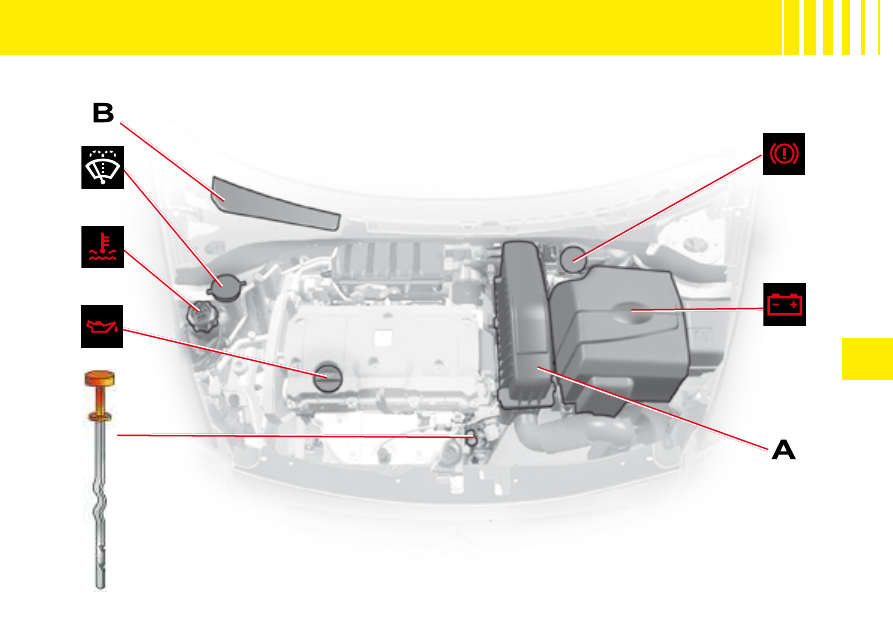

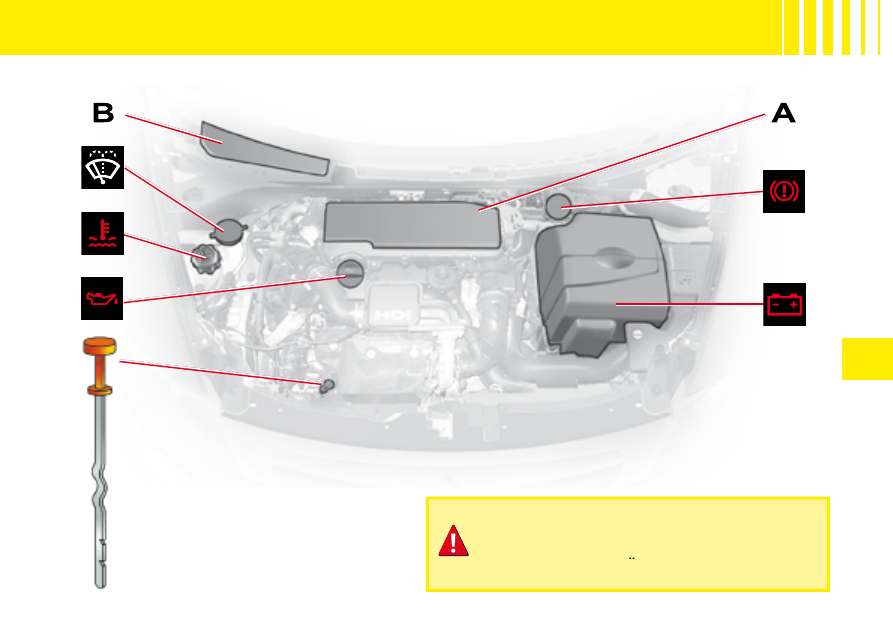

H D i 7 0 E N G I N E

The diesel fuel circuit being
under high pressure:
ANY INTERVENTION ON THE
CIRCUIT IS PROHIBITED.

H D i e n g i n e s a r e t h e r e s u l t o f a d v a n c e d
technology.
Any intervention requires special qualiﬁ cations

which only a CITROËN dealer can guarantee.

Any intervention requires special qualiﬁ cations

100

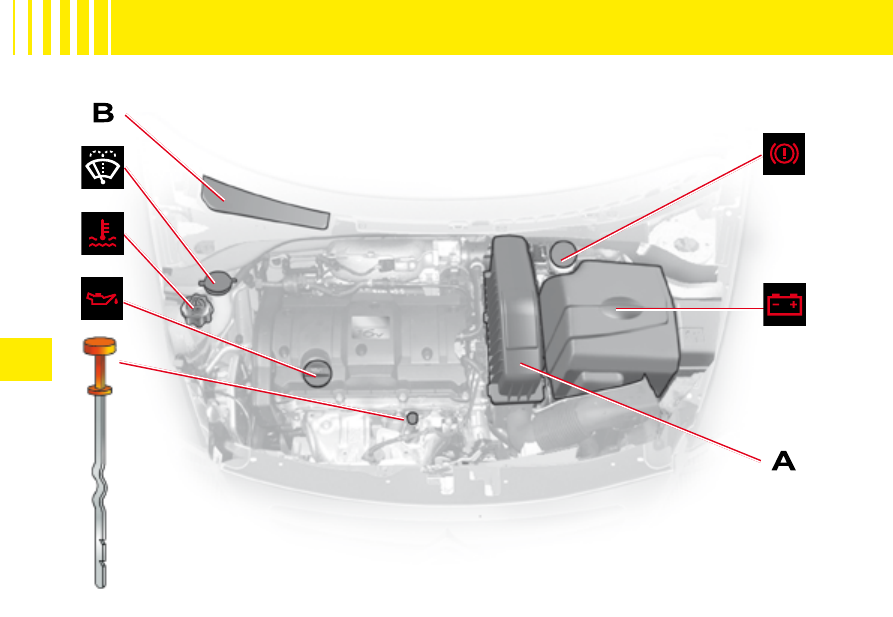

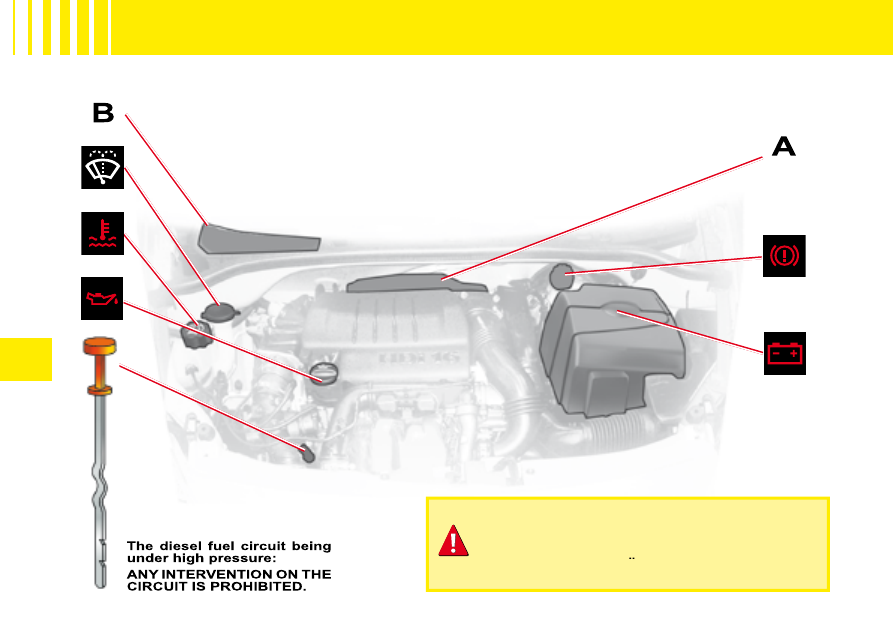

1 . 6 H D i 1 1 0 h p E N G I N E

H D i e n g i n e s a r e t h e r e s u l t o f a d v a n c e d
technology.
Any intervention requires special qualiﬁ cations

which only a CITROËN dealer can guarantee.

Any intervention requires special qualiﬁ cations

102

HDi 70 engine

1.6 HDi engine

HDi engines are the result of advanced technology.
Any intervention requires special qualiﬁ cations which only a

CITROËN dealer can guarantee.

Any intervention requires special qualiﬁ cations which only a

D I E S E L I N J E C T I O N E Q U I P M E N T

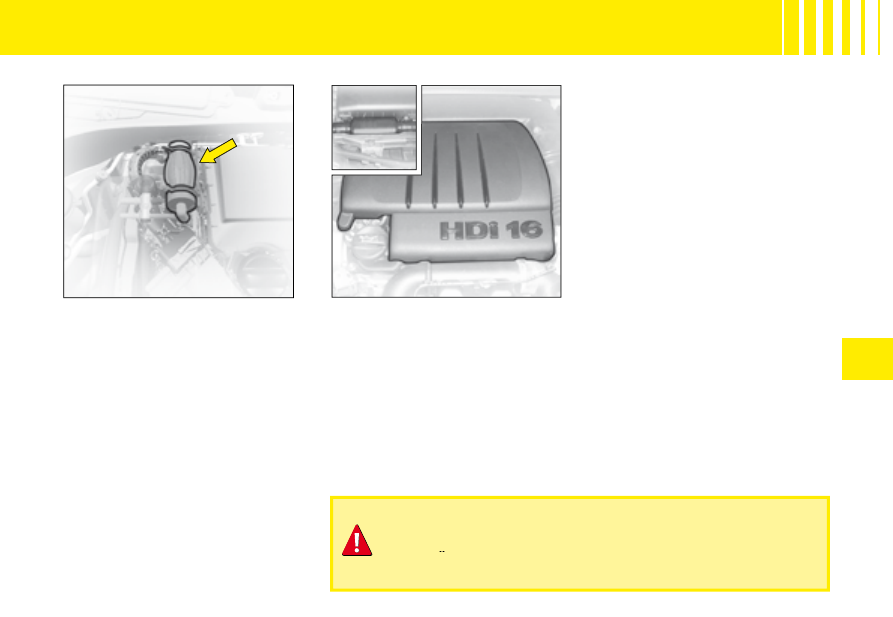

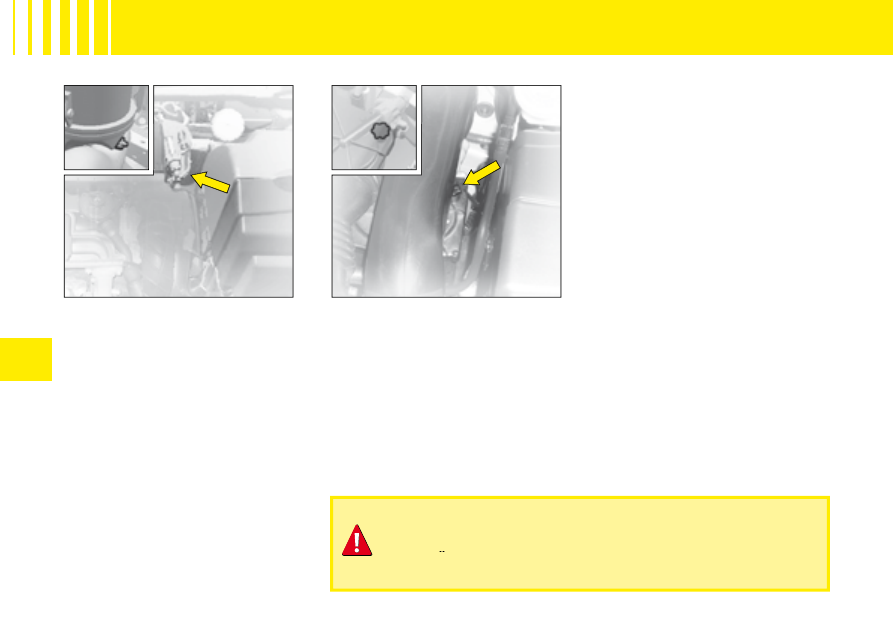

Draining water from the fuel

ﬁ lter

Purge regularly (at each oil change).
To drain the water, slacken the
bleed screw or the water-in-diesel-
fuel sensor located at the base of

the ﬁ lter.
Operate until the water has com-
pletely drained away.
Then retighten the bleed screw or
the water in diesel fuel sensor.

103

HDi 70 engine

1.6 HDi engine

Detach the protection cover to
access the priming pump.

HDi engines are the result of advanced technology.
Any intervention requires special qualiﬁ cations which only a

CITROËN dealer can guarantee.

Any intervention requires special qualiﬁ cations which only a

D I E S E L I N J E C T I O N E Q U I P M E N T

Priming the fuel system

In the event of running out of fuel:

After ﬁ lling (5 litres minimum),

operate the manual priming
pump until some resistance is
felt.
Operate the starter motor while
depressing the accelerator
pedal slightly until the engine
starts.

If the engine fails to start at the ﬁ rst

attempt, wait 15 seconds before
trying again.
If the engine fails to start after sev-
eral attempts, repeat the procedure
from the beginning.
When the engine is idling, accelerate
slightly to complete the bleeding of
the circuit.

•

104

C A P A C I T I E S

Engine type

Engine oil capacities (in litres)

(1)

1.1i engine

3.2

1.4i engine

3.2

1.6i 16V 110 ch engine

3.2

1.6i 16V 125 ch engine

3.2

HDi 70 engine

3.8

1.6 HDi 110 ch engine

3.75

(1)

Drain, reﬁ ll and replace oil ﬁ lter.

Screen wash ﬂ uid (in litres)

3.5

Screen and headlamp wash ﬂ uid

(in litres)

105

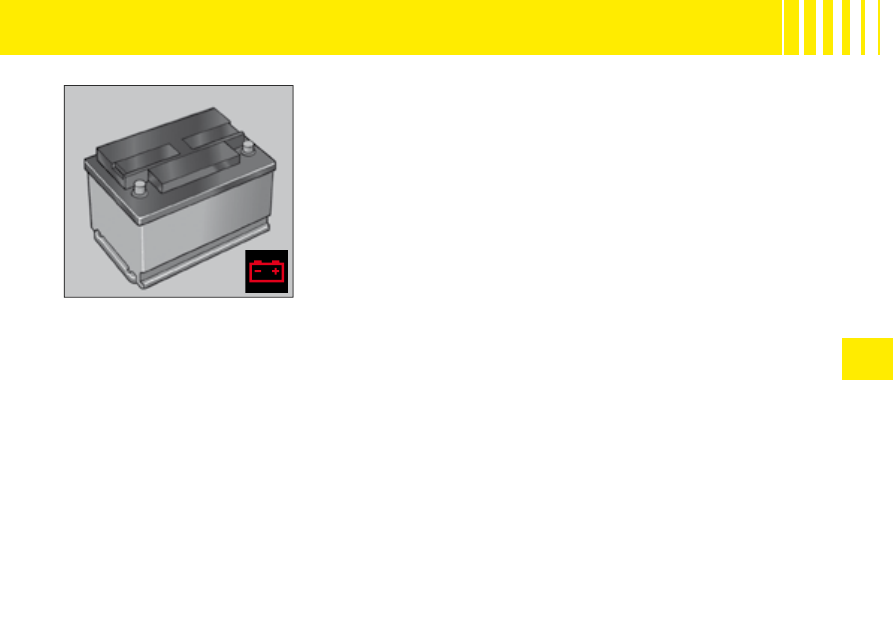

Starting the engine after disconnecting and reconnecting
the battery

Turn the ignition key.
Wait approximately 1 minute before operating the starter in order to
allow the electronic systems to re-initialise. It may be necessary to
enter the radio code.

•
•

After the battery has been disconnected for a lengthy period of time, it may be necessary to re-initialise the following
functions:

Anti-pinch and sequential operation on the electric windows.
The multifunction display parameters (date, time, language, units of distance and of temperature).
The Radio stations.
Electronic Gearbox System: See Electronic Gearbox System (REINITIALISATION).

•
•
•
•

1 2 V B A T T E R Y

106

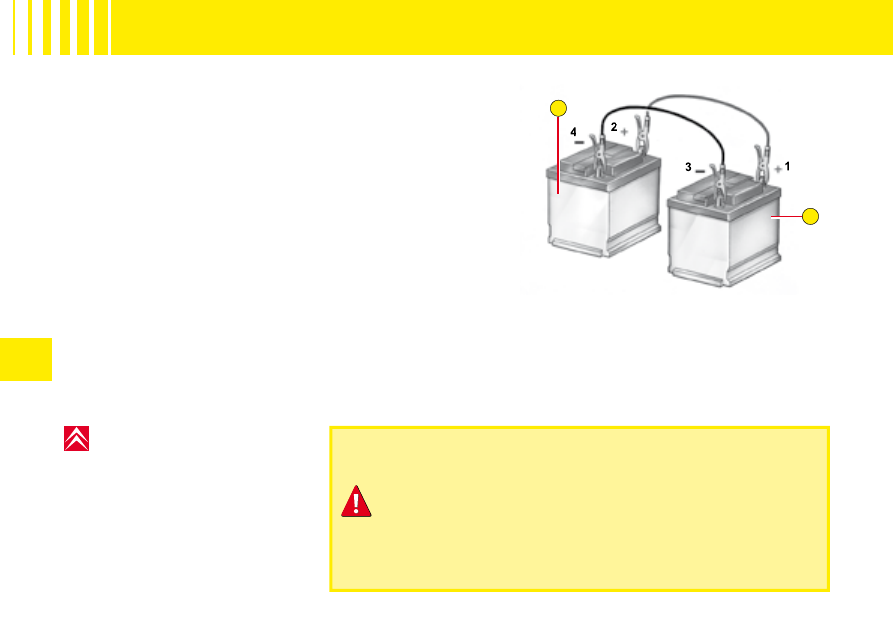

Starting the engine with an assisting battery

If the battery is discharged, it is possible to use either a separate
emergency battery or a battery on another vehicle.
A. Dischargedbattery (Under the bonnet).
B. Assisting battery.

Check that the assisting battery has sufﬁ cient voltage (12 V).
If you use the battery on another vehicle, stop the engine on the
latter. The two vehicles must not come into direct contact with
each other.
Connect the cables according to the order indicated in the

order

diagram. Check that the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for
around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indicated sequence correctly.

Never approach with a ﬂ ame or create sparks in the vicinity

of the battery (explosive gas).
The battery contains dilute sulphuric acid which is highly
corrosive.
When handling batteries, always protect your face and
especially your eyes.
In the event of any contact with the skin, rinse immediately
with copious amounts of fresh water.

Advice

Do not touch the leads during
the operation.

Do not lean over the batteries.
Disconnect the cables in reverse
order, making sure they do not
touch together.

1 2 V B A T T E R Y

107

F U S E S

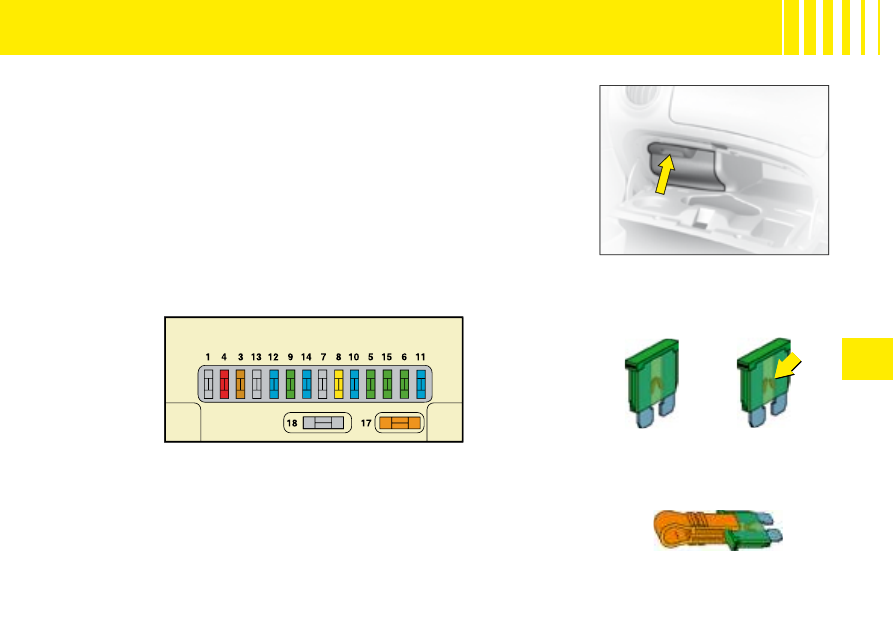

Fuseboxes

There are two fuse boxes, one below the dashboard and one under the
bonnet.

Dashboard fuses

The fuse box is located in the lower glovebox compartment.
To access the fuses, open the glove box, pull the handle on the fuse box
cover.

Replacing a fuse

Before replacing a fuse, you should ascertain the cause of the fault and
have it remedied. The numbers of the fuses are indicated on the fusebox.

Good

Bad

Pliers A

Replace the fuse that has blown with one of the same rating (same
colour).
Use the special pliers A stowed on the cover close to the fuseboxes, this
includes a compartment for replacement fuses.

108

T A B L E O F F U S E S

D A S H B O A R D F U S E S

Ref.

Rating

Function

5 A

Airbags

10 A

Diagnostic socket – Particle ﬁ lter additive – Clutch switch – Steering angle sensor

30 A

–

30 A

Screen wash

20 A

Digital clock – Controls at the steering wheel – Radio – Display

30 A

Cigar-lighter – Digital clock – Interior lamps – Vanity mirror

15 A

Alarm

15 A

Ignition switch – Diagnostic socket

15 A

Airbag ECU – Rain and brightness sensor

15 A

Parking assistance – Instrument panel – Air conditioning – Bluetooth

telephone

30 A

Central locking – Deadlocking

40 A

Demisting - deicing of the rear screen

SHUNT

CUSTOMER PARK SHUNT

109

F U S E S

Any action on the MAXI fuses (that give extra protection) (in
grey in the diagrams), located in the fuseboxes, should be left
to a CITROËN dealer.

grey in the diagrams), l

the dia

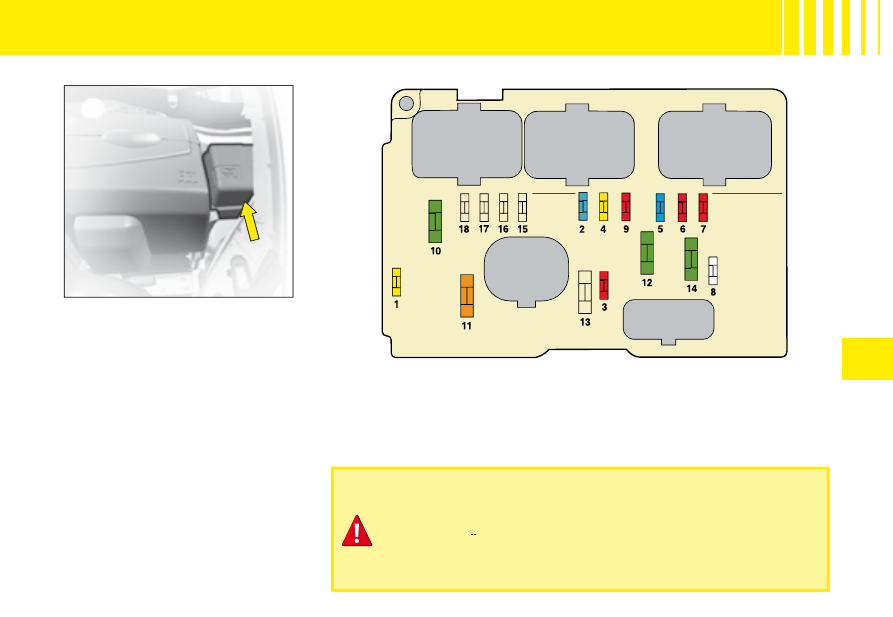

Fusebox

To  access  the  fusebox  located  in
the  engine  compartment,  remove
the  battery  cover  and  detach  the
lid.
After  a  repair,  take  care  to
reclose the cover.

Fuses under the bonnet

110

T A B L E O F F U S E S

F U S E S U N D E R T H E B O N N E T

Ref.

Rating

Function

20 A

Water-in-diesel-fuel sensor

15 A

Horn

10 A

Screen wash

20 A

Headlamp wash

15 A

Fuel pump

10 A

Power steering

10 A

Coolant level sensor

25 A

Starter

10 A

ECUs (ABS, ESP)

30 A

Engine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge

40 A

Air blower

30 A

Windscreen wiper

30 A

Air pump (petrol version) – Diesel fuel heater

111

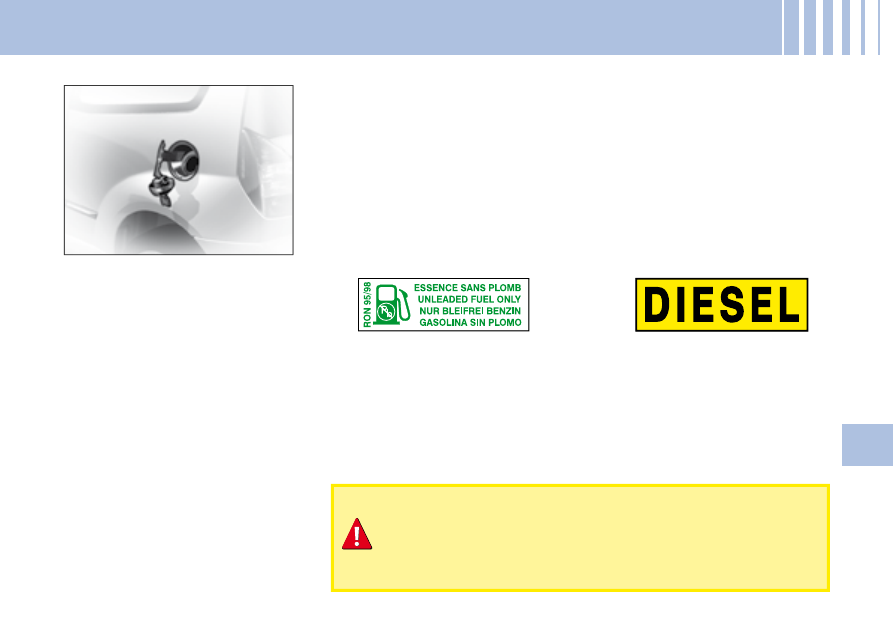

R E F U E L L I N G

To open the ﬂ ap, pull at the edge.

Locking ﬁ ller cap

Turn the key a quarter turn to lock

and unlock the ﬁ ller cap.
When refuelling, place the cap in

the support provided on the inside

of the ﬁ ller ﬂ ap.
For a petrol engine with a cata-

lytic converter, unleaded fuel is

compulsory.

The ﬁ ller neck is narrower to

ensure that only unleaded petrol

can be put in.

When you are seeking to ﬁ ll your tank, do not persist after the third

cut-off ; that could cause your vehicle to malfunction.

Fuel tank capacity (in litres): Approx. 41.

If you should put in fuel that is not suitable for your vehicle's

engine type, it is imperative to have the tank drained before

you start the engine again.

FUEL QUALITY

A label inside the ﬁ ller ﬂ ap tells you which type of fuel to use.

UNLEADED PETROL

DIESEL FUEL

The petrol engines are designed to run on RON 95.
However, for better performance (petrol engine), we recommend RON 98.

112

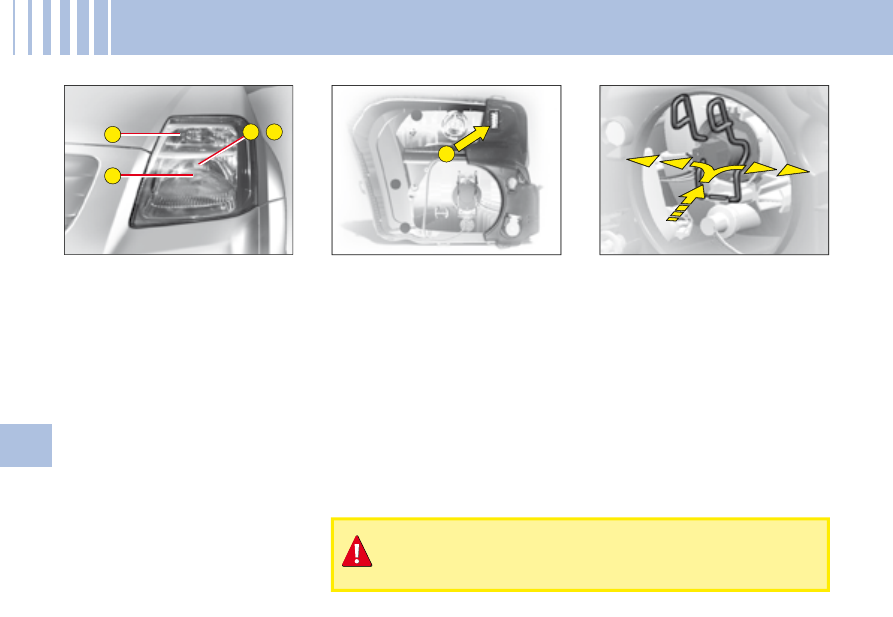

C H A N G I N G B U L B S

HEADLAMP UNIT

1 Sidelamp

2 Dipped beam

3 Main beam

4 Direction indicator

Note: A light misting may appear
on the headlamp surface in certain
conditions of use.

Dipped beam

Main beam

Tilt the metallic spring holding the

ﬂ ap giving access to the lamp

bulbs.
Open the access ﬂ ap.
Disconnect the connector.
Disengage the retaining spring by

an forward movement, then an

outward movement to disengage

the two grips.
Take out the bulb.
Bulb: H4

Before touching, disconnect the supply connector A.
