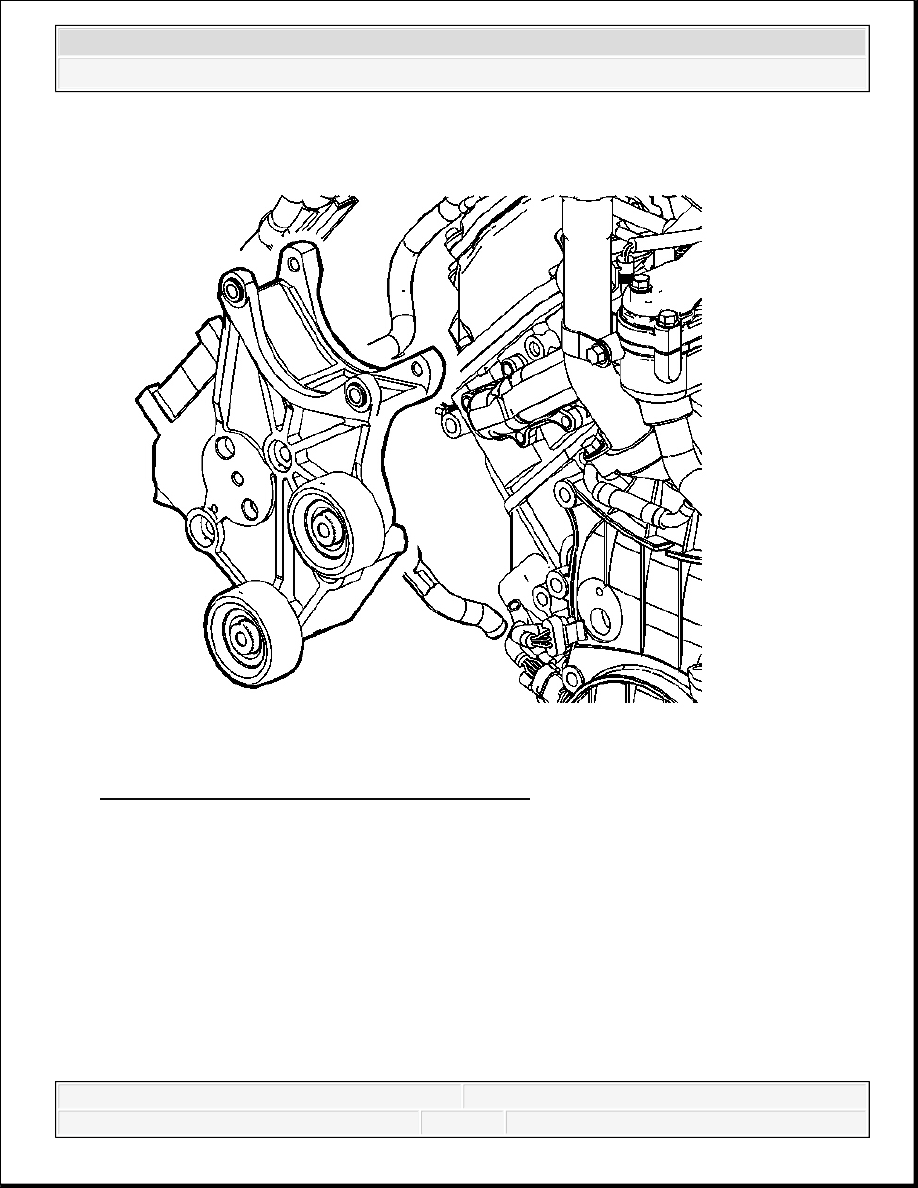

Fig. 384: View Of Generator Mounting Bracket
Courtesy of GENERAL MOTORS CORP.

30. Install the generator mounting bracket and bolts.

Tighten: Tighten the bolts to 50 N.m (37 lb ft).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

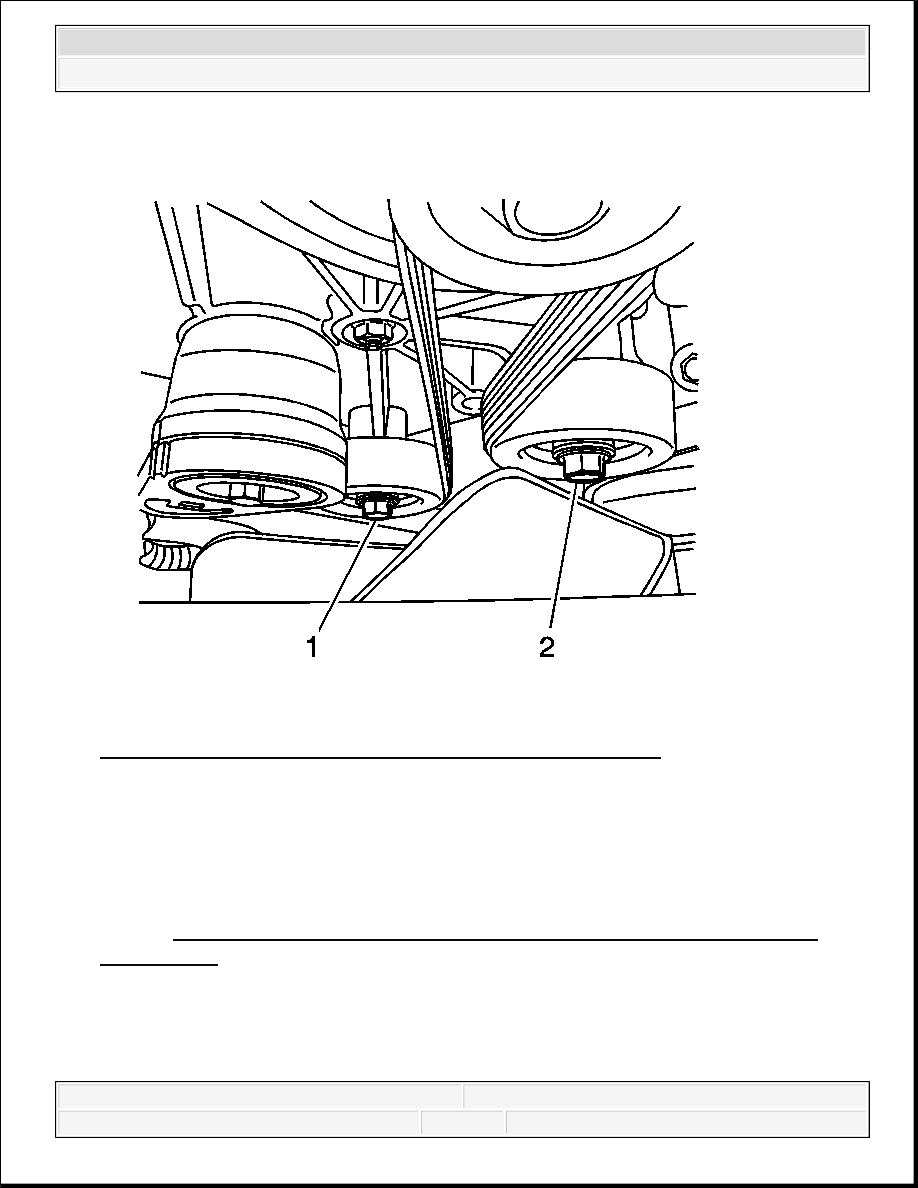

Fig. 385: View Of Right Side Idler & Center Idler Pulley Bolts
Courtesy of GENERAL MOTORS CORP.

31. Install the right idler pulley and bolt (1).

Tighten: Tighten the bolt to 43 N.m (32 lb ft).

32. Install the air conditioning compressor and the power steering pump mounting bracket.

Refer to Air Conditioning (A/C) Compressor and Power Steering Pump Bracket
Replacement.

33. Position the engine wiring harness on the engine.

34. Position the A/C compressor.

35. Install the A/C compressor mounting bolts.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Tighten: Tighten the bolts to 50 N.m (37 lb ft).

36. Install the A/C suction hose to the accumulator.

37. Install the drive belt. Refer to Drive Belt Replacement.

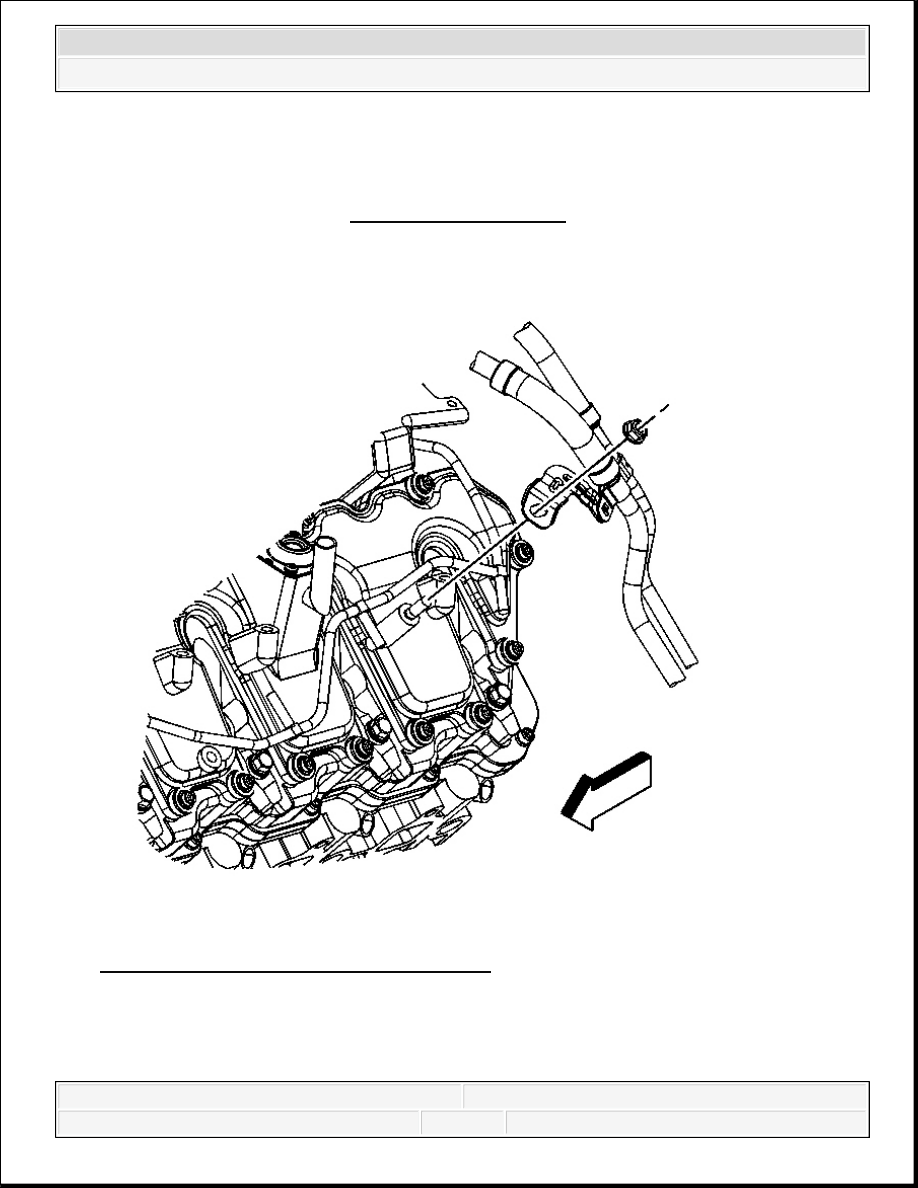

Fig. 386: View Of Fuel Line Bracket & Nut
Courtesy of GENERAL MOTORS CORP.

38. Connect the fuel hoses at the engine.

39. Install the nut and the fuel hose bracket to the valve rocker arm cover stud.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Tighten: Tighten the nut to 21 N.m (15 lb ft).

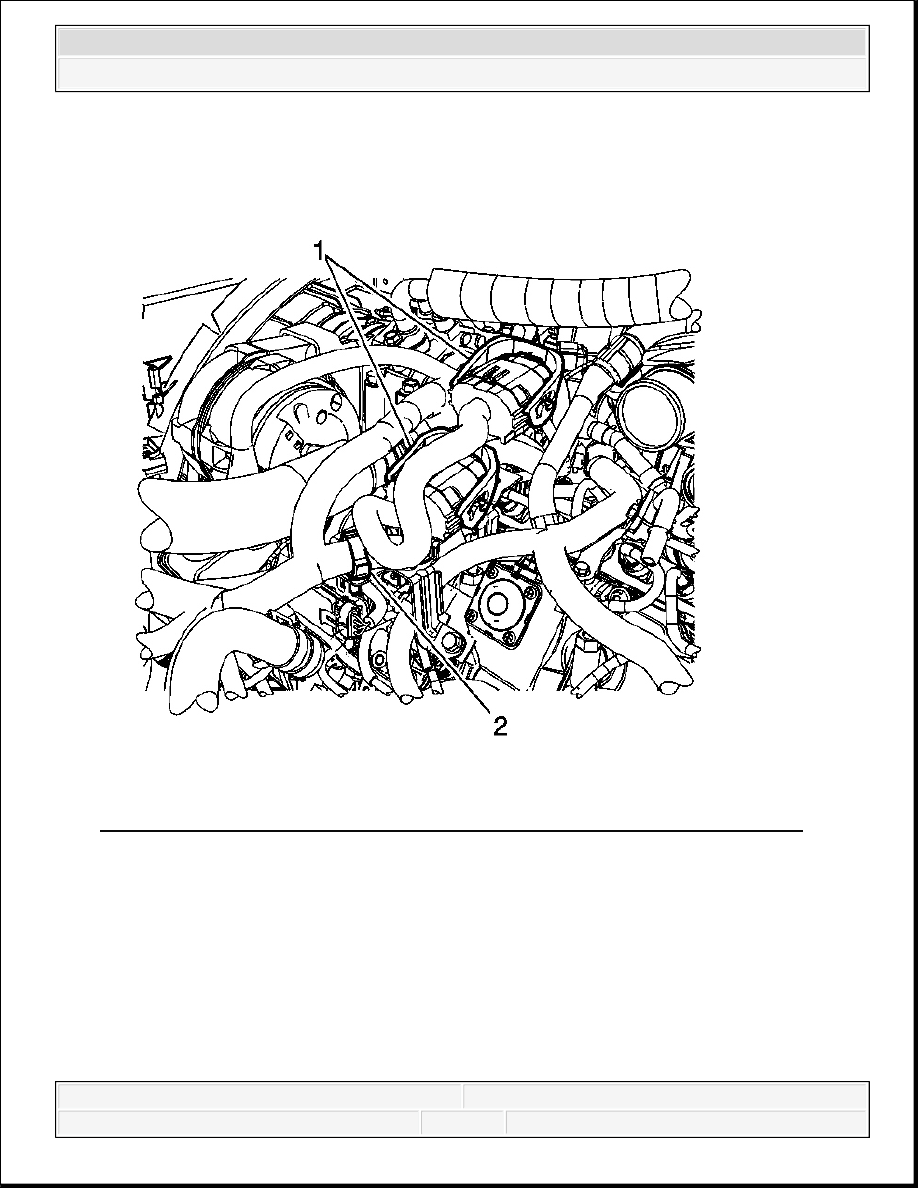

Fig. 387: View Of Main Engine Electrical Harness Connector Latches & Clips
Courtesy of GENERAL MOTORS CORP.

40. Connect the main engine electrical harness connectors.

41. Push down on the latches (1) in order to connect the connectors.

42. Close the harness clip (2).
