Chevrolet Silverado / GMC Sierra. Service manual - part 2464

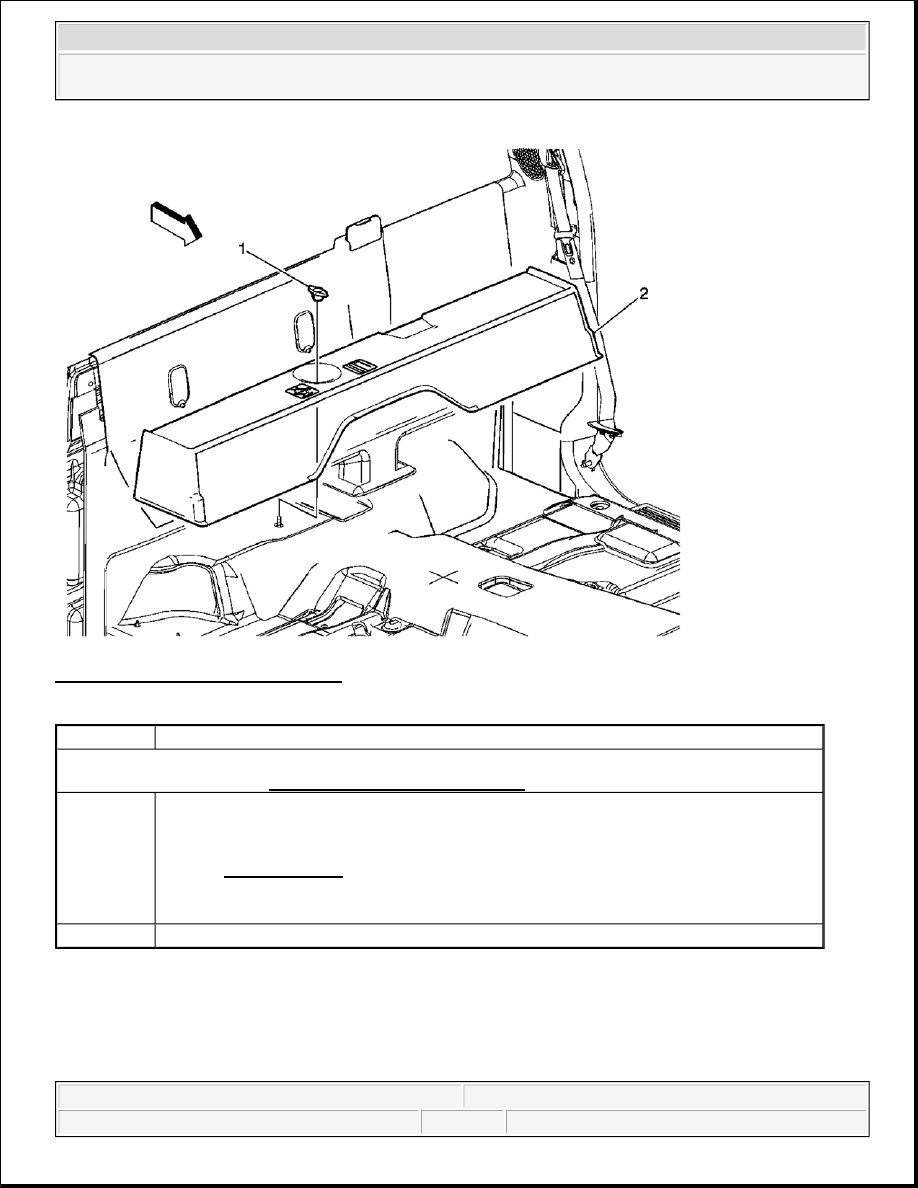

Fig. 28: View Of Jack Stowage Cover
Courtesy of GENERAL MOTORS CORP.

REAR WINDOW LOWER GARNISH MOLDING REPLACEMENT (REGULAR CAB)

Callout

Component Name

Preliminary Procedure:
Remove front seats. Refer to Front Seat Replacement - Bucket .

1

Jack Stowage Cover Nut

Tighten: 4 N.m (35 lb in)

NOTE:

Refer to Fastener Notice .

2

Jack Stowage Cover Assembly



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



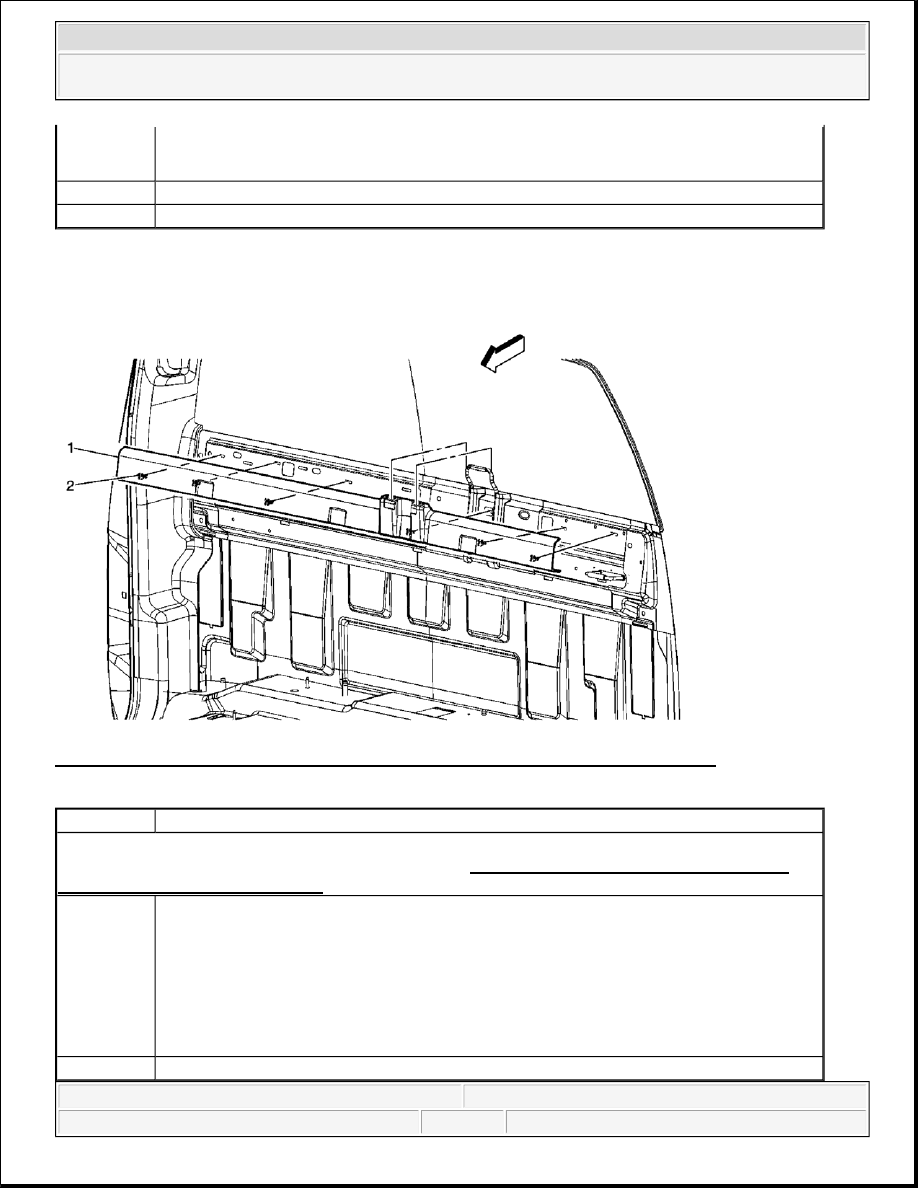

Fig. 29: View Of Rear Window Lower Garnish Molding (Regular Cab)
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

1

Rear Window Lower Garnish Molding Assembly
Tip:

1. Remove the front and rear seat belt guide covers.

2. Ensure webbing is routed through guide loop.

3. Route belt webbing through garnish molding.

4. Drop garnish molding over guide loop and then secure.

2

Rear Window Lower Garnish Molding Retainer Clip (Qty: 14)



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



REAR WINDOW LOWER GARNISH MOLDING REPLACEMENT (EXT CAB/CREW CAB W/A48)

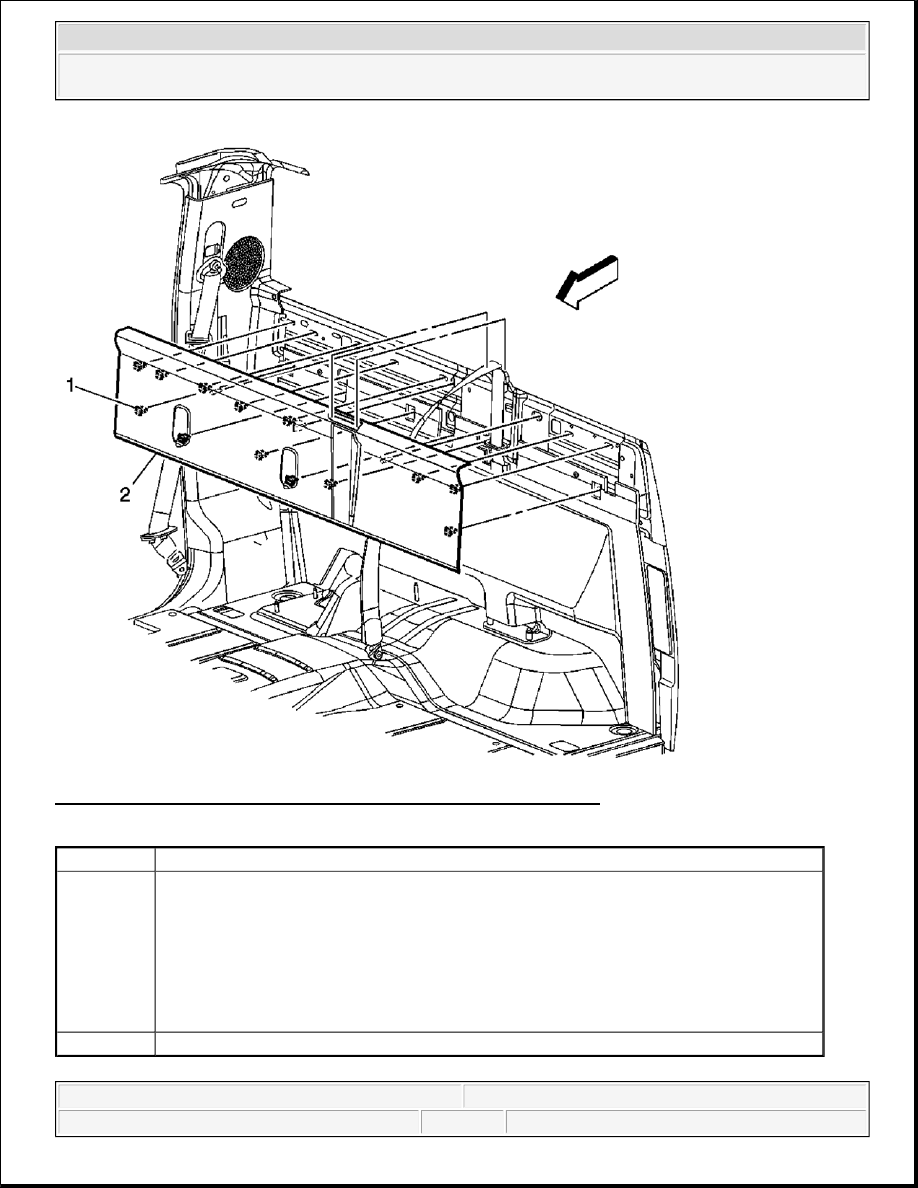

Fig. 30: View Of Rear Window Lower Garnish Molding (Ext Cab/Crew Cab w/A48)
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove child seat restraint system belt bracket. Refer to Child Seat Restraint System Belt Bracket
Replacement (Ext Cab/Crew Cab) .

1

Rear Window Lower Garnish Molding Assembly

Procedure

1. Remove the front and rear seat belt guide covers.

2. Ensure the webbing is routed through guide loop.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



REAR WINDOW LOWER GARNISH MOLDING REPLACEMENT (EXT CAB/CREW CAB W/O
A48)

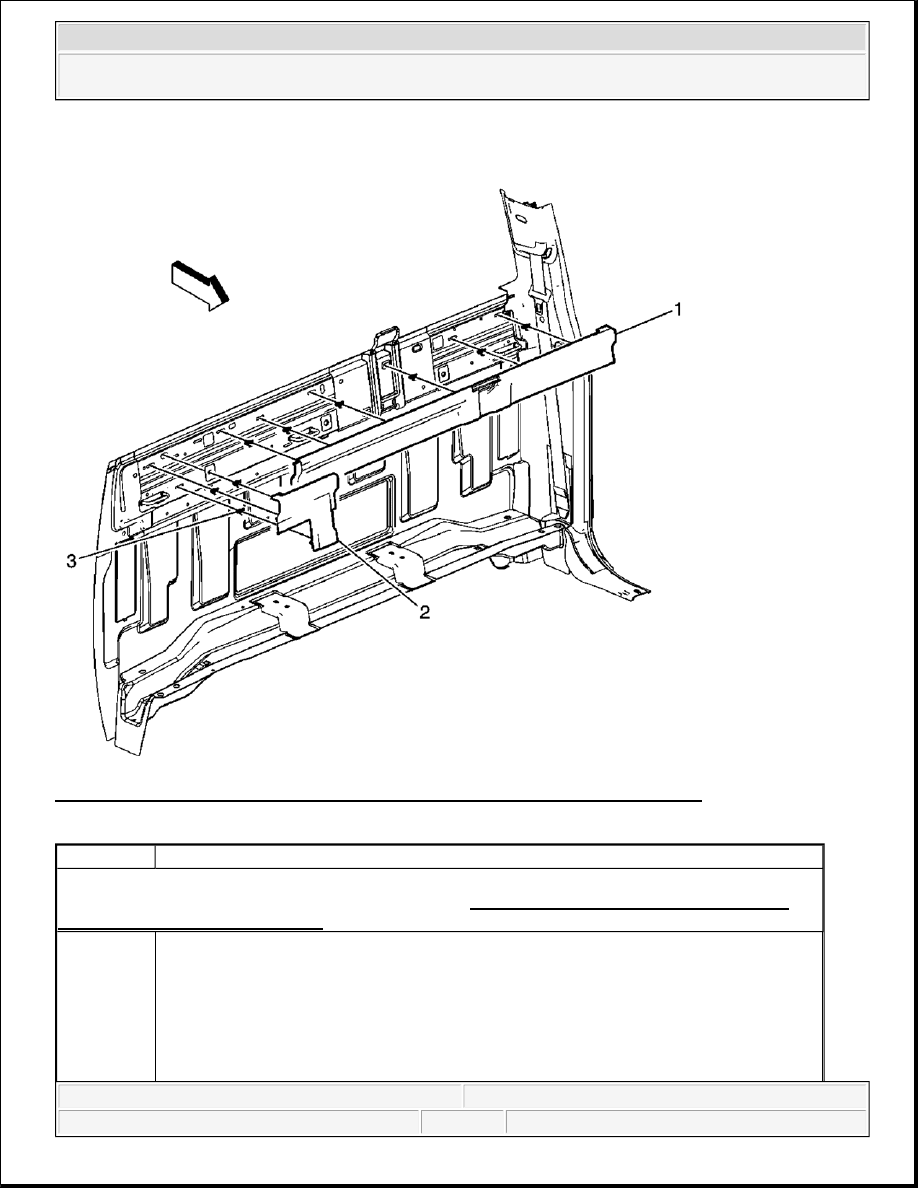

Fig. 31: View Of Rear Window Lower Garnish Molding (Ext Cab/Crew Cab w/o A48)
Courtesy of GENERAL MOTORS CORP.

3. Route the belt webbing through the garnish molding.

4. Drop the garnish molding over the guide loop and then secure.

2

Rear Window Lower Garnish Right Molding Assembly

3

Rear Window Lower Garnish Molding Retainer Clip (Qty: 9)

Callout

Component Name

Preliminary Procedure:
Remove child seat restraint system belt bracket. Refer to Child Seat Restraint System Belt Bracket
Replacement (Ext Cab/Crew Cab) .

1

Rear Window Lower Garnish Molding Assembly
Tip:

1. Remove the front and rear seat belt guide covers.

2. Ensure webbing is routed through guide loop.

3. Route belt webbing through garnish molding.

4. Drop garnish molding over guide loop and then secure.

2

Rear Window Lower Garnish Molding Retainer Clip (Qty: 6)
