Tighten: Tighten the bolt to 16 N.m (12 lb ft).

8. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging.

9. Leak test the fittings of the component using the J 39400-A . See Special Tools.

SUCTION HOSE REPLACEMENT (LY2, LMF, L76 AND L92)

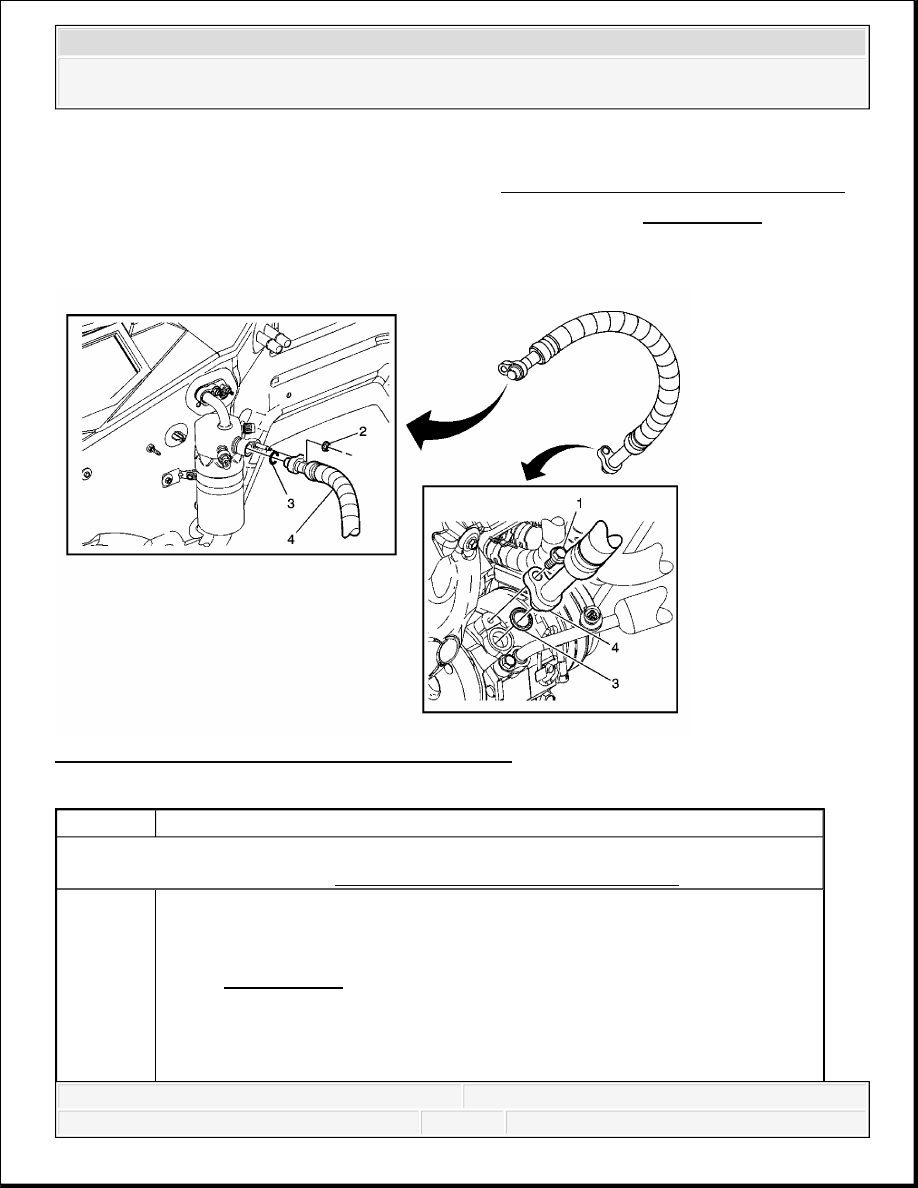

Fig. 50: View Of A/C Suction Hose & Components
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.

Suction Hose Bolt

Tighten: 9 N.m (80 lb in)

NOTE:

Refer to Fastener Notice .

2008 Chevrolet Silverado 1500

2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado

SUCTION HOSE REPLACEMENT (LMM)

Tools Required

J 39400-A Halogen Leak Detector. See Special Tools.

Removal Procedure

1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.

Suction Hose Nut

Tighten: 9 N.m (80 lb in)

Sealing Washer
Tip: Remove and discard sealing washer. Refer to Sealing Washer
Replacement.

A/C Suction Hose

2008 Chevrolet Silverado 1500

2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado

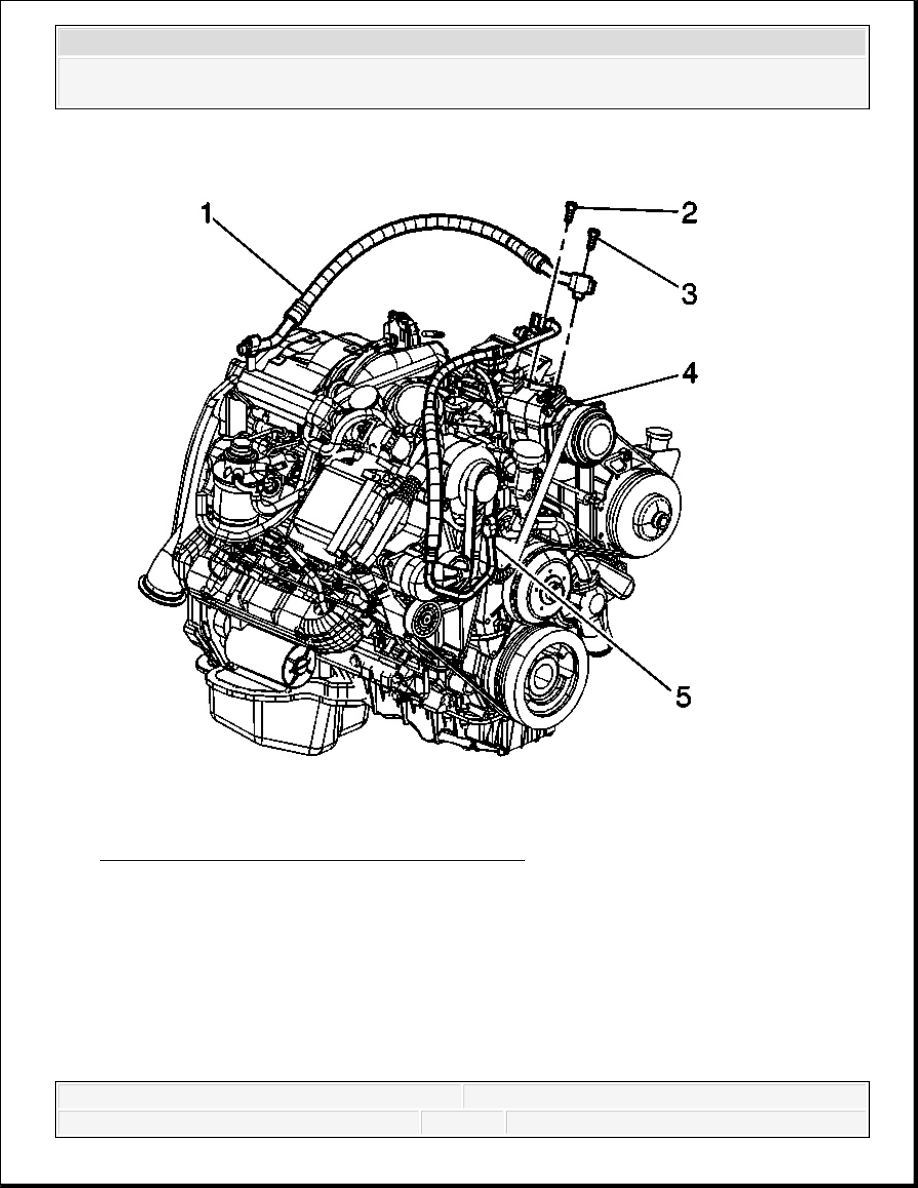

Fig. 51: View Of Discharge Hose & Connectors
Courtesy of GENERAL MOTORS CORP.

2. Remove the suction hose mounting bolt (3) from the A/C compressor.

Discard the bolt.

3. Remove the suction hose (1) from the compressor.

2008 Chevrolet Silverado 1500

2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado

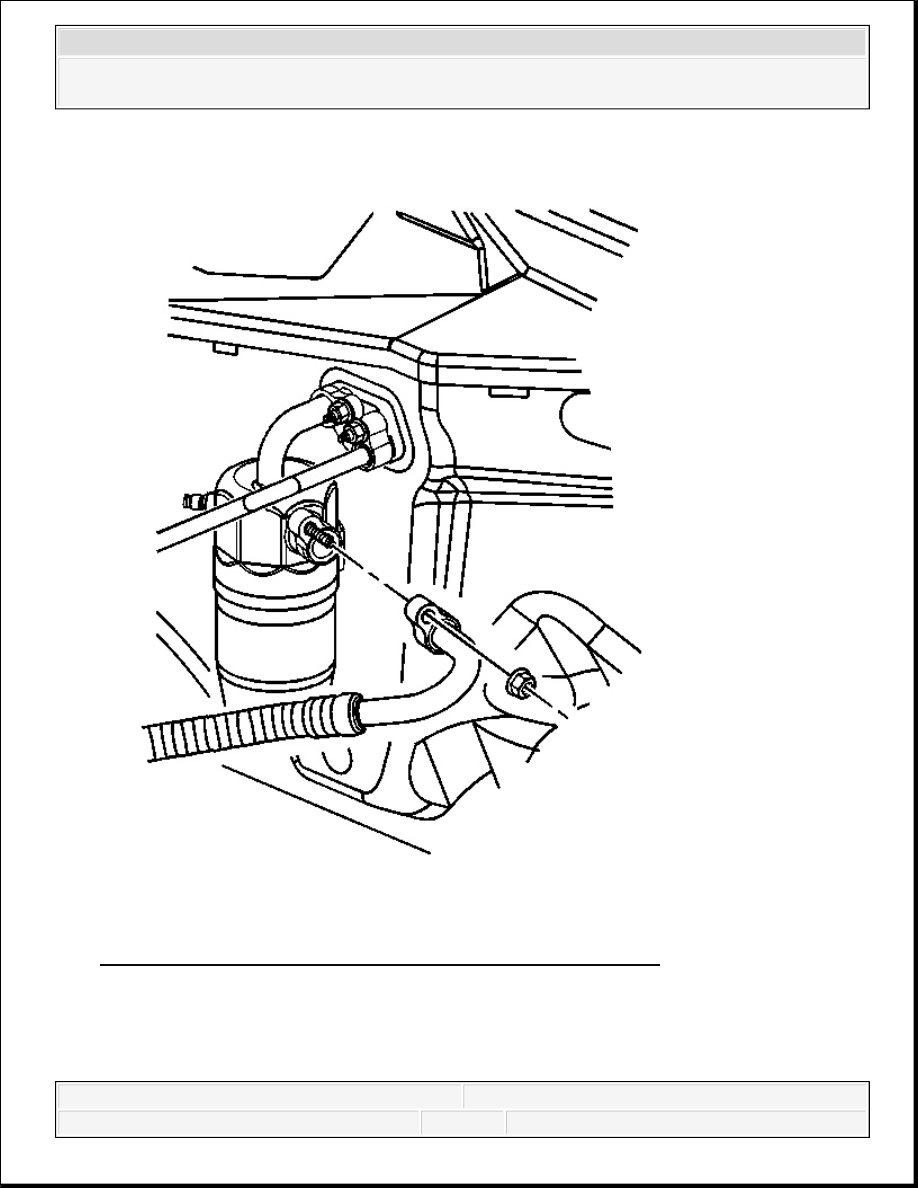

Fig. 52: Removing/Installing Suction Hose From Accumulator
Courtesy of GENERAL MOTORS CORP.

4. Remove the suction hose nut from the accumulator.

Discard the nut.
