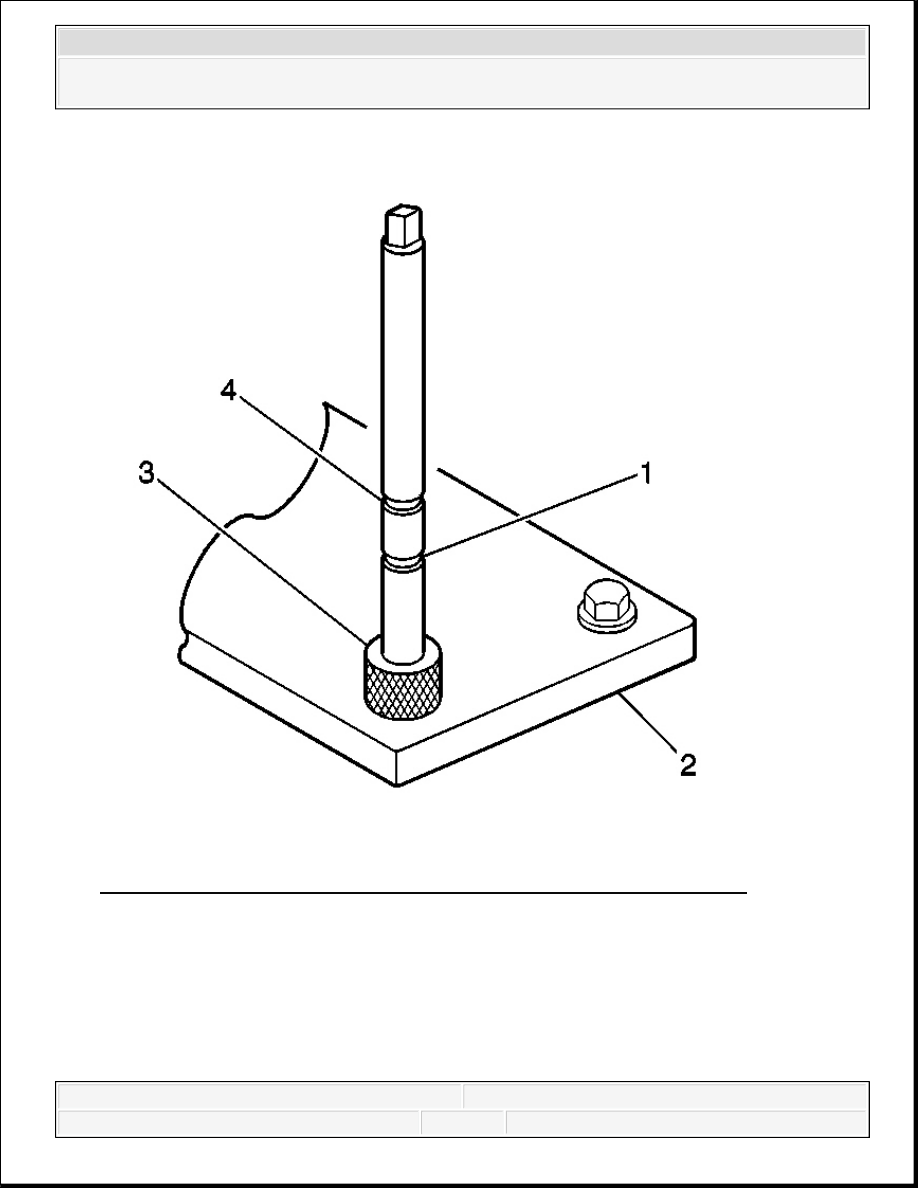

Fig. 158: View Of Tap Upper & Lower Marks, Fixture Plate & Bushing
Courtesy of GENERAL MOTORS CORP.

6. Using a tap wrench, tap the threads of the drilled hole.

In order to tap the new threads to the proper depth, rotate the tap into the hole until the
mark on the tap aligns with the top of the bushing.

For the deeper main cap holes 1-10, rotate the tap until the upper mark (4) on the tap aligns

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

with the top of the bushing (3).

For the shallower main cap holes 11-20, rotate the tap until the lower mark (1) on the tap
aligns with top of the bushing (3).

7. Using compressed air, clean out any chips.

8. Spray cleaner GM P/N 12346139 (Canadian P/N 10953463), or equivalent, into the hole.

9. Using compressed air, clean any cutting oil and chips out of the hole.

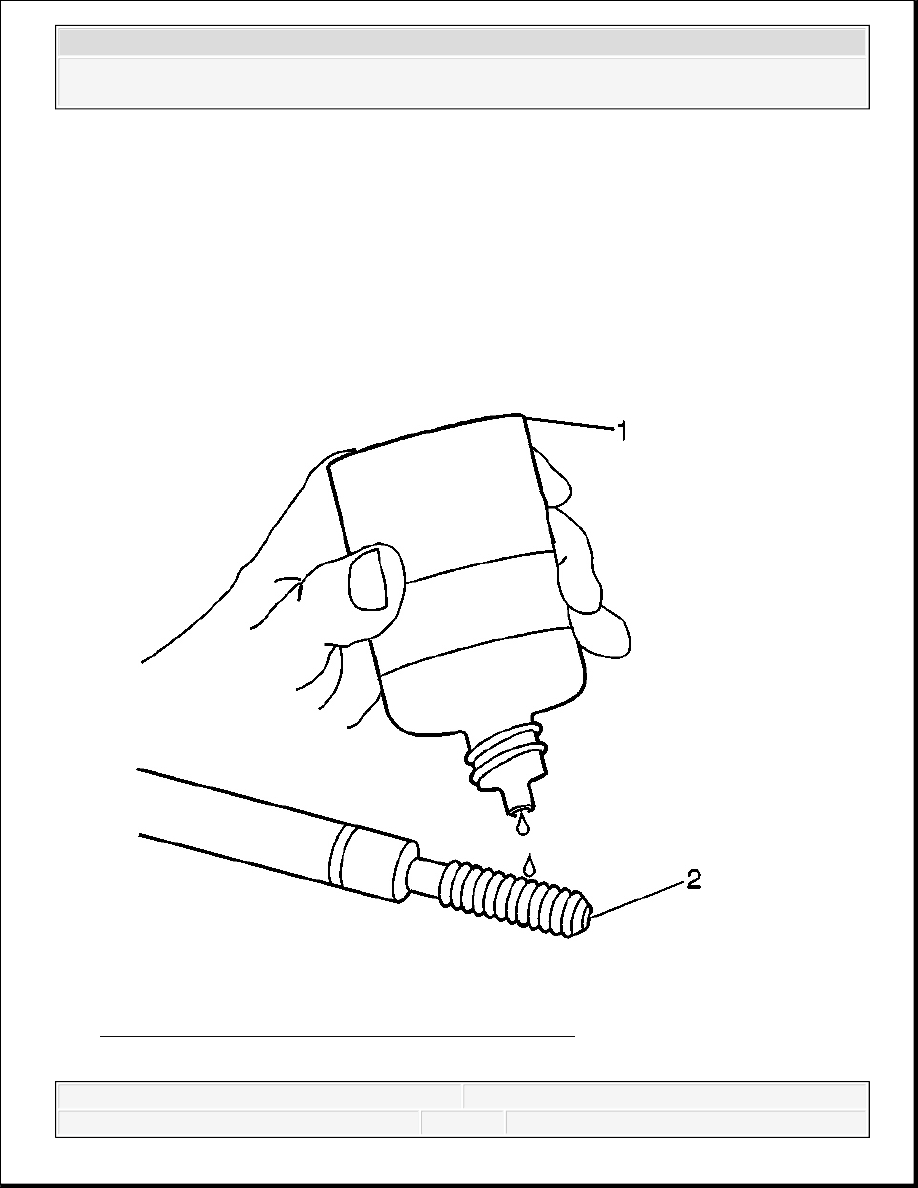

Fig. 159: Lubricating Installer Tool Using Driver Oil
Courtesy of GENERAL MOTORS CORP.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

10. Lubricate the threads of the installer tool (2) with the driver oil (1).

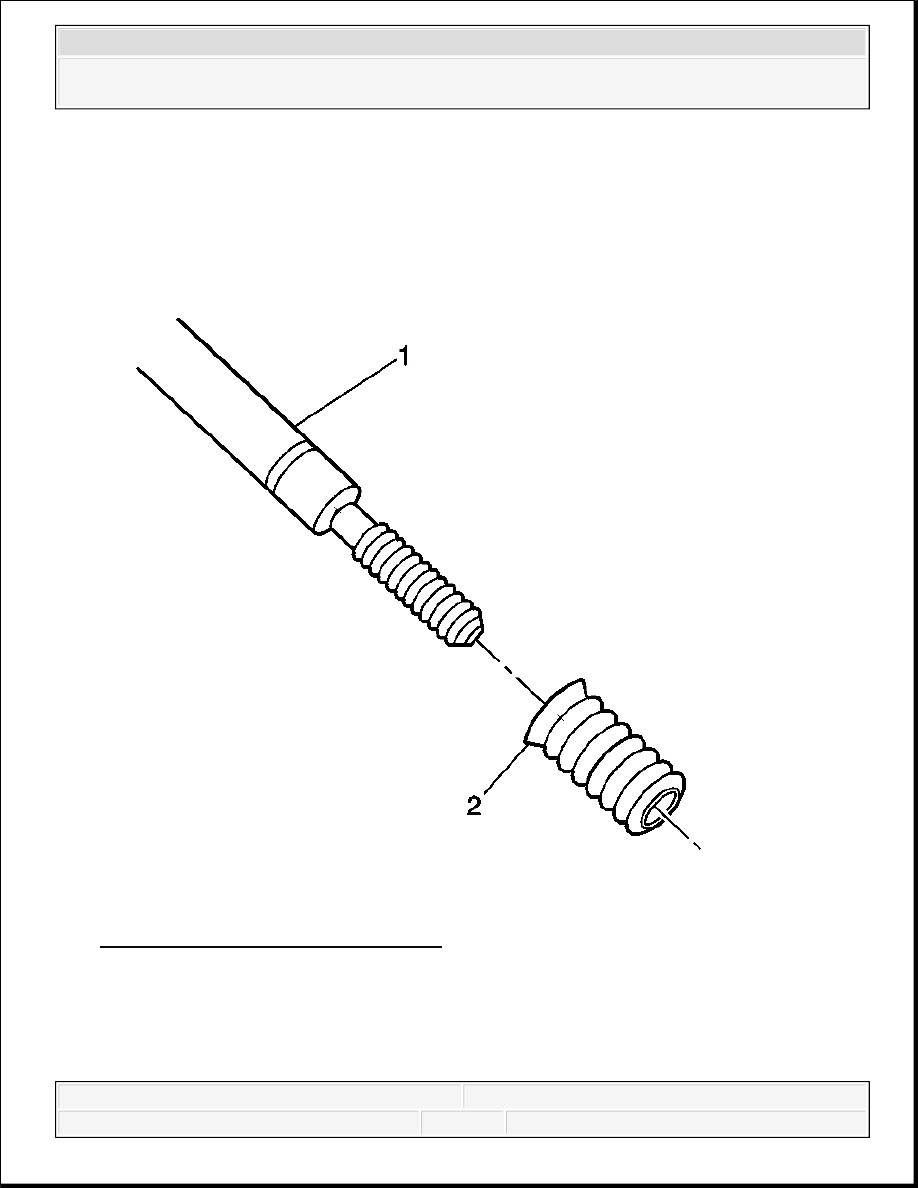

Fig. 160: View of Bushing Type Insert
Courtesy of GENERAL MOTORS CORP.

11. Install the insert (2) onto the driver tool (1).

IMPORTANT: Do not allow oil or foreign material to contact the OD of the

insert.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

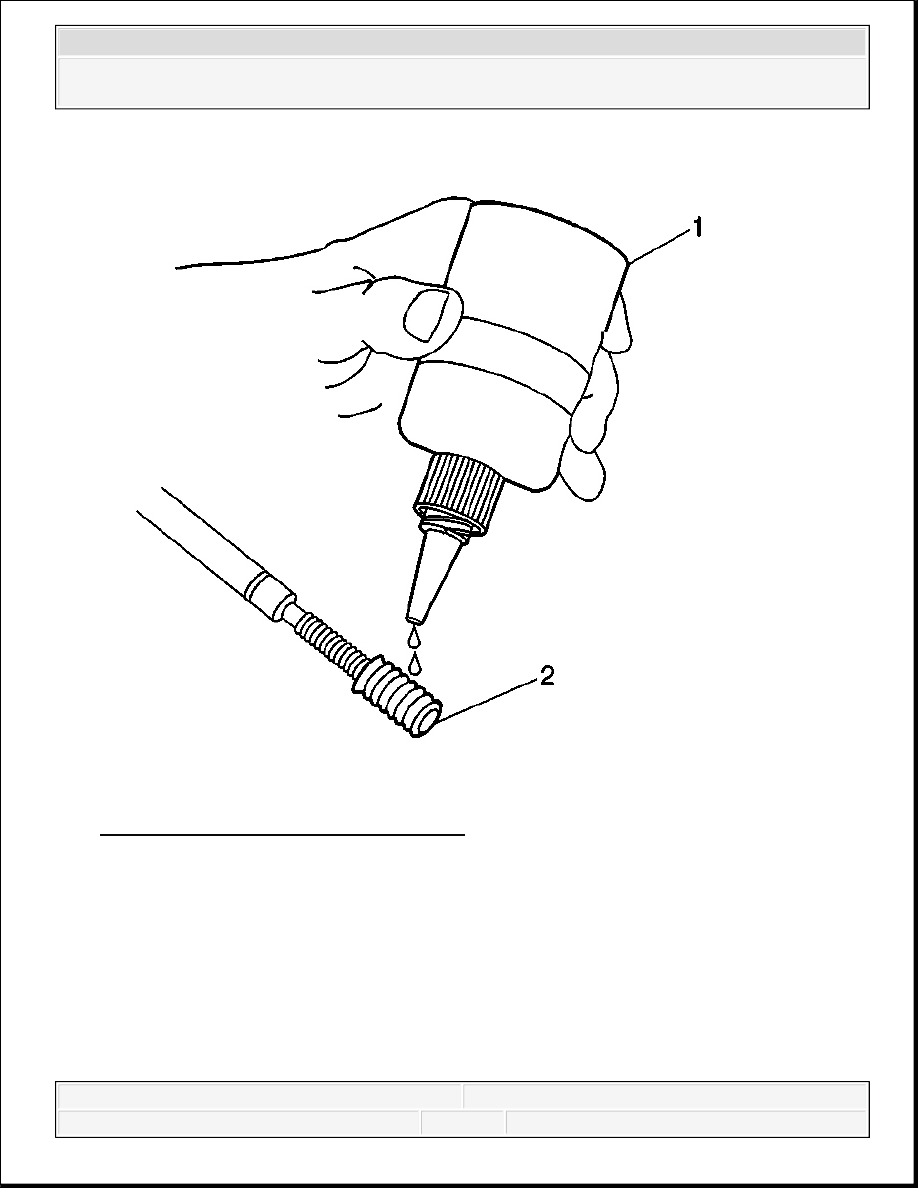

Fig. 161: Applying Threadlock To Insert
Courtesy of GENERAL MOTORS CORP.

12. Apply threadlock LOCTITE™ 277, J 42385-109 (1), or equivalent, to the insert OD

threads (2).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado
