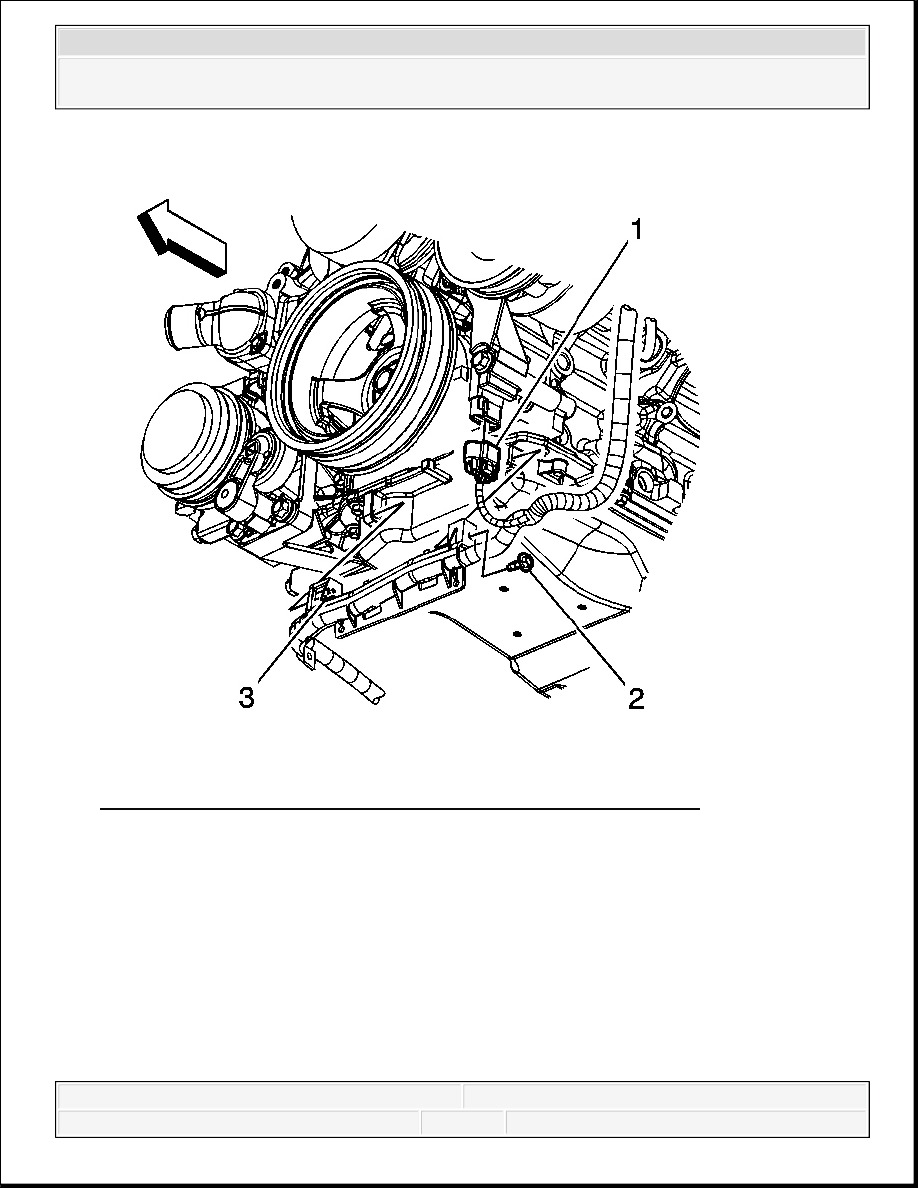

Fig. 157: View Of Electrical Connector, Cable Channel Bolt & Pin
Courtesy of GENERAL MOTORS CORP.

40. Slide the channel pin (3) into the oil pan tab.

41. Install the battery cable channel bolt (2).

Tighten: Tighten the bolt to 12 N.m (106 lb in).

42. Connect the engine harness electrical connector (1) to the CMP sensor wire harness.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

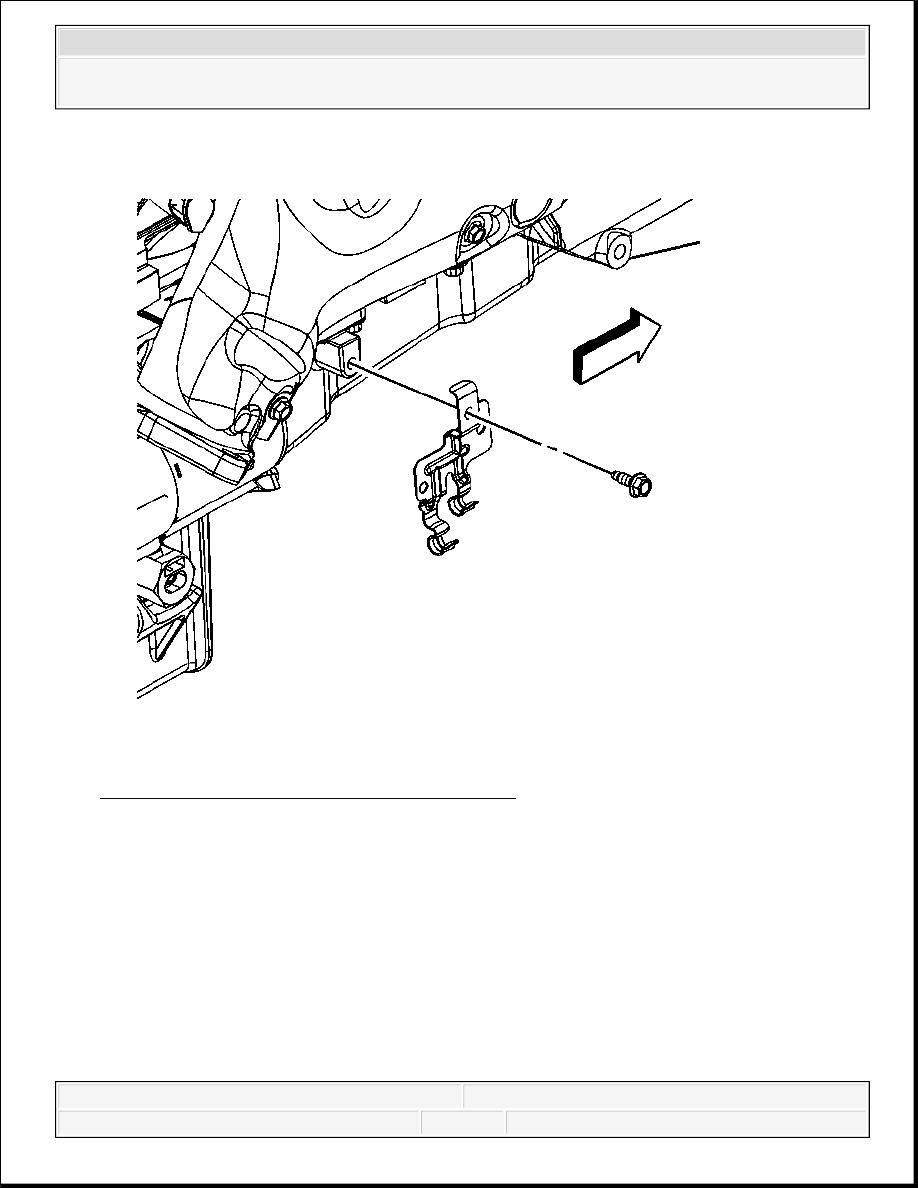

Fig. 158: View Of Oil Cooler Line Clip & Bolt
Courtesy of GENERAL MOTORS CORP.

43. Position the transmission oil cooler line clip to the oil pan and install the bolt, if equipped.

Tighten: Tighten the bolt to 9 N.m (80 lb in).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

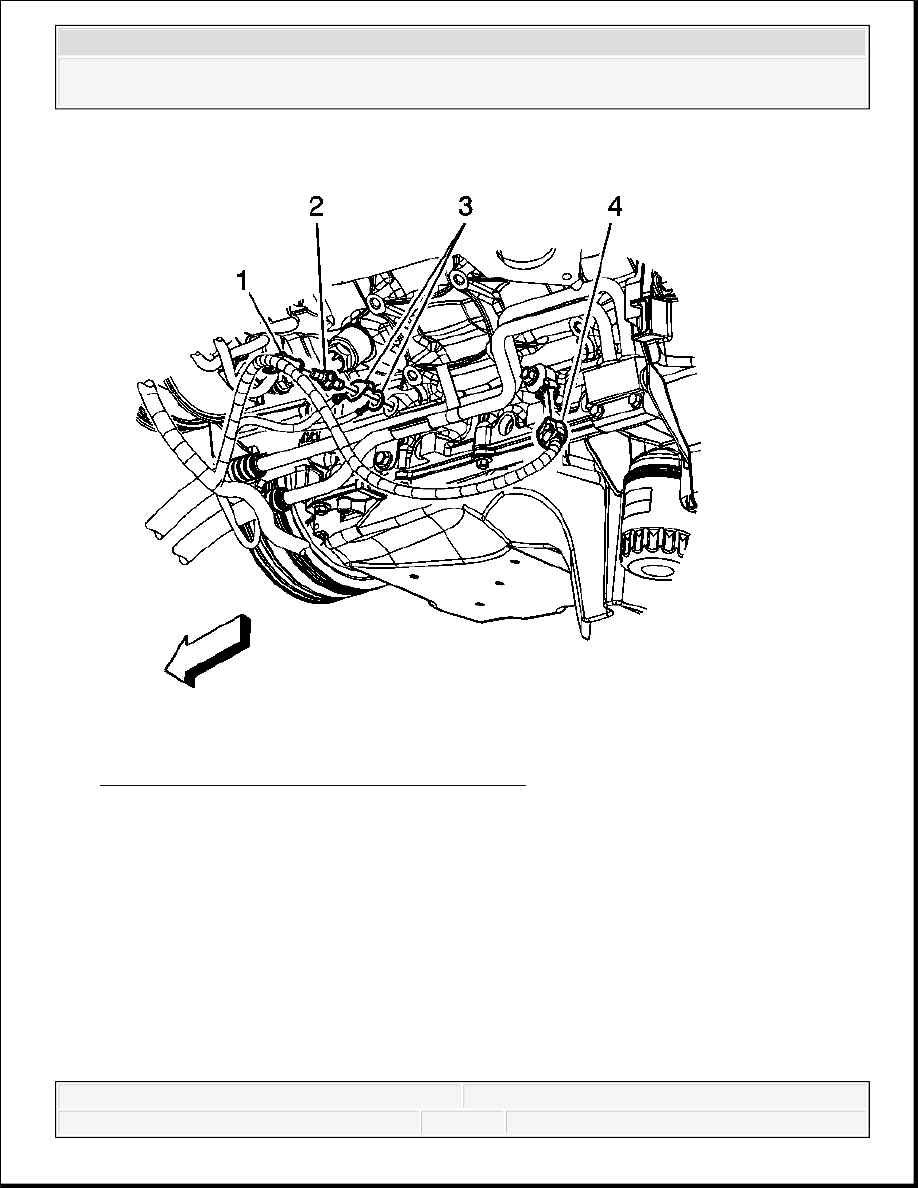

Fig. 159: View Of Engine Harness Components
Courtesy of GENERAL MOTORS CORP.

44. Connect the engine harness electrical connector (4) to the knock sensor.

45. Position the engine harness grounds (3) to the engine block.

46. Install the engine harness ground stud (2) to the engine block.

Tighten: Tighten the stud to 16 N.m (12 lb ft).

47. Install the engine harness clip (1) to the ground stud.

48. Lower the vehicle.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

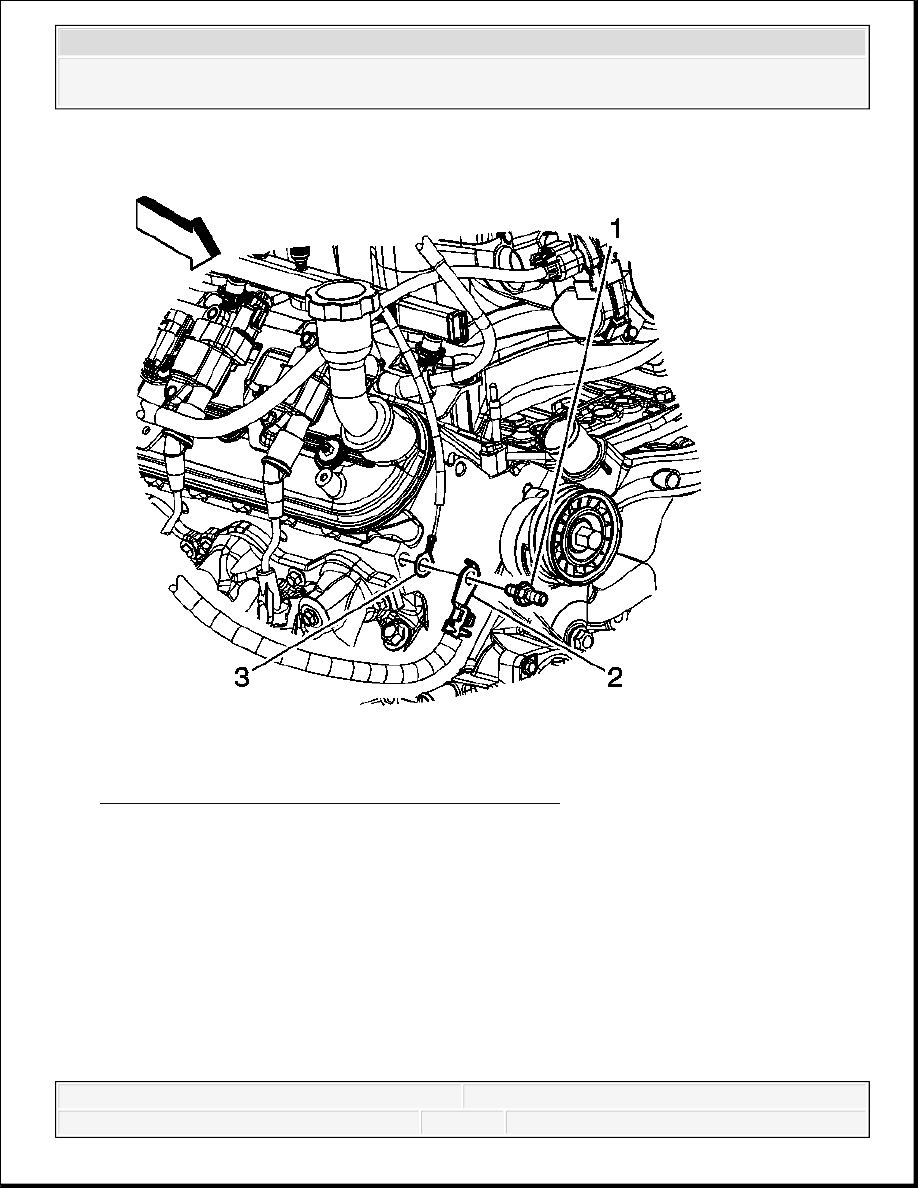

Fig. 160: View Of Battery Cable Terminals & Stud
Courtesy of GENERAL MOTORS CORP.

49. Position the negative battery cable terminal (2) and the engine harness ground (3) to the

right cylinder head.

50. Install the negative battery cable stud (1) to the right cylinder head.

Tighten: Tighten the stud to 25 N.m (18 lb ft).
