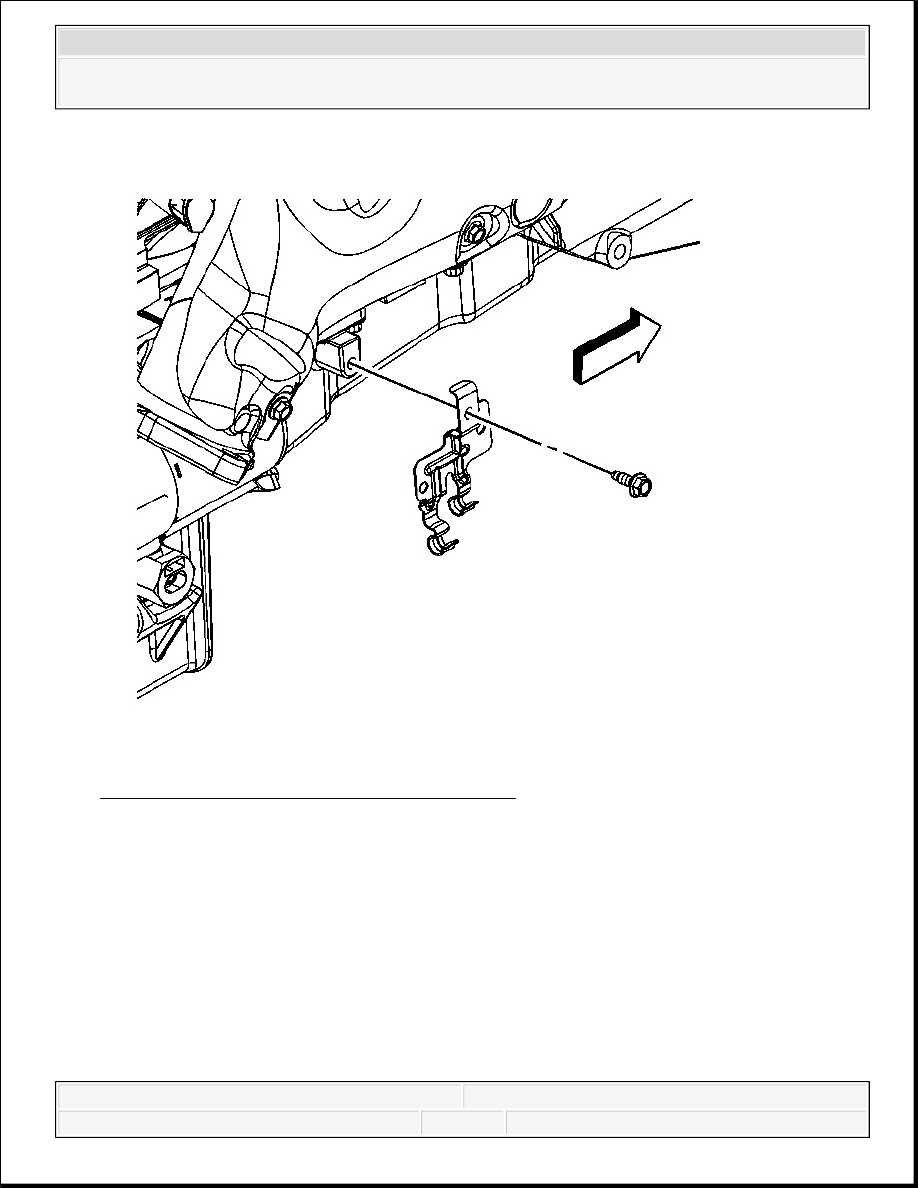

Fig. 115: View Of Oil Cooler Line Clip & Bolt
Courtesy of GENERAL MOTORS CORP.

35. Remove the transmission oil cooler line clip bolt from the oil pan, if equipped.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

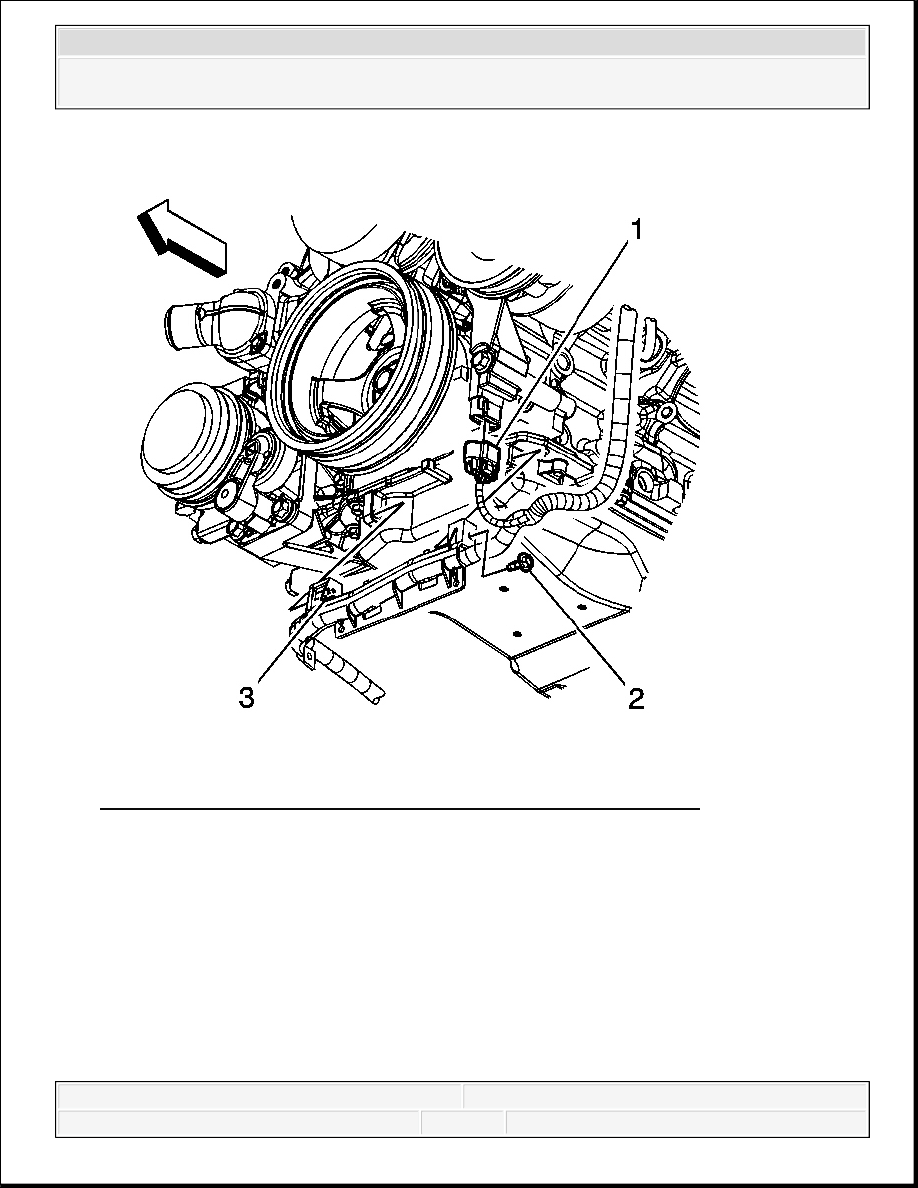

Fig. 116: View Of Electrical Connector, Cable Channel Bolt & Pin
Courtesy of GENERAL MOTORS CORP.

36. Disconnect the engine harness electrical connector (1) from the camshaft position (CMP)

sensor wire harness.

37. Remove the battery cable channel bolt (2).

38. Slide the channel pin (3) out of the oil pan tab.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

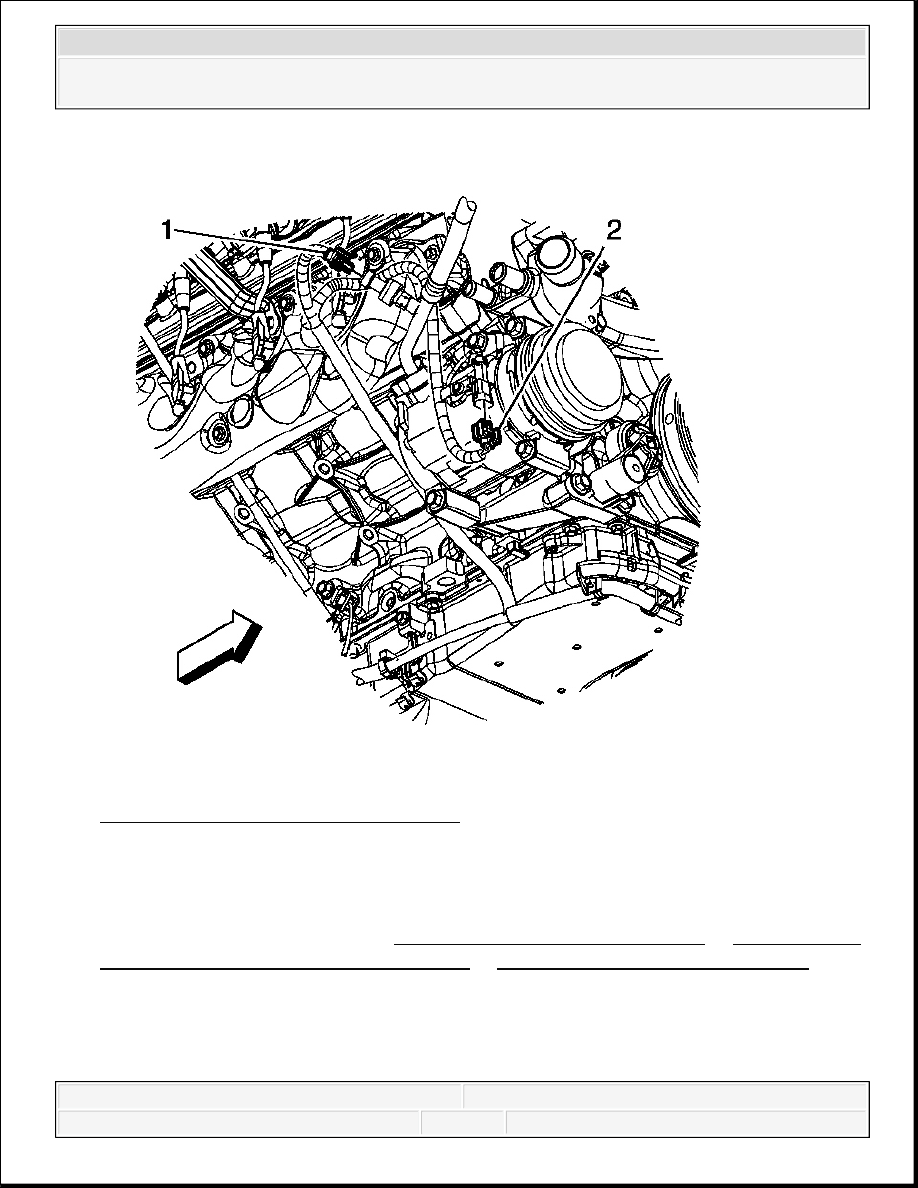

Fig. 117: View Of Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

39. Disconnect the engine harness electrical connector (1) from the A/C refrigerant pressure

sensor.

40. Remove the starter motor. Refer to Starter Motor Replacement (4.3L) or Starter Motor

Replacement (4.8L, 5.3L, 6.0L, and 6.2L) or Starter Motor Replacement (6.6L) .

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

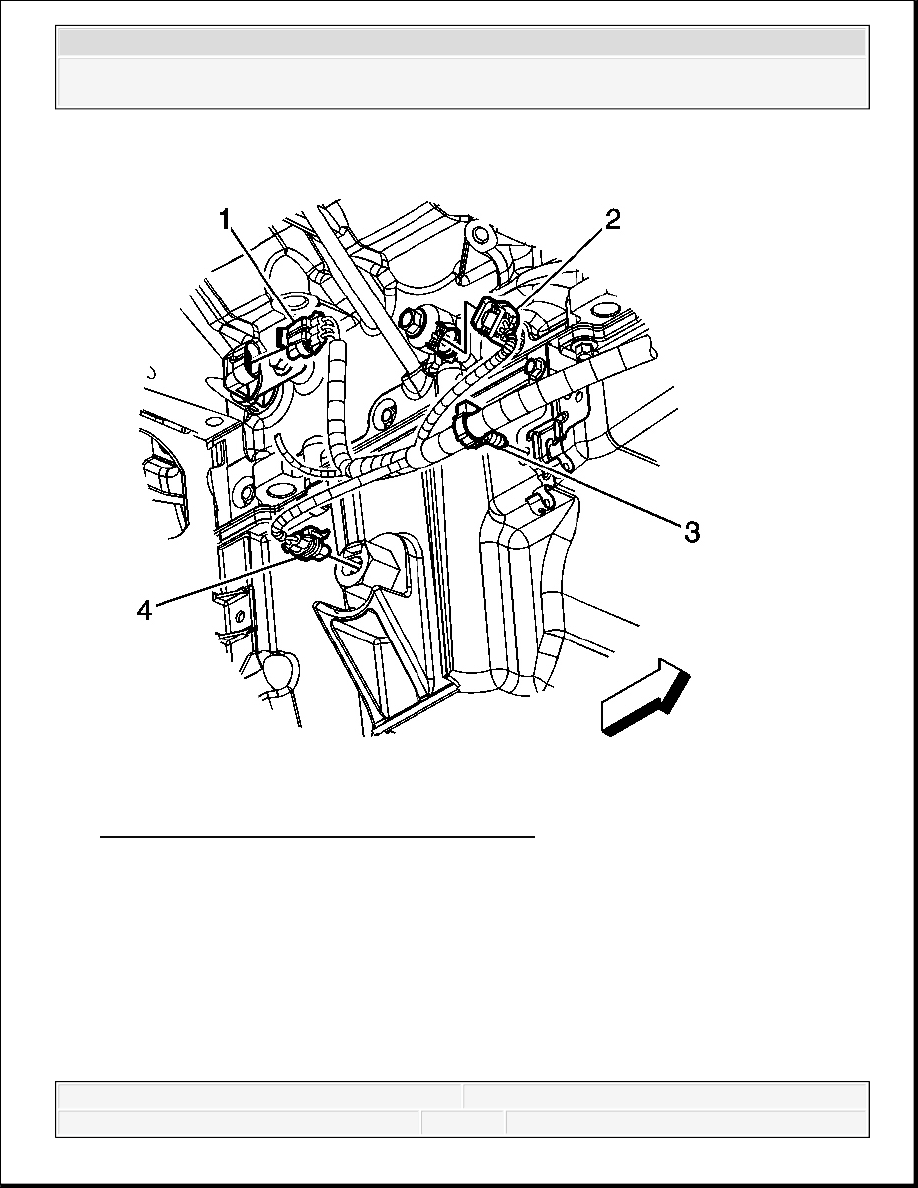

Fig. 118: View Of Electrical Connectors & Clips
Courtesy of GENERAL MOTORS CORP.

41. Disconnect the engine harness electrical connector (1) from the crankshaft position (CKP)

sensor.

42. Disconnect the engine harness electrical connector (2) from the knock sensor.

43. Disconnect the engine harness electrical connector (4) from the oil level sensor.

44. Remove the engine harness clip (3) from the transmission oil cooler line bracket.
