Chevrolet Silverado / GMC Sierra. Service manual - part 1775

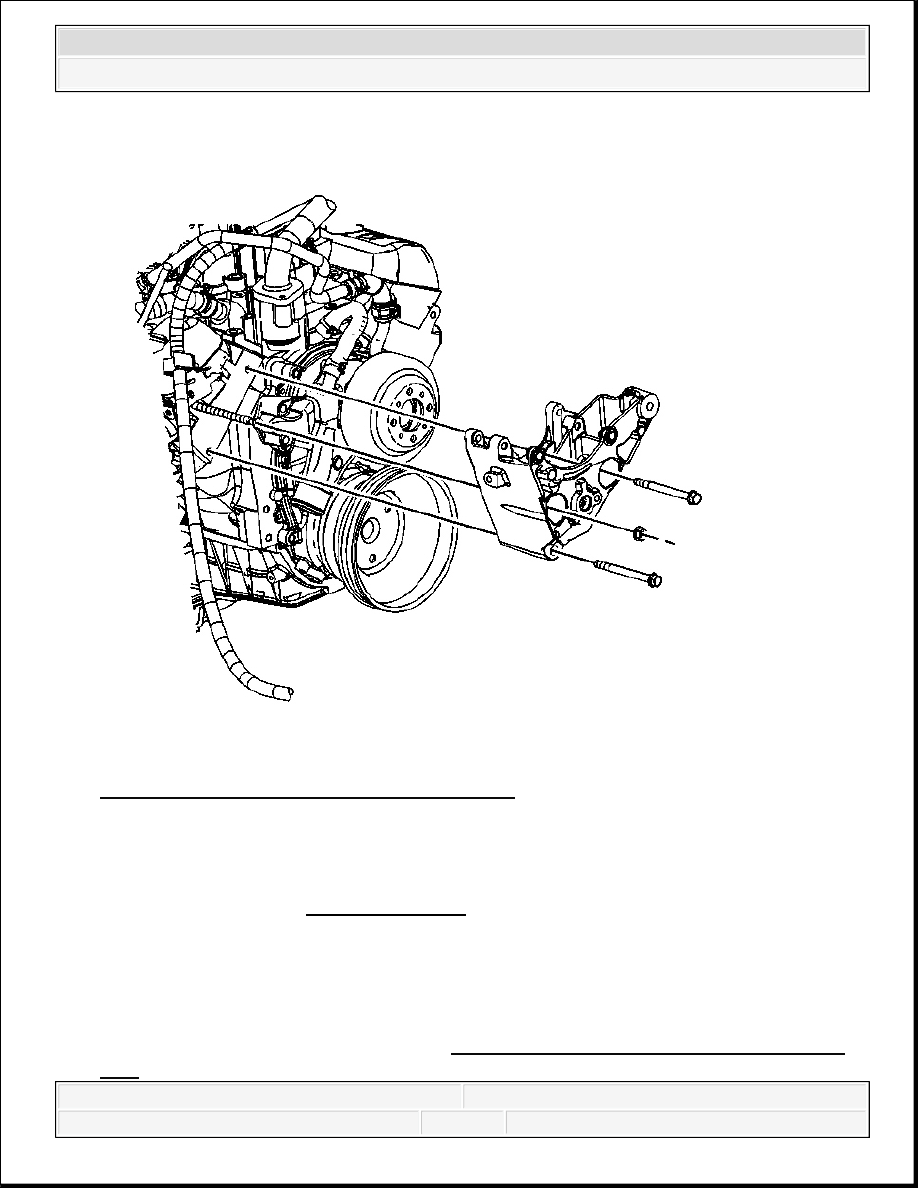

Fig. 274: View Of Generator, Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.

1. Install the generator bracket onto the stud.

2. Install the generator bracket bolts and nut.

Tighten: Tighten the bolts/nut to 41 N.m (30 lb ft).

3. Install the drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement - Right

Side .

NOTE:

Refer to Fastener Notice .

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

4. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .

5. Install the generator. Refer to Generator Replacement (4.3L) or Generator

Replacement (4.8L, 5.3L, 6.0L, and 6.2L) or Generator Replacement (6.6L).

GENERATOR BRACKET REPLACEMENT (4.8L, 5.3L, 6.0L, AND 6.2L)

Removal Procedure

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Fig. 275: View Of Engine Wiring Harness, Clip, Bolt & Connector
Courtesy of GENERAL MOTORS CORP.

1. Remove the generator. Refer to Generator Replacement (4.3L) or Generator

Replacement (4.8L, 5.3L, 6.0L, and 6.2L) or Generator Replacement (6.6L).

2. Remove the power steering pump. Refer to Power Steering Pump Replacement (4.3L) or

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Power Steering Pump Replacement (4.8L, 5.3L, 6.0L, and 6.2L) or Power Steering
Pump Replacement (6.6L) .

3. Remove the engine wiring harness clip bolt (3) are reposition the clip (1) away from the

generator bracket.

Fig. 276: View Of Generator Bracket & Bolts (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.

4. Remove the generator bracket bolts.

5. Remove the generator bracket.
