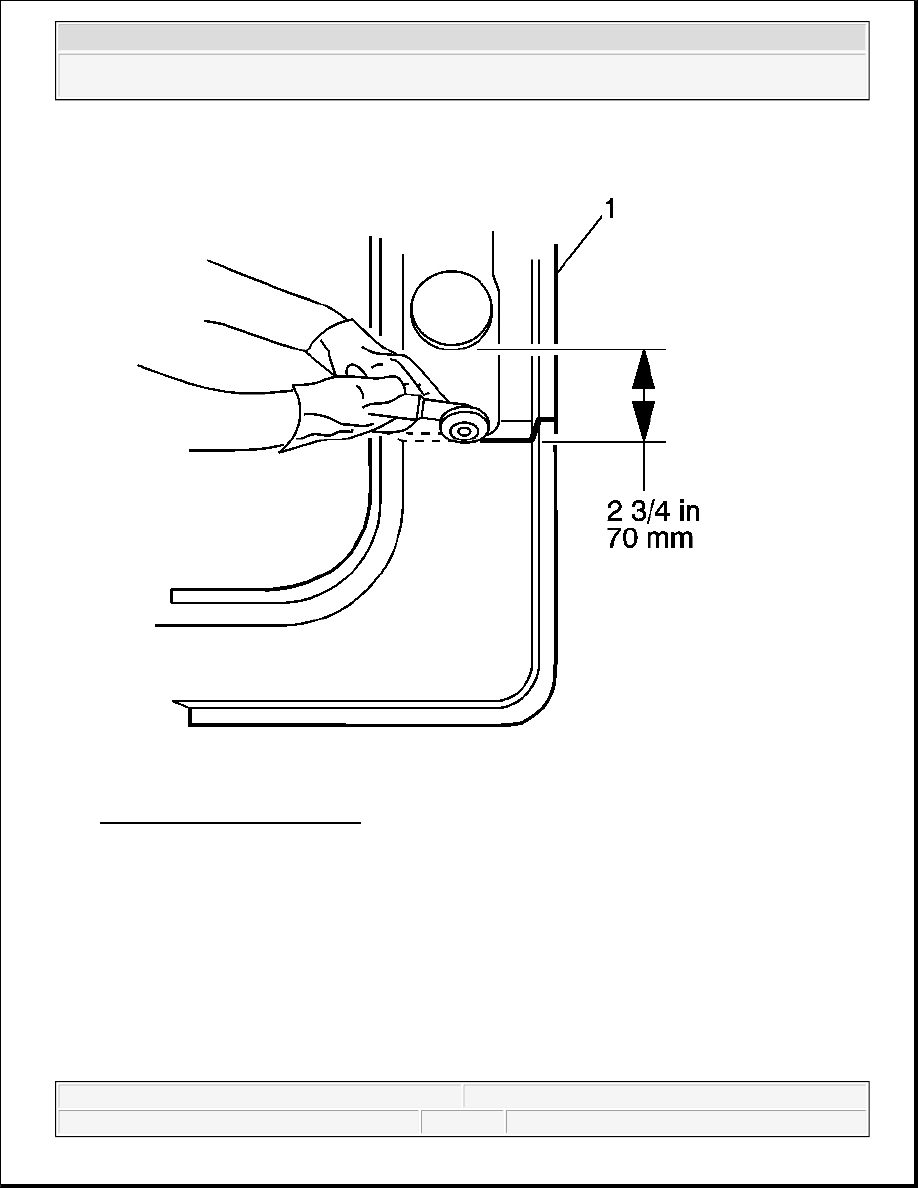

Fig. 77: Cutting Sectioning Panels
Courtesy of GENERAL MOTORS CORP.

7. Measure 70 mm (2 3/4 in) down from the large wiring harness hole in the hinge pillar (1). Mark a

horizontal line.

8. Cut the panel in the locations where sectioning is to be performed.

IMPORTANT: Do not damage any inner panels or reinforcements.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



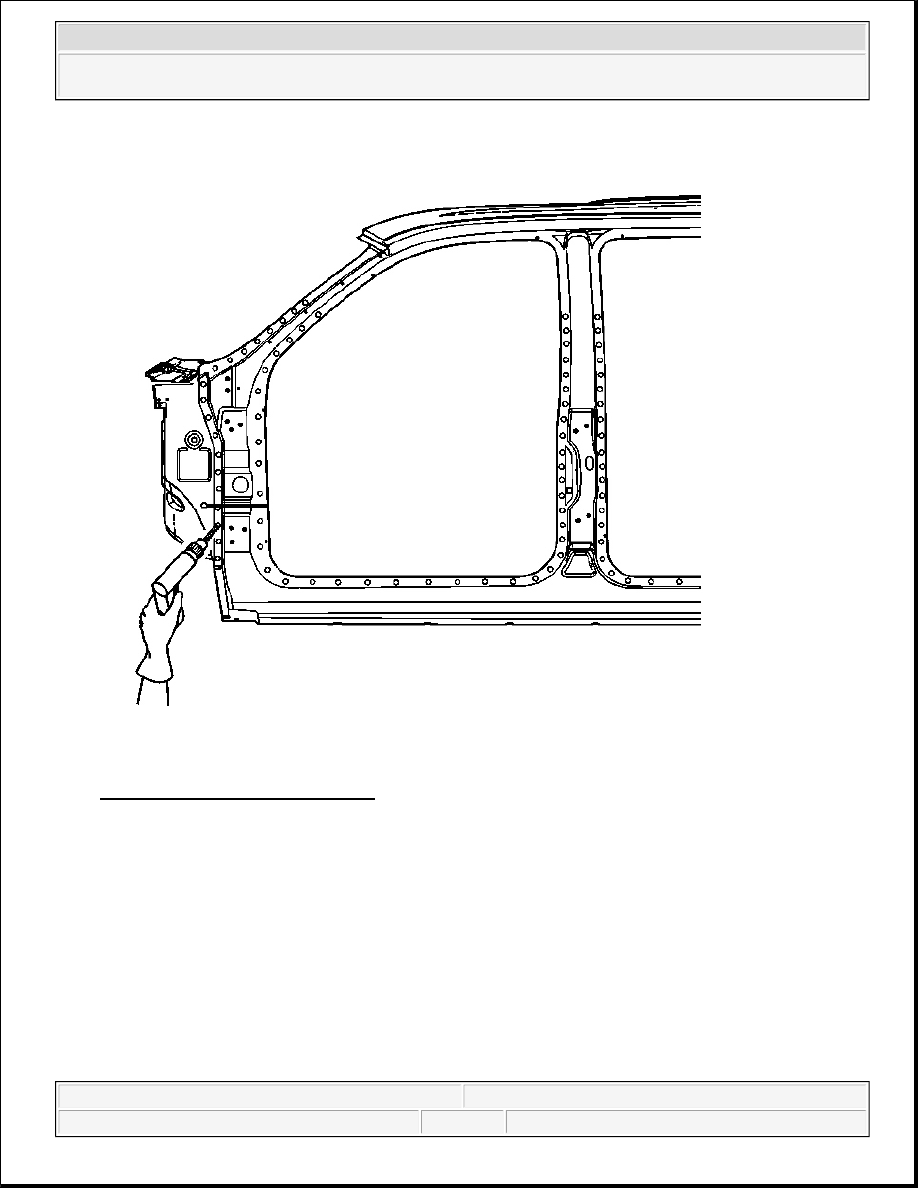

Fig. 78: Drilling Out Factory Welds
Courtesy of GENERAL MOTORS CORP.

9. Locate and drill out all factory welds. Note the number and location of the welds for installation of the

service part.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



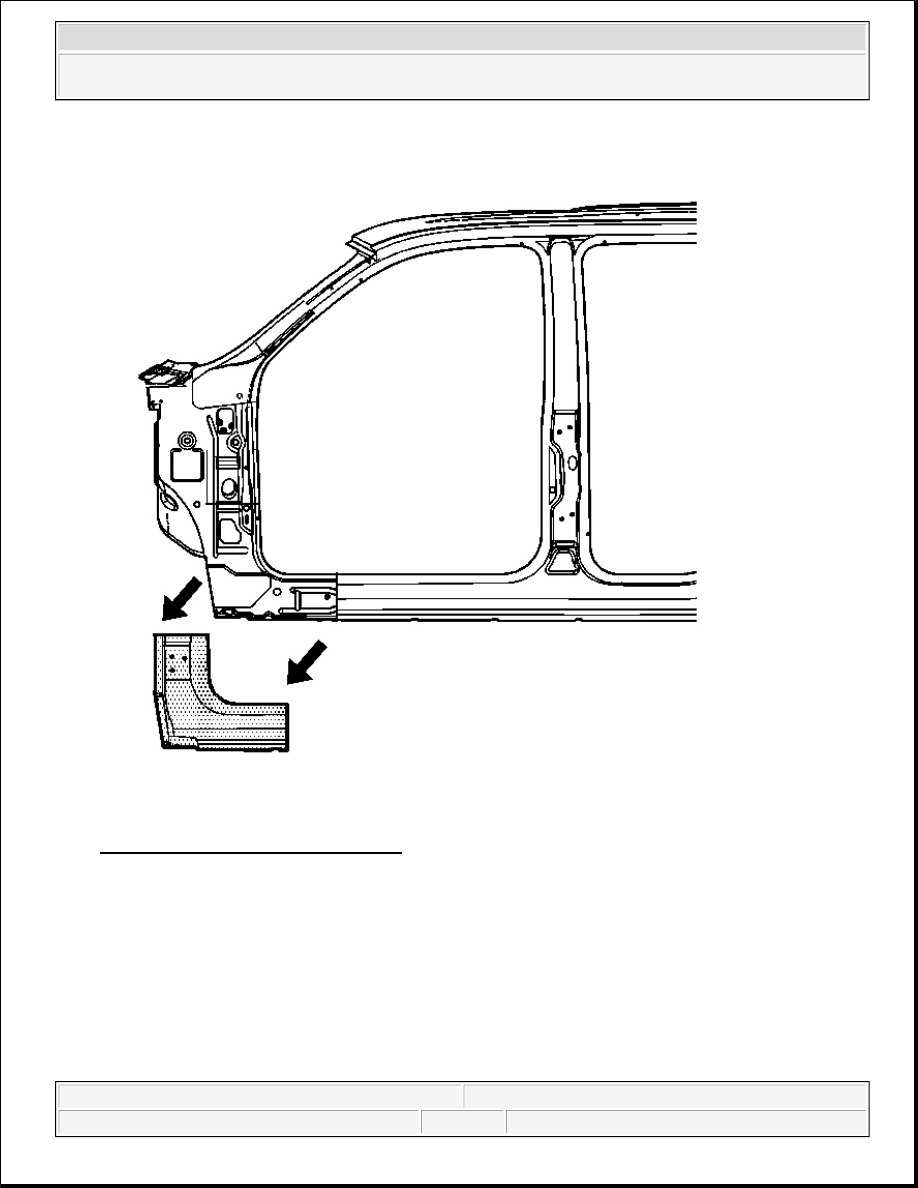

Fig. 79: View Of Damaged Hinge Pillar
Courtesy of GENERAL MOTORS CORP.

10. Remove the damaged hinge pillar.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



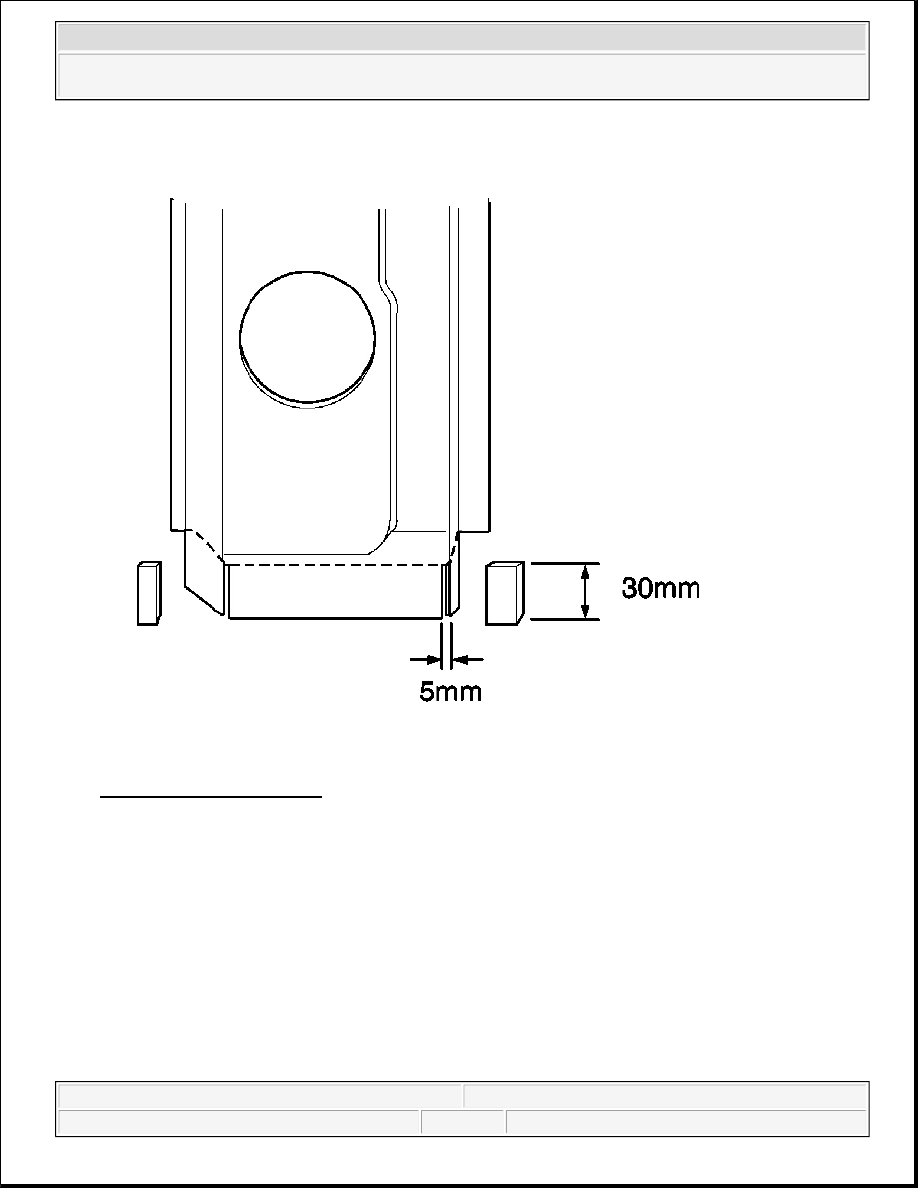

Fig. 80: Cutting 30 mm Tabs
Courtesy of GENERAL MOTORS CORP.

11. Cut and remove 30 mm (1 3/16 in) from the flanges on either side of the remaining section of the original

piller. Cut 5 mm (3/16 in) wide gaps in the bottom corners.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado
