 47–

48

47

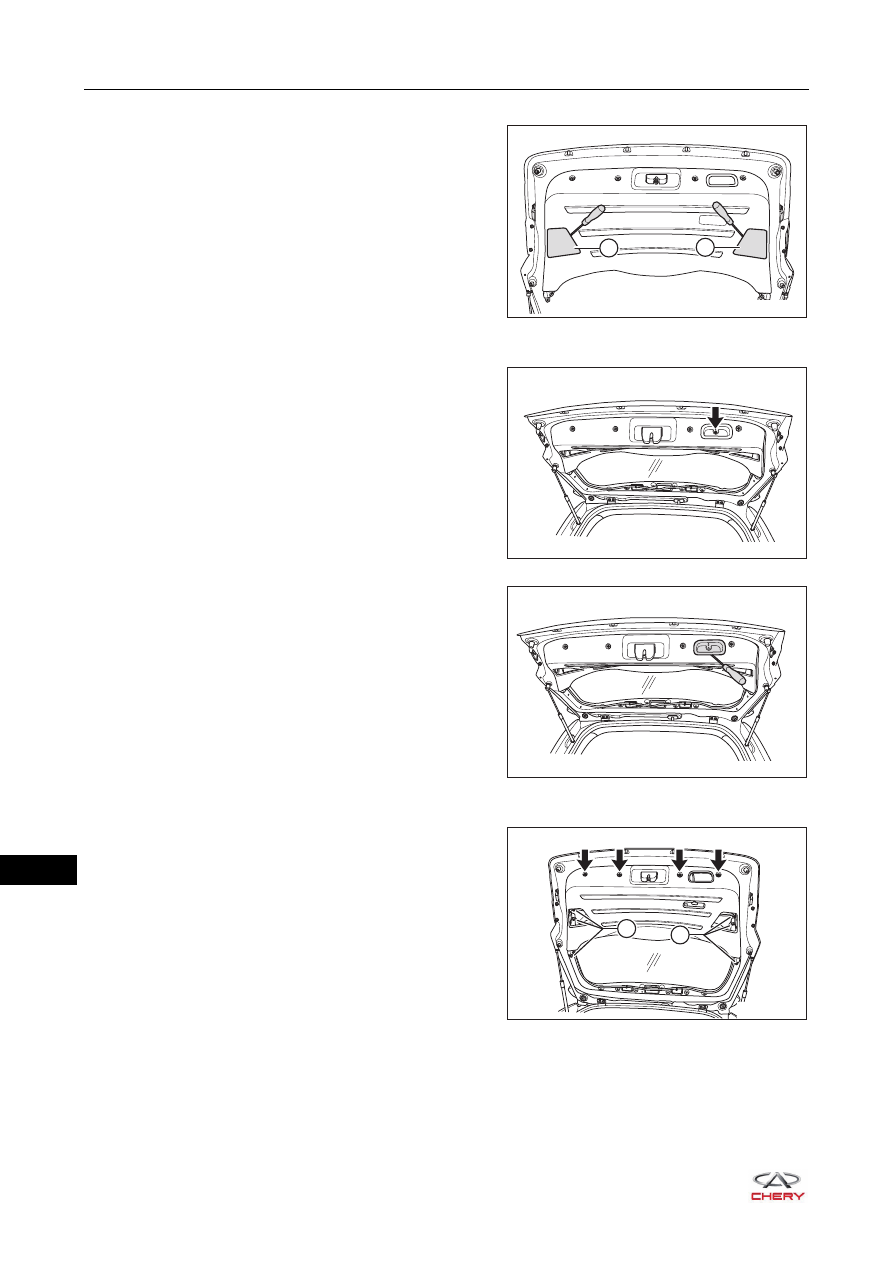

6. Remove the left and right back-up light service covers.

a. Using a screwdriver wrapped with protective tape, pry

up the claws on back-up light service covers.

b. Remove the left  back-up light service cover (1) and

right back-up light service cover (2).

7. Remove the back door grip assembly.

a. Remove the fixing screw (arrow) from the back door grip

assembly.



(Tightening torque: 7 ± 1 N·m)

b. Using a screwdriver wrapped with protective tape, pry

up the claw on back door grip assembly and remove
the back door grip assembly.

8. Remove the back door lower protector assembly.

a. Remove 6 fixing screws (1) and 4 plastic clips (arrow)

from the back door lower protector assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

1

2

RT21470720

RT21470730

RT21470740

1

1

RT21470750

 47–

49

47

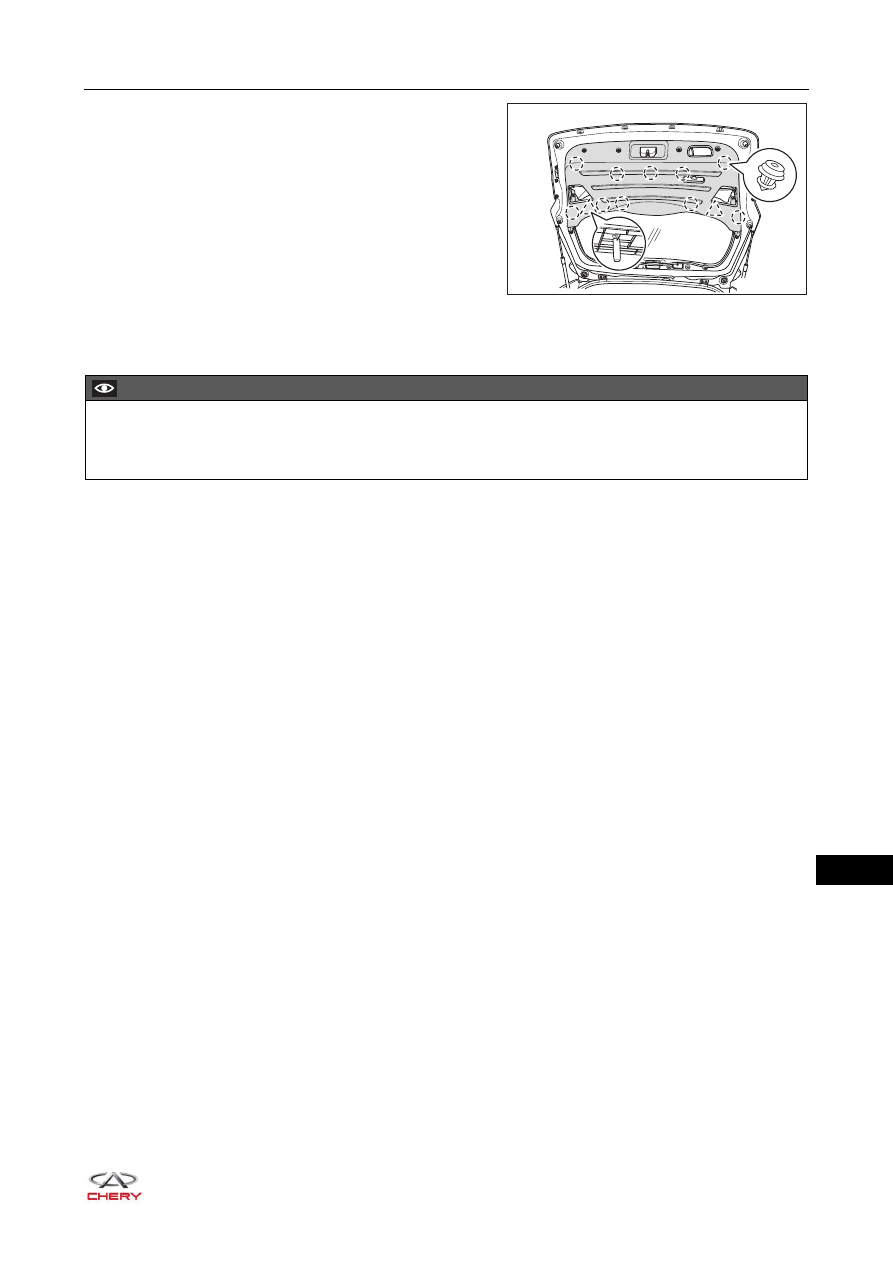

b. Using an interior crow plate, pry off the clips from the

back door lower protector assembly.

c. Remove the back door lower protector assembly.

Installation

Installation is in the reverse order of removal.

RT21470760

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing back door protector assembly.
 Try to prevent body paint surface from being scratched when installing back door protector assembly.

 47–

50

47

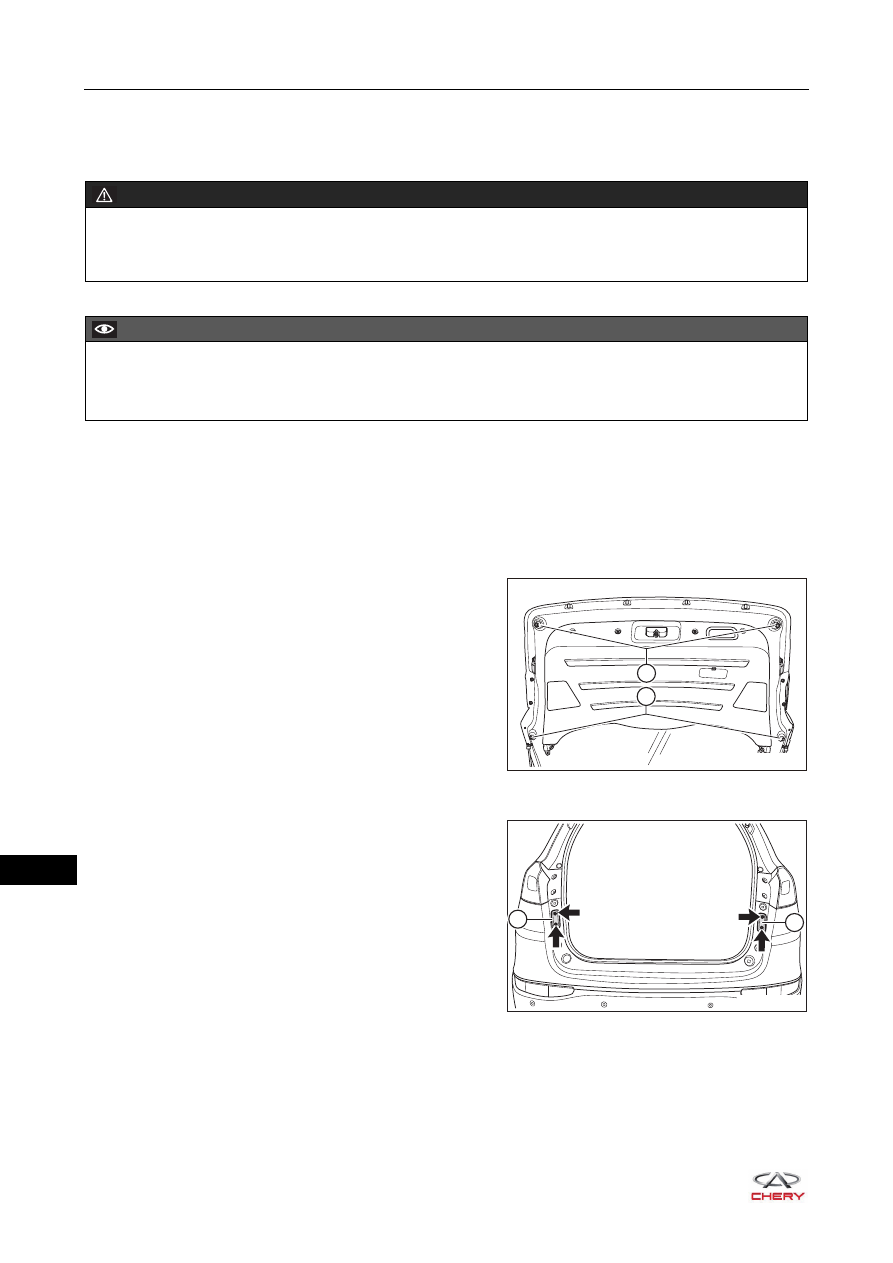

Back Door Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the back door adjustment block.

a. Turn the back door adjustment blocks (1) counterclockwise and remove the back door adjustment

blocks.

4. Remove the back door buffer block.

a. Using a screwdriver wrapped with protective tape,

remove the back door buffer blocks (2).

5. Remove the back door locating seat.

a. Remove 4 fixing bolts (arrow) from the back door

locating seat.



(Tightening torque: 1.5 ± 1 N·m)

b. Remove the left back door locating seat (1) and right

back door locating seat (2).

WARNING

 When removing back door assembly, an assistant is needed to hold back door. Prevent back door from

dropping or sudden closing to cause accidents during operation.

CAUTION

 Be sure to wear safety equipment when removing back door assembly.
 Try to prevent body paint surface from being scratched when removing back door assembly.

RT21470761

2

1

RT21480380

1

2

 47–

51

47

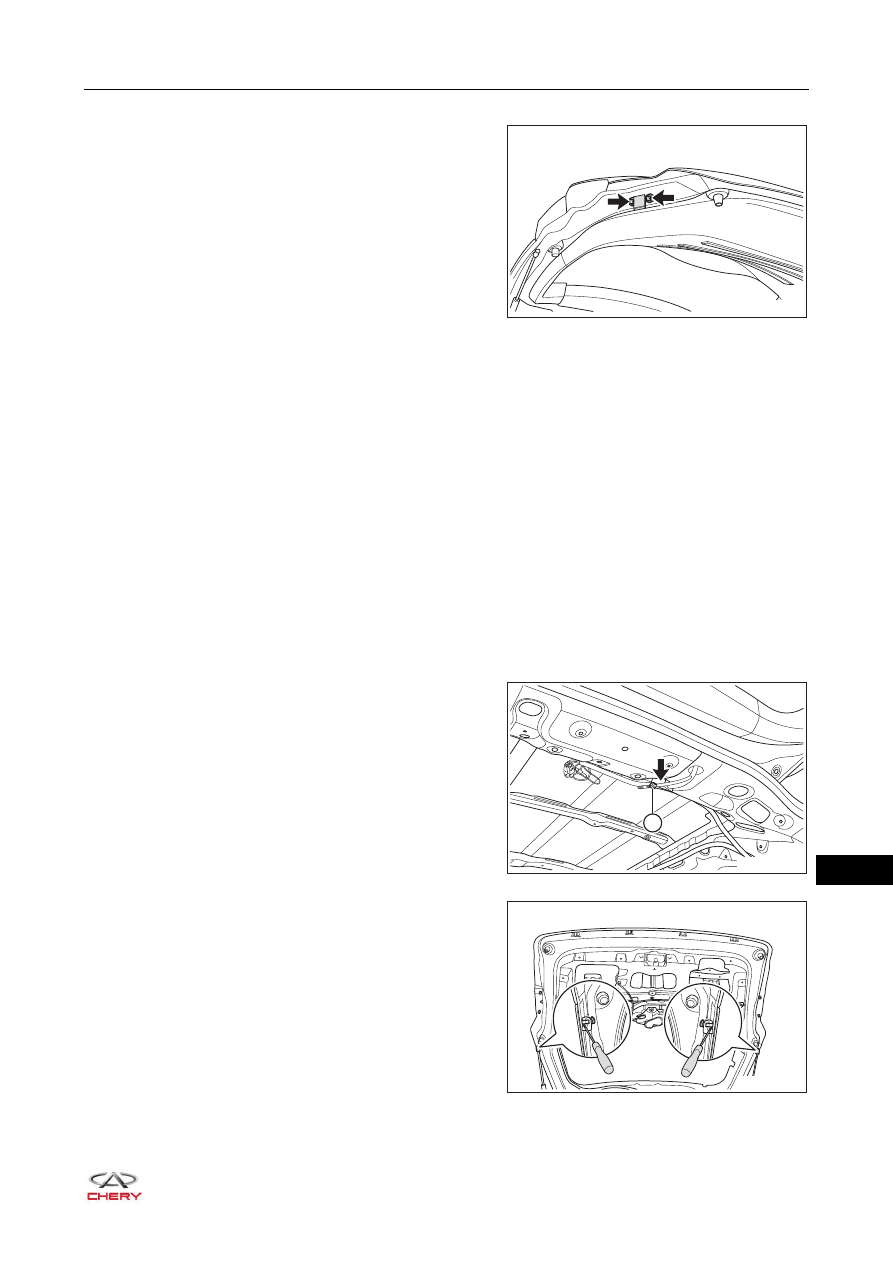

6. Remove the left back door locating block (take left side as an example).

a. Remove 2 fixing bolts (arrow) from the back door

locating block.



(Tightening torque: 1.5 ± 1 N·m)

b. Remove the left back door locating block.

7. Remove the back door protector assembly (

See page 47-47

).

8. Remove the rear wiper arm assembly (

See page 36-31

).

9. Remove the rear wiper motor assembly (

See page 36-33

).

10.Remove the rear nozzle assembly (

See page 36-35

).

11.Remove the rear spoiler assembly (

See page 48-43

).

12.Remove the back door upper trim board assembly (

See page 48-45

).

13.Remove the back door lock assembly (

See page 37-51

).

14.Remove the back door opener switch assembly (

See page 47-56

).

15.Remove the rear combination light assembly (movable part) (

See page 35-76

).

16.Remove the back door weatherstrip (

See page 49-16

).

17.Remove the roof assembly (

See page 49-30

).

HINT:
It is not necessary to remove the roof assembly completely, because the rear part of roof assembly needs
to be lowered for disconnecting the back door connector.

18.Remove the back door assembly.

a. Disconnect the back door connector (arrow).
b. Disconnect the washer line (1).

c. Using a screwdriver wrapped with protective tape, pry

off the back door air spring upper clips and remove
the back door air spring.

RT21470770

1

RT21470780

RT21470790
