Chery Tiggo 5 (T21). Service manual - part 498

 47–

7

47

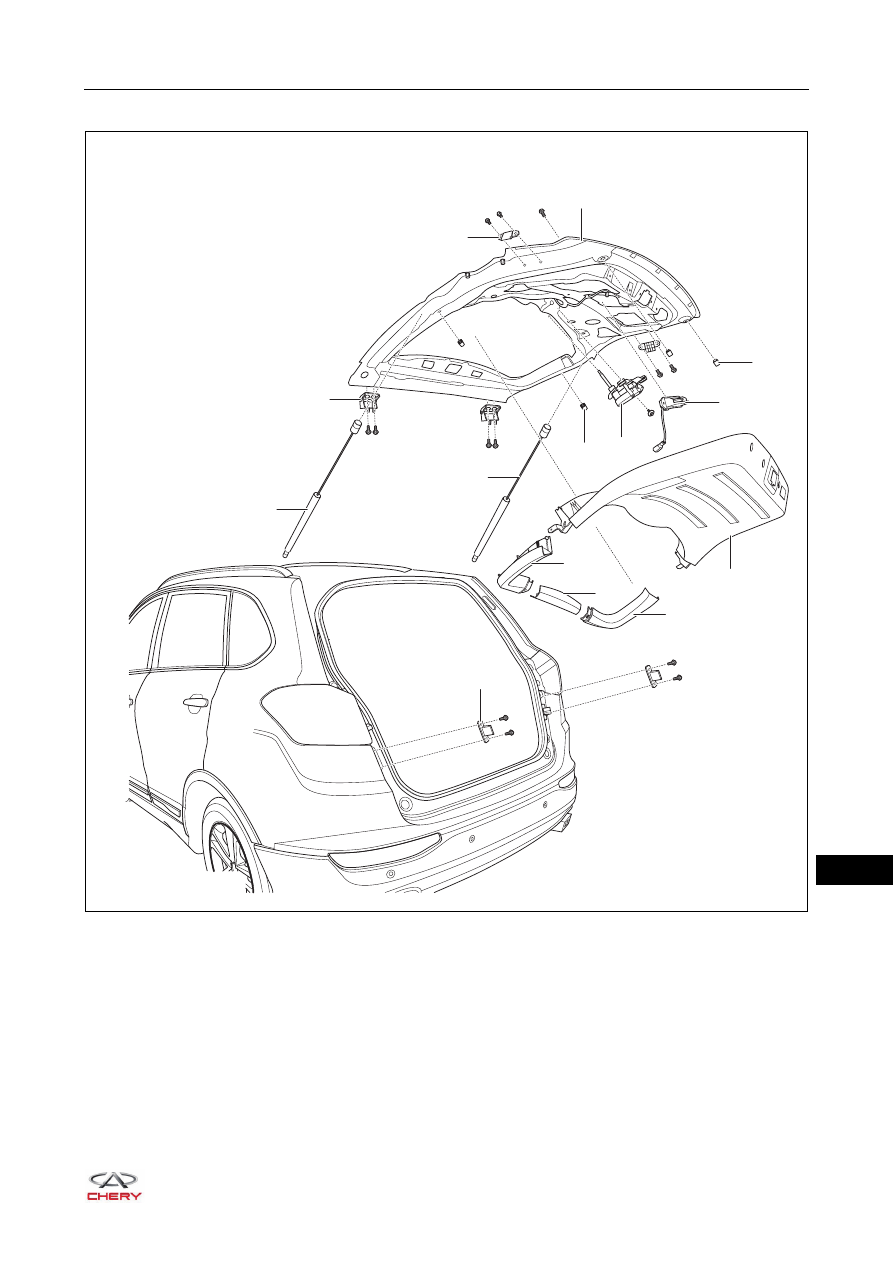

Back Door Assembly

RT21470030

×2

×3

7

8

9

2

3

4

5

6

1

13

14

11

12

10

 47–

8

47

The vehicle is designed as a structure with five doors & one cover (front left door, rear left door, front right
door, rear right door, back door and hood).

1 - Back Door Assembly

2 - Back Door Locating Block

3 - Back Door Hinge Assembly

4 - Back Door Left Air Spring Assembly

5 - Back Door Right Air Spring Assembly

6 - Back Door Locating Seat

7 - Back Door Left Protector Assembly

8 - Back Door Upper Protector Assembly

9 - Back Door Right Protector Assembly

10 - Back Door Lower Protector Assembly

11 - Back Door Adjustment Block

12 - Rear Wiper Motor Assembly

13 - Back Door Opener Switch Assembly

14 - Back Door Buffer Block

 47–

9

47

Specifications

Torque Specifications

Description

Torque (N·m)

Fixing Bolt Between Hood Assembly and Hood
Hinge Assembly

23 ± 2

Hood Lock Assembly Fixing Nut

10 ± 1

Fixing Bolt Between Hood Hinge Assembly and
Fender Assembly

10 ± 1

Fixing Bolt Between Hood Hinge Assembly and
Body

23 ± 2

Water Tank Upper Crossmember Deflector Fixing
Nut

10 ± 1

Hood Grip Assembly Fixing Screw

1.5 ± 0.5

Hood Air Spring Ball Pin Assembly

10 ± 1

Front Door Inside Handle Assembly Fixing Screw

1.5 ± 0.5

Front Door Protector Assembly Fixing Screw

1.5 ± 0.5

Front Door Assist Grip Assembly Fixing Screw

1.5 ± 0.5

Front Door Assist Grip Mounting Bracket Assembly
Fixing Screw

1.5 ± 0.5

Front Door Outside Handle Base Assembly Fixing
Screw

5 ± 1

Fixing Bolt Between Front Door Hinge Assembly and
Door

70 ± 3

Fixing Bolt Between Front Door Hinge Assembly and
Body

70 ± 3

Front Door Lock Striker Assembly Fixing Screw

10 ± 1

Rear Door Inside Handle Assembly Fixing Screw

1.5 ± 0.5

Rear Door Protector Assembly Fixing Screw

1.5 ± 0.5

Rear Door Assist Grip Assembly Fixing Screw

1.5 ± 0.5

Rear Door Assist Grip Mounting Bracket Assembly
Fixing Screw

1.5 ± 0.5

Rear Door Outside Handle Base Assembly Fixing
Screw

5 ± 1

Fixing Bolt Between Rear Door Hinge Assembly and
Door

70 ± 3

Fixing Bolt Between Rear Door Hinge Assembly and
Body

70 ± 3

Rear Door Lock Striker Assembly Fixing Screw

10 ± 1

Back Door Grip Assembly Fixing Screw

7 ± 1

Back Door Lower Protector Assembly Fixing Screw

1.5 ± 0.5

Back Door Locating Seat Fixing Bolt

1.5 ± 1

Back Door Locating Block Fixing Bolt

1.5 ± 1

 47–

10

47

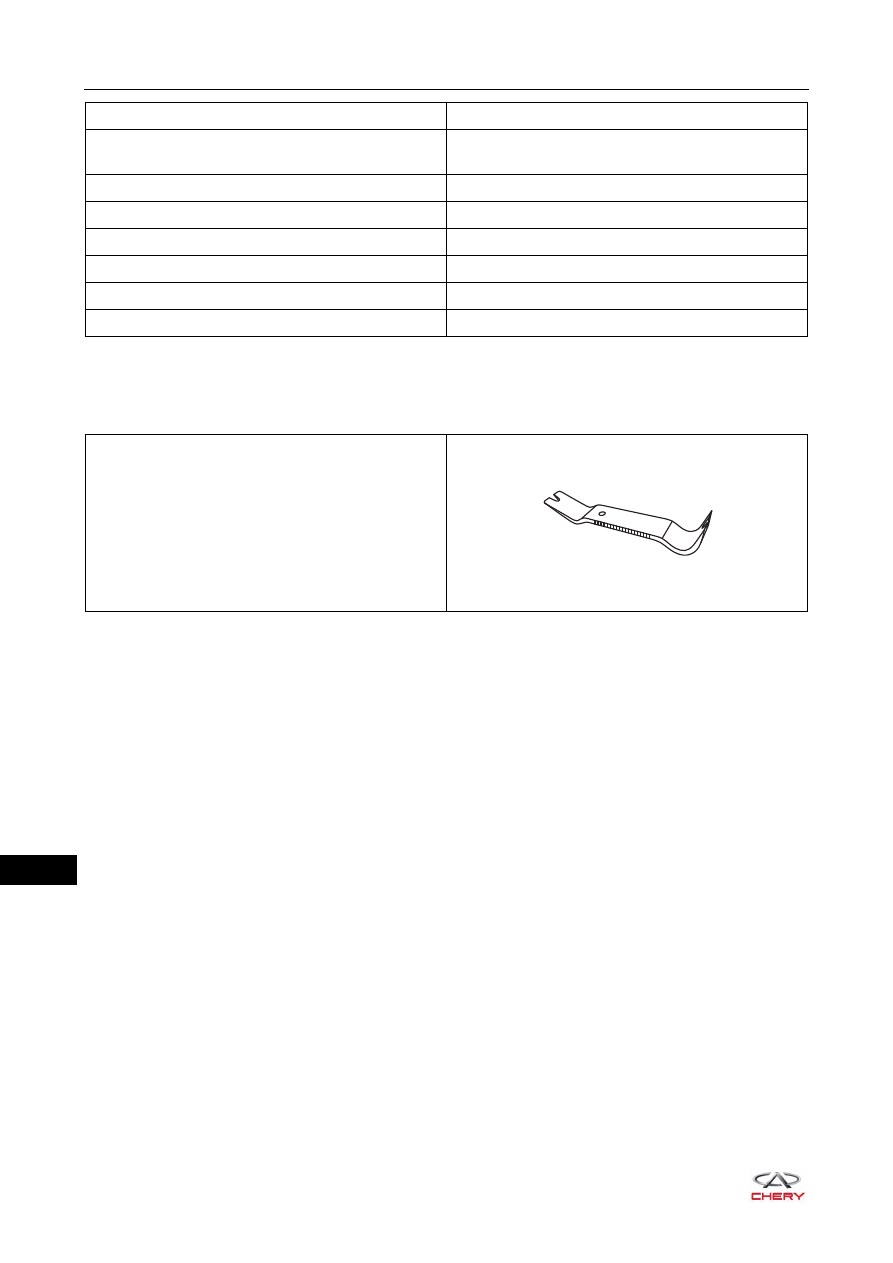

Tool

General Tool

Fixing Bolt Between Back Door Hinge Assembly and
Back Door

23 ± 2

Back Door Hinge Assembly Fixing Nut

23 ± 2

Back Door Lock Striker Assembly Fixing Screw

10 ± 1

Back Door Upper Trim Board Assembly Fixing Screw

3 ± 1

Back Door Upper Trim Board Assembly Fixing Nut

5 ± 1

Back Door Opener Switch Assembly Fixing Bolt

10 ± 1

Back Door Air Spring Assembly Ball Pin

10 ± 1

Description

Torque (N·m)

Interior Crow Plate

RCH0000025
