43–

88

2

44

44–

3

44

REAR VIEW MIRROR

GENERAL INFORMATION

Description

This vehicle is equipped with power outside rear view mirror and inside rear view mirror.
Power outside rear view mirror: driver can control the rotation of motor by operating outside rear view mirror
adjustment switch in vehicle, thus adjusting mirror surface to achieve a required visual angle.
Power outside rear view mirror adjustment switch is located on the instrument panel lower left protector
assembly. With ignition switch ON, press power outside rear view mirror adjustment switch "L" or "R" to select
the left or right outside rear view mirror that you want to adjust, and then press the rear view mirror up or down
and left or right button to achieve a required visual angle.
It is necessary to adjust inside rear view mirror manually to desired direction. When driving at night, rear view
mirror angle can be adjusted by pulling back the glare-resistant rod to reduce glare.

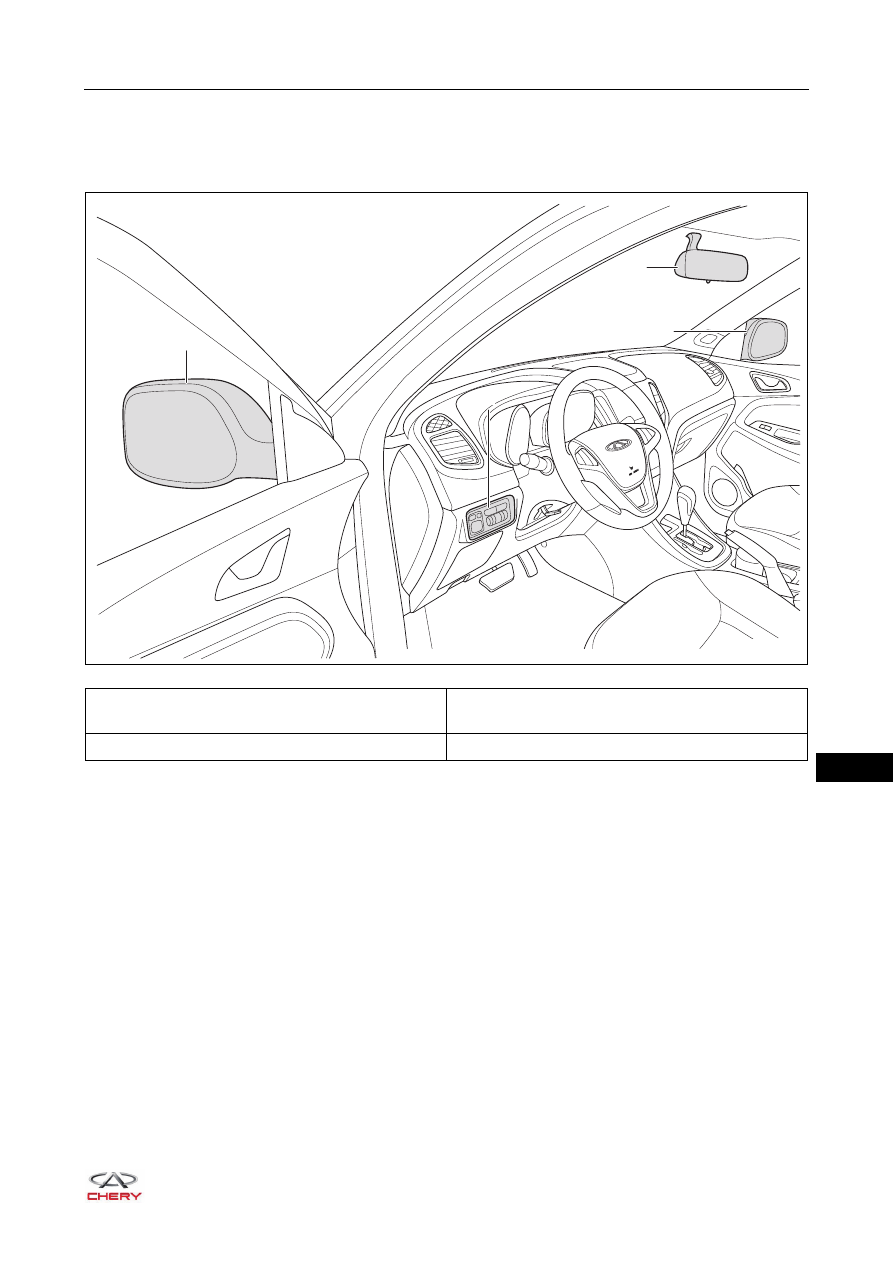

1 - Left Outside Rear View Mirror Assembly

2 - Outside Rear View Mirror Adjustment Switch

Assembly

3 - Inside Rear View Mirror Assembly

4 - Right Outside Rear View Mirror Assembly

RT21440010

4

3

2

1
