Chery Tiggo 5 (T21). Service manual - part 447

39–

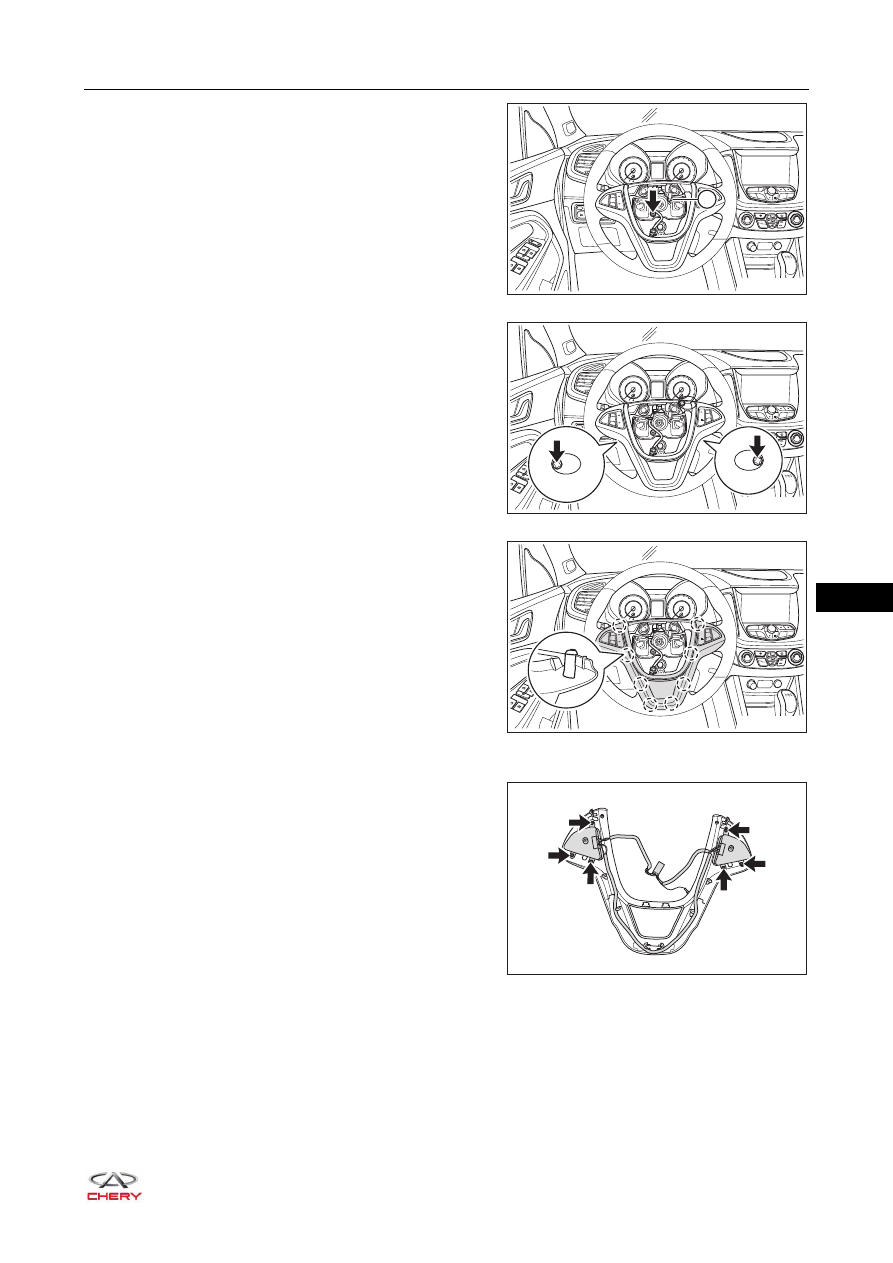

c. Remove the fixing screw (arrow) from ground wire

harness.

d. Remove the wire harness fixing screw (1).



(Tightening torque: 0.7 ± 0.2 N·m)

e. Remove 2 fixing screws (arrow) from steering wheel

quick button trim cover.



(Tightening torque: 0.7 ± 0.2 N·m)

f. Using a screwdriver wrapped with protective tape, pry

up the claws on steering wheel quick button trim
cover, and remove the steering wheel quick button
trim cover.

5. Remove the steering wheel quick button.

a. Remove 6 fixing screws (arrow) from steering wheel

quick button, and remove the steering wheel quick
button.



(Tightening torque: 0.7 ± 0.2 N·m)

x1000

100 120

140

160

180

200

220

MODE

VOL-

VOL+

NAV1

BAND

SET

2 4 R

3 5

A/C

RES/+

SET/-

ON
OFF

RT21390160

x1000

100 120

140

160

180

200

220

MODE

VOL-

VOL+

NAV1

BAND

SET

2 4 R

3 5

A/C

RES/+

SET/-

ON
OFF

RT21390170

x1000

100 120

140

160

180

200

220

MODE

VOL-

VOL+

NAV1

BAND

SET

2 4 R

3 5

A/C

RES/+

SET/-

ON
OFF

RT21390180

RT21390190

39–

Inspection

1. Check steering wheel quick button.

a. Check steering wheel quick button for damage. Replace if necessary.
b. Check steering wheel quick button connector for damage or poor terminal connection. Replace if

necessary.

c. Check for continuity of wire harness between steering wheel quick button connector and audio unit (no

disc DVD assembly). Replace if necessary.

Installation

Installation is in the reverse order of removal.

CAUTION

 Operate carefully to prevent components from being damaged when installing steering wheel quick

button.

 Install each connector in place when installing steering wheel quick button.
 Tighten fixing screws to the specified torque when installing steering wheel quick button.
