29–

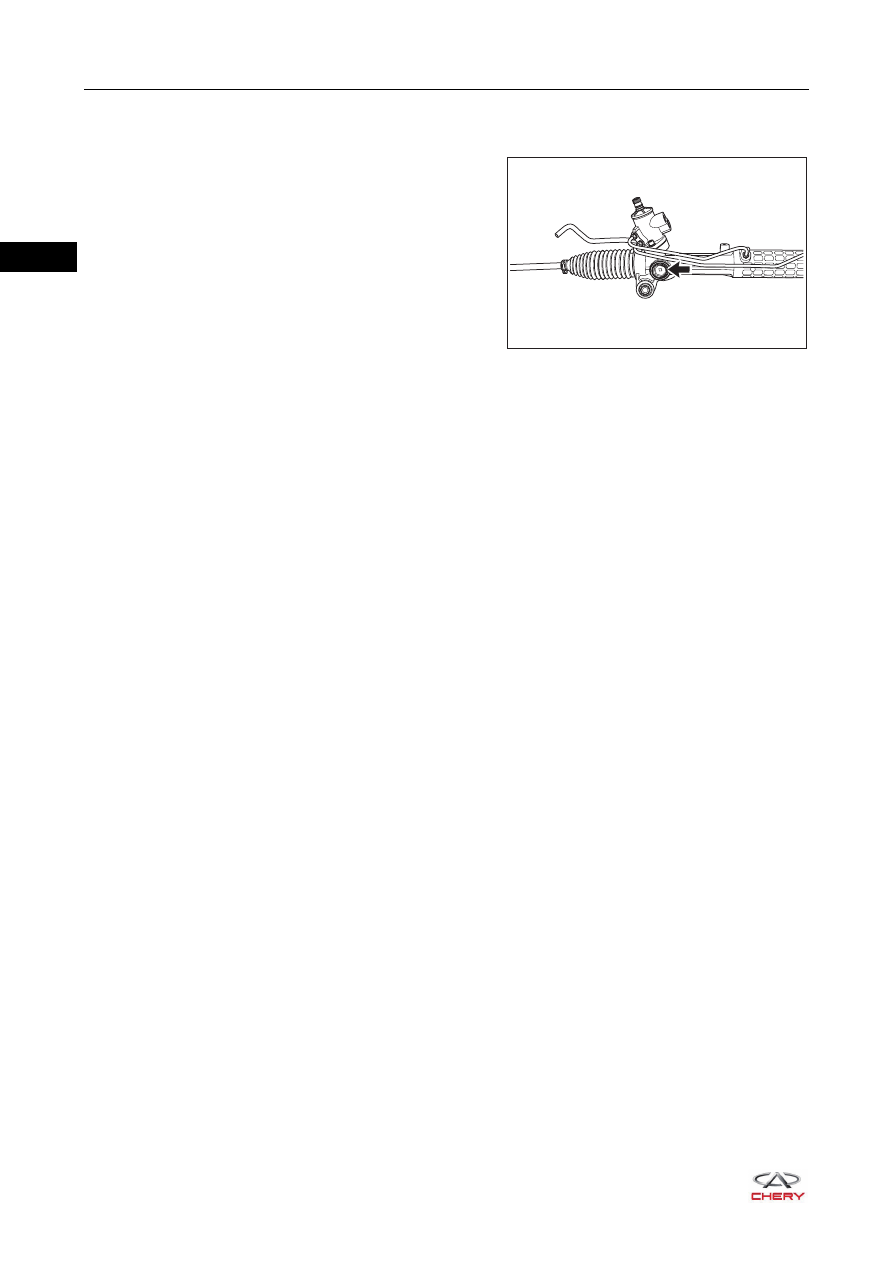

Steering Gear Clearance Adjustment

1. Set wheels to straight-ahead position.
2. Loosen the adjustment bolt locking nut (arrow).

3. Turn steering wheel left and right. If sound is heard from steering gear assembly, adjust the adjustment bolt

until no clattering noise is heard when turning the steering wheel.

4. Tighten the adjustment bolt for more 1/8 turn (approximately 45°).
5. Perform road test.
6. If steering mechanism cannot return to central position, unscrew the bolt by 15°.
7. Perform road test.

RT21290190

30–

ELECTRONIC POWER STEERING

GENERAL INFORMATION

Description

The vehicle uses the electronic power steering system, which can reduce the workload when the driver
operates the steering wheel, thus improving the operation convenience and driving safety.

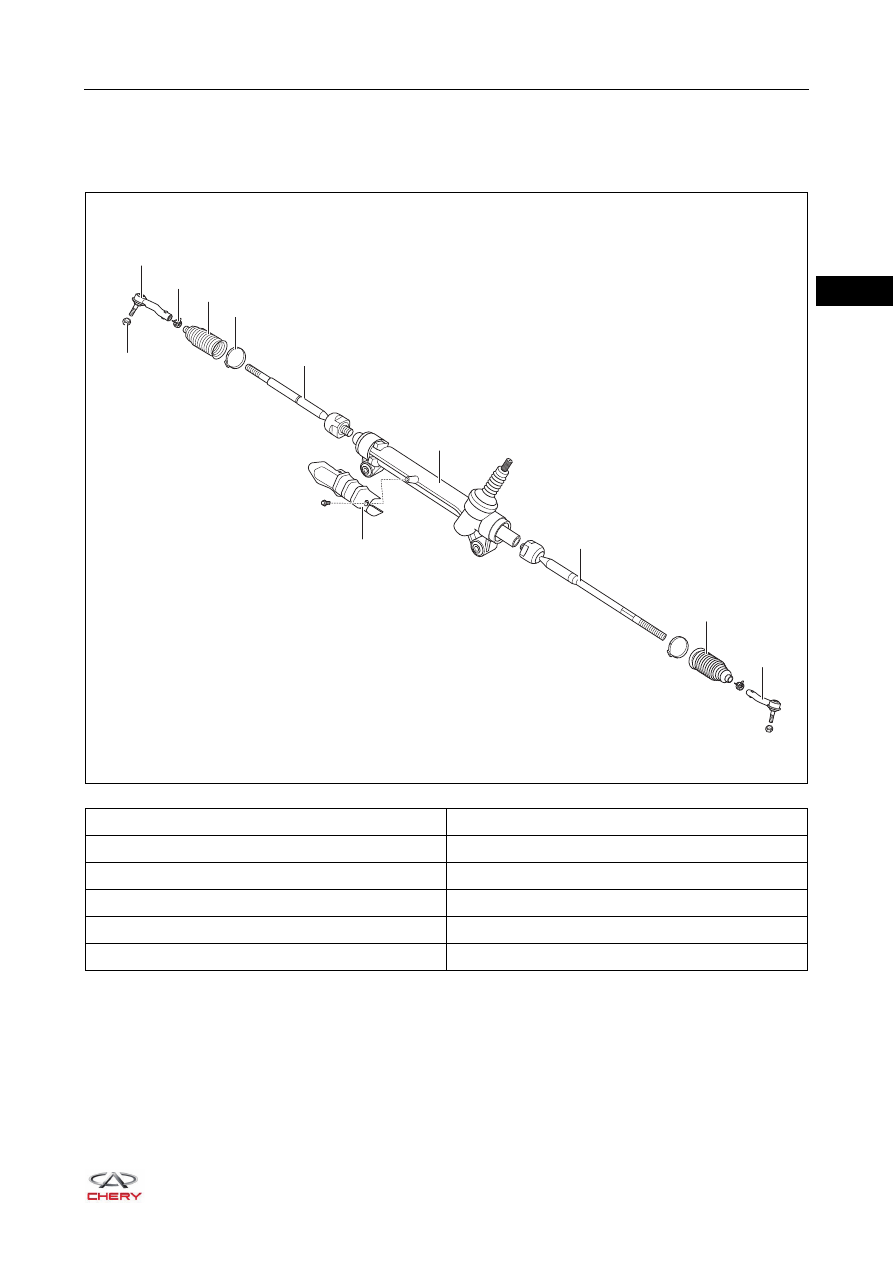

1 - Right Steering Tie Rod Ball Pin

2 - Tie Rod Ball Pin Locking Nut

3 - Tie Rod Dust Boot Clamp

4 - Right Steering Tie Rod Dust Boot

5 - Clamp

6 - Right Steering Tie Rod Assembly

7 - Steering Gear Assembly

8 - Left Steering Tie Rod Assembly

9 - Left Steering Tie Rod Dust Boot

10 - Left Steering Tie Rod Ball Pin

11 - Steering Gear Heat Shield

RT21300010
