Chery Tiggo 5 (T21). Service manual - part 305

2

28

28–

3

28

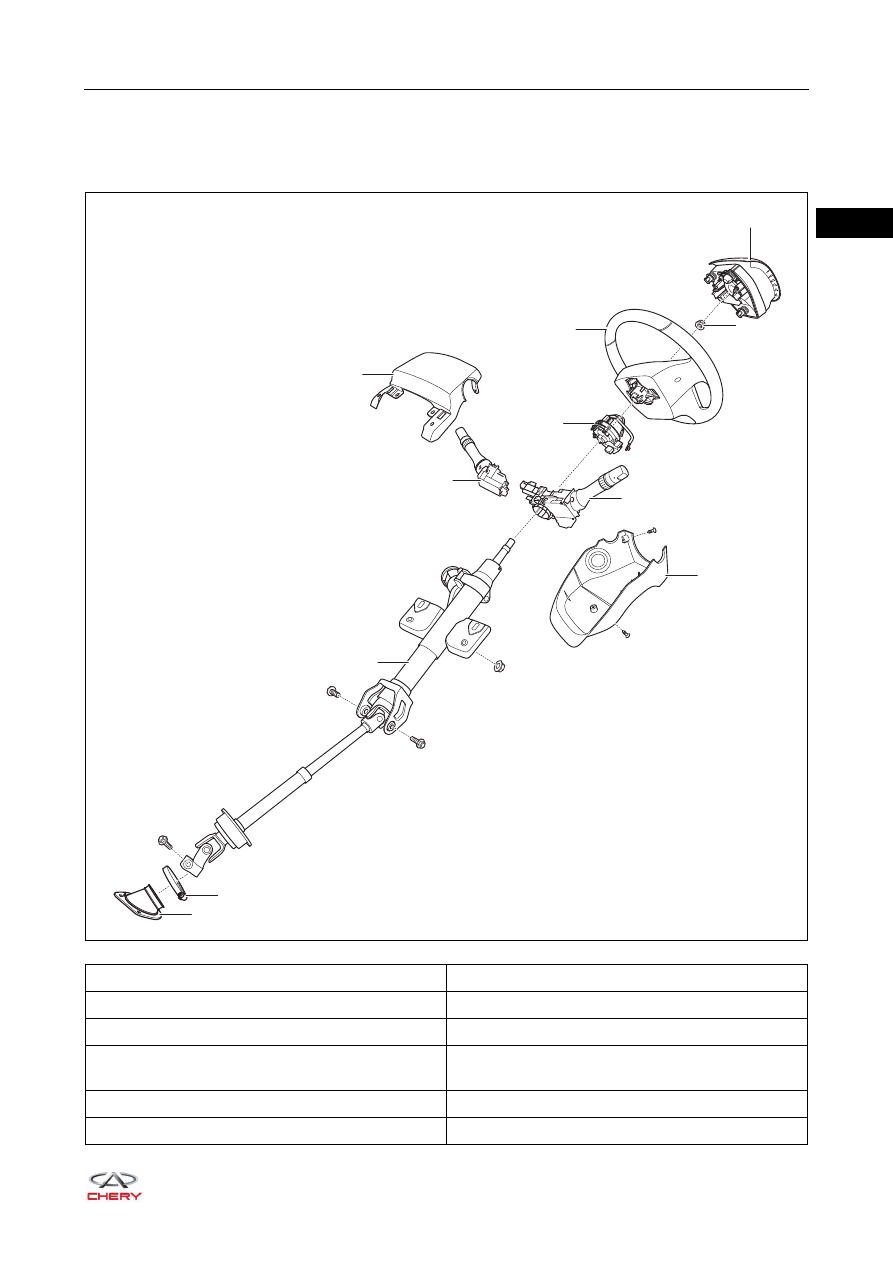

STEERING COLUMN

GENERAL INFORMATION

Description

1 - Driver Airbag

2 - Steering Wheel Assembly Fixing Nut

3 - Steering Wheel Assembly

4 - Spiral Cable

5 - Combination Switch Upper Cover

6 - Wiper and Washer Combination Switch

7 - Light Combination Switch

8 - Steering Column with Intermediate Shaft

Assembly

9 - Combination Switch Lower Cover

10 - Worm Clamp

11 - Steering Boot

×2

×2

2

9

7

6

5

8

4

3

1

10

11

RT21280010

28–

4

28

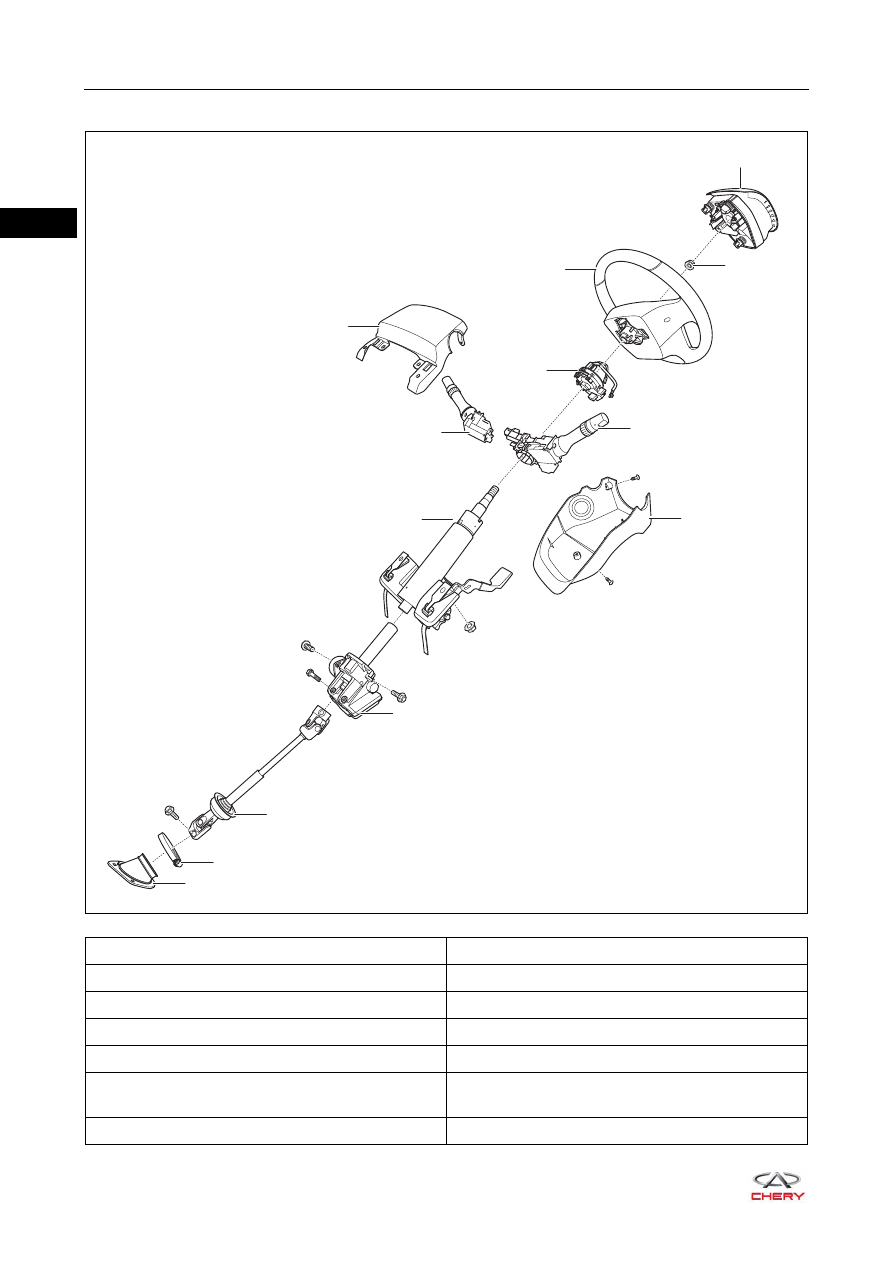

Electronic Power Steering Column

1 - Driver Airbag

2 - Steering Wheel Assembly Fixing Nut

3 - Steering Wheel Assembly

4 - Spiral Cable

5 - Combination Switch Upper Cover

6 - Wiper and Washer Combination Switch

7 - Light Combination Switch

8 - Steering Column

9 - Combination Switch Lower Cover

10 - EPS Controller Assembly

11 - Intermediate Shaft with Universal Joint

Assembly

12 - Worm Clamp

13 - Steering Boot

×2

×2

2

9

10

11

7

6

5

8

4

3

1

12

13

RT21280011

28–

5

28

Specifications

Torque Specifications

Data Specifications

Description

Tightening Torque (N·m)

Steering Wheel Assembly Fixing Nut

35 ± 3

Combination Switch Cover Fixing Screw

2 ± 0.5

Steering Column Assembly Upper Bracket Fixing Nut

25 ± 3

Steering Column Assembly Lower Bracket Fixing
Bolt

25 ± 3

Coupling Bolt Between Steering Column with
Intermediate Shaft Assembly and Steering Gear
Input Shaft

30 ± 3

Coupling Bolt Between Electronic Power Steering
Column with Intermediate Shaft Assembly and
Steering Gear Input Shaft

60 ± 5

Ignition Starting Switch Fixing Screw

15 ± 2

Steering Boot Fixing Nut

10 ± 1

Coupling Bolt Between Electronic Power Steering
Column and Intermediate Shaft

50

Description

Standard Value

Steering Wheel Free Play (Rotation Angle)

≤ 15°

Steering Wheel Centering/Returnability (Rotation
Angle)

> 70°
