Chery Tiggo 5 (T21). Service manual - part 296

26–

39

26

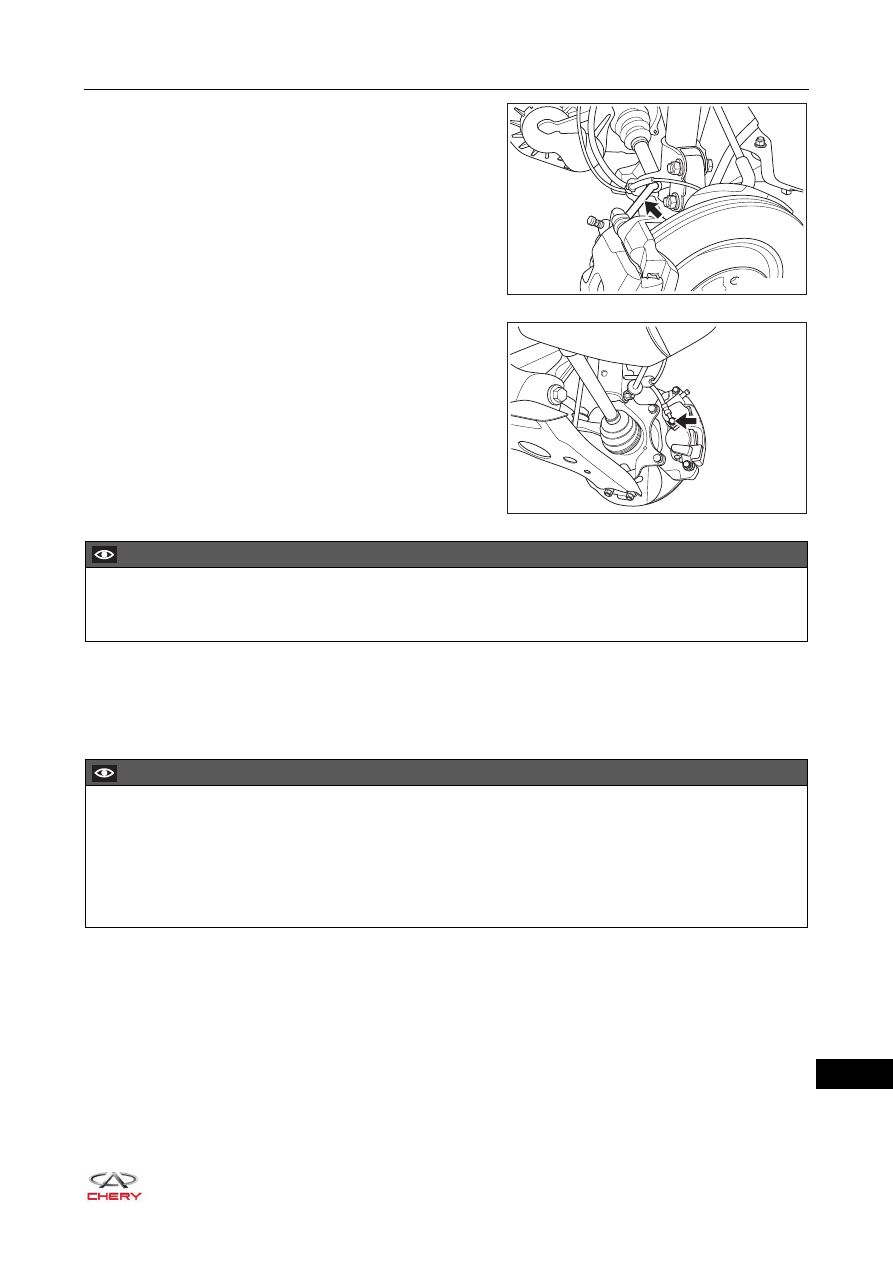

b. Remove the front left brake hose assembly (arrow)

from front left shock absorber assembly.

c. Remove the coupling bolt and washer (arrow)

between front left brake caliper assembly and front left
brake hose assembly.



(Tightening torque: 27 ± 2 N·m)

d. Remove the front left brake hose assembly.

Installation

Installation is in the reverse order of removal.

RT21260510

RT21260330

CAUTION

 DO NOT allow brake fluid to be sprayed on your clothes or skin when removing brake hose, as the brake

fluid is corrosive.

CAUTION

 Make sure to tighten coupling bolts and plug to the specified torque during installation.
 Be sure to check brake system for leakage after installation. Repair or replace malfunctioning parts as

necessary.

 Be sure to perform bleeding procedures for brake system after installation.
 Be sure to add brake fluid to the proper level after installation.

26–

40

26

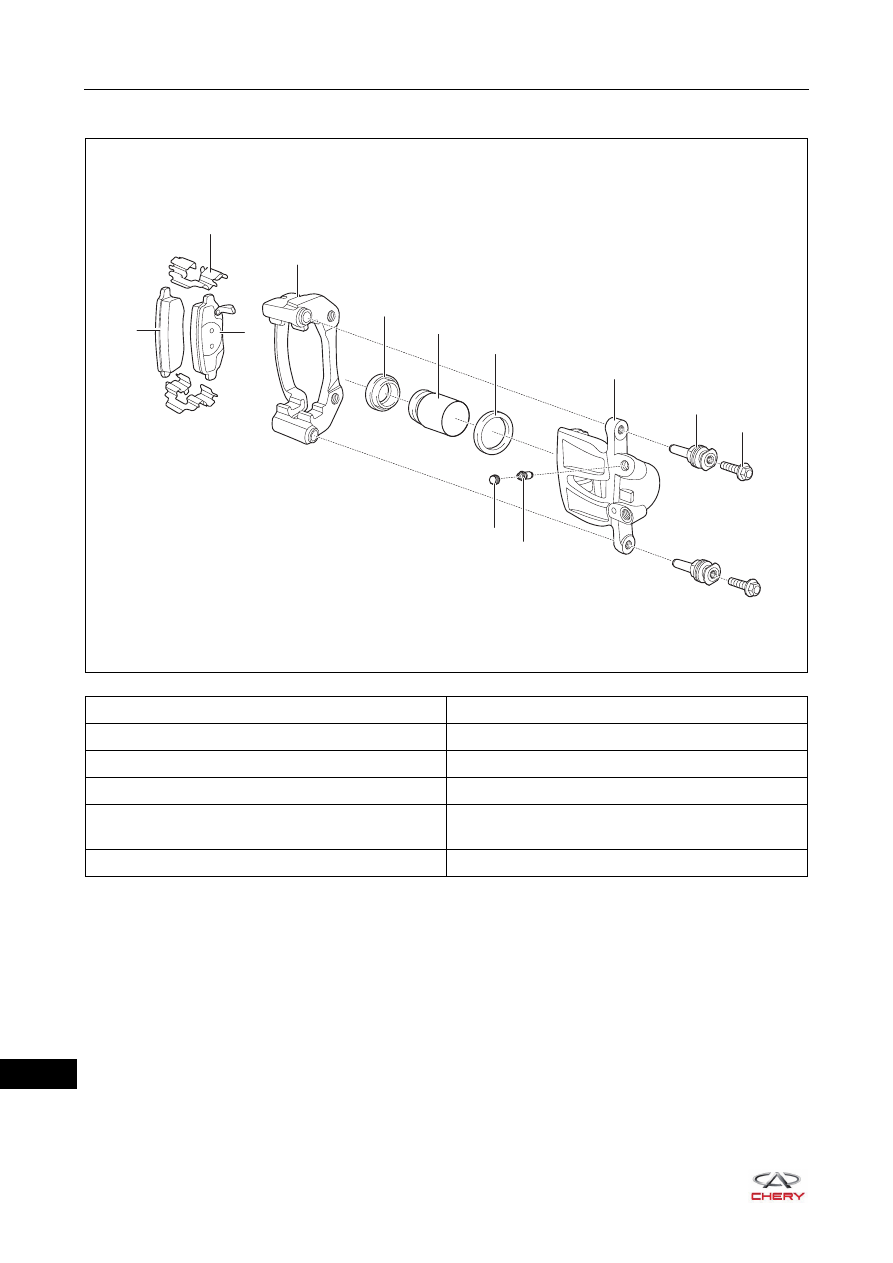

Rear Disc Brake Assembly

1 - Support Gasket

2 - Outer Brake Lining

3 - Inner Brake Lining

4 - Rear Disc Brake Caliper Fixing Bracket

5 - Rear Disc Brake Piston Dust Boot

6 - Rear Disc Brake Piston

7 - Rear Disc Brake Piston Seal Ring

8 - Rear Brake Cylinder

9 - Brake Caliper Locating Bolt Guide Pin (w/ Dust

Boot)

10 - Brake Caliper Locating Bolt

11 - Bleeder Plug

12 - Bleeder Plug Cap

RT21260520

3

2

1

4

5

6

7

8

9

10

11

12

26–

41

26

On-vehicle Inspection

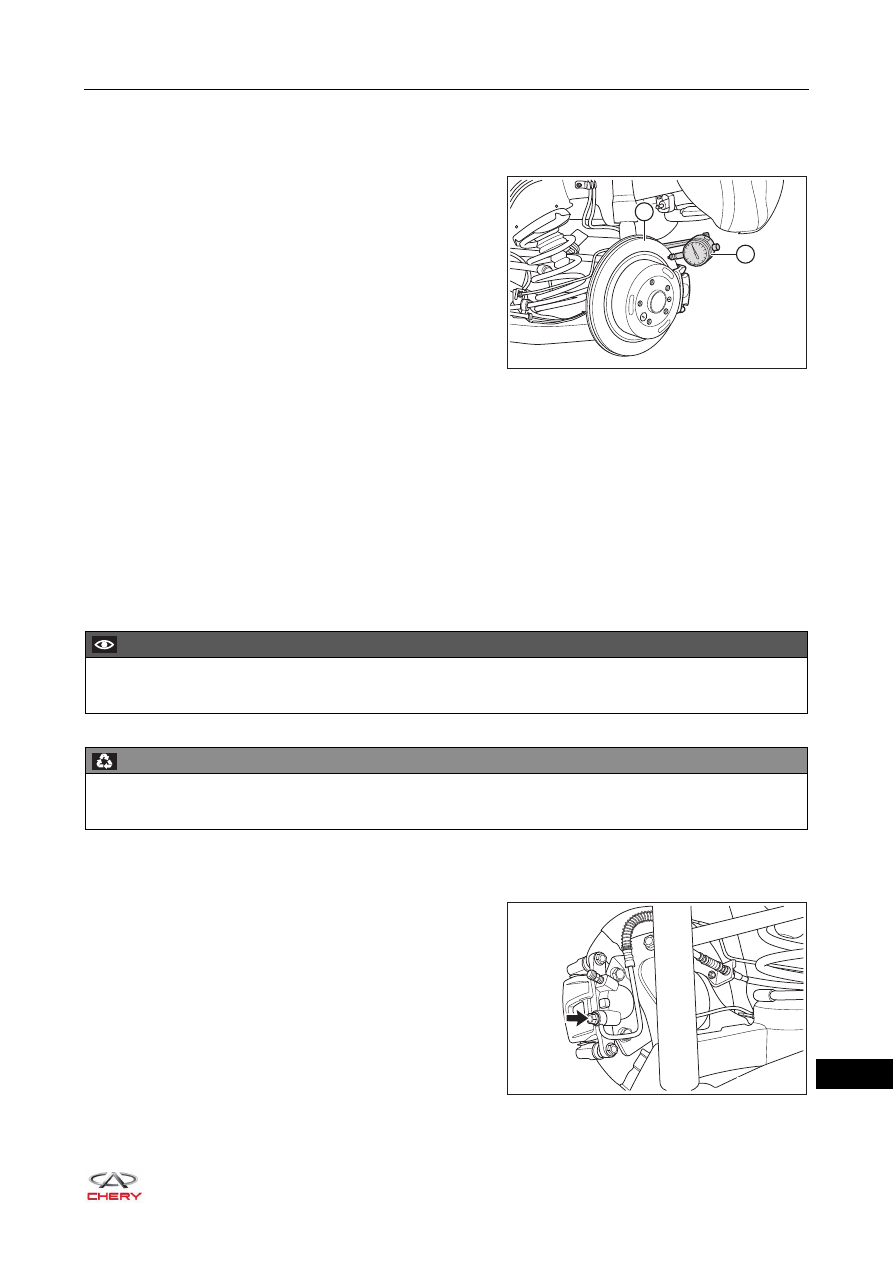

1. Check brake disc runout.

a. Remove the rear wheel (

See page 24-9

).

b. Secure the dial indicator (1) to the proper position.

Position the dial indicator pointer approximately 10
mm from the outer edge of rear brake disc.

c. Slowly rotate the brake disc (2) and check the runout.

Mark the lowest and highest points and record these
measurements.

d. Check the runout on the opposite side of brake disc in the same way. Mark the lowest and highest

points and record these measurements.

e. Compare the recorded runout value and limit value.



Maximum runout for front brake disc: 0.06 mm

f. If the runout exceeds the maximum value, replace the brake disc.

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.
1. Drain the brake fluid (

See page 26-13

).

2. Remove the rear left wheel (

See page 24-9

).

3. Remove the rear left brake caliper assembly.

a. Remove the coupling bolt and washer (arrow)

between rear left brake caliper assembly and rear left
brake hose assembly.



(Tightening torque: 20 ± 2 N·m)

RT21260530

2

1

CAUTION

 Wash off brake fluid immediately if it comes in contact with any paint surface.

ENVIRONMENTAL PROTECTION

 Drained brake fluid should be well kept in a container. Never discard it at will.

RT21260540

26–

42

26

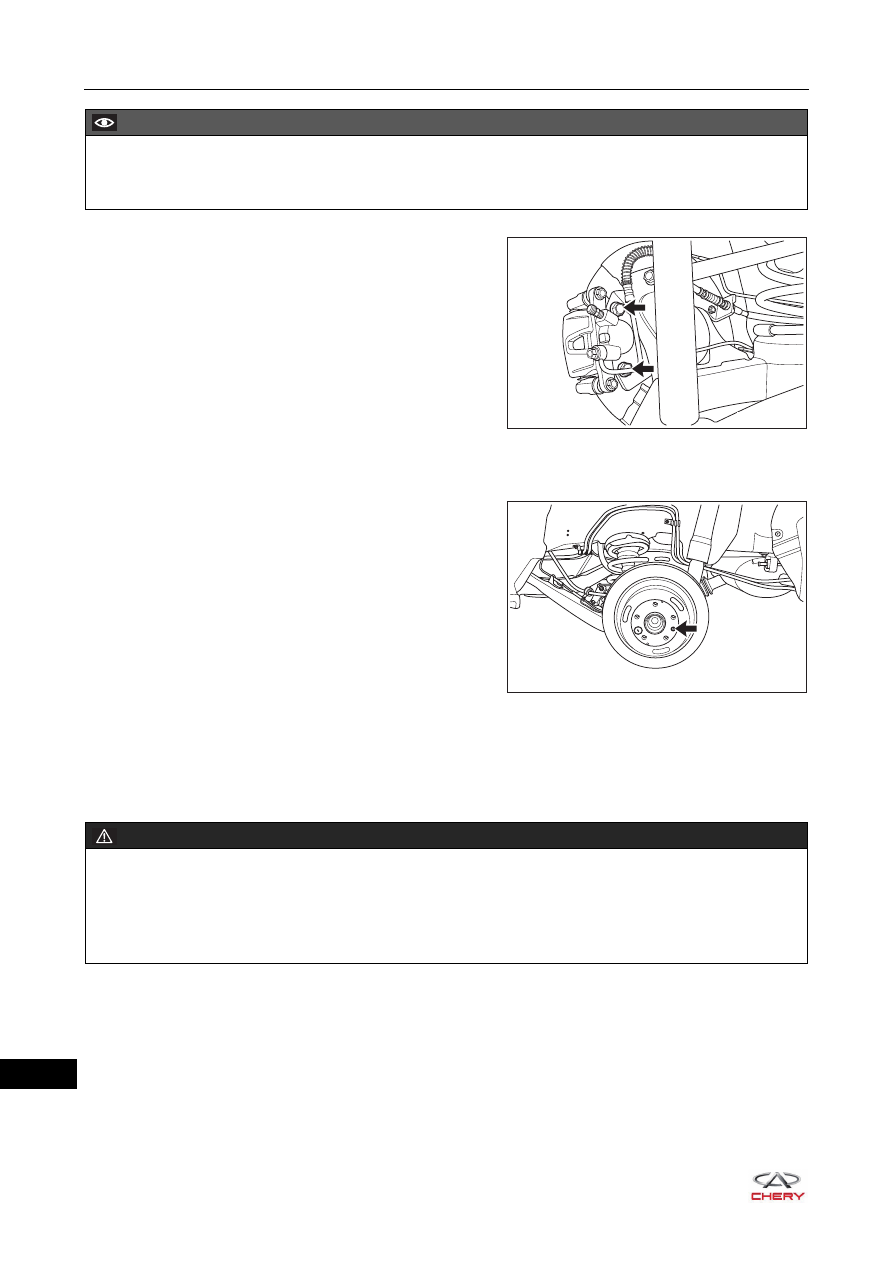

b. Remove the coupling bolts (arrow) between rear left

brake caliper assembly and rear left brake bottom
board assembly.



(Tightening torque: 100 ± 10 N·m)

c. Remove the rear left brake caliper assembly.

4. Remove the rear left brake disc.

a. Remove the positioning screw (arrow) from rear left

brake disc, and remove the rear left brake disc.



(Tightening torque: 10 ± 1 N·m)

Disassembly

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

CAUTION

 DO NOT allow brake fluid to be sprayed on your clothes or skin when removing brake hose, as the brake

fluid is corrosive.

RT21260550

RT21260560

WARNING

 Never use high pressure when removing piston from the bore of brake caliper. Otherwise this may cause

personal injuries.

 If it is needed to remove piston with compressed air. DO NOT allow the piston to face yourself or place

your hands around the brake caliper and piston.
