15–
71
15
Passive Entry & Passive Start (PEPS) Controller (w/ PEPS System)
Removal
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the glove box assembly (
).

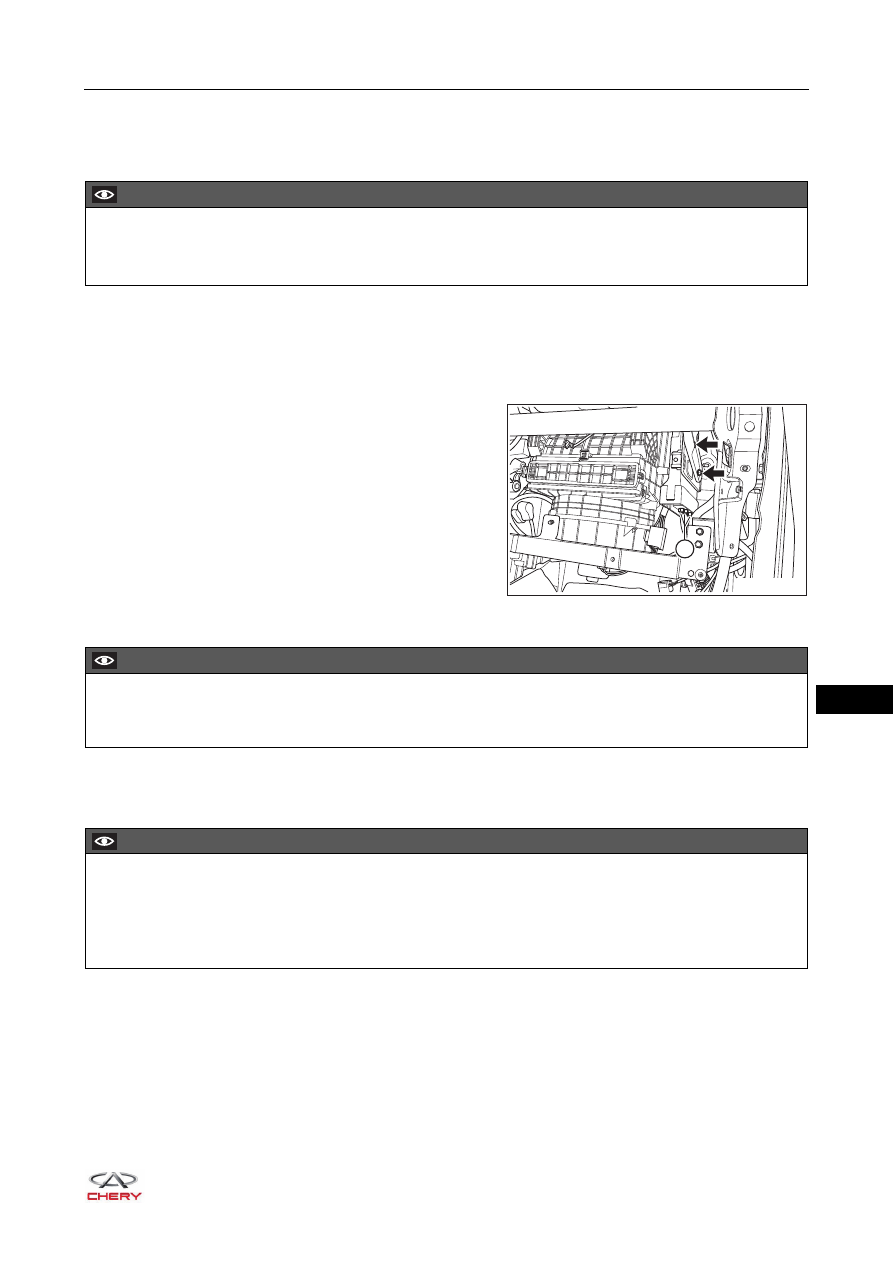

4. Remove the PEPS controller.
a. Disconnect the PEPS controller connectors (1).
b. Remove 2 fixing nuts (arrow) from PEPS controller
bracket.
(Tightening torque: 7 ± 1 N·m)
c. Remove the PEPS controller with bracket from engine crossmember.
Installation
Installation is in the reverse order of removal.
CAUTION
Be sure to wear necessary safety equipment when repairing to prevent accidents.
Try to prevent vehicle protector from being scratched during removal and installation.
1
RT21450480
CAUTION
DO NOT separate PEPS controller and bracket if not as necessary. DO NOT separate them over and
over again if it is necessary to separate, to avoid damage to claws of PEPS controller.
CAUTION
It is necessary to match the PEPS controller after replacing it (
With PEPS controller not matched, do not carelessly turn on and off the power, as the non-matched
PEPS controller has 50 chances to turn the power from off to ignition state, PEPS controller will not be
used once more than 50 times.
