Chery Tiggo 5 (T21). Service manual - part 133

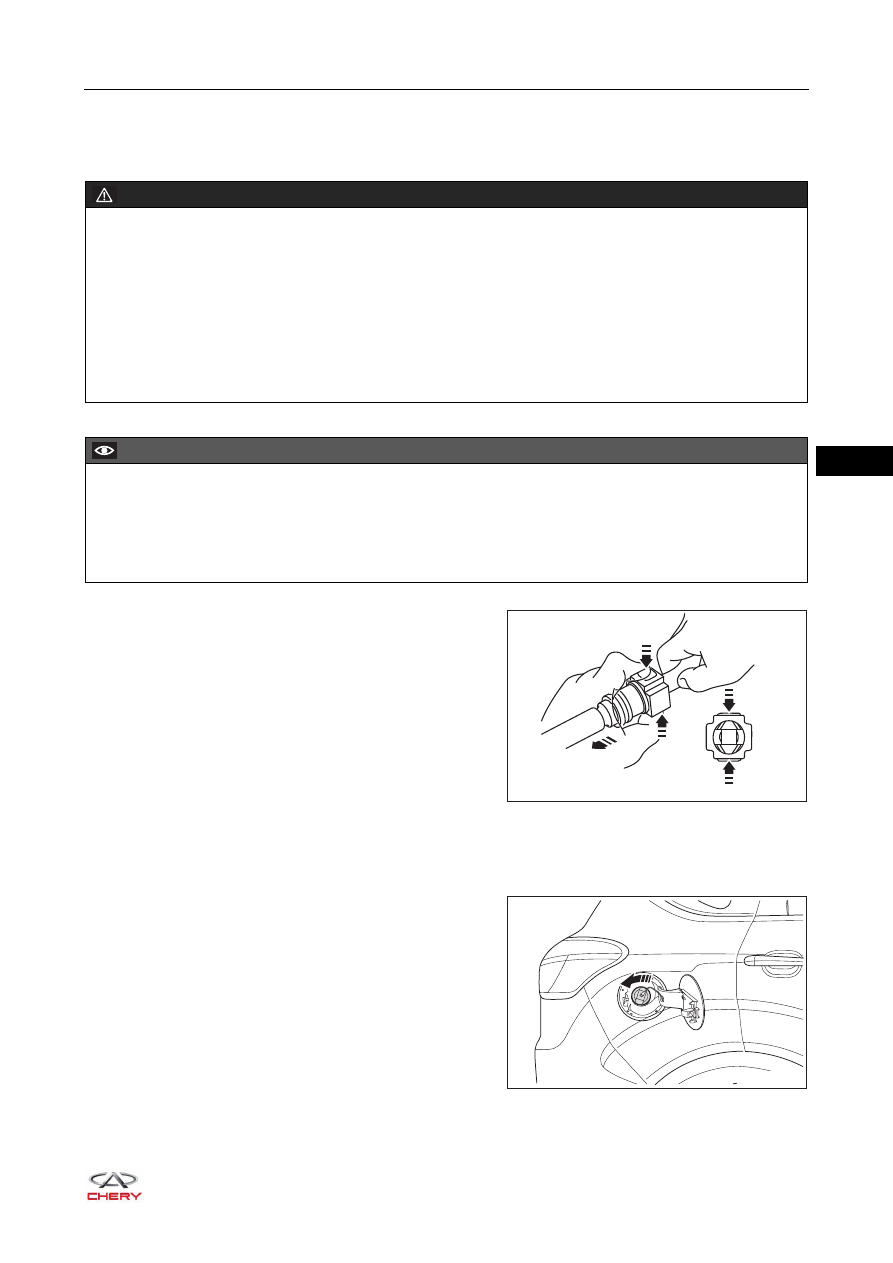

08–

21

08

Fuel Tank

Removal

Disconnection way for all fuel pipe coupling joints in
following procedures is shown in the illustration.

1. Release fuel system pressure (

See page 08-10

).

2. Turn off all the electrical equipment and ignition switch.
3. Disconnect the negative battery cable.
4. Open the fuel filler door, rotate the fuel tank cap

assembly in the direction of arrow as shown in the
illustration and discharge fuel vapor in fuel tank.

WARNING

 Before operating fuel supply system, please touch vehicle body to discharge static electricity; failure to

do so will cause a fire, even result in an explosion.

 When operating fuel supply system, work area should be in good ventilation and keep fire sources or

open flames away from the work area, in which the fire extinguisher should be equipped.

 After performing procedures for fuel system pressure release, there still remains some pressure in fuel

line. When disconnecting fuel line, cover the joint with a piece of cloth or equivalent to prevent fuel from
spraying out.

 If fuel leakage occurs when operating fuel supply system, please handle the leaked fuel in time.

CAUTION

 DO NOT damage disconnected fuel system line or connectors. Cover line joints or connectors with

plastic bags or equivalent, preventing foreign matter from entering.

 Be sure to wear necessary safety equipment when repairing to prevent accidents.
 Try to prevent body paint surface from being scratched during removal and installation.

RT21080050

RT21080110

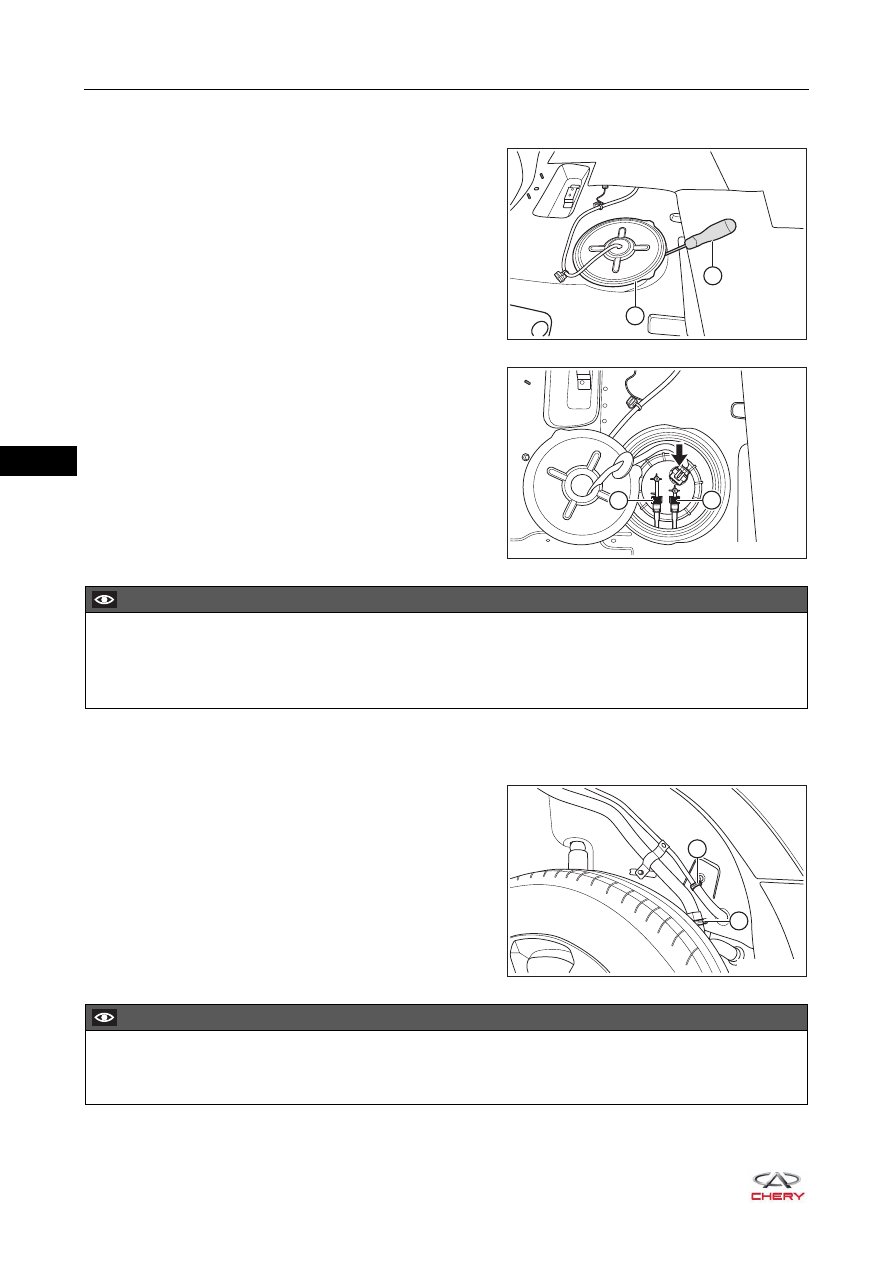

08–

22

08

5. Disconnect line and wire harness connections on electric fuel pump assembly side.

a. Remove the rear right seat (

See page 46-25

).

b. Using a flat tip screwdriver (1), pry up the electric fuel

pump assembly protective cap (2).

c. Disconnect the electric fuel pump assembly connector

(arrow).

d. Disconnect the coupling joint (1) between electric fuel

pump assembly and inlet pipe I assembly.

e. Disconnect the coupling joint (2) between electric fuel

pump assembly and inlet and return pipe assembly.

6. Remove the fuel filter assembly (

See page 08-12

).

7. Remove the fuel tank.

a. Loosen the worm clamp (1) and disconnect the

connection between fuel breather hose and filler tube
assembly.



(Tightening torque: 3.5 ± 0.5 N·m)

b. Loosen the worm clamp (2) and disconnect the

connection between fuel filler hose and filler tube
assembly.



(Tightening torque: 3.5 ± 0.5 N·m)

1

2

RT21080070

1

2

RT21080080

CAUTION

 Before disconnecting the joint, remove all dirt and foreign matter from electric fuel pump assembly

pressure cap.

 DO NOT forcefully bend or twist delivery pipe.

2

1

RT21080180

CAUTION

 Cover the joint with a plastic bag after disconnecting fuel breather hose and fuel filler hose, in order to

prevent foreign matter from entering fuel tank and fuel from evaporating or leaking.

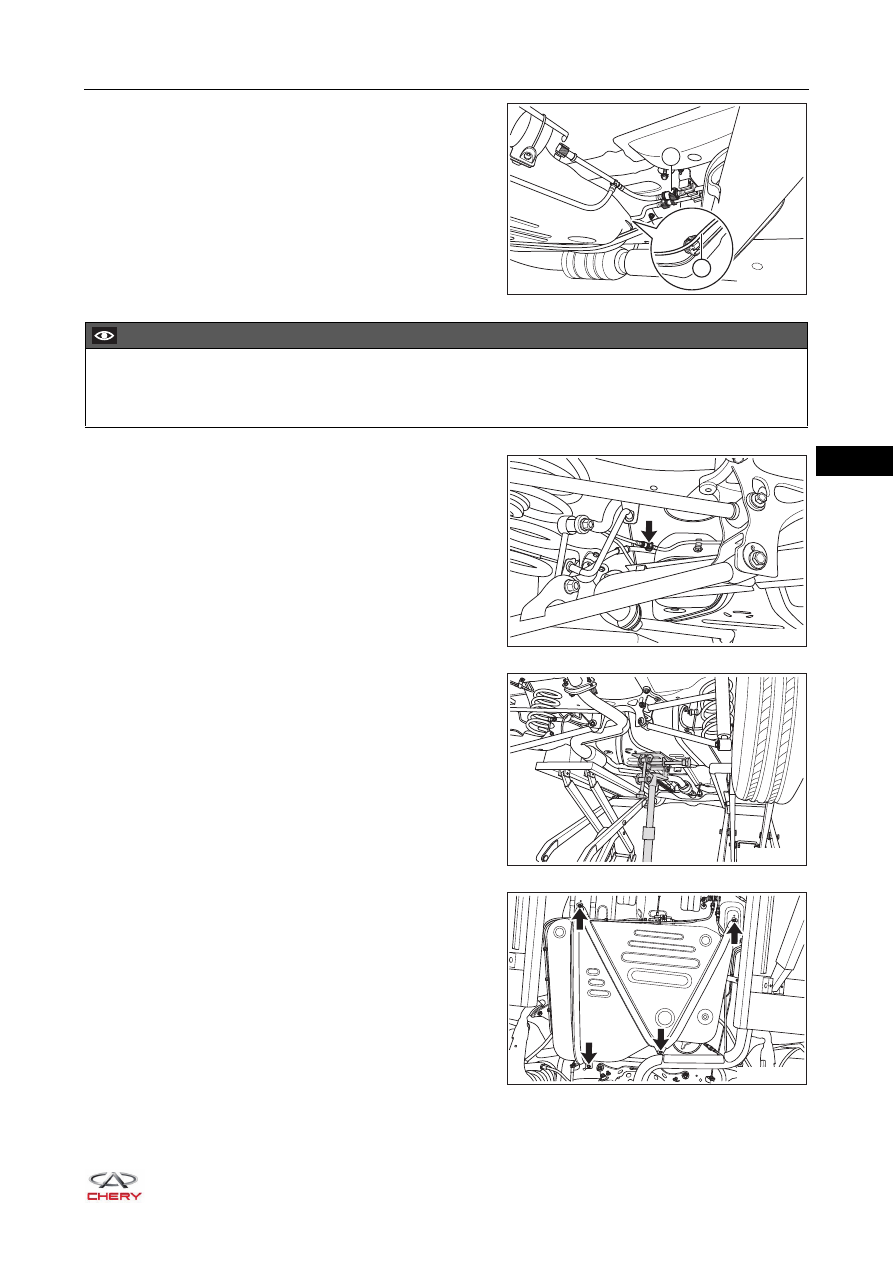

08–

23

08

c. Pull out the fuel breather hose from the body

installation hole.

d. Disconnect the coupling joint (1) between inlet and

return pipe assembly and inlet pipe II assembly.

e. Move away the fuel vapor pipe III assembly (2) from

the pipe clamp on fuel tank.

f. Disconnect the coupling joint (arrow) between fuel

vapor pipe I assembly and fuel vapor pipe of fuel tank.

g. Support the fuel tank with a transmission carrier.

h. Remove 4 fixing bolts (arrow) from fuel tank fixing

strips and remove the fuel tank fixing strips.



(Tightening torque: 25 ± 3 N·m)

i. Slowly lower the transmission carrier to remove the fuel tank.

1

RT21080190

2

CAUTION

 Before disconnecting the joint, remove any dirt and foreign matter from the retainer.
 DO NOT forcefully bend or twist delivery pipe.

RT21080200

RT21080210

RT21080220

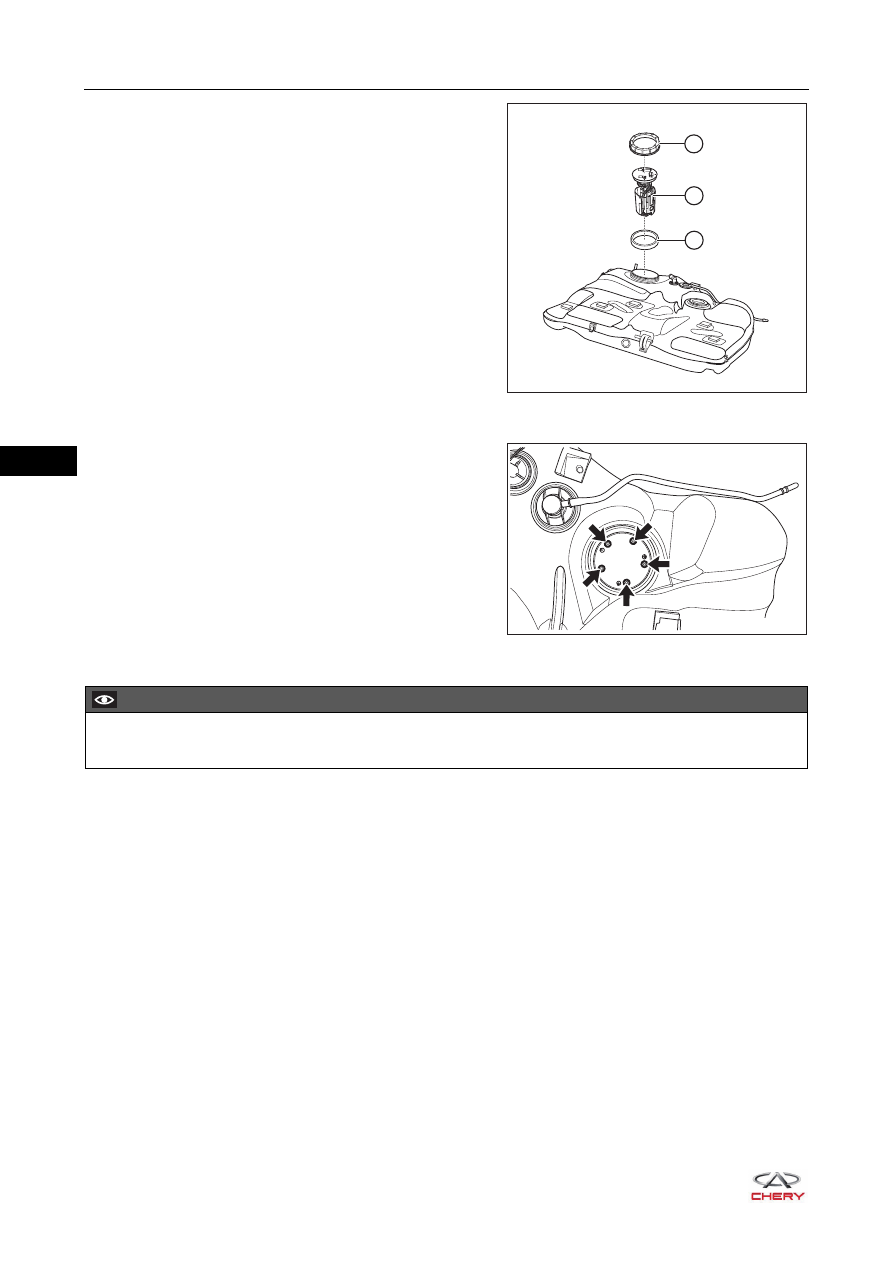

08–

24

08

8. Remove the fuel pump pressure cap (1), electric fuel

pump assembly (2) and fuel tank seal ring (3) from fuel
tank.

9. Remove the fuel level sensor.

a. Remove 5 fixing screws (arrow) from fuel level sensor.



(Tightening torque: 5 ± 1 N·m)

b. Remove the fuel level sensor from fuel tank.

Fuel Tank Accessories Description
1. Fuel Vapor Valve

Function of Fuel Vapor Valve:
When fuel vapor is produced in fuel tank, the vapor will enter charcoal canister through fuel vapor valve (1)
by fuel vapor pipe (2). When vehicle body bumps or overturns, fuel vapor valve will automatically lock to
prevent fuel overflow.

2. Fuel Breather Pipe

Function of fuel breather pipe:
When filling fuel tank through fuel filler, fuel vapor will get out of fuel tank through fuel breather pipe (3).

RT21080230

1

3

2

RT21080240

CAUTION

 DO NOT damage the float when taking out the fuel level sensor.
