Bobcat S150. Service Manual - part 25





S150 Bobcat Loader

87

Operation & Maintenance Manual

BICS™ SYSTEM

Troubleshooting Guide

The following list shows the effects which can happen to the loader, and the probable causes when the BICS System lights
are off or flashing and associated service code. (See DIAGNOSTICS SERVICE CODES on Page 88.)

Indicator

Light

Light ON

Light OFF

Effect on

Operation of

Loader When

Light is OFF

SERVICE CODES Means System Error

(See Your Bobcat Dealer for Service)

No. of

Flashes

Service

Code

Causes

PRESS TO
OPERATE
LOADER Button
is pressed.

PRESS TO
OPERATE
LOADER Button
is not pressed.

----

----

----

----

Seat Bar is
down.

Seat Bar is up.

Lift and tilt
functions will
not operate.

2

11-05

Seat Bar sensor circuit shorted to battery
voltage*.

3

11-06

Seat Bar sensor circuit shorted to ground.

Continuous

Flashing

03-09
03-10

System voltage low
System voltage high



Control valve can
be used.

Control valve
cannot be used.

Lift, tilt and
traction
functions will
not operate.

1

17-07

Valve output circuit is open.

2

17-05

Valve output circuit shorted to battery voltage*.

3

17-06

Valve output circuit shorted to ground.

3

17-06

Controller not grounded or intermittent ground.

Continuous

Flashing

03-09
03-10

System voltage low
System voltage high

Loader can be
moved forward &
backward.

Loader cannot
be moved
forward and
backward.

Loader cannot
be moved
forward and
backward.

1

16-07

Traction lock hold solenoid circuit is open.

2

16-05

Traction lock hold solenoid circuit shorted to
battery voltage*.

3

16-06

Traction lock hold solenoid circuit shorted to
ground.

5

15-02

Traction lock pull solenoid circuit is shorted to
battery voltage* – ERROR ON (Should be OFF).

6

15-03

Traction lock pull solenoid circuit ERROR OFF
(Should be ON).

Continuous

Flashing

03-09
03-10

System voltage low
System voltage high

1

2

3

4

* Normal BICS operating voltage is less than electrical system voltage.

S150 Bobcat Loader
Operation & Maintenance Manual

88

DIAGNOSTICS SERVICE CODES

Display

Figure 175

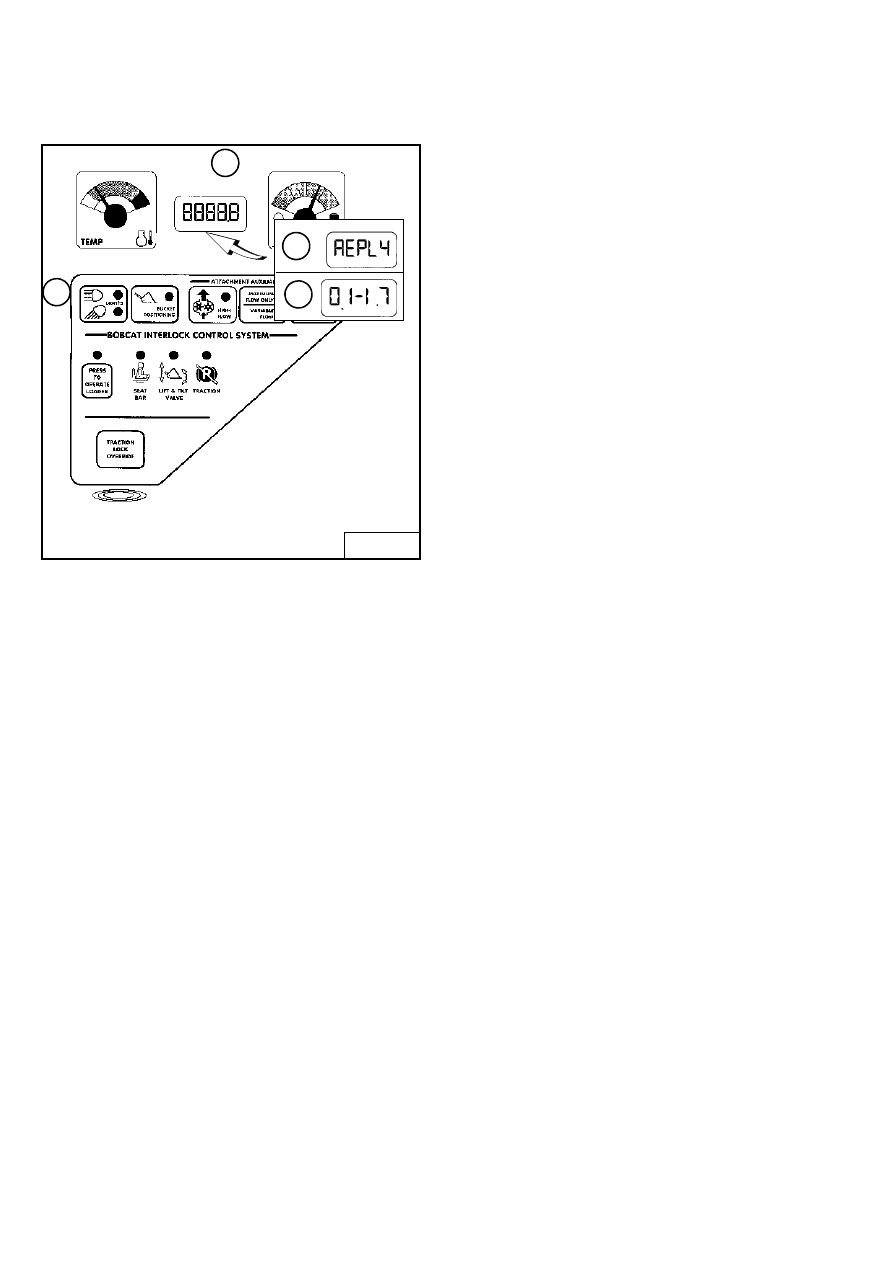

Press and hold the LIGHTS Button (1) [Figure 175] for
two seconds to view SERVICE CODES in the
HOURMETER / CODE DISPLAY (2). If more than one
SERVICE CODE is present, the codes will scroll on the
HOURMETER / CODE DISPLAY.

NOTE: Corroded or loose grounds can cause

multiple service codes and/or abnormal
symptoms. All instrument panel lights
flashing, alarm sounding, headlights and
taillights flashing, could indicate a bad
ground. The same symptoms could apply if
the voltage is low, such as loose or corroded
battery cables. If you observe these
symptoms, check grounds and positive leads
first.

SERVICE CODES may be either a word (3) [Figure 175]
or a number (4). (See the following pages for the number
codes.)

The following word errors may be displayed.

REPLY

One or both instrument panel(s) not

communicating with the controller.

INPUT

The controller not communicating with the

left instrument panel.

CODE

The controller is asking for a password.

(Deluxe instrument panel only.)

ERROR   The wrong password was entered. (Deluxe
instrument panel only.)

B-15551

1

2

3

4

S150 Bobcat Loader

89

Operation & Maintenance Manual

DIAGNOSTICS SERVICE CODES (CONT’D)

Number Codes List

CODE

CODE

01-16

Air filter not connected

11-05

Seat bar sensor short to battery

01-17

Air filter plugged

11-06

Seat bar sensor short to ground

02-16

Hydraulic charge filter not connected

12-21

Front auxiliary PWM switch out of range high

02-17

Hydraulic charge filter plugged

12-22

Front auxiliary PWM switch out of range low

12-23

Front auxiliary PWM switch not in neutral

03-09

Battery voltage low

03-10

Battery voltage high

13-05

Fuel shut-off hold solenoid short to battery

03-11

Battery voltage extremely high

13-06

Fuel shot-off hold solenoid short to ground

03-14

Battery voltage extremely low

13-07

Fuel shut-off solenoid open circuit

03-22

Battery voltage out of range low

14-02

Fuel shut-off pull solenoid error ON

04-09

Engine oil pressure low

14-03

Fuel shut-off pull solenoid error OFF

04-14

Engine oil pressure extremely low

04-15

Engine oil pressure shutdown level

15-02

Traction lock pull solenoid error ON

04-21

Engine oil pressure out of range high

15-03

Traction lock pull solenoid error OFF

04-22

Engine oil pressure out of range low

16-05

Traction lock hold solenoid short to battery

05-09

Hydraulic charge pressure low

16-06

Traction lock hold solenoid short to ground

05-14

Hydraulic charge pressure extremely low

16-07

Traction lock hold solenoid open circuit

05-15

Hydraulic charge pressure shutdown level

05-21

Hydraulic charge pressure out of range high

17-05

Hydraulic lock valve solenoid short to battery

05-22

Hydraulic charge pressure of range low

17-06

Hydraulic lock valve solenoid short to ground

17-07

Hydraulic lock valve solenoid open circuit

06-10

Engine speed high

06-11

Engine speed extremely high

18-05

Spool Lock Solenoid short to battery

06-13

Engine speed no signal

18-06

Spool Lock Solenoid short to ground

06-15

Engine speed shutdown level

18-07

Spool Lock Solenoid open circuit

06-18

Engine speed out of range

19-02

Bucket position solenoid error ON

07-10

Hydraulic oil temperature high

19-03

Bucket position solenoid error OFF

07-11

Hydraulic oil temperature extremely high

07-15

Hydraulic oil temperature shutdown level

20-02

Two-speed solenoid error ON

07-21

Hydraulic oil temperature out of range high

20-03

Two-speed solenoid error OFF

07-22

Hydraulic oil temperature out of range low

21-02

Glow plug error ON

08-10

Engine coolant temperature high

21-03

Glow plug error OFF

08-11

Engine coolant temperature extremely high

08-15

Engine coolant temperature shutdown level

22-02

Starter error ON

08-21

Engine coolant temperature out of range high

22-03

Starter error OFF

08-22

Engine coolant temperature out of range low

23-02

Rear base solenoid error ON

09-09

Fuel level low

23-03

Rear base solenoid error OFF

09-21

Fuel level out of range high

09-22

Fuel level out of range low

24-02

Rear rod solenoid error ON

24-03

Rear rod solenoid error OFF
