Bobcat S150. Service Manual - part 14





S150 Bobcat Loader

39

Operation & Maintenance Manual

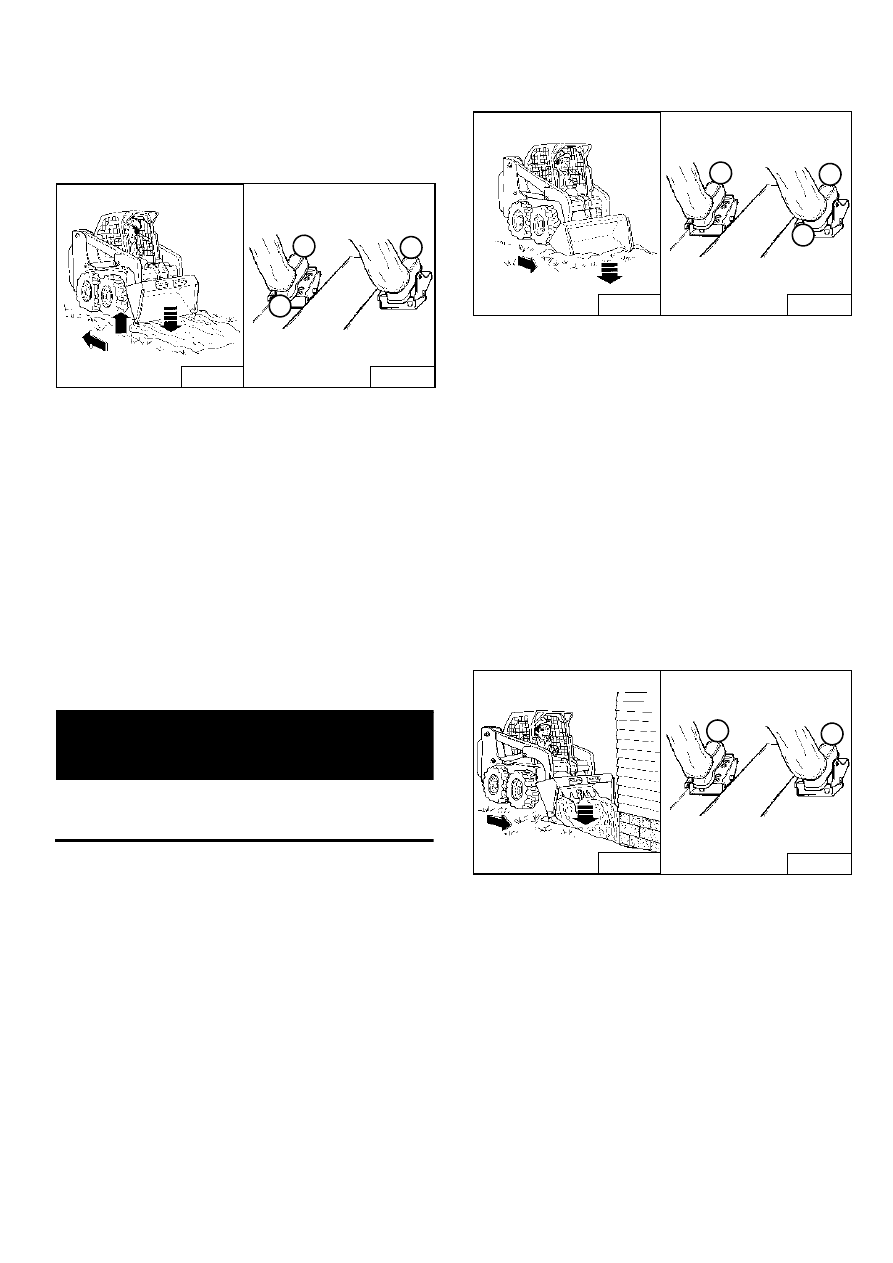

OPERATING PROCEDURE (CONT’D)

Foot Pedal Machines (Cont’d)

Leveling The Ground (Using Float Position):

Figure 81

Put the lift arms in float position by pushing the pedal all
the way forward (1[Figure 81] until the pedal is locked
in the forward position.

Tilt the bucket forward (2[Figure 81] to change the
position of the cutting edge of the bucket.

With the bucket tilted farther forward, there is more force
on the cutting edge and more loose material can be
moved.

Drive backward to level loose material.

Push the bottom of the lift pedal (3) [Figure 81] to unlock
the float position.

IMPORTANT

Never drive forward when the hydraulic control for lift
arms is in float position.

I-2005-1285

Digging A Hole

Figure 82

Lower the lift arms all the way (1) [Figure 82]. Put the
cutting edge of the bucket on the ground (2) [Figure 82].

Drive forward slowly and continue to tilt the bucket
down (2[Figure 82] until it enters the ground.

Raise the cutting edge a small amount (3) [Figure 82] to
increase traction and keep an even digging depth.
Continue to drive forward until the bucket is full. When the
ground is hard, raise and lower the cutting edge of the
bucket (2 & 3) [Figure 82] while driving forward slowly.

Tilt the bucket backward (3) [Figure 82] as far as it will go
when the bucket is full.

Filling The Hole

Figure 83

Lower the lift arms (1) [Figure 83] and put the cutting
edge of the bucket on the ground (2) [Figure 83]. Drive
forward to the edge of the hole to push the material into
the hole.

Tilt the bucket forward (2) [Figure 83] as soon as it is
past the edge of the hole.

If necessary, raise the lift arms to empty the bucket.

B-15598

B-15973

1

2

3

B-15584

B-15973

1

3

2

B-15597

B-15973

2

1

S150 Bobcat Loader
Operation & Maintenance Manual

40

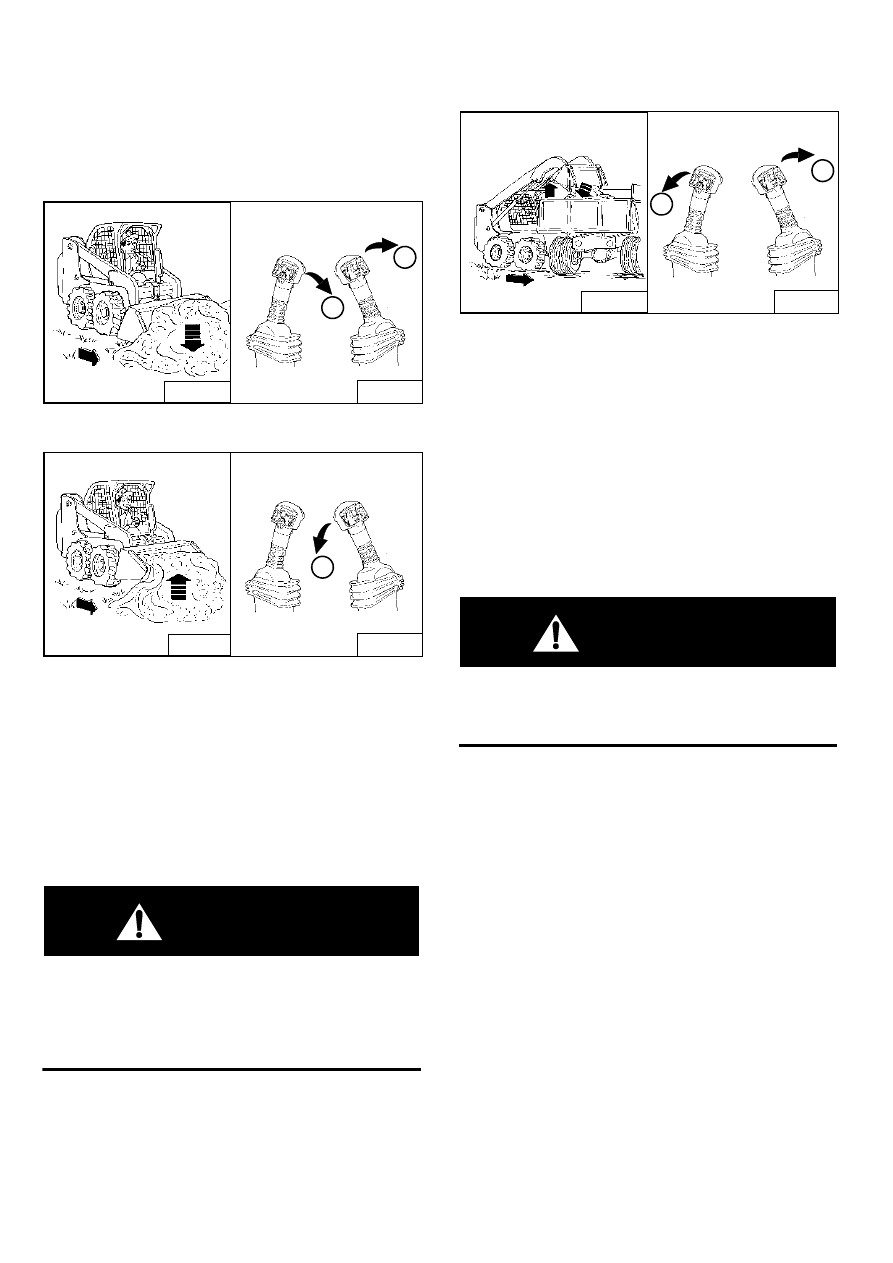

OPERATING PROCEDURE (CONT’D)

Hand Control Machines (Includes ACS and SJC with
H-Pattern Selected)

Filling The Bucket:

Figure 84

Figure 85

Lower the lift arms all the way (1) [Figure 84].

Tilt the bucket forward (2[Figure 84] until the cutting
edge of the bucket is on the ground.

Drive slowly forward into the material. Tilt the bucket
backward (1) [Figure 85] all the way when the bucket is
full.

Drive backward away from the material.

WARNING

Load, unload and turn on flat level ground. Do not
exceed Rated Operating Capacity shown on sign
(decal) in cab. Failure to obey warnings can cause
the machine to tip or roll over and cause injury or
death.

W-2056-0903

Emptying The Bucket:

Figure 86

Keep the bucket low when moving to the area where you
want to empty the bucket.

Raise the lift arms (1) [Figure 86]. Level the bucket (2)
[Figure 86] while raising the lift arms to help prevent
material from falling off the back of the bucket.

Drive forward slowly until the bucket is over the top of the
truck box or bin.

Empty the bucket (2) [Figure 86]. If all material is near
the side of the truck or bin, use the bucket tilt to move it to
the other side.

WARNING

Never dump over an obstruction, such as a post, that
can enter the operator cab. The machine could tip
forward and cause injury or death.

W-2057-0694

B-15585

B-15781

1

2

B-15586

B-15781

1

B-15595

B-15781

1

2

S150 Bobcat Loader

41

Operation & Maintenance Manual

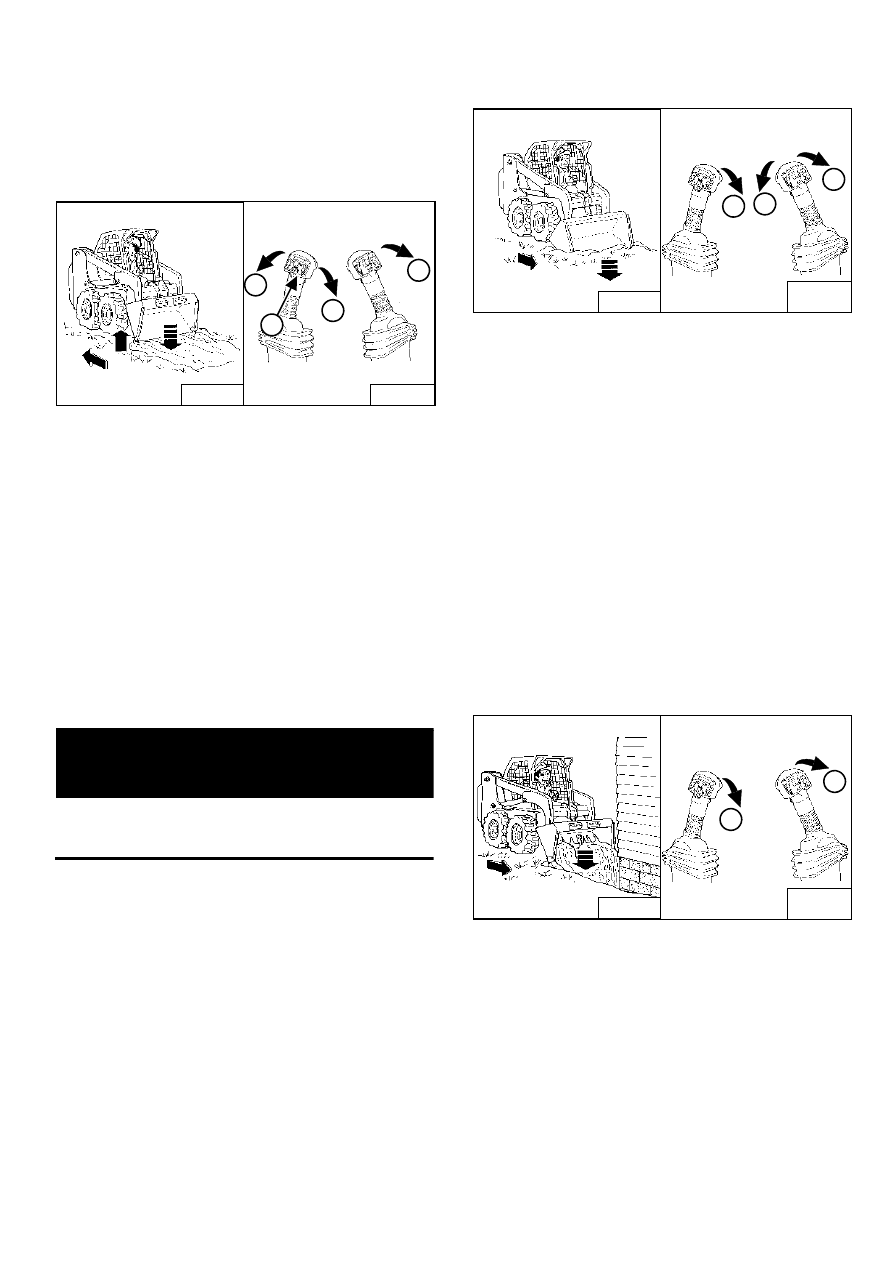

OPERATING PROCEDURE (CONT’D)

Hand Control Machines (Includes ACS and SJC with
H-Pattern Selected) (Cont’d)

Leveling The Ground (Using Float Position):

Figure 87

Press and hold the float button (1) [Figure 87] while the
lever is in neutral. While lowering the lift arms (2)
[Figure 87]release the float button.

Tilt the bucket forward (3[Figure 87] to change the
position of the cutting edge of the bucket.

With the bucket tilted farther forward, there is more force
on the cutting edge and more loose material can be
moved.

Drive backward to level loose material.

To disengage float, press the float button again or raise
the lift arms (4) [Figure 87].

IMPORTANT

Never drive forward when the hydraulic control for lift
arms is in float position.

I-2005-1285

Digging A Hole

Figure 88

Lower the lift arms all the way (1) [Figure 88]. Tilt the
bucket forward (2) [Figure 88] until the cutting edge of
the bucket is on the ground.

Drive forward slowly and continue to tilt the bucket
down (2[Figure 88] until it enters the ground.

Tilt the bucket backward a small amount (3) [Figure 88]
to increase traction and keep an even digging depth.
Continue to drive forward until the bucket is full. When the
ground is hard, raise and lower the cutting edge (1 & 2)
[Figure 88] while driving forward.

Tilt the bucket backward (2) [Figure 88] as far as it will go
when the bucket is full.

Filling The Hole

Figure 89

Lower the lift arms (1) [Figure 89] and put the cutting
edge of the bucket on the ground (2) [Figure 89]. Drive
forward to the edge of the hole to push the material into
the hole.

Tilt the bucket forward (2) [Figure 89] as soon as it is
past the edge of the hole.

If necessary, raise the lift arms to empty the bucket.

B-15598

B-15781

1

1

2

3

4

B-15584

B-15781A
B-15781B

3

2

1

B-15597

1

2

B-15781A
B-15781B

S150 Bobcat Loader
Operation & Maintenance Manual

42

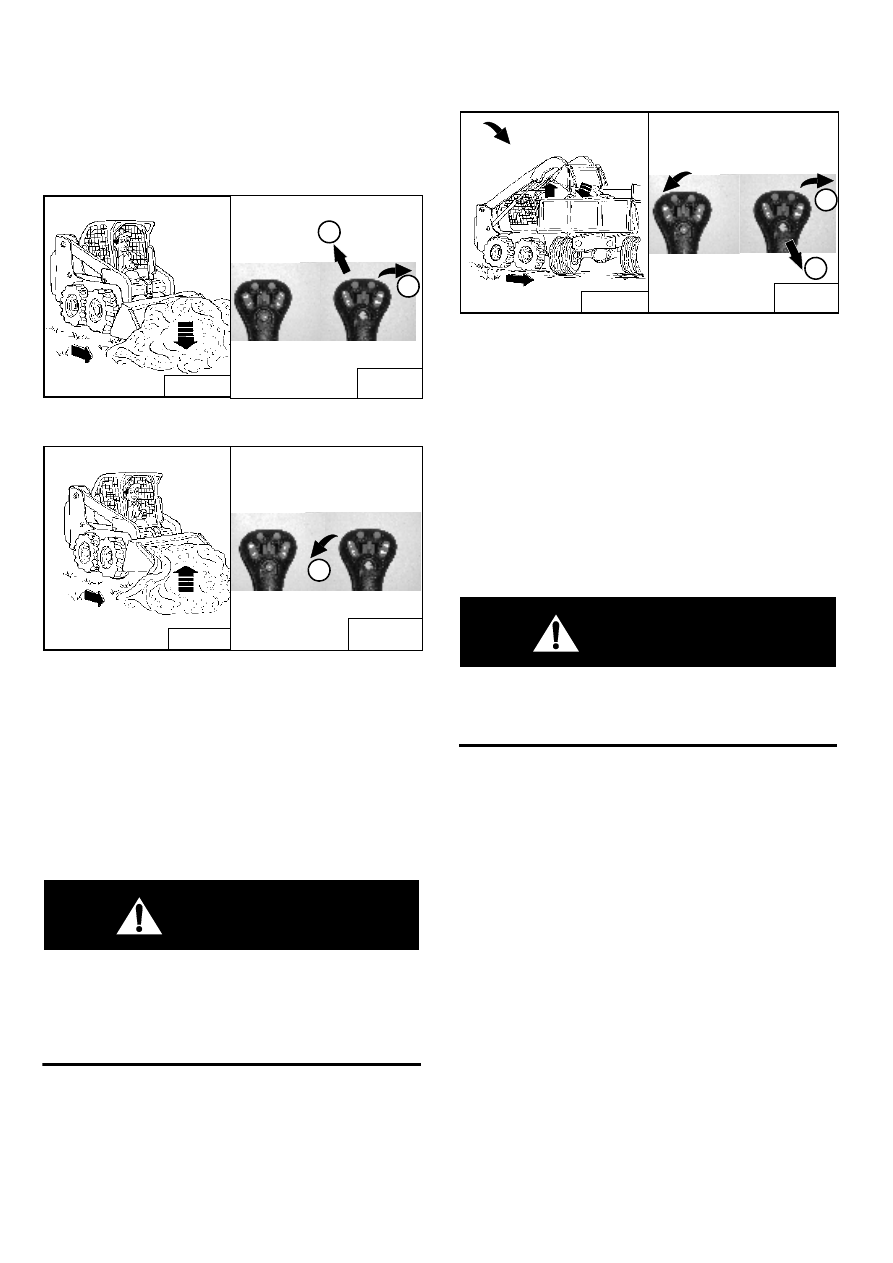

OPERATING PROCEDURE (CONT’D)

Selectable Joystick Control (SJC) with ‘ISO’ Pattern
Selected

Filling The Bucket:

Figure 90

Figure 91

Lower the lift arms all the way (1) [Figure 90].

Tilt the bucket forward (2[Figure 90] until the cutting
edge of the bucket is on the ground.

Drive slowly forward into the material. Tilt the bucket
backward (1) [Figure 91] all the way when the bucket is
full.

Drive backward away from the material.

WARNING

Load, unload and turn on flat level ground. Do not
exceed rated operating capacity shown on sign
(decal) in cab. Failure to obey warnings can cause
the machine to tip or roll over and cause injury or
death.

W-2056-1187

Emptying The Bucket:

Figure 92

Keep the bucket low when moving to the area where you
want to empty the bucket.

Raise the lift arms (1) [Figure 92]. Level the bucket (2)
[Figure 92] while raising the lift arms to help prevent
material from falling off the back of the bucket.

Drive forward slowly until the bucket is over the top of the
truck box or bin.

Empty the bucket (2) [Figure 92]. If all material is near
the side of the truck or bin, use the bucket tilt to move it to
the other side.

WARNING

Never dump over an obstruction, such as a post, that
can enter the operator cab. The machine could tip
forward and cause injury or death.

W-2057-0694

B-15585

P-24820
P-24802

1

2

B-15586

1

P-24820
P-24802

B-15595

1

2

P-24820
P-24802
