Bobcat S150. Service Manual - part 7





S150 Bobcat Loader

11

Operation & Maintenance Manual

DRIVING AND STEERING THE LOADER

Available Controls Configurations

The loader has three configurations available:

Standard Controls - Two Steering Levers control
drive and steering functions.

Advanced Control System (ACS) (Option or Field
Accessory)
 - Two Steering Levers control drive and
steering functions.

Selectable Joystick Controls (SJC) (Option)  -
(‘ISO’ Pattern) Left joystick controls the drive and
steering functions.

(‘H’ Pattern) Left and right joysticks control left and
right side drive and steering functions.

Operation (Standard and ACS)

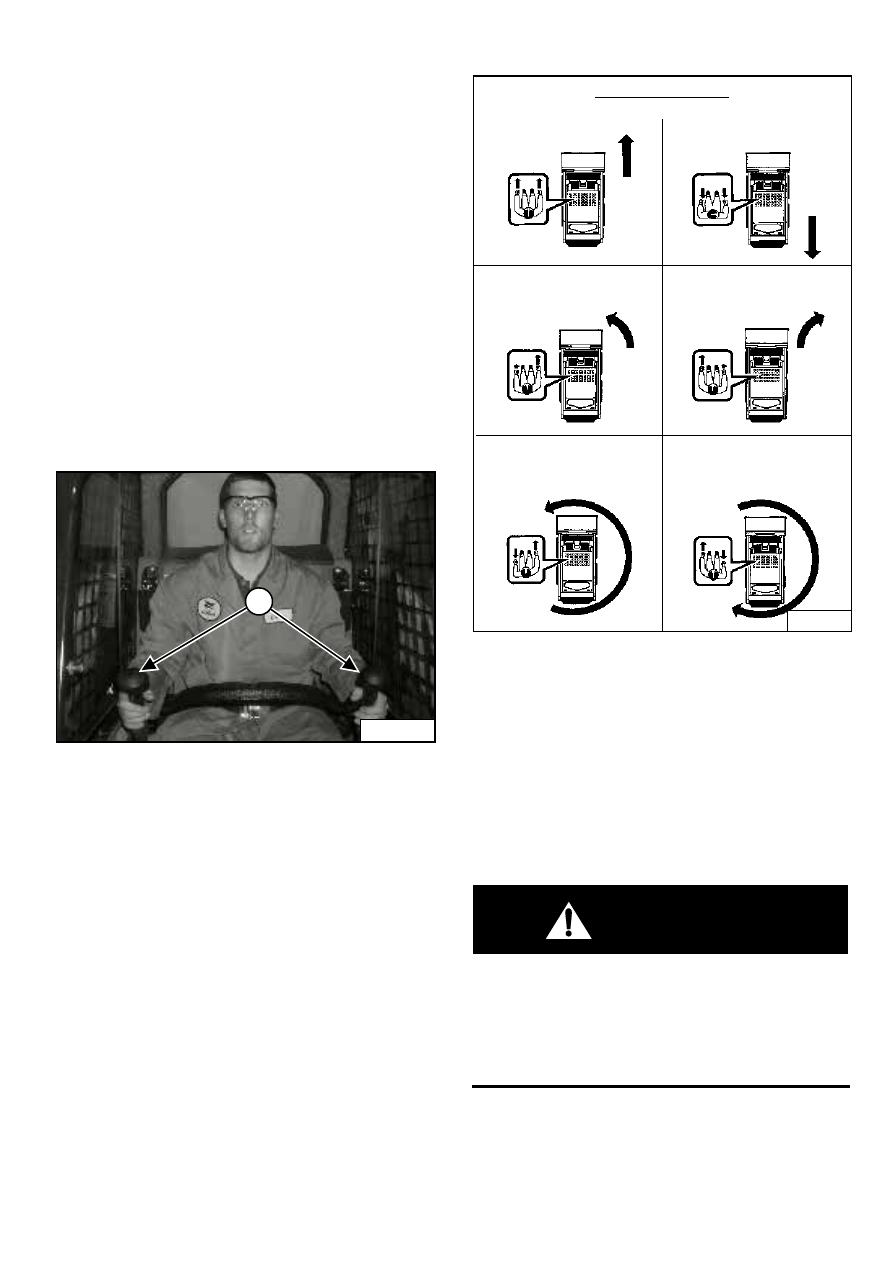

Figure 19

The steering levers (1) [Figure 19] are on the left and
right side in front of the seat.

Move the levers smoothly. Avoid sudden starting and
stopping.

Figure 20

The steering levers control forward and reverse travel and
turning the loader [Figure 20].

Forward Travel - Push both levers forward.

Reverse Travel - Pull both levers backward.

Normal Turning - Move one lever farther forward than
the other.

Fast Turning - Push one lever forward and pull the other
lever backward.

WARNING

AVOID INJURY OR DEATH

When operating the machine:

Keep the seat belt fastened snugly.

The seat bar must be lowered.

Keep your feet on the pedal controls or footrests
and hands on steering levers.

W-2261-0799

P-45122

1

PI-1849A

Standard and ACS

RIGHT TURN

LEFT TURN

RIGHT

FAST TURN

LEFT

FAST TURN

REVERSE

FORWARD

S150 Bobcat Loader
Operation & Maintenance Manual

12

DRIVING AND STEERING THE LOADER (CONT’D)

Operation (SJC in ‘H’ Control Pattern)

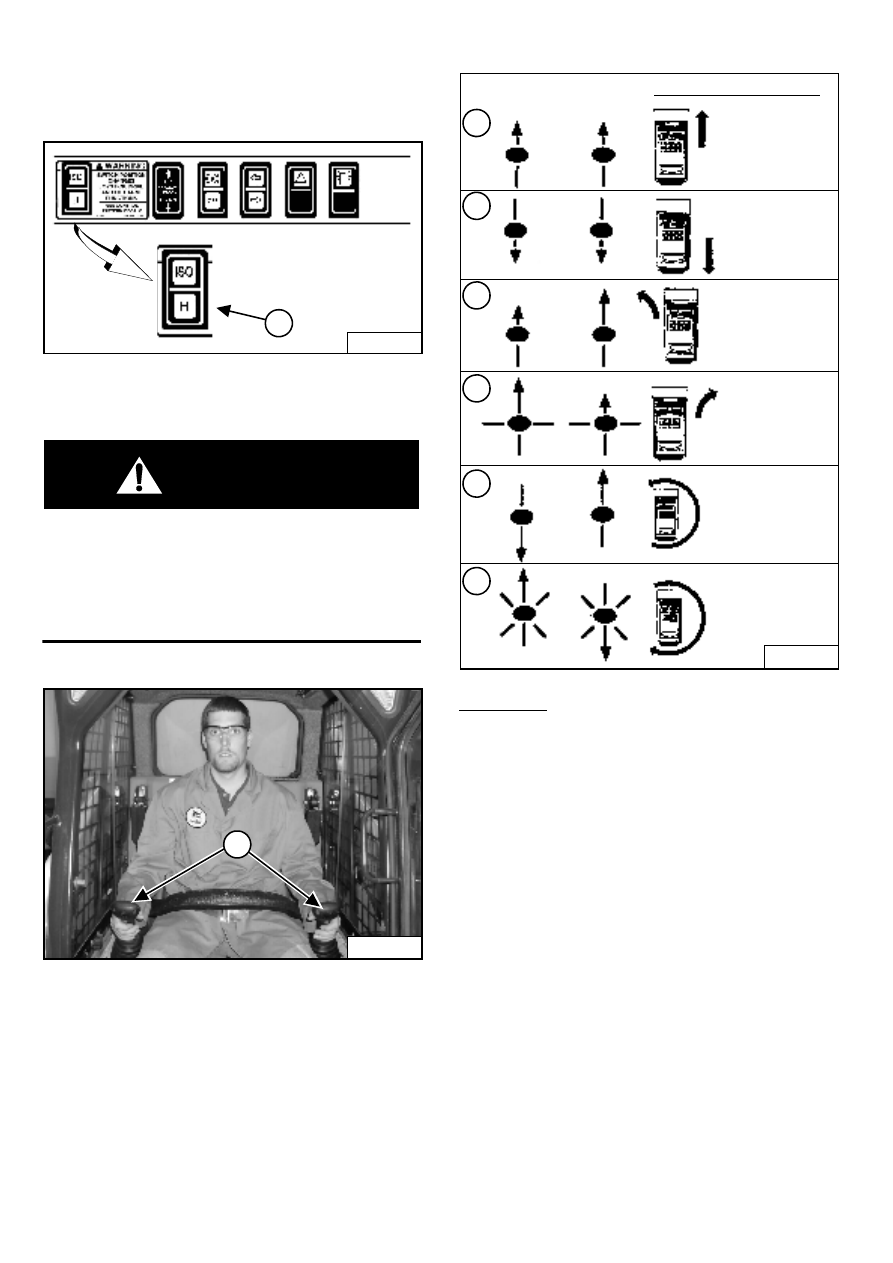

Figure 21

Select the ‘H’ control pattern by pressing the bottom of
the switch (1[Figure 21].

WARNING

AVOID INJURY OR DEATH

When operating the machine:

Keep the seat belt fastened snugly.

The seat bar must be lowered.

Keep your feet on the foot rests and hands on
control levers.

W-2399-0501

Figure 22

Both joysticks control drive and steering and are located
on the right and left side in front of the seat (1)
[Figure 22].

Figure 23

Hand Control Functions (Drive and Steering[Figure 23]

1.

Forward Travel - Move both joysticks forward.

2.

Backward Travel - Move both joysticks backward.

3.

Forward Left Turn - Move the right joystick farther
forward than the left joystick.

4.

Forward Right Turn - Move the left joystick farther
forward than the right joystick.

5.

Left Fast Turn - Move the left joystick backward and
the right joystick forward.

6.

Right Fast Turn - Move the left joystick forward and
the right joystick backward.

B-15993H

1

P-45116

1

B-22029

1

2

3

4

5

6

N

N

N

N

N

N

N

N

N

N

N

N

Left

Joystick

Right

Joystick

SJC in ’H’ Control Pattern

FORWARD

BACKWARD

RIGHT
TURN

LEFT
TURN

LEFT
FAST
TURN

RIGHT
FAST
TURN

S150 Bobcat Loader

13

Operation & Maintenance Manual

DRIVING AND STEERING THE LOADER (CONT’D)

Operation (SJC in ‘ISO’ Control Pattern)

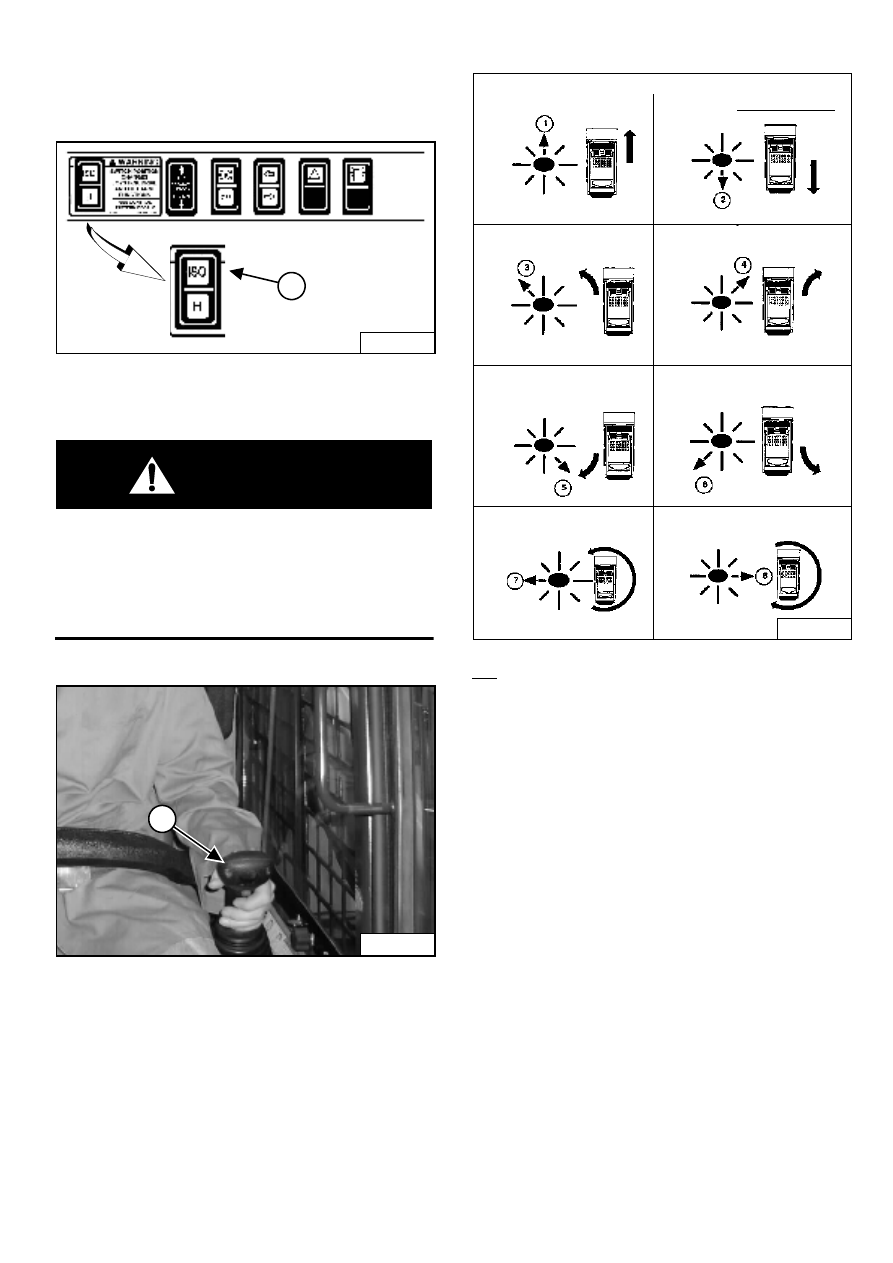

Figure 24

Select the ‘ISO’ control pattern by pressing the top of the
switch (1) [Figure 24].

WARNING

AVOID INJURY OR DEATH

When operating the machine:

Keep the seat belt fastened snugly.

The seat bar must be lowered.

Keep your feet on the foot rests and hands on
control levers.

W-2399-0501

Figure 25

The joystick which controls drive and steering is on the
left side in front of the seat (1) [Figure 25].

Figure 26

Left Joystick Functions (Drive and Steering) [Figure 26]

Move the joystick smoothly. Avoid sudden starting and
stopping.

1.

Forward Travel - Move joystick forward.

2.

Backward Travel - Move joystick backward.

3.

Forward Left Turn - Move joystick forward and to the
left.

4.

Forward Right Turn - Move joystick forward and to
the right.

5.

Backward Left Turn - Move joystick backward and to
the right.

6.

Backward Right Turn - Move joystick backward and
to the left.

7.

Left Fast Turn - Move joystick to the left.

8.

Right Fast Turn - Move joystick to the right.

B-15993H

1

P-45116

1

B-21970

N

LEFT JOYSTICK

N

N

N

N

N

N

N

SJC in ‘ISO’

Control Pattern

FORWARD

LEFT TURN

FORWARD

RIGHT TURN

BACKWARD

LEFT TURN

BACKWARD

RIGHT TURN

LEFT FAST TURN

RIGHT FAST TURN

S150 Bobcat Loader
Operation & Maintenance Manual

14

STOPPING THE BOBCAT LOADER

Using The Steering Levers or Joysticks

When the steering levers or joysticks are moved to the
neutral position, the hydrostatic transmission will act as a
service brake to stop the loader.

SEAT BAR RESTRAINT SYSTEM

Operation

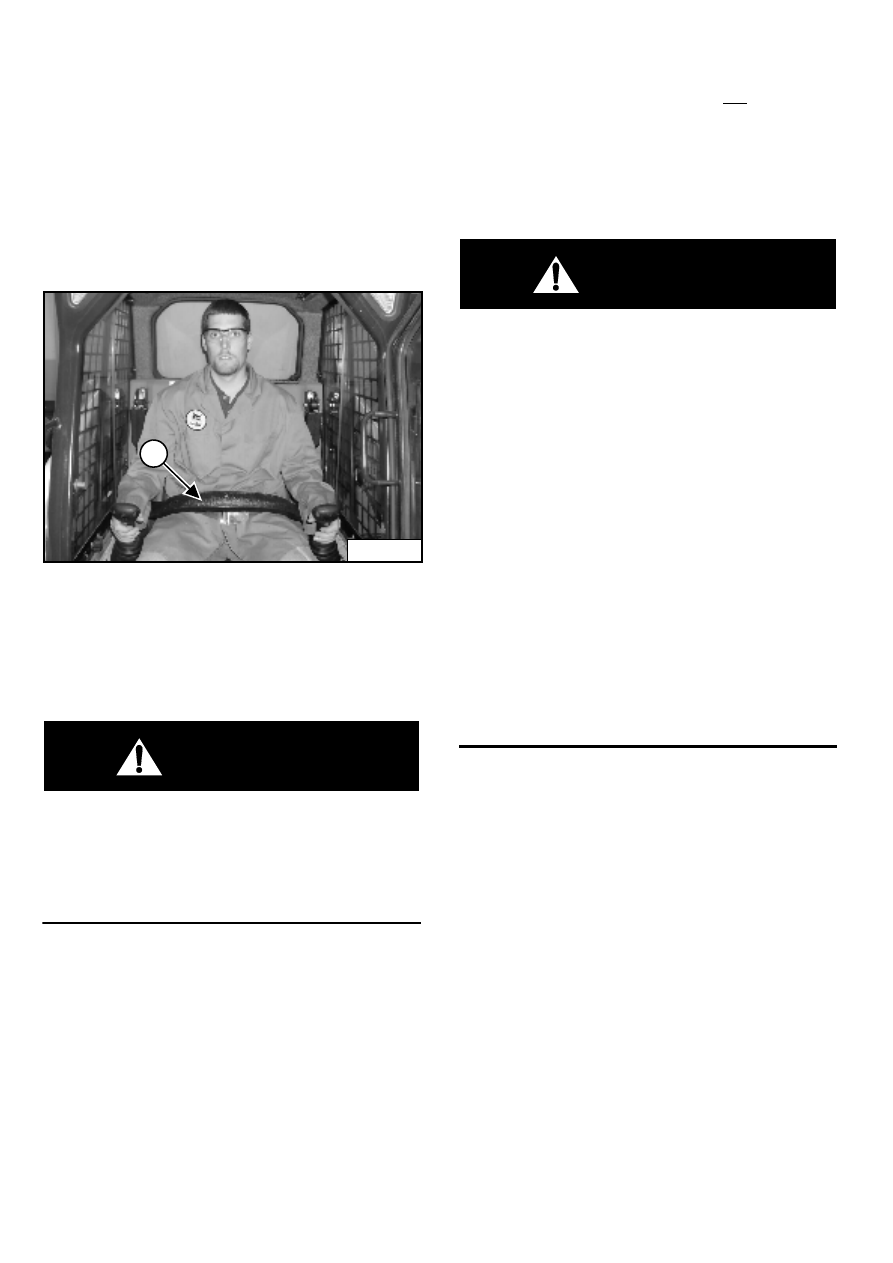

Figure 27

The seat bar restraint system has a pivoting seat bar with
arm rests (1) [Figure 27].

The operator controls the use of the seat bar. The seat
bar in the down position helps to keep the operator in the
seat.

WARNING

AVOID INJURY OR DEATH

When operating the machine:

Keep the seat belt fastened snugly.

The seat bar must be lowered.

Keep your feet on the pedal controls or footrests
and hands on steering levers.

W-2261-0799

When the seat bar is down, the PRESS TO OPERATE
LOADER button is activated, and the brake is released,
the lift, tilt, and traction drive functions can be operated.
(Traction drive will operate only when the engine is
running.)

When the seat bar is up, the lift, tilt and traction drive
functions are deactivated and both foot pedals (if
equipped) will be locked.

WARNING

Before you leave the operator’s seat:

Lower the lift arms, put the attachment flat on the
ground.

Stop the engine.

Engage the parking brake.

Raise seat bar.

(Foot Pedal Controls) Move pedals until both
lock.

(Advanced Control System - ACS) Move the
hydraulic controls to the NEUTRAL POSITION to
make sure that both lift and tilt functions are
deactivated.

The seat bar system must deactivate the lift and
tilt control functions when the seat bar is up.
Service the system if hand controls do not
deactivate.

(Selectable Joystick Control - SJC) Move the
joysticks to the NEUTRAL POSITION to make
sure that travel and hydraulic functions are
deactivated.

The seat bar system must deactivate these
functions when the seat bar is up. Service the
system if controls do not deactivate.

W-2463-0603

P-45116

1
