Bobcat S150. Service Manual - part 2





S150 Bobcat Loader
Operation & Maintenance Manual

VI

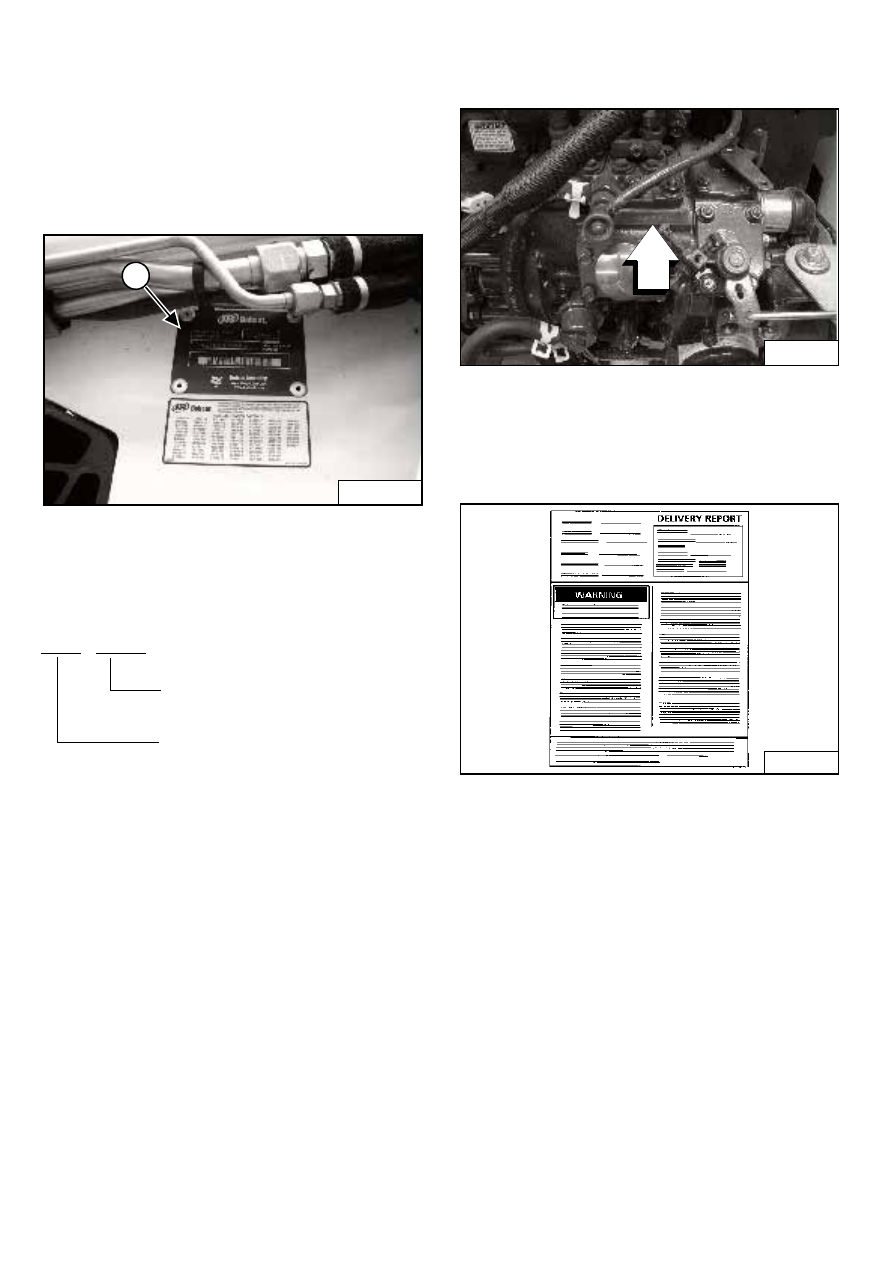

SERIAL NUMBER LOCATIONS

Always use the serial number of the loader when
requesting service information or when ordering parts.
Early or later models (identification made by serial
number) may use different parts, or it may be necessary
to use a different procedure in doing a specific service
operation.

Figure 1

LOADER SERIAL NUMBER

The loader serial number plate is located on the outside
of the loader frame [Figure 1].

Explanation of loader Serial Number:

ENGINE SERIAL NUMBER

Figure 2

The engine serial number is located on the side of the
engine [Figure 2].

DELIVERY REPORT

Figure 3

The delivery report must be filled out by the dealer and
signed by the owner or operator when the Bobcat loader
is delivered. An explanation of the form must be given to
the owner. Make sure it is filled out completely [Figure 3].

1

P-45263

XXXX

XXXXX

Module 2. - Production
Sequence (Series)

Module 1. - Model / Engine
Combination

1. The four digit Model/Engine Combination Module
number identifies the model number and engine
combination.

2. The five digit Production Sequence Number identifies
the order which the loader is produced.

P-48387

B-16315

S150 Bobcat Loader

VII

Operation & Maintenance Manual

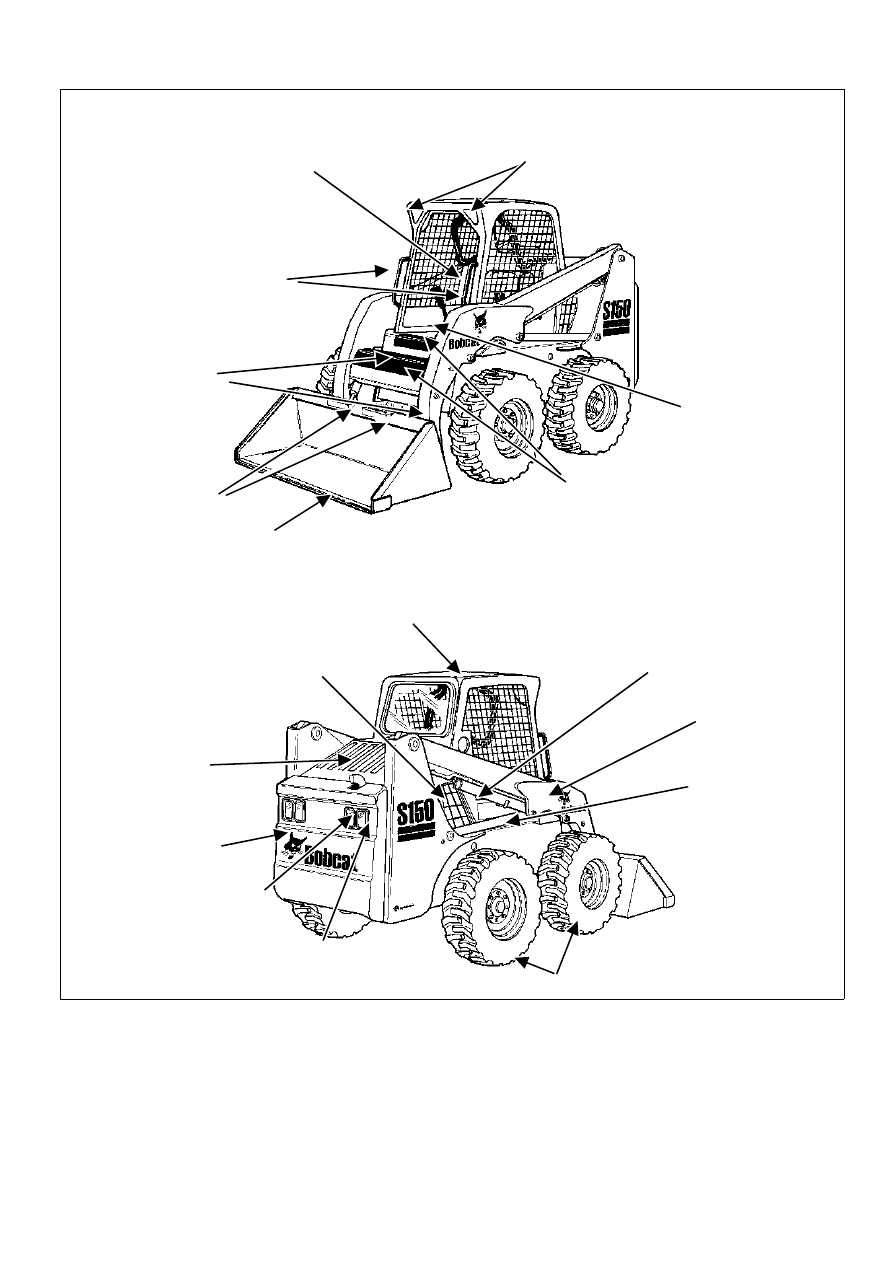

MACHINE IDENTIFICATION

FRONT

LIGHTS

GRAB

HANDLES

OPERATOR SEAT

with SEAT BELT

& SEAT BAR

TILT

CYLINDERS



BUCKET



REAR AUXILIARY

QUICK COUPLERS

FRONT AUXILIARY

QUICK COUPLERS

STEPS

BUCKET

STEPS

REAR

GRILL

LIFT

CYLINDER

LIFT ARM

SUPPORT DEVICE

TAIL

LIGHT

REAR

LIGHT

 TIRES

REAR

DOOR

LIFT ARM

Optional or Field Accessory (Not Standard Equipment)

TIRES - Tires shown may not be standard. The machine is factory equipped with standard tires. Other tires are available.

Bucket - Several different buckets and other attachments are available for this machine.

ROPS, FOPS - Roll Over Protective Structure, per SAE J1040 and ISO 3471, and Falling Object Protective Structure per
ISO 3449, Level I. Level II is available.



OPERATOR CAB

(ROPS / FOPS)

B-19881

B-19880

S150 Bobcat Loader
Operation & Maintenance Manual

VIII

FEATURES, ACCESSORIES AND ATTACHMENTS

Standard Items

Model S150 Bobcat loaders are equipped with the
following standard items:

Automatically activated glow-plugs

Bobcat Interlock Control System (BICS)

Bob-Tach™ frame

CE certification

Deluxe operator cab*
Includes interior cab foam, side, top and rear
windows, accessory wire harness, dome light, and
electrical power port

Electrically activated proportional front auxiliary
hydraulics

Engine/hydraulics system shutdown

High-back cushion suspension seat

Hydraulic bucket positioning (including ON / OFF
switch)

Instrumentation

Lift arm support

Operating lights, front and rear

Parking brake

Seat bar

Seat belt

Spark arrestor muffler

Tyres - 10-16.5 - 10-ply - Bobcat heavy duty

* Roll Over Protective Structure (ROPS) - meets
requirements of SAE-J1040 and ISO 3471

Options and Accessories

Below is a list of some equipment available from your
Bobcat Loader dealer as Dealer and / or Factory Installed
Accessories and Factory Installed Options. See your
Bobcat dealer for other available options, accessories
and attachments.

Dealer Installed Accessories

7-pin attachment control kit

Back up alarm kit

Cab enclosure kit

Counterweight kit

Door sensor kit

FOPS kit **

Four-point lift kit

Fresh air heater kit

Front axle counterweight kit

Front door kit

Fuel cap locking kit

Operator cab, CE, enclosure kit

Plumbing kit for fresh air heater

Rear auxiliary hydraulic kit

Replacement Bob-Tach™

Secondary auxiliary hydraulics

Single-point lift kit

Special applications kit

Factory Options

Advanced Control System (ACS)

Advanced Hand Controls (AHC)

Cab enclosure with heat

Deluxe instrument panel

Power Bob-Tach™

Segmented tyres - 10-16.5

Segmented tyres - industrial type - 7.50-15

Selectable Joystick Controls (SJC)

Severe duty foam-filled tyres - 10-16.5 - 10-ply

Severe duty tyres - 10-16.5 - 10-ply

Super float tyres - 31-15.5 - 8-ply

** Falling Objects Protective Structure (FOPS) -
meets requirements of SAE-J1043 and ISO 3449,
Level I

Specifications subject to change without notice.

S150 Bobcat Loader

IX

Operation & Maintenance Manual

FEATURES, ACCESSORIES AND ATTACHMENTS
(CONT’D)

These and other attachments are approved for use on
this model loader. Do not use unapproved attachments.
Attachments not manufactured by Bobcat may not be
approved.

The versatile Bobcat loader quickly turns into a multi-job
machine with a tight-fit attachment hook-up . . . from
bucket to grapple to pallet fork to backhoe and a variety
of other attachments.

See your Bobcat dealer for more details on these and
other attachments and field accessories.

Increase the versatility of your Bobcat loader with a
variety of bucket styles and sizes.

Buckets Available

Many bucket styles, widths and different capacities are
available for a variety of different applications. They
include Construction & Industry, Low profile, Fertilizer
and Snow, to name a few. See your Bobcat dealer for the
correct bucket for your Bobcat loader and application.

Attachments

For specific model availability, see Bobcat Product Price List.

Angle blade

Angle broom*†

Auger

Backhoe

Box  blade

Brushcat rotary cutter

Buckets

Chipper*

Combination bucket

Concrete pump*

Cutter crusher*

Digger

Dozer blade*

Dumping hopper

Ejector bucket

Farm grapple

Grader*

Hydraulic breaker**

Industrial grapple

Landplane

Landscape rake

Mixing bucket*

Pallet fork - hydraulic

Pallet fork - standard

Planer*

Rear stabiliser

Scarifier

Snow blower*

Sod  layer*

Soil conditioner*

Spreader

Stump grinder*

Super scraper

Sweeper

Three-point hitch

Tiller

Tilt-Tatch™

Tracks, steel

Tree transplanter*

Trench compactor

Trencher

Utility forks

Vibratory roller

Water kit

Wheel saw

Whisker broom

*

Attachment control kit required.

** When operating the loader with this attachment, a Special Applications Kit, which includes a 12 mm Lexan

front door with 6 mm top and rear windows, must be used.

†Optional water kit.

BUCKET
