Lincoln Navigator (2019 year). Instruction - part 27

Capacity

Item

23.6 gal (89.3 L)

Fuel tank

27.8 gal (105.2 L)

Fuel tank (Navigator L)

37 oz (1.05 kg)

A/C refrigerant (U.S. and Canada)

39 oz (1.11 kg)

A/C refrigerant (Mexico)

6.1 fl oz (180 ml)

A/C refrigerant compressor oil

1

The rear axle is filled with synthetic rear axle lubricant, and it is considered lubricated for life.  Do not check or change the lubricant unless

you suspect a leak or submerge the axle in water.  Contact an authorized dealer.

2

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

423

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Capacities and Specifications

Specifications

Materials

Specification

Name

WSS-M2C946-B1

Motor oil (U.S.):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil
XO-5W30-Q1SP

WSS-M2C946-B1

Motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12

WSS-M2C946-B1

Motor oil (Mexico):
Motorcraft® SAE 5W-30 Synthetic Motor Oil
MXO-5W30-Q1SP

WSS-M97B57-A2

Engine coolant (U.S. and Mexico):
Motorcraft® Yellow Prediluted Antifreeze/Coolant
VC-13DL-G

WSS-M97B57-A2

Engine coolant (Canada):
Motorcraft® Yellow Prediluted Antifreeze/Coolant
CVC-13DL-G

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid
PM-20

424

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Capacities and Specifications

Specification

Name

WSS-M2C949-A

Automatic transmission fluid (U.S. and Mexico):

MERCON® ULV

Motorcraft® MERCON® ULV Automatic Transmission Fluid
XT-12-QULV

WSS-M2C949-A

Automatic transmission fluid (Canada):

MERCON® ULV

Motorcraft® MERCON® ULV Automatic Transmission Fluid
XT-12-QULVC

WSS-M2C942-A

Front axle fluid:
Motorcraft® SAE 75W-85 Hypoid Gear Lube
XY-75W85-QL

WSS-M2C942-A

Rear axle fluid:
Motorcraft® SAE 75W-85 Hypoid Gear Lube
XY-75W85-QL

ESP-M2C166-H

Transfer case fluid (Four Wheel Drive with Electronic Shift on the Fly) (U.S. and Mexico):
Motorcraft® Transfer Case Fluid
XL-12

ESP-M2C166-H

Transfer case fluid (Four Wheel Drive with Electronic Shift on the Fly) (Canada):
Motorcraft® Transfer Case Fluid
CXL-12

WSS-M2C938-A

Transfer case fluid (Four Wheel Drive with Torque on Demand) (U.S. and Mexico):

MERCON® LV

Motorcraft® Transfer Case Fluid
XT-10-QLVC

425

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Capacities and Specifications

Specification

Name

WSS-M2C938-A

Transfer case fluid (Four Wheel Drive with Torque on Demand) (Canada):

MERCON® LV

Motorcraft® Transfer Case Fluid
CXT-10-LV12

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSS-M17B21-A

A/C refrigerant (U.S.):
R-1234yf Refrigerant
YN-33-A

WSS-M17B21-A

A/C refrigerant (Canada):
R-1234yf Refrigerant
HS7Z-19B519-BA

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSS-M2C300-A2

A/C refrigerant compressor oil (U.S. and Canada):
Motorcraft® R-1234yf Refrigerant PAG Oil
YN-35

426

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Capacities and Specifications

Specification

Name

WSH-M1C231-B

A/C refrigerant compressor oil (Mexico):
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

CRCSL3151ESB

Multi-purpose grease:

ESB-M1C93-B

Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

-

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not available,
use motor oils of the recommended viscosity
grade that meet API SN PLUS requirements
and display the API Certification Mark for
gasoline engines.

427

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Capacities and Specifications

E142732

E276075

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage not covered by your
vehicle warranty.

Note: We recommend DOT 4 Low Viscosity
(LV) High Performance Brake Fluid or
equivalent meeting WSS-M6C65-A2. Use of
any fluid other than the recommended fluid
may cause degraded brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.

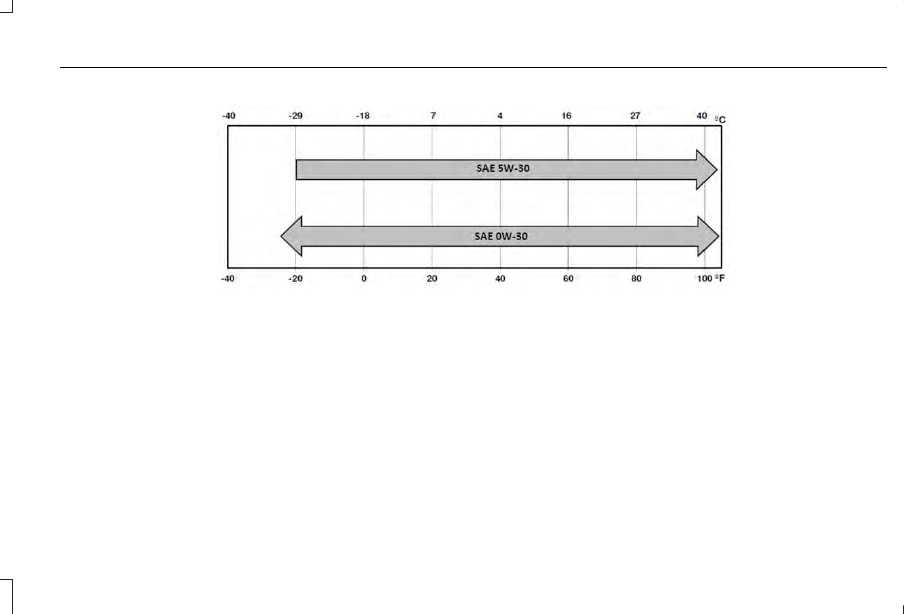

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C953-B1

Engine Oil - SAE 0W-30

428

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Capacities and Specifications

E240523

BULB SPECIFICATION CHART

Replacement bulbs are specified in the chart
below. Headlamp bulbs must be marked with
an authorized D.O.T. for North America and
an E for Europe to ensure lamp performance,
light brightness and pattern and safe
visibility. The correct bulbs will not damage
the lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.

429

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Capacities and Specifications

Exterior Lamps

Power (Watt)

Specification

Lamp

LED

LED

Front direction indicator.

LED

LED

Daytime running lamps.

LED

LED

Headlamp low beam.

LED

LED

Headlamp high beam.

LED

LED

Front side marker lamps.

LED

LED

Side direction indicator.

LED

LED

Welcome lighting lamps.

LED

LED

Rear lamp, brake lamp and rear direction indicator.

LED

LED

Central high mounted brake lamp.

LED

LED

Reversing lamps.

LED

LED

License plate lamp.

LED lamps are not serviceable.  Contact an authorized dealer if they fail.

430

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Capacities and Specifications

Interior Lamps

Power (Watt)

Specification

Lamp

LED

LED

Glove compartment lamp if equipped.

LED

LED

Vanity mirror lamp.

LED

LED

Map lamp.

LED

LED

Second row lamp.

LED

LED

Rear dome lamp.

LED lamps are not serviceable.  Contact an authorized dealer if they fail.

431

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Capacities and Specifications

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend

against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•

AM: 530-1710 kHz

•

FM: 87.9-107.9 MHz

Note: Listening to loud audio for long
periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

432

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Audio System

CD and CD Player Information

Note: CD units play commercially pressed
4.7 in (12 cm) audio compact discs only. Due
to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in the
vehicle’s CD player.

Note:  Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD to
become jammed.  You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs.  Ask an
authorized dealer for more information.

Note: Do not use any irregularly shaped
discs or discs with a scratch protection film
attached.

Always handle discs by their edges only.
Clean the disc with an approved CD cleaner
only.  Wipe it from the center of the disc
toward the edge.  Do not clean in a circular
motion.

Do not expose discs to direct sunlight or heat
sources for extended periods.

MP3 and WMA Track and Folder
Structure

Audio systems capable of recognizing and
playing MP3 and WMA individual tracks and
folder structures work as follows:
•

There are two different modes for MP3
and WMA disc playback: MP3 and WMA
track mode (system default) and MP3 and
WMA folder mode.

•

MP3 and WMA track mode ignores any
folder structure on the MP3 and WMA
disc. The player numbers each MP3 and
WMA track on the disc (noted by the MP3
or WMA file extension) from T001 to a
maximum of T255. The maximum number
of playable MP3 and WMA files may be
less depending on the structure of the
CD and exact model of radio present.

•

MP3 and WMA folder mode represents
a folder structure consisting of one level
of folders. The CD player numbers all
MP3 and WMA tracks on the disc (noted
by the MP3 or WMA file extension) and
all folders containing MP3 and WMA files,
from F001 (folder) T001 (track) to F253
T255.

•

Creating discs with only one level of
folders helps with navigation through the
disc files.

If you are burning your own MP3 and WMA
discs, it is important to understand how the
system reads the structures you create. While
various files may be present (files with
extensions other than MP3 and WMA), only
files with the MP3 and WMA extension are
played; other files are ignored by the system.
This enables you to use the same MP3 and
WMA disc for a variety of tasks on your work
computer, home computer and your
in-vehicle system.

433

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Audio System

In track mode, the system displays and plays
the structure as if it were only one level deep
(all MP3 and WMA files play, regardless of
being in a specific folder). In folder mode,
the system only plays the MP3 and WMA files
in the current folder.

AUDIO UNIT

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Note: Some features, such as satellite radio,
may not be available in your location. Check
with an authorized dealer.

Note: The touchscreen system controls most
of the audio features.

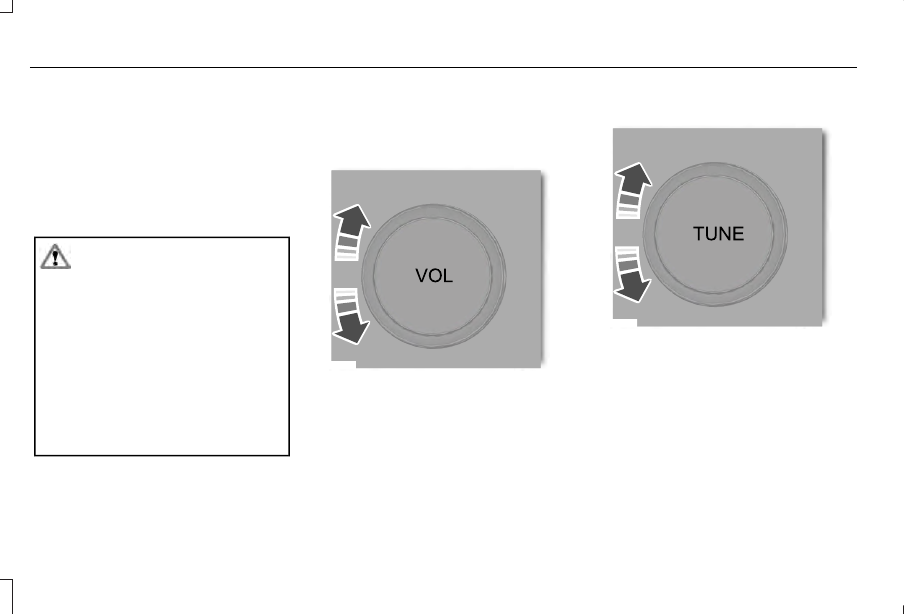

Adjusting the Volume

E265373

Turn to adjust the volume.

Changing Radio Stations

E265696

In radio mode, turn to search through the
radio frequency band.

In satellite radio mode, turn to find the
previous or next available satellite radio
station.

434

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Audio System

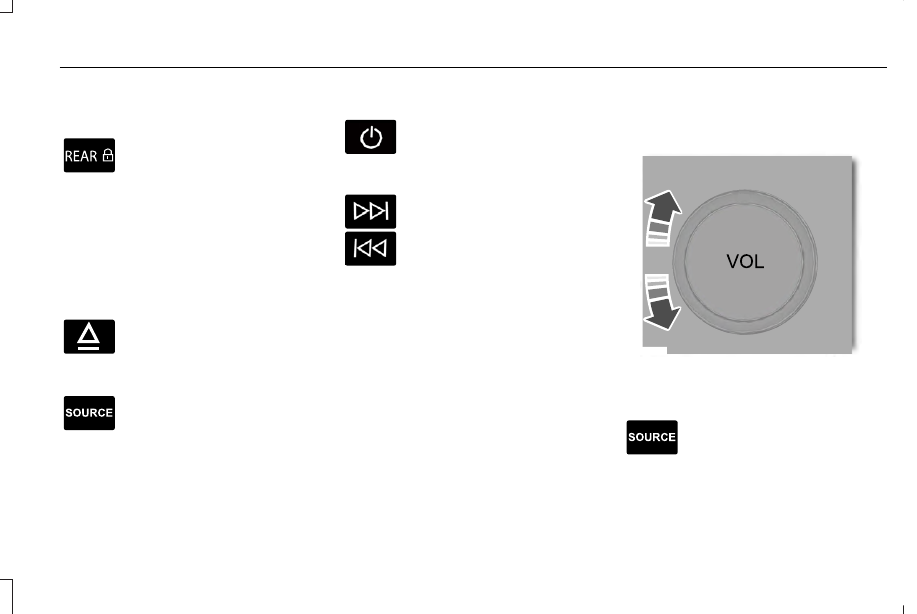

Locking the Rear Audio Controls

 (If

Equipped)

E270448

Press and release the button to
lock the rear passenger audio
controls.

Inserting a CD

 (If Equipped)

Insert a CD into the CD slot.

Note: The CD player slot is in the center
console.  See Center Console (page 189).

Ejecting the CD

 (If Equipped)

E265032

Press and release the button to
eject a CD.

Selecting the Audio Modes

 (If Equipped)

E265276

Press and release the button to
access different audio modes, for
example AM, FM and CD.

Switching the Audio Unit On and Off

Press and release the button.

Using Seek, Fast Forward and Reverse

In radio mode, select a frequency band and
press and release either button. The system
stops at the first station it finds in that
direction.

In CD mode, press and release to select the
next or previous track. Press and hold to
move quickly forward or backward through
the current track.

In satellite radio mode, press and release to
select the next or previous satellite radio
station. If you select a specific category (such
as jazz, rock or news) press to find the next
or previous station in the category you select.

Rear Passenger Audio

 (If Equipped)

Adjusting the Volume

E265373

Turn to adjust the volume.

Selecting the Audio Modes

E265276

Press and release the button to
access different audio modes, for
example AM, FM and CD.

435

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Audio System

Switching the Display On and Off

E272035

Press and release the button.

Switching the Rear Audio Unit On and Off

Press and release the button.

Using Seek, Fast Forward and Reverse

In radio mode, select a frequency band and
press and release either button. The system
stops at the first station it finds in that
direction.

In CD mode, press and release to select the
next or previous track. Press and hold to
move quickly forward or backward through
the current track.

In satellite radio mode, press and release to
select the next or previous satellite radio
station. If you select a specific category (such
as jazz, rock or news) press to find the next
or previous station in the category you select.

SATELLITE RADIO

 (IF EQUIPPED)

SiriusXM® Satellite Radio broadcasts a
variety of music, news, sports, weather, traffic
and entertainment satellite radio channels.
For more information and a complete list of
SiriusXM satellite radio channels, visit
www.siriusxm.com in the United States,
www.siriusxm.ca in Canada, or call SiriusXM
at 1-888-539-7474.

Note: This receiver includes the eCos
real-time operating system. eCos is
published under the eCos License.

436

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Audio System

Satellite Radio Reception Factors

Potential satellite radio reception issues

For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and
other material as far away from the antenna as possible.

Antenna obstructions

Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with your reception.

Terrain

When you pass a ground-based broadcast-repeating tower, a stronger signal may overtake a weaker one and
the audio system may mute.

Station overload

Your display may show ACQUIRING . . . to indicate the interference and the audio system may mute.

Satellite radio signal interfer-
ence

SiriusXM Satellite Radio Service

Note: SiriusXM reserves the unrestricted
right to change, rearrange, add or delete
programming including canceling, moving
or adding particular channels, and its prices,
at any time, with or without notice to you.
Ford Motor Company shall not be
responsible for any such programming
changes.

E208625

SiriusXM satellite radio is a
subscription-based satellite radio service that
broadcasts a variety of music, sports, news,
weather, traffic and entertainment
programming. Your factory-installed SiriusXM
satellite radio system includes hardware and
a limited subscription term, which begins on
the date of sale or lease of your vehicle. See
an authorized dealer for availability.

437

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Audio System

For more information on extended
subscription terms (a service fee is required),
the online media player and a complete list
of SiriusXM satellite radio channels, and
other features, please visit www.siriusxm.com

in the United States, www.siriusxm.ca in
Canada, or call SiriusXM at 1-888-539-7474.

Satellite Radio Electronic Serial
Number (ESN)

You need your ESN to activate, modify or
track your satellite radio account. When in
satellite radio mode, tune to channel 0.

Troubleshooting

Action

Condition

Message

No action required.  This message should
disappear shortly.

Radio requires more than two seconds to
produce audio for the selected channel.

Acquiring…

If this message does not clear shortly, or with
an ignition key cycle, your receiver may have
a fault. See an authorized dealer for service.

There is an internal module or system failure
present.

Satellite antenna fault

SIRIUS system failure

Tune to another channel or choose another
preset.

The channel is no longer available.

Invalid Channel

Contact SiriusXM at 1-888-539-7474 to
subscribe to the channel, or tune to another
channel.

Your subscription does not include this
channel.

Unsubscribed Channel

The signal is blocked. When you move into an
open area, the signal should return.

The signal is lost from the SiriusXM satellite
or SiriusXM tower to your vehicle antenna.

No Signal

No action required.  The process may take up
to three minutes.

Update of channel programming in progress.

Updating…

438

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Audio System
