Troubleshooting

Possible Cause

Symptom

You may have switched the traction control off.

The system does not search for a parking space.

The transmission is in reverse (R). Your vehicle must be moving forward to be able to
detect a parking space.

The sensors may be blocked. For example, snow, ice or dirt buildup. Blocked sensors
can affect how the system functions.

The system does not offer a parking space.

There is not enough room in the parking space for your vehicle to safely park.

There is not enough space for the parking maneuver on the opposite side of the parking
space.

The parking space is more than 5 ft (1.5 m) or less than 2 ft (0.5 m) away.

The vehicle speed is greater than 22 mph (35 km/h) for parallel parking or greater than
19 mph (30 km/h) for perpendicular parking.

You recently disconnected or replaced the battery. After you reconnect the battery you
must drive your vehicle on a straight road for a short period of time.

Your vehicle is rolling in the opposite direction of the current transmission position. For
example, rolling forward when in reverse (R).

The system does not correctly position your vehicle
in a parking space.

An irregular curb along the parking space prevents the system from correctly aligning
your vehicle.

247

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Parking Aids

Possible Cause

Symptom

Vehicles or objects bordering the space may not be correctly parked.

Your vehicle stopped too far past the parking space.

The tires may not be correctly installed or maintained. For example, not inflated correctly,
improper size, or of different sizes.

A repair or alteration changes the detection capabilities.

A parked vehicle has a high attachment. For example, a salt sprayer, snowplow or moving
truck bed.

The parking space length or position of parked objects changes after your vehicle passes
the space.

The temperature around your vehicle quickly changes. For example, driving from a
heated garage into the cold, or after leaving a car wash.

248

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Parking Aids

REAR VIEW CAMERA

WARNING: The rear view camera

system is a reverse aid supplement device
that still requires the driver to use it in
conjunction with the interior and exterior
mirrors for maximum coverage.

WARNING: Objects that are close to

either corner of the bumper or under the
bumper, might not be seen on the screen
due to the limited coverage of the camera
system.

WARNING: Reverse your vehicle

slowly. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING: Use caution when the

rear cargo door is ajar. If the rear cargo
door is ajar, the camera will be out of
position and the video image may be
incorrect. All guidelines disappear when
the rear cargo door is ajar. Failure to follow
this instruction could result in personal
injury.

WARNING: Use caution when turning

camera features on or off when the
transmission is not in park (P). Make sure
your vehicle is not moving.

The rear view camera system provides a
video image of the area behind your vehicle.

During operation, lines appear in the display
which represent your vehicle’s path and
proximity to objects behind your vehicle.

E142435

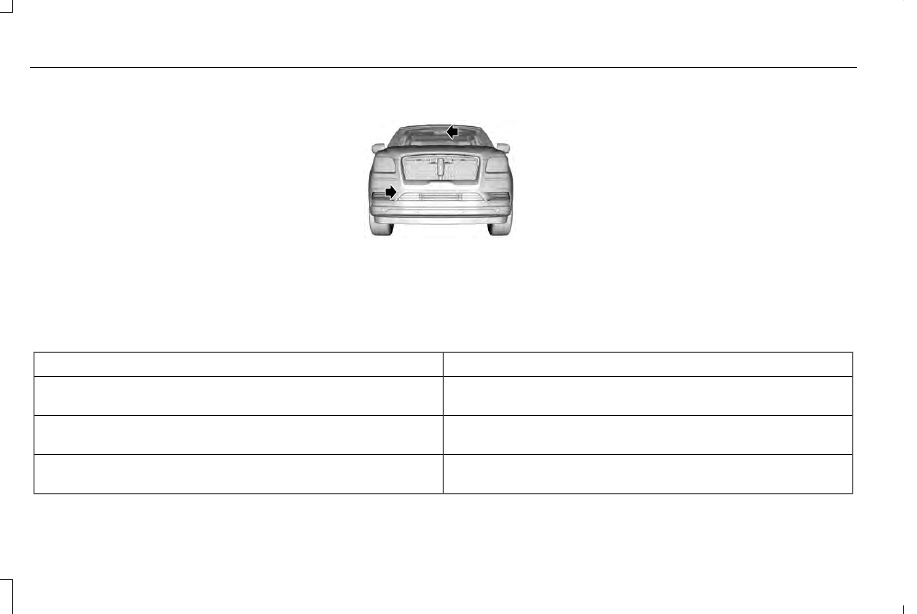

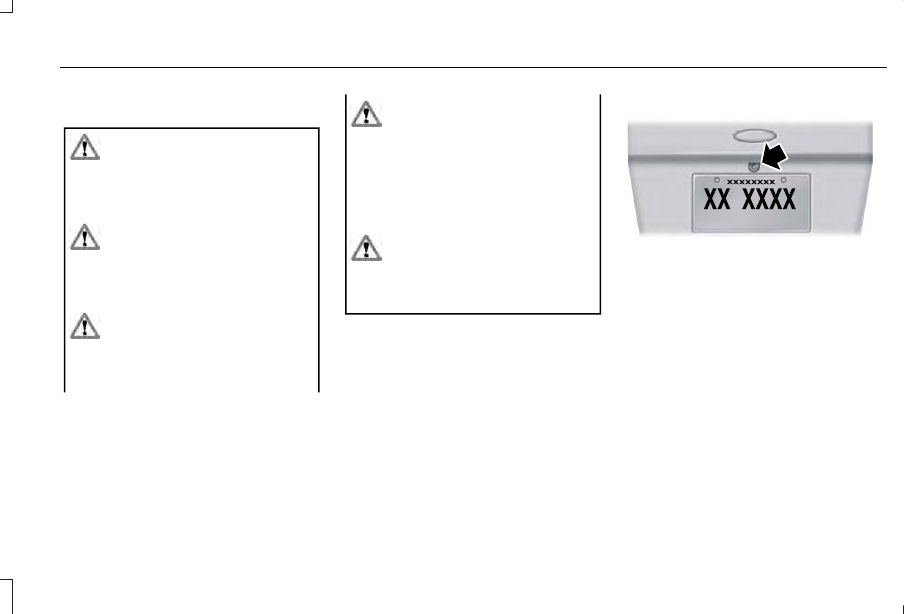

The camera is located on the luggage
compartment door, above the license plate.

Using the Rear View Camera System

The rear view camera system displays what
is behind your vehicle when you place the
transmission in reverse (R).

Note: The reverse sensing system is not
effective at speeds above 3 mph (5 km/h)
and may not detect certain angular or
moving objects.

249

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Parking Aids

The system uses three types of guides to
help you see what is behind your vehicle:
•

Active guidelines (if equipped): Show the
intended path of your vehicle when
reversing.

•

Fixed guidelines: Show the actual path
your vehicle is moving in while reversing
in a straight line. This can be helpful
when backing into a parking space or
aligning your vehicle with another object
behind you.

•

Centerline: Helps align the center of your
vehicle with an object. For example, a
trailer.

Note: If the transmission is in reverse (R) and
the luggage compartment door or liftgate is
open, no rear view camera features display.

Note:  When towing, the camera only sees
what you are towing.  This might not provide
adequate coverage as it usually provides in
normal operation and some objects might
not be seen.  In some vehicles, the
guidelines may disappear when you connect
the trailer tow connector.

The camera may not operate correctly under
the following conditions:
•

Nighttime or dark areas if one or both
reverse lamps are not operating.

•

Mud, water or debris obstructs the
camera's view.  Clean the lens with a soft,
lint-free cloth and non-abrasive cleaner.
The rear view camera has a washer that
activates when you use the rear window
washer. See Rear Window Wiper and
Washers (page 95).

•

The rear of your vehicle is hit or
damaged, causing the camera to become
misaligned.

Camera System Settings

The rear view camera system settings can
be accessed through the display screen.
See General Information (page 120).

Camera Guidelines

Note: Active guidelines are only available
when the transmission is in reverse (R).

A

B C

D

F

E

E142436

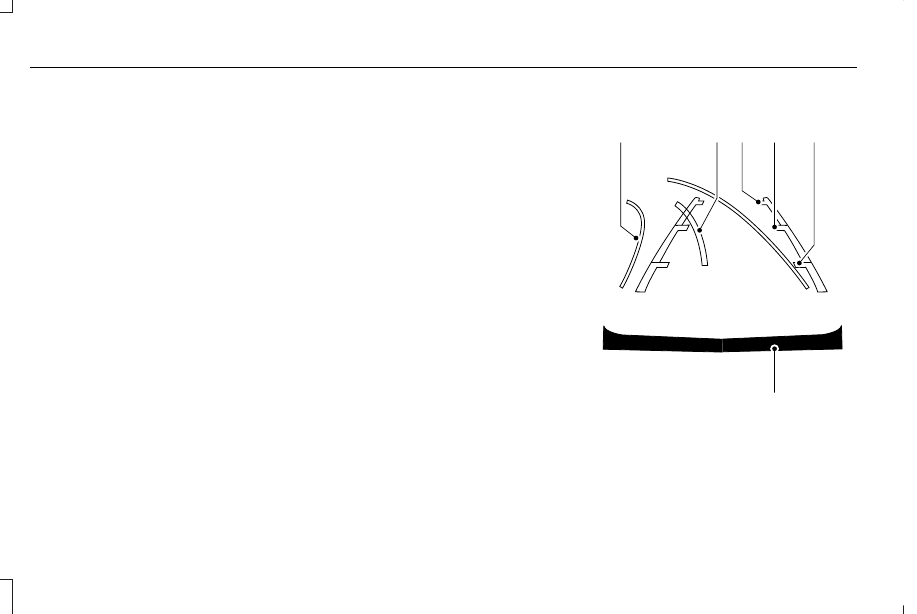

Active guidelines (If equipped)

A

Centerline

B

Fixed guideline: Green zone

C

250

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Parking Aids

Fixed guideline: Yellow zone

D

Fixed guideline: Red zone

E

Rear bumper

F

Active guidelines are only shown with fixed
guidelines.  To use active guidelines, turn
the steering wheel to point the guidelines
toward an intended path.  If you change the
steering wheel position while reversing, your
vehicle might deviate from the original
intended path.

The fixed and active guidelines fade in and
out depending on the steering wheel
position.  The active guidelines do not
display when the steering wheel position is
straight.

Always use caution while reversing. Objects
in the red zone are closest to your vehicle
and objects in the green zone are farther
away. Objects are getting closer to your
vehicle as they move from the green zone
to the yellow or red zones. Use the side view
mirrors and rear view mirror to get better
coverage on both sides and rear of the
vehicle.

Obstacle Distance Indicator

 (If Equipped)

E190459

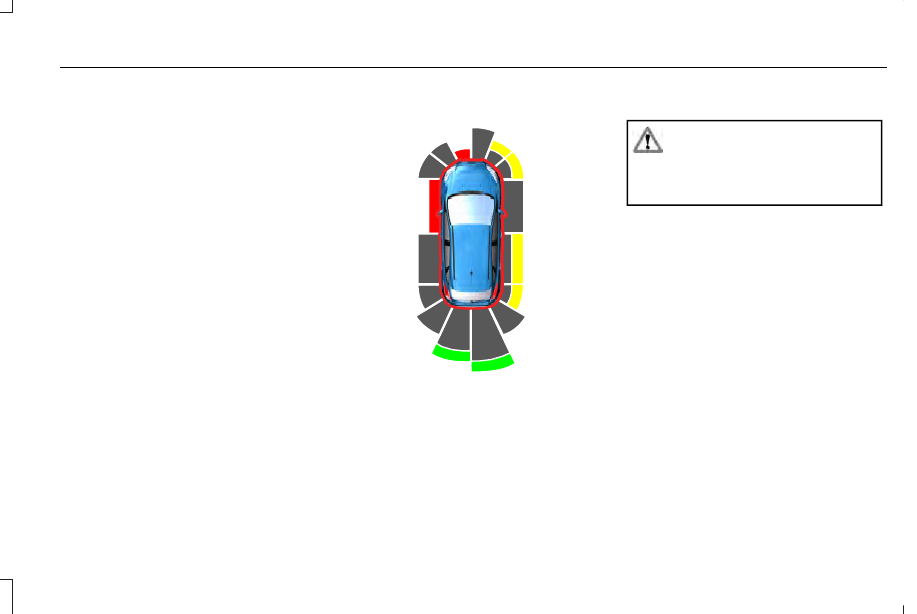

The system will provide an image of your
vehicle and the sensor zones. The zones will
highlight green, yellow and red when the
parking aid sensors detect an object in the
coverage area.

Instruction Zoom

WARNING: When instruction zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the instruction zoom feature.

Note: Instruction zoom is only available when
the transmission is in reverse (R).

Note: When you enable instruction zoom, only
the centerline is shown.

Selectable settings for this feature are Zoom
in (+) and Zoom out (-). Press the symbol in
the camera screen to change the view. The
default setting is Zoom OFF.

This allows you to get a closer view of an
object behind your vehicle.  The zoomed
image keeps the bumper in the image to
provide a reference.  The zoom is only active
while the transmission is in reverse (R).

Rear Camera Delay

Selectable settings for this feature are ON
and OFF.

251

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Parking Aids

The default setting for the rear camera delay
is OFF.

When shifting the transmission out of reverse
(R) and into any gear other than park (P), the
camera image remains in the display until:
•

Your vehicle speed reaches
approximately 6 mph (10 km/h).

•

You shift your vehicle into park (P).

360 DEGREE CAMERA

 (IF EQUIPPED)

WARNING: The 360 degree camera

system still requires the driver to use it in
conjunction with looking out of the
windows, and checking the interior and
exterior mirrors for maximum coverage.

WARNING: Objects that are close to

either corner of the bumper or under the
bumper, might not be seen on the screen
due to the limited coverage of the camera
system.

WARNING: Use caution when turning

camera features on or off when the
transmission is not in park (P). Make sure
your vehicle is not moving.

Note: The 360 degree camera system turns
off when your vehicle is in motion at low
speed, except when in reverse (R).

The 360 degree camera system consists of
front, side and rear cameras. The system:
•

Allows you to see what is directly in front
or behind your vehicle.

•

Provides cross traffic view in front and
behind your vehicle.

•

Allows you to see a top-down view of the
area outside your vehicle, including the
blind spots.

•

Provides visibility around your vehicle to
you in parking maneuvers such as:
•

Centering in a parking space.

•

Obstacles near vehicle.

•

Parallel parking.

Camera Views

E205884

The front camera enable button is
located near the display screen
and turns on the front camera

when your vehicle is not in reverse (R).

When in park (P), neutral (N) or drive (D), only
images from the front cameras are displayed.
Press the camera button to display the front
camera image on the display screen.

When in reverse (R), only images from the
rear cameras are displayed. When you shift
into reverse (R), the rear view camera image
automatically shows on the display screen.

Advanced Camera Views

 (If Equipped)

E233726

Additional camera views may be
available for vehicles with specific
features. Press the small camera

icon shown on the top left corner of the
display screen to open the camera view
menu.

252

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Parking Aids

The following camera views can be accessed
in park (P), neutral (N) or drive (D) when you
press the camera button:
•

Front 360 + Normal: Contains the normal
front camera view next to a 360 degree
camera view.

•

Front Normal View: Provides an image
of what is directly in front of your vehicle.

•

Front Split View: Provides an extended
view of what is in front of your vehicle.

The following camera views can be accessed
when you shift into reverse (R):
•

Rear 360 + Normal: Contains the normal
rear camera view next to a 360 degree
camera view. Press the zoom (+) button
to quickly access Rear Normal View from
this screen.

•

Rear Normal View: Provides an image
of what is directly behind your vehicle.

•

Rear Split View: Provides an extended
view of what is behind your vehicle.

Keep Out Zone

The Keep Out Zone is represented by the
yellow dotted lines running parallel to your
vehicle. It is designed to give you the
indication on the ground of the fully
extended outside mirror position.

Front Camera

WARNING: The front camera system

still requires the driver to use it in
conjunction with looking out of your
vehicle.

E250813

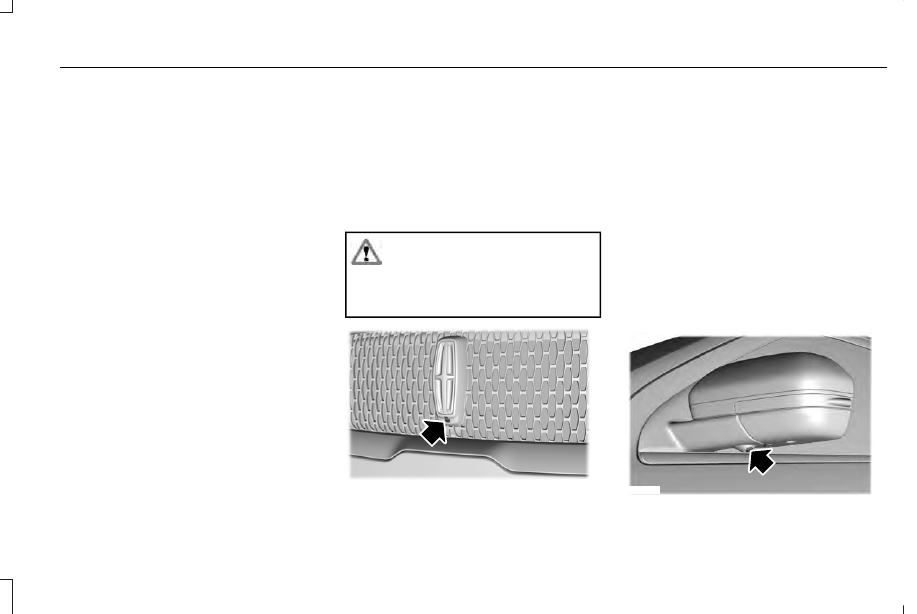

The front video camera, located in the grille,
provides a video image of the area in front
of your vehicle. It adds assistance to the
driver while driving forward at low speeds.
To use the front video camera system, place
the transmission in any gear except reverse
(R). An image will display once the camera
enable button is pressed. The area displayed
on the screen may vary according to your
vehicle's orientation and/or road condition.

The front camera has a washer that activates
when you use the windshield washer. See
Windshield Washers (page 95).

Side Camera

E250816

253

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Parking Aids

The side view camera, located in the outside
mirror, provides a video image of the area
on the sides of your vehicle as part of the
front 360 + normal view and rear 360 +
normal view. It aids you while parking your
vehicle either forward or backward.

Note: Use caution when using the 360 view
while any of the doors are ajar. If a door is
ajar, the camera will be out of position and
the video image may be incorrect.

254

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Parking Aids

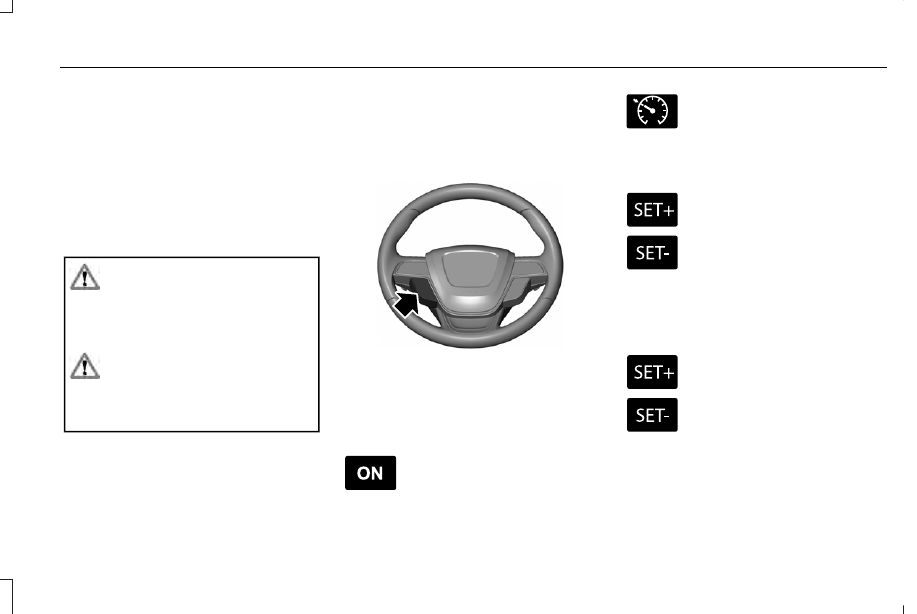

PRINCIPLE OF OPERATION

Cruise control lets you maintain a set speed
without keeping your foot on the accelerator
pedal. You can use cruise control when your
vehicle speed is greater than 20 mph
(30 km/h).

USING CRUISE CONTROL

 (IF EQUIPPED)

WARNING: Do not use cruise control

on winding roads, in heavy traffic or when
the road surface is slippery. This could
result in loss of vehicle control, serious
injury or death.

WARNING: When you are going

downhill, your vehicle speed could
increase above the set speed. The system
does not apply the brakes.

To help the system to maintain the set speed
when going downhill, downshift to a lower
gear.

Your vehicle speed could decrease below
the set speed when driving uphill.

Note: The system cancels if your vehicle
speed drops below 10 mph (16 km/h) under
the set speed when driving uphill.

E262918

The cruise controls are on the steering
wheel. A more detailed graphic is in the
Steering Wheel information.  See Cruise
Control (page 90).

Switching Cruise Control On

E265296

Press and release the button.

E71340

The indicator appears in the
information display.

Setting the Cruise Speed

Drive to your preferred speed.

Press and release to set the
current speed.

Press and release to set the
current speed.

Take your foot off the accelerator pedal.

Note: The indicator changes color.

Changing the Set Speed

Press and release to increase the
set speed in small increments.

Press and release to decrease the
set speed in small increments.

Press and hold either button to accelerate
or decelerate, respectively. Release the
button when you reach your preferred speed.

255

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Cruise Control

Press the accelerator or brake pedal until
you reach your preferred speed. Press either
button.

Note:  If you accelerate by pressing only the
accelerator pedal, the set speed does not
change. When you release the accelerator
pedal, your vehicle returns to the speed you
previously set.

Canceling the Set Speed

Press the button, or tap the brake
pedal to cancel the set speed.

Note: The system remembers the set speed.

Resuming the Set Speed

Press to resume the set speed.

Switching Cruise Control Off

E265297

Press and release the button when
the system is in standby mode or
switch the ignition off.

Note: You erase the set speed when you
switch the system off.

USING ADAPTIVE CRUISE
CONTROL

 (IF EQUIPPED)

WARNING: Always pay close

attention to changing road conditions when
using adaptive cruise control. The system
does not replace attentive driving. Failing
to pay attention to the road may result in
a crash, serious injury or death.

WARNING: Do not use the adaptive

cruise control when entering or leaving a
highway, on roads with intersections or
roundabouts or non-vehicular traffic or
roads that are winding, slippery, unpaved,
or steep slopes.

WARNING: Do not use the system

in poor visibility, for example fog, heavy
rain, spray or snow.

WARNING: Do not use the system

when towing a trailer that has aftermarket
electronic trailer brake controls. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: Do not use tire sizes

other than those recommended because
this can affect the normal operation of the
system. Failure to do so may result in a loss
of vehicle control, which could result in
serious injury.

WARNING: Adaptive cruise control

may not detect stationary or slow moving
vehicles below 6 mph (10 km/h).

WARNING: Adaptive cruise control

does not detect pedestrians or objects in
the road.

WARNING: Adaptive cruise control

does not detect oncoming vehicles in the
same lane.

256

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Cruise Control

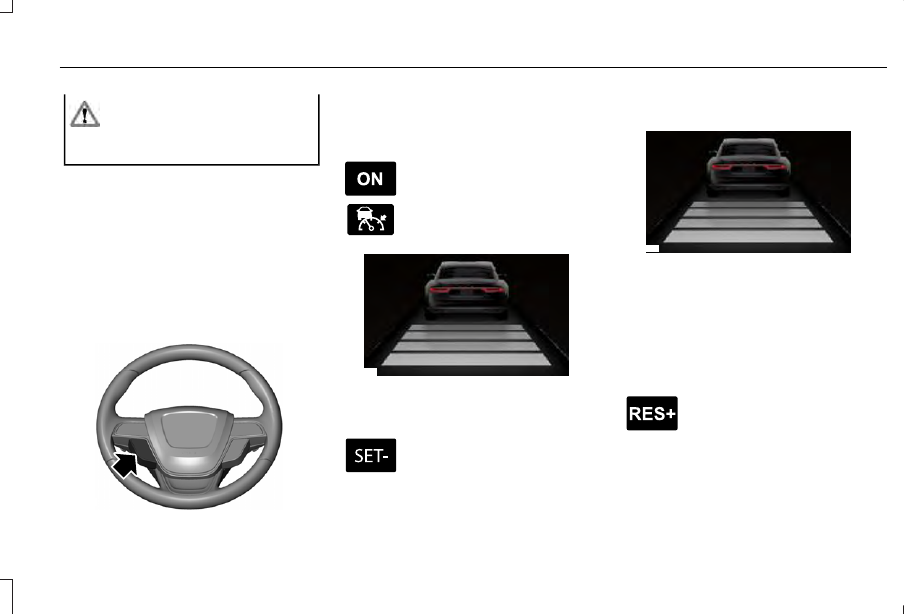

WARNING: Adaptive cruise control

is not a crash warning or avoidance
system.

The system adjusts your vehicle speed to
maintain the set gap between you and the
vehicle in front of you in the same lane.  You
can select four gap settings.

The system uses a radar sensor which
projects a beam directly in front of your
vehicle.

Note: It is your responsibility to stay alert,
drive safely and be in control of the vehicle
at all times.

E262918

The cruise controls are on the steering
wheel.  See Cruise Control (page 90).

Switching Adaptive Cruise Control On

E265296

Press and release the button.

E144529

The indicator, current gap setting
and set speed appear in the
information display.

E255686

Setting the Adaptive Cruise Speed

Drive to your preferred speed.

Press and release the button.

Take your foot off the accelerator pedal.

The indicator, current gap setting and set
speed appear in the information display.

E255686

Note: When adaptive cruise control is active,
the speedometer may vary slightly from the
set speed displayed in the information
display.

Setting the Adaptive Cruise Speed
When Your Vehicle is Stationary

Follow a vehicle to a complete stop.

E265299

Press while keeping the brake
pedal fully pressed.

The set speed adjusts to 20 mph (30 km/h).

The indicator, current gap setting and set
speed appear in the information display.

257

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Cruise Control

Following a Vehicle

WARNING: When following a vehicle,

your vehicle does not always decelerate
quickly enough to avoid a crash without
driver intervention. Always apply the
brakes when necessary. Failing to do so
may result in a crash, serious injury or
death.

WARNING: Adaptive cruise control

only warns of vehicles detected by the
radar sensor. In some cases there may be
no warning or a delayed warning. You
should always apply the brakes when
necessary. Failure to do so may result in a
crash, serious injury or death.

When a vehicle ahead of you enters the
same lane or a slower vehicle is ahead in the
same lane, the vehicle speed adjusts to
maintain a preset gap distance. A vehicle
graphic illuminates in the instrument cluster.

Note: The brakes may emit noise when
applied by the system.

Note: When you are following a vehicle and
you switch on a direction indicator, adaptive
cruise control may provide a small temporary
acceleration to help you pass.

Your vehicle maintains a consistent gap from
the vehicle ahead until:
•

The vehicle in front of you accelerates to
a speed above the set speed.

•

The vehicle in front of you moves out of
the lane you are in.

•

You set a new gap distance.

The system applies the brakes to slow your
vehicle to maintain a safe gap distance from
the vehicle in front.  The system only applies
limited braking.  You can override the system
by applying the brakes.

If the system determines that its maximum
braking level is not sufficient, an audible
warning sounds when the system continues
to brake.  A red warning bar displays on the
windshield and you must take immediate
action.

Following a Vehicle to a Complete Stop

If your vehicle follows a vehicle to a complete
stop and remains stationary for less than
three seconds, your vehicle accelerates from
a stationary position to follow the vehicle
ahead.

E265299

If your vehicle follows a vehicle to
a complete stop and remains
stationary for more than three

seconds, press to follow the vehicle ahead.
Or press the accelerator pedal.

Setting the Gap Distance

You can decrease or increase the distance
between your vehicle and the vehicle in front
by pressing the gap control.

E263697

Press and release to decrease the
gap distance.

E263696

Press and release to increase the
gap distance.

258

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Cruise Control

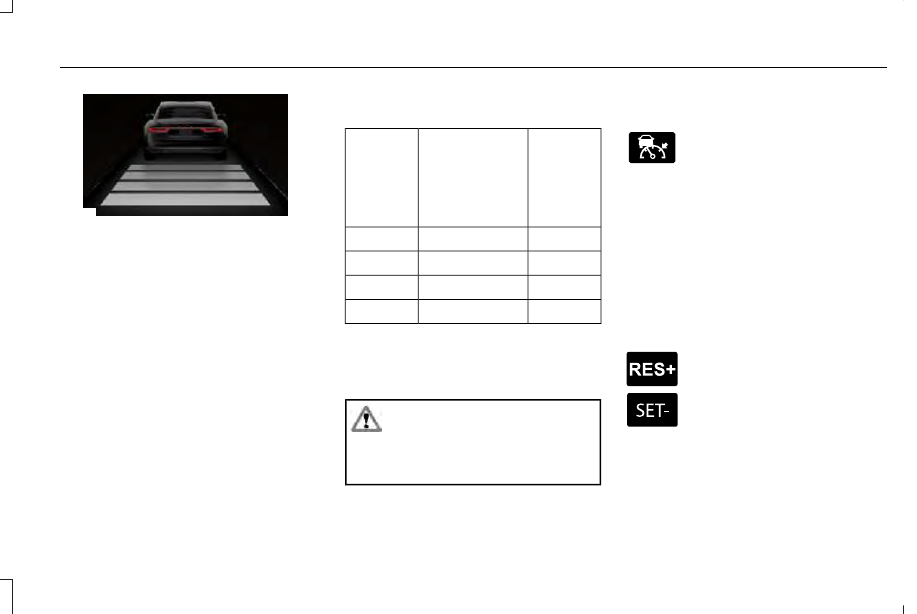

E255686

The selected gap appears in the information
display as shown by the bars in the image.

Note: The gap setting is time dependent and
therefore the distance adjusts with your
vehicle speed.

Note: It is your responsibility to select a gap
appropriate to the driving conditions.

Adaptive Cruise Control Gap Settings

Dynamic
behavior

Distance Gap

Graphic

display,

bars indic-

ated

between

vehicles

Sport.

Closest.

1

Normal.

Close.

2

Normal.

Medium.

3

Comfort.

Far.

4

Each time you switch the system on, it
selects the last chosen gap setting.

Overriding the Set Speed

WARNING: If you override the

system by pressing the accelerator pedal,
it does not automatically apply the brakes
to maintain a gap from any vehicle ahead.

When you press the accelerator pedal, you
override the set speed and gap distance.

E144529

Use the accelerator pedal normally
to intentionally exceed the set
speed limit.

When you override the system, the green
indicator light illuminates and the vehicle
image does not appear in the information
display.

The system resumes operation when you
release the accelerator pedal. The vehicle
speed decreases to the set speed, or a lower
speed if following a slower vehicle.

Changing the Set Speed

E265299

Press and release to increase the
set speed in small increments.

Press and release to decrease the
set speed in small increments.

Press and hold either button to change the
set speed in large increments. Release the
button when you reach your preferred speed.

259

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Cruise Control

The system may apply the brakes to slow
the vehicle to the new set speed.  The set
speed displays continuously in the
information display when the system is
active.

Canceling the Set Speed

Press and release the button or tap
the brake pedal.

The set speed does not erase.

Resuming the Set Speed

E265299

Press and release the button.

Your vehicle speed returns to the previously
set speed and gap setting.  The set speed
displays continuously in the information
display when the system is active.

Note: Only use resume if you are aware of
the set speed and intend to return to it.

Automatic Cancellation

Automatic cancellation can also occur when:

•

The tires lose traction.

•

You apply the parking brake.

Park Brake Application

Automatic parking brake application and
cancellation occurs if:
•

You unbuckle the seatbelt and open the
door after you stop the vehicle.

•

You hold the vehicle at a stop
continuously for more than three minutes.

Hilly Condition Usage

You should select a lower gear when the
system is active in situations such as
prolonged downhill driving on steep grades,
for example in mountainous areas. The
system needs additional engine braking in
these situations to reduce the load on the
vehicle’s regular brake system to prevent it
from overheating.

Note: An audible alarm sounds and the
system shuts down if it applies brakes for an
extended period of time. This allows the
brakes to cool. The system functions
normally again after the brakes cool.

Switching Adaptive Cruise Control Off

E265297

Press and release the button when
the system is in standby mode, or
switch the ignition off.

Note: You erase the set speed and gap
setting when you switch the system off.

Detection Issues

WARNING: On rare occasions,

detection issues can occur due to the road
infrastructures, for example bridges,
tunnels and safety barriers. In these cases,
the system may brake late or
unexpectedly. At all times, you are
responsible for controlling your vehicle,
supervising the system and intervening, if
required.

WARNING: If the system

malfunctions, have your vehicle checked
as soon as possible.

260

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Cruise Control

The radar sensor has a limited field of view.
It may not detect vehicles at all or detect a
vehicle later than expected in some
situations. The lead vehicle graphic does not
illuminate if the system does not detect a
vehicle in front of you.

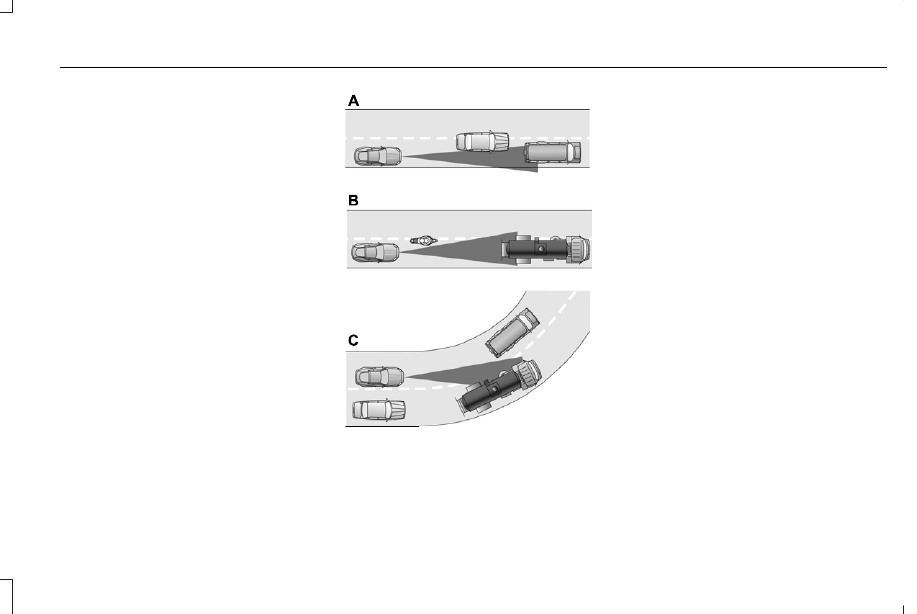

E71621

Detection issues can occur:

When driving on a different line
than the vehicle in front.

A

With vehicles that edge into your
lane. The system can only detect
these vehicles once they move
fully into your lane.

B

There may be issues with the
detection of vehicles in front when
driving into and coming out of a
bend or curve in the road.

C

In these cases, the system may brake late or
unexpectedly. You should stay alert and take
action when necessary.

If something hits the front end of your vehicle
or damage occurs, the radar-sensing zone
may change. This could cause missed or
false vehicle detection.

Optimal system performance requires a clear
view of the road by the windshield-mounted
camera.

Optimal performance may not occur if:

261

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Cruise Control

•

The camera is blocked.

•

There is poor visibility or lighting
conditions.

•

There are bad weather conditions.

System Not Available

Conditions that can cause the system to
deactivate or prevent the system from
activating when requested include:
•

A blocked sensor.

•

High brake temperature.

•

A failure in the system or a related
system.

Blocked Sensor

E253503

A message displays if something obstructs
the radar signals from the sensor.  The
sensor is in the lower grille.  The system
cannot detect a vehicle ahead and does not
function when something blocks the sensor.

Note: You cannot see the sensor. It is behind
a fascia panel.

Keep the front of your vehicle free of dirt,
metal badges or objects. Vehicle front
protectors and aftermarket lights may also
block the sensor.

Possible Causes and Actions for This Message Displaying:

Action

Cause

Clean the grille surface in front of the radar or remove the object
causing the obstruction.

The surface of the radar is dirty or obstructed.

Wait a short time. It may take several minutes for the radar to detect
that it is free from obstruction.

The surface of the radar is clean but the message remains in the
display.

Do not use the system in these conditions because it may not detect
any vehicles ahead.

Heavy rain or snow is interfering with the radar signals.

262

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Cruise Control
