Rear auxiliary power point cover.

D

Auxiliary power point.

E

AC power point or USB ports.

F

Rear heated seats (If equipped).

G

Auxiliary power point and USB
port.

H

Cup holders.

I

OVERHEAD CONSOLE

E224352

Press near the rear edge of the door to open
it.

167

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Storage Compartments

GENERAL INFORMATION

WARNING: Extended idling at high

engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.

WARNING: Do not park, idle or drive

your vehicle on dry grass or other dry
ground cover. The emission system heats
up the engine compartment and exhaust
system, creating the risk of fire.

WARNING: Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always
open the garage door before you start the
engine.

WARNING: Exhaust leaks may result

in entry of harmful and potentially lethal
fumes into the passenger compartment. If
you smell exhaust fumes inside your
vehicle, have your vehicle inspected
immediately. Do not drive if you smell
exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 5 mi (8 km)
after you reconnect it.  This is because the
engine management system must realign
itself with the engine.  You can disregard any
unusual driving characteristics during this
period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the engine.

KEYLESS STARTING

Note: The keyless starting system may not
function if the key is close to metal objects
or electronic devices such as cellular
phones.

Note: A valid key must be located inside
your vehicle to switch the ignition on and
start the engine.

Ignition Modes

E191075

The keyless starting system has three
modes:

Off: Turns the ignition off.

168

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Starting and Stopping the Engine

•

Without applying the brake pedal, press
and release the button once when the
ignition is in the on mode, or when the
engine is running but the vehicle is not
moving.

On: All electrical circuits are operational and
the warning lamps and indicators illuminate.

•

Without applying the brake pedal, press
and release the button once.

Note: You may have to press the push
button ignition switch twice to switch the
ignition on.

Start: Starts the engine.

•

Press the brake pedal, and then press
the button for any length of time. An
indicator light on the button illuminates
when then ignition is on and when the
engine starts.

STARTING A GASOLINE ENGINE

When you start the engine, the idle speed
increases.  This helps to warm up the
engine.  If the engine idle speed does not
slow down automatically, have your vehicle
checked by an authorized dealer.

Note:  You can crank the engine for a total
of 60 seconds without the engine starting
before the starting system temporarily
disables.  The 60 seconds does not have to
be all at once.  For example, if you crank the
engine three times for 20 seconds each time,
without the engine starting, you reached the
60-second time limit.  A message appears
in the information display alerting you that
you exceeded the cranking time.  You
cannot attempt to start the engine for at
least 15 minutes.  After 15 minutes, you are
limited to a 15-second engine cranking time.
You need to wait 60 minutes before you can
crank the engine for 60 seconds again.

Before starting the engine check the
following:
•

Make sure all occupants have fastened
their seatbelts.

•

Make sure the headlamps and electrical
accessories are off.

•

Make sure the parking brake is on.

•

Make sure the transmission is in park (P)
or neutral (N).

Keyless Starting

Note: Do not touch the accelerator pedal.

Note: A valid passive key must be located
inside your vehicle to switch the power on
and start your vehicle.

1. Fully depress the brake pedal.

2. Briefly press the push button ignition

switch.

The system does not function if:
•

The passive key frequencies are jammed.

•

The key battery has no charge.

If you are unable to start the engine, do the
following:

169

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Starting and Stopping the Engine

E203693

1

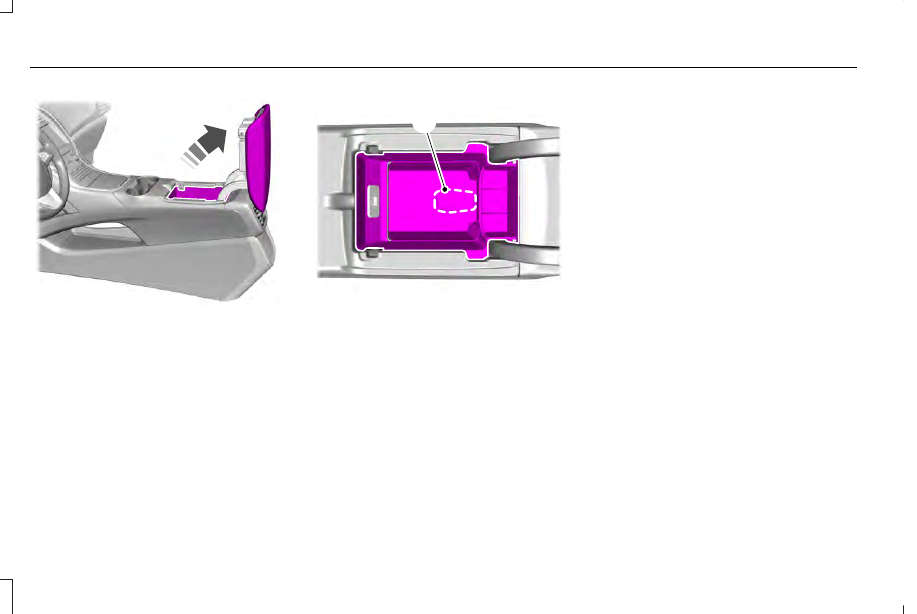

1. Open the floor console storage

compartment lid.

E203694

2

2. With the buttons facing upward and the

unlock button facing the front of your
vehicle, place the intelligent access key
into the backup slot.

3. With the key in this position, press the

brake pedal then press the push button
ignition switch to switch the ignition on
and start your vehicle.

Fast Restart

The fast restart feature allows you to restart
your vehicle within 10 seconds of switching
it off, even if it does not detect a valid
passive key.

Within 10 seconds of switching your vehicle
off, press the brake pedal and press the push
button ignition switch.  After 10 seconds, you
can no longer start your vehicle if it does not
detect a valid passive key.

Once your vehicle starts, it remains running
until you press the push button ignition
switch, even if your vehicle does not detect
a valid passive key.  If you open and close a
door while your vehicle is running, the
system searches for a valid passive key.

Failure to Start

If you cannot start the engine after three
attempts, wait 10 seconds and follow this
procedure:

1. Fully depress the brake pedal.

2. Shift into park (P).

3. Fully depress the accelerator pedal.

170

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Starting and Stopping the Engine

4. Keep the accelerator pedal fully

depressed and press the push button
ignition switch until the engine starts.

Automatic Engine Shutdown

This feature automatically shuts down the
engine if it has been idling for an extended
period.  The ignition also turns off to save
battery power.  Before your vehicle shuts
down, a message appears in the information
display showing a timer counting down.  If
you do not intervene within 30 seconds, your
vehicle shuts down.  Another message
appears in the information display to inform
you that your vehicle has shut down to save
fuel.  Start your vehicle as normal.

Automatic Engine Shutdown Override

Note:  You cannot permanently switch off
the automatic shutdown.  When you switch
it off temporarily, it turns on at the next
ignition cycle.

You can stop the shutdown, or reset the
timer, at any point before the 30-second
countdown has expired by doing any of the
following:
•

Reset the timer by pressing the brake or
accelerator pedal.

•

Temporarily switch off the shutdown
feature during the current ignition cycle
using the information display.  See
General Information (page 112).

•

Press OK or RESET to temporarily switch
the feature off during the current ignition
cycle.

Stopping the Engine When Your
Vehicle is Stationary

1. Shift into park (P).

2. Press the push button ignition switch.

3. Apply the parking brake.

Note: The ignition, all electrical circuits and
all warning lamps and indicators will be
turned off.

Note: If the engine is idling for 30 minutes,
the ignition and engine automatically shuts
down.

Stopping the Engine When Your
Vehicle is Moving

WARNING: Switching off the engine

when the vehicle is still moving will result
in a loss of brake and steering assistance.
The steering will not lock, but higher effort
will be required. When the ignition is
switched off, some electrical circuits,
including air bags, warning lamps and
indicators may also be off. If the ignition
was turned off accidentally, you can shift
into neutral (N) and re-start the engine.

1. Put the transmission into neutral (N) and

use the brakes to bring your vehicle to a
safe stop.

2. When your vehicle has stopped, shift into

park (P).

3. Press and hold the push button ignition

switch until the engine stops, or press it
three times within two seconds.

4. Apply the parking brake.

171

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Starting and Stopping the Engine

Guarding Against Exhaust Fumes

WARNING: Exhaust leaks may result

in entry of harmful and potentially lethal
fumes into the passenger compartment. If
you smell exhaust fumes inside your
vehicle, have your vehicle inspected
immediately. Do not drive if you smell
exhaust fumes.

Important Ventilating Information

If you stop your vehicle and then leave the
engine idling for long periods, we
recommend that you do one of the following:
•

Open the windows at least 1 in (3 cm).

•

Set your climate control to outside air.

ENGINE BLOCK HEATER

 (IF EQUIPPED)

WARNING: Failure to follow engine

block heater instructions could result in
property damage or serious personal
injury.

WARNING: Do not use your heater

with ungrounded electrical systems or
two-pronged adapters. There is a risk of
electrical shock.

WARNING: Do not fully close the

hood, or allow it to drop under its own
weight when using the engine block
heater. This could damage the power cable
and may cause an electrical short resulting
in fire, injury and property damage.

Note: The heater is most effective when
outdoor temperatures are below 0°F (-18°C).

The heater acts as a starting aid by warming
the engine coolant. This allows the climate
control system to respond quickly. The
equipment includes a heater element
(installed in the engine block) and a wire
harness. You can connect the system to a
grounded 120-volt AC electrical source.

We recommend that you do the following for
a safe and correct operation:
•

Use a 16-gauge outdoor extension cord
that is product certified by Underwriter’s
Laboratory (UL) or Canadian Standards
Association (CSA). This extension cord
must be suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.

•

Use as short an extension cord as
possible.

•

Do not use multiple extension cords.

•

Make sure that when in operation, the
extension cord plug and heater cord plug
connections are free and clear of water.
This could cause an electric shock or fire.

•

Make sure your vehicle is parked in a
clean area, clear of combustibles.

•

Make sure the heater, heater cord and
extension cord are firmly connected.

172

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Starting and Stopping the Engine

•

Check for heat anywhere in the electrical
hookup once the system has been
operating for approximately 30 minutes.

•

Make sure the system is unplugged and
properly stowed before starting and
driving your vehicle. Make sure the
protective cover seals the prongs of the
block heater cord plug when not in use.

•

Make sure the heater system is checked
for proper operation before winter.

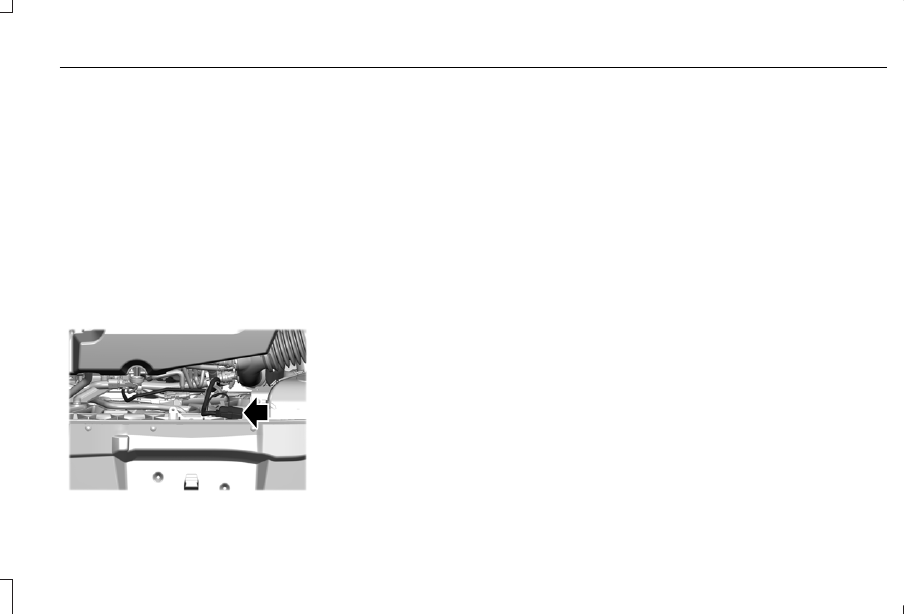

Using the Engine Block Heater

The engine block heater is under the hood,
on the upper radiator support.

E301800

Make sure the receptacle terminals are clean
and dry prior to use. Clean them with a dry
cloth if necessary.

The heater uses 0.4 to 1.0 kilowatt-hours of
energy per hour of use. The system does not
have a thermostat. It achieves maximum
temperature after approximately three hours
of operation. Using the heater longer than
three hours does not improve system
performance and unnecessarily uses
electricity.

173

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Starting and Stopping the Engine

AUTO-START-STOP

WARNING: Always fully apply the

parking brake. Make sure you shift into
park (P) for vehicles with an automatic
transmission. Switch the ignition off and
remove the key whenever you leave your
vehicle.

WARNING: Before opening the hood

or performing any maintenance, fully apply
the parking brake, shift into park (P) or
neutral (N) and switch the ignition off.

WARNING: Always switch the ignition

off before leaving the vehicle. If the ignition
is switched on an automatic restart may
occur at any time.

WARNING: The system may require

the engine to automatically restart when
the auto-start-stop indicator illuminates
green or flashes amber. Failure to follow
this instruction could result in personal
injury.

The system helps reduce fuel consumption
by automatically shutting off and restarting
the engine while stopped. Auto-Start-Stop
engine shutdown only occurs when you
place the transmission in drive (D) and press
the brake pedal. The engine will restart
automatically when you release the brake
pedal and place the transmission in drive (D).

In some situations, your vehicle may restart
automatically, for example:
•

To maintain interior comfort.

•

To recharge the battery.

Note: Power assist steering turns off when
the engine is off.

The Auto-Start-Stop system status is
available at a glance within the information
display.  See Information Displays (page
112).

Enabling Auto-Start-Stop

The system automatically enables every time
you start your vehicle if:
•

You do not press the Auto-Start-Stop
button (not illuminated).

•

Your vehicle exceeds an initial speed of
2.5 mph (4 km/h) after you have initially
started the vehicle.

•

You have stopped your vehicle.

•

The transmission is in drive (D) and you
press the brake pedal.

•

The driver door is closed.

•

There is adequate brake vacuum.

•

The interior compartment has cooled or
warmed to an acceptable level.

•

You have not turned the steering wheel
rapidly or you do not have it at a sharp
angle.

•

The vehicle is not on a steep uphill road
slope.

•

The battery is within optimal operating
conditions (battery state of charge and
temperature in range).

174

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Unique Driving Characteristics

•

The engine coolant is at operating
temperature.

•

Elevation is below about 10,000 ft
(3,048 m).

•

Ambient temperature is moderate.

The green Auto-Start-Stop
indicator light on the instrument
cluster will illuminate to indicate

when the automatic engine stop occurs.

E146361

If the instrument cluster is
equipped with a grey
Auto-Start-Stop indicator light, it is

illuminated when automatic engine stop is
not available due to one of the above noted
conditions not being met.

Automatic Engine Restart

Any of the following conditions will result in
an automatic restart of the engine:
•

You have removed your foot from the
brake pedal in drive (D) unless AutoHold
has been engaged.

•

You press the accelerator pedal.

•

The driver safety belt becomes
unfastened or the driver door is ajar.

•

You have moved the transmission from
drive (D).

•

Your vehicle is moving.

•

The interior compartment does not meet
customer climate control comfort settings
when air conditioning or heat is on.

•

Fogging of the windows could occur and
the air conditioning is on.

•

The battery is not within optimal
operating conditions.

•

You have exceeded the maximum engine
off time.

•

When you press the Auto-Start-Stop
button while the engine is stopped.

•

Either the front or rear defroster is turned
on.

Any of the following conditions may result in
an automatic restart of the engine:
•

The blower fan speed is increased or the
climate control temperature is changed.

•

You have an electrical accessory turned
on or plugged in.

Disabling Auto-Start-Stop

E183186

Note: If the system detects a malfunction, it
turns off. If this remains inactive after an
ignition cycle, have your vehicle checked by
an authorized dealer.

Note: For vehicles with Auto-Start-Stop, the
battery requirement is different. Replace it
with one of exactly the same specification
as the original.

175

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Unique Driving Characteristics

Press the Auto-Start-Stop button located on
the center stack to switch the system off. The
button will illuminate. This will only deactivate
the system for the current ignition cycle.
Press the button again to restore
Auto-Start-Stop function.

Note: If the Shift to P, Restart Engine
message appears and the amber
Auto-Start-Stop indicator light is flashing,
automatic restart is not available. You must
restart the vehicle instructionly.  See
Information Displays (page 112).

If the vehicle is in an engine off
Auto-Start-Stop state and the transmission
is changed to reverse (R) while the brake
pedal is not pressed, the message
Auto-Start-Stop Press Brake to Start Engine
will appear.

176

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Unique Driving Characteristics

SAFETY PRECAUTIONS

WARNING: Do not overfill the fuel

tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray
and fire.

WARNING: The fuel system may be

under pressure. If you hear a hissing sound
near the fuel filler inlet, do not refuel until
the sound stops. Otherwise, fuel may spray
out, which could cause serious personal
injury.

WARNING: Fuels can cause serious

injury or death if misused or mishandled.

WARNING: Fuel may contain

benzene, which is a cancer-causing agent.

WARNING: When refueling always

shut the engine off and never allow sparks
or open flames near the fuel tank filler
valve. Never smoke or use a cell phone
while refueling. Fuel vapor is extremely
hazardous under certain conditions. Avoid
inhaling excess fumes.

Follow these guidelines when refueling:
•

Extinguish all smoking materials and any
open flames before refueling your
vehicle.

•

Always switch the engine off before
refueling.

•

Automotive fuels can be harmful or fatal
if swallowed. Fuel is highly toxic and if
swallowed can cause death or permanent
injury. If fuel is swallowed immediately
call a physician, even if no symptoms are
immediately apparent. The toxic effects
of fuel may not be apparent for hours.

•

Avoid inhaling fuel vapors.  Inhaling fuel
vapor can lead to eye and respiratory
tract irritation.  In severe cases, excessive
or prolonged breathing of fuel vapor can
cause serious illness and permanent
injury.

•

Avoid getting fuel in your eyes. If you
splash fuel in your eyes, immediately
remove contact lenses (if worn), flush with
water for 15 minutes and seek medical
attention.  Failure to seek proper medical
attention could lead to permanent injury.

•

Fuels can be harmful if absorbed through
the skin. If you splash fuel on your skin,
clothing or both, promptly remove
contaminated clothing and thoroughly
wash your skin with soap and water.
Repeated or prolonged skin contact
causes skin irritation.

•

Be particularly careful if you are taking
Antabuse or other forms of Disulfiram for
the treatment of alcoholism. Breathing
fuel vapors could cause an adverse
reaction, serious personal injury or
sickness. Immediately call a physician if
you experience any adverse reactions.

177

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuel and Refueling

FUEL QUALITY

Choosing the Right Fuel

E161513

Your vehicle is designed to operate on
regular unleaded gasoline with a minimum
pump (R+M)/2 octane rating of 87.

Some fuel stations, particularly those in high
altitude areas, offer fuels posted as regular
unleaded gasoline with an octane rating
below 87. The use of these fuels could result
in engine damage that will not be covered
by the vehicle warranty.

For best overall vehicle and engine
performance, premium fuel with an octane
rating of 91 or higher is recommended. The
performance gained by using premium fuel
is most noticeable in hot weather as well as
other conditions, for example when towing
a trailer.  See Towing (page 272).

Do not be concerned if the engine
sometimes knocks lightly.  However, if the
engine knocks heavily while using fuel with
the recommended octane rating, contact an
authorized dealer to prevent any engine
damage.

We recommend Top Tier detergent
gasolines, where available to help minimize
engine deposits and maintain optimal vehicle
and engine performance. For additional
information, refer to www.toptiergas.com.

Note: Use of any fuel for which the vehicle
was not designed can impair the emission
control system, cause loss of vehicle
performance, and cause damage to the
engine which may not be covered by the
vehicle Warranty.

Do not use:
•

Diesel fuel.

•

Fuels containing kerosene or paraffin.

•

Fuel containing more than 15% ethanol
or E85 fuel.

•

Fuels containing methanol.

•

Fuels containing metallic-based additives,
including manganese-based compounds.

•

Fuels containing the octane booster
additive, methylcyclopentadienyl
manganese tricarbonyl (MMT).

•

Leaded fuel, using leaded fuel is
prohibited by law.

The use of fuels with metallic compounds
such as methylcyclopentadienyl manganese
tricarbonyl (commonly known as MMT), which
is a manganese-based fuel additive, will
impair engine performance and affect the
emission control system.

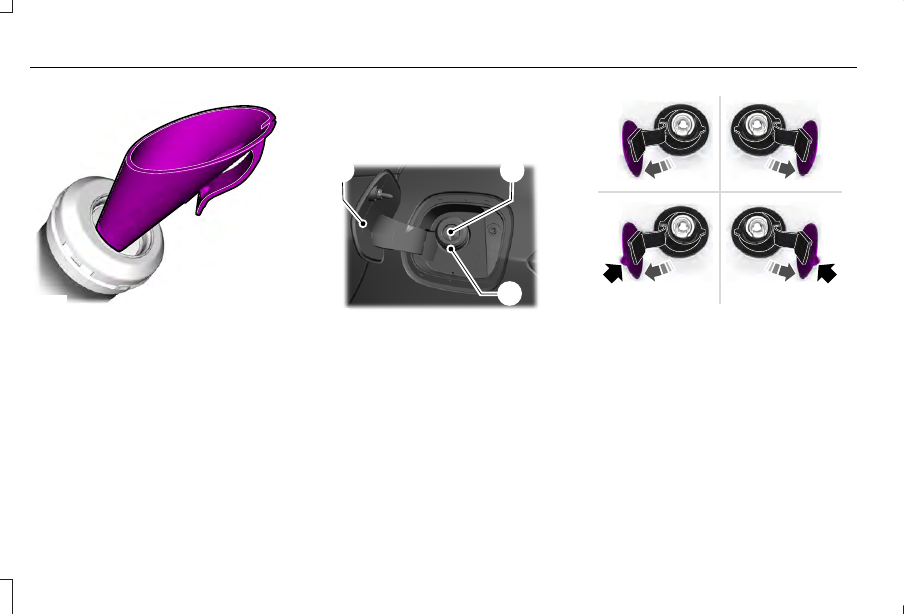

FUEL FILLER FUNNEL LOCATION

The fuel filler funnel is under the luggage
compartment floor covering.

178

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuel and Refueling

RUNNING OUT OF FUEL

Running out of fuel can cause damage not
covered by the vehicle Warranty.

If your vehicle runs out of fuel:
•

Add a minimum of 1.3 gal (5 L) of fuel to
restart the engine.

•

You may need to switch the ignition from
off to on several times after refueling to
allow the fuel system to pump the fuel
from the tank to the engine.  When
restarting, cranking time takes a few
seconds longer than normal.

Note: If your vehicle is on a steep slope,
more fuel may be required.

Filling a Portable Fuel Container

WARNING: Flow of fuel through a

fuel pump nozzle can produce static
electricity. This can cause a fire if you are
filling an ungrounded fuel container.

Use the following guidelines to avoid
electrostatic charge build-up, which can
produce a spark, when filling an ungrounded
fuel container:
•

Only use an approved fuel container to
transfer fuel to your vehicle.  Place the
container on the ground when filling it.

•

Do not fill a fuel container when it is
inside your vehicle (including the cargo
area).

•

Keep the fuel pump nozzle in contact
with the fuel container when filling it.

•

Do not use a device that holds the fuel
pump nozzle lever in the fill position.

Adding Fuel From a Portable Fuel
Container

WARNING: Do not insert the nozzle

of a fuel container or an aftermarket funnel
into the fuel filler neck. This may damage
the fuel system filler neck or its seal and
cause fuel to run onto the ground.

WARNING: Do not try to pry open or

push open the capless fuel system with
foreign objects. This could damage the fuel
system and its seal and cause injury to you
or others.

WARNING: Do not dispose of fuel in

the household refuse or the public sewage
system. Use an authorized waste disposal
facility.

When refueling the vehicle fuel tank from a
fuel container, use the fuel filler funnel
included with your vehicle.  See Fuel Filler
Funnel Location (page 178).

Note: Do not use aftermarket funnels as they
may not work with the capless fuel system
and can damage it.

When refueling the vehicle fuel tank from a
fuel container, do the following:

1. Fully open the fuel filler door.

2. Fully insert the fuel filler funnel into the

fuel filler inlet.

179

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuel and Refueling

E157452

3. Add fuel to your vehicle from the fuel

container.

4. Remove the fuel filler funnel.

5. Fully close the fuel filler door.

6. Clean the fuel filler funnel and place it

back in your vehicle or correctly dispose
of it.

Note: Extra funnels can be purchased from
an authorized dealer if you choose to
dispose of the funnel.

REFUELING

Refueling System Overview

E267248

B

C

A

Fuel filler door.

A

Fuel tank filler valve.

B

Fuel tank filler pipe.

C

Your vehicle does not have a fuel tank filler
cap.

E206911

A

B

C

D

Left-hand side. To open the fuel
filler door, press the center rear
edge of the fuel filler door and
then release.

A

Right-hand side. To open the fuel
filler door, press the center rear
edge of the fuel filler door and
then release.

B

180

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuel and Refueling

Left-hand side. Pull the rear of the
fuel filler door to open it.

C

Right-hand side. Pull the rear of the
fuel filler door to open it.

D

Refueling Your Vehicle

WARNING: When refueling always

shut the engine off and never allow sparks
or open flames near the fuel tank filler
valve. Never smoke or use a cell phone
while refueling. Fuel vapor is extremely
hazardous under certain conditions. Avoid
inhaling excess fumes.

WARNING: The fuel system may be

under pressure. If you hear a hissing sound
near the fuel filler inlet, do not refuel until
the sound stops. Otherwise, fuel may spray
out, which could cause serious personal
injury.

WARNING: Do not pry open the fuel

tank filler valve. This could damage the fuel
system. Failure to follow this instruction
could result in fire, personal injury or death.

WARNING: Do not remove the fuel

pump nozzle from its fully inserted position
when refueling.

WARNING: Stop refueling when the

fuel pump nozzle automatically shuts off
for the first time. Failure to follow this will
fill the expansion space in the fuel tank and
could lead to fuel overflowing.

WARNING: Do not overfill the fuel

tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray
and fire.

WARNING: Wait at least five seconds

before removing the fuel pump nozzle to
allow any residual fuel to drain into the fuel
tank.

1. Fully open the fuel filler door.

2. Select the correct fuel pump nozzle for

your vehicle.

E139202

A

3. Insert the fuel pump nozzle up to the first

notch on the nozzle A.  Keep the fuel
pump nozzle resting on the fuel tank filler
pipe.

181

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuel and Refueling

E139203

A

B

4. Hold the fuel pump nozzle in position B

when refueling.  Holding the fuel pump
nozzle in position A can affect the flow
of fuel and shut off the fuel pump nozzle
before the fuel tank is full.

E206912

A

B

5. Operate the fuel pump nozzle within the

area shown.

E119081

6. When you finish refueling slightly raise

the fuel pump nozzle and slowly remove
it.

7. Fully close the fuel filler door.

Do not attempt to start the engine if you have
filled the fuel tank with incorrect fuel.
Incorrect fuel use could cause damage not
covered by the vehicle Warranty. Have your
vehicle immediately checked.

Refueling System Warning

 (If Equipped)

If the fuel tank filler valve does not fully close,
a message could appear in the information
display.

Message

Check Fuel Fill Inlet

If the message appears, do the following:

1. Stop your vehicle as soon as it is safe to

do so and switch the engine off.

2. Shift into park (P) or neutral (N).

3. Apply the parking brake.

4. Fully open the fuel filler door.

5. Check the fuel tank filler valve for any

debris that may be restricting its
movement.

6. Remove any debris from the fuel tank

filler valve.

7. Fully insert a fuel pump nozzle or the fuel

filler funnel provided with your vehicle
into the fuel filler pipe.  See Fuel Filler
Funnel Location (page 178).   This action
should dislodge any debris that may be
preventing the fuel tank filler valve from
fully closing.

8. Remove the fuel pump nozzle or fuel filler

funnel from the fuel filler pipe.

182

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuel and Refueling
