Specification

Name

VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSS-M2C942-A

Rear differential fluid (All Wheel Drive) (U.S. and Mexico):
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant
XY-75W85-QL

WSS-M2C942-A

Rear differential fluid (All Wheel Drive) (Canada):
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant
CXY-75W85-QL

GU2J-19B546-AA

Rear differential additive (All Wheel Drive) (U.S. and Canada) (Mexico):
Torque Vectoring Rear Drive Unit (RDU) Additive
XL-19

WSL-M2C192-A

Power Transfer Unit fluid (All Wheel Drive) (U.S. and Mexico):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Power Transfer Unit fluid (All Wheel Drive) (Canada):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant

391

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Specification

Name

CXY-75W140-1L

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid
CXT-10-LV12

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
R-134a Refrigerant
CYN-19-R

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant

392

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Specification

Name

MYN-19

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S. and Mexico):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

Note: Some Motorcraft® items may not be
available in Mexico.

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

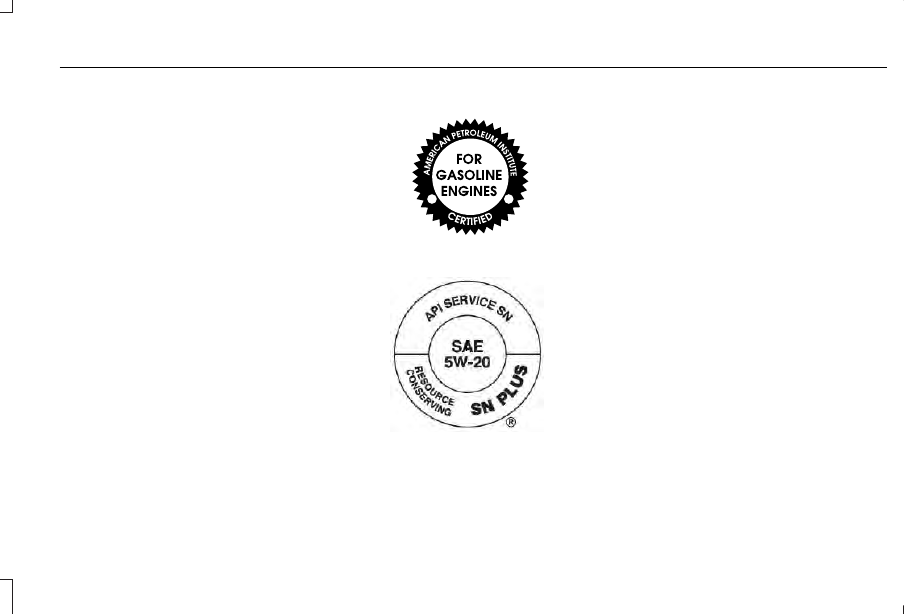

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN PLUS requirements and display the API
Certification Mark for gasoline engines.

393

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

E142732

E276075

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: We recommend using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.  The
use of any other fluid may cause
transmission damage.

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

394

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Specification

Name

WSS-M2C953-A1

Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil:
Engine oil - SAE 0W-30

E240523

395

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS - 3.7L

Capacities

WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service

the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

6.0 qt (5.7 L)

Engine oil (with oil filter).

10.2 qt (9.7 L)

Engine coolant.

Between MIN/MAX on brake fluid reservoir

Brake fluid.

32.0 fl oz (946 ml)

Rear axle fluid (All Wheel Drive).

15.2 fl oz (450 ml)

1

Power Transfer Unit fluid (All Wheel Drive).

11.6 qt (11 L)

2

Automatic transmission fluid.

Fill as required

Windshield washer fluid.

18.0 gal (68.1 L)

Fuel tank.

396

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Capacity

Item

20 oz (0.57 kg)

A/C refrigerant.

5.24 fl oz (155 ml)

A/C refrigerant oil.

1

Contact an authorized dealer for fluid level checking and filling.

2

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C945-B1

Motor oil (U.S.):
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-Q1SP

WSS-M2C945-B1

Motor oil (Canada):
Motorcraft® SAE 5W-20 Super Premium Motor Oil
CXO-5W20-LSP12

WSS-M2C945-B1

Motor oil (Mexico):
Motorcraft® SAE 5W-20 Synthetic Motor Oil
MXO-5W20-Q1SP

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant

397

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Specification

Name

VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear axle fluid (U.S. and Mexico):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Rear axle fluid (Canada):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
CXT-10-LV12

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (All Wheel Drive) (U.S. and Mexico)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant

398

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Specification

Name

XY-75W140-QL

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (All Wheel Drive) (Canada)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
R-134a Refrigerant
CYN-19-R

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft® PAG Refrigerant Compressor Oil

399

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Specification

Name

YN-12-D

ESA-M1C75-B

Transmission, parking brake linkage and pivots and brake pedal shift grease:
Premium Long-Life Grease
XG-1-E1

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

-

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

Note: Some Motorcraft® items may not be
available in Mexico.

400

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

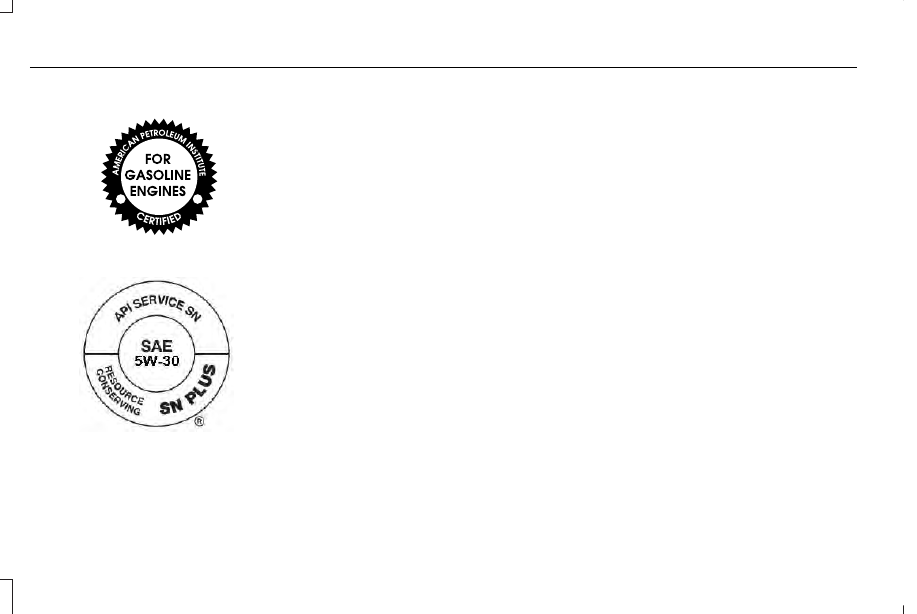

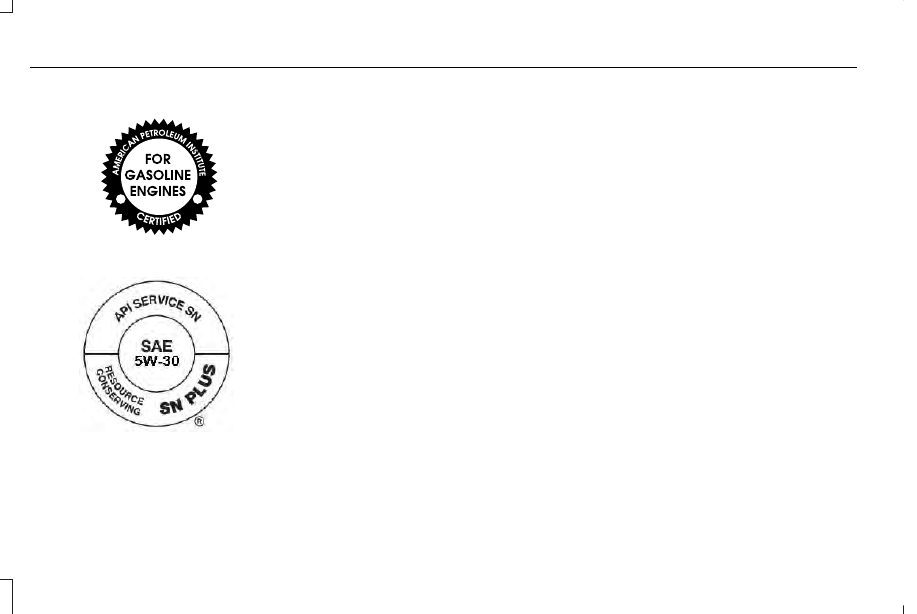

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN PLUS requirements and display the API
Certification Mark for gasoline engines.

E142732

E275759

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: We recommend using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.  The
use of any other fluid may cause
transmission damage.

401

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,

we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Specification

Name

WSS-M2C947-B1

Motorcraft® SAE 0W-20 Premium Synthetic Blend Motor Oil:
Engine oil - SAE 0W-20
XO-0W20-Q1SP

E240522

402

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

BULB SPECIFICATION CHART

The specified replacement bulbs are in the
chart below. Headlamp bulbs have an
authorized D.O.T. (Department of

Transportation) marking for North America
to affirm lamp performance, light brightness
and pattern and safe visibility. The correct
bulbs will not damage the lamp assembly or
void the lamp assembly warranty and will
provide quality bulb burn time.

Trade Number

Function

LED.

Headlamp low and high - LED.

1

D3S

Headlamp low and high - HID.

1

LED.

Sidemarker - front.

1

LED.

Park lamp - front.

1

7444NA

Turn lamp - front.

LED.

Signal indicator mirror lamp.

1

LED.

Approach lamp.

1

LED.

Tail and brake lamp.

1

LED.

Turn lamp - rear.

1

403

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

Trade Number

Function

LED.

Backup lamp.

1

LED.

License plate lamp.

1

LED.

High-mount brake lamp.

1

LED.

Interior lamps.

1

1

To replace these lamps, see an authorized dealer.

Note: To replace instrument panel lights, see an authorized dealer.

404

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Capacities and Specifications

INSTALLING THE VEHICLE
IDENTIFICATION CARD

Install the vehicle identification card to the
specified area on the windshield.

Note: Follow the manufacturer’s installation
instructions.

Note: When installing the radio frequency
identification device, do not block objects
such as the rain sensor and the
auto-dimming sensor.

E292412

Dimension

Dimension Description

Item

1 in (25 mm)

The center of the windshield to the left edge of the identification card.

A

2 in (40 mm)

The top edge of the windshield to the top edge of the identification card.

B

405

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Vehicle Identification

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend

against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•

AM: 530-1710 kHz

•

FM: 87.9-107.9 MHz

Note: Listening to loud audio for long
periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

406

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Audio System
