Rear Camera Delay

Selectable settings for this feature are on
and off.

The default setting for the rear camera delay
is off.

When shifting the transmission out of reverse
(R) and into any gear other than park (P), the
camera image remains in the display until:
•

Your vehicle speed sufficiently increases.

•

You shift your vehicle into park (P).

360 DEGREE CAMERA

 (IF EQUIPPED)

WARNING:  The 360 degree camera

system still requires the driver to use it in
conjunction with looking out of the
windows, and checking the interior and
exterior mirrors for maximum coverage.

WARNING: You may not see objects

that are close to either corner of the
bumper or under the bumper due to the
limited coverage of the camera system.

WARNING:  Use caution when

turning camera features on or off when the
transmission is not in park (P). Make sure
your vehicle is not moving.

WARNING:  At all times, you are

responsible for controlling your vehicle,
supervising the system and intervening, if
required. Failure to take care may result in
the loss of control of your vehicle, serious
personal injury or death.

Note: Use caution using the 360 view when
any of the doors are ajar. If a door is ajar,
the camera will be out of position and the
video image may be incorrect.

The 360 degree camera system consists of
front, side and rear cameras. The system:
•

Allows you to see what is directly in front
or behind your vehicle.

•

Provides cross traffic view in front and
behind your vehicle.

•

Allows you to see a top-down view of the
area outside your vehicle, including the
blind spots.

•

Provides visibility around your vehicle to
you in parking maneuvers such as:
•

Centering in a parking space.

•

Obstacles near vehicle.

•

Parallel parking.

E205884

The front camera enable button is
located near the display screen
and turns on the front camera

when your vehicle is not in reverse (R).

Using the System

Note: The 360 degree camera system turns
off when your vehicle is in motion at low
speed, except when in reverse (R).

The front and rear cameras have multiple
screens which consist of: normal view with
360, normal view, and split view. When in
park (P), neutral (N) or drive (D), only the front
images display when you press the button.
When in reverse (R), only the rear images
display.

231

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Parking Aids

E224483

Press to access the different
camera views.

E224783

Normal + 360 view: Contains the
normal camera view next to a 360
degree camera view.

E224784

Normal view: Provides an image
of what is directly in front or behind
your vehicle.

E224785

Split view: Provides an extended
view of what is in front or behind
your vehicle.

E224485

Zooms in on the image.

Keep Out Zone

E225016

The Keep Out Zone is represented by the
yellow dotted lines running parallel to your
vehicle. It is designed to give you the
indication on the ground of the fully
extended outside mirror position.

Front Camera

WARNING:  The front camera system

still requires the driver to use it in
conjunction with looking out of your
vehicle.

Note: The system turns off the front video
image when your vehicle is in motion at low
speed, except when in reverse (R).

E222978

The front video camera, located behind the
star emblem on the grille, provides a video
image of the area in front of your vehicle. It
adds assistance to the driver while driving
forward at low speeds. To use the front video
camera system, place the transmission in any
gear except reverse (R). An image displays
once you press the front camera enable
button. The image on the screen may vary
according to your vehicle's orientation or
road condition.

232

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Parking Aids

Side Camera

E222977

The side view camera, located in the outside
mirror, provides a video image of the area
on the sides of your vehicle as part of the
front 360 + normal view and rear 360 +
normal view. It aids you while parking your
vehicle either forward or backwards.

233

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Parking Aids

PRINCIPLE OF OPERATION

Cruise control lets you maintain a set speed
without keeping your foot on the accelerator
pedal. You can use cruise control when your
vehicle speed is greater than 20 mph
(30 km/h).

USING ADAPTIVE CRUISE
CONTROL

WARNING: Always pay close

attention to changing road conditions when
using adaptive cruise control. The system
does not replace attentive driving. Failing
to pay attention to the road may result in
a crash, serious injury or death.

WARNING: Do not use the adaptive

cruise control when entering or leaving a
highway, on roads with intersections or
roundabouts or non-vehicular traffic or
roads that are winding, slippery, unpaved,
or steep slopes.

WARNING: Do not use the system

in poor visibility, for example fog, heavy
rain, spray or snow.

WARNING: Do not use the system

when towing a trailer that has aftermarket
electronic trailer brake controls. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: Do not use tire sizes

other than those recommended because
this can affect the normal operation of the
system. Failure to do so may result in a loss
of vehicle control, which could result in
serious injury.

WARNING: Adaptive cruise control

may not detect stationary or slow moving
vehicles below 6 mph (10 km/h).

WARNING: Adaptive cruise control

does not detect pedestrians or objects in
the road.

WARNING: Adaptive cruise control

does not detect oncoming vehicles in the
same lane.

WARNING: Adaptive cruise control

is not a crash warning or avoidance
system.

The system adjusts your vehicle speed to
maintain the set gap between you and the
vehicle in front of you in the same lane.  You
can select four gap settings.

The system uses a radar sensor which
projects a beam directly in front of your
vehicle.

Note: It is your responsibility to stay alert,
drive safely and be in control of the vehicle
at all times.

234

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Cruise Control

E262918

The cruise controls are on the steering
wheel.  See Cruise Control (page 87).

Switching Adaptive Cruise Control On

E294678

Press and release the button.

E144529

The indicator, current gap setting
and set speed appear in the
information display.

E164805

Setting the Adaptive Cruise Speed

Drive to your preferred speed.

Press and release the button.

Take your foot off the accelerator pedal.

The indicator, current gap setting and set
speed appear in the information display.

E164805

Note: When adaptive cruise control is active,
the speedometer may vary slightly from the
set speed displayed in the information
display.

Setting the Adaptive Cruise Speed
When Your Vehicle is Stationary

Follow a vehicle to a complete stop.

E265299

Press while keeping the brake
pedal fully pressed.

The set speed adjusts to 20 mph (30 km/h).

The indicator, current gap setting and set
speed appear in the information display.

Following a Vehicle

WARNING: When following a vehicle,

your vehicle does not always decelerate
quickly enough to avoid a crash without
driver intervention. Always apply the
brakes when necessary. Failing to do so
may result in a crash, serious injury or
death.

235

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Cruise Control

WARNING: Adaptive cruise control

only warns of vehicles detected by the
radar sensor. In some cases there may be
no warning or a delayed warning. You
should always apply the brakes when
necessary. Failure to do so may result in a
crash, serious injury or death.

When a vehicle ahead of you enters the
same lane or a slower vehicle is ahead in the
same lane, the vehicle speed adjusts to
maintain a preset gap distance. A vehicle
graphic illuminates in the instrument cluster.

Note: The brakes may emit noise when
applied by the system.

Note: When you are following a vehicle and
you switch on a direction indicator, adaptive
cruise control may provide a small temporary
acceleration to help you pass.

Your vehicle maintains a consistent gap from
the vehicle ahead until:
•

The vehicle in front of you accelerates to
a speed above the set speed.

•

The vehicle in front of you moves out of
the lane you are in.

•

You set a new gap distance.

The system applies the brakes to slow your
vehicle to maintain a safe gap distance from
the vehicle in front.  The system only applies
limited braking.  You can override the system
by applying the brakes.

If the system determines that its maximum
braking level is not sufficient, an audible
warning sounds, a message appears in the
information display and an indicator flashes
when the system continues to brake. Take
immediate action.

Following a Vehicle to a Complete Stop

If your vehicle follows a vehicle to a complete
stop and remains stationary for less than
three seconds, your vehicle accelerates from
a stationary position to follow the vehicle
ahead.

E265299

If your vehicle follows a vehicle to
a complete stop and remains
stationary for more than three

seconds, press to follow the vehicle ahead.
Or press the accelerator pedal.

Setting the Gap Distance

You can decrease or increase the distance
between your vehicle and the vehicle in front
by pressing the gap control.

E263697

Press and release to decrease the
gap distance.

E263696

Press and release to increase the
gap distance.

E164805

The selected gap appears in the information
display as shown by the bars in the image.

236

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Cruise Control

Note: The gap setting is time dependent and
therefore the distance adjusts with your
vehicle speed.

Note: It is your responsibility to select a gap
appropriate to the driving conditions.

Adaptive Cruise Control Gap Settings

Dynamic
behavior

Distance Gap

Graphic

display,

bars indic-

ated

between

vehicles

Sport.

Closest.

1

Normal.

Close.

2

Normal.

Medium.

3

Comfort.

Far.

4

Each time you switch the system on, it
selects the last chosen gap setting.

Overriding the Set Speed

WARNING: If you override the

system by pressing the accelerator pedal,
it does not automatically apply the brakes
to maintain a gap from any vehicle ahead.

When you press the accelerator pedal, you
override the set speed and gap distance.

E144529

Use the accelerator pedal normally
to intentionally exceed the set
speed limit.

When you override the system, the green
indicator light illuminates and the vehicle
image does not appear in the information
display.

The system resumes operation when you
release the accelerator pedal. The vehicle
speed decreases to the set speed, or a lower
speed if following a slower vehicle.

Changing the Set Speed

E265299

Press and release to increase the
set speed in small increments.

Press and release to decrease the
set speed in small increments.

Press and hold either button to change the
set speed in large increments. Release the
button when you reach your preferred speed.

The system may apply the brakes to slow
the vehicle to the new set speed.  The set
speed displays continuously in the
information display when the system is
active.

Canceling the Set Speed

Press and release the button or tap
the brake pedal.

The set speed does not erase.

Resuming the Set Speed

E265299

Press and release the button.

Your vehicle speed returns to the previously
set speed and gap setting.  The set speed
displays continuously in the information
display when the system is active.

237

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Cruise Control

Note: Only use resume if you are aware of
the set speed and intend to return to it.

Automatic Cancellation

Automatic cancellation can also occur when:

•

The tires lose traction.

•

You apply the parking brake.

Park Brake Application

Automatic parking brake application and
cancellation occurs if:
•

You unbuckle the seatbelt and open the
door after you stop the vehicle.

•

You hold the vehicle at a stop
continuously for more than three minutes.

Hilly Condition Usage

You should select a lower gear when the
system is active in situations such as
prolonged downhill driving on steep grades,
for example in mountainous areas. The
system needs additional engine braking in
these situations to reduce the load on the
vehicle’s regular brake system to prevent it
from overheating.

Note: An audible alarm sounds and the
system shuts down if it applies brakes for an
extended period of time. This allows the
brakes to cool. The system functions
normally again after the brakes cool.

Switching Adaptive Cruise Control Off

E294678

Press and release the button when
the system is in standby mode, or
switch the ignition off.

Note: You erase the set speed and gap
setting when you switch the system off.

Detection Issues

WARNING: On rare occasions,

detection issues can occur due to the road
infrastructures, for example bridges,
tunnels and safety barriers. In these cases,
the system may brake late or
unexpectedly. At all times, you are
responsible for controlling your vehicle,
supervising the system and intervening, if
required.

WARNING: If the system

malfunctions, have your vehicle checked
as soon as possible.

The radar sensor has a limited field of view.
It may not detect vehicles at all or detect a
vehicle later than expected in some
situations. The lead vehicle graphic does not
illuminate if the system does not detect a
vehicle in front of you.

238

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Cruise Control

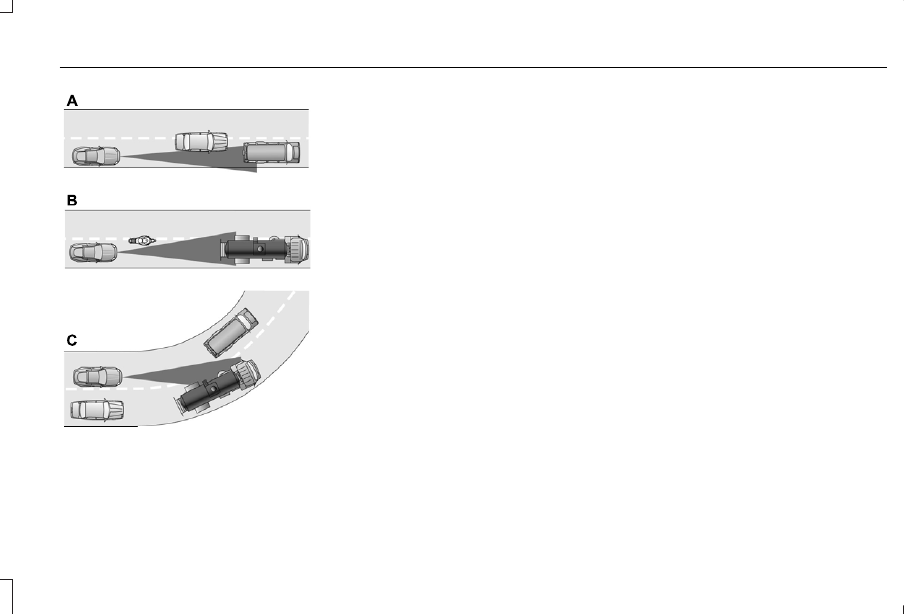

E71621

Detection issues can occur:

When driving on a different line
than the vehicle in front.

A

With vehicles that edge into your
lane. The system can only detect
these vehicles once they move
fully into your lane.

B

There may be issues with the
detection of vehicles in front when
driving into and coming out of a
bend or curve in the road.

C

In these cases, the system may brake late or
unexpectedly. You should stay alert and take
action when necessary.

If something hits the front end of your vehicle
or damage occurs, the radar-sensing zone
may change. This could cause missed or
false vehicle detection.

Optimal system performance requires a clear
view of the road by the windshield-mounted
camera.

Optimal performance may not occur if:

•

The camera is blocked.

•

There is poor visibility or lighting
conditions.

•

There are bad weather conditions.

System Not Available

Conditions that can cause the system to
deactivate or prevent the system from
activating when requested include:
•

A blocked sensor.

•

High brake temperature.

•

A failure in the system or a related
system.

239

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Cruise Control

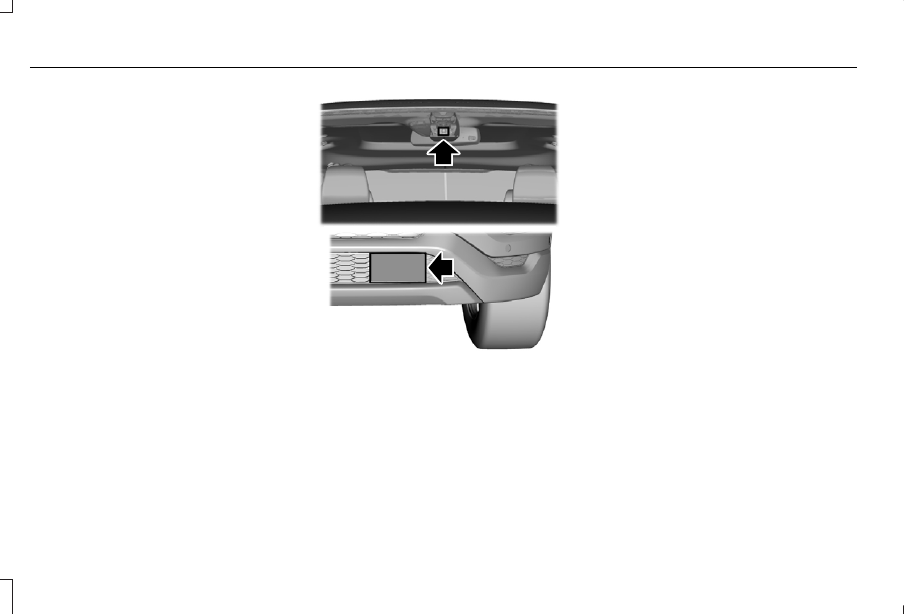

Blocked Sensor

E249424

A message displays if something obstructs
the radar signals from the sensor.  The
sensor is in the lower grille.  The system
cannot detect a vehicle ahead and does not
function when something blocks the sensor.

Note: You cannot see the sensor. It is behind
a fascia panel.

Keep the front of your vehicle free of dirt,
metal badges or objects. Vehicle front
protectors and aftermarket lights may also
block the sensor.

240

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Cruise Control

Possible Causes and Actions for This Message Displaying:

Action

Cause

Clean the grille surface in front of the radar or remove the object
causing the obstruction.

The surface of the radar is dirty or obstructed.

Wait a short time. It may take several minutes for the radar to detect
that it is free from obstruction.

The surface of the radar is clean but the message remains in the
display.

Do not use the system in these conditions because it may not detect
any vehicles ahead.

Heavy rain or snow is interfering with the radar signals.

Do not use the system in these conditions because it may not detect
any vehicles ahead.

Water, snow or ice on the surface of the road may interfere with the
radar signals.

Wait a short time or switch to normal cruise control.

You are in a desert or remote area with no other vehicles and no
roadside objects.

Due to the nature of radar technology, it is possible to get a blockage warning with no actual block. A false blocked condition either self
clears, or clears after you restart your vehicle.

241

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Cruise Control

Switching to Normal Cruise Control

WARNING: Normal cruise control will

not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary.

E71340

The cruise control indicator light
replaces the adaptive cruise
control indicator light if you select

normal cruise control. The gap setting does
not display, and the system does not respond
to lead vehicles. Automatic braking remains
active to maintain set speed.

You can change from adaptive cruise control
to normal cruise control through the
information display.

242

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Cruise Control

DRIVER ALERT

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: The system may not

function if the sensor is blocked.

WARNING: Take regular rest breaks

if you feel tired. Do not wait for the system
to warn you.

WARNING: Certain driving styles may

result in the system warning you even if
you are not feeling tired.

WARNING: In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all limit
sensor performance.

WARNING: The system will not

operate if the sensor cannot track the road
lane markings.

WARNING: If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING: The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by us.

Note: Keep the windshield free from
obstructions. For example, bird droppings,
insects and snow or ice.

Note: If the camera is blocked or if the
windshield is damaged, the system may not
function.

E249505

The system automatically monitors your
driving behavior using various inputs
including the front camera sensor.

If the system detects that your driving
alertness is reduced below a certain
threshold, the system will alert you using a
tone and a message in the information
display.

243

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Driving Aids

Using Driver Alert

Switching the system on and off

You may switch the system on or off through
the information display.  See General
Information (page 112).  When activated, the
system will monitor your alertness level
based upon your driving behavior in relation
to the lane markings and other factors.

System Warnings

Note: The system does not issue warnings
below approximately 40 mph (64 km/h).

The warning system is in two stages. At first
the system issues a temporary warning that
you need to take a rest. This message will
only appear for a short time. If the system
detects further reduction in driving alertness,
another warning may be issued which will
remain in the information display for a longer
time. Press OK on the steering wheel control
to clear the warning

System Display

When active the system will run automatically
in the background and only issue a warning
if required.

Note: If the camera sensor cannot track the
road lane markings or if your vehicle speed
drops below approximately 40 mph
(64 km/h), the system does not issue
warnings.

Resetting the System

You can reset the system by either:

•

Switching the ignition off and on.

•

Stopping the vehicle and then opening
and closing the driver’s door.

LANE KEEPING SYSTEM

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: Always drive with due

care and attention when using and
operating the controls and features on your
vehicle.

WARNING: In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all limit
sensor performance.

WARNING: The system will not

operate if the sensor cannot track the road
lane markings.

244

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Driving Aids

WARNING: The sensor may

incorrectly track lane markings as other
structures or objects. This can result in a
false or missed warning.

WARNING: The system may not

operate properly if the sensor is blocked.
Keep the windshield free from obstruction.

WARNING: If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING: The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by us.

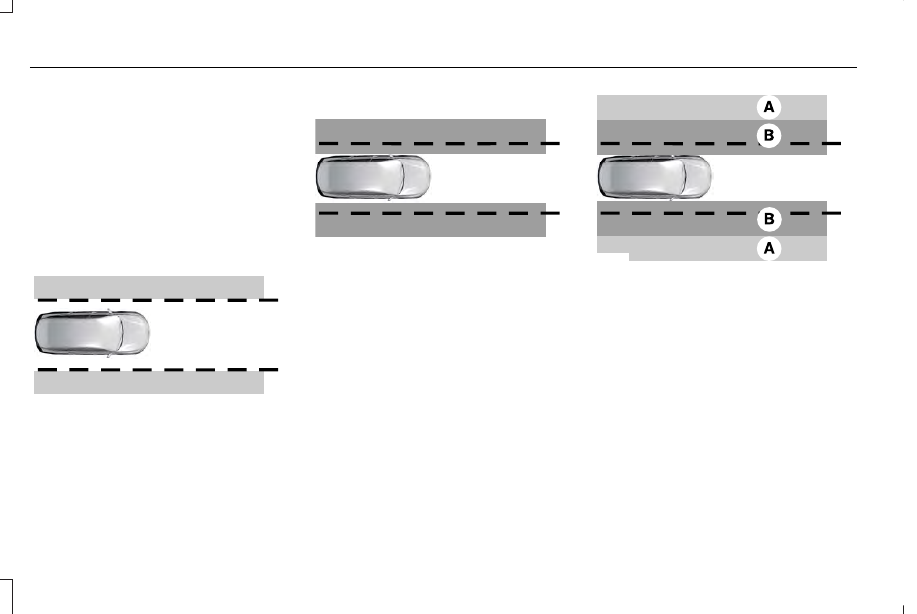

Note: The system works as long as the
camera can detect one lane marking.

Note: When aid or alert and aid modes are
selected and the system detects no steering
activity for a short period, the system alerts
you to put your hands on the steering wheel.
The system may detect a light grip or touch
on the steering wheel as hands off driving.

Note: The system may not function with a
blocked camera, or a damaged or dirty
windshield. The system does not function if
the operational speed of the vehicle is less
than 40 mph (64 km/h).

E249505

When you switch the system on and it
detects an unintentional drift out of your lane
is likely to occur, the system notifies or
assists you to stay in your lane through the
steering system and information display. In
Alert mode, the system provides a warning
by vibrating the steering wheel. In Aid mode,
the system provides steering assistance by
gently counter steering your vehicle back
into the lane.

When the system is functioning in the
combined Alert and Aid mode, the system
first provides steering assistance by gently
counter steering your vehicle back into the
lane, followed by a warning by vibrating the
steering wheel if the vehicle is still out of the
lane markings.

Switching the System On and Off

Note: The system on or off setting is stored
until it is instructionly changed unless a MyKey
is detected. If the system detects a MyKey
it defaults to on and the mode is set to Alert.

E132099

Press the button on the direction indicator
stalk to switch the system on or off.

245

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Driving Aids

System Settings

The system has optional setting menus
available. To view or adjust the settings,  See
Settings (page 485).  The system stores the
last-known selection for each of these
settings. You do not need to readjust your
settings each time you switch the system on.

Mode: This setting allows you to select which
of the system features you can enable.

E165515

Alert only – Provides a steering wheel
vibration when the system detects an
unintended lane departure.

E165516

Aid only – Provides steering assistance
toward the lane center when the system
detects an unintended lane departure.

E165517

Alert

A

Aid

B

Alert + Aid – Provides steering assistance
toward the lane center.

If your vehicle continues drifting out of the
lane, the system provides a steering wheel
vibration.

Note: The alert and aid diagrams illustrate
general zone coverage. They do not provide
exact zone parameters.

246

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Driving Aids
