Lincoln Continental (2019 year). Instruction - part 10

HEAD RESTRAINTS

WARNING: Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk of
neck injury in the event of a crash. Do not
adjust the head restraint when your vehicle
is moving.

WARNING: The head restraint is a

safety device. Whenever possible it should
be installed and properly adjusted when
the seat is occupied. Failure to adjust the
head restraint properly could reduce its
effectiveness during certain impacts.

Note: Adjust the seat backrest to an upright
driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

Front Seat Instruction Head Restraints

 (If

Equipped)

E138642

The front head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and unlock
button.

C

Guide sleeve unlock and remove
button.

D

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1. Press and hold button C.
2. Push the head restraint down.

Removing the Head Restraint

1. Pull the head restraint up until it reaches

its highest position.

2. Press and hold buttons C and D.
3. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

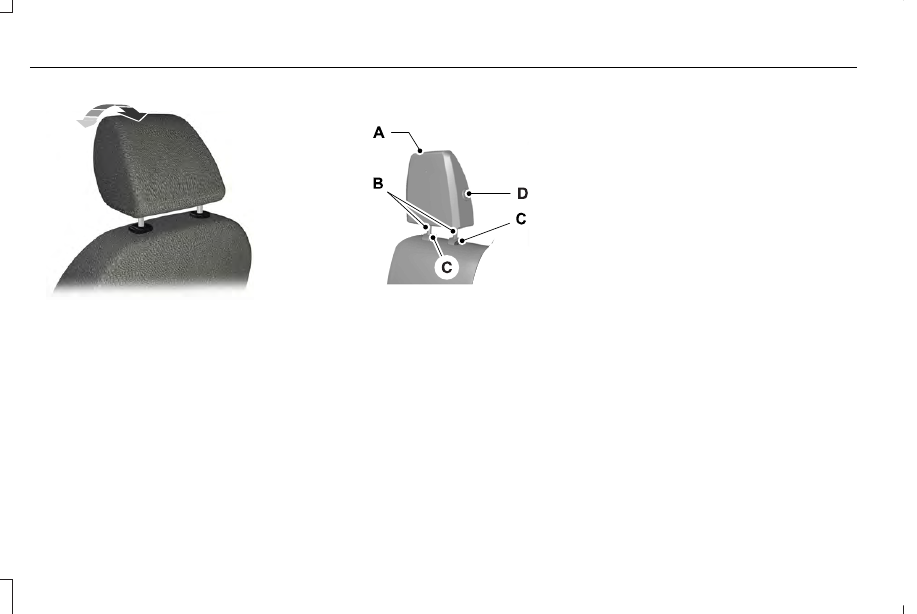

Tilting Instruction Head Restraints

The front seat head restraints tilt for extra
comfort. To tilt the head restraint, do the
following:

151

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

E144727

1. Adjust the seat backrest to an upright

driving or riding position.

2. Pivot the head restraint forward toward

your head to the desired position.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, un-tilted
position.

Rear Seat Outermost Head Restraints

E293091

The rear outermost head restraints consist
of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve unlock and remove
button.

C

Fold button (If Equipped).

D

Removing the Head Restraint

1. Press and hold both C buttons.
2. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Folding the Head Restraint

1. Press and hold button D.

2. Pull it back up to reset.

152

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

Rear Seat Center Head Restraint

E138645

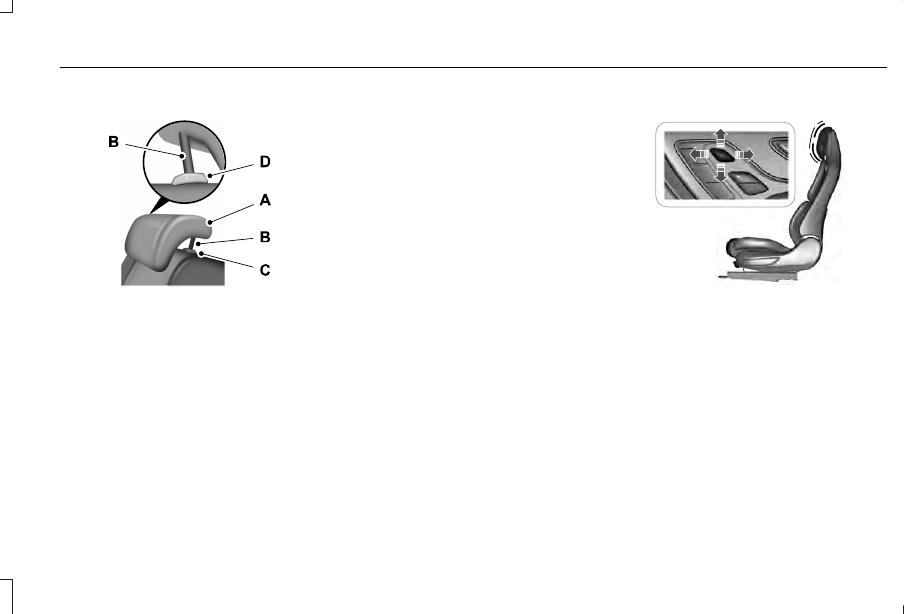

The rear center head restraint consists of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and unlock
button.

C

Guide sleeve unlock and remove
button.

D

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1. Press and hold button C.
2. Push the head restraint down.

Removing the Head Restraint

1. Pull the head restraint up until it reaches

its highest position.

2. Press and hold buttons C and D.
3. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Power Front Head Restraints (If Equipped)

E222280

To raise the head restraint, lift the switch up
until you reach a comfortable height.

To lower the head restraint, press the switch
down.

To move the head restraint forward, push
the switch forward until you reach the
desired position.

To move the head restraint rearward, push
the switch rearward.

153

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

Power Rear Head Restraints (If Equipped)

E229803

Press the button on the overhead console
to fold the rear outermost head restraints.

Note: If your vehicle has power rear head
restraints, you cannot remove them.

POWER SEATS

WARNING: Do not adjust the driver

seat or seat backrest when your vehicle is
moving. This may result in sudden seat
movement, causing the loss of control of
your vehicle.

WARNING: Do not place cargo or

any objects behind the seatback before
returning it to the original position.

The power seat controls are on the door.

30-Way Seat Controls

E254492

Memory Function.

A

Head Restraints.

B

Upper Seat Backrest.

C

Multi-Contour.

D

Seat Cushion Adjustment.

E

Power Seats.

F

Recline.

G

154

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

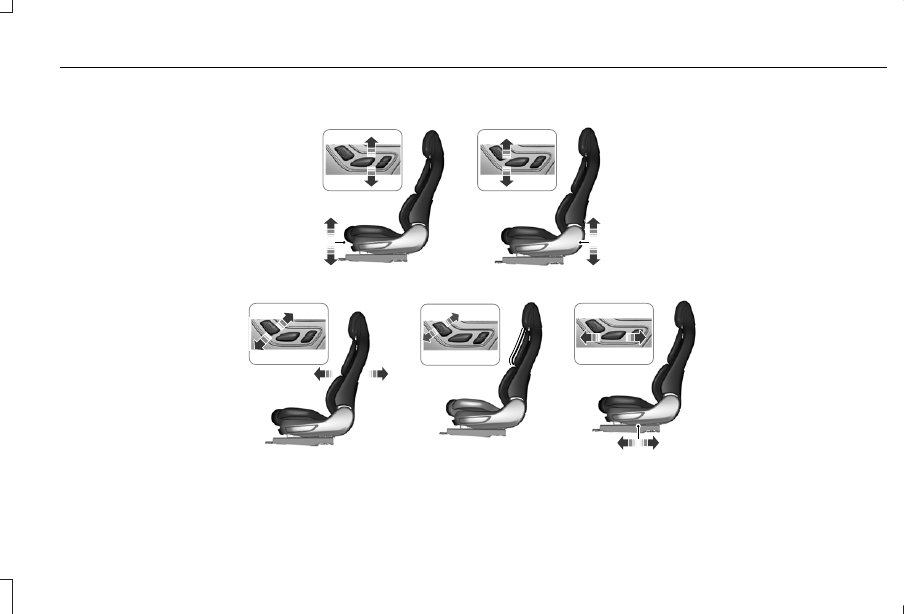

Adjusting the Power Seats

E254489

155

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

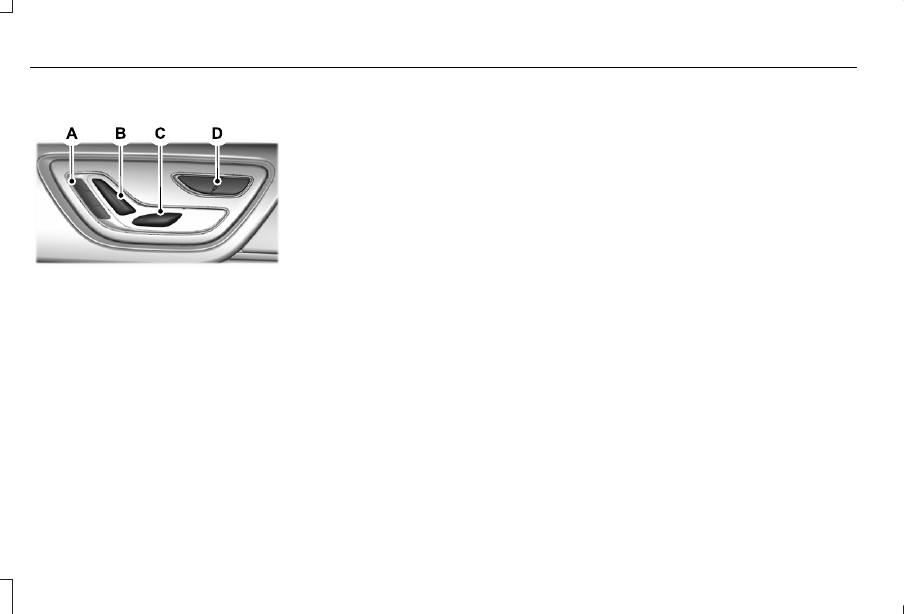

24-Way Seat Controls

E277386

Memory Function.

A

Recline.

B

Power Seats.

C

Lumbar.

D

156

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

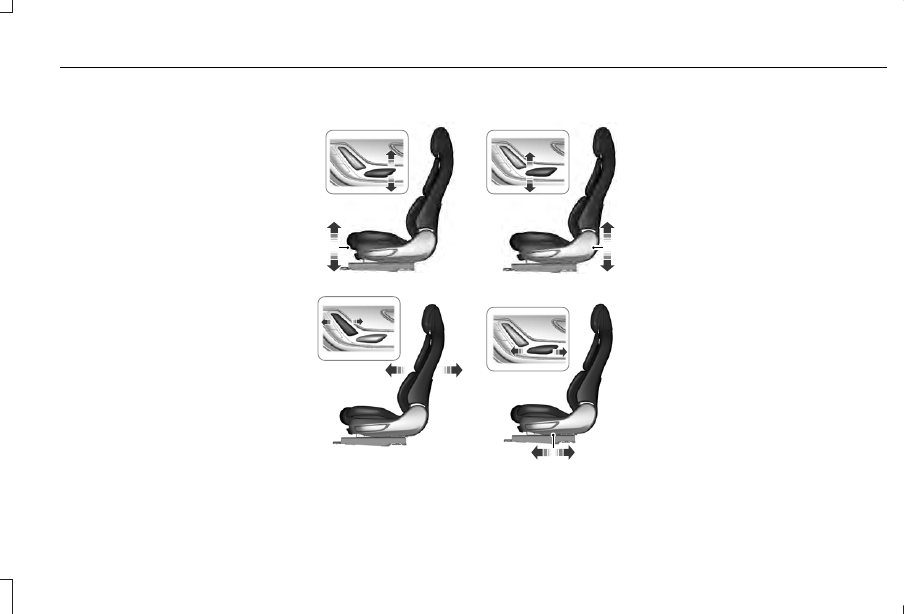

Adjusting the Power Seats

E277384

157

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

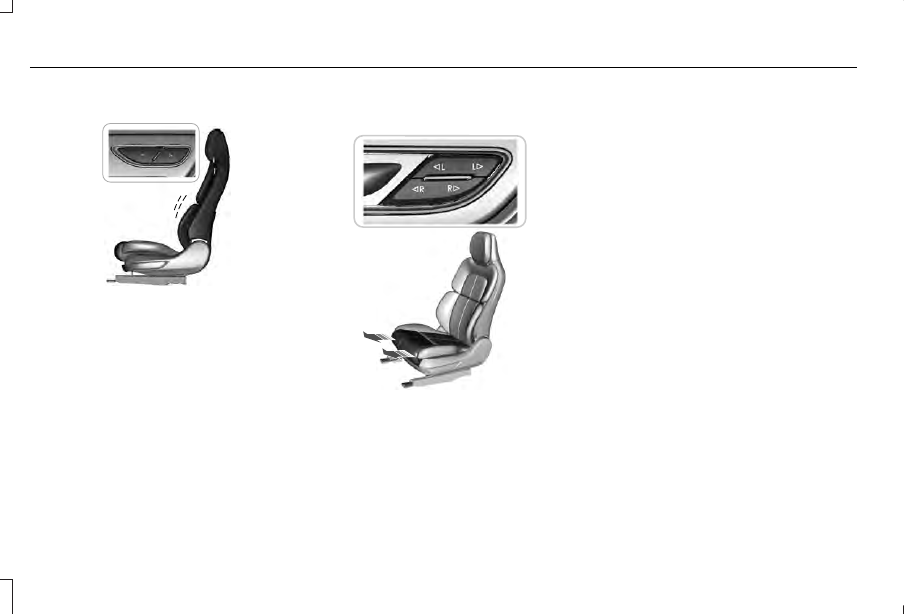

Adjusting the Power Lumbar

E222308

Adjusting the Length of the Seat Cushion
(If Equipped)

E221053

Press the top of the control to adjust the left
side of the cushion.

Press the bottom of the control to adjust the
right side of the cushion.

Adjusting the Multi-Contour Front
Seats With Active Motion

 (If Equipped)

Note: The engine must be running or the
vehicle must be in accessory mode to
activate the seats.

Note: Allow a few seconds for any selection
to activate. The seat backrest and cushion
massage cannot function at the same time.

158

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

E222219

Massage Mode

Massage intensity increase

A

Massage feature selection

B

Massage intensity decrease

C

On and off

D

159

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

You can also adjust this feature through the
touchscreen.

E142607

Press the Menu Settings icon, then
Vehicle. Choose Multi-Contour
Seats.

When switched on, the system displays
directions for you to adjust the lumbar
settings in your seat or to set the massage
function.

To access and make adjustments to the
lumbar setting:

1. Choose the desired seat to adjust.

2. Press the + or - to adjust the lumbar

intensity.

To access and make adjustments to the
massage setting:

1. Press the Menu Settings icon, then

Vehicle. Choose Multi-Contour Seats.

2. Choose the desired seat to adjust.

3. Press OFF, Low or High.

MEMORY FUNCTION

WARNING: Before activating the

memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants are
clear of moving parts.

WARNING: Do not use the memory

function when your vehicle is moving.

This feature automatically recalls the position
of the following:

•

Driver seat.

•

Power mirrors.

•

Power steering column.

The memory control is on the driver door.

E222235

Saving a Preset Position

1. Switch the ignition on.
2. Adjust the memory features to your

desired position.

3. Press and hold the desired preset button

until you hear a single tone.

160

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

You can save up to three preset memory
positions. You can save a memory preset at
any time.

Recalling a Preset Position

Press and release the preset button
associated with your desired driving position.
The memory features move to the position
stored for that preset.

Note: You can only recall a preset memory
position when the ignition is off, or when the
transmission is in park (P) or neutral (N) (and
your vehicle is not moving) if the ignition is
on.

You can also recall a preset memory position
by:
•

Pressing the unlock button on your
intelligent access key fob if it is linked to
a preset position.

•

Unlocking the intelligent driver door
handle if a linked key fob is present.

Note: Using a linked key fob to recall your
memory position when the ignition is off
moves the seat to the Easy Entry position.

Note: Pressing any active memory feature
adjustment control, or any memory button
during a memory recall, cancels the
operation.

Linking a Preset Position to your
Remote Control or Intelligent Access
Key Fob

You can save preset memory positions for
up to three remote controls or intelligent
access (IA) keys.

1. With the ignition on, move the memory

features to the desired positions.

2. Press and hold the preset button you

desire for about five seconds. A tone
sounds after a few seconds. Continue
holding until you hear a second tone.

3. Within three seconds, press the lock

button on the remote control you are
linking.

To unlink a remote control, follow the same
procedure – except in step 3, press the
unlock button on the remote control.

Note: If more than one linked remote control
or intelligent access key is in range, the
memory function moves to the settings of
the first key to initiate a memory recall.

Easy Entry and Exit Feature

If you enable the easy entry and exit feature,
it moves the driver seat position rearward up
to 2 in (5 cm) when you switch the ignition
off.

The driver seat returns to its previous
position when you switch the ignition on.

Note: If you press any adjustment or memory
button when in easy exit mode, the system
cancels the operation.

You can enable or disable this feature
through the information display.  See General
Information (page 112).

161

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

REAR SEATS

Adjusting the Rear Seats

WARNING: To prevent possible

damage to the seat or seatbelts, make sure
that the seatbelts are not fastened before
folding the seatback.

E221061

Folding the Seatback (If Equipped)

With the seat empty, pull the lever to fold the
seatback forward.

Unfolding the Seatback

Rotate the seatback upward until the
seatback latches in the upright position. The
seatback clicks when it is locked into
position.

162

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

Power Lumbar (If Equipped)

E222400

Press to increase massage
intensity.

A

Press to activate seatback
massage.

B

Press to activate cushion massage.

C

Press to decrease massage
intensity.

D

Press to switch on and off.

E

Chauffeur Switch (If Equipped)

The switches are on the passenger side rear
door.

E229820

Press the front of the switch to
move the front passenger seat
forward.

A

Press the back of the switch to
move the front passenger seat
backward.

B

Power Recline (If Equipped)

The switches are on the rear doors.

E229821

Press the switch to recline the outboard rear
seatback.

HEATED SEATS

 (IF EQUIPPED)

Front Seats

WARNING: People who are unable

to feel pain to their skin because of
advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use,
exhaustion or other physical conditions,
must exercise care when using the heated
seat. The heated seat may cause burns

163

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that insulates against
heat, such as a blanket or cushion. This
may cause the heated seat to overheat.
Do not puncture the seat with pins,
needles or other pointed objects. This may
damage the heating element which may
cause the heated seat to overheat. An
overheated seat may cause serious
personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

Rear Seats

WARNING: Persons who are unable

to feel pain to the skin because of
advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use,
exhaustion, or other physical conditions,
must exercise care when using the seat
heater. The seat heater may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that insulates against
heat, such as a blanket or cushion,

because this may cause the seat heater to
overheat. Do not puncture the seat with
pins, needles, or other pointed objects
because this may damage the heating
element which may cause the seat heater
to overheat. An overheated seat may
cause serious personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the seat heater if water or any
other liquid is spilled on the seat. Allow
the seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

The rear seat heat controls are located on
the rear of the center console.

164

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

The heated seat module resets at every
ignition run cycle. While the ignition is on,
press the high or low heated seat switch to
enable heating mode. When activated, they
will turn off automatically when you turn the
engine off.

CLIMATE CONTROLLED SEATS

 (IF

EQUIPPED)

Heated Seats

WARNING: People who are unable

to feel pain to their skin because of
advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use,
exhaustion or other physical conditions,
must use caution when using the heated
seat. The heated seat may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that may block the
heat, such as a blanket or cushion. This
can cause the heated seat to overheat. Do
not puncture the seat with pins, needles
or other pointed objects. This damages the
heating element and can cause the heated
seat to overheat. An overheated seat may
cause serious personal injury.

Note: The heated seats switch on during a
remote start if they are enabled through the
information displays.  See General
Information (page 112).

Note: The heated seats may also switch on
when you start your vehicle if they were on
when you previously switched your vehicle
off.

Note: Do not do the following:

•

Place heavy objects on the seat.

•

Operate the seat heater if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

E146322

Press this symbol to cycle through the
various heat settings and off. More indicator
lights indicate warmer settings.

Ventilated Seats

Note: The ventilated seats switch on during
a remote start if they are enabled through
the information displays.  See General
Information (page 112).

165

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats

Note: The ventilated seats may also switch
on when you start your vehicle if they were
on when you previously switched your
vehicle off.

Note: Do not do the following:

•

Spill liquid on the front seats. This may
cause the air vent holes to become
blocked and not work properly.

•

Place cargo or objects under the seats.
They may block the air intake causing
the air vents to not work properly.

The ventilated seats only function when the
engine is running.

E224689

Press this symbol to cycle through the
various ventilation settings and off. More
indicator lights indicate higher fan speeds.

If the engine falls below 350 RPM while the
ventilated seats are on, the feature turns
itself off. You need to reactivate it.

Note: To improve comfort, use the ventilated
seats along with the vehicle’s air
conditioning system.

166

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing

Seats
