Vehicles With Push-Button Start

Potential Causes

Condition

The transmitter is not in the backup position.  See MyKey Troubleshooting (page 54).

I cannot create a MyKey.

An admin key is present when you switch the ignition on.

There are no MyKey driving
modes.

There are no MyKeys programmed to your vehicle. See Creating a MyKey (page 51).

55

MKS (CLE) Canada/United States of America, enUSA, First Printing

MyKey™

LOCKING AND UNLOCKING

You can use the power door lock control or
the remote control to lock and unlock your
vehicle.

Power Door Locks

The power door lock control is on the driver
and front passenger door panels.

E138628

Unlock.

A

Lock.

B

Remote Control

You can use the remote control anytime your
vehicle is not running.

Unlocking the Doors (Two-Stage Unlock)

E138629

Press the button to unlock the
driver door.

Press the button again within three

seconds to unlock all doors. The turn signals
will flash.

Press and hold both the lock and unlock
buttons on the remote control for four
seconds to disable or enable two-stage
unlocking. Disabling two-stage unlocking
allows all vehicle doors to unlock with one
press of the button. The turn signals will flash
twice to indicate the unlocking mode was
changed. The unlocking mode will be applied
to the remote control, keyless entry keypad
and intelligent access.

Intelligent access at the driver door will
unlock all doors when two-stage unlocking
is disabled.

Locking the Doors

E138623

Press the button to lock all the
doors. The turn signals will
illuminate.

Press the button again within three seconds
to confirm that all the doors are closed. The
doors will lock again, the horn will sound and
the turn signals will illuminate if all the doors
and the luggage compartment are closed.

Note: If any door or the luggage compartment
is open, or if the hood is open on vehicles with
an anti-theft alarm or remote start, the horn
sounds twice and the lamps will not flash.

Opening the Luggage Compartment

E138630

Press twice within three seconds
to open the luggage compartment.

Make sure to close and latch the luggage
compartment before driving your vehicle. An
unlatched luggage compartment may cause
objects to fall out or block your view.

Activating Intelligent Access

You must have the intelligent access key
within 3 ft (1 m) of your vehicle.

At the Front Doors

Pull an exterior door handle to unlock and
open the door.

56

MKS (CLE) Canada/United States of America, enUSA, First Printing

Locks

E173603

Press and hold the door handle lock sensor
to lock your vehicle. To avoid unlocking the
door inadvertently, make sure to only touch
the lock sensor and not other areas of the
door handle.

Note: Keep the door handle surface clean to
avoid issues with operation.

At the Luggage Compartment

Press the release button.

Smart Unlocks

This feature helps to prevent you from
unintentionally locking your intelligent access
key inside your vehicle’s passenger
compartment or rear cargo area.

When you lock your vehicle using the driver
or passenger power door lock control (with
the door open, vehicle park (P) and ignition
off), after you close the door your vehicle will
search for an intelligent access key in the
passenger compartment. If an intelligent
access key is found inside your vehicle, all of
the doors will immediately unlock and the
horn will sound, indicating that the intelligent
access key is inside.

In order to override the smart unlock feature
and intentionally lock the intelligent access
key inside your vehicle, you can lock your
vehicle after all doors are closed by using the
keyless entry keypad, pressing the lock
button on another intelligent access key or
touching the locking area on the handle with
another intelligent access key in your hand.
See Keyless Entry (page 59).

When you open one of the front doors and
lock your vehicle using the power door lock
control, all doors will lock then unlock if:
•

The ignition is on.

•

The ignition is off and the transmission is
not in park (P).

Autolock Feature (If Enabled)

The autolock feature will lock all the doors
when:
•

All doors are closed.

•

The ignition is on.

•

You shift into any gear putting your
vehicle in motion.

•

Your vehicle attains a speed greater than
12 mph (20 km/h).

The autolock feature repeats when:
•

You open then close any door while the
ignition is on and your vehicle speed is
9 mph (15 km/h) or lower.

•

Your vehicle then attains a speed greater
than 12 mph (20 km/h).

Autounlock Feature (If Enabled)

The autounlock unlocks all the doors when:
•

The ignition is on, all the doors are closed,
and your vehicle has been in motion at a
speed greater than 12 mph (20 km/h).

•

Your vehicle has then come to a stop and
you switch the ignition off or to accessory.

•

You open the driver door within 10
minutes of switching the ignition off or to
accessory.

57

MKS (CLE) Canada/United States of America, enUSA, First Printing

Locks

Note: The doors will not autounlock if you
electronically lock your vehicle after you switch
the ignition off and before you open the driver
door.

Enabling or Disabling

Note: You can enable or disable the autolock
and autounlock features independently of
each other.

You can enable or disable these features in
the information display or your authorized
dealer can do it for you.  See General
Information (page 89).

Illuminated Entry

The interior lamps and select exterior lamps
will illuminate when you unlock the doors
with the remote entry system.

The illuminated entry system will turn off the
lights if:
•

The ignition is on.

•

You press the remote control lock button.

•

After 25 seconds of illumination.

The lights will not turn off if:
•

You turn them on with the lamp control.

•

Any door is open.

Illuminated Exit

The interior dome lamps, parking lamps and
puddle lamps illuminate when all doors are
closed and the ignition is turned off.

The lights will turn off if all the doors remain
closed and:
•

25 seconds elapse.

•

You press the START/STOP button.

Battery Saver

If you leave the courtesy lamps, dome lamps
or headlamps on, the battery saver will shut
them off 10 minutes after you switch the
ignition off.

Accessory Mode Battery Saver for
Intelligent Access Keys

If you leave your vehicle in the run ignition
state, it will shut off once it detects a certain
amount of battery drain or after 45 minutes.

Luggage Compartment Release

From Inside Your Vehicle

Press the button located on the instrument
panel.

E173604

From Outside Your Vehicle

1.

Unlock the luggage compartment with
the remote control or power door lock
control. The luggage compartment
unlocks when you press the release
button if the intelligent access transmitter
is within 3 ft (1 m).

58

MKS (CLE) Canada/United States of America, enUSA, First Printing

Locks

E173605

2. Press the release button.

KEYLESS ENTRY

SECURICODE™ KEYLESS ENTRY
KEYPAD

The keypad is located near the driver window.
It is invisible until touched and then it lights
up so you can see and touch the appropriate
buttons.

Note: If you enter your entry code too fast on
the keypad, the unlock function may not work.
Re-enter your entry code more slowly.

E138637

You can use the keypad to:
•

Lock or unlock the doors.

•

Open the luggage compartment.

•

Recall memory features.

•

Enable or disable the autolock and
autounlock.

•

Arm and disarm the anti-theft alarm.

You can operate the keypad with the
factory-set five-digit entry code. The code is
located on the owner’s wallet card in the
glove box and is available from an authorized
dealer. You can also create up to five of your
own five-digit personal entry codes.

Programming a Personal Entry Code

1.

Enter the factory-set five-digit code.

2. Press 1·2 on the keypad within five

seconds.

3. Enter your personal five-digit code. You

must enter each number within five
seconds of each other.

4. Press 1·2 on the keypad to save personal

code 1.

The doors will lock and then unlock to
confirm that programming is complete.

59

MKS (CLE) Canada/United States of America, enUSA, First Printing

Locks

To program additional personal entry codes,
repeat steps 1 through 3, then for step 4:
•

Press 3·4 to save personal code 2.

•

Press 5·6 to save personal code 3.

•

Press 7·8 to save personal code 4.

•

Press 9·0 to save personal code 5.

You may also program a personal entry code
using the touchscreen.

Tips:
•

Do not set a code that uses five of the
same number.

•

Do not use five numbers in sequential
order.

•

The factory-set five-digit code will work
even if you have set your own personal
code.

Recalling Memory Positions (If
Equipped)

The programmed entry codes recall driver
memory positions as follows:
•

Entry code 1 recalls driver 1 memory
positions.

•

Entry code 2 recalls driver 2 memory
positions.

•

Entry code 3 recalls driver 3 memory
positions.

Note: Personal entry codes 4 and 5 will not
recall memory positions.

Note: The factory-set five-digit code cannot
be associated with a memory setting.

Erasing a Personal Code

1.

Enter the factory-set five-digit code.

2. Press and release 1·2 on the keypad

within five seconds.

3. Press and hold 1·2 for two seconds. You

must do this within five seconds of
completing Step 2.

All personal codes are now erased and only
the factory-set five–digit code will work.

Anti-Scan Feature

The keypad will go into an anti-scan mode if
you enter the wrong code seven times (35
consecutive button presses). This mode
disables the keypad for one minute and the
keypad lamp will flash.

The anti-scan feature will turn off after:
•

One minute of keypad inactivity.

•

Pressing the unlock button on the remote
control.

•

Switching the ignition on.

•

Unlocking your vehicle using intelligent
access.

Unlocking and Locking the Doors

To Unlock the Driver Door

Enter the factory-set five-digit code or your
personal code. You must press each number
within five seconds of each other. The interior
lamps will illuminate.

Note: All doors will unlock if you disable the
two-stage unlocking feature.  See Locking
and Unlocking (page 56).

To Unlock All Doors

Enter the factory-set five-digit code or your
personal code, then press 3·4 within five
seconds.

To Lock All Doors

Press and hold 7·8 and 9·0 at the same time
(with the driver door closed). You do not
need to enter the keypad code first.

Displaying the Factory Set Code

Note: You will need to have two programmed
intelligent access keys for this procedure.

60

MKS (CLE) Canada/United States of America, enUSA, First Printing

Locks

To display the factory-set five-digit code in
the information display:

E173591

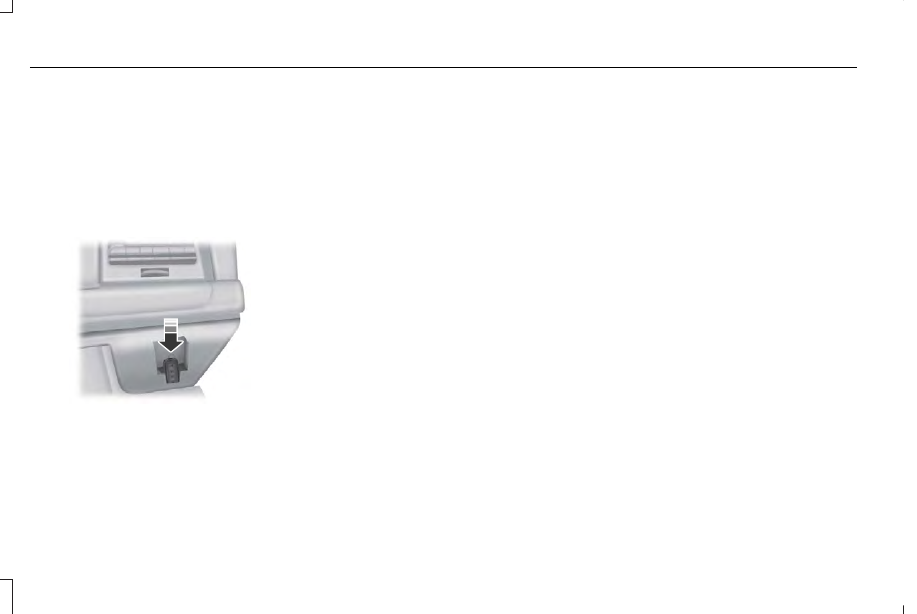

1.

Place the first programmed key in the
backup slot inside the glove
compartment. The key ring must be at
the top with the buttons facing toward
the rear.

2. Press the START/STOP button once

and wait a few seconds.

3. Press the START/STOP button again

and remove the key.

4. Insert the second programmed key into

the backup slot, then press the
START/STOP button.

The factory-set five-digit code will appear in
the information display for a few seconds.

Note: The code may not display until after
any other warning messages first display.

INTERIOR LUGGAGE
COMPARTMENT RELEASE

WARNINGS

Keep vehicle doors and luggage
compartment locked and keep keys
and remote transmitters out of a child’s

reach. Unsupervised children could lock
themselves in the trunk and risk injury.
Children should be taught not to play in
vehicles.

Do not leave children or animals
unattended in the vehicle. On hot days,
the temperature in the luggage

compartment or vehicle interior can rise very
quickly. Exposure of people or animals to
these high temperatures for even a short time
can cause death or serious heat-related
injuries, including brain damage. Small
children are particularly at risk.

Your vehicle is equipped with a release
handle that provides a means of escape for
children and adults if they become locked
inside the luggage compartment.

Adults should familiarize themselves with
the operation and location of the release
handle.

E144403

61

MKS (CLE) Canada/United States of America, enUSA, First Printing

Locks

The handle is located inside the luggage
compartment either on the luggage
compartment door (lid) or near the tail
lamps. It is composed of a material that will
glow for hours in darkness following brief
exposure to ambient light.

Pull the handle and push up on the luggage
compartment door (lid) to open from within
the luggage compartment.

62

MKS (CLE) Canada/United States of America, enUSA, First Printing

Locks

PASSIVE ANTI-THEFT SYSTEM

Note: The system is not compatible with
non-Ford aftermarket remote start systems.
Use of these systems may result in vehicle
starting problems and a loss of security
protection.

Note: Metallic objects, electronic devices or
a second coded key on the same key chain
may cause vehicle starting problems if they
are too close to the key when starting your
vehicle. Prevent these objects from touching
the coded key while starting your vehicle.
Switch the ignition off, move all objects on the
key chain away from the coded key and restart
your vehicle if a problem occurs.

Note: Do not leave a duplicate coded key in
your vehicle. Always take your keys and lock
all doors when leaving your vehicle. The
system is an engine immobilization system. It
will not start without a coded key programmed
to your vehicle. If you use the wrong key, a
message may appear in the information
display.

SecuriLock

The system helps prevent your vehicle from
starting unless you use a coded key
programmed to your vehicle. Using the wrong
key may prevent your vehicle from starting.
A message may appear in the information
display.

If you are unable to start your vehicle with a
correctly coded key, it is not operating
properly. A message may appear in the
information display.

Automatic Arming

Your vehicle arms immediately after
switching the ignition off.

Automatic Disarming

Switching the ignition on with a coded key
disarms your vehicle.

Replacement Keys

Note: Your vehicle comes equipped with two
intelligent access keys.

The intelligent access key functions as a
programmed key that operates the driver
door lock and activates the intelligent access
with push button start system, as well as a
remote control.

If your programmed transmitters are lost or
stolen and you do not have an extra coded
key, you will need to have your vehicle towed
to an authorized dealer. You need to erase
the key codes from your vehicle and program
new coded keys.

Store an extra programmed key away from
your vehicle in a safe place to help prevent
any inconveniences. Contact your authorized
dealer to purchase additional spare or
replacement keys.

Programming a Spare Intelligent Access
Key

Note: You can program a maximum of four
intelligent access keys to your vehicle.

You must have two previously programmed
intelligent access keys inside your vehicle and
the new unprogrammed intelligent access
keys readily accessible. Contact an
authorized dealer to have the spare key
programmed if two previously programmed
keys are not available.

63

MKS (CLE) Canada/United States of America, enUSA, First Printing

Security

Make sure that your vehicle is off before
beginning this procedure. Make sure that you
close all the doors before beginning and that
they remain closed throughout the procedure.
Perform all steps within 30 seconds of
starting the sequence. Stop and wait for at
least one minute before starting again if you
perform any steps out of sequence.

Read and understand the entire procedure
before you begin.

E173591

1.

Place the first programmed key in the
backup slot inside the glove
compartment, then press the push button
ignition switch.

2. Wait five seconds and then press the

push button ignition switch again.

3. Remove the intelligent access key.

4. Within 10 seconds, place a second

programmed intelligent access key in the
backup slot. Press the push button
ignition switch.

5. Wait five seconds and then press the

push button ignition switch again.

6. Remove the intelligent access key.

7.

Place the unprogrammed intelligent
access key in the backup slot and press
the push button ignition switch.

Programming is now complete. Verify the
remote control functions operate and your
vehicle starts with the new intelligent access
key.

If programming was not successful, wait 10
seconds and repeat Steps 1 through 7. If you
are still unsuccessful, take your vehicle to
your authorized dealer.

ANTI-THEFT ALARM

The system will warn you of an unauthorized
entry to your vehicle. Anyone opening any
door, the luggage compartment or the hood
without using a valid key, remote control or
keyless entry keypad will set off the alarm.

The turn signal lamps will flash and sound
the horn up to a total of 10 times.

Take all remote controls to an authorized
dealer if there is any potential alarm problem
with your vehicle.

Arming the Alarm

The alarm is ready to arm when there is not
a key in the ignition. Electronically lock the
vehicle to arm the alarm.

Disarming the Alarm

To disarm the alarm do any of the following:

•

Press the power door unlock button
within the 20-second pre-arm period.

•

Unlock the doors with the keyless entry
pad.

•

Press the unlock button on the remote
control.

•

Enter the vehicle using intelligent access.

•

Press the panic button on the remote
control. The alarm system remains
armed, but the horn and turn indicators
shut off.

Note: If the driver door is unlocked with a key,
a tone will sound when you open the door and
a message will appear in the information
display. You will have 12 seconds to disarm
the alarm using any of the actions above,
otherwise the alarm goes off.

64

MKS (CLE) Canada/United States of America, enUSA, First Printing

Security

ADJUSTING THE STEERING
WHEEL

Note: Make sure that you are sitting in the
correct position.  See Sitting in the Correct
Position (page 109).

WARNING

Do not adjust the steering wheel when
your vehicle is moving.

E161834

Use the control on the side of the steering
column to adjust the position.

To adjust:
•

Tilt: Press the top or bottom of the
control.

•

Telescope: Press the front or rear of the
control.

End of Travel Position

The steering column sets a stopping position
just short of the end of the column position
to prevent damage to the steering column.
A new stopping position sets if the steering
column encounters an object when tilting or
telescoping.

To reset the steering column to its normal
stopping position:

1.

Confirm there is nothing obstructing the
motion of the steering column.

2. Press and hold the steering column

control until the steering column stops
moving.

3. Press the steering column control again.

The steering column may begin to move
again.

4. When the steering column stops,

continue holding the control for an
additional few seconds.

5. Repeat for each direction as necessary.

A new stopping position is set. The next time
you tilt or telescope the steering column, it
will stop just short of the end of the column
position.

Memory Feature

You can save and recall the steering column
position with the memory function.  See
Memory Function (page 114).

Note: Pressing the adjustment control during
memory recall cancels the operation.

Easy Entry and Exit Feature

When you switch the ignition off, the steering
column will move to allow extra room to exit
your vehicle. The column will return to the
previous setting when you switch the ignition
on. You can enable or disable this feature in
the information display.  See Information
Displays (page 89).

AUDIO CONTROL

You can operate the following functions with
the control:

65

MKS (CLE) Canada/United States of America, enUSA, First Printing

Steering Wheel

E173608

Seek up and down or next.

A

Media.

B

Volume up or down.

C

Mute.

D

MEDIA

Press repeatedly to scroll through available
audio modes.

Seek, Next or Previous

Press the seek button to:
•

Tune the radio to the next or previous
stored preset.

•

Play the next or the previous track.

Press and hold the seek button to:
•

Tune the radio to the next station up or
down the frequency band.

•

Seek through a track.

VOICE CONTROL

E173609

V

Phone mode.

A

Voice recognition.

B

See your SYNC information.

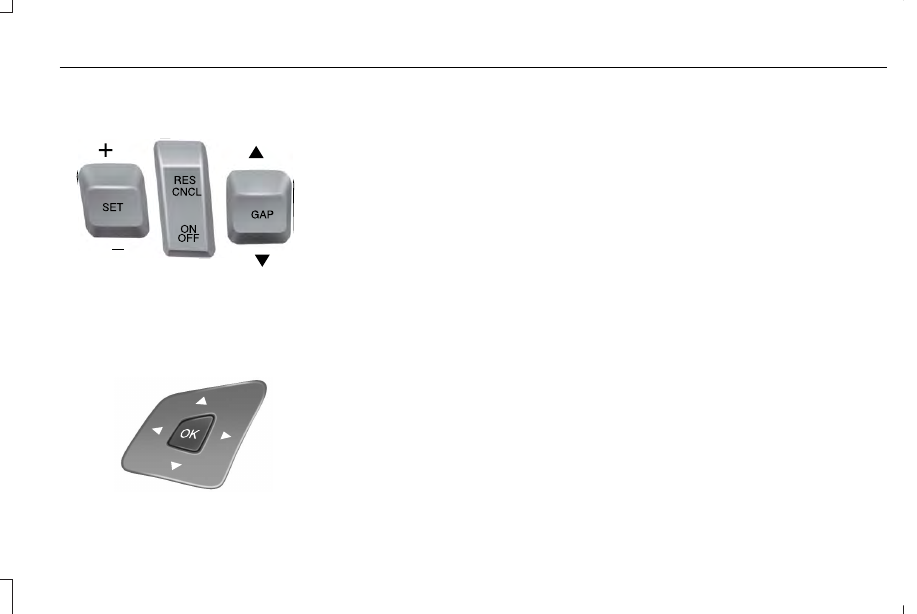

CRUISE CONTROL

Type 1

E173610

66

MKS (CLE) Canada/United States of America, enUSA, First Printing

Steering Wheel

Type 2

E173611

See Cruise Control (page 166).

INFORMATION DISPLAY
CONTROL

E173617

See Information Displays (page 89).

HEATED STEERING WHEEL

 (If

Equipped)

See your SYNC information.

67

MKS (CLE) Canada/United States of America, enUSA, First Printing

Steering Wheel

ADJUSTING THE PEDALS

WARNING

Never use the controls while your feet
are on the accelerator and brake pedals
and the vehicle is moving.

You can find the control on the left side of
the steering column. Press and hold the
appropriate side of the control to move the
pedals.

A

B

E162916

A. Farther

B. Closer

You can save and recall the pedal positions
with the memory feature.  See Memory
Function (page 114).

Note: Adjust the pedals only when your
vehicle is in P (Park).

68

MKS (CLE) Canada/United States of America, enUSA, First Printing

Pedals

 (If Equipped)

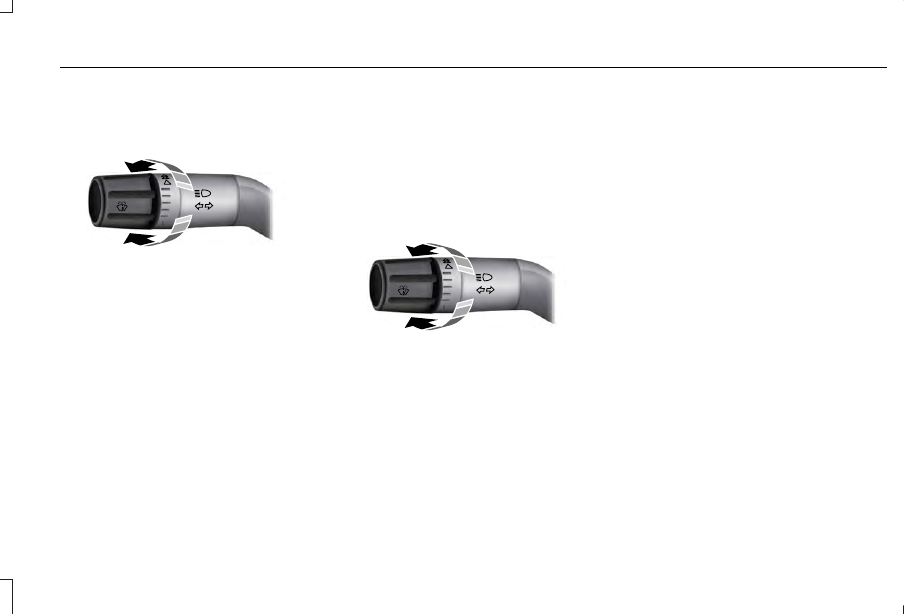

WINDSHIELD WIPERS

E173262

Rotate the end of the control away from you
to increase the speed of the wipers. Rotate
toward you to decrease the speed of the
wipers.

Note: Fully defrost the windshield before
switching on the windshield wipers.

Note: Make sure you switch off the windshield
wipers before entering a car wash.

Note: Clean the windshield and wiper blades
if they begin to leave streaks or smears. If that
does not resolve the issue, install new wiper
blades.

Note: Do not operate the wipers on a dry
windshield. This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out. Always use the windshield
washers before wiping a dry windshield.

AUTOWIPERS

E173262

Adjust the rotary control to increase or
decrease the sensitivity of the rain sensor. On
the lowest sensitivity setting, the wipers turn
on when there is a large amount of moisture
on the windshield. On the highest sensitivity
setting, the wipers turn on when there is a
small amount of moisture on the windshield.

Autowipers uses a rain sensor, located near
the interior mirror. The rain sensor monitors
the amount of moisture on the windshield. It
turns on the wipers and adjusts the wiper
speed by the amount of moisture that the
sensor detects on the windshield. You can
turn this feature on and off in the information
display.  See General Information (page
89).

Keep the outside of the windshield clean. The
rain sensor is very sensitive. If the area around
the mirror is dirty, then the wipers may
operate if dirt, mist or insects hit the
windshield.

Note: Fully defrost the windshield before you
switch on the windshield wipers.

Note: Make sure you switch off the windshield
wipers before entering a car wash.

Note: Clean the windshield and wiper blades
if they begin to leave streaks or smears. If that
does not resolve the issue, install new wiper
blades.

Note: If you switch autolamps on in
conjunction with autowipers, your low beam
headlamps will turn on automatically when
the rain sensor turns on the windshield wipers
continuously.

69

MKS (CLE) Canada/United States of America, enUSA, First Printing

Wipers and Washers

Note: Wet or winter driving conditions with
ice, snow or salty road mist can cause
inconsistent and unexpected wiping or
smearing.

In these conditions, you can do the following
to help keep your windshield clear:
•

Lower the sensitivity of the autowipers
to reduce the amount of smearing.

•

Adjust the rotary control to normal or
high-speed wipe.

•

Switch off the autowipers.

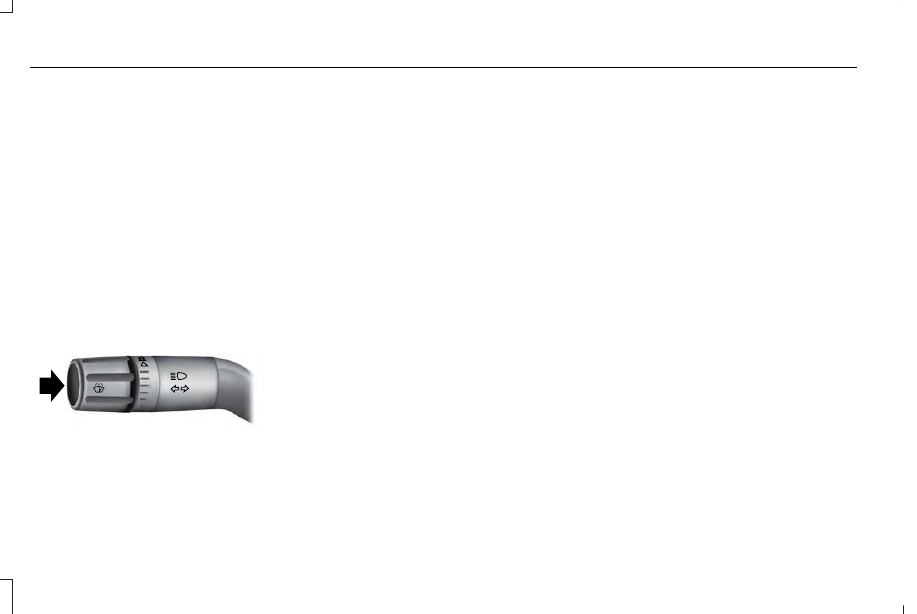

WINDSHIELD WASHERS

E173263

Press the end of the stalk to operate the
washer.
•

A brief press causes a single wipe without
washer fluid.

•

A quick press and hold causes the wipers
to swipe three times with washer fluid.

•

A long press and hold will operate the
wipers and washer fluid for a short time.

A wipe will occur a few seconds after
washing to clear any remaining washer fluid.
This feature can be switched on or off in the
information display.  See General
Information (page 89).

Note: Do not operate the washers when the
washer reservoir is empty. This may cause the
washer pump to overheat.

70

MKS (CLE) Canada/United States of America, enUSA, First Printing

Wipers and Washers
