Dodge Avenger (2014 year). Instruction

3. Without

releasing

the

button

proceed

with

“Canadian/Gate Operator Programming” step 2 and
follow all remaining steps.

Using HomeLink®

To operate, press and release the programmed
HomeLink® button. Activation will now occur for the
programmed device (i.e., garage door opener, gate opera-
tor, security system, entry door lock, home/office light-
ing, etc.,). The hand-held transmitter of the device may
also be used at any time.

Security

It is advised to erase all channels before you sell or turn
in your vehicle.

To do this, press and hold the two outside buttons for 20
seconds until the red indicator flashes. Note that all chan-
nels will be erased. Individual channels cannot be erased.

The HomeLink® Universal Transceiver is disabled when
the Vehicle Security Alarm is active.

Troubleshooting Tips

If you are having trouble programming HomeLink®,
here are some of the most common solutions:
• Replace the battery in the original hand-held transmit-

ter.

• Press the LEARN button on the Garage Door Opener

to complete the training for a Rolling Code.

• Did you unplug the device for programming and

remember to plug it back in?

If you have any problems, or require assistance, please
call toll-free 1-800-355-3515 or, on the Internet at
www.HomeLink.com for information or assistance.

188

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

Vehicle exhaust contains carbon monoxide, a danger-
ous gas. Do not run your vehicle in the garage while
programming the transceiver. Exhaust gas can cause
serious injury or death.

WARNING!

Your motorized door or gate will open and close
while you are programming the universal trans-
ceiver. Do not program the transceiver if people, pets
or other objects are in the path of the door or gate.
Only use this transceiver with a garage door opener
that has a “stop and reverse” feature as required by
Federal safety standards. This includes most garage
door opener models manufactured after 1982. Do not

(Continued)

WARNING! (Continued)

use a garage door opener without these safety fea-
tures. Call toll-free 1–800–355–3515 or, on the Internet
at www.HomeLink.com for safety information or
assistance.

General Information

This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may be

received including interference that may cause unde-
sired operation.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

189

NOTE:

• The transmitter has been tested and it complies with

FCC and IC rules. Changes or modifications not ex-
pressly approved by the party responsible for compli-
ance could void the user’s authority to operate the
device.

• The term IC before the certification/registration num-

ber only signifies that Industry Canada technical speci-
fications were met.

POWER SUNROOF — IF EQUIPPED

The sunroof controls are mounted between the dome/
reading lights.

Power Sunroof Switch

190

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Never leave the Key
Fob in or near the vehicle, or in a location acces-
sible to children. Occupants, particularly unat-
tended children, can become entrapped by the
power sunroof while operating the power sunroof
switch. Such entrapment may result in serious
injury or death.

• In a collision, there is a greater risk of being thrown

from a vehicle with an open sunroof. You could
also be seriously injured or killed. Always fasten
your seat belt properly and make sure all passen-
gers are properly secured.

• Do not allow small children to operate the sunroof.

Never allow your fingers, other body parts, or any
object to project through the sunroof opening.
Injury may result.

Opening Sunroof — Express

Press the switch rearward and release it within one-half
second. The sunroof and sunshade will open automati-
cally from any position. The sunroof and sunshade will
open fully and stop automatically. This is called “Express
Open”. During Express Open operation, any movement
of the sunroof switch will stop the sunroof.

Opening Sunroof — Instruction Mode

To open the sunroof, press and hold the switch rearward
to full open. Any release of the switch will stop the
movement. The sunroof and sunshade will remain in a
partially opened condition until the switch is pushed and
held rearward again.

Closing Sunroof — Express

Press the switch forward and release it within one-half
second and the sunroof will close automatically from any

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

191

position. The sunroof will close fully and stop automati-
cally. This is called “Express Close”. During Express
Close operation, any movement of the switch will stop
the sunroof.

Closing Sunroof — Instruction Mode

To close the sunroof, press and hold the switch in the
forward position. Any release of the switch will stop the
movement and the sunroof will remain in a partially
closed condition until the switch is pushed and held
forward again.

Pinch Protect Feature

This feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an ob-
struction in the path of the sunroof is detected, the
sunroof will automatically retract. Remove the obstruc-
tion if this occurs. Next, press the switch forward and
release to Express Close.

NOTE:

If three consecutive sunroof close attempts re-

sult in Pinch Protect reversals, the fourth close attempt
will be a Instruction Close movement with Pinch Protect
disabled.

Venting Sunroof — Express

Press and release the Vent button within one half second
and the sunroof will open to the vent position. This is
called “Express Vent”, and it will occur regardless of
sunroof position. During Express Vent operation, any
movement of the switch will stop the sunroof.

Sunshade Operation

The sunshade can be opened instructionly. However, the
sunshade will open automatically as the sunroof opens.

NOTE:

The sunshade cannot be closed if the sunroof is

open.

192

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.

Ignition Off Operation

For Vehicles Not Equipped With The Electronic Vehicle
Information Center (EVIC)

The power sunroof switch will remain active for 45
seconds after the ignition switch is turned to the LOCK
position. Opening either front door will cancel this
feature.

For Vehicles Equipped With The EVIC

The power sunroof switch will remain active for up to
approximately ten minutes after the ignition switch is
turned to the LOCK position. Opening either front door
will cancel this feature.

ELECTRICAL POWER OUTLETS

There are two 12 Volt (13 Amp) electrical power outlets
on this vehicle. Both of the power outlets are protected by
a fuse.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

193

The instrument panel power outlet, located below the
climate control knobs, has power available only when the
ignition is ON. This power outlet will also operate a
conventional cigar lighter unit.

NOTE:

To preserve the heating element, do not hold the

lighter in the heating position.

A second power outlet is located inside the center con-
sole.

The center console power outlet is powered directly from
the battery (power available at all times). Items plugged
into this power outlet may discharge the battery and/or
prevent the engine from starting.

Instrument Panel Power Outlet

Center Console Power Outlet

194

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

To ensure proper operation a MOPAR® knob

and element must be used.

CAUTION!

• Do not exceed the maximum power of 160 Watts (13

Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system
will need to be replaced.

• Power outlets are designed for accessory plugs

only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your New Vehicle Limited
Warranty.

Power Outlet Fuse Locations

1 — #16 Fuse 15 A Blue Cigar Lighter Instrument Panel
2 — #11 Fuse 15 A Blue Power Outlet Inside Arm Rest

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

195

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of outlet

should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

• Close the lid when not in use and while driving the

vehicle.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Many accessories that can be plugged in draw

power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.

• After the use of high power draw accessories, or

long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.

196

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CIGAR LIGHTER AND ASH RECEIVER — IF
EQUIPPED

An optional ash receiver is available from your autho-
rized dealer and will fit in the center console front
cupholder.

The optional ash receiver also comes with a cigar lighter
that can be used with the power outlets. Refer to “Power
Outlets” in “Understanding The Features Of Your Ve-
hicle” for further information.

CUPHOLDERS

There are two cupholders located in the center console
for the front passengers.

Front Cupholders

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

197

Rear Seat Bottle Holder

There are built-in bottle holders located in both rear door
trim panels.

WARNING!

If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burn-
ing the occupants. Be careful when closing the doors
to avoid injury.

STORAGE

Glove Compartment

The glove compartment is located on the right side of the
instrument panel.

Rear Bottle Holder

198

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Pull on the handle to open the glove compartment.

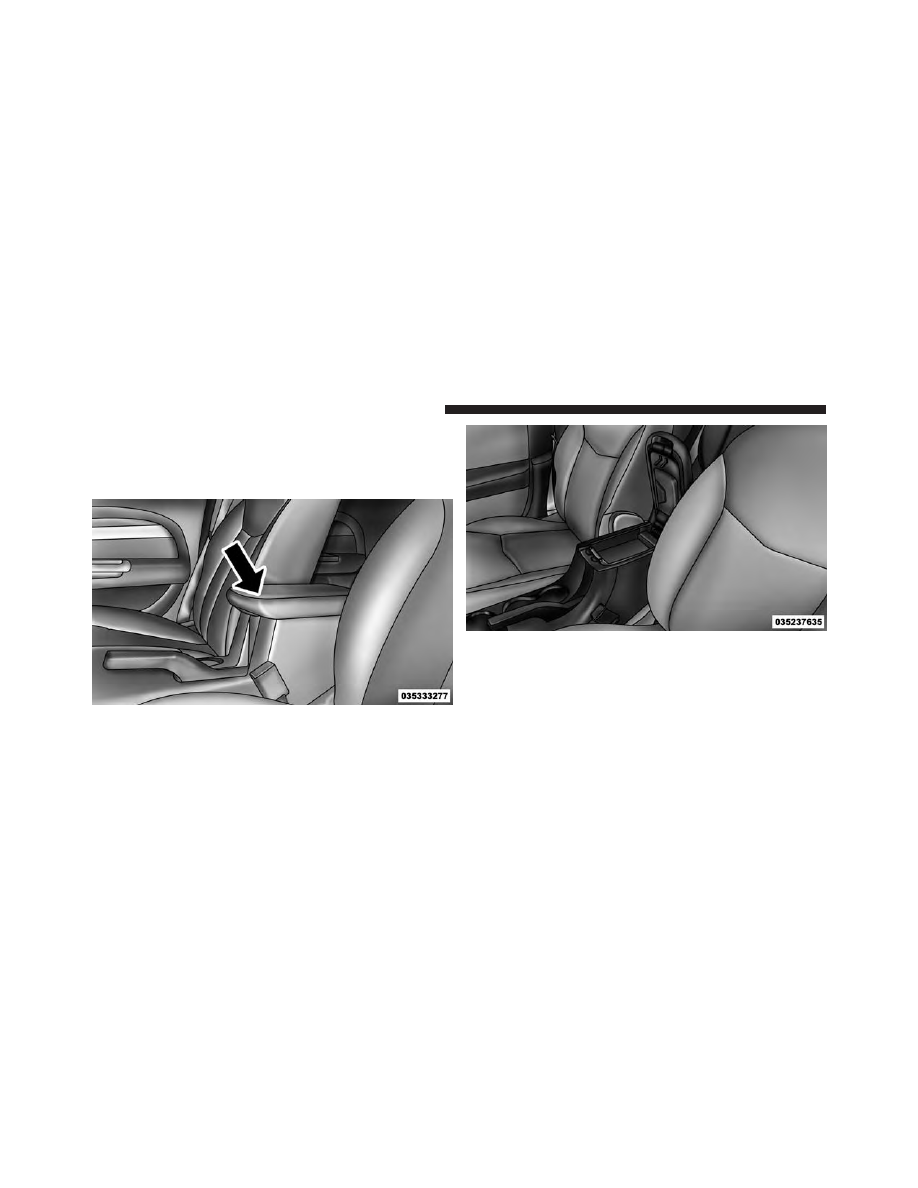

CONSOLE FEATURES

Storage

The center console is located between the front driver
and passenger seats. The center console armrest slides
forward from design position to provide added user

Glove Compartment

Opened Glove Compartment

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

199

comfort. The center console can be used for storage and
is also equipped with an electrical power outlet. Refer to
“Power Outlets” in “Understanding The Feature Of Your
Vehicle” for further information.

Two separate storage compartments are also located
underneath the armrest.

The top compartment holds small items, such as a pen
and note pad, while the larger bottom compartment will
hold CDs and alike. The bottom compartment also con-
tains a 12 Volt power outlet. The console’s front opening
lid allows for easy access to these compartments.

Center Console Armrest

Center Console Storage

200

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

• A notch in the front of the console base allows for use

of a cellular phone while it is plugged into the power
outlet with the armrest latched down.

• The power outlet can also energize the cigar lighter in

the optional cup holder ash receiver.

WARNING!

Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.

CARGO AREA FEATURES

The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly flat extension of the load floor.

When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.

WARNING!

• Be certain that the seatback is securely locked into

position. If the seatback in not securely locked into
position, the seat will not provide the proper sta-
bility for child seats and/or passengers. An improp-
erly latched seat could cause serious injury.

(Continued)

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

201

WARNING! (Continued)

• The cargo area in the rear of the vehicle (with the

rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in a collision. Children should
be seated and using the proper restraint system.

• To help protect against personal injury, passengers

should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats
and use seat belts.

• The weight and position of cargo and passengers

can change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in
personal injury, follow these guidelines for loading
your vehicle:

Always place cargo evenly on the cargo floor. Put heavier
objects as low and as far forward as possible. Place as
much cargo as possible in front of the rear axle. Too much
weight or improperly placed weight over or behind the
rear axle can cause the rear of the vehicle to sway.

Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a dan-
gerous projectile in a sudden stop or collision.

202

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

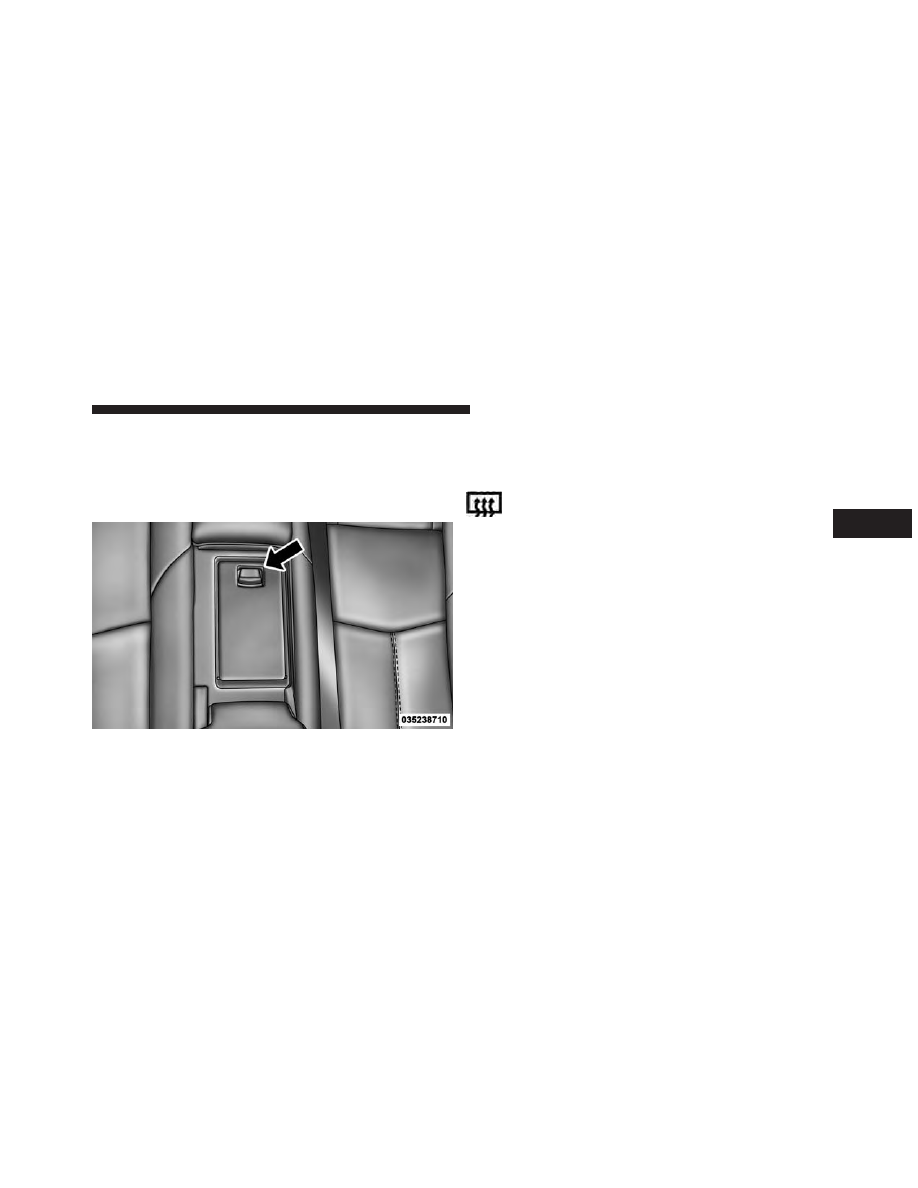

Ski Pass-Through

There is a ski pass-through door located behind the rear seat
armrest that allows longer items, such as snow skis, to be
stored in the rear cargo area. Lower the armrest and pull
downward on the latch to open the ski pass-through door.

REAR WINDOW FEATURES

Rear Window Defroster

The rear window defroster button is located on
the climate control (Mode) knob. Press this button

to turn on the rear window defroster and the heated
outside mirrors (if equipped). An indicator in the button
will illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, press the button a second time.

NOTE:

To prevent excessive battery drain, use the rear

window defroster only when the engine is operating.

Ski Pass-Through

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

203

Dodge Avenger (2014 year). Instruction - part 12
