TIRE SAFETY INFORMATION

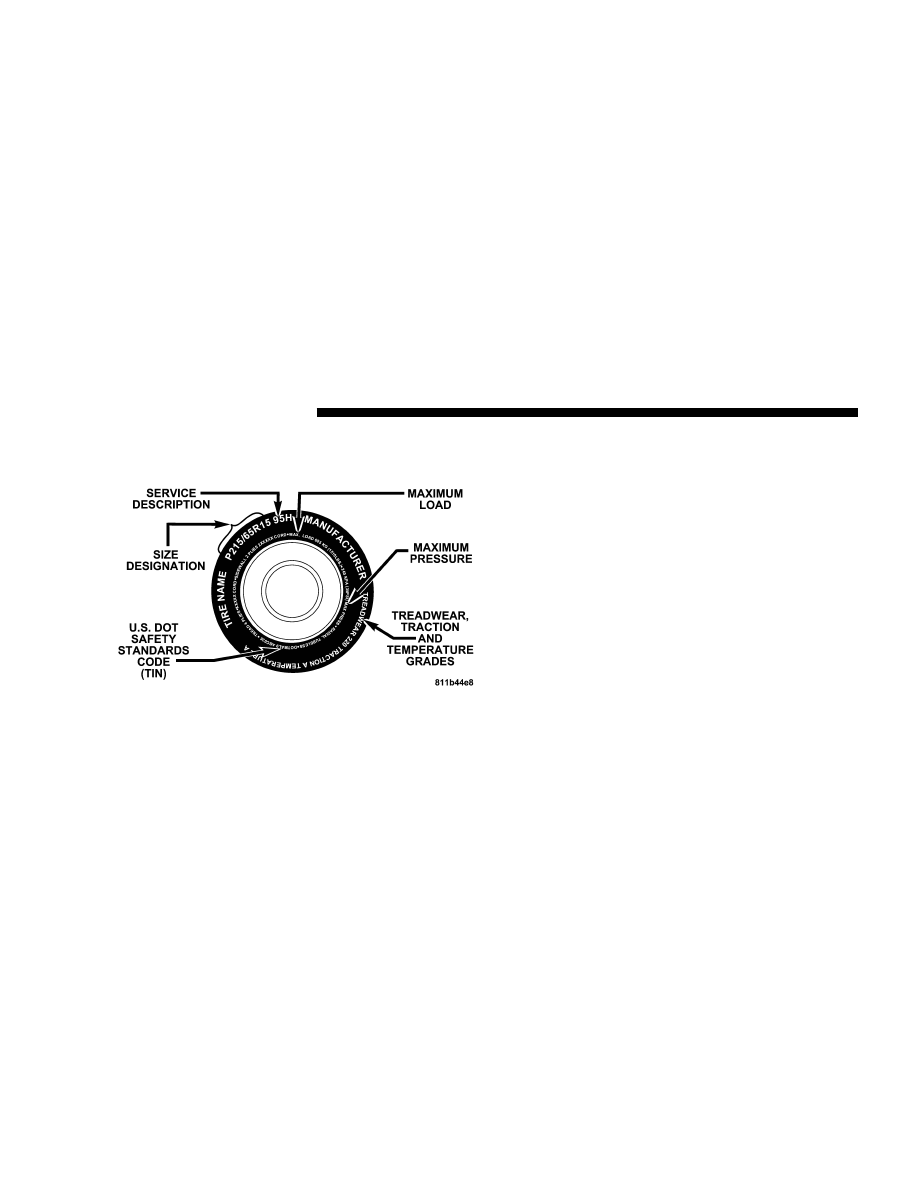

Tire Markings

NOTE:

• P(Passenger)-Metric tire sizing is based on U.S. design

standards. P-Metric tires have the letter “P” molded
into the sidewall preceding the size designation. Ex-
ample: P215/65R15 95H.

• European Metric tire sizing is based on European

design standards. Tires designed to this standard have
the tire size molded into the sidewall beginning with
the section width. The letter

⬙P⬙ is absent from this tire

size designation. Example: 215/65R15 96H

• LT(Light Truck)-Metric tire sizing is based on U.S.

design standards. The size designation for LT-Metric
tires is the same as for P-Metric tires except for the
letters “LT” that are molded into the sidewall preced-
ing the size designation. Example: LT235/85R16.

• Temporary Spare tires are high pressure compact

spares designed for temporary emergency use only.
Tires designed to this standard have the letter “T”
molded into the sidewall preceding the size designa-
tion. Example: T145/80D18 103M.

• High Flotation tire sizing is based on U.S. design

standards and begins with the tire diameter molded
into the sidewall. Example: 31x10.5 R15 LT.

260

STARTING AND OPERATING

Tire Sizing Chart

EXAMPLE:

Size Designation:

= Passenger car tire size based on U.S. design standards

ⴖ....blank....ⴖ = Passenger car tire based on European design standards
LT

= Light Truck tire based on U.S. design standards

= Temporary Spare tire

= Overall Diameter in Inches (in)

215

= Section Width in Milimeters (mm)

= Aspect Ratio in Percent (%)

—Ratio of section height to section width of tire.

10.5

= Section Width in Inches (in)

= Construction Code

—

⬙R⬙ means Radial Construction.

—

⬙D⬙ means Diagonal or Bias Construction.

= Rim Diameter in Inches (in)

STARTING AND OPERATING

261

EXAMPLE:

Service Description:

= Load Index

—A numerical code associated with the maximum load a tire can carry.

= Speed Symbol

—A symbol indicating the range of speeds at which a tire can carry a load corresponding
to its load index under certain operating conditions.
—The maximum speed corresponding to the Speed Symbol should only be achieved un-
der specified operating conditions. (ie. tire pressure, vehicle loading, road conditions and
posted speed limits).

Load Identification:

ⴖ....blank....ⴖ = Absence of any text on sidewall of the tire indicates a Standard Load (SL) Tire
Extra Load (XL)

= Extra Load (or Reinforced) Tire

Light Load

= Light Load Tire

C,D,E

= Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load

— Maximum Load indicates the maximum load this tire is designed to carry.

Maximum Pressure

— Maximum Pressure indicates the maximum permissible cold tire inflation pressure for this tire.

262

STARTING AND OPERATING

Tire Identification Number (TIN)
The TIN may be found on one or both sides of the tire
however the date code may only be on one side. Tires
with white sidewalls will have the full TIN including
date code located on the white sidewall side of the tire.

Look for the TIN on the outboard side of black sidewall
tires as mounted on the vehicle. If the TIN is not found on
the outboard side then you will find it on the inboard side
of the tire.

EXAMPLE:

DOT MA L9 ABCD 0301

DOT

= Department of Transportation

—This symbol certifies that the tire is in compliance with the U.S. Department of Transportation tire safety

standards, and is approved for highway use.

= Code representing the tire manufacturing location.(2 digits)

= Code representing the tire size.(2 digits)

ABCD

= Code used by tire manufacturer.(1 to 4 digits)

= Number representing the week in which the tire was manufactured.(2 digits)

—03 means the 3rd week.

= Number representing the year in which the tire was manufactured.(2 digits)

—01 means the year 2001.
—Prior to July 2000, tire manufacturers were only required to have 1 number to represent the year in

which the tire was manufactured. Example: 031 could represent the 3rd week of 1981 or 1991.

STARTING AND OPERATING

263

Tire Loading and Tire Pressure

Tire Placard Location

NOTE:

The proper cold tire inflation pressure for pas-

senger cars is listed on either the face of the driver’s door
or the driver’s side “B” pillar. For vehicles other than
passenger cars, the cold tire inflation pressures are listed
on either the shutface of the driver’s door, the “B” pillar,
the Certification Label or in the Tire Inflation Pressures
brochure in the glove compartment.

Tire Placard Location

264

STARTING AND OPERATING

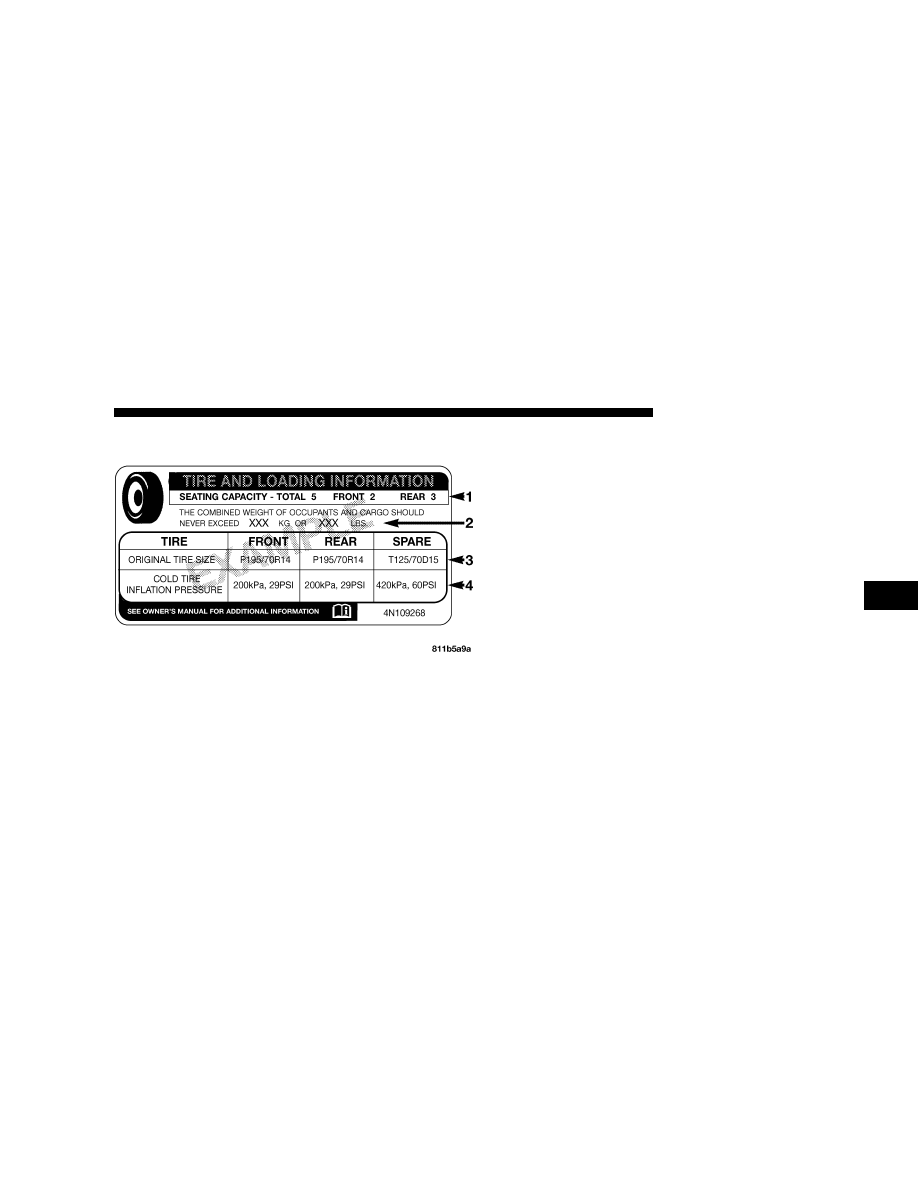

Tire and Loading Information Placard

This placard tells you important information about the:
1) number of people that can be carried in the vehicle
2) the total weight your vehicle can carry
3) the tire size designed for your vehicle
4) the cold tire inflation pressures for the front, rear
and spare tires.

Loading
The vehicle maximum load on the tire must not exceed
the load carrying capacity of the tire on your vehicle. You
will not exceed the tire’s load carrying capacity if you
adhere to the loading conditions, tire size and cold tire
inflation pressures specified on the Tire and Loading
Information placard and the Vehicle Loading section of
this instruction.

NOTE:

Under a maximum loaded vehicle condition,

gross axle weight ratings (GAWR’s) for the front and rear
axles must not be exceeded. For further information on
GAWR’s, vehicle loading and trailer towing, see the
Vehicle Loading section of this instruction.

To determine the maximum loading conditions of your
vehicle, locate the statement “The combined weight of
occupants and cargo should never exceed XXX kg or XXX
lbs.” on the Tire and Loading Information placard. The

Tire and Loading Information

STARTING AND OPERATING

265

combined weight of occupants, cargo/luggage and
trailer tongue weight (if applicable) should never exceed
the weight referenced here.

Steps for Determining Correct Load Limit

1. Locate the statement “The combined weight of occu-
pants and cargo should never exceed XXX pounds” on
your vehicle’s placard.

2. Determine the combined weight of the driver and
passengers that will be riding in your vehicle.

3. Subtract the combined weight of the driver and pas-
sengers from XXX kilograms or XXX pounds.

4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if “XXX”
amount equals 1400 lbs. and there will be five 150 lb.
passengers in your vehicle, the amount of available cargo
and luggage load capacity is 650 lb. (since 5 x 150 = 750,
and 1400 – 750 = 650 lb.)

5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not safely
exceed the available cargo and luggage load capacity
calculated in step 4.

6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
instruction to determine how this reduces the available
cargo and luggage load capacity of your vehicle.

NOTE:

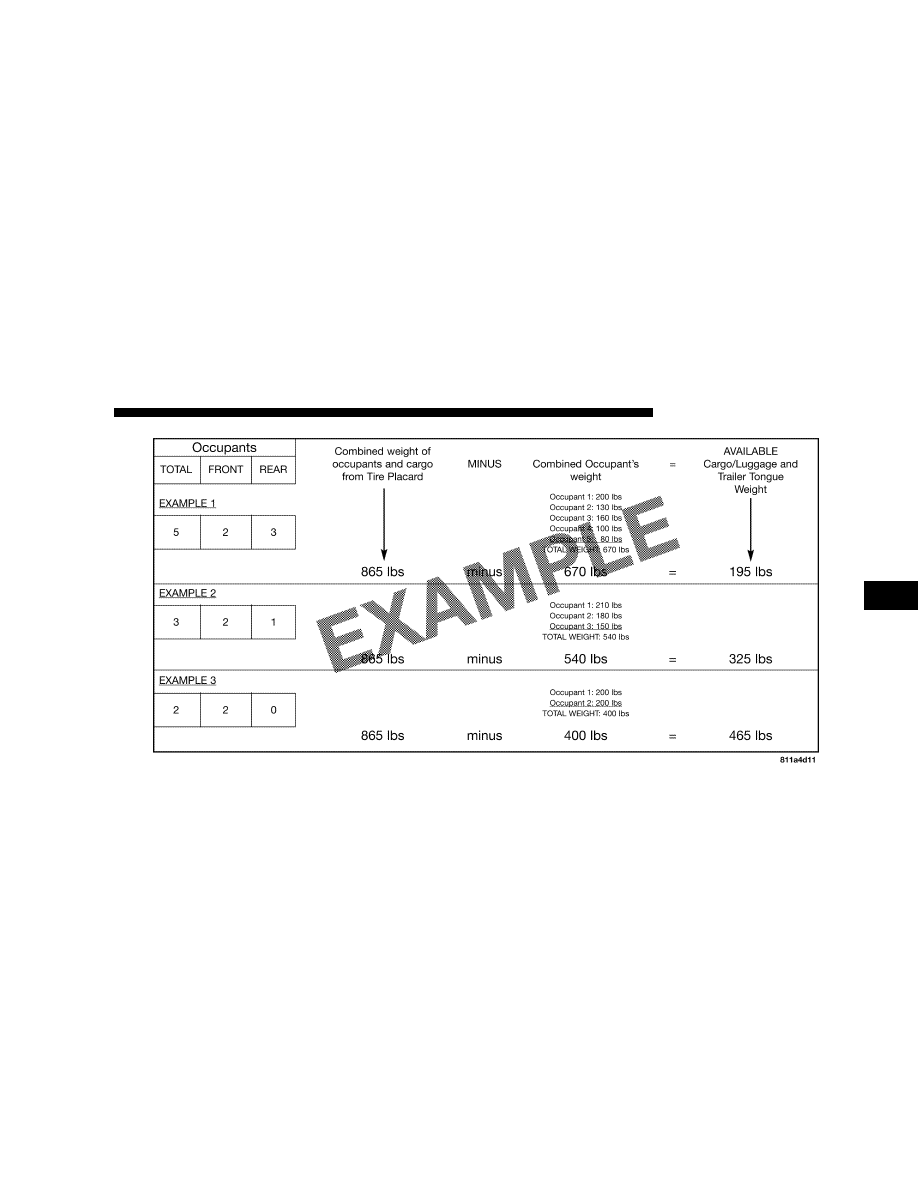

The following table shows examples on how to

calculate total load, cargo/luggage and towing capacities
of your vehicle with varying seating configurations and
number and size of occupants. This table is for illustra-
tion purposes only and may not be accurate for the
seating and load carry capacity of your vehicle.

NOTE:

For the following example the combined weight

of occupants and cargo should never exceed 865 lbs. (392
Kg).

266

STARTING AND OPERATING

WARNING!

Overloading of your tires is dangerous. Overloading
can cause tire failure, affect vehicle handling, and
increase your stopping distance. Use tires of the
recommended load capacity for your vehicle. Never
overload them.

TIRES—GENERAL INFORMATION

Tire Pressure
Proper tire inflation pressure is essential to the safe and
satisfactory operation of your vehicle. Three primary
areas are affected by improper tire pressure:

1. Safety—

WARNING!

Improperly inflated tires are dangerous and can cause
accidents.

•

Under inflation increases tire flexing and can result in

tire failure.

•

Over inflation reduces a tire’s ability to cushion

shock. Objects on the road and chuck holes can cause
damage that results in tire failure.

•

Unequal tire pressures can cause steering problems.

You could lose control of your vehicle.

•

Over inflated or under inflated tires can affect vehicle

handling and can fail suddenly, resulting in loss of
vehicle control.

•

Unequal tire pressures from one side of the vehicle to

the other can cause the vehicle to drift to the right or left.
Always drive with each tire inflated to the recom-
mended cold tire inflation pressure.

268

STARTING AND OPERATING

2. Economy—
Improper inflation pressures can cause uneven wear
patterns to develop across the tire tread. These abnormal
wear patterns will reduce tread life resulting in a need for
earlier tire replacement. Underinflation also increases tire
rolling resistance and results in higher fuel consumption.

3. Ride Comfort and Vehicle Stability—
Proper tire inflation contributes to a comfortable ride.
Overinflation produces a jarring and uncomfortable ride.

Tire Inflation Pressures
The proper cold tire inflation pressure for passenger cars
is listed on either the face of the driver’s door or the
driver’s side “B” pillar. For vehicles other than passenger
cars, the cold tire inflation pressures are listed on either
the “B” pillar, the Certification Label or in the Tire
Inflation Pressures brochure in the glove compartment.

Some vehicles may have Supplemental Tire Pressure
Information for vehicle loads that are less than the

maximum loaded vehicle condition. These pressure con-
ditions will be found in the “Supplemental Tire Pressure
Information” section of this instruction.

The pressure should be checked and adjusted as well as
inspecting for signs of tire wear or visible damage at least
once a month. Use a good quality pocket-type gauge to

Tire Placard Location

STARTING AND OPERATING

269

check tire pressure. Do not make a visual judgement
when determining proper inflation. Radial tires may look
properly inflated even when they are under inflated.

CAUTION!

After inspecting or adjusting the tire pressure al-
ways reinstall the valve stem cap–if equipped. This
will prevent moisture and dirt from entering the
valve stem, which could damage the valve stem.

Inflation pressures specified on the placard are always
“cold tire inflation pressure”. Cold tire inflation pressure
is defined as the tire pressure after the vehicle has not
been driven for at least 3 hours, or driven less than 1mile
(1 km) after a 3 hour period. The cold tire inflation
pressure must not exceed the maximum inflation pres-
sure molded into the tire side wall.

Check tire pressures more often if subject to a wide range
of outdoor temperatures, as tire pressures vary with
temperature changes.

Tire pressures change by approximately 1 psi (7 kPa) per
12° F (7° C) of air temperature change. Keep this in mind
when checking tire pressure inside a garage especially in
the winter.

Example: If garage temperature = 68° F (20° C) and the
outside temperature = 32° F (0° C) then the cold tire
inflation pressure should be increased by 3 psi (21 kPa),
which equals 1 psi (7 kPa) for every 12° F (7° C) for this
outside temperature condition.

Tire pressure may increase from 2 to 6 psi (13 to 40 kPa)
during operation. DO NOT reduce this normal pressure
build up or your tire pressure will be too low.

270

STARTING AND OPERATING

Tire Pressures for High Speed Operation
The manufacturer advocates driving at safe speeds
within posted speed limits. Where speed limits or condi-
tions are such that the vehicle can be driven at high
speeds, maintaining correct tire inflation pressure is very
important. Increased tire pressure and reduced vehicle
loading may be required for high speed vehicle opera-
tion. Refer to original equipment or an authorized tire
dealer for recommended safe operating speeds, loading
and cold tire inflation pressures.

WARNING!

High speed driving with your vehicle under maxi-
mum load is dangerous. The added strain on your
tires could cause them to fail. You could have a
serious accident. Don’t drive a vehicle loaded to the
maximum capacity at continuous speeds above 75
mph (120 km/h).

Radial-Ply Tires

WARNING!

Combining radial ply tires with other types of tires
on your vehicle will cause your vehicle to handle
poorly. The instability could cause an accident. Al-
ways use radial ply tires in sets of four (or 6, in case
of trucks with dual rear wheels). Never combine
them with other types of tires.

Cuts and punctures in radial tires are repairable only in
the tread area because of sidewall flexing. Consult your
authorized tire dealer for radial tire repairs.

STARTING AND OPERATING

271

Compact Spare Tire — If Equipped
The compact spare is for temporary emergency use with
radial tires. It is engineered to be used on your style
vehicle only. Since this tire has limited tread life, the
original tire should be repaired (or replaced) and rein-
stalled at the first opportunity.

WARNING!

Temporary use spare tires are for emergency use
only. With these tires, do not drive more than 50 mph
(80 km/h). Temporary-use spare tires have limited
tread life. When two or more tread wear indicators
appear in adjacent grooves, the temporary use spare
tire needs to be replaced. Be sure to follow the
warnings which apply to your spare. Failure to do so
could result in spare tire failure and loss of vehicle
control.

Do not install a wheel cover or attempt to mount a
conventional tire on the compact spare wheel, since the
wheel is designed specifically for the compact spare.

Do not install more than one compact spare tire/wheel
on the vehicle at any given time.

CAUTION!

Because of the reduced ground clearance, do not take
your vehicle through an automatic car wash with the
compact spare installed. Damage to the vehicle may
result.

272

STARTING AND OPERATING

Limited Use Spare — If Equipped
The limited use spare tire is for temporary emergency use
on your vehicle. This tire is identified by a limited use
spare tire warning label located on the limited use spare
tire and wheel assembly. This tire may look like the
original equipped tire on the front or rear axle of your
vehicle, but it is not. Installation of this limited use spare
tire affects vehicle handling. Since it is not the same tire,
replace (or repair) the original tire and reinstall on vehicle
at the first opportunity.

WARNING!

The limited use spare tires are for emergency use
only. Installation of this limited use spare tire affects
vehicle handling. With this tire, do not drive more
than 60 mph (100 km/h). Keep inflated to the cold
tire inflation pressure listed on either your tire
placard or limited use spare tire and wheel assembly.
Replace (or repair) the original tire at the first
opportunity and reinstall it on your vehicle. Failure
to do so could result in loss of vehicle control.

Tire Spinning
When stuck in mud, sand, snow, or ice conditions, do not
spin your vehicle’s wheels above 35 mph (55 km/h).

See the paragraph on Freeing A Stuck Vehicle in Section
6 of this instruction.

STARTING AND OPERATING

273

WARNING!

Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause tire dam-
age or failure. A tire could explode and injure
someone. Do not spin your vehicle’s wheels faster
than 35 mph (55 km/h) when you are stuck. And
don’t let anyone near a spinning wheel, no matter
what the speed.

Tread Wear Indicators
Tread wear indicators are in the original equipment tires
to help you in determining when your tires should be
replaced.

These indicators are molded into the bottom of the tread
grooves and will appear as bands when the tread depth
becomes 1/16 inch (2 mm). When the indicators appear
in 2 or more adjacent grooves, the tire should be replaced.

Many states have laws requiring tire replacement at this
point.

274

STARTING AND OPERATING

Replacement Tires
The tires on your new vehicle provide a balance of many
characteristics. They should be inspected regularly for
wear and correct cold tire inflation pressure. The manu-
facturer strongly recommends that you use tires equiva-
lent to the originals in size, quality and performance
when replacement is needed (see the paragraph on tread
wear indicators). Refer to the Tire and Loading Informa-
tion placard for the size designation of your tire. The
service description and load identification will be found
on the original equipment tire. Failure to use equivalent
replacement tires may adversely affect the safety, han-
dling, and ride of your vehicle. We recommend that you
contact your original equipment or an authorized tire
dealer with any questions you may have on tire specifi-
cations or capability.

WARNING!

•

Do not use a tire, wheel size or rating other than that
specified for your vehicle. Some combinations of
unapproved tires and wheels may change suspen-
sion dimensions and performance characteristics,
resulting in changes to steering, handling, and brak-
ing of your vehicle. This can cause unpredictable
handling and stress to steering and suspension com-
ponents. You could lose control and have an accident
resulting in serious injury or death. Use only the tire
and wheel sizes with load ratings approved for your
vehicle.

•

Never use a tire with a smaller load index or capacity,
other than what was originally equipped on your
vehicle. Using a tire with a smaller load index could
result in tire overloading and failure. You could lose
control and have an accident.

•

Failure to equip your vehicle with tires having
adequate speed capability can result in sudden tire
failure and loss of vehicle control.

STARTING AND OPERATING

275

Dodge 2500 Diesel (2005 year). Instruction - part 17
