DongFeng RICH. Instruction

Instruments and controls 1-15

Caution

Do not use for extended
periods of time with the
engine stopped.

INSPECTION LIGHT (IF SO
EQUIPPED)

Insert

the

inspection

light

terminal into the cigarette lighter
socket and turn the ignition
switch to “ACC” or “ON”.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-16 Instruments and controls

OBD(IF SO EQUIPPED)

OBD is the abbreviation of

On-Board Diagnostics

。 When

there is a failure of the control
system or parts in relation to
emission

that

cause

the

emission

level

overrun

the

restrict of law, the MI light will be
lighting.  When  there  is  a  failure
of  the  circuit  in  relation  to
emission  which  is  connected  to
the  ECU,  the  MI  light  will  be

lighting also. The icon is

While the MI light is lighting
continually or flashing, to reduce
or avoid the damage to the
engine ECU system:

①. avoid driving at a speed

above 70km/h;

②. avoid

accelerate

decelerate suddenly;

③. avoid driving ramp;

④.  Avoid unnecessary load.
Go  to  the  Zhengzhou  NISSAN
dealer  for  a  check  as  soon  as
possible  although  the  vehicle

can drive.

Caution

Must use unleaded gasoline of

above 87 octants (RON) for

you vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-2 Pre-driving checks and adjustments

DOOR LOCKS

Locking front doors with key
To  lock  the  doors,  turn  the  key
towards  the  back  of  the  vehicle.
To  unlock,  turn  it  towards  the
front.

Locking the door without key

Driver

’s door and copilot’s

door
The door can

’t be locked from the

outside without a key.
This  is  to  prevent  the  door  lock
from  accidentally  being  locked
with the key inside the vehicle.
Using  the  remote  keyless  entry
system  can  lock  or  unlock  all
doors at one time.

Other doors
To lock from the outside without a
key, move the inside lock knob to
the

“LOCK” position, then close

the door.

Warning

●

When locking the door

without a key, be sure not to
leave the key inside the vehicle.

●

Before opening the door,

always look for and avoid
oncoming traffic.

●

not

leave

children

unattended in a locked vehicle.
If an emergency occurs, it will
be difficult to help them.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pre-driving checks and adjustments 2-3

Power door lock
The  power  door  lock  system
allows  you  to  lock  or  unlock  all
doors simultaneously.
Turning  the  driver  side  door  key
will lock or unlock all doors.
Pushing  the  driver

’s inside lock

knob  down  will  lock  all  doors.
Pulling  the  lock  knob  up  will
unlock all doors.
Operating  the  lock-unlock  switch
will lock or unlock all doors except
the drive side door.

HOOD RELEASE

， Pull the hood lock release

handle located below the
instrument panel; the hood will
then spring up slightly.
2

， Raise the lever at the front of

the hood with your fingertips and
raise the hood.
3

， Insert the assist bar into the

slot i in the front edge of the
hood.
4

， When closing the hood, reset

the assist bar to its original
position, then slowly close the
hood and make sure it locks into
place.

Warning

Always  check  that  the  hood  is
closed  and  locked  securely  to
prevent  it  from  opening  while
driving.  The  vehicle  should
only  ever  be  operated  with  the
hood securely closed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-4 Pre-driving checks and adjustments

GLOVE BOX

Warning

Keep glove box lid closed while
driving to prevent injury in an
accident or sudden stop.

FUEL FILLER LID AND CAP

To open the fuel filler lid, turn the
clockwise.  To  lock,  close  it  and
turn the keys counterclockwise.
The  fuel  filler  cap  is  a  screw-on
ratcheting  type.  Tighten  the  cap
clockwise  until  ratcheting  clicks
are  heard.  The  cap  will  lock
automatically.

Caution

●

Gasoline

extremely

flammable and highly explosive
under

certain

conditions.

Always stop engine and do not
smoke or allow open flames or
sparks near the vehicle when
refueling.

●

Fuel

may

under

pressure. Turn the cap one-half
turn and wait for any

“hissing”

sound to stop, to prevent fuel
from spraying out and possible
personal injury.

●

Use

only

genuine

Zhengzhou  NISSAN  fuel  filler
cap  as  a  replacement.  It  has  a
built-in  safety  valve  needed  for
proper  operation  of  the  fuel
system  and  emission  control
system.  An  incorrect  cap  can
result  in  a  serious  malfunction
and possible injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pre-driving checks and adjustments 2-5

TAILGATE LATCH

To open the tailgate, pull the
tailgate handle and lower the
tailgate.
The support stays/chains will hold
the gate open.

●

When closing the tailgate,

make sure that the latches are
securely locked.

●

The weight of the cargo

load must be evenly distributed
over both the front and the rear
axles.

●

All

cargo

should

securely fastened with ropes or
straps to prevent it from
shifting or sliding within the
vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-6 Pre-driving checks and adjustments

FASTEN HOOK

For expediently using, there

’s a

hook at each corner of the cab.

●

The weight of the cargo

load must be evenly distributed
over both the front and the rear
axles.

●

All

cargo

should

securely fastened with ropes or
straps to prevent it from
shifting or sliding within the
vehicle.

Warning

All  cargo  should  be  securely
fastened  with  ropes  or  straps  to
prevent  it  from  shifting  or  sliding
within the vehicle. Abrupt braking
or  stopping  could  lead  to  personal
injury.

REVERSING RADAR (IF SO
EQUIPPED)

Reversing radar system begins

to check itself as you move the
gearshift leave to the

“R”. If no

problem, it works in normal. Two
rings  mean  that  one  of  the
detectors  is  broken  and  three
rings mean all.

If the distance is less than

90cm,it begin  to  ring  slowly  and
if  less  than  50cm,briefly,but  it
rings  all  long  under  30cm.You
should  stop  the  vehicle  and
check outside.

Caution

●

The velocity should be

under 5km/h when reversing
the vehicle.

●

It may result in some

misguider attributed to the
position, background and so
on.

●

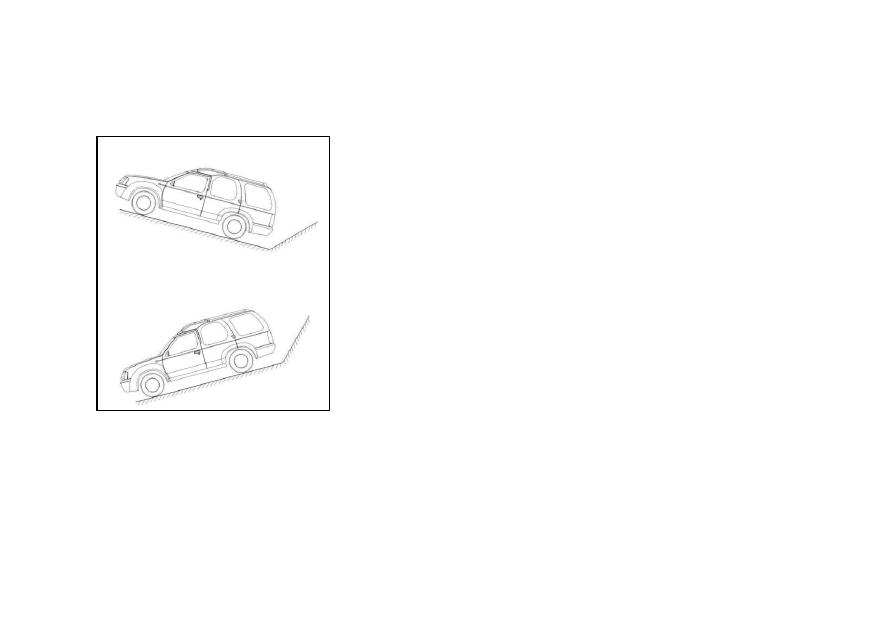

Especially, misguider may

occur under the condition of

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pre-driving checks and adjustments 2-7

reversing on the ramp. Be
careful.

●

Please stop the vehicle

when it rings all the time.

These

condition

follows

cause the misguider

●

Thin

things

like

wire

netting, rope and so on.

●

Driving in the brushwood

or mountain.

●

Things like snow, cotton

and so on absorbing sound
wave.

●

Things

hang

the

detector.

●

Some sounds have the

same frequency as the detector,
like metal, ultrasonic and so
on.

●

The obstruction is the

things like cone.

●

Some

communication

equipment  may  influence  the
detector  .(except  for  mobile,
the system of sound )

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-8 Pre-driving checks and adjustments

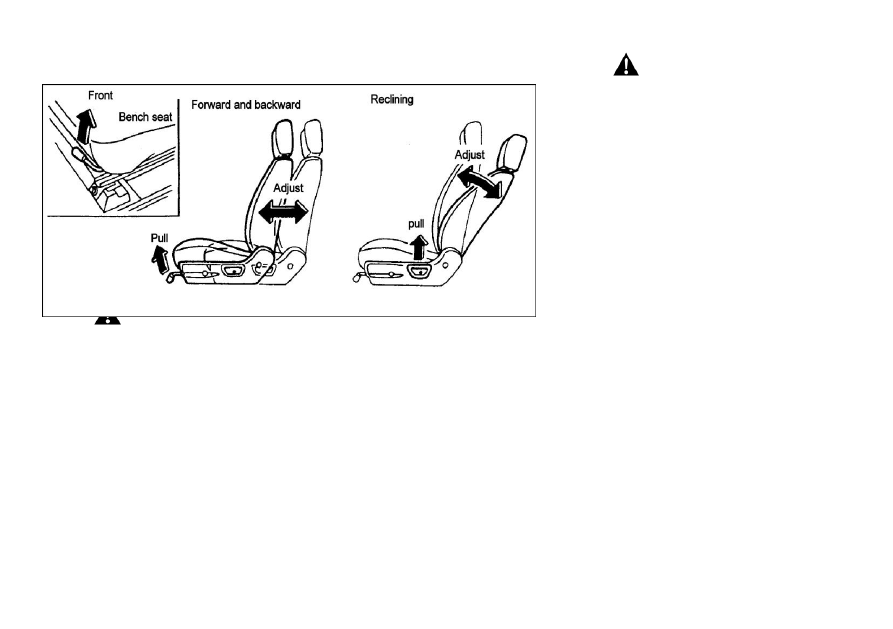

SEATS

Seat Adjustment

Warning

●

Do not adjust the driver

’s

seat  while  driving.  This  seat
moves  suddenly  and  could
cause  loss  of  control  of  the
vehicle.

●

After adjustment, check to

be sure that the seat is
securely locked.

， Forward and backward

Pull the lever up and hold it while
you slide the seat forward or
backward to the desired position.
Release the lever to lock the seat
in position.

， Reclining（Except for bench）

Pull  the  lever  up  and  lean  back
until the desired angle is obtained.
To  bring  the  seat  back  forward
again.  Pull  the  lever  and  move
your body forward. The seat back
will move forward automatically.

Warning

The  seatback  should  not  be
reclined  any more than needed
for  comfort.  Seat  belts  are  the
most

effective

when

the

passenger  sits  well  back  and
straight  up  in  the  seat.  If  the
seat  is  reclined,  the  risk  of
sliding  under  the  lap  belt  and
being injured is in increased.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pre-driving checks and adjustments 2-9

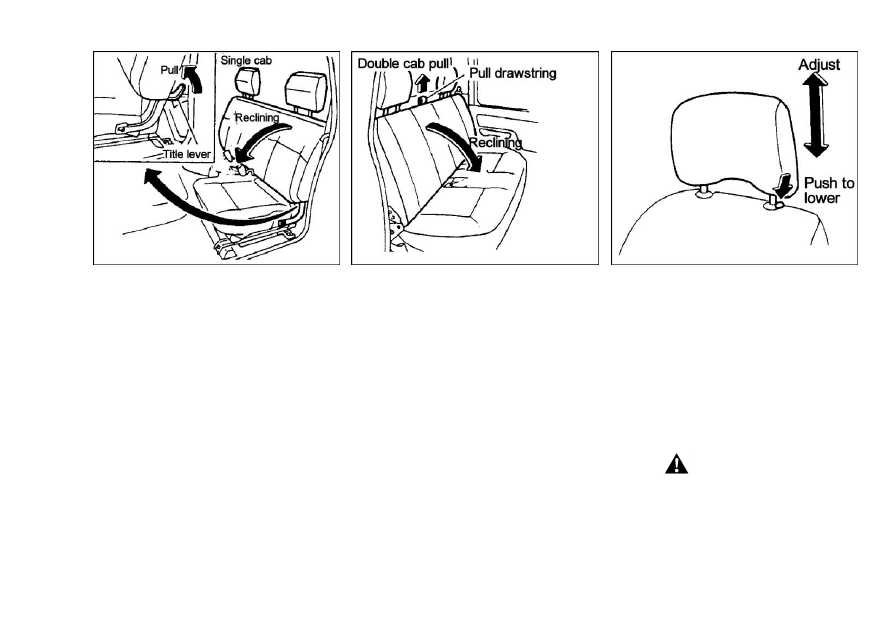

Recline rear seat
The  rear  seat  can  be  folded
forward  to  get  the  lifting  jack  and
so on easily.
Pull  the  strap  up  and  push  back
forward to fold it down.

Head restraints
Adjust  the  top  of  the  head
restraints  even  with  the  top  of
your ears.
To  raise  the  restraint,  just  pull  it
up.  To  lower,  push  the  lock  knob
and push the head restrain down.
After  adjustment,  make  sure  that
it is adjustment, make sure that it
is securely locked.

Warning

Head

restraints

should

adjusted properly as they may
provide significant protection
against whiplash injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-10 Pre-driving checks and adjustments

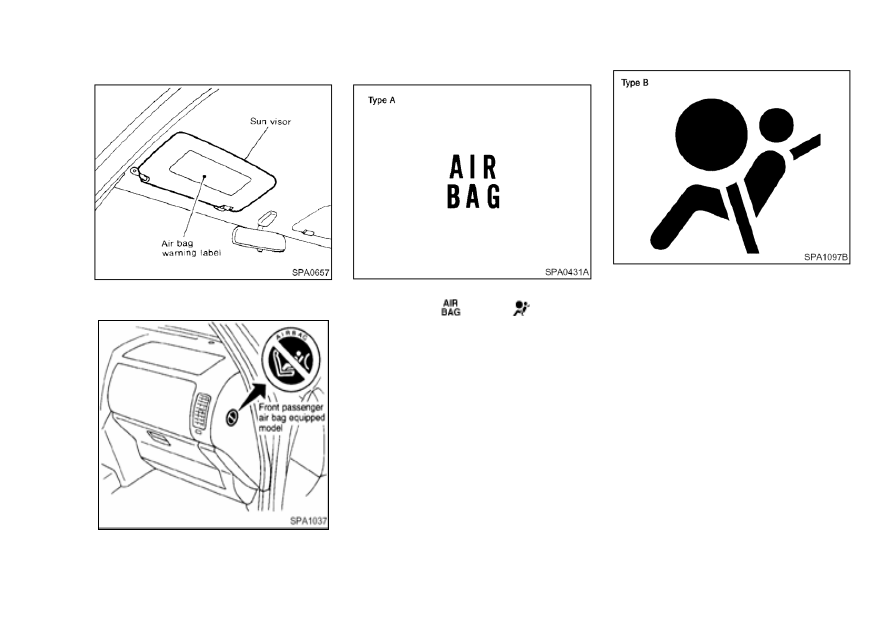

SUPPLEMENTAL
RESTRAINT SYSTEM
（Models equipped with

driver and front passenger

air bags

）

This

Supplemental

Restraint

System

section

contains

important information concerning
the driver and passenger air bags.
The

Supplemental

Restraint

System  Air  Bag  can  help  reduce
impact  force  to  the  driver  in
certain  frontal  collisions.  The  air
bag  is  designed  to  supplement
the  crash  protection  provided  by
the  driver  seat  belt  and  is  not  a
substitute  for  it.  The  seat  belts
should  always  be  correctly  worn
and  the  driver  seated  a  suitable
distance  from  the  steering  wheel.
(See  “Seat  belts”  for  instructions
and  precautions  on  seat  belt
usage.)
The  air  bag  works  when  the
ignition  key  is  on  the

“on” or

“start” position .

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pre-driving checks and adjustments 2-11

Warning

●

The air bag ordinarily will

not inflate in the event of a side
impact, rear impact, roll over,
or

lower

severity

frontal

collision;  so  always  wear  your
seat  belts  to  help  reduce  the
risk  or  severity  of  injury  in
various kinds of accidents.

●

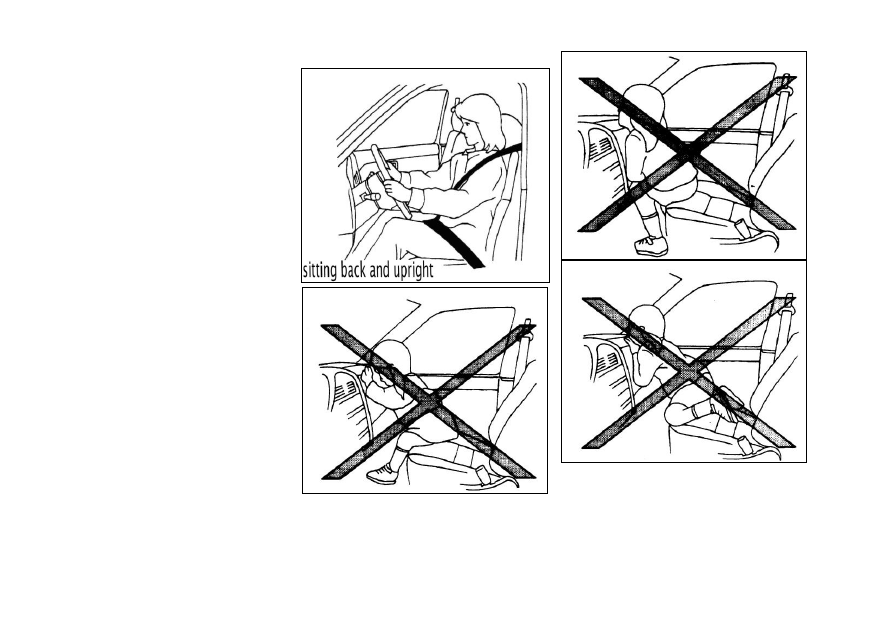

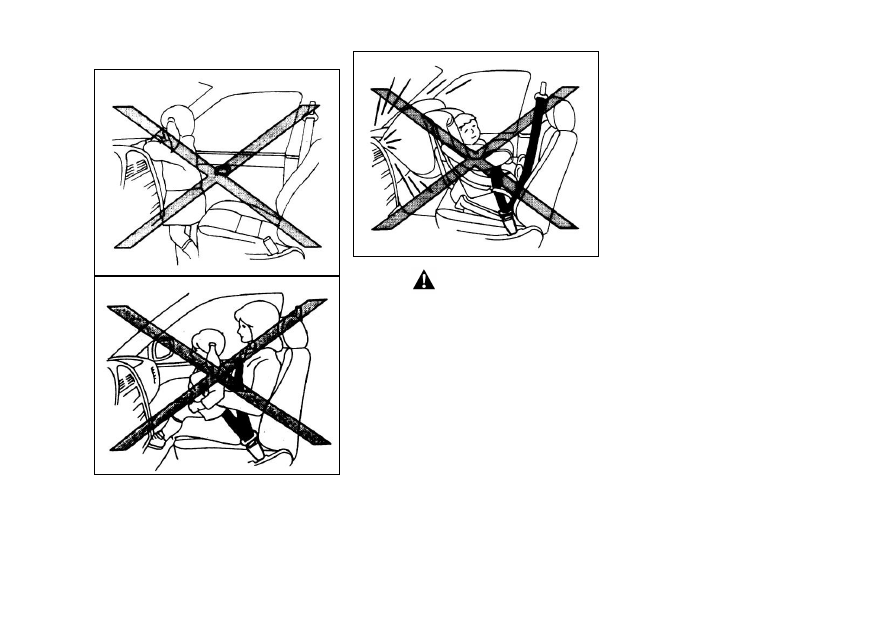

The seat belts and the air

bag  are  most  effective  when
you  are  sitting  back  and
upright  in  the  seat.  Air  bag
inflates  with  great  force.  If  you
are unrestrained, leaning

forward, sitting sideways or out
of position in any way, you are
at greater risk of injury or death
in a crash and may also receive
serious  or  fatal  injuries  from
the air bag if you are up against
it when it inflates.

Air Bag System
The driver air bag is located in the
center  of  the  steering wheel.  The
air  bag  system  is  designed  to
inflate  in  higher  severity  frontal
collisions, although it may inflate if
the  forces  in  another  type  of
collision  are  similar  to  those  of  a
higher  severity  frontal  impact.
When the air bag inflates, a fairly
loud

noise

may

heard,

followed  by  release  of  smoke.
This  smoke  is  not  harmful  and
does  not  indicate  a  fire,  but  care
should

taken

not

intentionally inhale it, as it may
cause irritation and choking. The
air bag, along with the use of seat
belts, helps to cushion the impact
force on the face and chest of the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-12 Pre-driving checks and adjustments

occupant.
The seat belts should be correctly
worn  and  the  driver  seated
upright  as  far  as  practical  away
from the steering wheel. Since the
air bag inflates quickly in order to
help  protect  the  occupant,  the
force  of  the  air  bag  inflating  can
increase  the  risk  of  injury  if  the
occupant  is  too  close  to  or  is
against the air bag module during
inflation.  The  air  bag  will  deflate
quickly after a collision.

After turning the ignition key to
the  “ON”  position,  the  air  bag
warning  light  illuminates.  The
air  bag  warning  light  will  turn
off after about 7 seconds if the
system is operational.

WARNING

●

Right

after

inflation,

several

air

bag

system

components will be hot. Do

●

not touch them; you may

severely burn yourself.

●

No unauthorized changes

should

made

any

components or wiring of the air
bag  system.  This  is  to  prevent
accidental  inflation  of  the  air
bag  or  damage  to  the  air  bag
system.

●

Tampering with the air bag

system may result in serious
personal

injury.

Tampering

includes

changes

the

steering

wheel

placing

material

over

the

steering

wheel pad or by installing
additional trim material around
the air bag system.

●

Do not attach any objects

to the steering wheel pad.
Objects

attached

the

steering

wheel

pad

may

become dangerous projectiles

and  cause  injury  if  the  air  bag
inflates.

Work around and on the air bag
system  should  be  done  by  an
authorized  Zhengzhou  NISSAN
dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pre-driving checks and adjustments 2-13

AIR BAG WARNING LABEL

Warning labels about the air bag
system are placed in the vehicle.

AIR BAG WARNING LIGHT

The

air

bag

warning

light,

displaying

in the

instrument panel, monitors the
circuits of the front and side (if so
equipped) air bag systems (and
pre-tensioner seat belt

— Type B).

The  circuits  monitored  by  the  air
bag warning light are all sensors,
air  bag  modules  and  all  related
wiring (and pre-tensioner seat belt
— Type B).
After  turning  the  ignition  key  to
the  ON  position,  the  air  bag
warning  light  will  illuminate.  The
air  bag  warning  light  will  turn  off
after about 7 seconds if the

system is operational.

If  any  of  the  following  conditions
occurs,  the  air  bag  and  side  air
bag  systems  (and  pretensioner
seat  belt

— Type B) needs

servicing and should be taken to
your

nearest

authorized

Zhengzhou NISSAN dealer:

●

The air bag warning light

remains on after approximately
7 seconds.

●

The air bag warning light

flashes intermittently.

●

The air bag warning light

does not come on at all.

●

Under these conditions,

the

Supplemental

Restraint

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-14 Pre-driving checks and adjustments

System

Air

Bag

(and/or

pre-tensioner seat belt

— Type

B)  will  not  operate  properly.  It
must be checked and repaired.

Repair and replacement
procedure
The  front  air  bags,  side  air  bags
and  pretensioner  seat  belt  are
designed

inflate

one-time-only

basis.

reminder,  unless  it  is  damaged,
the  air  bag  warning  light  will
remain  illuminated  after  inflation
has

occurred.

Repair

and

replacement of the air bag system
should

done

only

authorized Zhengzhou NISSAN
dealers.
When

maintenance

work

required  on  the  vehicle,  the  air
bag  systems  and  related  parts
and pre-tensioner seat belt should
be  pointed  out  to  the  person
conducting  the  maintenance.  The
ignition  key  should  always  be  in
the  LOCK  position  when  working
under  the  hood  or  inside  the

vehicle.

Warning

●

Once the air bag has

inflated, the air bag module will
not function again and must be
replaced.  The  air  bag  module
should  be  replaced  by  an
authorized  Zhengzhou  NISSAN
dealer.  The  air  bag  module
cannot be repaired.

●

The air bag system should

be  inspected  by  an  authorized
Zhengzhou  NISSAN  dealer  if
there  is  any  damage  to  the
front end portion of the vehicle.

●

When selling your vehicle,

we  request  that  you  inform the
buyer about the air bag system
and  guide  the  buyer  to  the
appropriate  sections  in  this
Owner’s Manual.

●

If you need to dispose of

an air bag or scrap the vehicle,
contact

authorized

Zhengzhou

NISSAN

dealer.

Correct

air

bag

disposal

procedures are set forth in the

appropriate

Zhengzhou

NISSAN

Service

Manual.

Incorrect disposal procedures
could cause personal injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DongFeng RICH. Instruction - part 3
