KIA Cadenza (2019 year). Manual

7 61

Maintenance

Fuse Name

Fuse rating

Circuit Protected

P/SEAT (DRV)

30A

Driver Seat Manual Switch, Driver Integrated memory system Module

POWER OUTLET

20A

Front Power Outlet, Rear Power Outlet

MODULE 2

10A

AMP (Amplifier), Surround View Unit, BCM (Body Control Module), Air Conditioner Control Module, Analog
Clock, Wireless Charger Unit, Air Conditioner Switch, Smart Key Control Module, Front Monitor,
Audio/Video & Navigation Head Unit, Engine Room Junction Block(Power Outlet Relay), USB Charger

SPARE

10A

Spare

MODULE 8

7.5A

BCM (Body Control Module), Smart Key Control Module

7 63

Maintenance

Fuse Name

Fuse rating

Circuit Protected

MULTI

FUSE

MDPS

80A

MDPS (Motor Driven Power Steering) UNIT

B+2

60A

IGPM (Integrated Gateway Power control Module)

BLOWER

50A

Blower Relay

B+3

50A

IGPM (Integrated Gateway Power control Module)

REAR

HEATED

50A

Rear Heated Relay

ABS1

40A

ESC (Electronic Stability Control) Module

IG2

30A

Without Smart Key : Start Relay, Ignition Switch
With Smart Key : Start Relay

B+5

80A

WIPER1, HORN, ECU2, FUEL PUMP, Engine Control Relay

B+1

60A

IGPM (Integrated Gateway Power control Module)

COOLING

FAN2

60A

Cooling Fan1 Relay, Cooling Fan2 Relay

B+4

50A

IGPM (Integrated Gateway Power control Module)

POWER

OUTLET1

40A

Power Outlet Relay

IG1

40A

Without Smart Key : Ignition Switch
With Smart Key : Ignition switch 1, ACC Relay

ABS2

30A

ESC (Electronic Stability Control) Control Module, Multipurpose Check Connector

Engine room compartment fuse panel

Maintenance

Fuse Name

Fuse rating

Circuit Protected

FUSE

TCU1

15A

TCM (Transmission Control Module)

CRUISE

10A

Smart Cruise Control Unit

AMS

10A

Battery Sensor

DEICER

20A

Front Deicer Relay

A/CON

10A

Air Conditioner Control Module

WIPER2

10A

BCM (Body Control Module), ECM (Engine Control Module)

HEATED

MIRROR

10A

Air Conditioner Switch, Driver/Passenger Power Outside Mirror

ECU3

10A

ECM (Engine Control Module)

POWER

OUTLET2

20A

Front Power Outlet & Cigarette Lighter

HORN

20A

Horn Relay

WIPER1

30A

Wiper Power Relay

7 65

Maintenance

Fuse Name

Fuse rating

Circuit Protected

FUSE

TCU2

15A

TCM (Transmission Control Module), Transaxle Range Switch

ABS3

10A

ESC (Electronic Stability Control) Module

POWER

OUTLET3

20A

Not Used

B/UP LAMP

10A

Electro Chromic Mirror, Rear Combination Lamp (Inside) Left Handle side/Right Handle side

SENSOR1

15A

Oxygen Sensor #1~#4

IGN COIL

20A

Ignition Coil #1~#6

ECU2

10A

ECM (Engine Control Module)

FUEL PUMP

20A

Fuel Pump Relay

ECU1

20A

ECM (Engine Control Module)

INJECTOR

15A

Not Used

SENSOR2

10A

Variable Intake Solenoid Valve #1, #2, Electronic Thermostat, Purge Control Solenoid Valve, Canister
Close Valve, Oil Pressure Solenoid Valve, Oil Control Valve #1~#4, Cooling Fan1 Relay, Cooling Fan2
Relay, Fuel Pump Relay

Maintenance

Relay Name

Type

Blower Relay

MINI

Cooling Fan1 Relay

MINI

Cooling Fan2 Relay

MINI

Power Outlet Relay

MICRO

Start Relay

MICRO

Front Deicer Relay

MICRO

Fuel Filler Relay

MICRO

Rear Heated Relay

MINI

Relay

7 67

Maintenance

Engine compartment fuse panel
(Battery terminal cover)

✽

NOTICE

Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.

OYG076038

OYG076039

Maintenance

LIGHT BULBS

Bulb replacement precaution

Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 8.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.

Use only bulbs of the specified
wattage.

• Lamp part malfunction due to

net-work failure

The headlamp, taillight, and fog light
may light up when the head lamp
switch is turned ON, and not light up
when the taillight or for light switch is
turned ON. This may be cause by
network failure or vehicle electrical
control system malfunction. If there is
a problem, we recommend the sys-
tem be serviced by an authorized Kia
dealer.

• Lamp part malfunction due to elec-

trical control system stabilization

A normally functioning lamp may
flicker momentarily. This momentary
occurrence is due to the stabilization
function of the vehicle's electrical on
control system. If the lamp stops
flickering after a few moments, the
vehicle does not require service.
However, if the lamp goes out after
the momentary flickering, or the flick-
ering continues, we recommend the
system be serviced by an authorized
Kia dealer.

WARNING

- Working on

the lights

Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle, burns to your skin or fin-
gers, or an electric shock.

CAUTION -

Light replace-
ment

Be sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuse
or electric wiring system.

CAUTION -

Headlamp
Lens

To prevent damage, do not
clean the headlamp lens with
chemical solvents or strong
detergents.

7 69

Maintenance

✽

NOTICE

• If the light bulb or lamp connector

is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.

• It is normal for an operating lamp

to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.

✽

NOTICE

We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is rein-
stalled at an authorized Kia dealer.

✽

NOTICE

• After driving in heavy rain or

washing, headlamp and taillamp
lenses could appear foggy. This
condition is caused by the temper-
ature difference between the lamp
inside and outside. This is similar
to the condensation on your win-
dows inside your vehicle during
the rain and doesn’t indicate a
problem with your vehicle. If the
water leaks into the lamp bulb cir-
cuitry, we recommend that you
have the vehicle checked by an
authorized Kia dealer.

• Headlamp desiccant (if equipped)

This vehicle is equipped with des-
iccant to reduce fogging inside the
headlamp due to moisture.
The desiccant is a hygroscopic
substance and its performance
may change based on the used
period or environment.
If fogging inside the headlamp due
to moisture continues for a long
time, we recommend that you con-
sult an authorized Kia dealer.

Maintenance

If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.

Light bulb position (Front)

(1) Headlamp (Low)
(2) Headlamp (High)
(3) Front turn signal lamp
(4) Day time running lamp*/

Position lamp (LED type)

(5) Front fog lamp (Bulb type)
(6) Front fog lamp (LED type)
(7) Front side marker

* : if equipped

OYG076044N

OYG076109N

■

Head lamp - Type A

■

Head lamp - Type B

OYG076045

OYG076046

■

Fog lamp - Type A

■

Fog lamp - Type B

7 71

Maintenance

Light bulb position (Rear)

(1) Stop and tail lamp (LED type)
(2) Stop and tail lamp (LED type)
(3) Rear turn signal lamp
(4) Back-up lamp
(5) High mounted stop lamp (LED

type)

(6) License plate lamp

Light bulb position (Side)

(1) Side repeater lamp (LED type)

OYG076050

OYG076047

OYG076048

OYG076049

■

Rear combination lamp

■

High mounted stop lamp

■

License plate lamp

Maintenance

Headlamp (LED type) bulb
replacement

If the head lamp (LED) (1,2) does
not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the head lamp (LED), for it
may damage related parts of the
vehicle.

Headlamp (Low beam) bulb
replacement

1. Open the hood.
2. Remove the headlamp bulb cover

by turning it counterclockwise.

3. Remove the bulb-socket from the

headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.

4. Remove the bulb from bulb-socket

by pulling it out.

5. Insert a new bulb by inserting it

into the bulb-socket.

6. Install the bulb-socket in the head-

lamp assembly by aligning the
tabs on the bulb-socket with the
slots in the headlamp assembly.
Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.

7. Install the headlamp bulb cover by

turning it clockwise.

OYG076051

OYG076110N

7 73

Maintenance

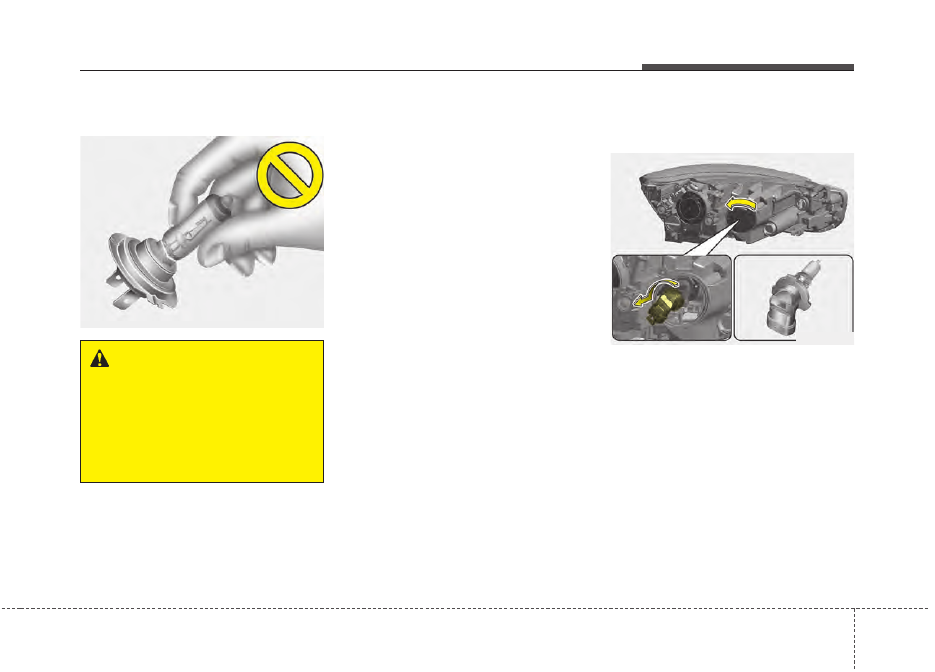

Headlamp bulb

• Always handle them carefully, and

avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids. Never touch the glass with
bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.

• If a bulb becomes damaged or

cracked, replace it immediately
and carefully dispose of it.

• Wear eye protection when chang-

ing a bulb. Allow the bulb to cool
down before handling it.

Headlamp (High beam) bulb
replacement

1. Open the hood.
2. Remove the headlamp bulb cover

by turning it counterclockwise.

3. Disconnect the headlamp bulb

socket-connector.

4. Remove the bulb-socket from the

headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.

WARNING

- Halogen

bulbs

Handle halogen bulbs with care.
• Halogen bulbs contain pres-

surized gas that will produce
flying pieces of glass if bro-
ken.

OHD076046

OYG076052

Maintenance

5. Install a new bulb-socket assem-

bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.

6. Install the headlamp bulb cover by

turning it clockwise.

Front turn signal lamp bulb
replacement

1. Open the hood.
2. Remove the bulb-socket from the

headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.

3. Remove the bulb from the bulb-

socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket.

4. Insert a new bulb by inserting it

into the bulb-socket and rotating it
until it locks into place.

5. Install the socket in the headlamp

assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.

OYG076053

7 75

Maintenance

Front fog lamp (LED type) bulb
replacement

If the front fog lamp (LED) (1, 2) does
not operate, have the vehicle
checked by an authorized Kia dealer.

The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the front fog lamp (LED), for it
may damage related parts of the
vehicle.

Position lamp + DRL* (LED
type) bulb replacement

If the position lamp + DRL* (1) does
not operate, have the vehicle
checked by an authorized Kia dealer.

OYG076054

OYG076055

■ Type A

■ Type B

OYG076056

OYG076111N

■ Type A

■ Type B

Maintenance

The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the position lamp + DRL* (1),
for it may damage related parts of
the vehicle.

* : if equipped

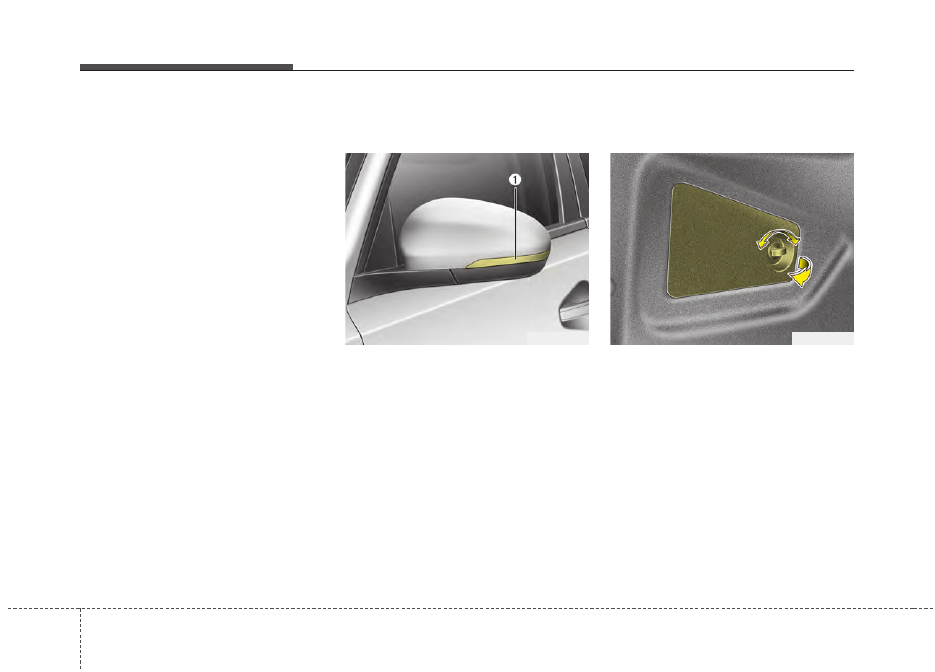

Side repeater lamp bulb
replacement

If the Side repeater lamp does not
operate, have the vehicle checked by
an authorized Kia dealer.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the side repeater lamp, for it
may damage related parts of the
vehicle.

Rear turn signal lamp bulb
replacement

1. Open the trunk lid.
2. Open the service cover.

OYG076057

OYG076050

KIA Cadenza (2019 year). Manual - part 29
