Engine block 1A-13



1.3.2 Dismantle the Engine from
Maintenance Platform

Dismantle the engine from the maintenance
platform according to steps reverse to “Mount
the Engine onto Maintenance Platform”.

Notice

  The engine maintenance platform’s

self-locking brake system may lose efficacy
in an unbalanced state, for instance, the
engine maintenance platform suffers
unbalance due to sudden and rapid action
resulting from the engine mounting onto and
dismantling from the platform, which will
result in danger. Due to this, to ensure the
engine and the entire maintenance
platform’s balance during the operation
process, the maintenance platform’s rotary
handle shall be held tightly in hands during
the engine tilting process.

1.4 Power Generator and Starter

1.4.1 Power Generator’s
Dismantling/Mounting

Warning

  When dismantling /mounting the power

generator on the complete vehicle, the
accumulator cable shall be dismantled firstly,
or the power generator’s Terminal B will
contact the vehicle body, which will lead to
sparks and further result in personal injury
and electric element damage.

1.  Dismantle the power generator according to

the sequence illustrated in the figure.

2.  Mount the power generator according to the

sequence reverse to the dismantling process.

3.  Inspect the belt’s deflection /tension (see

Inspection of the Power Generator Belt).





1 Generator

adjusting

arm

2 Generator

belt

3 Generator

bolt

4 Generator

1.4.2 Explanations on Inspection of Power
Generator Belt

If necessary, inspect the power generator belt’s
deflection and tension: see complete vehicle
maintenance instruction’s corresponding part.

1.4.3 Explanations on adjustment to
tension of power generator and air
conditioning drive belts

1.  Loosen the power generator’s bolt nut  .

①



2.  Loosen the power generator’s fixing nut  .

②



Use the adjusting bolt  ,

③

and adjust the belt

tension and belt difference to the specified value.

3.  Tighten the power generator pivot bolt’s nut

: tightening

①

torque:43～60N·m

4.  Tighten the power generator’s fixing nut ②:

tightening torque:37.3～52N·m



Notice

  If mounting the new power generator belt or

running power generator belt for less than 5
minutes, adjustment shall be made according
to the new part’s standard value.

  If running power generator belt for more than

5 minutes, adjustment shall be made
according to old part’s standard value.

  If it fails to stay within the standard value,

readjustment shall be made from Step 1 on.

1.4.4 Explanations on inspection of power
generator

1.  Confirm if the accumulator has been charged.

②

Power

Generator Belt

④

Power

Generator

③

Adjust the bolt

②

power generator’s

fixing nut power

①

generator’s bolt nut



Engine block 1A-14



2.  Confirm if the belt’s deflection /tension stays

within the specified range (See power
generator part: Inspection of Power Generator
Belt).

3.  Turn the ignition switch to the “ON” position,

and the charge warning lamp will turn on.

4.  Confirm if the charge warning lamp is off

after the engine has been put into running.

★

  Note: If there is abnormal situation, see

corresponding “Complete Vehicle Fault
Diagnosis and Handling”.

1.4.5 Starter Dismantling/Mounting

Warning

  When dismantling/mounting the starter on the

complete vehicle, if the accumulator’s
positive cable fails to be loosened, the
starter’s Terminal B will connect with or
contact the body, which will lead to sparks
and further result in personal injury and
electric element damage. Due to this,
accumulator’s positive cable shall be
dismantled firstly when the following
operations are conducted:

1.  Dismantle the accumulator’s positive cable.

2.  Dismantle the starter according to the

sequence illustrated in the figure.

3.  Mount the starter according to the sequence

reverse to the dismantling process.



1

  Binding posts B cable



2

  Binding posts S cable



3 Starter



1.4.6 Explanations on inspection of starter

Accompanying inspection:

1.  Confirm if the accumulator is charged.

2.  Start the starter to Confirm if the starter runs

stably and has no running noise.

★

  Note: If there is abnormal situation, turn the

ignition switch to the “START” position, and
measure the voltage between Terminal S and
Terminal B, and the standard voltage shall be
greater than 8(V)

—If the voltage stays beyond the specified range,
overhaul the wiring harness and ignition switch.

—If the voltage stays within the specified range,
dismantle the starter and inspect the solenoid
switch and starter.

Zero-load test

1.  Confirm if the accumulator is charged.

2.  Connect the starter, accumulator, voltmeter

and ammeter (see right figure).

3.  Run the starter and Confirm if its running is

stable.

4.  During the starter running process, measure

the voltage and current.



Note: If there is abnormal situation, conduct
repair or replacement.

Standard voltage:11(V), standard current:＜95(A)

1.5 Ignition, Control System

Ignition Coil and PCV Valve
Dismantling/Mounting

Notice

  When dismantling the ignition coil and spark

plug, shield sleeve at the connecting rod can
be easily torn. Due to this, they should be
dismantled only when the replacement is
necessary and tearing and damage shall be
avoided during the dismantling process.

1.  Dismantle parts according to sequence

illustrated in the figure.

Ignit

io

n sw

it

ch



Accumulat

or



Terminal S

Starter



Engine block 1A-15





1

    I

gnition coil

2

    S

park plug

3 PCV

valve

2.  Mantle parts according to sequence reverse to

the dismantling process.

1.51 Spark Plug Dismantling/Mounting

Notice

  Mount the spark plug cautiously because

strong impact will result in spark plug
damage.

PCV Valve Dismantling /Inspection

1.  Dismantle the PCV valve.

2.  Confirm if the air ventilation in PCV valve is

as the following table. If there is abnormal
situation, replacement shall be conducted.



Air Ventilation Condition Table

Test Condition

Test Result

Blow to A

There is air outflow

from Interface B

Blow to B

There is no air outflow from

Interface A

1.5.2 Control System Parts
Dismantling/Mounting

1.  Dismantle parts according to sequence

illustrated in the figure.

2.  Mount parts according to sequence reverse to

the dismantling process.



1

Oil rail

2

Crankshaft position sensor  (see
Inspection of Crankshaft Position
Sensor)

3

Camshaft position sensor

4

Pressure temperature sensor

5

Throttle body

6

Water temperature sensor  (see
dismantling/mounting explanations)

7

Oil control valve

8

Oil pressure sensor

9

Knock sensor

Note: this part only lists different parts of
the control system’s mounting conditions
on the engine. See the complete vehicle’s
corresponding part for relevant fault
diagnosis and inspection.

1.5.3 Crankshaft position sensor’s
dismantling/mounting explanations

1.  When mounting the crankshaft position

sensor, smear “LOCTITE5971” onto the
cylinder body (shade line zone).

2.  When smearing the sealant, keep clean the

unit surface’s bonding part.

3.  After smearing the sealant, mount the

crankshaft position sensor within 3 minutes.

1.5.4 Explanations to inspection of
crankshaft position sensor

Clearance inspection

Attentions

⑥

Not greater

than 15{1.53}

Not greater
than 29.4{3}



Engine block 1A-16





  Under-mentioned inspection shall be

conducted if necessary.

1.  Confirm if the crankshaft rotating speed

sensor is correctly mounted.

2.  Use the plug gauge to measure the clearance

between signal wheel protrusion platform and
crankshaft rotating speed sensor.

Notice

  If the clearance is incorrect, adjust the

crankshaft rotating speed sensor or inspect if
there is torsion and indentation in the signal
wheel’s protrusion part. (If have, replace the
crankshaft signal panel).

Standard clearance value:0.5～1.5mm



1.5.5 Explanations on water temperature
sensor dismantling/mounting

Use the sleeve to dismantle the water temperature
sensor.













Zone for smearing
the sealant

Crankshaft
position sensor



Crankshaft
signal panel



Clearance



Engine block 1A-17



1.6 Intake and Exhaust System

1.6.1 Intake and Exhaust System Dismantling/Mounting

1.  Dismantle parts according to sequence illustrated in the figure.

2.  Mount the parts according to the sequence reverse to the dismantling process.



1

Exhaust manifold’s upper heat shield

5

Throttle body seal ring(see Mounting
Instruction)

2

Exhaust manifold

6

Intake manifold

3

Exhaust manifold’s sealing gasket

7

Intake manifold seal ring(see Mounting
Instruction)

4 Throttle

body







Engine block 1A-18



1.6.2 Explanations on intake manifold
dismantling

1.  Dismantle parts according to the sequence

illustrated in the figure.

2.  Mount parts according to the sequence

reverse to the dismantling process.



1.6.3 Explanations on the intake manifold
seal ring mounting

During the mounting process, mount the seal ring
into the intake manifold’s slot, and wedge the seal
ring’s anti-mistake mark into the intake manifold’s
locating slot.

Caution

  Prior to the mounting, inspect if there is

damage on seal ring. If there is, replacement
shall be made.



1.6.4 Explanations on the throttle body
seal ring mounting

During the mounting process, mount the seal ring
into the intake manifold’s slot, and wedge the seal
ring’s anti-mistake mark into the intake
manifold’s locating slot.



Notice

  Prior to the mounting, inspect if there is

damage on seal ring. If there is, replacement
shall be made.

1.6.5 Explanations on the exhaust
manifold dismantling

1.  Dismantle parts according to the sequence

illustrated in the figure.

2.  Mount parts according to the sequence

reverse to the dismantling process.



1.7 Timing System

1.7.1Timing system dismantling/mounting

1.  Dismantle power generator belt (see power

generator part).

2.  Dismantle ignition coil (see the ignition part).

3.  Dismantle cylinder head hood (see cylinder

head hood part).

4. Dismantle

oil

sump.



5.  Dismantle oil pump and timing chain case

assembly (see oil pump and timing chain case
assembly part).

6.  Dismantle parts according to the sequence

illustrated in the figure

7.  Mount the parts according to the sequence

reverse to the dismantling process.

8.  Adjust the power generator belt deflection

/tension (see power generator part).



Locating slot

Seal ring

Locating

Seal ring



Engine block 1A-19



1

  T

iming chain tensioner assembly

2

 Tensioner arm assembly



3

Timing chain guide assembly



4

Timing chain



5

Camshaft

sprocket

6    Intake VVT

 assembly



1.7.2 Explanations on timing chain
tensioner assembly dismantling

1.  Dismantle parts according to the sequence

illustrated in the figure.

2.  Mount the parts according to the sequence

reverse to the dismantling process.

Notice

  Loosen the timing chain tensioner assembly

bolt, and slowly take off the timing chain
tensioner assembly (prevent the plunger from
popping suddenly).

1.7.3 Explanations on crankshaft pulley
dismantling

Use the special tools to secure the crankshaft for
dismantling.



1.7.4 Explanations on cylinder head hood
dismantling

Loosen the bolt according to the sequence
illustrated in the figure.



1.7.5 Explanations on the timing chain
dismantling

1.  Mount the crankshaft pulley locking bolt.

2.  Rotate crankshaft along the clockwise

direction, and align the gas distribution
inspection mark.

Notice

  Keep the timing chain pulley’s key slot

upward.

  Align the gas distribution inspection mark at

the timing chain pulley on the exhaust side of
intake VVT.

3.  Dismantle timing chain tensioner assembly

(see Timing Chain Tensioner Assembly
Dismantling).

4.  Dismantle the tensioner arm assembly.

5.  Dismantle the timing chain’s guide rail

assembly.

6.  Dismantle the timing chain.

1.7.6 Explanations on the timing chain’s
tensioner assembly mounting

1.  Compress the pallet with bench clamp(see the

figure), and insert one hard steel wire into the
locking hole to lock the timing chain’s
tensioner assembly.

2.  Mount the timing chain’s tensioner assembly

onto the cylinder body, and tighten the bolt.







1.7.7 Explanations on the tensioner arm
assembly mounting

After the mounting, tensioner arm assembly shall
not be excessively tightened, and sway the
tensioner arm assembly to inspect if it can fall
down freely.

1.7.8 Explanations on timing chain
mounting

1.  Rotate the intake & exhaust camshaft to make

two timing marks at the timing chain pulley
on exhaust side of the intake VVT face

Bolt unit

Fixture unit

Double-ended jointing fixture

Locking hole

Pallet compression
direction

Pallet



Engine block 1A-20



toward specific angle.

2.  Mount the timing chain’s guide rail assembly.

3.  Mount the timing chain.

Notice

  Align the timing mark at the timing chain

pulley on the exhaust side of the intake VVT





4.  Mount the tensioner arm assembly (see

tensioner arm assembly mounting
explanations).

Notice

  Confirm if the timing chain is located in the

timing chain guide rail assembly and
tensioner arm assembly’s slot.

5. Pull out the timing chain tensioner

assembly’s locking pin, when the push rod is
popped to push the tensioner arm assembly to
compress the timing chain.

Notice

  Confirm if the timing chain is located in the

tensioner arm assembly and timing chain
guide rail assembly’s guiding slot.

6.  Confirm if all timing marks (4) and valve

timing mechanism have been inspected Align
the mark (1) accurately.

Notice

  Camshaft timing chain pulley and VVT

assembly timing marks are “△”, gas
distribution inspection mark is “○”; and
crankshaft timing chain pulley timing mark is
semicircular groove

  In the event of failure in aligning, dismantle

the timing chain, and repeat the operation
from Step 1

7.  Rotate the crankshaft for two circles along the

clockwise direction, and then rotate the
crankshaft to make the intake VVT assembly
(timing chain pulley on the intake side) align
with two gas distribution inspection marks at
the camshaft chain on the exhaust side.

Notice

  In the event of failure in aligning, repeat the

operation from Step 1

1.7.9 Explanations on the cylinder head
hood mounting

1.  Confirm if the cylinder head hood groove is

free from oil, water, and other foreign
objects.

2.  Confirm if the cylinder head hood’s sealing

gasket has been completely attached to the
cylinder head hood’s groove.

3.  Smear the sealant onto the joint between

cylinder head and oil pump and timing chain
case assembly according to the illustration.

4.  Mount the cylinder head hood bolt according to

the sequence reverse to the dismantling process
of cylinder head hood (see the cylinder head
hood dismantling part), and tighten the cylinder
head hood bolt by step.



1.7.10 Explanations on the crankshaft
pulley mounting

Use special tools to fasten the crankshaft for
mounting.

Sealant-smearing
zone

Sealant-smearing
zone



Engine block 1A-21







1.7.11 Explanations on water pump pulley
mounting

Mount water pump pulley, and tighten the bolt.



1.8 Lubricating System

1.8.1 Oil Sump Dismantling/Mounting

1.  Discharge the oil (see the complete vehicle’s

upper inspection part: Replacement of Engine
Oil).

2.  Dismantle parts according to the sequence

illustrated in the figure.

3.  Mount the parts according to the sequence

reverse to the dismantling process.



1

  Oil drain plug



2

  Combination washer



3

  Bolt

4

Oil pan



1.8.2 Explanations on the oil sump
dismantling

1.  Dismantle the oil drain plug, and discharge

the oil in the oil sump.

2.  Dismantle oil sump bolt step by step along the

clockwise direction.

3.  Use the oil sump dismantling tool to dismantle

the oil sump from the engine.

1.8.3 Explanations on the oil sump
mounting

Notice

  If the bolt will be reused, eliminate the

sealant on original thread because bolt with
old sealant may lead to damage of the screw
hole.

  When mounting the reused oil sump, remove

the residual sealant at the oil sump and
corresponding mounting place.

1.  Add continuous sealant on the internal side of

the oil sump bolt hole sealant, and overlap the
front ends, with sealant diameter ranging
between Φ2.0 and Φ3.0mm

2.  Mount the soil sump according to the

sequence reverse to the dismantling process.



Bolt unit

Fixture unit

Double-ended jointing fixture

Dowel hole

Oil sump

Smear sealant prior
to mounting



Engine block 1A-22





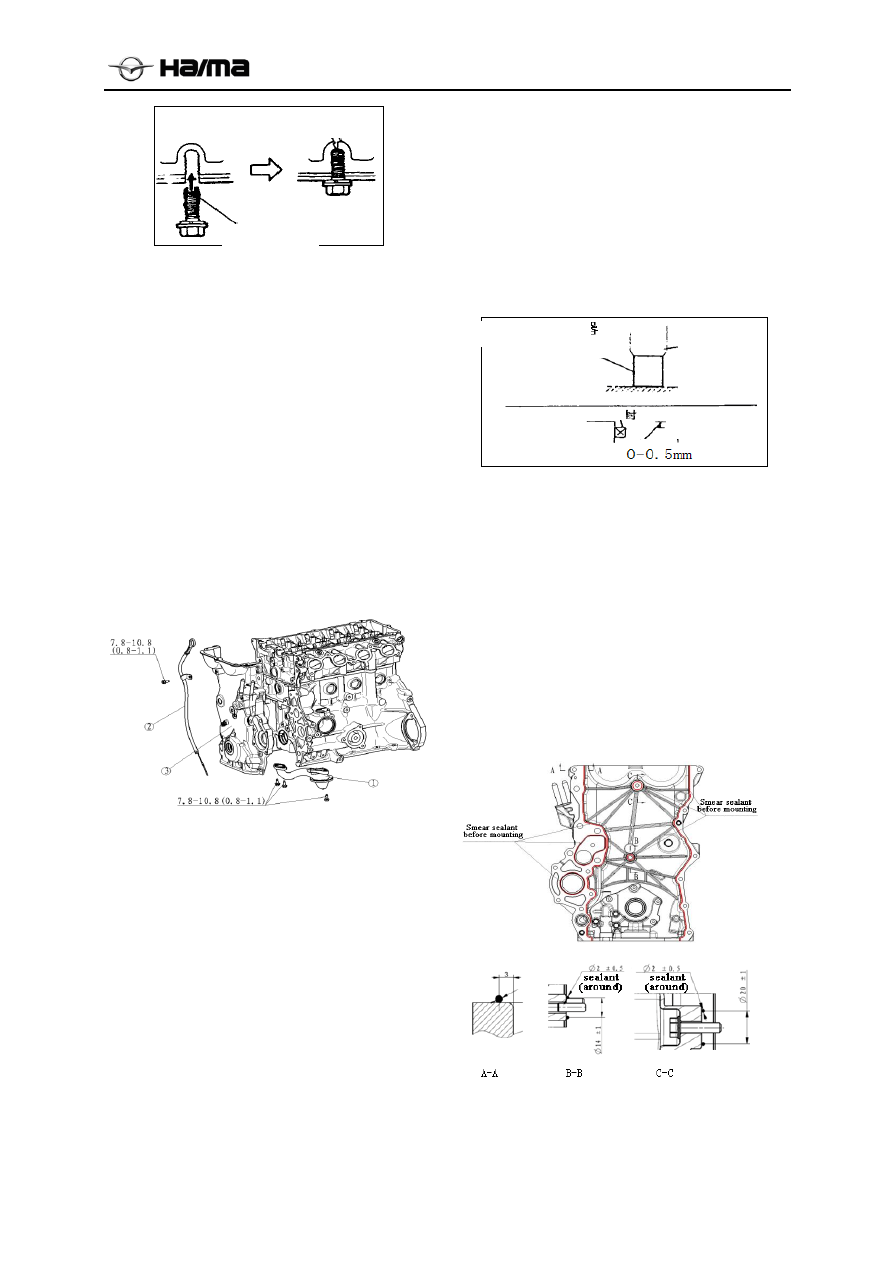

1.8.4 Oil Pump and Timing Chain Case
Assembly Dismantling/Mounting

1.  Dismantle crankshaft pulley (see crankshaft

pulley part).

2. Dismantle cylinder head hood (see

explanations on cylinder head hood
dismantling).

3.  Dismantle oil sump (see oil sump, oil sump

dismantling/mounting).

4.  Dismantle water pump (see water pump

dismantling/mounting).

5.  Dismantle parts according to the sequence

illustrated in the figure.

6.  Mount the parts according to the sequence

reverse to the dismantling process.





1  Oil filter(see Mounting Instruction)

2 Dipstick

guide



3

Oil pump and timing chain case assembly (see
Dismantling Explanations /see Mounting Explanations)

1.8.5 Explanations on oil pump’s oil seal
dismantling

If necessary, use clean cloth to wrap the
screwdriver, and dismantle the oil seal lightly.
Dismantled oil seal should be replaced, and further
application is prohibited.

1.8.6 Explanations on oil pump’s oil seal
mounting

1.  Smear clean oil onto the oil seal’s peripheral

parts.

2.  Mount the oil seal with hands.

3.  Use the special tools to evenly compress the

oil seal.

Compression depth:0～0.5mm



4.  Continuously smear the sealant onto the oil

pump and timing chain case assembly’s rims,
see the figure.
Sealant diameter:Φ2±0.5mm

Notice

  If the bolt will be reused, eliminate the

sealant on original thread because bolt with
old sealant may lead to damage of the screw
hole.

  When reusing the oil pump and timing chain

case assembly, remove the sealant on the
timing chain case and corresponding
mounting place.





5.  When mounting the oil pump and timing

chain case assembly, tighten bolts by steps
according to the sequence illustrated in the

Cleft

Old sealant

Oil seal erector

Compress

oil seal

oil pump

oil pump



Engine block 1A-23



figure..

Bolt Specifications and Mounting Torque

No. Specification

Bolt rod

length

(mm)

Mounting

torque

(N·m)

1a, 3a, 4a,

5a

6a, 7a, 8a,



M6

25 8～12

2b, 10b

M6

30

8～12

12c M6  45  8～12

13d, 14d

M10

90

36.5～42.5

1.8.7 Explanations on the oil filter
mounting

Tighten bolts by steps according to the sequence
illustrated in the figure





1.8.8 Explanations on oil pump
disassembling/ mounting

1.  Dismantle oil pump and timing chain case

assembly (see oil pump and timing chain case
assembly dismantling/mounting).

2.  Disassemble parts according to the sequence

illustrated in the figure.

3.  Mount parts according to the sequence

reverse to the disassembling process.





1 Bolt
2 Oil pump cover
3 Screw plug
4 Pressure spring
5 Control piston
6 Inner rotor (Smear oil before mounting)
7 Outer rotor (Smear oil before mounting)



1.8.9 Inspection of Oil Pump

Explanations on inspection of rotor clearance

1.  Measure the following clearance, and replace

the rotor or pump body if necessary.

Standard gear tip clearance: 0.06～0.20mm

Maximum gear tip clearance: 0.22mm



Standard pump body clearance: 0.250～0.325

Maximum pump body clearance: 0.35mm



Standard backlash: 0.03～0.09mm

Maximum backlash: 0.14mm



Engine block 1A-24





Explanations on inspection of pressure
spring

Exert pressure on the spring and inspect the spring
height. If necessary, replace the pressure spring.

Pressure range:97.7～107.4N{9.96～10.96kgf}

Standard height: 33.50mm



1.9 Cooling System

1.9.1 Thermostat Dismantling/Mounting

1.  Dismantle parts according to sequence

illustrated in the figure.

2.  Mount the parts according to the sequence

reverse to the dismantling process.



1 Thermostat

cover

2

Thermostat
see explanations on thermostat mounting

1.9.2 Explanations on thermostat
inspection and mounting

1.  Put the thermostat into a vessel with hot water,

in which a thermometer is inserted. Then heat
the thermostat to raise the temperature, and
inspect the thermostat. If it does not comply
with regulations, replace the thermostat.

—Valve is closed at the room temperature.

—Valve is opened after the temperature rise.

Opening temperature (℃):80～84

Full-opening temperature (℃):95

Full-opening stroke (mm):≥8.5

2.  Confirm if the thermostat’s movable pin is

upward, see the figure.

3.  Align the cylinder body thermostat’s

mounting place, and mount the thermostat
onto the cylinder body.



1.9.3 Cooling water pipeline
dismantling/mounting

1. Dismantle thermostat (see thermostat

dismantling /mounting).

2.  Dismantle parts according to sequence

illustrated in the figure.

3.  Mount the parts according to the sequence

reverse to the dismantling process.





Movable pin

Replace parts

after the

dismantling



Engine block 1A-25



3

bolt(heater water pipe assembly)

4

bolt(heater water pipe assembly)

5

heater water pipe assembly

1.9.4 Explanations on heater water pipe
/O-ring mounting

When replacing the O-ring, smear the water onto
the O-ring, in order to facilitate its mounting and
avoid damage.

Notice

  Do not smear engine oil or other greasy

substances onto the O-ring.

1.9.5 Water Pump Dismantling/Mounting

1.  Dismantle power generator belt (see power

generator belt part).

2.  Dismantle parts according to sequence

illustrated in the figure.

3.  Mount the parts according to the sequence

reverse to the dismantling process.





1

Bolt (water pump pulley)

2

Water pump pulley

3

Bolt (water pump assembly)

4

Bolt (water pump assembly)

5

Water pump assembly



Replace parts after
the dismantling



Engine block 1A-26



1.10 Cylinder Cover and Valve Mechanism









,



1

Intake VVT (see the dismantling /mounting explanations)

2

Camshaft sprocket (see the dismantling /mounting explanations)

3

Camshaft (see the dismantling /mounting explanations)

4 Tappet

5

Cylinder head (see the dismantling /mounting explanations)

6

Cylinder head gasket















Smear sealant before mounting
the cylinder head hood

Smear oil before the mounting

Smear oil
before the
mounting

Replace parts after the
dismantling

Smear oil
before the
mounting

Smear oil before the mounting



Engine block 1A-27



1.10.1 Cylinder Head Mechanism
Dismantling/ Mounting

1.  Dismantle the intake and exhaust manifold

(see the intake/exhaust system part).

2.  Dismantle the timing chain(see the timing

chain part).

3.  Dismantle parts according to sequence

illustrated in the figure.

4.  Mount the parts according to the sequence

reverse to the dismantling process.

Explanations on intake VVT dismantling

1.  Lock the camshaft’s hexagon part with a

wrench (see the figure), so as to dismantle the
VVT and camshaft sprocket’s fixing bolts.

2.  Dismantle the VVT’s fixing bolts.

3.  Shake the VVT slightly, and take off it from

camshaft with caution.





Explanations on camshaft dismantling

1.  If necessary, inspect and adjust the valve

clearance (see the valve clearance inspection
part).

2.  Inspect the camshaft end gap (see the

camshaft inspection part).

3.  Inspect the camshaft journal clearance (see

the camshaft inspection part).

4.  Loosen the camshaft bearing seat bolts by

steps according to the sequence illustrated in
the figure. First, loosen the front camshaft
bearing cover bolt, and then loosen other
camshaft bearing cover bolts.



Explanations on cylinder head
dismantling

Loosen the cylinder head bolt by step according to
the sequence illustrated in the figure.



Explanations on the cylinder head
mounting

1.  Measure every cylinder head bolt’s outer

diameter differential (d1-d2). If the
differential exceeds 0.15mm, the cylinder
head bolt shall be replaced.

Note: d2 refers to the minimum outer diameter
within the ※ mark’s range.

2.  Tighten the cylinder head bolt to specified

torque by steps according to the sequence
illustrated in the figure.

Tightening torque:17.2 ～ 22.0N·m{1.75 ～
2.25kgf·m}



VVT fixing bolt



Engine block 1A-28









3.  Mark every bolt head.

4.  According to the bolt-tightening sequence

(Step 2) illustrated in the figure, rotate every
bolt for 180°～184° from its marker (see the
figure).



Explanations on the camshaft mounting

Notice



Since the camshaft’s mounting clearance is

small, make sure that the camshaft journal is
closely attached to the bearing seat during the
mounting process, or the contact surface
between the shaft and bearing will incur
excessive pressure and in turn suffer damage.
To avoid foresaid situation, regulations below
shall be observed:

1.  Smear some oil onto the camshaft journal and

bearing seat.

2.  Mount the camshaft into camshaft bearing

seat, making camshaft journal closely

attached to the bearing seat.

3.  Mount the camshaft bearing cover onto

corresponding journal according to the
sequence.

4.  Tighten the bolts according to the sequence

illustrated in the figure: first, tighten every
camshaft cover bolt, and then tighten the front
camshaft bearing cover bolt.



Explanations on the VVT mounting

1.  Rotate the camshaft to make the dowel pin

keep upward.

2.  Smear some oil onto the VVT assembly’s

inserting part, align the VVT assembly
location hole to the camshaft dowel pin, and
mount the VVT assembly slowly.

3.  Lock the camshaft’s hexagon part with a

wrench (see the figure), so as to tighten
VVT’s fixing bolts.





Paint mark place
after Step 4

Initial paint mark

VVT assembly location
hole (align camshaft
dowel pin)

VVT assembly
inserting part (smear
some oil around)
