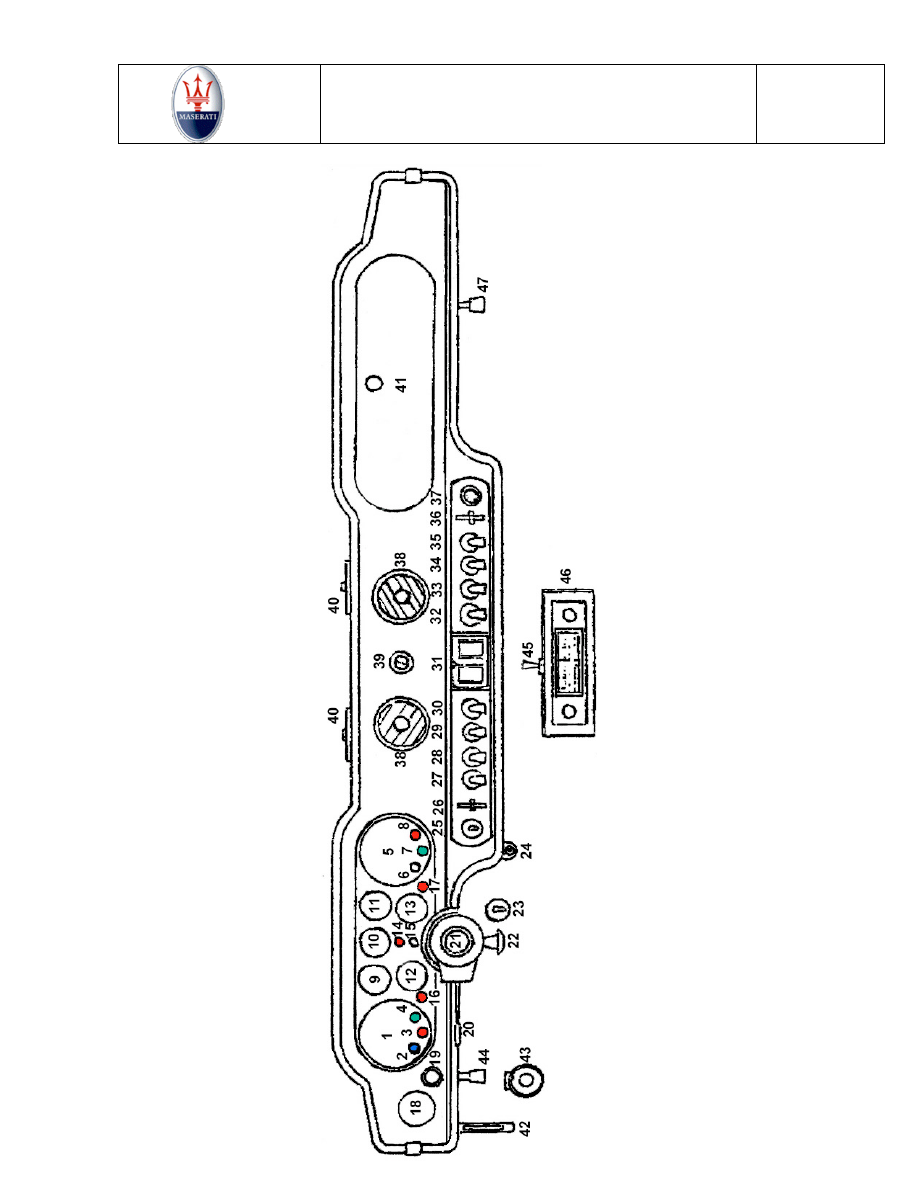

DASHBOARD INSTRUMENTS

1.

Tachometer.

2.

Headlamp main beam warning light - blue.

3.

Direction indicator warning light - red.

4.

Side lamp warning light - green.

5.

Speedometer and odometer.

6.

Heater blower warning light - amber.

7.

Ignition warning light - green.

8.

Alternator charge warning light – green.

9.

Water temperature indicator.

10.

Oil pressure gauge.

11.

Oil temperature indicator.

12.

Fuel level indicator.

13.

Ammeter.

14.

Hand Brake warning light - red.

15.

Raer Window defroster warning light - amber.

16.

Left side fuel tank reserve warning light - red

17.

Right side fuel tank reserve warning light – red.

18.

Electric clock.

19.

Choke control knob.

20.

Change over lever for outer lights.

21.

Air horns push button

22.

Driving position adjustment locking knob.

23.

Steering wheel locking device.

24.

Kilometer counter zero-setting knob.

25.

Ignition starter switch.

26.

Heater water flow control lever.

27.

Outer lights control switch.

28.

Low and fog light switch.

29.

Windscreen wiper switch.

30.

Instrument lighting switch.

31.

Window glass winder dual switch.

32.

Fuel feed pump switch.

33.

Heater blower two-speed control switch.

34.

Rear window defroster switch.

35.

Ceiling light switch.

36.

Ventilation control lever.

37.

Cigarette lighter.

38.

Ventilation outlets.

39.

Air conditioner thermostat.

40.

Windscreen defroster outlets.

41.

Glove box.

42.

Bonnet release lever.

43.

Windscreen washer pump.

44.

Driver's side ventilation outlet control knob (up to car n° 31).

45.

Aereal switch control.

46.

Radio.

47.

Passenger's side ventilation outlet control knob.

1

G

24

31

31

6

7

2

51

1

70

1

1:  Dipped light headlamp

1

G

24

31

31

6

7

2

1

2 :  Main beam  headlamp

51

51

3

8

8

8

8

3 :  Left side fog lamp

4

4

21

4

9

5

48

3

70

4 :  Side lamp and direction indicator

5

5

4

48

84

84

84

84

84

84

84

84

84

84

84

a

94

5 : Side direction indicator

6

6

7

G

24

1

2

31

51

51

2

70

6 :  Dipped light headlamp

7

7

6

6

7

G

24

1

2

31

7 :  Main beam headlamp

8

8

51

51

3

8

8

8

8

8 :  Right side fog lamp

9

4

4

21

4

9

48

10

3

70

9 :  Side lamp and direction indicator

10

9

9

48

10 :  Side direction indicator

11

13

M

14

16

M

15

63

11 :  Motor relay - Condenser fans

12

48

6

70

12 : Horn

13

11

13

M

14

16

M

13 :  Thermal cut-out switches - engine radiator fans

M

14

11

13

M

14

14 :  Radiator fan motor - left
