Holden Engine Troubleshooter. Reference Instruction - part 2

PAGE 15

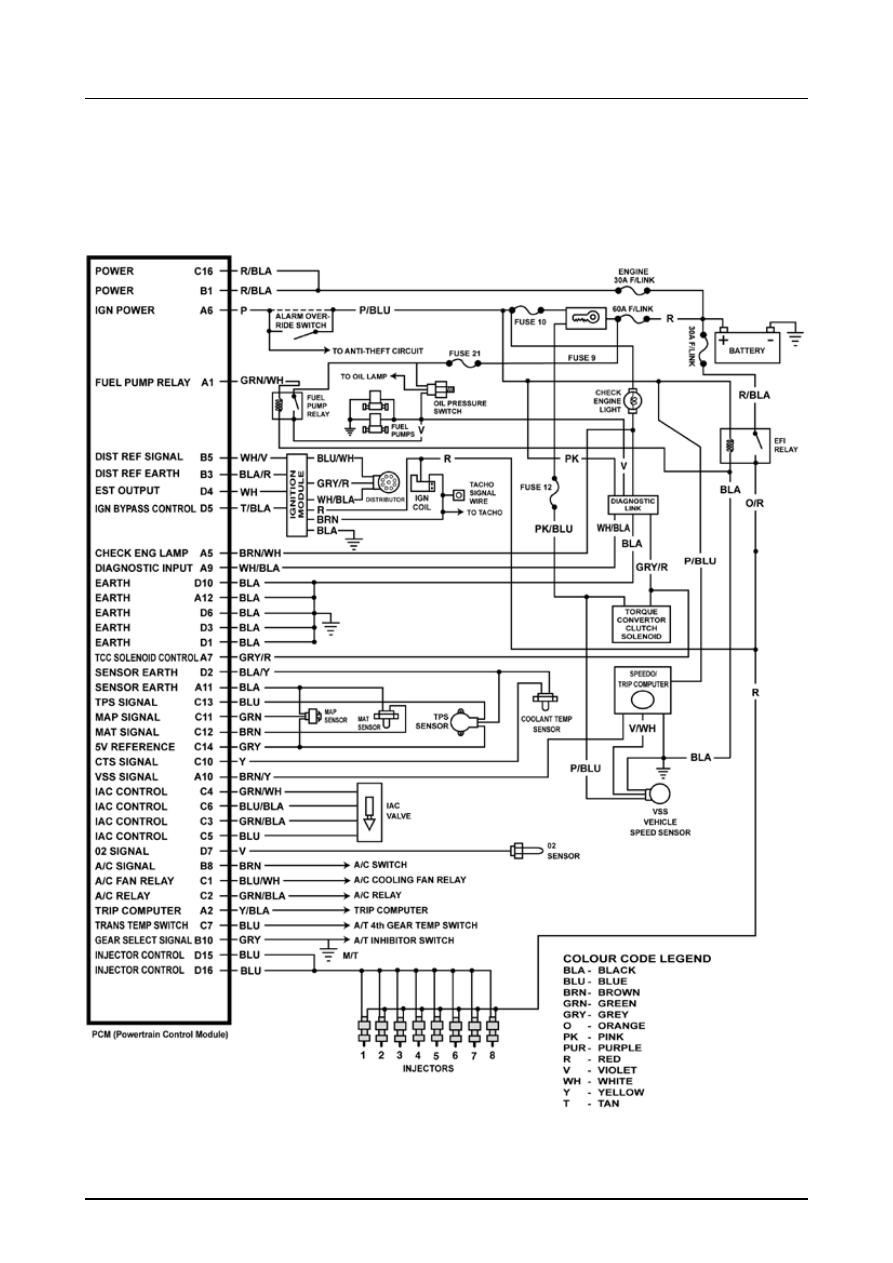

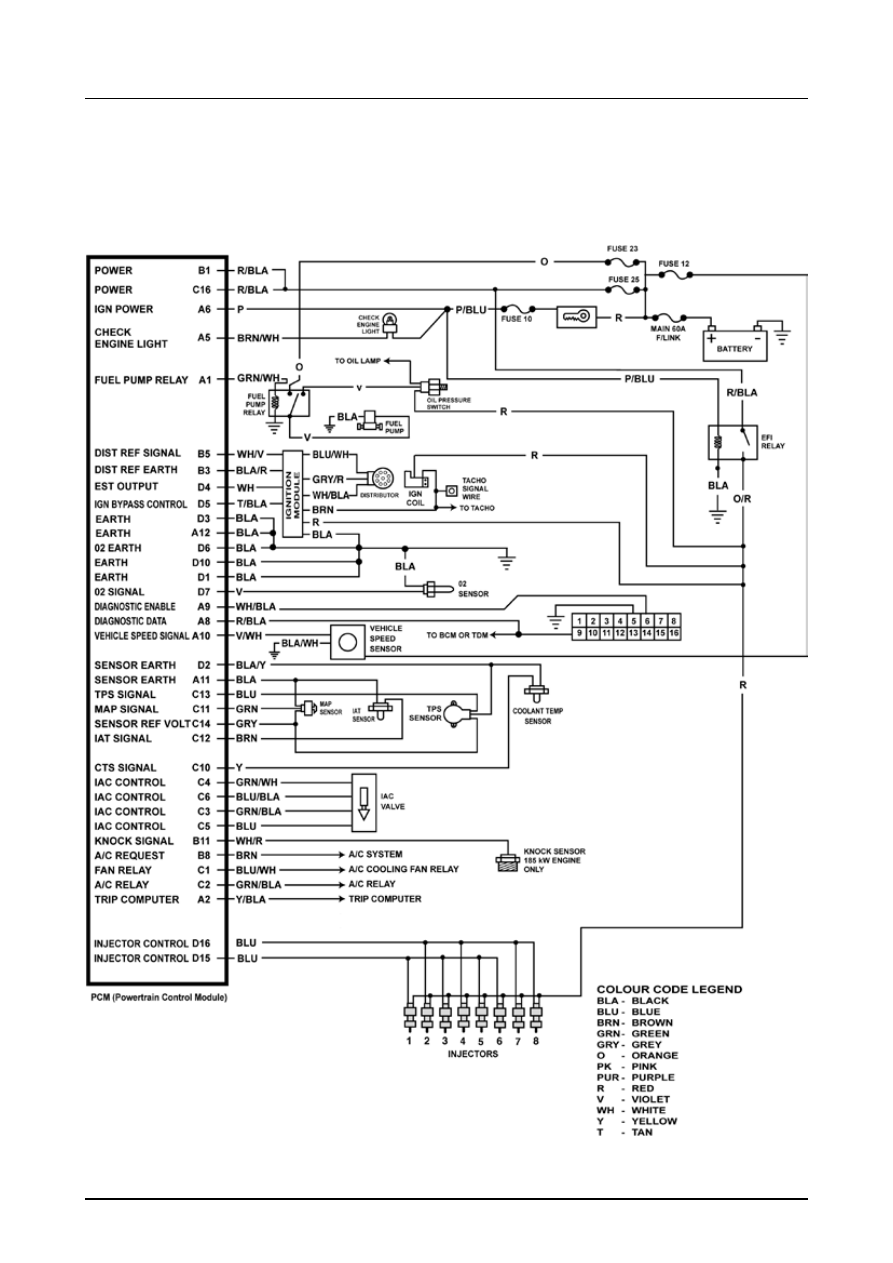

H004  VN Model (from Oct 1989) & VP Model V8


Wiring Diagram

PAGE 16

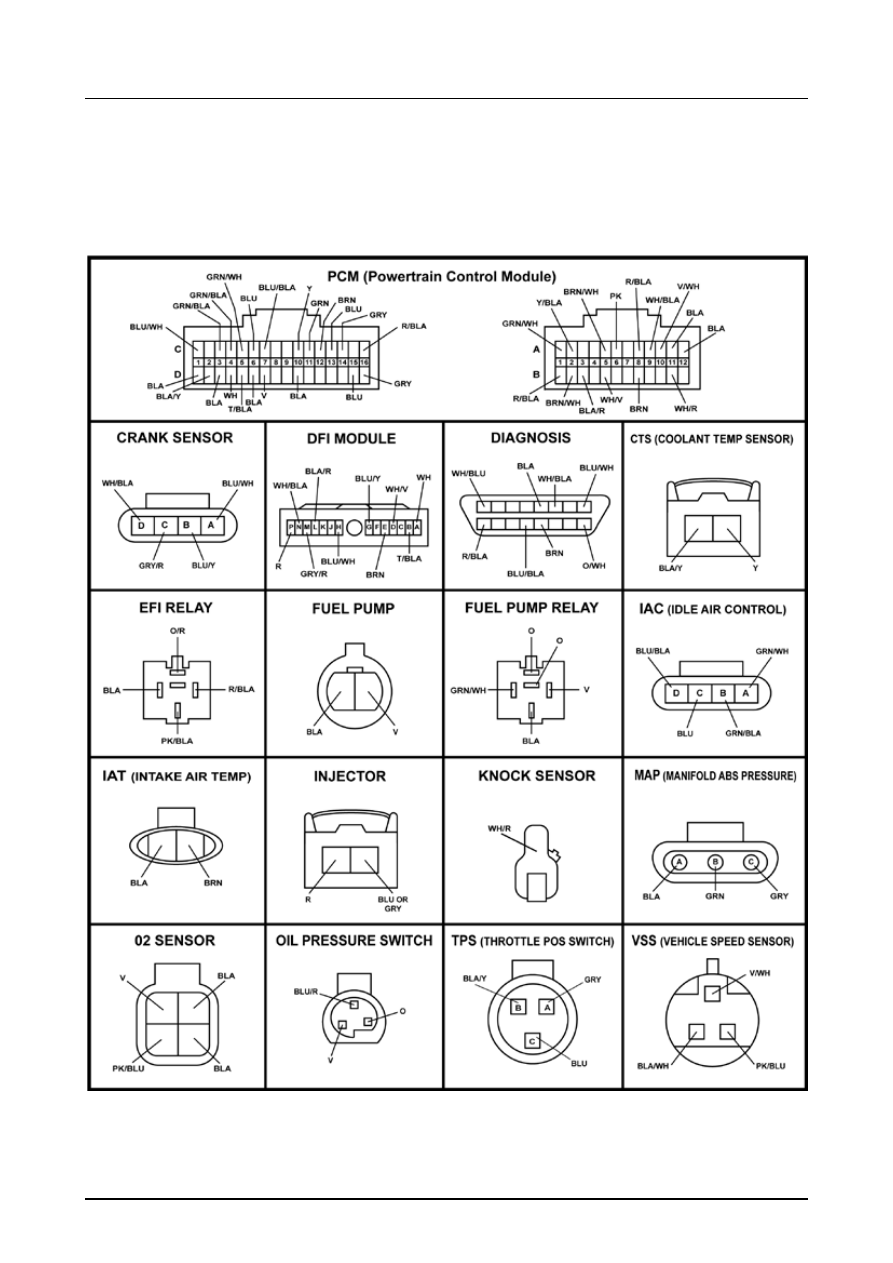

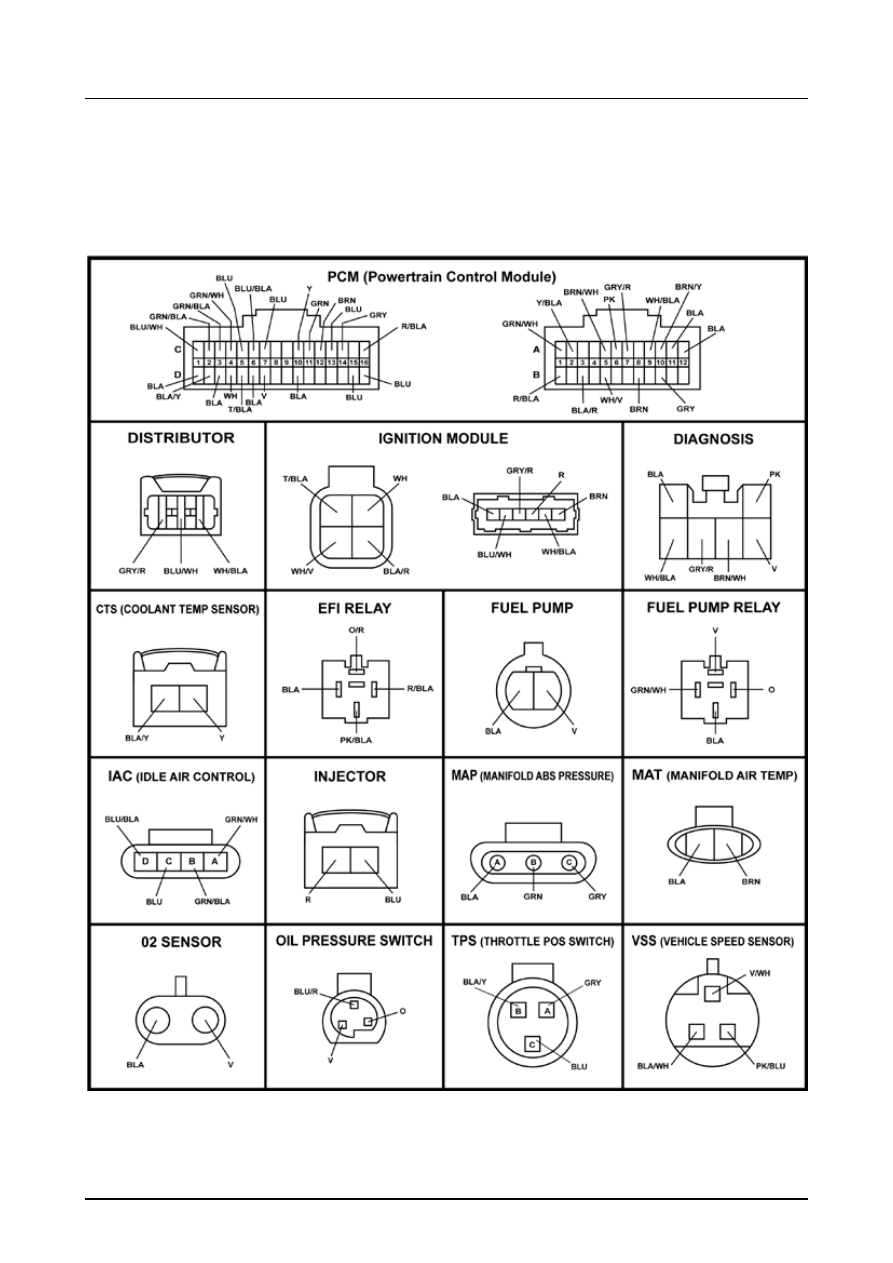

H004  VN Model (from Oct 1989) & VP Model V8 Connectors

PAGE 17

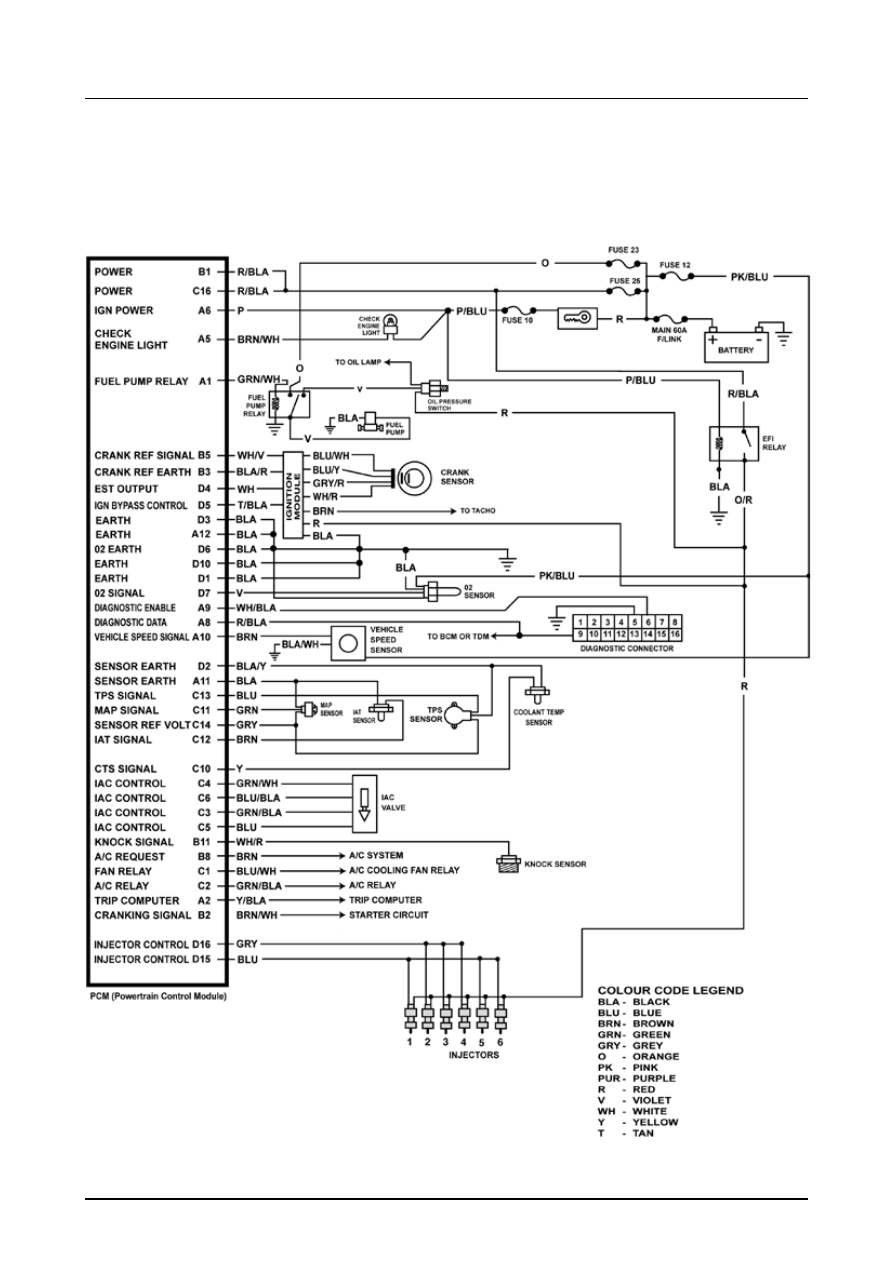

H005  VR Instruction Model V6 Wiring Diagram

PAGE 18

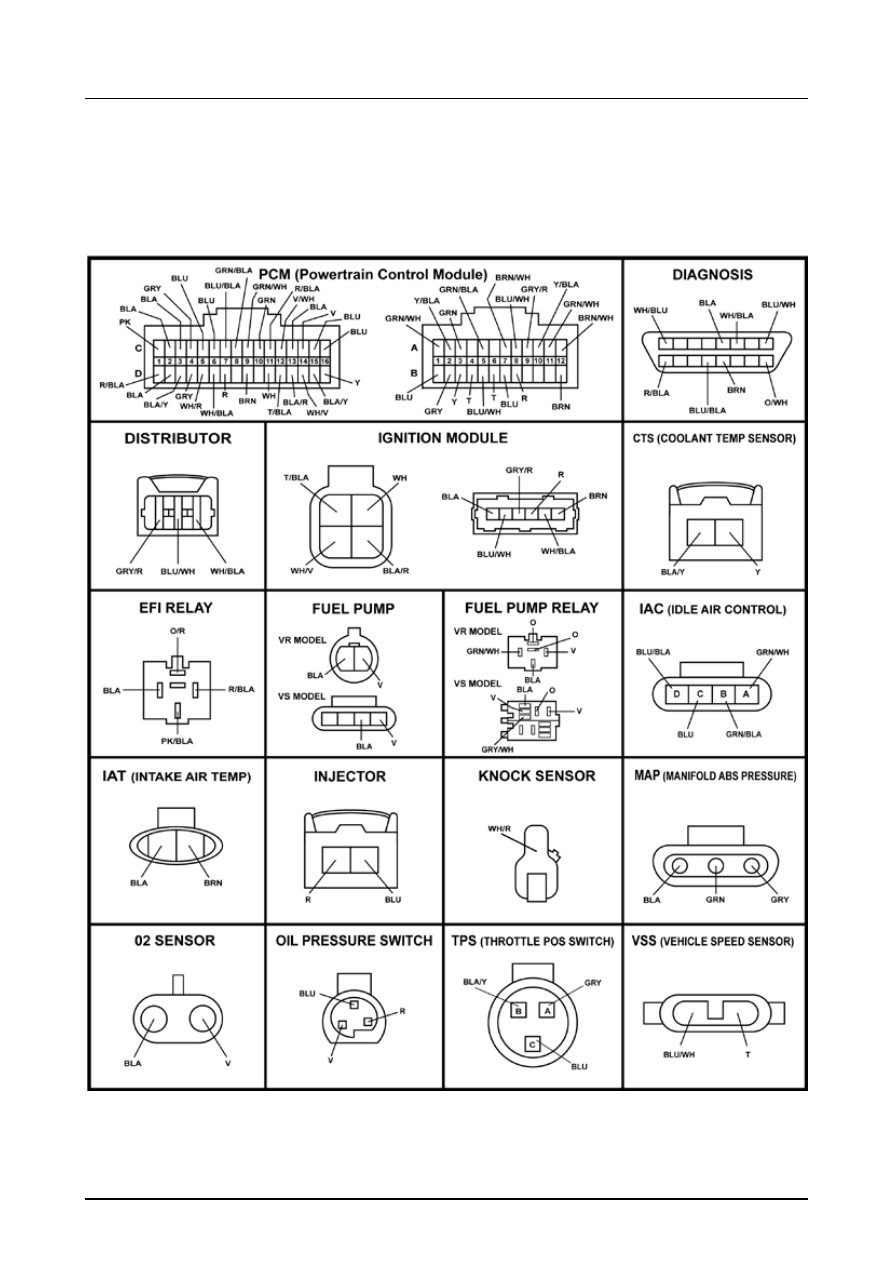

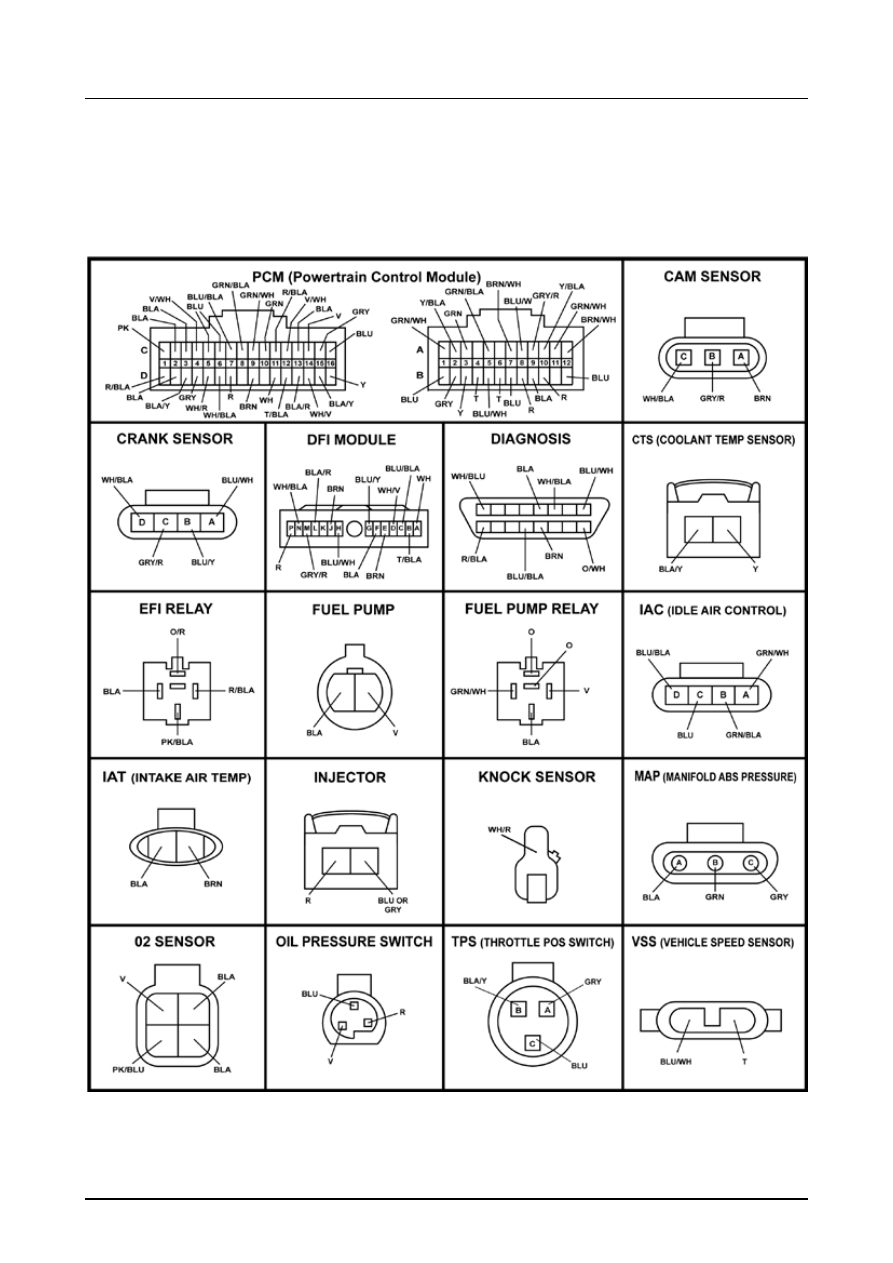

H005  VR Instruction Model V6 Connectors

PAGE 19

H006  VR Automatic Model V6 Wiring Diagram

PAGE 20

H006  VR Automatic Model V6 Connectors

PAGE 21

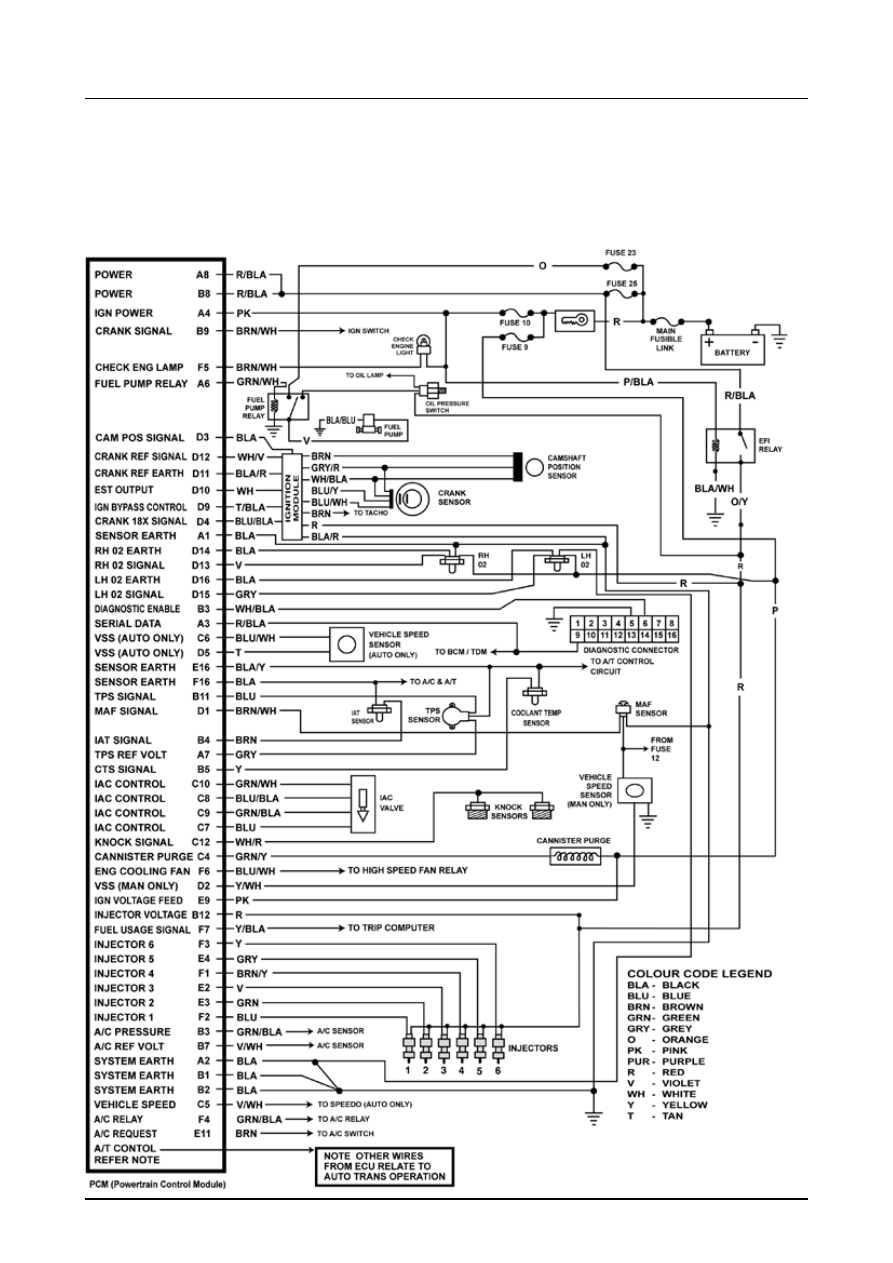

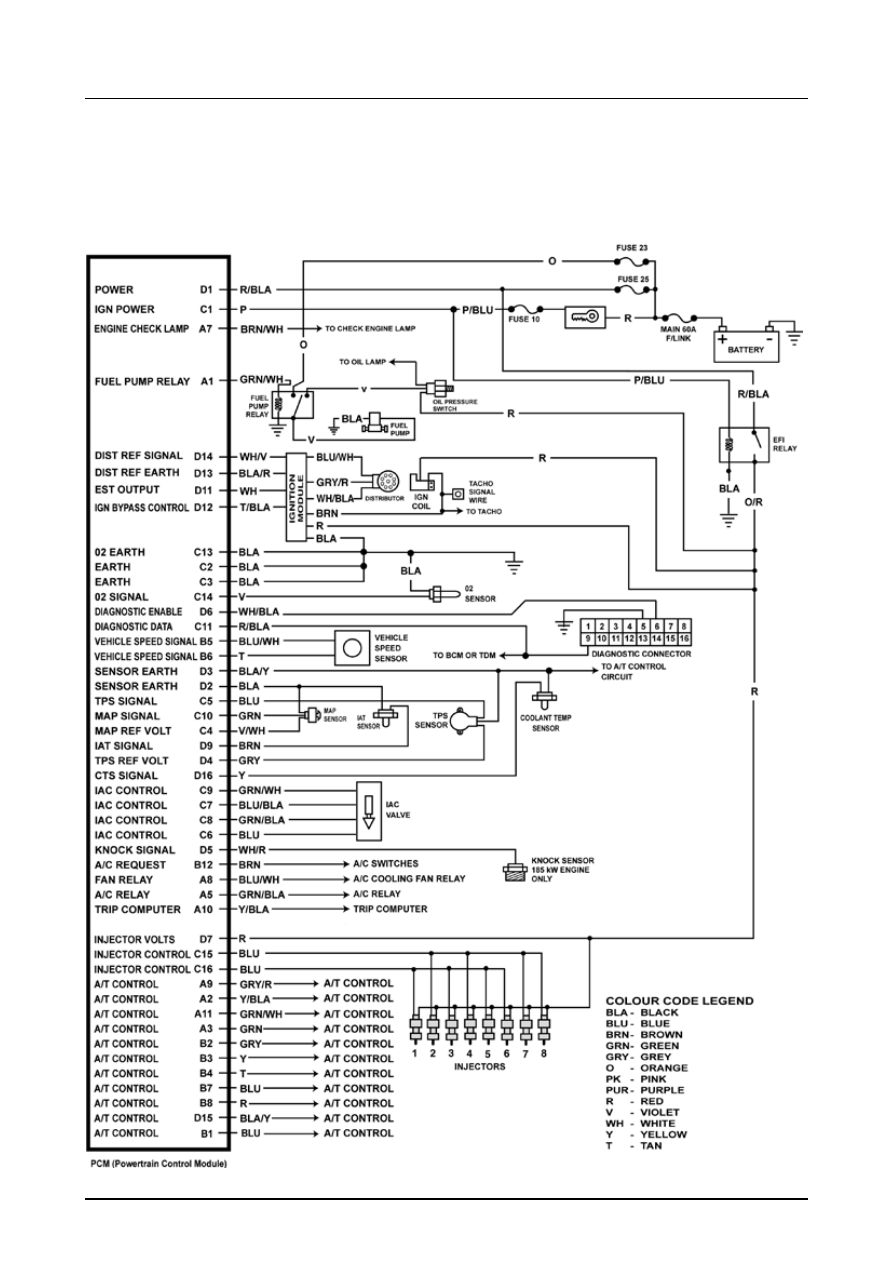

H007  VR & VS Instruction Model V8 Wiring Diagram

PAGE 22

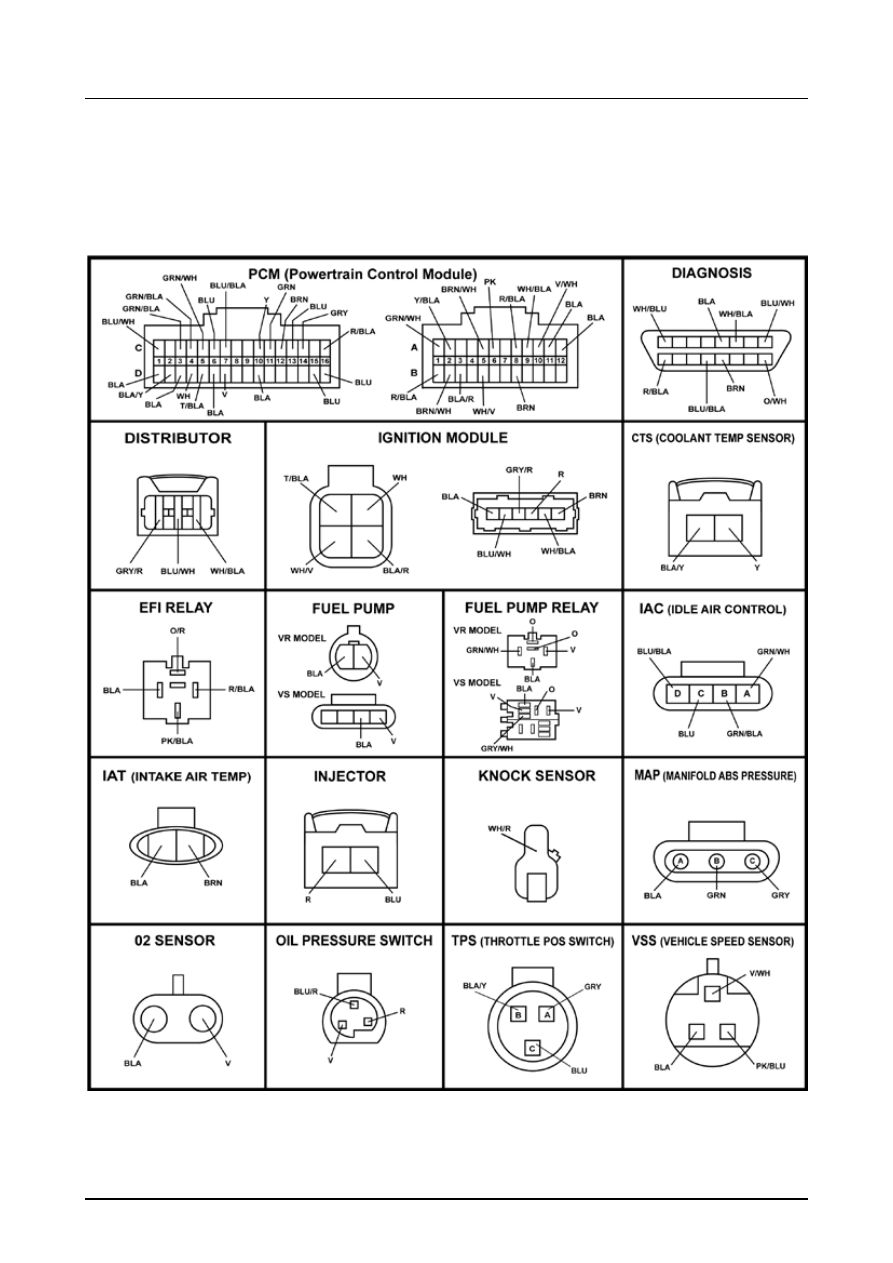

H007  VR & VS Instruction Model V8 Connectors

PAGE 23

H008  VR & VS Automatic Model V8 Wiring Diagram

PAGE 24

H008  VR & VS Automatic Model V8 Connectors

PAGE 25

H009  VS Model V6 Wiring Diagram

PAGE 26

H009  VS Model V6 Connectors

PAGE 27

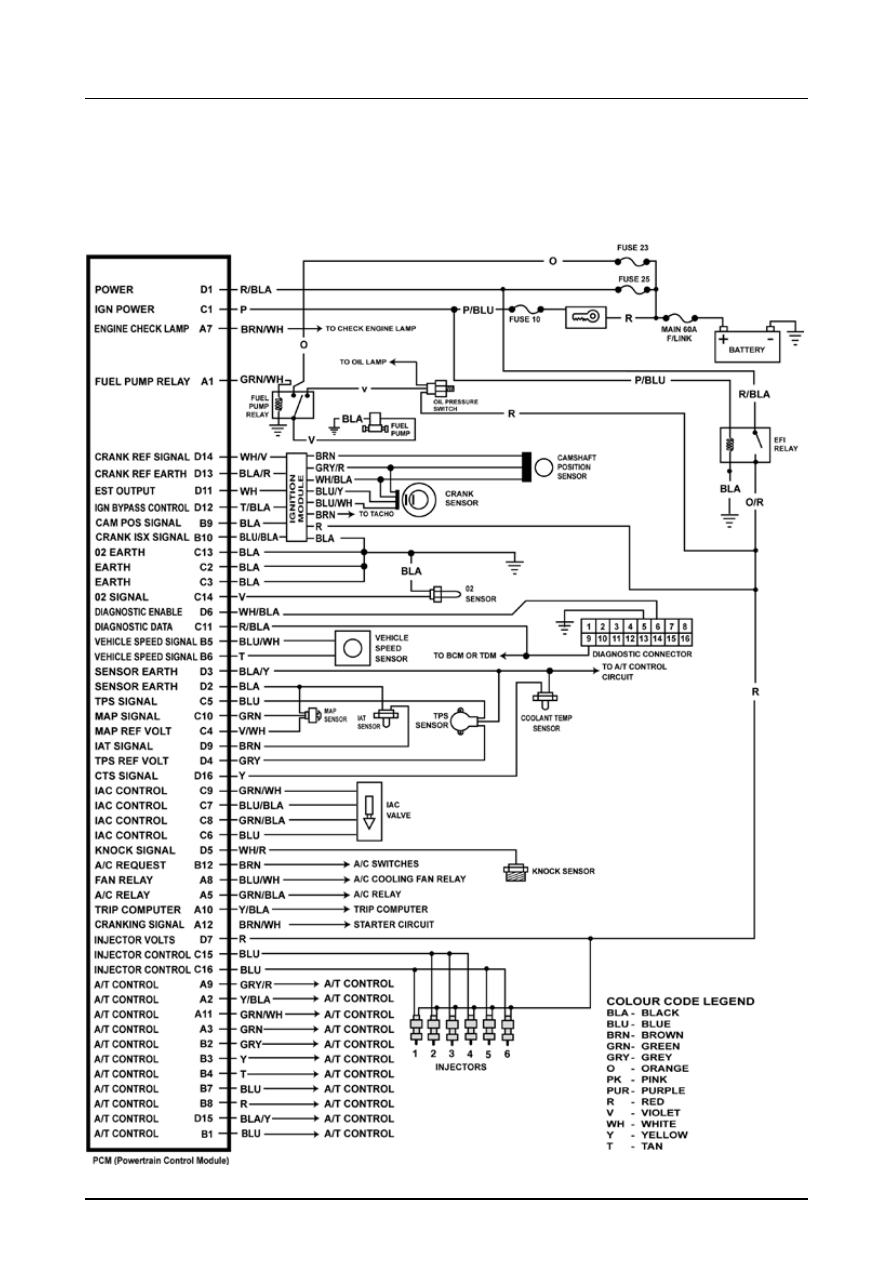

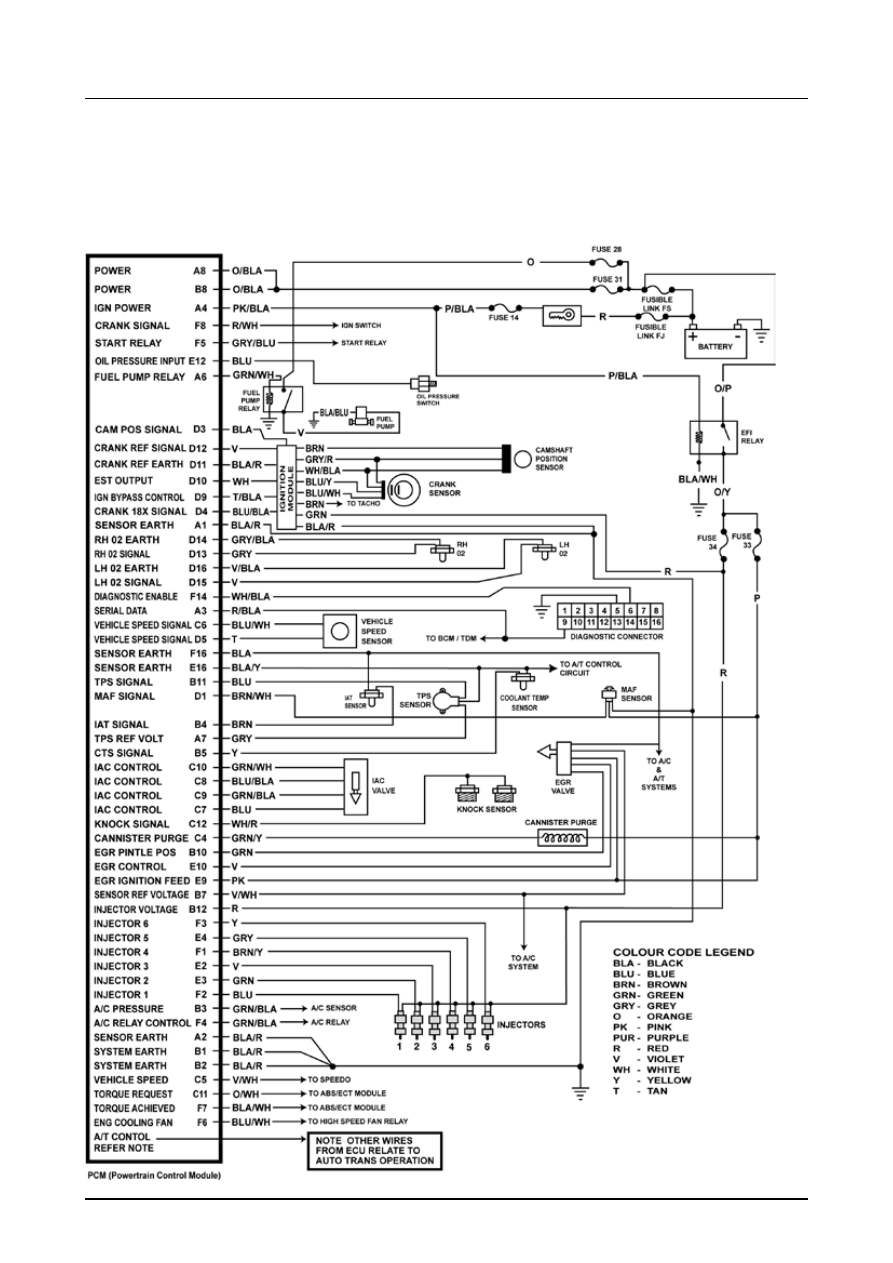

H010  VT Model V6 Wiring Diagram

PAGE 28

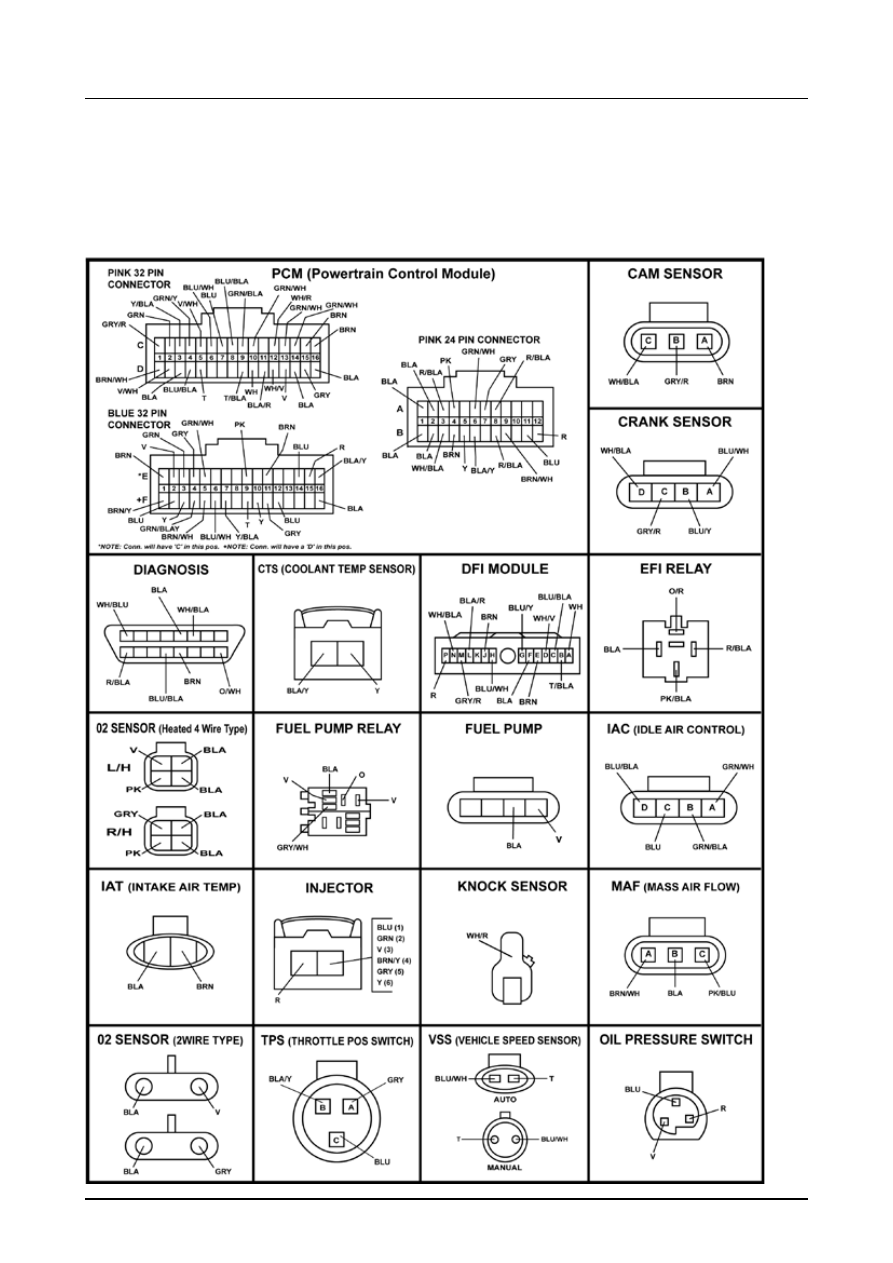

H010  VT Model V6 Connectors

PAGE 29

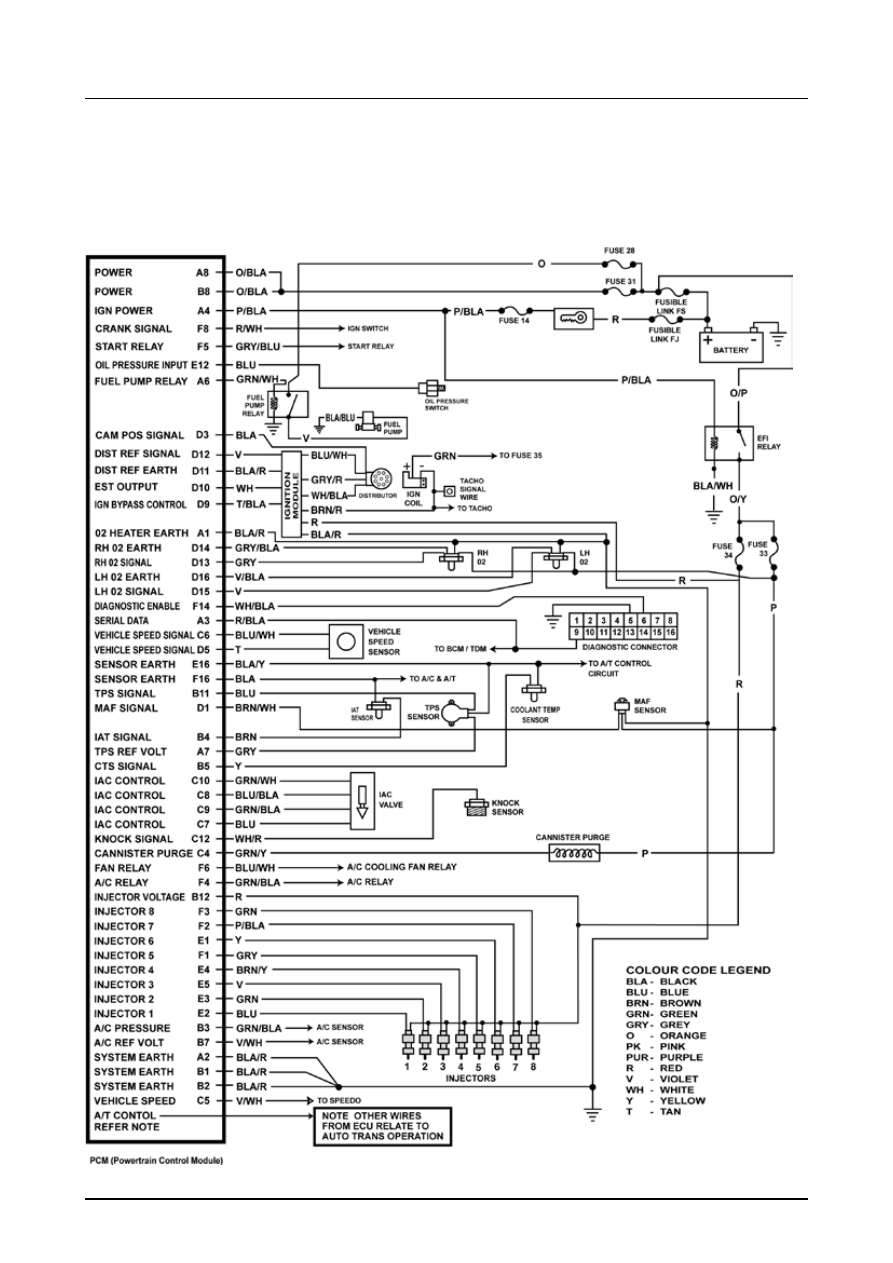

H011  VT Model 5.0 Litre V8 Wiring Diagram

PAGE 30

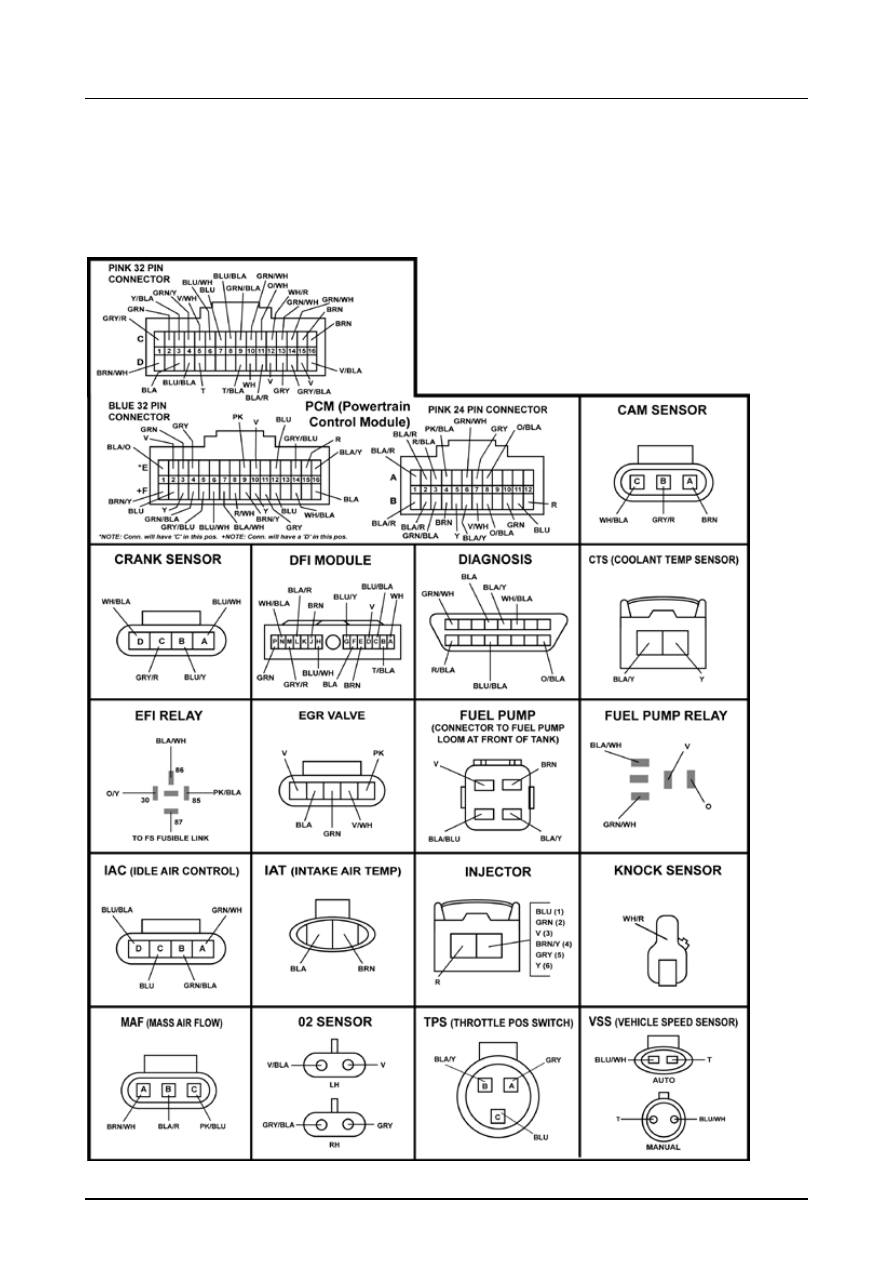

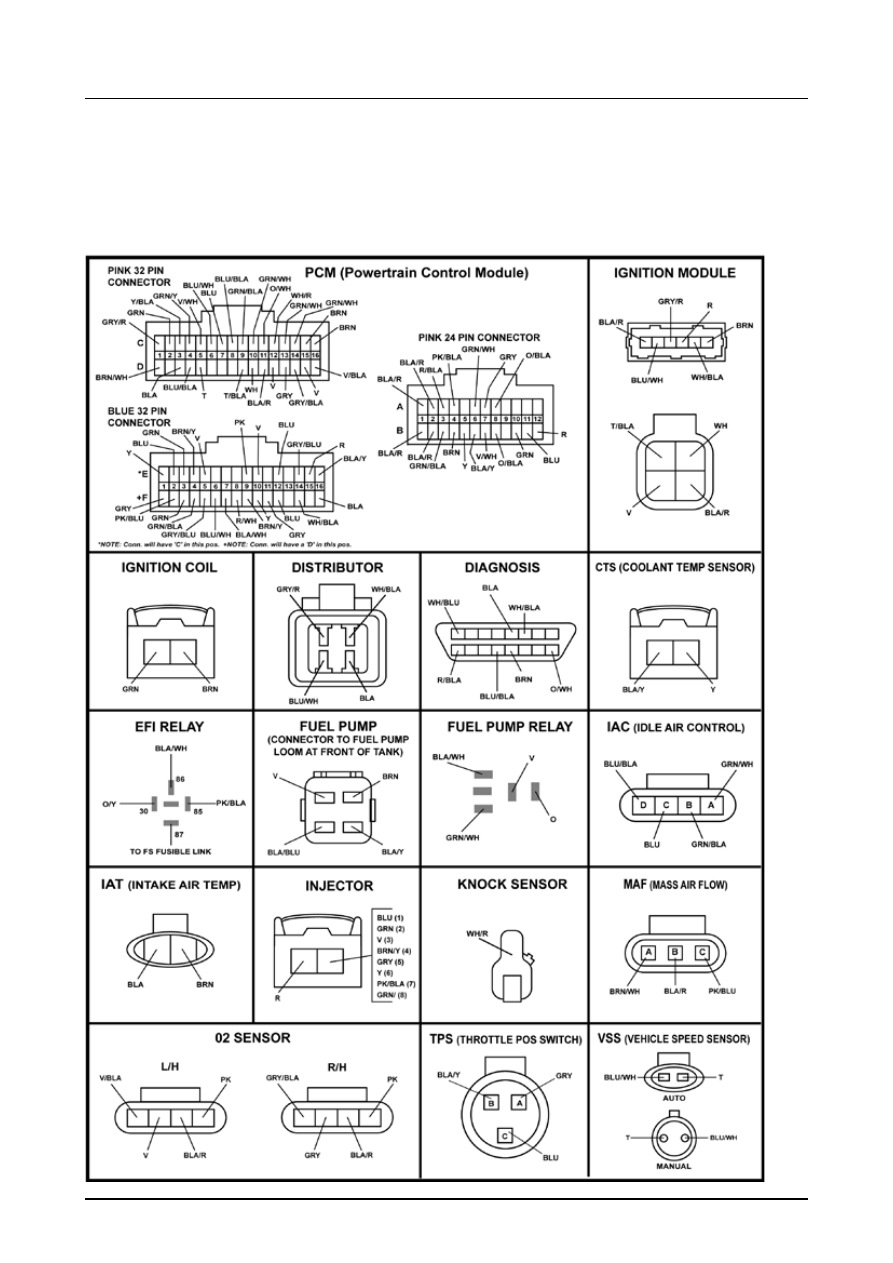

H011  VT Model 5.0 Litre V8 Connectors
