Westfalia. Testing repair electrical manual - part 85

connector sleeve

J79

Circuit 58L
connector sleeve

J79

Circuit 58L
connector sleeve

J148

Circuit 56b
connector sleeve

J356

Headlamp range
adjustment
connector sleeve

J356

Headlamp range
adjustment
connector sleeve

J446

Circuit 58
connector sleeve

J446

Circuit 58
connector sleeve

P15

Instrument cluster

S25

Headlamp range
adjustment switch

S53

Steering lock with
mechanical
repeat start
lockout

W2

Ground point right
headlamp

W2

Ground point right
headlamp

W2

Ground point right
headlamp

W6

Ground point
taillamp

W6

Ground point
taillamp

W7

Ground point
(engine
compartment)

W7

Ground point
(engine
compartment)

W8

Ground point
(waistrail)

X79

Frame/waistrail
connector

X79

Frame/waistrail
connector

X217

Frame/dash
support connector

PE82.10-D-2000-
60E

Legend for wiring diagram of
exterior lights

Model XD1, XD2, XD3, XD4,
XD5, XD6, XD7, YD1, YD2,
YD3, YD4, YD5, YD6, YD7,
WD1, WD2, WD3, WD6,
WD7
Models 903.61 /66 /67,
904.61 /66
with CODE (ZU7) Canada
national version
Models 903.61 /66 /67,
904.61 /66
with CODE (ZU8) USA
national version
Models 903.61 /62 /66 /67,
904.61 /62 /66
with CODE (ZU9) Mexico
national version



Code

Designation

Coordinate

A12

Electrical center

4A
12A
20A
28A
36A
42A

A12f4

Reversing lamp fuse

42B

A40

EWM control unit

42L

E25

Left headlamp

5L
11L

E25e4

Left fog lamp

7K

E25e9

Left side light

7K

E25e64

Left low beam

9K

E25e66

Left high beam

10K

E25h21

Left turn signal lamp

8K

E25m1

Left headlamp range adjustment motor

6K

E26

Right headlamp

14L
19L

E26e5

Right fog lamp

16K

E26e6

Right side light

18K

E26e63

Right low beam

16K

E26e65

Right high beam

13K

E26h3

Right turn signal lamp

17K

E26m1

Right headlamp range adjustment motor

21K

E67

Left rear lamp

24L
32L

E67e8

Left tail light

25K
34K

E67e19

Left backup lamp

23K
32K

E67e33

Left side light

25K

E67e36

Left rear perimeter lamp

30K

E67e81

Left chassis license plate lighting

33K

E67h18

Left stop light

24K
32K

E67h22

Left rear turn signal lamp

23K
31K

E68

Right rear lamp

27L
38L

E68e1

Right backup lamp

29K
40K

E68e7

Right tail light

27K
38K

E68e34

Right side light

26K
36K

E68e37

Right rear perimeter lamp

36K

E68e82

Right chassis license plate lighting

37K

E68h4

Right rear turn signal lamp

28K
39K

E68h19

Right stop lamp

28K
39K

J4

Circuit 58R connector sleeve

18H
31E

J20

Reversing lamp connector sleeve

26E
31E

J33

Circuit 58 connector sleeve

20E

J38

Circuit 56a connector sleeve

11E

J46

Circuit 58 connector sleeve

1H
22C

J79

Circuit 58L connector sleeve

7H
27E

J148

Circuit 56b connector sleeve

9E

J356

Headlamp range adjustment connector sleeve

4H
20H

J446

Circuit 58 connector sleeve

5H
20H

P15

Instrument cluster

12L

S25

Headlamp range adjustment switch

2L

S53

Steering lock with mechanical repeat start lockout

2A

W2

Ground point right headlamp

14H
19H
21H

W6

Ground point taillamp

28E
32E

W7

Engine compartment ground point

6H
12H

W8

Ground point waistrail

1H

X79

Frame/waistrail connector

3H
22E

X217

Frame/waistrail connector

41H

GF00.19-D-3100-
36C

Arrangement and assignment of
terminal block connectors
exterior lights

Models XD1, XD2, XD3,
XD4, XD5, XD6, XD7, YD1,
YD2, YD3, YD4, YD5, YD6,
YD7, WD1, WD2, WD3,
WD6, WD7
Models 903.61/66/67,
904.61/66
with code (ZU7) National
version for Canada
Models 903.61/66/67,
904.61/66
with code (ZU8) National
version for USA
Models 903.61/62/66/67,
904.61/
62/66
with code (ZU9) National
version for Mexico



D00.19-1372-09

D00.19-1373-09

Terminal

block

Designation



Compo-
nent

Designation

Con-
nector

Pin

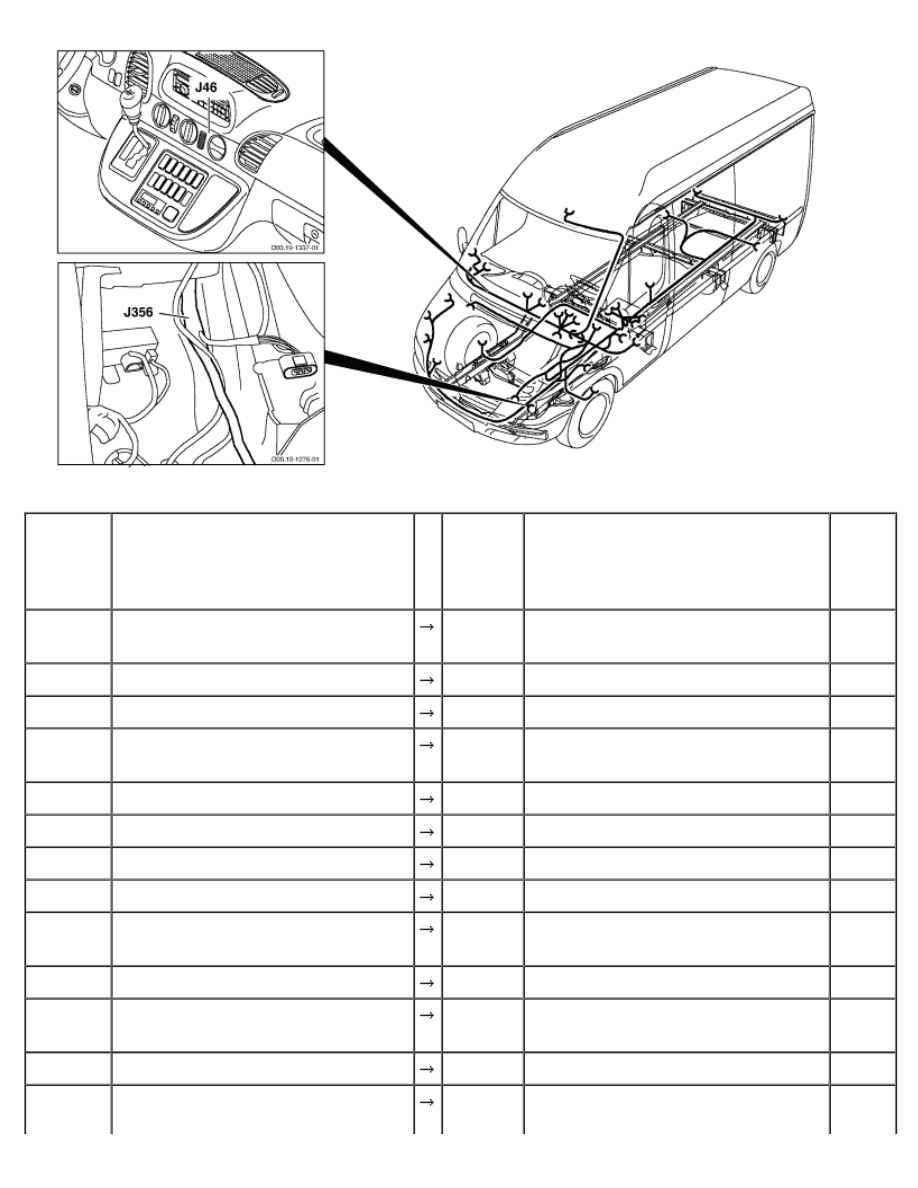

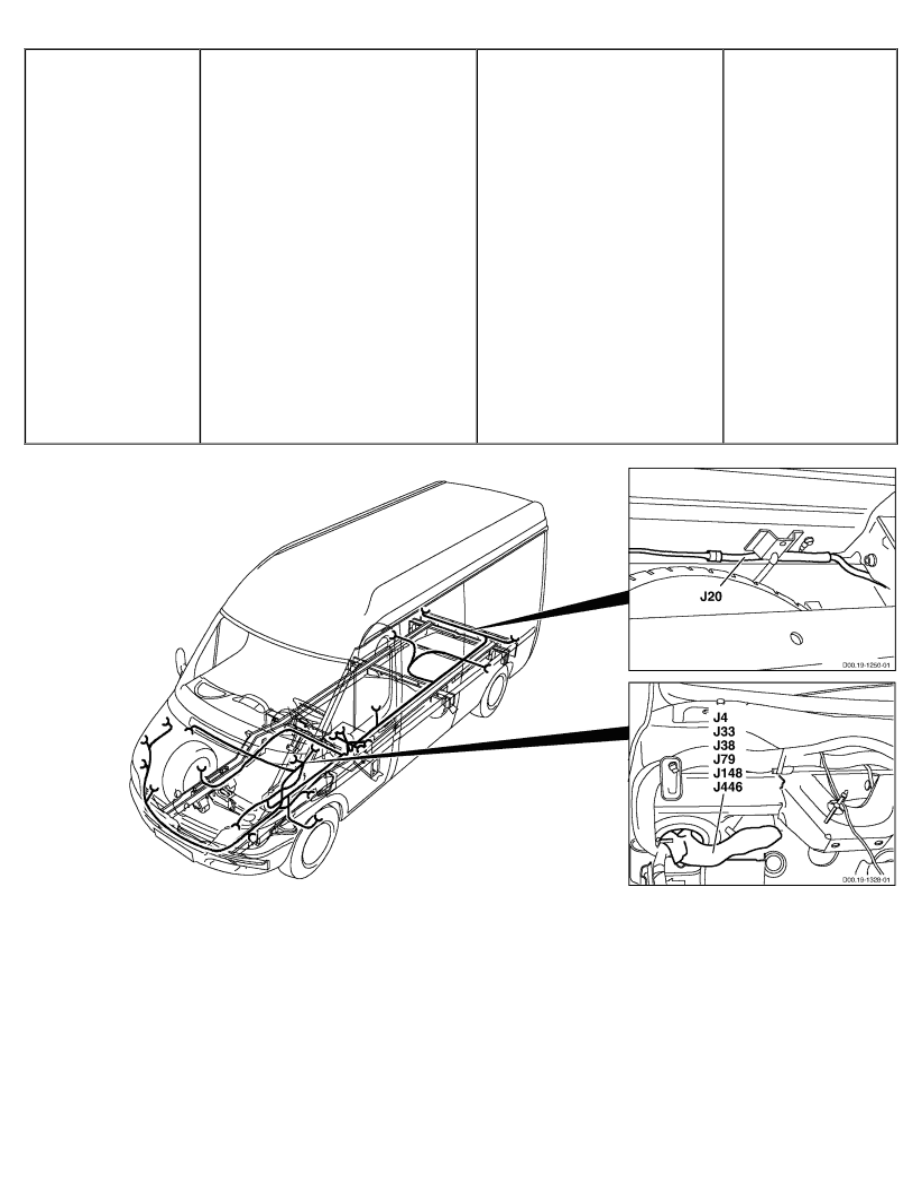

J4

FWH/waistrail (next to firewall
rubber grommet)

A12

Electrical center

5.6



Connector sleeve, terminal 58R

E26e6

Right side light

10





E68E7

Right tail light

2





K136

Daytime running lamps terminal 58R
relay

1

J20

FWH (close to ground point W6)

E67e19

Left backup lamp

4



Reversing lamp connector sleeve

E68E1

Right backup lamp

4





X217

Frame/waistrail connector

1





X232

Trailer socket connector

3

J33

FWH/waistrail (next to firewall
rubber grommet)

A12

Electrical center

5.7



Circuit 58 connector sleeve

J446

Circuit 58 connector sleeve







K140

Daytime running lamps circuit 58
relay

3





X79

Frame/waistrail connector

2

J38

FWH/waistrail (next to firewall
rubber grommet)

A12

Electrical center

4.5



Circuit 56a connector sleeve

E25e66

Left high beam

9





P15

Instrument cluster

2.8

J46

WWH (middle of instrument panel)

A9

Radio

1.A6



Circuit 58 connector sleeve

A40

EWM control unit

2





A71

Heater timer

1





A81

Air conditioning pushbutton control
and operating unit

1.9





E104

Ashtray lighting

1





S12

Driver seat heater switch

1





S25

Headlamp range adjustment switch

9





S48

ASR switch

1





S57

Differential lock switch

1





S81

Rear window defroster pushbutton

1





S85

Driver interior lighting pushbutton

1





S87

Auxiliary heater switch

1





S90

Roof fan switch

1





S92

Panic alarm button

1





S99

ATA [EDW] towing/interior motion
sensor button

1





S100

Additional heat exchanger double-
contact pushbutton

1





S107

Front passenger seat heater switch

1





S119.1

Fog light switch

1





S124

Reading lamp switch

1





S126

Interior pushbutton

1





S137

Roof AC switch

1





S138

Temperature switch

9





X79

Frame/waistrail connector

2





X234

Cigar lighter illumination plug
connection

3

J79

FWH/waistrail (next to firewall
rubber grommet)

A12

Electrical center

5.4



Connector sleeve, terminal 58L

E25e9

Left side light

10





E67e8

Left tail light

2





K135

Daytime running lamps terminal 58L

1.1
