BASIC PROCEDURES
Engine Startiing Procedure
Procedure
1. Apply parking brake.
2. Recheck throttle control lever operation.
3. Put your helmet on.
4. Ensure that the tether cord cap is installed on the engine cut-off
switch and that the cord is attached to your clothing eyelet.
5. Ensure that the emergency engine stop switch is in the ON position
(up).
WARNING
Never depress throttle while starting engine.
6. Release parking brake.
NOTE:
For an initial cold start, do not release parking brake. Perform the ve-
hicle warm-up procedure as explained below.
7. Grab rewind starter handle, pull handle slowly until a resistance is
felt, then hold handle firmly and pull vigorously to start engine.
NOTE:
The maximum torque that can be transmitted to the engine by the re-
wind starter is 80 Nm (59 lbf-ft). The maximum force that can be ex-
erted on the on the rope is 2 200 N (494.6 lbf).
Vehicle Warm-Up
Before every ride, vehicle has to be warmed up as follows.
1. Start engine as explained in Engine Starting Procedure above.
2. Allow engine to warm up one or two minutes at idle speed.
NOTE:
Engine will shut down after approximately 12 minutes of idling.
3. Disengage parking brake.
4. Apply throttle until drive pulley engages. Drive at low speed the first
two or three minutes.
127
BASIC PROCEDURES
NOTICE
If vehicle does not move when throttle is applied, stop engine,
remove tether cord cap from the engine cut-off switch, then do
the following.
– Check if skis are stuck on the ground. Lift one ski at a time
by the handle, then put it down.
– Check if track is stuck on the ground. Lift rear of snowmobile
enough to clear track from the ground, then drop.
– Check rear suspension for hard snow or ice accumulation
that could interfere with track rotation. Clean the area.
CAUTION
Beware of injuries by using proper lifting techniques, notably
using your legs force. Do not attempt to lift the rear of vehicle if
it is above your limits.
WARNING
Make sure tether cord cap is removed before standing in front
the vehicle, getting close to the track or rear suspension
components.
NOTE:
Warm-up is electronically controlled. During this period (up to 10 mi-
nutes depending on ambient temperature), engine RPM is limited.
Shutting Off the Engiine
Release throttle lever and wait until engine has returned to idle speed.
Shut off the engine using either the emergency engine stop switch or
by pulling off the tether cord cap from the engine cut-off switch.
WARNING
Always remove the tether cord cap from engine cut-off switch
when vehicle is not in operation in order to prevent accidental
engine starting or to avoid unauthorized use by children or
others or theft.
128
RIDING CONDITIONS AND YOUR
SNOWMOBILE
Alltiitude
At factory, your snowmobile was calibrated to be used within an alti-
tude range (relative to sea level).
A new snowmobile has a tag attached to the handlebar indicating its
calibration. Refer to Safety Information on Vehicle.
If for any reason you don't know your snowmobile calibration, contact
an authorized BRP snowmobile dealer.
If your snowmobile is to be used at an altitude outside the specified
range, have it calibrated accordingly by an authorized BRP snowmo-
bile dealer.
NOTICE
An inappropriate altitude calibration would decrease perform-
ance and may cause serious damage to the snowmobile.
Temperature
The engine management of these engines provides the optimum air/
fuel ratio for all temperatures.
Hard Packed Snow
All models covered in this guide which are equipped with a minimum
track profile of 44 mm (1.75 in) are built for deep snow conditions and
should never be used during a prolonged period of time in marginal or
hard packed snow conditions.
In the event you have to ride in these types of conditions:
- Avoid exceeding a speed of 70 km/h (45 mph) in all conditions
- Avoid hard acceleration (over 75% of throttle)
- Ice scratchers should be applied
- Engine temperature should not exceed 75% on the temperature
gauge.
NOTICE
Running these types of tracks at high speed on a trail, on hard
packed surfaces or on ice puts more stress on the lugs, which
tends to heat up as a result. It also could drastically reduce the
life of specific wear parts. To avoid potential degradation, de-
lamination or damages to the track and wear parts, reduce your
speed and minimize the distance that is being ridden on these
types of surfaces.
129
RIDING CONDITIONS AND YOUR SNOWMOBILE
Vehicles Equipped with Ice Scratchers
Ice scratchers are equipped on the vehicle to increase engine cooling
efficiency, to lubricate and to cool track clips and sliders. They must
be used whenever on ice, hard packed snow, or any conditions that
do not lift enough snow particles into the rear suspension and the
tunnel.
NOTICE
Although it is not recommended to ride a snowmobile equipped
with a high lug profile track on trails or hard packed snow condi-
tions, it is highly suggested to combine idler wheels and ice
scratchers on a vehicle used in these conditions.
IMPORTANT
Ridding in these trail conditions puts the reliability of the track and
its warranty at risk
If equipped with the following track profile heights, never exceed the
recommended sustained vehicle speeds listed.
Track Profile Height
Maximum Sustained Speed
57 mm (2.25 in)
110 km/h (70 MPH)
60 mm (2.36 in)
64 mm (2.52 in)
95 km/h (60 MPH)
75 mm (3 in)
130
TUNE YOUR RIDE
Snowmobile handling and comfort depend upon multiple adjustments.
WARNING
Suspension adjustment could affect vehicle handling. Always
take time to familiarize yourself with the vehicle''s behavior after
any suspension adjustment have been made. Always adjust LH
and RH suspension components to the same setting.
Choice of suspension adjustments vary with carrying load, operator's
weight, personal preference, riding speed and field condition.
NOTE:
Some adjustments may not apply to your snowmobile.
WARNING
Before proceeding with any suspension adjustment, remember:
– Park in a safe place.
– Remove the tether cord cap from the engine cut-off switch.
– Use appropriate lifting device or have assistance to share
lifting stress. If a lifting device is not used, use proper lifting
techniques, notably using your legs force.
– Do not attempt to lift the front or rear of vehicle if it is above
your limits.
– Support front of vehicle off the ground with a suitable device
before adjusting suspension.
– Support rear of vehicle off the ground with a wide-base
snowmobile stand with a rear deflector panel.
– Make sure support device is stable and secure.
The best way to set up the suspension is to customize each adjust-
ment one at a time. Various adjustments are interrelated. It may be
necessary to readjust center spring after adjusting front springs for in-
stance. Test run the snowmobile under the same conditions; trail,
speed, snow, operator riding position, etc. Proceed methodically until
you are satisfied.
Following are guidelines to fine-tune suspension. Use suspension ad-
justment tool provided in the tool kit.
Front Suspensiion Adjustments
Front Springs
Front spring preload has an effect on front suspension firmness.
Front spring preload also has an effect on the steering behavior.
131
TUNE YOUR RIDE
Action
Result
Firmer front suspension
Higher front end
Increasing
preload
More precise steering
More bump absorption capability
Softer front suspension
Lower front end
Decreasing
preload
Lighter steering
Less bump absorption capability

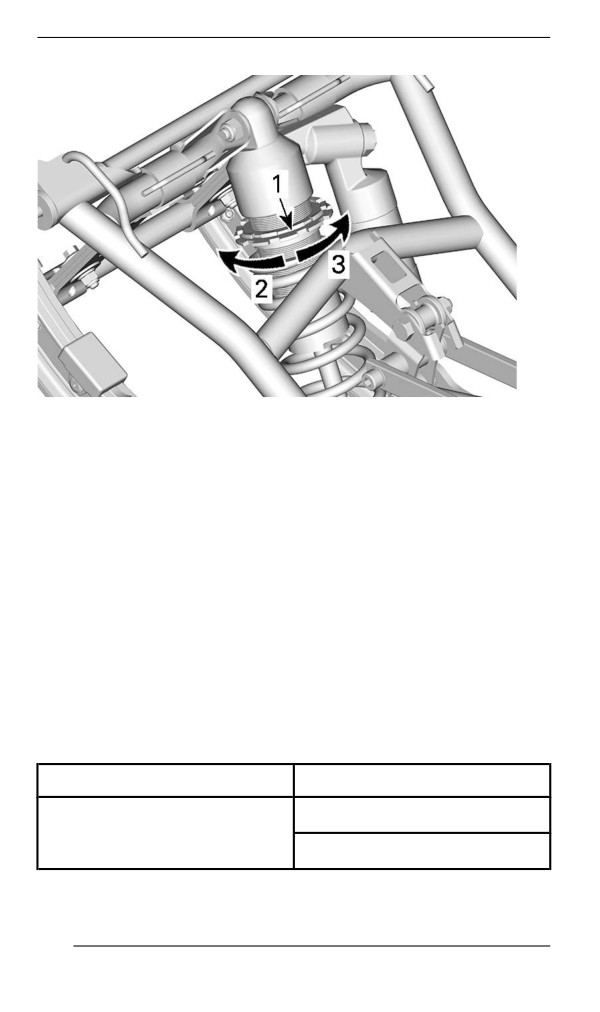

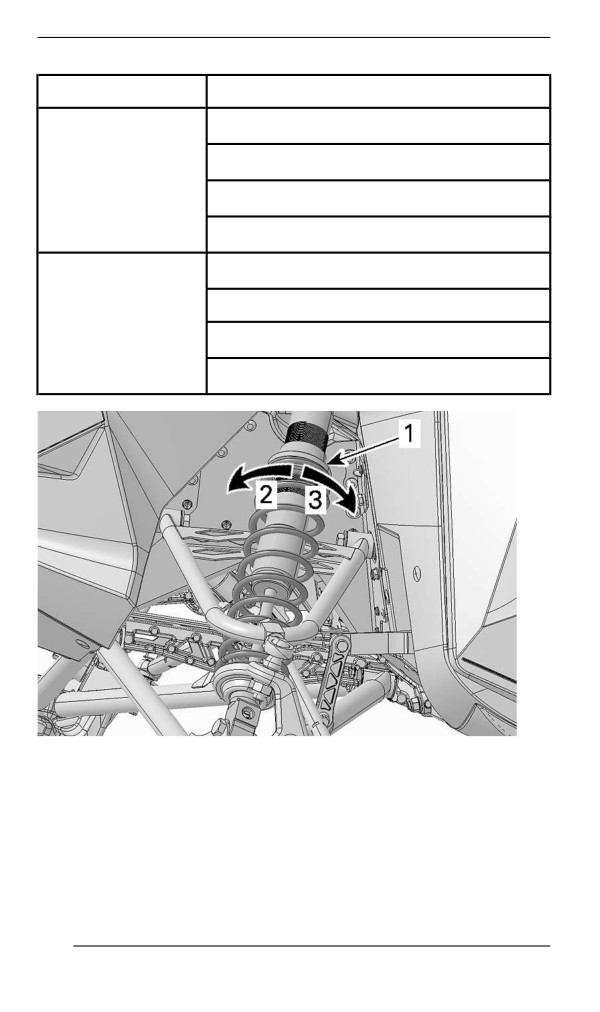

TYPICAL
1. Spring preload adjustment ring
2. Increase preload
3. Decrease preload
132
TUNE YOUR RIDE
NOTICE
Make sure that both front springs are still pre-loaded when front
of vehicle is off the ground.

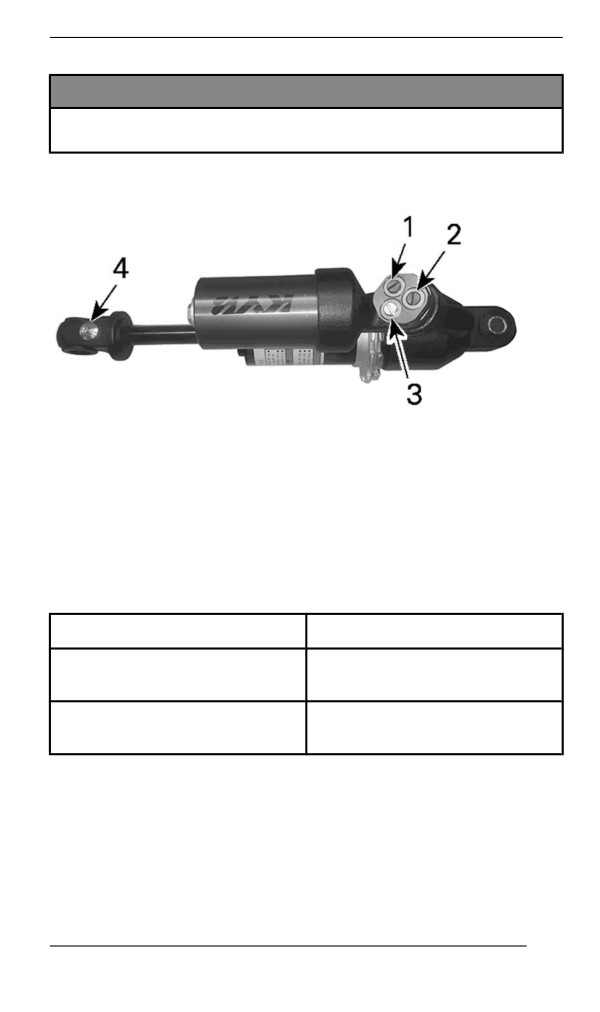

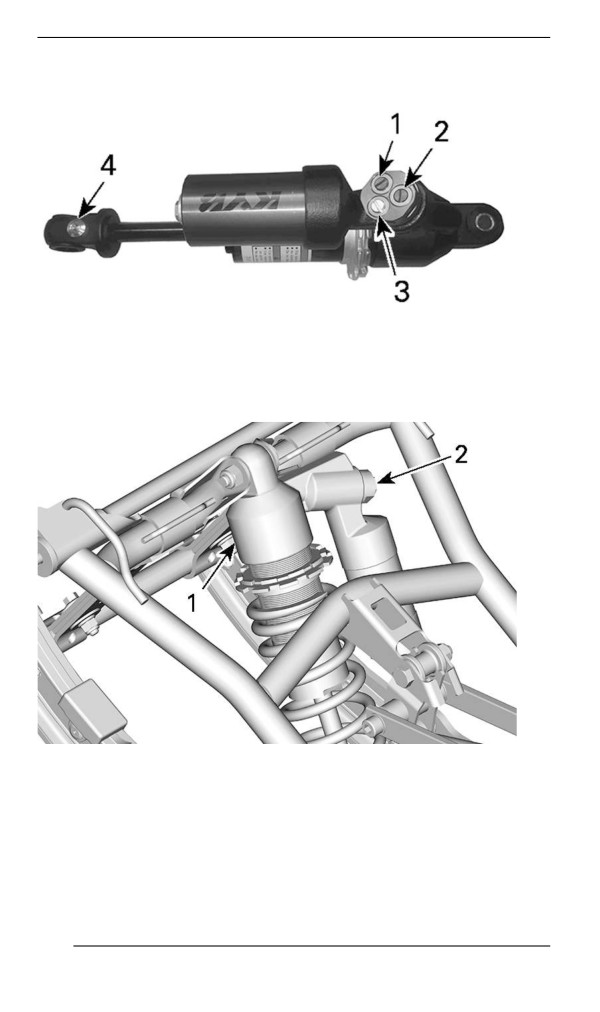

Shock Absorber Damping
ADJUSTMENT SCREWS
1. High speed rebound - Red screw
2. High speed compression - Blue screw
3. Low speed compression - Grey screw
4. Bypass screw
Low Speed Compressiion Damping (Grey Screw)
Low speed compression damping controls how the shock absorber re-
acts to a low suspension velocity (slow compression strokes, in most
cases when riding at lower speeds).
Action
Result
Increasing low speed
Firmer compression damping
compression damping force
(slow compression)
Decreasing low speed
Softer compression damping
compression damping force
(slow compression)
To adjust, turn clockwise to increase damping force and counterclock-
wise to decrease damping force.
Hiigh Speed Compression Dampiing
High speed compression damping controls how the shock absorber
reacts to a high suspension velocity (quick compression strokes, in
most cases when riding at higher speeds).
133
TUNE YOUR RIDE
Action
Result
Increasing high speed
Firmer compression damping
compression damping force
(fast compression)
Decreasing high speed
Softer compression damping
compression damping force
(fast compression)
To adjust, turn clockwise to increase damping force and counterclock-
wise to decrease damping force.
High Speed Rebound Dampiing (Red screw)
High speed rebound damping controls how the shock absorber reacts
when moving in extension. The effect will be felt mostly on how reac-
tive the suspension is to bumps and quick changes in forces. This will
also affect how fast the shock extends.
Action
Result
Reduce the speed in extension
of the suspension.
Increasing high speed rebound
The suspension will react
damping force
slower thus comply with less of
the bumps on the ground.
Let the suspension move
Decreasing high speed rebound
quicker in extension helping it to
damping force
follow most of the ground
bumps.
To adjust, turn clockwise to increase damping force and counterclock-
wise to decrease damping force.
Bypass Adjjustment
The bypass controls how much oil can go around the vlaving of the
shock absorber. This reduces the damping force and softens the ride.
134
TUNE YOUR RIDE
Action
Result
Reduce the damping force both
Increasing bypass
in compression and rebound,
giving a smoother ride.
Raise the damping force in both
compression and rebound. The
Decreasing bypass
suspension can absorb bigger
impacts.
To adjust, turn clockwise to decrease bypass and counterclockwise to
increase bypass.
Rear Suspension Adjjustments

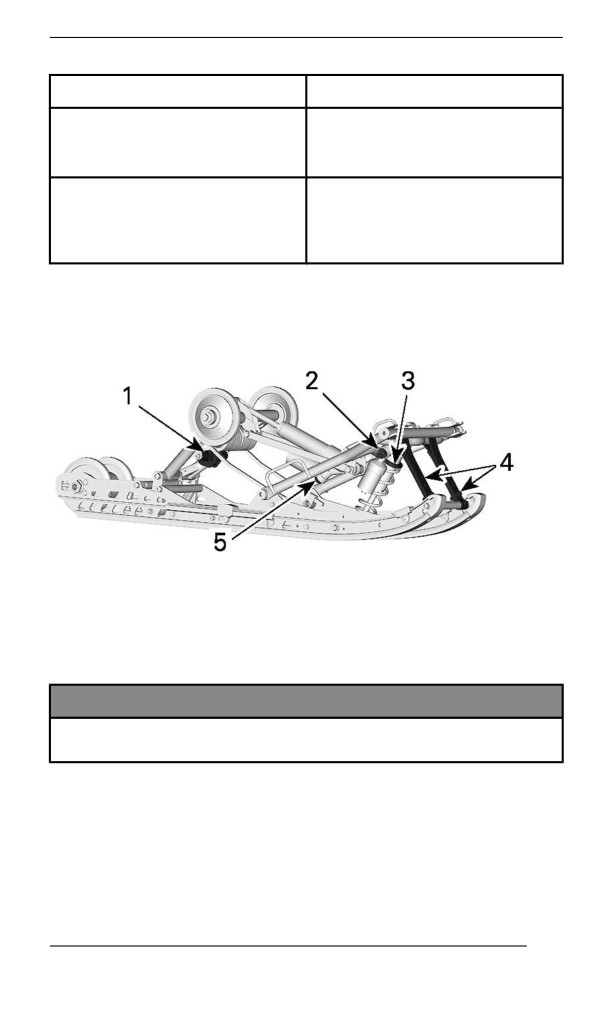

ADJUSTABLE COMPONENTS
1. Rear spring preload
2. Center shock absorber damping
3. Center spring preload
4. Stopper straps
5. Rear shock absorber damping
NOTICE
Whenever adjusting rear suspension, check track tension and
adjust if necessary.
Stopper Strap
Stopper strap length has an effect on the amount of weight the center
spring has to carry especially during acceleration, therefore on the
front end uplift.
Stopper straps length also has an effect on center spring travel.
135
TUNE YOUR RIDE
NOTICE
Whenever stopper strap length is changed, track tension must
be checked.
Action
Result
Lighter ski pressure under
acceleration
Increasing stopper strap length
More center spring travel
More bump absorption
capability
Heavier ski pressure under
acceleration
Decreasing stopper strap length
Less center spring travel
Less bump absorption
capability
NOTE:
Stopper strap could be set to position 1, 2, 3, 4 and 5. Below are illus-
trations for position 1 and 3. Smaller numbers correspond to a longer
strap setting.
136
TUNE YOUR RIDE

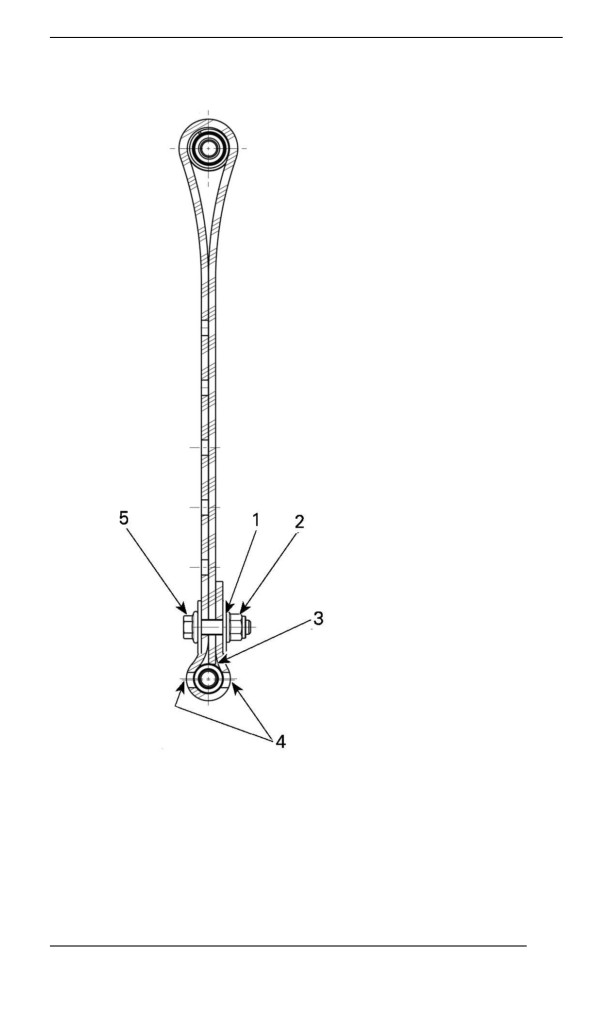

STOPPER STRAP POSITION 1 (1ST HOLE, LONGEST)
1.
1st hole from end
2. Towards rear
3. Tip of strap touching strap axis
4. Two holes left open between screw head and nut
5. Towards front
137
TUNE YOUR RIDE

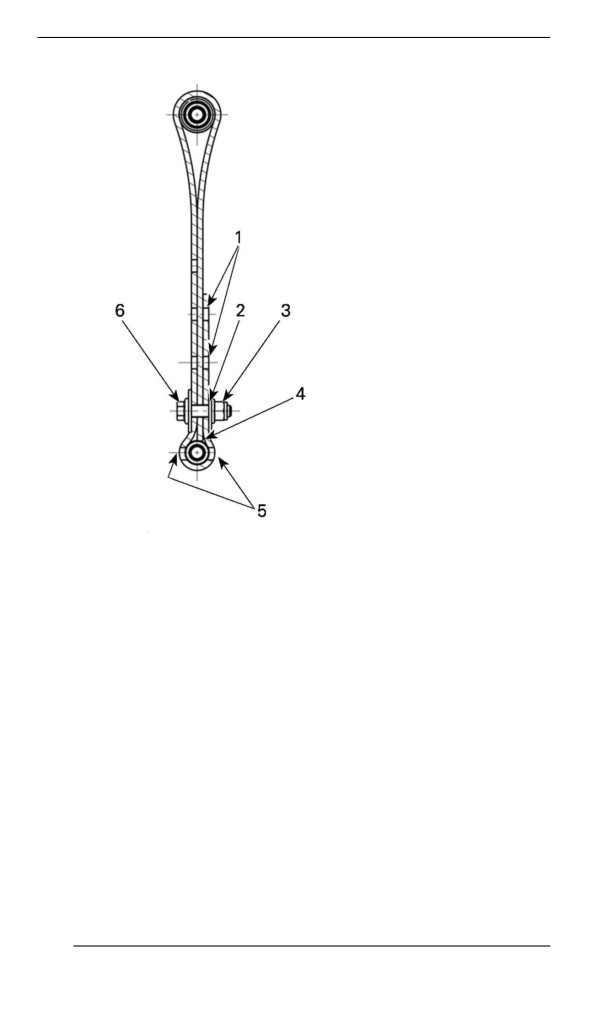

STOPPER STRAP POSITION 3 (3RD HOLE)
1. Free holes
2.
3rd hole from end
3. Towards rear
4. Tip of strap touching strap axis
5. Two holes left open between screw head and nut
6. Towards front
NOTE:
Decreasing the stopper strap length may reduce comfort. If too much
weight transfer is felt, try to correct it by adjusting the coupling shaft
first. Always install stopper strap bolt as close as possible to the lower
shaft.
When operating the snowmobile in deep snow, it may be necessary to
vary stopper strap length and/or riding position, to change the angle at
which the track rides on the snow. Operator's familiarity with the vari-
ous adjustments as well as snow conditions will dictate the most effi-
cient combination.
138
TUNE YOUR RIDE
Generally, a longer stopper strap setting gives better performance in
deep snow on a flat landscape.
Center Spring
Center spring preload has an effect on steering effort, handling and
bump absorption.
Also, since center spring preload adjustment puts more or less pres-
sure on the front of the track, it has an effect on the performance in
deep snow.
Action
Result
Lighter steering
More bump absorption capability
Increasing
preload
Better deep snow starts
Better deep snow performance and
handling
Heavier steering
Decreasing
Less bump absorption capability
preload
Better trail handling
139
TUNE YOUR RIDE
TYPICAL

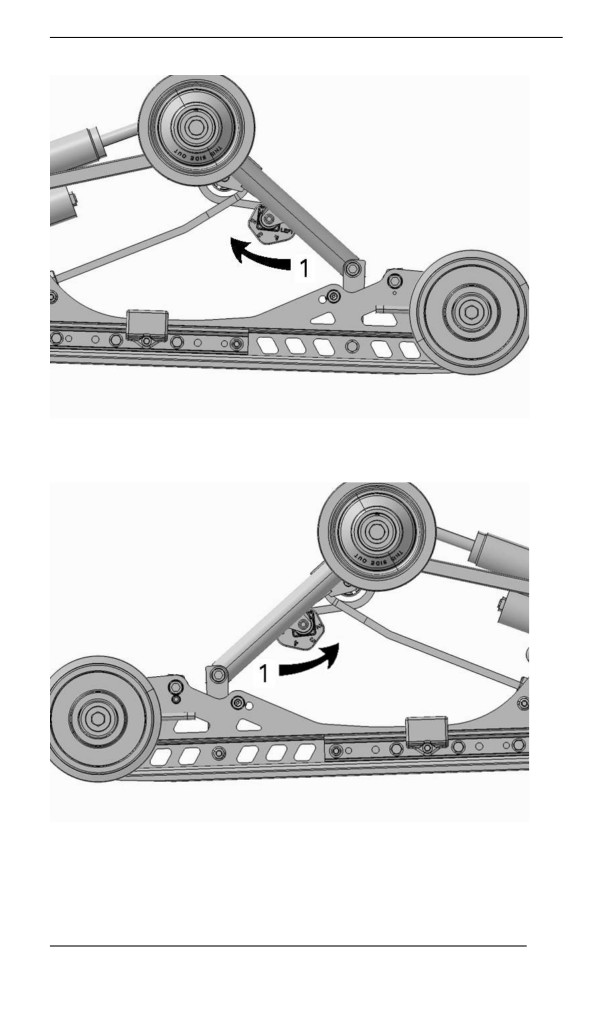

1. Spring preload adjustment ring
2. Increase preload
3. Decrease preload
NOTE:
Use the suspension adjustment tool provided in the tool kit.
Rear Spring
Rear spring preload has an effect on comfort, ride height and load
compensation.
Also, adjusting rear spring preload shifts more or less weight to the
snowmobile front end. As a result, more or less weight is applied to
the skis. This has an effect on performance in deep snow, steering ef-
fort and handling.
Slight suspension bottoming occurring under the worst riding condi-
tions indicates a good choice of spring preload.
Action
Result
Firmer rear suspension
Increasing preload
Higher rear end
140
TUNE YOUR RIDE
Action
Result
More bump absorption
capability
Heavier steering
Softer rear suspension
Lower rear end
Less bump absorption
Decreasing preload
capability
Lighter steering
Better performance and
handling in deep snow
Refer to the following to determine if preload is correct.

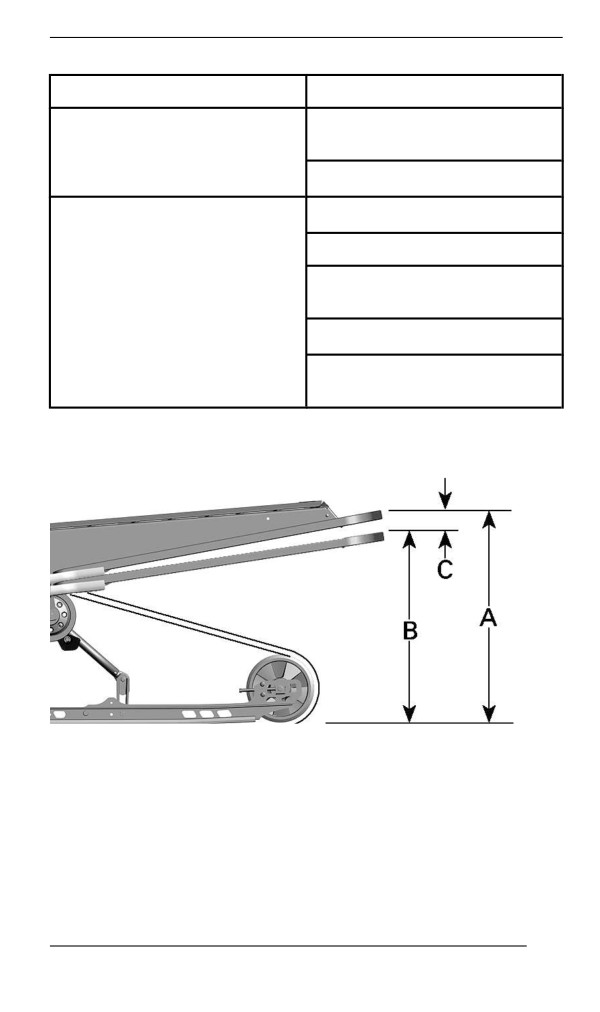

TYPICAL - PROPER ADJUSTMENT
- A = Suspension fully extended
- B = Suspension has collapsed with operator, passenger and load
added
- C=Distancebetweendimension“A”and“B”,seetablebelow
141
TUNE YOUR RIDE
C
What to do
50 to 75 mm (2 to 3 in)
No adjustment required
More than
Adjusted too soft. Increase
75 mm (3 in)
preload
Less than
Adjusted too firm. Decrease
50 mm (2 in)
preload
NOTE:
If the specification is unattainable with the original springs, see an au-
thorized Ski-Doo dealer for other available springs.
rMotion - without Quick Adjust
To increase spring preload using tool, always turn the left side adjust-
ment cam in a clockwise direction, and the right side cam in a counter-
clockwise direction.
CAUTION
Never set preload cams directly from position 5 to 1 or directly
from position 1 to 5.
WARNING
Both rear spring preload must be set at the same position. Oth-
erwise vehicle behavior may be unpredictable, and suspension
may become warped.
The adjustment cams have 5 different settings, 1 being the softest.
142
TUNE YOUR RIDE
TYPICAL - LH SIDE
1. Adjust spring preload
TYPICAL - RH SIDE
1. Adjust spring preload
143
TUNE YOUR RIDE
Shock Absorber Damping
ADJUSTMENT SCREWS
1. High speed rebound - Red screw
2. High speed compression - Blue screw
3. Low speed compression - Grey screw
4. Bypass screw - Rear shock only
TYPICAL FRONT SHOCK ABSORBER
1. Front shock absorber
2. Adjustment screws
144
TUNE YOUR RIDE

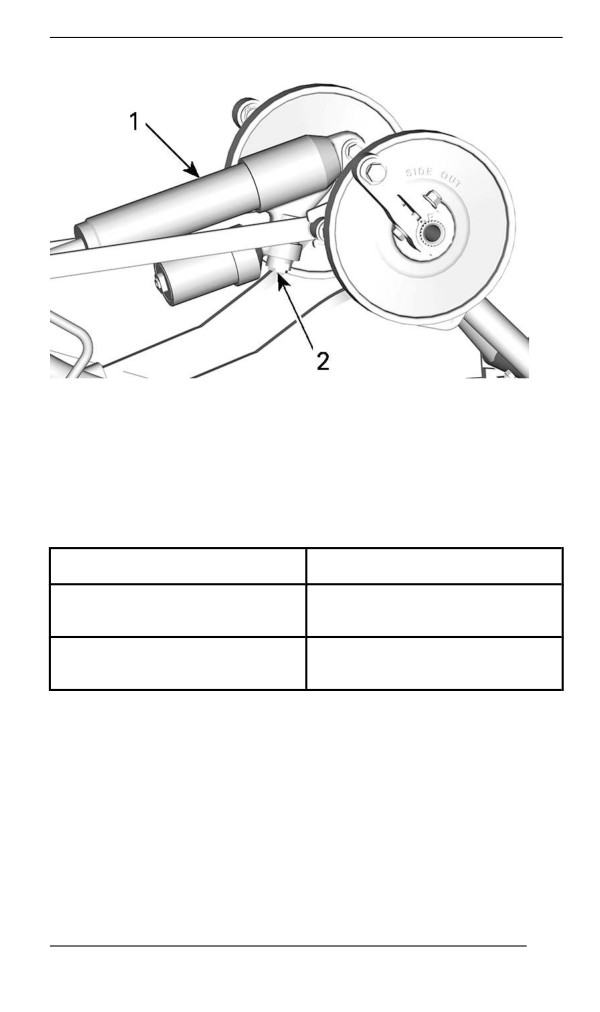

TYPICAL REAR SHOCK ABSORBER
1. Rear shock absorber
2. Adjustment screws
Low Speed Compressiion Damping (Grey screw)
Low speed compression damping controls how the shock absorber re-
acts to a low suspension velocity (slow compression strokes, in most
cases when riding at lower speeds).
Action
Result on big bumps
Increasing low speed
Firmer compression damping
compression damping force
(slow compression)
Decreasing low speed
Softer compression damping
compression damping force
(slow compression)
To adjust, turn clockwise to increase damping force and counterclock-
wise to decrease damping force.
Hiigh Speed Compression Dampiing (Blue screw)
High speed compression damping controls how the shock absorber
reacts to a high suspension velocity (quick compression strokes, in
most cases when riding at higher speeds).
145
TUNE YOUR RIDE
Action
Result on small bumps
Increasing high speed
Firmer compression damping
compression damping force
(fast compression)
Decreasing high speed
Softer compression damping
compression damping force
(fast compression)
To adjust, turn clockwise to increase damping force and counterclock-
wise to decrease damping force.
High Speed Rebound Dampiing (Red screw)
High speed rebound damping controls how the shock absorber reacts
when moving in extension. The effect will be felt mostly on how reac-
tive the suspension is to bumps and quick changes in forces. This will
also affect how fast the shock extends.
Action
Result
Reduce the speed in extension
of the suspension.
Increasing high speed rebound
The suspension will react
damping force
slower thus comply with less of
the bumps on the ground.
Let the suspension move
Decreasing high speed rebound
quicker in extension helping it to
damping force
follow most of the ground
bumps.
To adjust, turn clockwise to increase damping force and counterclock-
wise to decrease damping force.
Bypass Adjjustment (Rear Shock)
The bypass controls how much oil can go around the valving of the
shock absorber. This reduces the damping force and softens the ride.
146
TUNE YOUR RIDE
Action
Result
Reduce the damping force both
Increasing bypass
in compression and rebound,
giving a smoother ride.
Raise the damping force in both
compression and rebound. The
Decreasing bypass
suspension can absorb bigger
impacts.
To adjust, turn clockwise to decrease bypass and counterclockwise to
increase bypass.
Adjustment Tiips According to Vehiiclle Behaviior
Problem
Corrective Measures
Check ski alignment.
- Reduce front suspension spring
Front suspension darting
preload.
- Increase center spring preload.
- Reduce rear spring preload.
Steering feels too heavy
- Reduce front suspension spring
at steady speeds
preload.
- Increase center spring preload.
Steering feels too heavy
- Reduce rear spring preload.
during acceleration
- Lengthen limiter strap.
Too much ski lift during
- Shorten limiter strap.
cornering or acceleration
- Increase rear spring preload.
- Reduce rear spring preload.
Rear of snowmobile
- Reduce compression damping
seems too stiff
adjustment
if equipped.
147
TUNE YOUR RIDE
Problem
Corrective Measures
Rear of snowmobile
-
Increase rear spring preload.
seems too soft
Increase compression damping
adjustment
if equipped.
Rear suspension is
-
Increase rear spring preload.
frequently bottoming
-
Increase center spring preload.
Lengthen limiter strap.
Increase compression damping
adjustment
if equipped.
-
Reduce center spring preload.
Snowmobile seems to
-
Increase rear spring preload.
pivot around its center
Increase front suspension spring
preload.
-
Shorten limiter strap.
Track spins too much at
-
Lengthen limiter strap.
start
148
MAINTENANCE
149
MAINTENANCE SCHEDULE
Maintenance is very important for keeping your vehicle in safe operat-
ing condition.
WARNING
Failure to properly maintain the vehicle according to the main-
tenance schedule and procedures can make it unsafe to
operate.
Every Year at preseason or 3 000 km (2,000 mi)
(Whichever Comes First)
Perform pre-ride inspection
Check fault codes
Adjust drive chain
Adjust and align track
Inspect brake hose, pads and disk
Check coolant density
Inspect drive belt
Visually inspect and clean drive pulley
Inspect and clean driven pulley
Lubricate rear suspension. Lubricate whenever the vehicle is used
in wet conditions (rain, puddles)
Inspect exhaust system and check for leaks
Tighten exhaust manifold screws to specified torque
Inspect fuel lines, oil lines and connections
Inspect front suspension
Inspect rear suspension (including stopper straps and slider shoes)
Inspect tie-rod ends and ski alignment
150
MAINTENANCE SCHEDULE
Every Year at preseason or 3 000 km (2,000 mi)
(Whichever Comes First)
Adjust headlight beam aiming
Inspect engine rubber mounts
Lubricate front suspension shocks upper spherical bearings
Every 2 Years or 6 000 km (4,000 mi) (Whichever Comes
First)
Replace brake fluid
Inspect throttle cable
Clean and lubricate rewind starter
Replace chaincase oil
Inspect engine rubber mounts
Every 3 Years Or 10 000 km (6,000 mi) (Whichever Comes
First)
Replace spark plugs
Clean and inspect 3D RAVE valves. If oil is present in valve base,
replace seal
Every 5 Years
Replace engine coolant
Replace in-line fuel filter
151
MAINTENANCE PROCEDURES
This section includes instructions for basic maintenance procedures.
WARNING
Turn off the engine, remove tether cord cap and follow these
maintenance procedures when performing maintenance. If you
do not follow proper maintenance procedures you can be in-
jured by hot parts, moving parts, electricity, chemicals or other
hazards.
WARNING
Should removal of a locking device be required (e.g. lock tabs,
self-locking fasteners, etc.) when undergoing
disassembly/assembly, always replace with a new one.
Engiine Coolant
WARNING
Never open coolant tank cap when engine is hot.
Engine Coolant Level Verification

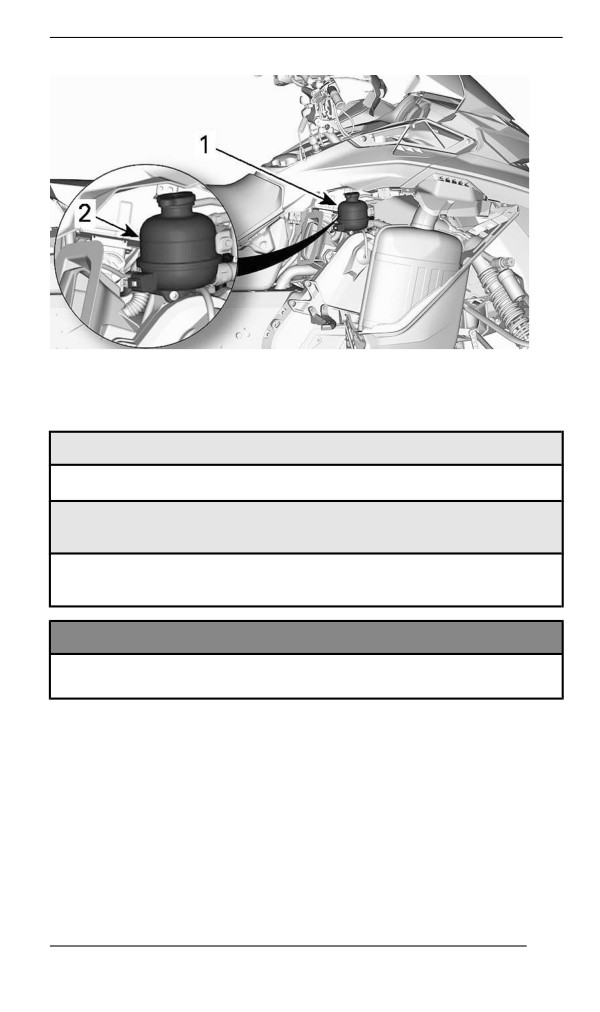

Open the RH side panel, see Body and Seat.
Check coolant level at room temperature. Liquid should be at cold lev-
el line of coolant tank.
NOTE:
When checking level at low temperature it may be slightly lower then
the mark.
If additional coolant is necessary or if entire system has to be refilled,
refer to an authorized BRP snowmobile dealer, repair shop or person
of your own choosing.
152
MAINTENANCE PROCEDURES
1. Coolant reservoir
2. COLD line
Recommended Engine Coolant
RECOMMENDED COOLANT
XPS Extended life pre-mixed coolant
IF THE RECOMMENDED XPS COOLANT IS NOT
AVAILABLE
Distilled water and antifreeze solution (50% distilled water, 50%
antifreeze)
NOTICE
Always use ethylene-glycol antifreeze containing corrosion in-
hibitors specifically for internal combustion aluminum engines.
Exhaust System
Exhaust System Verification
The muffler tail pipe should be centered with the exit hole in the bottom
pan. Exhaust system must be free of rust or leaks. Make sure that all
parts are securely in place.
Check retaining springs and heat shields condition and replace if
necessary.
153
MAINTENANCE PROCEDURES
The exhaust system is designed to reduce noise and to improve the
total performance of the engine. Modification may be in violation of lo-
cal laws.
NOTICE
If any exhaust system component is removed, modified or dam-
aged, severe engine damage may result.
Spark Pllugs
For spark plug type, refer to Technical Specifications subsection.
Replacing the Spark Plug
Use only an appropriate spark plug socket for removal and installation.
Extra care should be taken to avoid side stresses which could result in
a broken spark plug.

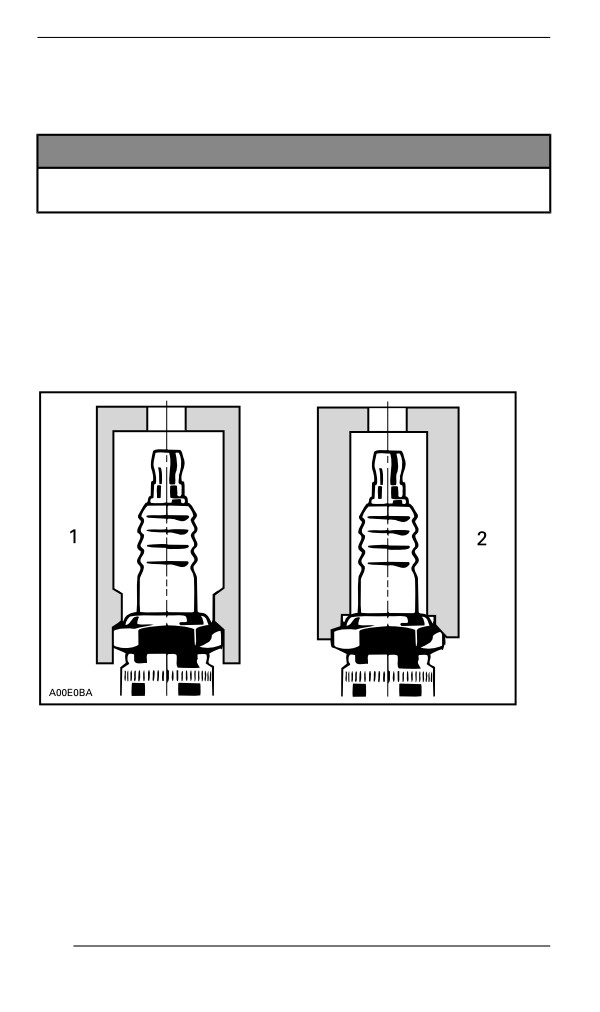

TYPICAL
1. Appropriate Spark plug socket
2. Inappropriate socket
Removiing the Spark Plugs
1. Remove the upper body module. Refer to Body subsection.
2. Disconnect the stator connector. Refer to Stator Connector Access
in the Magneto and Starter subsection.
3. Clean the spark plug and cylinder head with pressurized air.
4. Remove lock securing spark plug wire to spark plug.
154
MAINTENANCE PROCEDURES
5. Remove spark plug cables by gently rotating the cap and pulling it
off the plug.

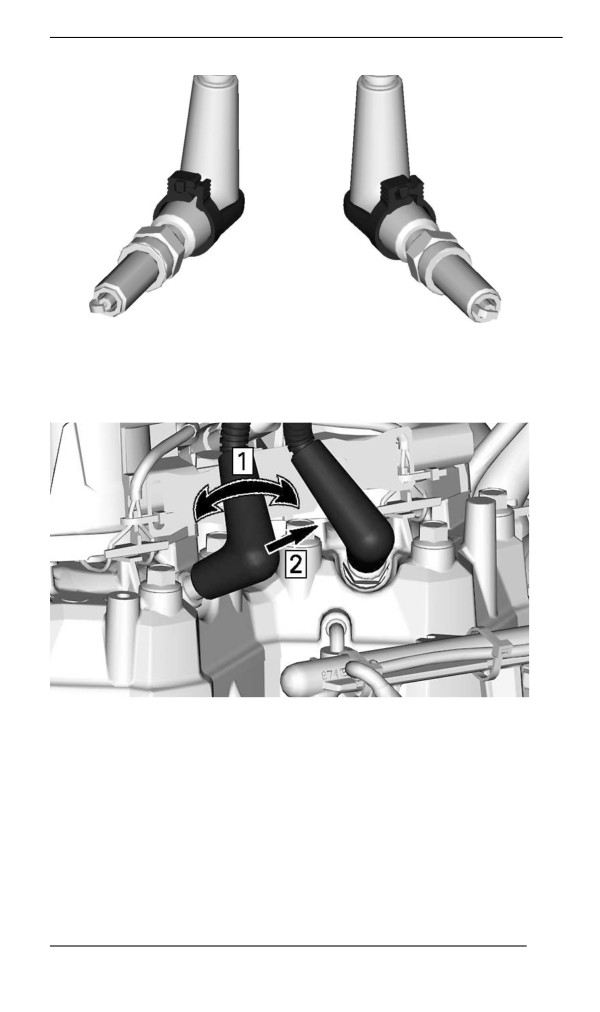

TYPICAL
Step 1. Gently rotate
Step 2. Pull off
6. Unscrew the spark plug sufficiently to break the applied torque us-
ing the appropriate tools.
155
MAINTENANCE PROCEDURES

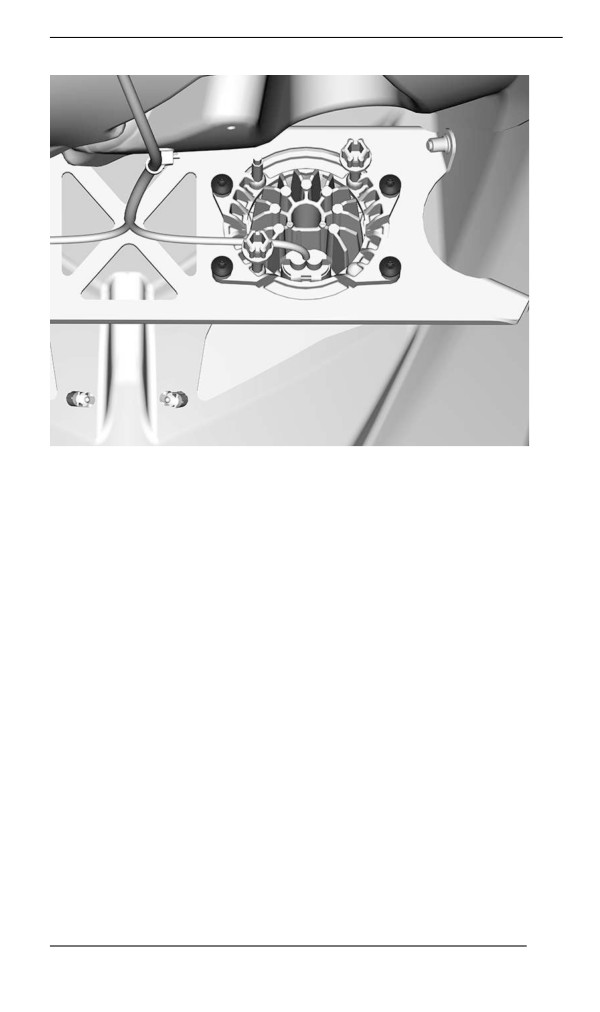

7. Remove spark plugs by hand.
Installling the Spark Pllugs (OEM)
1. Prior to installation, ensure the contact surfaces of the cylinder
head and spark plug are free of grime.

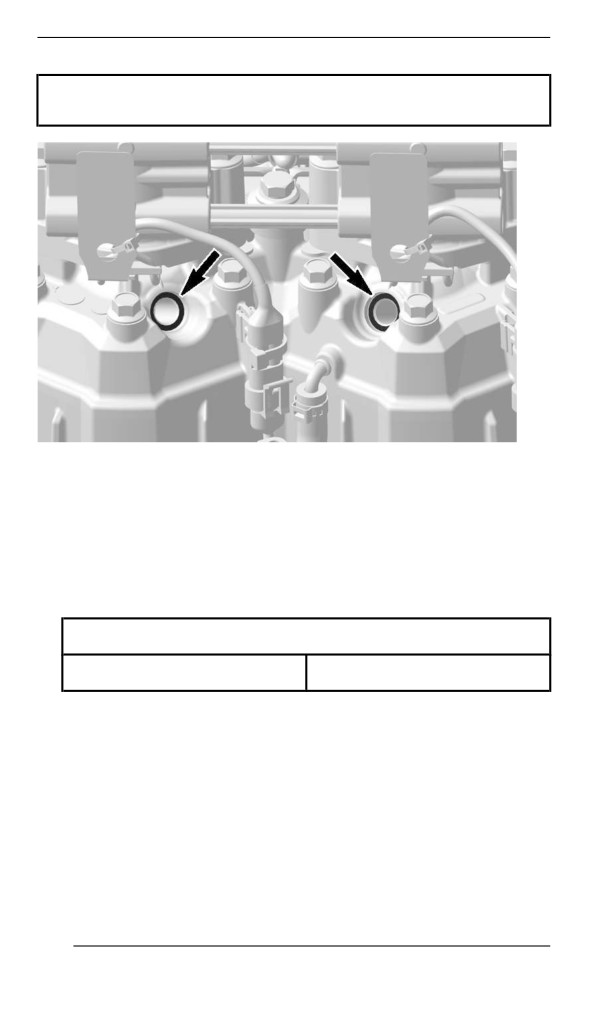

2. Lubricate contact surface of spark plug at the cylinder head.
Injection oil
156
MAINTENANCE PROCEDURES
3. Using a wire gauge, confirm electrode gap is as specified. Refer to
Technical Specifications.
NOTE:
If spark plug gap is incorrect, use another spark plug.
4. Hand screw spark plug into cylinder head until it bottoms out.
5. Apply specific torque using a torque wrench and approved spark
plug socket.
NOTE:
Spark plug tightening torque is particularly important on this engine as
it contributes to the proper positioning of the negative electrode.
Tightening Torque
Spark plug
23 ± 1 Nm
Installliing the Spark Plugs (Non-OEM)
When using a non-OEM spark plug , it must be correctly indexed or
engine may experience rough idling and higher emissions.

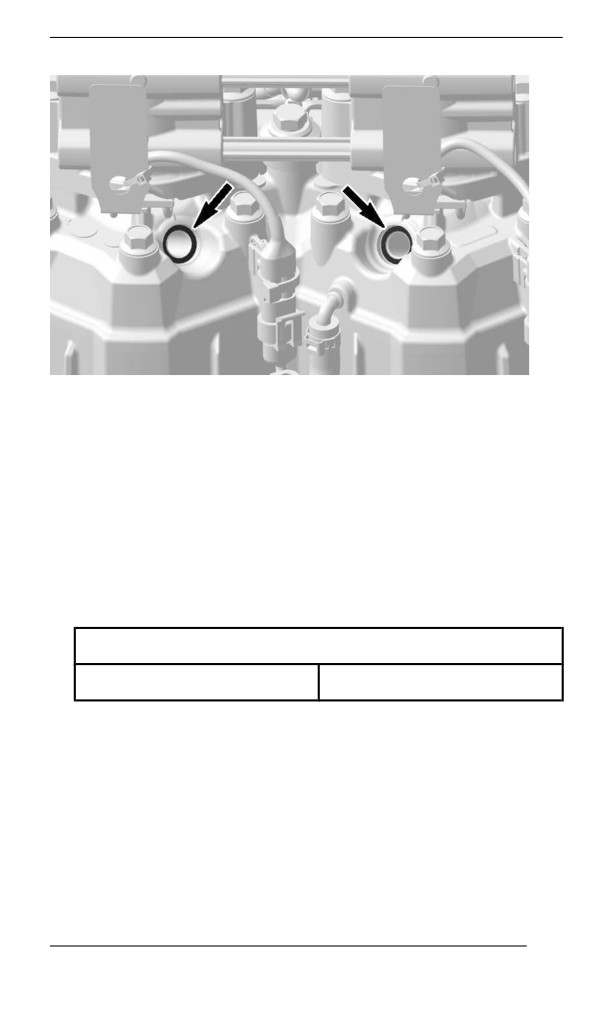

1. Using a marker, mark the open end of the negative electrode on
the plug shell (above threads).
2. Prior to installation, ensure the contact surfaces of the cylinder
head and spark plug are free of grime.
3. Lubricate contact surface of spark plug at the cylinder head.
157
MAINTENANCE PROCEDURES
Injection oil
4. Using a wire gauge, confirm electrode gap is as per manufacturer
specification.
NOTE:
If spark plug gap is incorrect, use another spark plug.
5. Hand screw spark plug into cylinder head until it bottoms out.
6. Apply specific torque using a torque wrench and an appropriate
spark plug socket.
Tightening Torque
Spark plug
23 ± 1 Nm
7. Visually check to ensure the open end of the negative electrode is
facing the injector nozzle within 90° each side of nozzle.
The following illustration uses the point of attachment of the nega-
tive electrode to depict the angle. The injector is illustrated above
the spark plug.
158
MAINTENANCE PROCEDURES

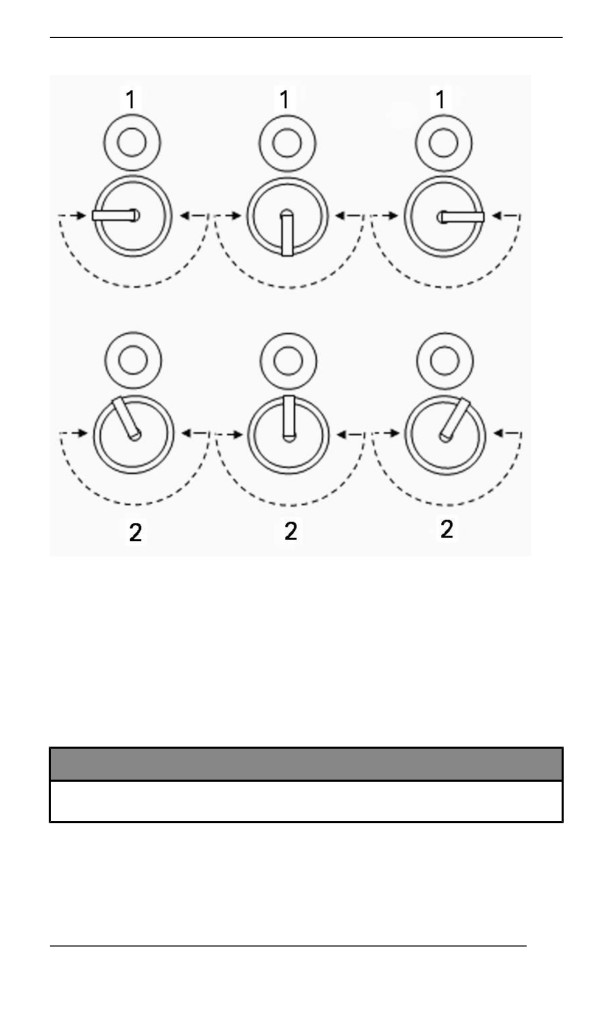

SPARK PLUG INDEXING
1. Acceptable installation
2. Unacceptable installation
If the plug indexing angle is not within specification, repeat proce-
dure with another spark plug until correct indexing is achieved.
Brake Fluid
Brake Fluid Level Verification
NOTICE
Vehicle must be on a level surface before checking any fluid
levels.
Check brake fluid (DOT 4) in reservoir for proper level. Add fluid (DOT
4) as required.
159
MAINTENANCE PROCEDURES
TYPICAL

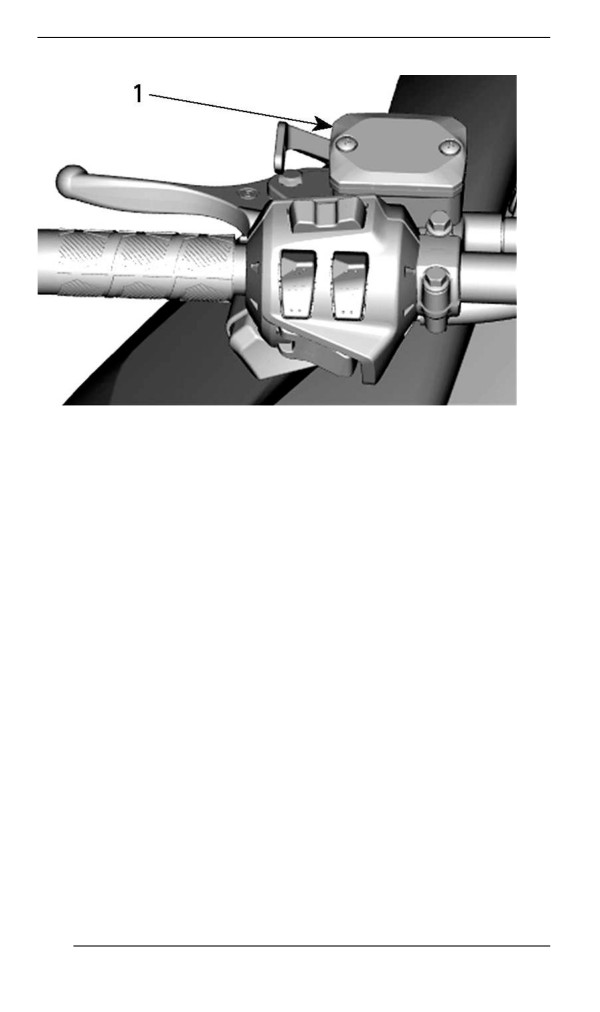

1. Brake fluid reservoir
160
MAINTENANCE PROCEDURES
TYPICAL

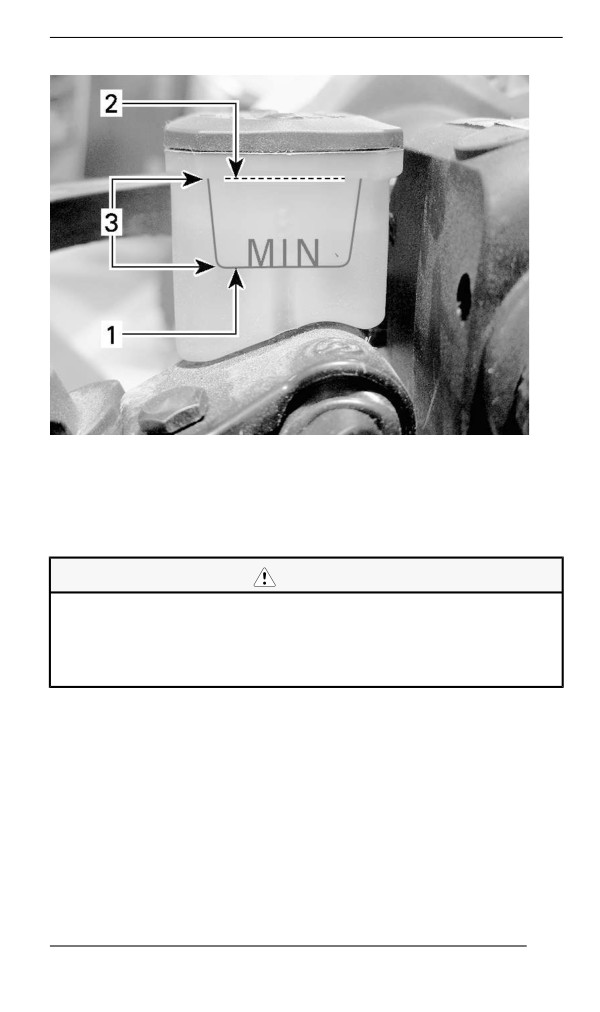

1. Minimum
2. Maximum
3. Operating range
CAUTION
Avoid getting brake fluid on skin or eyes - it may cause severe
burns. In case of contact with the skin, wash thoroughly. In
case of contact with the eyes, immediately rinse with plenty of
water for at least 10 minutes and then consult a doctor
immediately.
Recommended Fluid
Use only DOT 4 brake fluid from a sealed container. An opened con-
tainer may be contaminated or may have absorbed moisture from the
air.
161
MAINTENANCE PROCEDURES
WARNING
Use only DOT 4 brake fluid from a sealed container. To avoid
serious damage to the braking system, do not use fluids other
than the recommended one, nor mix different fluids for topping
up.
NOTICE
Brake fluid can damage painted and plastic parts. Handle with
care. Rinse thoroughly in case of spillage.
Chaiincase Oill
Recommended Chaincase Oil
Recommended Chaincase Oil
XPS Synthetic chaincase oil
Alternative or if not available
75W140 gear oil that meets the API GL-5 specification
NOTICE
If the recommended XPS chaincase oil is not available, use a
75W140 gear oil that meets the API GL-5 specification. The
chaincase of this snowmobile has been developed and vali-
dated using the XPS™ Synthetic chaincase oil. BRP strongly
recommends the use of its XPS Synthetic chaincase oil at all
times. Damages caused by oil which is not suitable for the
chaincase will not be covered by the BRP limited warranty.
Chaincase Oil Level Verification
With the vehicle on a level surface, check the oil level by removing the
check plug.
162
MAINTENANCE PROCEDURES

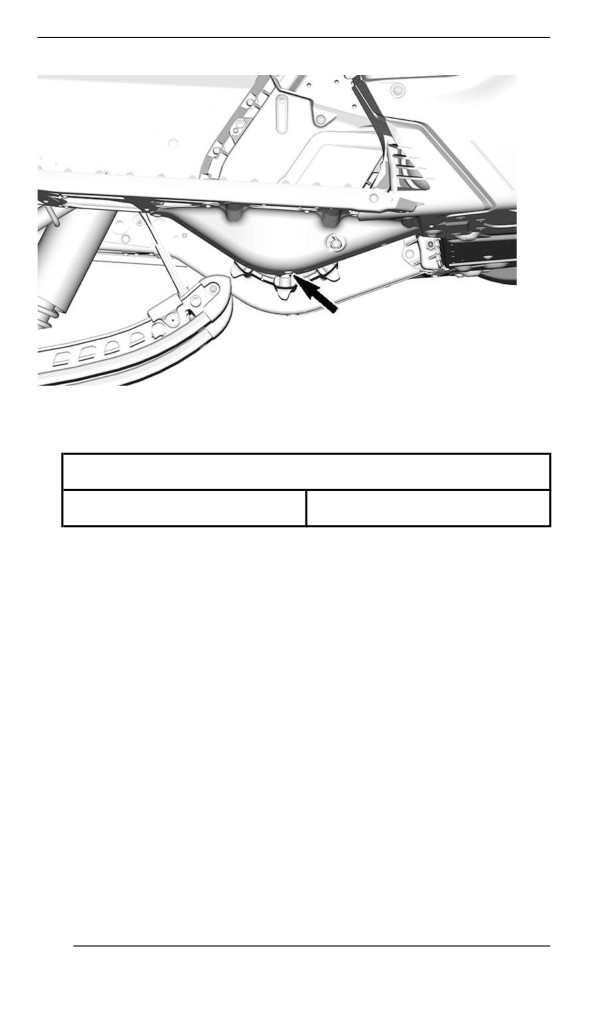

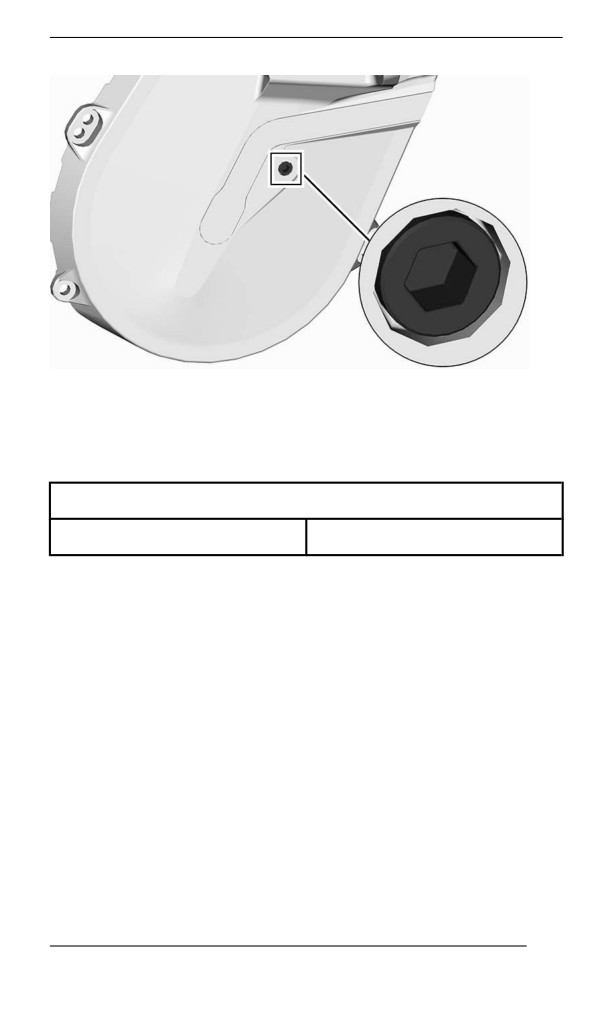

CHECK PLUG
Oil level must reach the threaded hole.
If level is correct, reinstall check plug and tighten to the specified
torque.
Tightening Torque
Check plug
6 ± 1 Nm (53 ± 9 lbf-in)
If level is insufficient, refer to Chaincase Filling Procedure.
Chaincase Oil Replacement
Chaincase Oiil Draining
1. Place the vehicle on a level surface.
2. Place a drain pan under the chaincase drain plug area.
3. Remove filler cap.
4. Remove the drain plug located at the bottom of the chaincase.
163
MAINTENANCE PROCEDURES
5. Wait a while to allow all oil to drain out of the chaincase.
6. Install drain plug and tighten to specification.
Tightening Torque
Chaincase drain plug
6 ± 1 Nm (53 ± 9 lbf-in)
Chaiincase Fillliing Procedure
1. Open the RH side panel. Refer to Equipment.
2. Remove the check plug.
164
MAINTENANCE PROCEDURES
CHECK PLUG
3. Remove the filler cap.

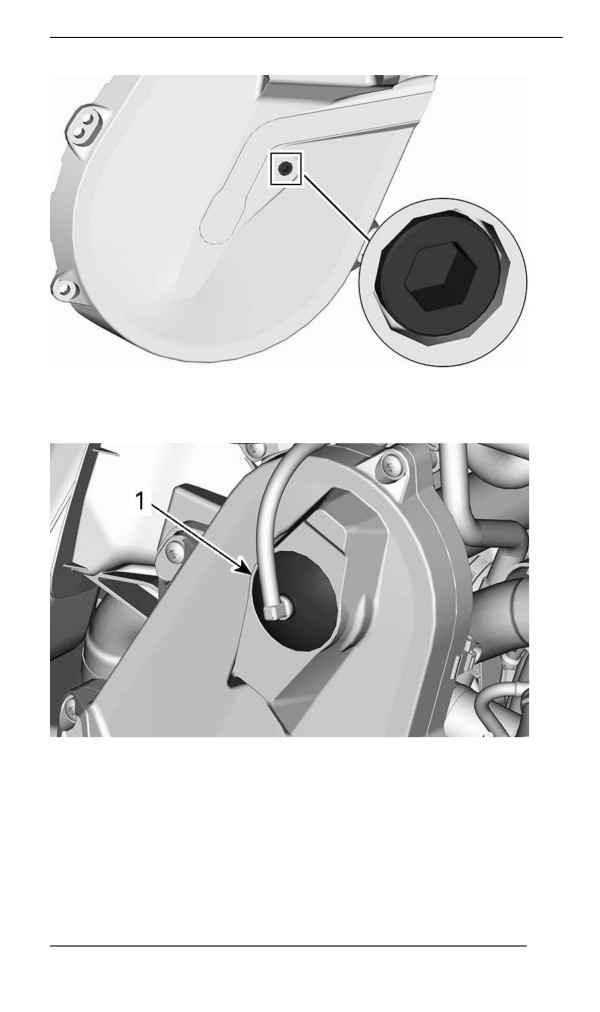

TYPICAL - TOP OF CHAINCASE
1. Filler cap
4. Pour recommended oil in the filler hole until oil comes out by the
check plug hole.
5. Reinstall check plug and tighten to specification.
165
MAINTENANCE PROCEDURES
Tightening Torque
Check plug
6 ± 1 Nm (53 ± 9 lbf-in)
Reinstall the filler cap.
Drive Chaiin
Access to Chaincase
Open RH side panel, refer to Equipment.
Drive Chain Adjustment

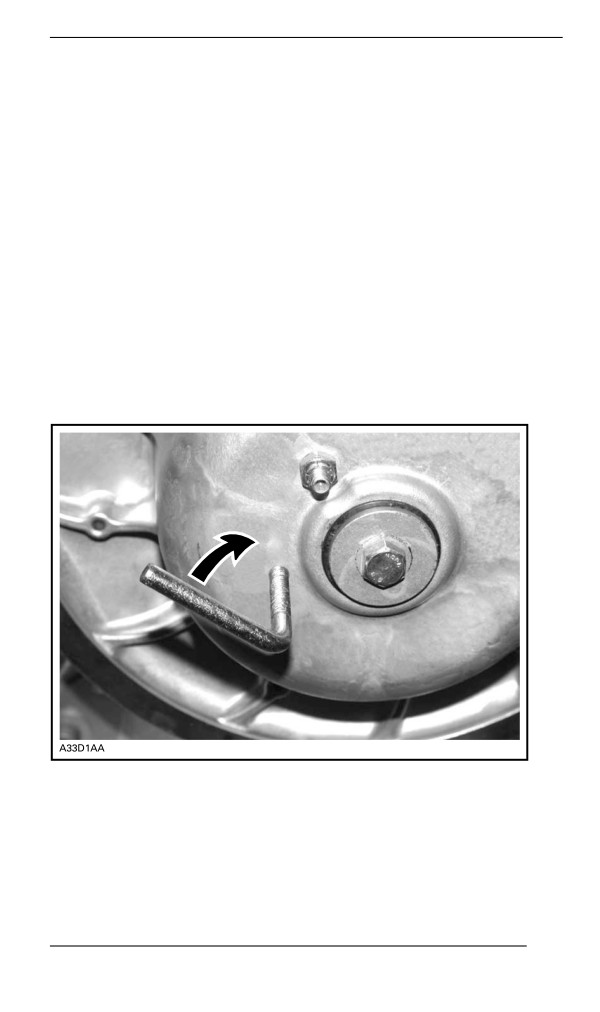

Using the Torx end of the driven pulley expander, GENTLY turn ten-
sioner clockwise to eliminate the play.

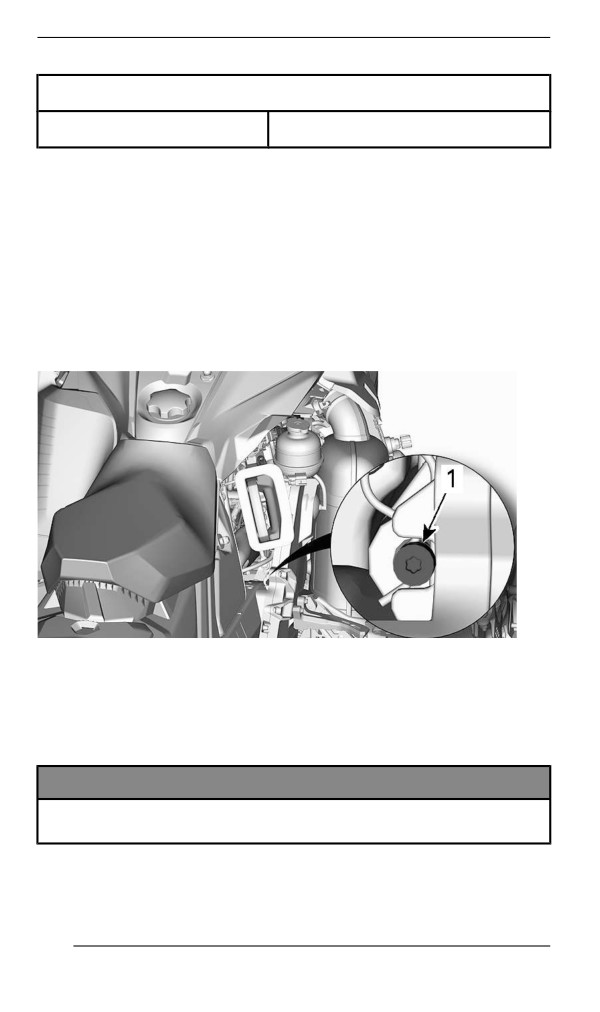

TYPICAL
Do not force the tensioner in.
NOTE:
Do not remove the hair cotter pin.
NOTICE
Overtightening the drive chain could result in severe damage to
the chaincase components.
166
MAINTENANCE PROCEDURES
Driive Belt
Drive Belt Inspection
Remove the drive belt guard. Refer to the procedure in Equipment.
Inspect belt for cracks, fraying or abnormal wear (uneven wear, wear
on one side, missing cogs, cracked fabric). If abnormal wear is noted,
probable cause could be pulley misalignment, excessive RPM with
frozen track, fast starts without warm-up period, burred or rusty
sheave, oil on belt or distorted spare belt. Contact an authorized BRP
snowmobile dealer.
Drive Belt Replacement
Driive Belt Removal
1. Remove tether cord cap from engine cut-off switch.
2. Remove drive belt guard. Refer to Equipment.
3. Insert the driven pulley expander provided in the threaded hole on
the adjuster hub as shown.
4. Open the driven pulley by screwing the tool in.
5. Remove the drive belt by slipping it over the top of the driven pul-
ley, then over the drive pulley.
Installliing the Drive Belt
1. If necessary, open the driven pulley. Refer to Removing the Drive
Belt above.
167
MAINTENANCE PROCEDURES
2. Slip the belt over the drive pulley, then over the driven pulley.
NOTICE
Do not force or use tools to pry the belt into place, as this could
cut or break the cords in the belt.
NOTE:
The maximum drive belt life span is obtained when belt is installed
with arrows in the direction of rotation.

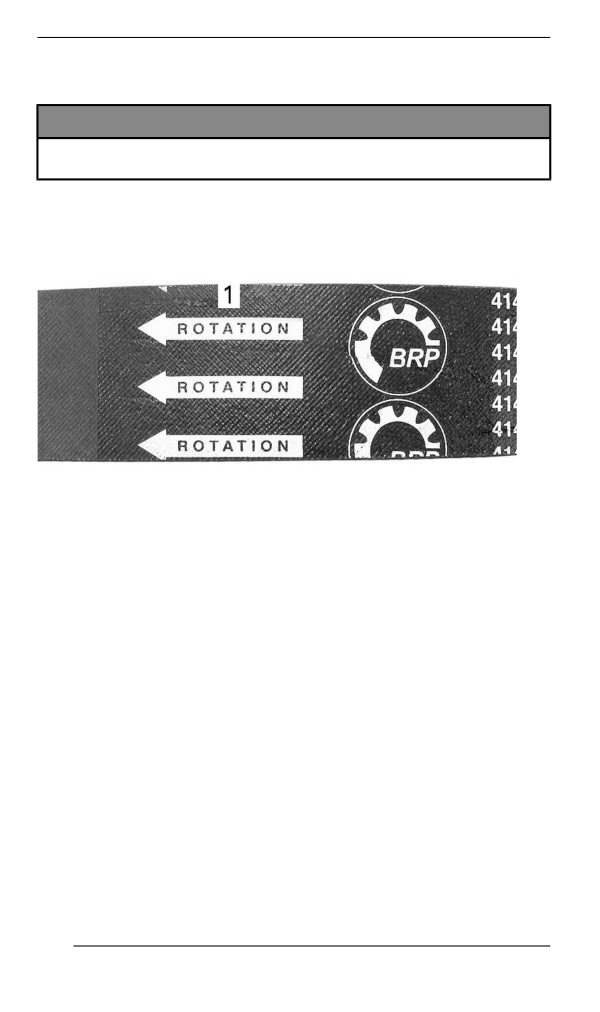

1. To be pointed in the direction of rotation
3. Unscrew and remove the driven pulley expander from the pulley.
4. Rotate the driven pulley several times to properly set the belt be-
tween the sheaves.
5. If a new belt was installed, an adjustment will be required for the
proper belt height. Refer to Adjusting the Drive Belt Height below.
6. Install belt guard. Refer to Equipment.
7. Close side panel. Refer to Body and Seat.
Drive Belt Adjustment
Drive belt adjustment must be performed every time a new belt is in-
stalled and as part of the pre-ride inspection.
To adjust the drive belt, proceed as follows:
1. Remove the tether cord cap.
2. Open the LH side panel. Refer to Body and Seat.
3. Remove the belt guard. Refer to Equipment.

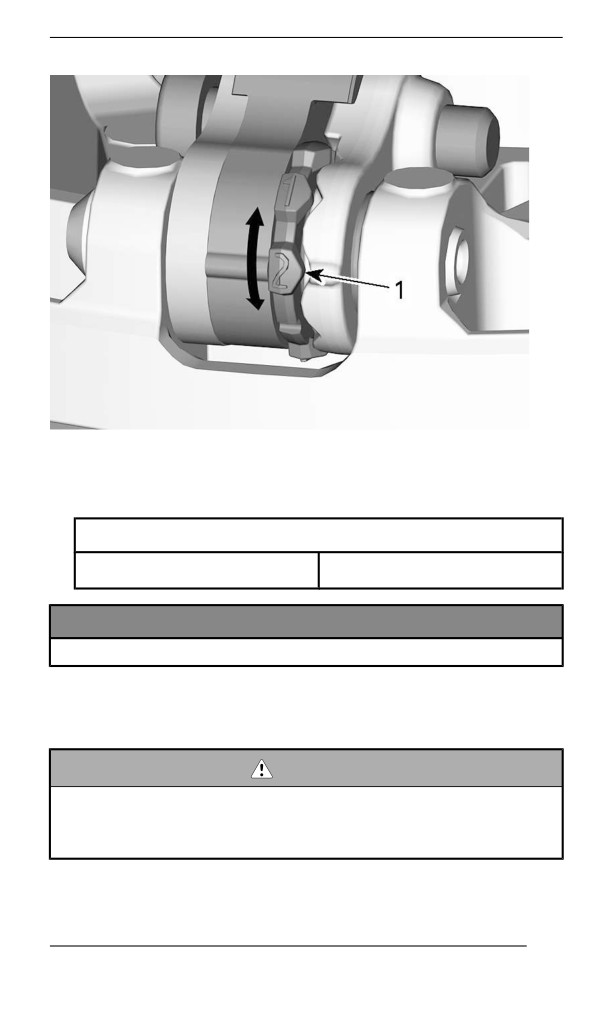

4. Keep the set screw from turning using a 1/8 inch Allen wrench and
loosen the lock nut using a 7/16 in open wrench.
5. Turn the set screw 1/4 turn at a time then rotate the driven pulley to
properly set the belt between the pulley sheaves. Measure belt de-
flection using a straight edge and a tensiometer as explained
below.
168
MAINTENANCE PROCEDURES
Required tool
Tensiometer
414 348 200
6. Repeat until the right belt deflection is reached.
NOTE:
Turn the set screw clockwise to increase the distance between the
sheaves and counterclockwise to decrease the distance.
7. Tighten the lock nut after the belt adjustment has been made.
Belt Defllection Measurement
1. Set deflection between 27 mm (1.06 in) and 37 mm (1.46 in) using
bottom O-ring.
169
MAINTENANCE PROCEDURES

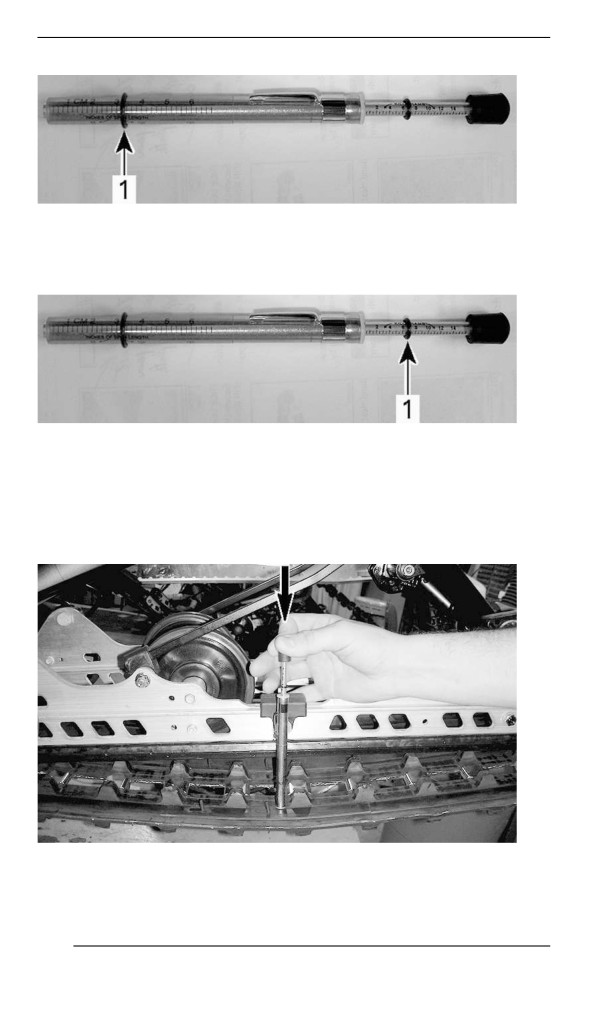

DEFLECTION SETTING
1. Bottom O-ring set to specification
2. Place upper O-ring to 0 kgf (0 lbf).
3. Position a straight edge ruler on the drive belt.

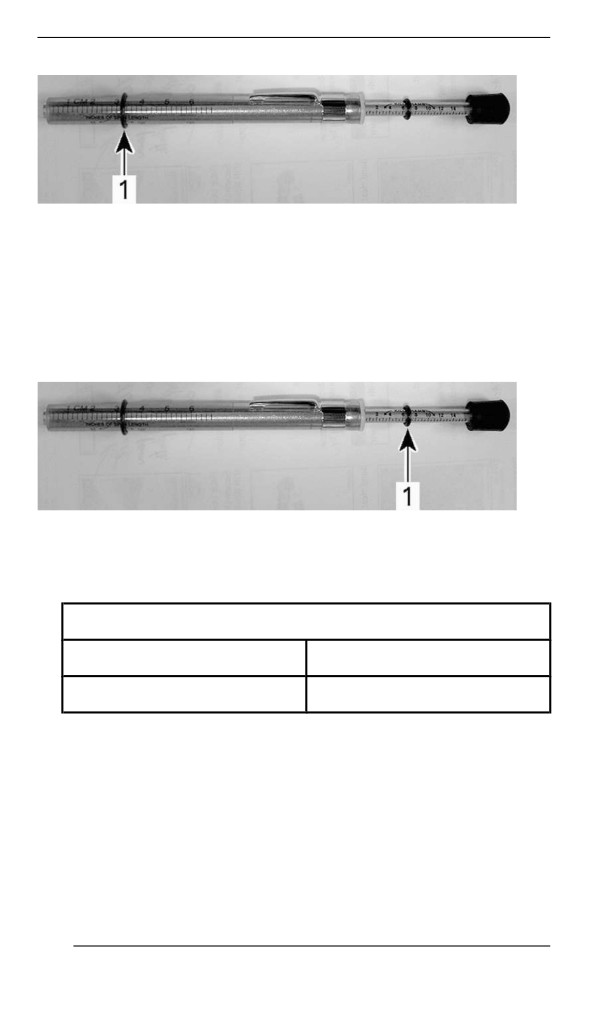

4. Position the tensiometer on drive belt, halfway between pulleys.
5. Push the tensiometer downwards until bottom O-ring (deflection)
be aligned with the inner edge of the straight ruler.
6. Read load recorded by the upper O-ring on the tensiometer.

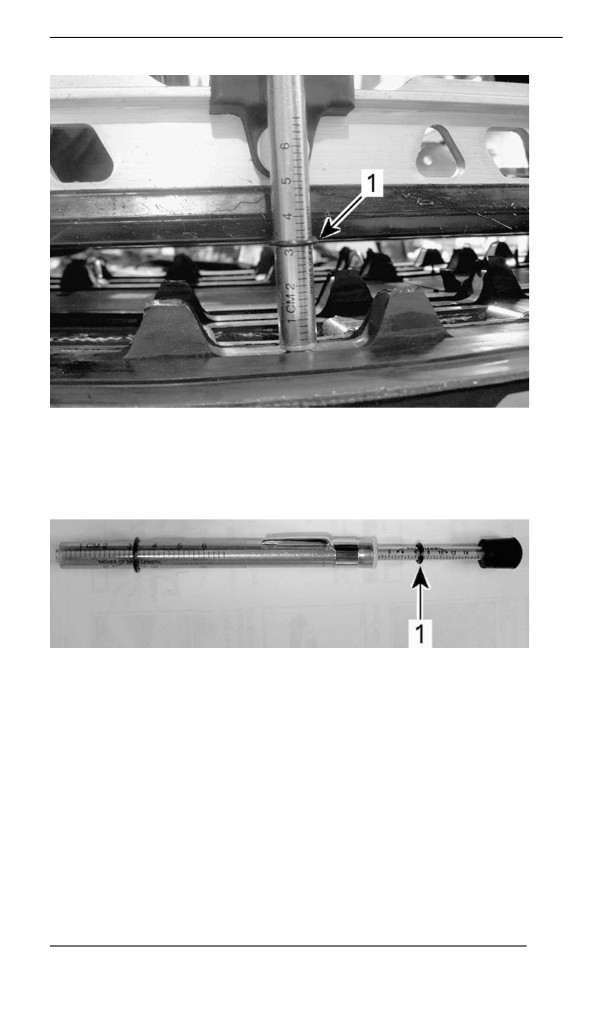

LOAD READING
1. Upper O-ring
7. Load reading must be as per the following table.
Drive belt Adjustment specification
Belt deflection setting
27 to 37 mm (1.06 to 1.46 in)
Belt load reading
11.3 kg (25 lb)
8. Adjust as required.
170
MAINTENANCE PROCEDURES
Driive Pullley
Drive Pulley Adjustment
WARNING
Remove tether cord cap from engine cut-off switch before per-
forming any adjustment. Vehicle must be parked in a safe
place, away from the trail.
WARNING
NEVER disassemble or modify the drive pulley.
Improper assembly or modifications could cause the pulley to
explode violently under the stress generated by the high rota-
tional speed.
Visit your BRP snowmobile dealer to maintain or service the
drive pulley. Improper servicing or maintenance may affect per-
formance and reduce belt life. Always respect maintenance
schedules.
The drive pulley is factory calibrated to transmit maximum engine
power at a predefined RPM. Factors such as ambient temperature, al-
titude or surface condition may vary this critical engine RPM thus af-
fecting snowmobile efficiency.
This adjustable drive pulley allows setting maximum engine RPM to
maintain maximum power.
Ramp cams should be adjusted so that actual maximum engine RPM
matches the maximum horsepower RPM. Refer to Technical Specifi-
cations (Engine).
NOTE:
Use a precision digital tachometer for engine RPM adjustment.
There are 5 positions in which the ramp cam can be set.
Each position modifies the maximum engine RPM by about 200 RPM.
Lower position numbers decrease engine RPM in steps of 200 RPM
and higher position numbers increase it in steps of 200 RPM.
Procedure
1. Refer to Body and Seat in Vehicle Information and remove:
- LH side panel
- Drive pulley guard
171
MAINTENANCE PROCEDURES

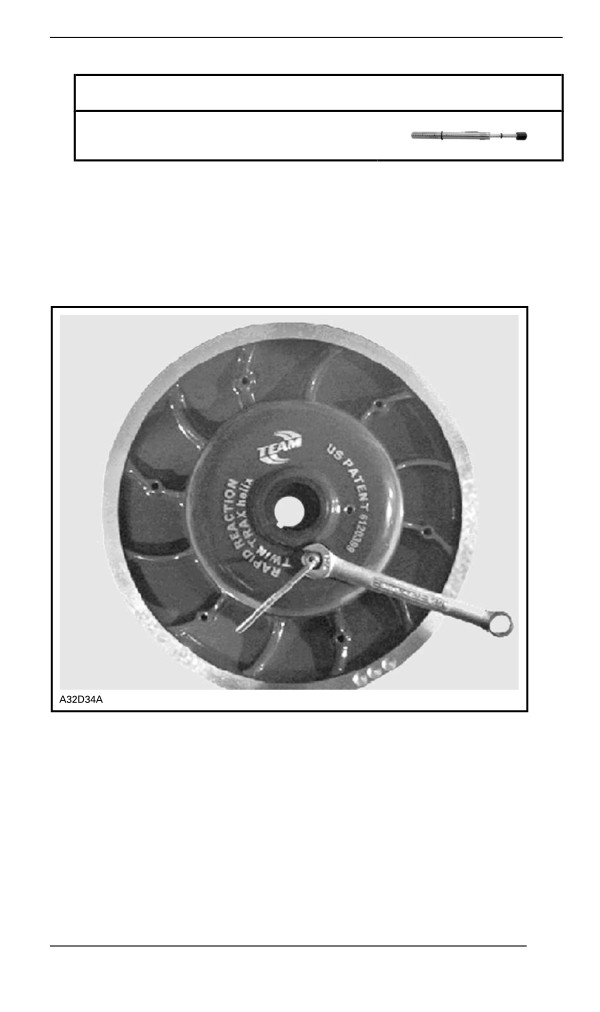

2. Locate the cam and the pivot screw on the drive pulley.
TYPICAL

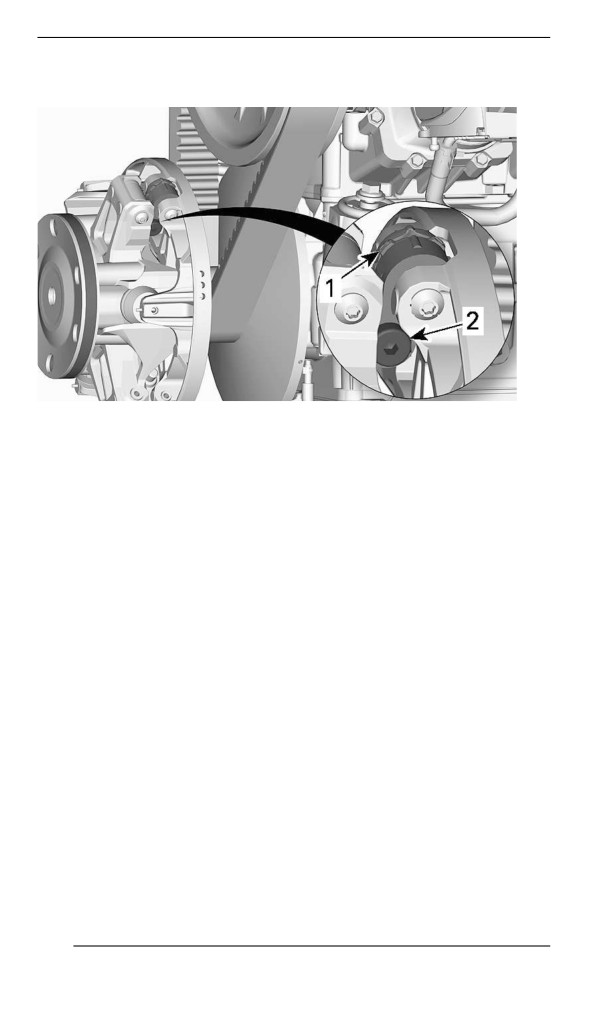

1. Cam
2. Pivot screw
The cam position is identified as follows:
- Positions 1, 2, 4 and 5 are numbered.
- Position 3 (middle) is identified by a notch.
- There are notches on each side of the cam used as pointers.
172
MAINTENANCE PROCEDURES

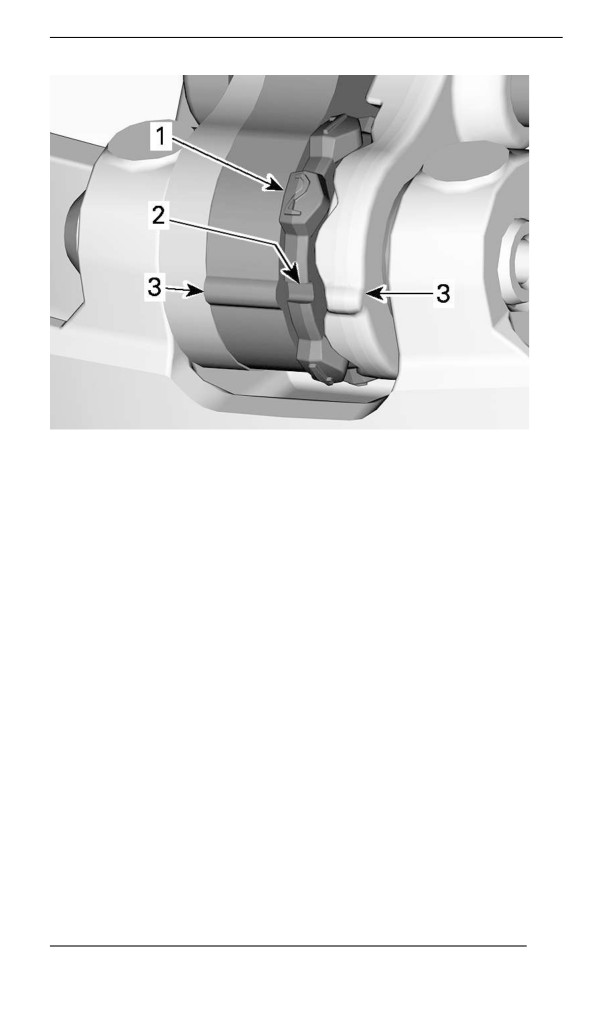

1. Numbered position
2. Position 3 - Notch
3. Pointers
To adjust, proceed as follows for all 3 cams:
3. Using the Allen end of the driven pulley expander, loosen the pivot
screw.
173
MAINTENANCE PROCEDURES

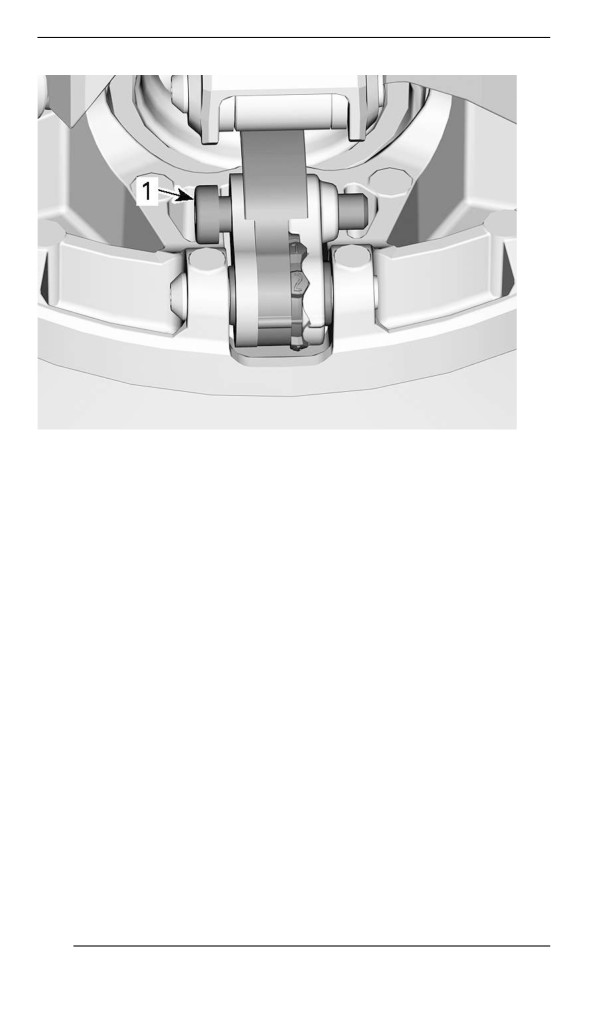

1. Pivot screw
4. Move the right lever aside to be able to turn the cam.
5. Turn cam to the desired position.
174
MAINTENANCE PROCEDURES
1. Desired cam position (here #2)
6. Tighten the pivot screw.
TIGHTENING TORQUE
Pivot
8 ± 1 Nm (71 ± 9 lbf-in)
NOTICE
Always adjust all 3 cams to the same setting.
Track
Track Condition
WARNING
Remove tether cord cap from engine cut-off switch before per-
forming any maintenance or adjustment, unless otherwise
specified. Vehicle must be parked in a safe place, away from
the trail.
Remove tether cord cap from engine cut-off switch.
175
MAINTENANCE PROCEDURES
Lift the rear of the snowmobile and support it with a wide-base snow-
mobile mechanical stand with a rear deflector panel. With the engine
off, rotate the track by hand, and inspect condition. If worn or cut, or if
track fibers are exposed, or if missing or defective inserts or guides
are noted; contact an authorized BRP snowmobile dealer.
Snowmobiles Equipped with Traction Enhancing Products
If your snowmobile is equipped with a BRP approved studded track,
PROCEED WITH A VISUAL INSPECTION OF YOUR TRACK BE-
FORE EACH USE.
Look for any defects, such as:
- Perforations in the track
- Tears in the track (particularly around traction holes on studded
tracks)
- Lugs that are broken or torn off, exposing portions of rods
- Delamination of the rubber
- Broken rods
- Broken studs (studded tracks)
- Bent studs (studded tracks)
- Missing studs
- Studs that are torn off the track
- Missing track guide(s)
- Also, ensure that studs nut are tighten to the recommended
torque.
On approved studded tracks, replace broken or damaged studs imme-
diately. If your track shows signs of deterioration, it must be replaced
immediately. When in doubt, ask your dealer.
WARNING
Riding with a damaged track or studs could lead to a loss of
control.
For complete information on traction enhancing products, refer to
TRACTION ENHANCING PRODUCTS in SAFETY INFORMATION at
the beginning of this Operator's Guide.
Track Tension and Alignment
NOTE:
Track tension and alignment are interrelated. Do not adjust one with-
out the other.
176
MAINTENANCE PROCEDURES
WARNING
To prevent serious injury to individuals near the snowmobile:
– NEVER stand behind or near a moving track.
– Always use a wide-base snowmobile stand with a rear de-
flector panel if it is necessary to rotate track.
– When the track is raised off the ground, only run it at the low-
est possible speed.
Centrifugal force could cause debris, damaged or loose studs,
pieces of torn track, or an entire severed track to be violently
thrown backwards out of the tunnel with tremendous force, pos-
sibly resulting in the loss of a leg or other serious injury.
Verifying the Track Tensiion
NOTE:
Ride the snowmobile in snow about 15 to 20 minutes prior to adjusting
track tension.
1. Remove tether cord cap from engine cut-off switch.
2. Lift rear of vehicle and support it off the ground.
CAUTION
Use proper lifting techniques, notably using your legs force. Do
not attempt to lift the rear of vehicle if it is above your limits.
3. Allow rear suspension to fully extend.
4. Prepare the tensiometer.
Service tool
Tensiometer (P/N 414348200)
1. Set the bottom O-ring as per the Track Deflection from the ap-
plicable vehicle in the Technical Specifications table.
177
MAINTENANCE PROCEDURES
1. Bottom O-ring
2. Place the upper O-ring to 0 kgf (0 lbf).
1. Upper O-ring
5. Position the tensiometer on track, halfway between front and rear
idler wheels.
6. Push the tensiometer downwards until bottom O-ring (deflection
set earlier) be aligned with the bottom of slider shoe.
TYPICAL
178
MAINTENANCE PROCEDURES
TYPICAL
1. Deflection O-ring aligned with slider shoe
7. Read load recorded by the upper O-ring on the tensiometer.
TYPICAL - LOAD READING
1. Upper O-ring
8. Load reading must be as per the track deflection in the Technical
Specifications.
9. If load reading is not in accordance with the specification, adjust
track tension. Refer to Track Tension Adjustment.
Adjusting the Track Tension
1. Remove the tether cord cap from engine cut-off switch.
2. Lift and support the rear of vehicle.
179
MAINTENANCE PROCEDURES
CAUTION
Use proper lifting techniques, notably using your legs force. Do
not attempt to lift the rear of vehicle if it is above your limits.
3. Loosen the RH side rear idler wheel retaining nut half a turn while
holding the LH side nut.
TRACK REMOVED FOR CLARITY

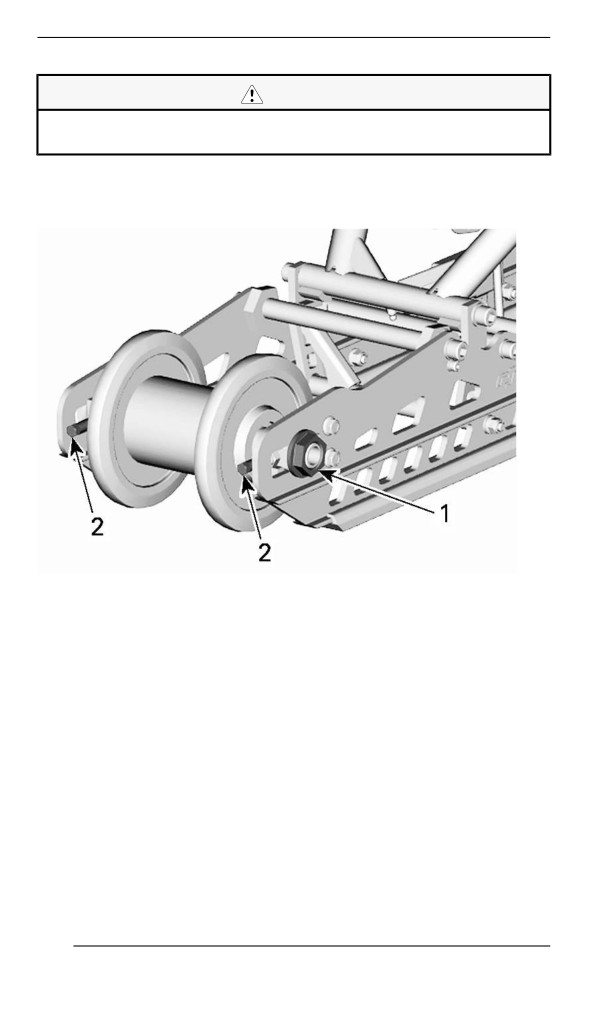

1. RH rear idler wheel nut
2. Adjustment screws
4. Through the track holes, tighten or loosen both adjustment screws
to increase or decrease track tension.
NOTE:
You may need to position the track to access the adjustment screws.
5. If correct tension is unattainable, contact an authorized Ski-Doo
dealer.
6. Retighten the retaining nut to specifications while holding axle.
180
MAINTENANCE PROCEDURES
Tightening Torque
Rear axle nut
48 ± 6 Nm (35 ± 4 lbf-ft)
7. Check track alignment as described below.
Alligning the Track
WARNING
Before checking track alignment, ensure that the track is free of
all particles which could be thrown out while track is rotating.
Keep hands, tools, feet and clothing clear of track. Always lift
the snowmobile on a wide-base stand with a rear deflector pan-
el. Ensure no one is standing in close proximity to the snowmo-
bile, especially at the rear of the track. Never rotate track at
high speed.
Centrifugal force could cause debris, damaged or loose studs,
pieces of torn track, or an entire severed track to be violently
thrown backwards out of the tunnel with tremendous force.
1. Lift rear of vehicle and support it off the ground.
CAUTION
Use proper lifting techniques, notably by using the force of your
legs . Do not attempt to lift the rear of vehicle if it is above your
limits.
2. Start engine and accelerate slightly so that track slowly turns. This
must be done in a short period of time (15 to 20 seconds).
3. Check that the track is well centered; equal distance on both sides
between edges of track guides and slider shoes.
181
MAINTENANCE PROCEDURES
1
2
3
A01F05A

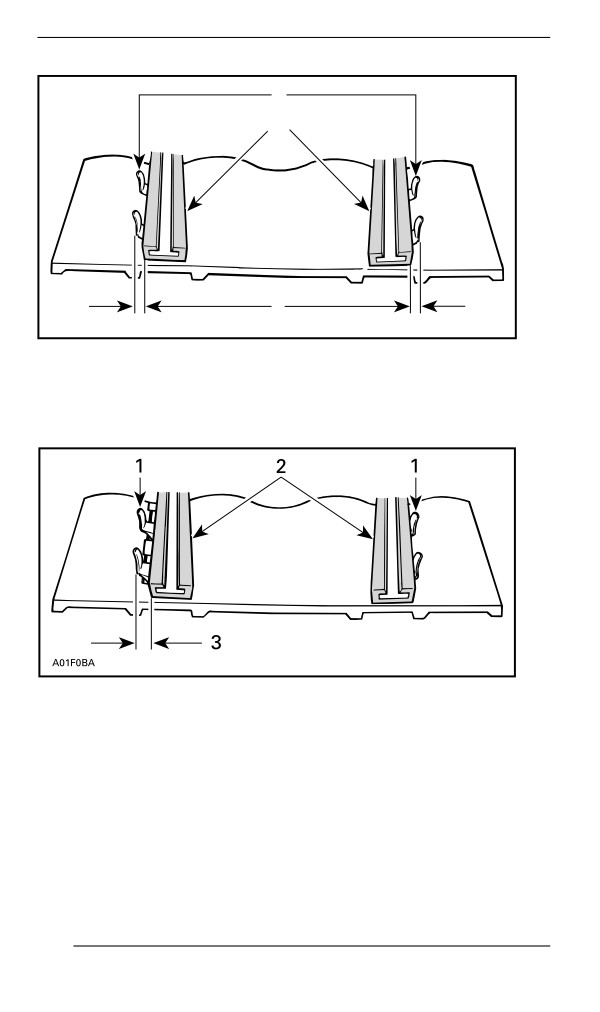

1. Guides
2. Slider shoes
3. Equal distance
4. To correct track alignment:
1. Guides
2. Slider shoes
3. Tighten on this side
1. Stop engine.
2. Remove tether cord cap from engine cut-off switch.
182
MAINTENANCE PROCEDURES
WARNING
Remove tether cord cap from engine cut-off switch before per-
forming any maintenance or adjustment, unless otherwise
specified. Vehicle must be parked in a safe place, away from
the trail.
3. Loosen the rear axle nut.
4. Tighten adjustment screw on side where the slider shoe is the
farthest from the track insert guides.
5. Tighten the rear axle nut.
WARNING
Properly tighten wheel retaining bolt, otherwise wheel may
come off and cause track to “lock”.
6. Restart engine and rotate track slowly to recheck alignment.
7. Tighten the rear axle nut to specified torque.
Tightening Torque
Rear axle screw
48 ± 6 Nm (35 ± 4 lbf-ft)
8. Reposition snowmobile on the ground.
Suspension
Rear Suspension Condition
Visually inspect all suspension components including slider shoes,
springs, wheels, etc.
NOTE:
During normal driving, snow will act as a lubricant and coolant for the
slider shoes. Extensive riding on ice or sanded snow, will create ex-
cessive heat build-up and cause premature slider shoe wear.
Suspension Stopper Strap Condition
Inspect stopper straps for wear and cracks, bolt and nut for tightness.
If loose inspect holes for deformation. Replace as required. Tighten
nut to specification.
183
MAINTENANCE PROCEDURES
Tightening Torque
Stopper strap nut
10 ± 1 Nm (89 ± 9 lbf-in)
Suspension Lubrication
Lubricate the following suspension pivots at grease fittings. Refer to
Maintenance Schedule for maintenance frequency.
Suspension grease
Synthetic suspension grease

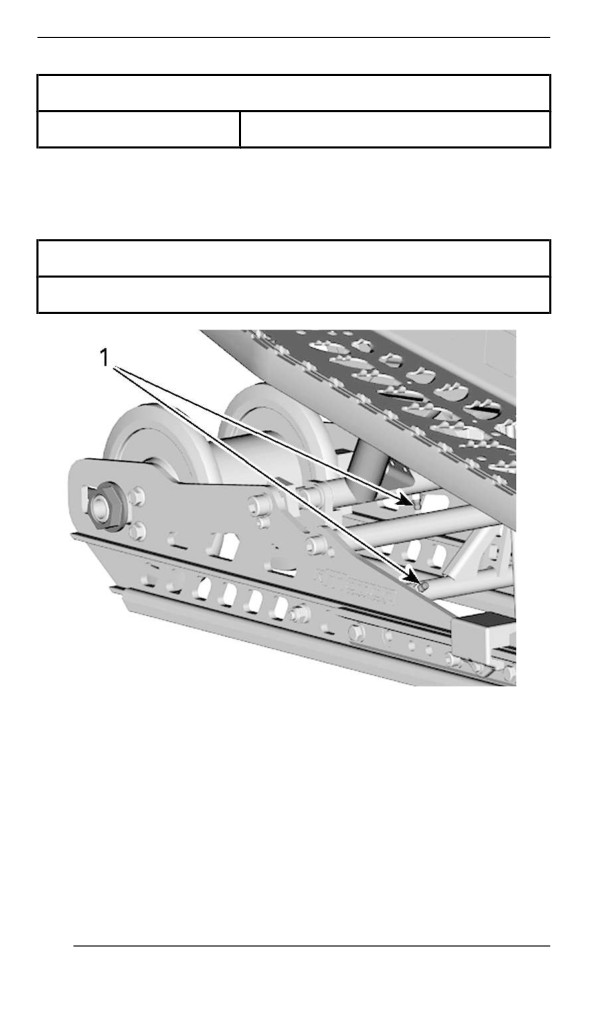

1. Grease fittings
Steering and Front Suspension Condition
Visually inspect steering and front suspension for tightness of compo-
nents (steering arms, control arms and links, tie rods, ball joints, ski
bolts, ski legs, etc.). If necessary, contact an authorized BRP snowmo-
bile dealer.
184
MAINTENANCE PROCEDURES
Skis
Wear and Condition of Skis and Runners
Check the condition of the skis and ski runner carbides. If worn, con-
tact an authorized BRP snowmobile dealer.
WARNING
Excessively worn skis and/or ski runners will adversely affect
snowmobile control.
Fuses
Access to Fuse Block
Open RH side panel, refer to Body and Seat.
Fuses Location
TYPICAL

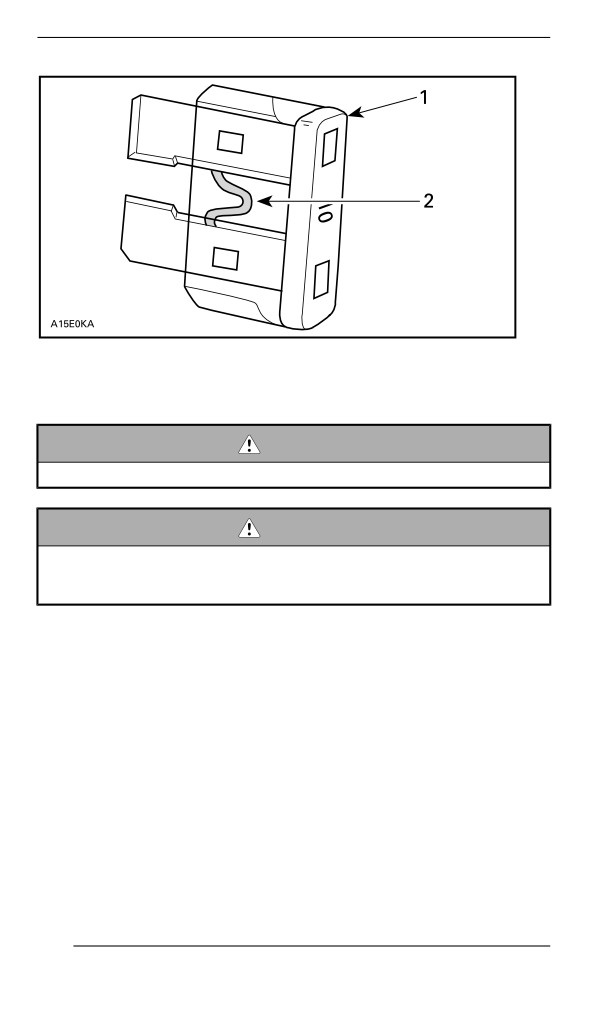

1. Fuse block
Unlock fuse block from its cover.
Refer to Technical Specifications for fuse rate and configuration.
Fuse Inspection
Check fuse condition and replace it if necessary.
To remove fuse from holder, pull fuse out. Check if filament is melted.
185
MAINTENANCE PROCEDURES
1. Fuse
2. Check if melted
WARNING
Do not use a higher rated fuse.
WARNING
If fuse has burnt out, source of malfunction should be deter-
mined and corrected before restarting. See an authorized BRP
snowmobile dealer for servicing.
Headllights
Headlights Bulb Replacement
The headlights bulbs are not replaceable. Replace assembly.
Remove screws holding light assembly.
186
MAINTENANCE PROCEDURES
Disconnect light and remove.

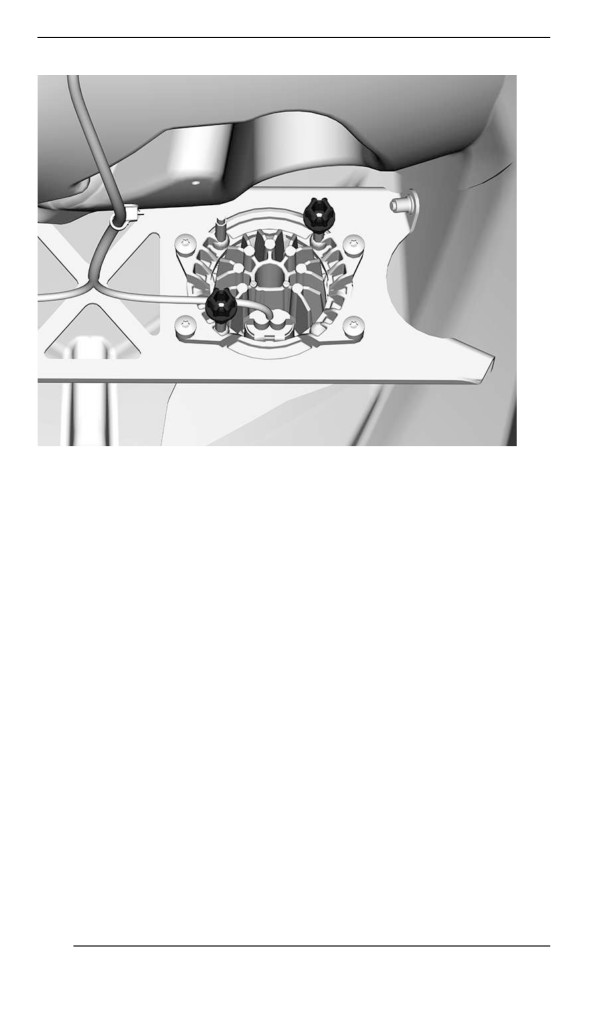

Headlights Beam Aiming
Remove side panels. Refer to Body and Seat.
Turn the adjustment screw to reach desired beam height and
direction.
187
MAINTENANCE PROCEDURES
188
VEHICLE CARE
Post-Operatiion Care
Remove snow and ice from rear suspension, track, front suspension,
steering mechanism and skis.
WARNING
Make sure D.E.S.S. key is removed from D.E.S.S. post before
standing in front the vehicle, getting close to the track or rear
suspension components.
Always cover your snowmobile when leaving it outside overnight or
during extended periods of inactivity. This will protect it from frost and
snow as well as help retain its appearance.
Vehicle Cleaning and Protectiion
Wash snowmobile with water mixed with a mild detergent. Use only
microfiber cloths or an equivalent.
NOTICE
Never use a high pressure washer to clean the vehicle. USE
LOW PRESSURE ONLY (EX: garden hose).
NOTICE
Never use XPS Brake and Parts Cleaner or any petroleum
based cleaners on plastic parts.
Non Compatible Cleaning Products
material type
non-compatible cleaning Products
All plastics, vinyls,
BRAKE AND PARTS CLEANER OR
painted steel and
ANY PETROLEUM BASE CLEANING
aluminium.
PRODUCTS
Compatible Cleaning Products
material type
cleaning Product
All plastics, vinyls,
Soapy water
painted steel and
XPS Spray Cleaner and Polish
aluminium.
XPS All Purpose Cleaner
189
VEHICLE CARE
For more information and products, Visit the XPS Products website at
190
STORAGE
During summer, or when a snowmobile is not in use for more than
three months, proper storage is necessary.
Storage
Clean the vehicle
Add fuel stabilizer to fuel following the product manufacturer
recommendations.
Run the engine after adding the product to the fuel.
Run the engine until there is no fuel left.
Lubricate the engine.
Lubricate brake lever pivot
Lubricate rear suspension
Block muffler outlet with rags
Lift rear of vehicle until track is clear of the ground. Do not release
track tension
CAUTION
Use appropriate lifting device or have assistance to share lifting
stress. If a lifting device is not used, use proper lifting techni-
ques, notably using your legs force. Do not attempt to lift the
rear of vehicle if it is above your limits.
NOTICE
The snowmobile has to be stored in a cool and dry place and
covered with an opaque but ventilated tarpaulin. This will pre-
vent sun rays and grime from affecting plastic components and
vehicle finish.
NOTICE
Fuel stabilizer should be added prior to engine lubrication to
prevent the loss of the chemical properties of fuel and protect
the fuel system against varnish deposits.
191
MAINTENANCE RECORDS
Send photocopy of maintenance record to BRP if needed.
Pre-delivery
Serial
Signature/Print:
number:
Mileage /
km:
Hours:
Date:
Dealer
no:
Notes:
Refer to vehicle Pre-Delivery Bulletin for detailed installation
procedures
192
MAINTENANCE RECORDS
First inspection
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
193
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
194
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
195
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
196
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
197
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
198
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
199
MAINTENANCE RECORDS
This page is intention-
ally blank
200
TECHNICAL
INFORMATION
201
VEHICLE IDENTIFICATION

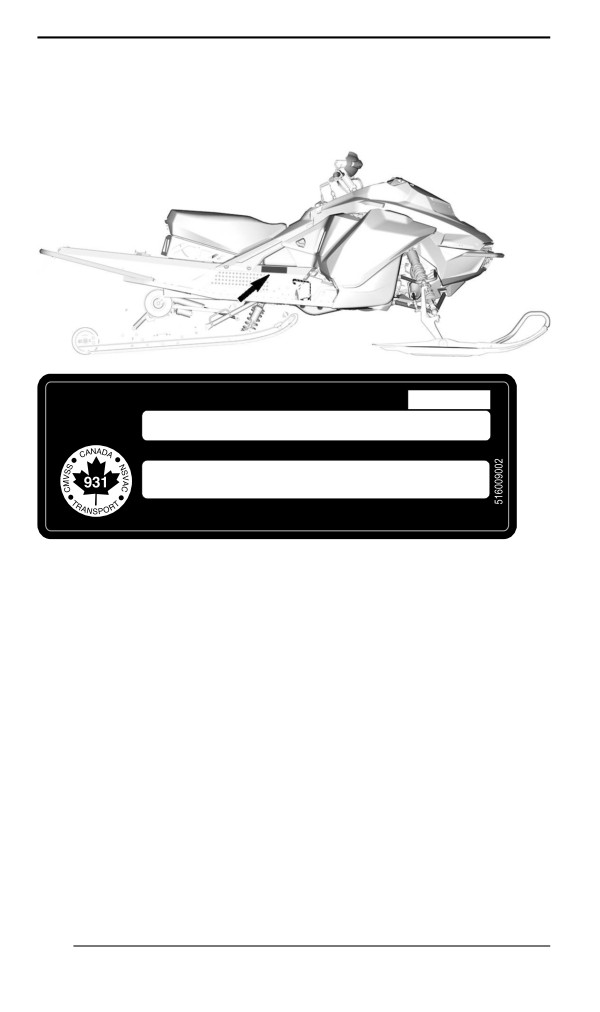

Vehiiclle Descriiptiion Decal
Vehicle description decal is located on right hand side of tunnel.
Date
BOMBARDIER RECREATIONAL PRODUCTS Inc.
VIN. / NIV.
Description
Type: SNO/MNG
ASSEMBLED IN CANADA / ASSEMBLÉ AU CANADA
VEHICLE ASSEMBLED IN CANADA
Identiifiication Numbers
The main components of your snowmobile (engine and frame) are
identified by different identification numbers. It may sometimes be-
come necessary to locate these numbers for warranty purposes or to
trace your snowmobile in the event of loss. These numbers are re-
quired by the authorized BRP snowmobile dealer to complete war-
ranty claims properly. We strongly recommend that you take note of
all the identification numbers on your snowmobile and supply them to
your insurance company.
Vehicle Identification Number (VIN)
VIN is scribed on vehicle description decal. See above. It is also en-
graved on tunnel near vehicle description decal.
Model number and model year are part of the information found in the
VIN. See illustration.
202

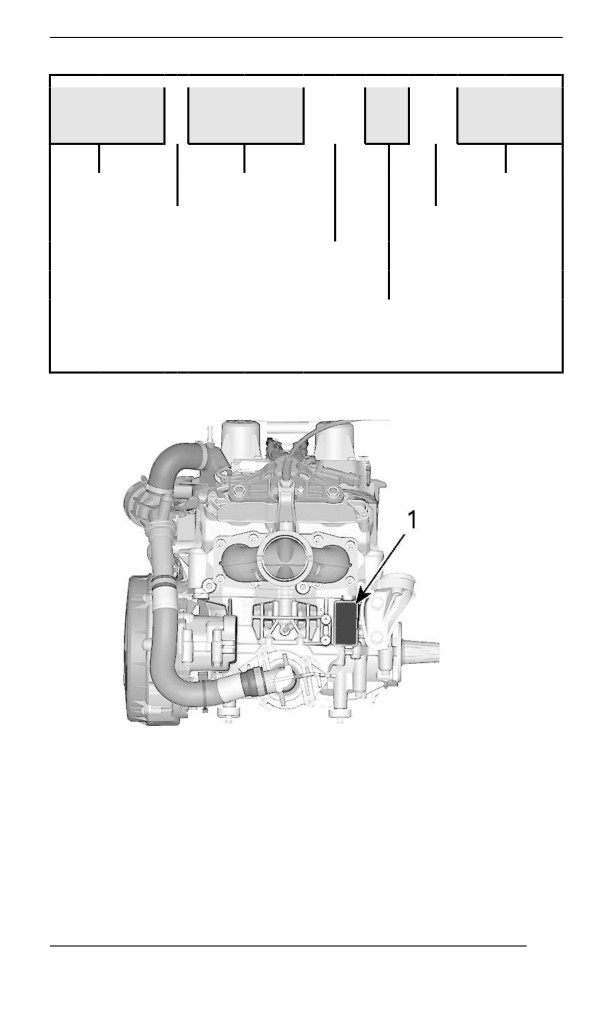

VEHICLE IDENTIFICATION
2BP
S
LSAB
9
A
V
000001
2BP = Canada
Serial
Model number
YH2 = Finland
number
Factory
S = Ski-Doo
V = Valcourt
L = Lynx
Numeric or
R = Rovaniemi
Alphabetic
Model year: P = 2023
Q = 2024
R = 2025 etc.
Engine Identification Number Location
1. Engine identification number
203
COMPLIANCE LABELS

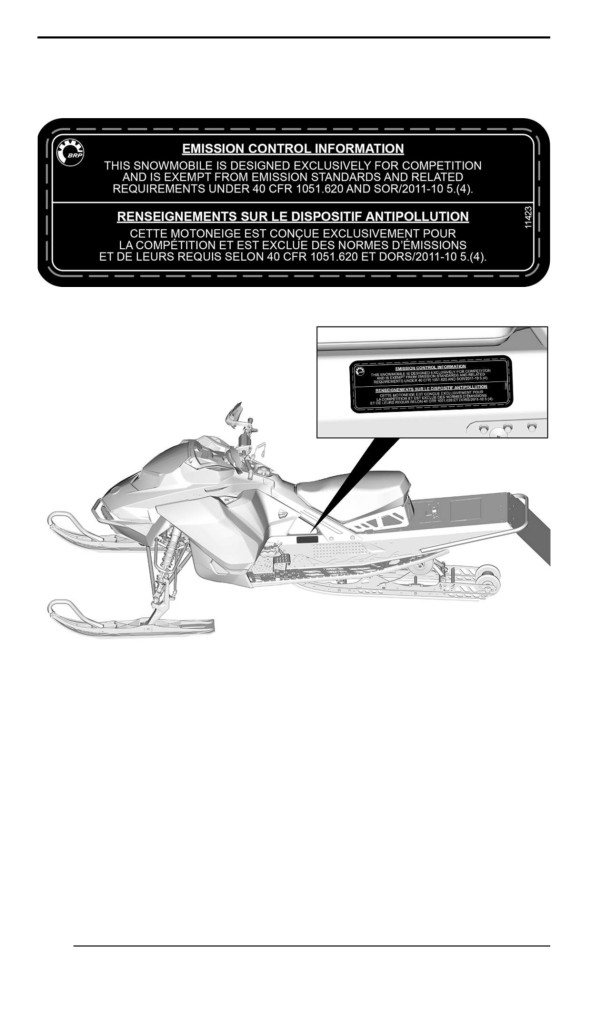

EPA Exemption Labell
EPA EXEMPTION LABEL
204
COMPLIANCE LABELS

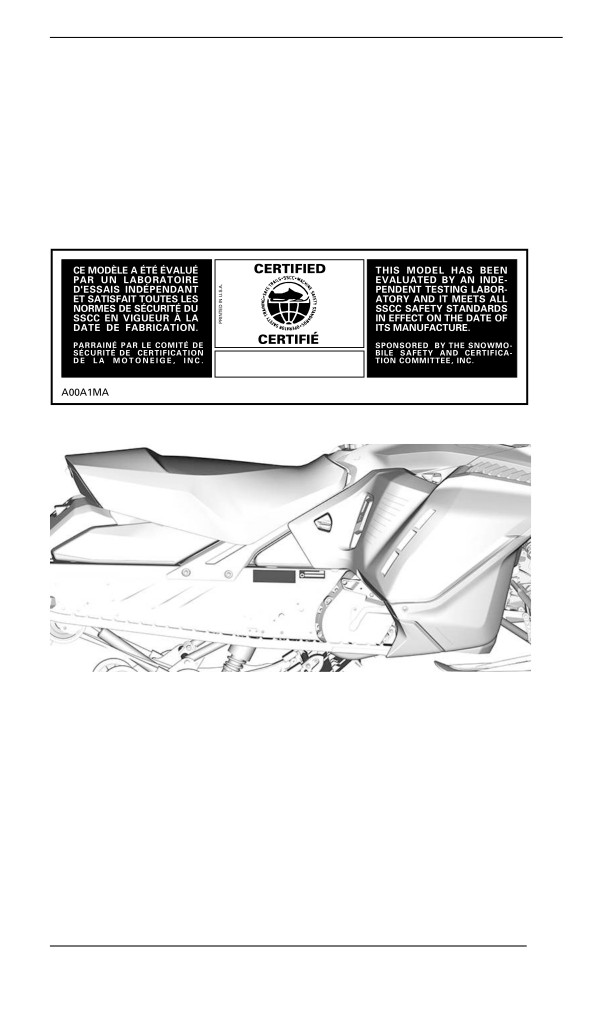

SSCC Label
Safety standards for snowmobiles have been adopted by the Snow-
mobile Safety and Certification Committee (SSCC) of which BRP is a
proud participating member. Assurance that your snowmobile meets
these standards is easily checked by locating the Certification Label
on a right vertical portion of the vehicle.
The following label shows that an independent testing laboratory has
verified compliance with the SSCC safety standards.
LABEL 2
Regulation (EU) 2016/1628 appliicable for
Non-Road Mobille Machiineriies
Vehicles who comply to Regulation (EU) 2016/1628 (NRMM) are iden-
tified on the engine.
205
COMPLIANCE LABELS

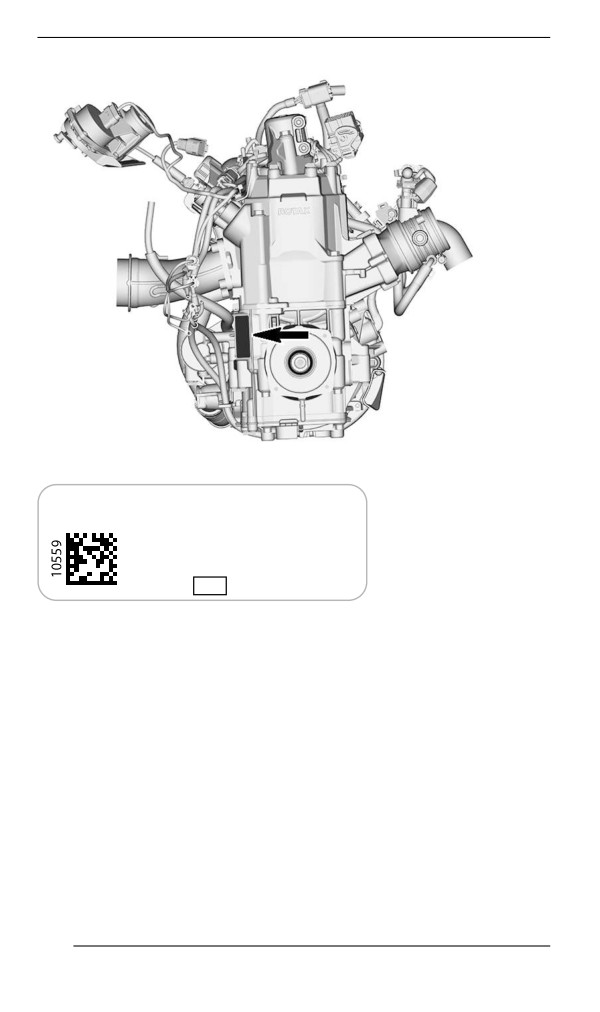

TYPICAL
Rotax
NRSC H CO2 g/kWh:
XXXX
#
MXXXXXXX
Prod. date:
MM-YYYY
Family type:
XXXXXX
e13
SMB/P V-####
TYPICAL - NRMM IDENTIFICATION LABEL
Depending on your particular vehicle configuration, an additional
NRMM identification label may be installed on the tunnel, near the
chaincase.
206
COMPLIANCE LABELS

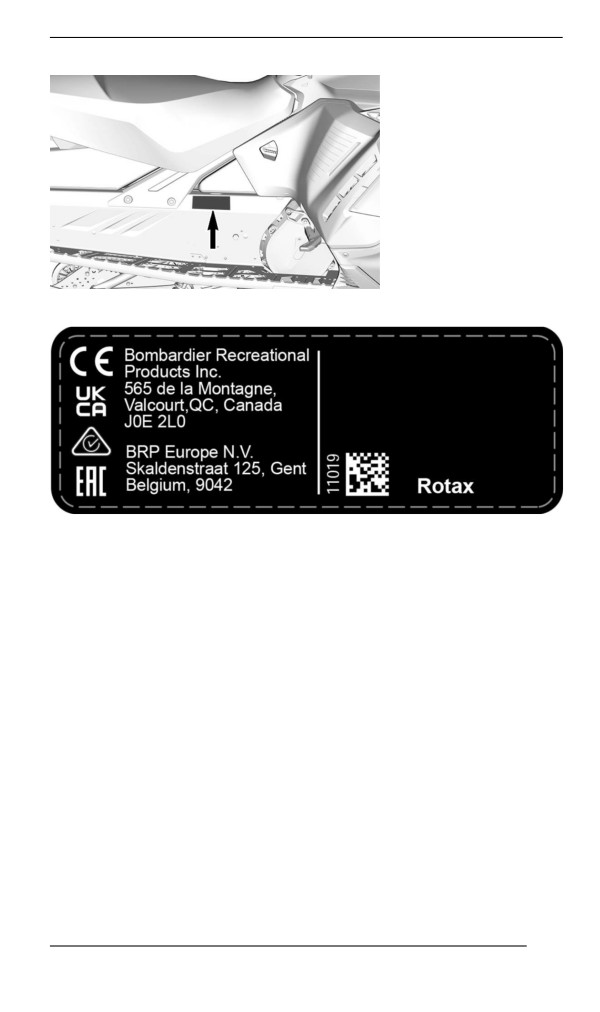

TYPICAL - ON RH SIDE OF TUNNEL
NRMM IDENTIFICATION ON VEHICLE
207

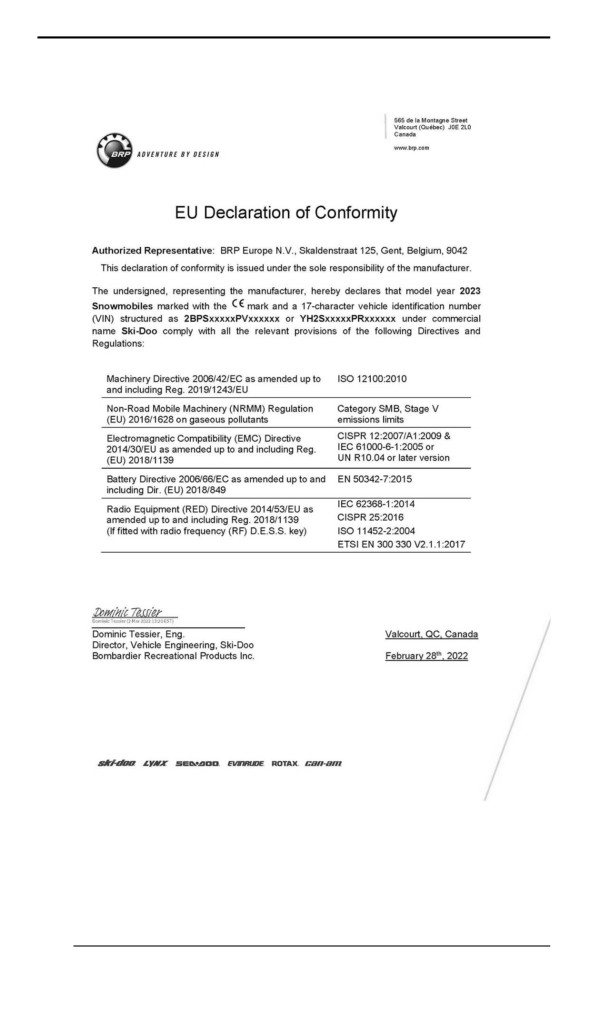

EU DECLARATION OF CONFORMITY
208
UK DECLARATION OF CONFORMITY
209
EAC DECLARATION OF CONFORMITY
Left blank for Eurasian Conformity
mark where applicable
210
RADIO FREQUENCY DIGITALLY ENCODED
SECURITY SYSTEM (RF D.E.S.S. KEY)
This device complies with FCC Part 15 and Industry Canada license
exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any inter-
ference, including interference that may cause undesired operation of
the device.
Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the
equipment.
IC Registration Number: 12006A-1001002222
FCC ID: 2ACER-1001002222
We, the party responsible for compliance, declare under our sole re-
sponsibility that the device is in conformity with the provisions of the
following Council Directive: 2014/53/EU. To which this declaration re-
lates is in conformity with the essential requirements and other rele-
vant requirements. The product is in conformity with the following
directives, harmonized standards and regulations:
Radio Equipment Directive
(RED)
2014/53/EU and Harmonized
Standards:
IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300
330 V2.1.1:2017
Radio Equipment Statutory Instrument 2017/1206 and Designated
Standards:
IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300
330 V2.1.1:2017
211
RADIO FREQUENCY DIGITALLY ENCODED SECURITY SYSTEM (RF D.E.S.
S. KEY)
This page is intention-
ally blank
212
TECHNICAL
SPECIFICATIONS
213
ENGINE
ENGINE
Rotax 600 E-TEC®
RS
Engine type
Liquid cooled with
reed valves and
electronic RAVE
Number of cylinder
2
Bore
72.3 mm (2.846 in)
Stroke
73.0 mm (2.874 in)
599.4 cm³ (36.58
Displacement
in³)
Maximum power engine speed
8500 ± 100 RPM
FUEL/ LUBRICATION SYSTEM
E-TEC direct
injection with
Fuel delivery
integrated auxiliary
injection system
Idle speed (not adjustable)
1600 ± 200 RPM
Gasoline/oil ratio
33:1
Pre-mix oil
XPS 2T X2-RS
Recommended
racing synthetic oil
Water pump shaft oil
50 ml (1.7 fl
Water pump shaft oil reservoir capacity
oz(US))
ELECTRICAL SYSTEM
30 A @ 14.5 V
Lighting system output
1340 W @ 6000
RPM
NGK ILKR9Q7
(engine and spark
Spark plug
Type
plug threads are
indexed)
214
ENGINE
ELECTRICAL SYSTEM
Not adjustable 0.6
Gap
to 0.7 mm (.024 to
.028 in)
215
VEHICLE
COOLING SYSTEM
XPS Extended life
Recommended
pre-mixed coolant
Coolant
Type
Distilled water and
Alternative, or if
antifreeze solution
not available
(50% distilled water,
50% antifreeze)
FUEL SYSTEM
In-tank electrical
Fuel pump
fuel pump
Premium unleaded
gasoline (fuel which
Type
may contain up to
10% MAX ethanol
Fuel
91 Pump Posted
Octane rating
AKI (R+M)/2)
95
(RON)
Fuel tank capacity
19 l (5 gal(liq.,US))
ELECTRICAL SYSTEM
Headlamp
15 W Projector LED
2.6 W / 139 m W
Taillight and stoplight
LED
F1
Start/RER/
5A
Clock
Fuses
F2
Loads
25 A
F4
Accessory
15 A
DRIVE SYSTEM – CHAINCASE
XPS Synthetic
Chaincase oil
Type
chaincase oil
216
VEHICLE
DRIVE SYSTEM – CHAINCASE
350 ml (12 fl
Capacity
oz(US))
Chaincase ratio
22/51
DRIVE SYSTEM – PULLEYS
Type
Racing pDrive
Drive pulley
Engagement
5700 ± 100 RPM
RPM
Team
Driven pulley
Type
Rapid Reaction
27 to 37 mm (1.06
Deflection
to 1.46 in)
Drive belt adjustment
Force
11.3 kg (25 lb)
DRIVE SYSTEM – TRACK
Drive sprocket number of teeth
8
Width
38 cm (15 in)
Track
Length
348 cm (137 in)
Profile height
44.5 mm (1.75 in)
Deflection
3.2 cm (1.26 in)
Track adjustment
6.0 to 8.5 kgf (13 to
Force
19 lbf)
217
VEHICLE
BRAKE SYSTEM
Single 220 mm
stainless floating
Brake
Type
disc with 4 pistons
caliper
Type
DOT 4
Brake fluid
50 ml (1.69 fl
Quantity
oz(US))
Fixed 4 pistons (4 x
Caliper
30 mm)
Brake pad material
Metallic
Minimum brake pad thickness
0.5 mm (.02 in)
Minimum brake disc thickness
5.4 mm (.213 in)
Maximum brake disc warpage
0.2 mm (.01 in)
FRONT SUSPENSION
Suspension type
RAS 3 RS
Suspension maximum travel
234 mm (9.2 in)
Shock absorber type
KYB PRO 46 INT R
REAR SUSPENSION
Suspension type
rMotion Racing
Suspension maximum travel
272 mm (10.7 in)
Measured at rear arm
Center
KYB PRO 46 INT
Shock absorber type
Rear
KYB PRO 46 INT R
218
VEHICLE
WEIGHT AND DIMENSIONS
Inside North
213.6 kg (470.9 lb)
America
Mass (dry)
Outside North
218.1 kg (480.8 lb)
America
Overall length
3 038 mm (119.6 in)
Overall width
1 275 mm (50.2 in)
Overall height
1 200 mm (47.2 in)
Ski stance
1 094 mm (43.1 in)
219
VEHICLE
This page is intention-
ally blank
220
TROUBLESHOOT-
ING
221
TROUBLESHOOTING GUIDELINES
Troubleshooting
1. ENGINE IS CRANKED BUT FAILS TO START
No fuel to the engine.
- Check fuel tank level, add fuel if necessary.
System voltage too low.
- Contact an authorized Ski-Doo dealer.
2. ENGINE LACKS ACCELERATION OR POWER
Engine warm-up in progress.
- Drive vehicle at low speeds for a few minutes.
Engine break-in period not completed.
- Complete break-in period.
Drive and driven pulleys require servicing.
- Contact an authorized SKI-DOO dealer.
Engine overheats.
- Check coolant level, see MAINTENANCE PROCEDURES (PAGE
152) MAINTENANCE PROCEDURES.
- Check heat exchangers cleanliness. Clean if necessary.
Drive belt worn too thin.
- If the drive belt has lost more than 3 mm (1/8 in) of its original
width, it will affect vehicle performance.
- Replace drive belt.
Incorrect track adjustment.
- See MAINTENANCE PROCEDURES (PAGE 152) MAINTE-
NANCE PROCEDURES and/or an authorized SKI-DOO dealer for
proper alignment and tension adjustments.
R.A.V.E. valves problem.
- Seek service from an authorized Ski-Doo dealer, repair shop, or
person of your own choosing for maintenance, repair, or
replacement.
Fuel pressure too low.
222
TROUBLESHOOTING GUIDELINES
- Seek service from an authorized Ski-Doo dealer, repair shop, or
person of your own choosing for maintenance, repair, or
replacement.
3. ENGINE BACKFIRES
Engine is running too hot.
- See item 4 of ENGINE LACKS POWER.
Ignition timing is incorrect or there is an ignition system failure.
- Seek service from an authorized Ski-Doo dealer, repair shop, or
person of your own choosing for maintenance, repair, or
replacement.
Exhaust system leak.
- Seek service from an authorized Ski-Doo dealer, repair shop, or
person of your own choosing for maintenance, repair, or
replacement.
Fuel pressure too low.
- Seek service from an authorized Ski-Doo dealer, repair shop, or
person of your own choosing for maintenance, repair, or
replacement.
4. ENGINE MISFIRES
Water in fuel.
- Drain fuel system and refill with fresh fuel.
RAVE valves malfunction.
- Have RAVE valves system inspected. Seek service from an au-
thorized Ski-Doo dealer, repair shop, or person of your own choos-
ing for maintenance, repair, or replacement.
5. HEATED GRIPS/THUMB WARMERS ARE NOT
WORKING
Engine RPM is too low.
- Make sure engine RPM is above 2000.
6. ENGINE HAS SHUT DOWN
The engine shuts down after long periods of idling.
223
TROUBLESHOOTING GUIDELINES
- Do not let engine idle too long. Refer to VEHICLE WARM-UP in
operating instruction.
7. WATER PUMP SHAFT OIL LEVEL LOWERS
External leak.
- Replace leaking part.
Engine internal leak.
- Have the engine bottom end repaired .
224
MONITORING SYSTEM
Icons, Messages and Beeper Codes
The gauge icons inform you of an anomaly or a particular condition.
Icons can come on or blink alone or in combination with others.

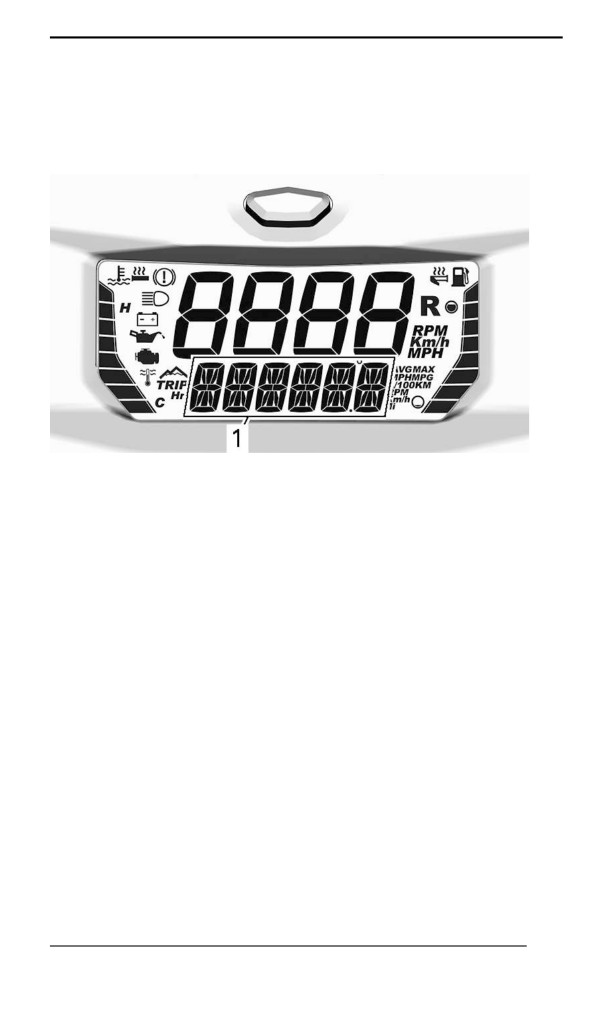

1. Lower display
In addition to the icons, messages are displayed along with a beep
code.
See following table for details.
225
MONITORING SYSTEM
Icon ON
Beeper
Message
Description
Engine is overheating,
reduce snowmobile
speed and run in loose
snow or stop engine
immediately and let
engine cool down. Check
ENGINE
coolant level, refer to
OVERHEAT
Maintenance. If coolant
level is correct and
overheating persists,
4 short
contact an authorized
beeps
Ski-Doo dealer. Do not
every 30
run the engine if
seconds
condition persists.
MUFFLER
Reduce speed or stop
engine. Let engine cool
down and restart. If
overheating persists,
contact an authorized
ECM
Ski-Doo dealer. Do not
run the engine if
condition persists.
Critical overheat. Stop
engine immediately and
OVERHEAT
let engine cool down.
In
Check coolant level, refer
combination
to Maintenance. If
with
coolant level is correct
"ENGINE
and overheating persists,
OVER
contact an authorized
HEAT"
Short
Ski-Doo dealer. Do not
above
beeps
run the engine if
repeating
condition persists.
rapidly
Critical overheat. Stop
OVERHEAT
engine immediately and
In
let engine cool down. If
combination
overheating persists,
with
contact an authorized
"MUFFLER"
Ski-Doo dealer. Do not
OR "ECM"
run the engine if
condition persists.
226
MONITORING SYSTEM
Icon ON
Beeper
Message
Description
Engine fault, see an
authorized Ski-Doo
4 short
CHECK
dealer, repair shop or
beeps
ENGINE
person of your own
choosing as soon as
possible.
Displayed when brake is
applied for more than 15
4 short
seconds while throttle
beeps
lever is squeezed and
vehicle is moving at more
(blinking)
than 5 km/h (3 MPH).
Engine detonation (RPM
is limited when this
condition occurs).
- Ensure
recommended fuel is
4 short
used.
beeps
- Check fuel quality,
KNOCK
every 8
replace if
seconds
necessary.
- If fault still occurs,
contact an authorized
Ski-Doo dealer, repair
shop, or person of
your own choosing.
4 short
Engine RPM limited for
beeps
REV LIMIT
protection when certain
every 5
faults occur.
minutes
Indicates that maximum
OVER REV
engine RPM is reached.
Check clutch calibration.
227
MONITORING SYSTEM
Icon ON
Beeper
Message
Description
Short
Shutdown procedure in
beeps
SHUT
force due to engine
repeating
DOWN
overheating or fuel pump
rapidly
problem.
Communication problem
between ECM and
gauge. Stop engine,
remove tether cord cap.
COMMUNI-
Wait a few minutes, then
CATION
start engine. If problem
persists, contact an
authorized Ski-Doo
dealer.
Fault Codes
If the check engine icon is ON, it is possible to read fault code (s) on
the gauge.
To read active fault code(s), select the vehicle speed and engine RPM
display combination, see Compact Digital Display.
NOTE:
Make sure to select actual vehicle speed and actual engine RPM (not
"top" or "average" values).
Press and hold the gauge mode button and simultaneously switch
from HIGH to LOW beam repeatedly several times until a code is
displayed.
228
MONITORING SYSTEM

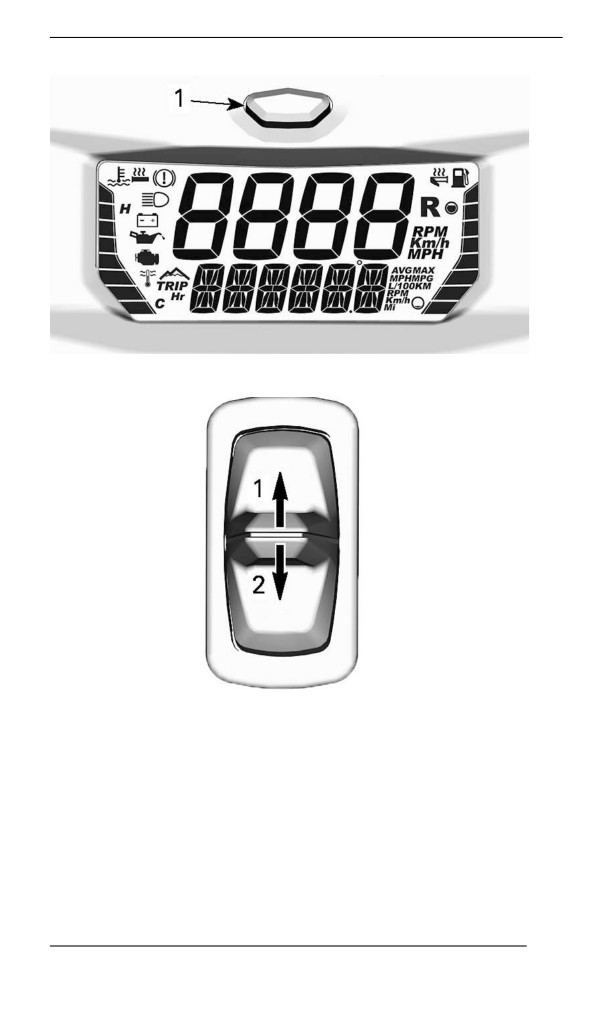

1. Gauge mode button
1. High beam
2. Low beam
If two or more codes are registered, use the gauge mode button to
scroll.
To exit the fault codes mode, press and hold the gauge mode button.
Contact an authorized Ski-Doo dealer for code signification.
229
MONITORING SYSTEM
This page is intention-
ally blank
230
WARRANTY
231
BRP LIMITED WARRANTY USA AND
CANADA: 2023 SKI-DOO® SNOWMOBILES
SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its 2023
Ski-Doo snowmobiles sold by authorized BRP dealers (as defined be-
low) in the United States of America (“USA”) and in Canada from de-
fects in material or workmanship for the period and under the
conditions described below. This limited warranty will become null and
void if: (1) the snowmobile was used for racing or any other competi-
tive activity, at any point, even by a previous owner; or (2) the snow-
mobile has been altered or modified in such a way so as to adversely
affect its operation, performance or durability, or has been altered or
modified to change its intended use.
Non-factory installed parts and accessories are not covered under this
limited warranty. Please refer to the applicable parts and accessories
limited warranty text.
LIMITATIONS OF LIABILITY
THIS WARRANTY IS EXPRESSLY GIVEN AND ACCEPTED IN
LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WAR-
RANTY OF MERCHANTABILITY OR FITNESS FOR A PARTIC-
ULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE
DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN
DURATION TO THE LIFE OF THE EXPRESS WARRANTY. IN-
CIDENTAL AND CONSEQUENTIAL DAMAGES ARE EX-
CLUDED FROM COVERAGE UNDER THIS WARRANTY. SOME
STATES/PROVINCES DO NOT ALLOW FOR THE DISCLAIM-
ERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED ABOVE,
AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WAR-
RANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO
HAVE OTHER LEGAL RIGHTS WHICH MAY VARY FROM
STATE TO STATE, OR PROVINCE TO PROVINCE.
Neither the distributor, any BRP dealer nor any other person has been
authorized to make any affirmation, representation or warranty regard-
ing the product, other than those contained in this limited warranty,
and if made, shall not be enforceable against BRP. BRP reserves the
right to modify this limited warranty at any time, being understood that
such modification will not alter the warranty conditions applicable to
the products sold while this warranty is in effect.
EXCLUSIONS – ARE NOT WARRANTED
The following are not warranted under any circumstances:
- Normal wear and tear;
- Routine maintenance items, tune ups, adjustments;
232
BRP LIMITED WARRANTY USA AND CANADA: 2023 SKI-DOO®
SNOWMOBILES
-
Damage caused by failure to provide proper maintenance and/or
storage, as described in the Operator's Guide;
-
Damage resulting from removal of parts, improper repairs, service,
maintenance, modifications or use of parts or accessories not
manufactured or approved by BRP or resulting from repairs done
by a person that is not an authorized servicing BRP dealer;
-
Damage caused by abuse, abnormal use, neglect, use of the prod-
uct on surfaces other than snow, or operation of the product in a
manner inconsistent with the recommended operation described in
the Operator’s Guide;
-
Damage resulting from accident, submersion, fire, theft, vandalism
or any act of God;
-
Operation with fuels, oils or lubricants which are not suitable for
use with the product (see the Operator’s Guide);
-
Snow or water ingestion;
Incidental or consequential damages, or damages of any kind in-
cluding without limitation towing, storage, telephone, rental, taxi, in-
convenience, insurance coverage, loan payments, loss of time,
loss of income; and
-
Damage resulting from studs installed on tracks if the installation
does not conform to BRP’s instructions.
WARRANTY COVERAGE PERIOD
This limited warranty will be in effect from the date of delivery to the
first retail consumer or the date the product is first put into use, which-
ever occurs first and for the following period:
TWELVE (12) CONSECUTIVE MONTHS, for private or commercial
use owners. However, the warranty coverage period on a snowmobile
delivered between June 1st and December 1st of a given year will ex-
pire November 30th of the following year.
For emission-related components; please also refer to the US EPA
EMISSION-RELATED WARRANTY (PAGE 236) US EPA EMIS-
SION-RELATED WARRANTY contained herein.
The repair or replacement of parts or the performance of service under
this warranty does not extend the life of this warranty beyond its origi-
nal expiration date.
CONDITIONS REQUIRED FOR WARRANTY
COVERAGE
This warranty coverage is available only if each of the following condi-
tions has been fulfilled:
- The 2023 Ski-Doo snowmobile must be purchased as new and un-
used by its first owner from a BRP dealer authorized to distribute
233
BRP LIMITED WARRANTY USA AND CANADA: 2023 SKI-DOO®
SNOWMOBILES
Ski-Doo snowmobiles in the country in which the sale occurred
(“BRP dealer”);
- The BRP specified pre-delivery inspection process must be com-
pleted and documented and signed by the purchaser;
- The 2023 Ski-Doo snowmobile must have undergone proper regis-
tration by an authorized BRP dealer;
- The 2023 Ski-Doo snowmobile must be purchased in the country
in which the purchaser resides; and
- Routine maintenance outlined in the Operator’s Guide must be
timely performed in order to maintain warranty coverage. BRP re-
serves the right to make warranty coverage contingent upon proof
of proper maintenance.
BRP will not honor this limited warranty to any private use owner or
commercial use owner if one of the preceding conditions has not been
met. Such limitations are necessary in order to allow BRP to preserve
both the safety of its products, and also that of its consumers and the
general public.
WHAT TO DO TO OBTAIN WARRANTY
COVERAGE
The customer must cease using the snowmobile upon the appearance
of an anomaly. The customer must notify a servicing BRP dealer with-
in three (3) days of the appearance of a defect, and provide it with rea-
sonable access to the product and reasonable opportunity to repair it.
The customer must also present to the authorized BRP dealer, proof
of purchase of the product and must sign the repair/work order prior to
starting the repair in order to validate the warranty repair. All parts re-
placed under this limited warranty become the property of BRP.
WHAT BRP WILL DO
BRP’s obligations under this warranty are limited to, at its sole discre-
tion, repairing parts found defective under normal use, maintenance
and service, or replacing such parts with new genuine Ski-Doo parts
without charge for parts and labor , at any authorized BRP dealer dur-
ing the warranty coverage period under the conditions described here-
in. No claim of breach of warranty shall be cause for cancellation or
rescission of the sale of the snowmobile to the owner.
In the event that service is required outside of the country of original
sale, the owner will bear responsibility for any additional charges due
to local practices and conditions, such as, but not limited to, freight, in-
surance, taxes, license fees, import duties, and any and all other finan-
cial charges, including those levied by governments, states, territories
and their respective agencies.
234
BRP LIMITED WARRANTY USA AND CANADA: 2023 SKI-DOO®
SNOWMOBILES
BRP reserves the right to improve or modify products from time to time
without assuming any obligation to modify products previously
manufactured.
TRANSFER
If the ownership of a product is transferred during the warranty cover-
age period, this limited warranty, subject to its terms and conditions,
shall also be transferred and be valid for the remaining coverage peri-
od provided BRP or an authorized Ski-Doo Distributor/Dealer receives
a proof that the former owner agreed to the transfer of ownership, in
addition to the co-ordinates of the new owner.
CONSUMER ASSISTANCE
In the event of a controversy or a dispute in connection with this limited
warranty, BRP suggests that you try to resolve the issue at the dealer-
ship level. We recommend discussing the issue with the authorized
dealer's service manager or owner.
If the matter still remains unresolved, contact BRP by filling out the
customer contact form at www.brp.com or contact BRP by mail at one
of the addresses listed under the CONTACT US section of this guide.
235
US EPA EMISSION-RELATED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants to the ulti-
mate purchaser and each subsequent purchaser that this new engine,
including all parts of its exhaust emission-control system and its evap-
orative emission-control system, meets two conditions:
1. It is designed, built, and equipped so it conforms at the time of sale
to the ultimate purchaser with the requirements of 40 CFR 1051
and 40 CFR 1060.
2. It is free from defects in materials and workmanship that may keep
it from meeting the requirements of 40 CFR 1051 and 40 CFR
1060.
Where a warrantable condition exists, BRP will repair or replace, as it
elects, any part or component with a defect in materials or workman-
ship that would increase the engine’s emissions of any regulated pol-
lutant within the stated warranty period at no cost to the owner,
including expenses related to diagnosing and repairing or replacing
emission-related parts. All defective parts replaced under this warranty
become the property of BRP.
For all emission-related warranty claims, BRP is limiting the diagnosis
and repair of emission-related parts to the authorized Ski-Doo dealers,
unless for emergency repairs as required by item 2 of the following
list.
As a certifying manufacturer, BRP will not deny emission-related war-
ranty claims based on any of the following:
1. Maintenance or other service BRP or BRP's authorized facilities
performed.
2. Engine/equipment repair work that an operator performed to cor-
rect an unsafe, emergency condition attributable to BRP as long as
the operator tries to restore the engine/equipment to its proper con-
figuration as soon as possible.
3. Any action or inaction by the operator unrelated to the warranty
claim.
4. Maintenance that was performed more frequently than BRP
specify.
5. Anything that is BRP fault or responsibility.
6. The use of any fuel that is commonly available where the equip-
ment operates unless BRP written maintenance instructions state
that this fuel would harm the equipment’s emission control system
and operators can readily find the proper fuel. See maintenance in-
formation section and fuel requirements of fueling section.
Emission-Rellated Warranty Periiod
The emission-related warranty is valid for the following period which-
ever comes first:
236
US EPA EMISSION-RELATED WARRANTY
Kilo
hours
months
meters
Exhaust emission-related
200
30
4000
components
Evaporative emission-related
N/A
24
N/A
components
Components Covered
The emission-related warranty covers all components whose failure
would increase an engine’s emissions of any regulated pollutant, in-
cluding the following listed components:
1.
For exhaust emissions, emission-related components include any
engine parts related to the following systems:
- Air-induction system
- Fuel system
- Ignition system
- Exhaust gas recirculation systems
2.
The following parts are also considered emission-related compo-
nents for exhaust emissions:
- Aftertreatment devices
- Crankcase ventilation valves
- Sensors
- Electronic control units
3.
The following parts are considered emission-related components
for evaporative emissions:
- Fuel tank
- Fuel cap
- Fuel line
- Fuel line fittings
- Clamps*
- Pressure relief valves*
- Control valves*
- Control solenoids*
- Electronic controls*
- Vacuum control diaphragms*
- Control cables*
- Control linkages*
- Purge valves
- Vapor hoses
- Liquid/vapor separator
- Carbon canister
- Canister mounting brackets
237
US EPA EMISSION-RELATED WARRANTY
- Carburetor purge port connector
NOTE:
*As related to the evaporative emission control system
4. Emission-related components also include any other part whose
only purpose is to reduce emissions or whose failure will increase
emissions without significantly degrading engine/equipment
performance.
Limited Appllicabillity
As a certifying manufacturer, BRP may deny emission-related war-
ranty claims for failures that have been caused by the owner’s or oper-
ator’s improper maintenance or use, by accidents for which the
manufacturer has no responsibility, or by acts of God. For example, an
emission-related warranty claim need not be honored for failures that
have been directly caused by the operator’s abuse of the engine/
equipment or the operator’s use of the engine/equipment in a manner
for which it was not designed and are not attributable to the manufac-
turer in anyway.
If you have any question regarding your warranty rights and responsi-
bility or for the name and location of the nearest authorized BRP deal-
er, you should contact BRP by filling out the customer contact form at
www.brp.com or contact BRP by mail at one of the addresses listed
under the CONTACT US section of this guide, or call at
1-888-272-9222.
238
BRP INTERNATIONAL LIMITED WARRANTY:
2023 SKI-DOO® SNOWMOBILES
SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its 2023
Ski-Doo snowmobiles sold by distributors or dealers authorized by
BRP to distribute SKI-Doo snowmobiles ("Ski-Doo Distributor/Deal-
er") outside of the fifty United States, Canada, members of the Euro-
pean Economic Area (which is comprised of the member states of the
European Union plus the United Kingdom, Norway, Iceland and Liech-
tenstein) (“EEA”), members states of the Commonwealth of the Inde-
pendent States (including Ukraine and Turkmenistan) ("CIS") and
Turkey, from defects in material or workmanship for the period and
under the conditions described below.
Non-factory installed parts and accessories are not covered under this
limited warranty. Please refer to the applicable parts and accessories
limited warranty text.
This limited warranty will become null and void if: (1) the snowmobile
was used for racing or any other competitive activity, at any point,
even by a previous owner; or (2) the snowmobile has been altered or
modified in such a way so as to adversely affect its operation, perform-
ance or durability, or has been altered or modified to change its in-
tended use.
LIMITATIONS OF LIABILITY
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS
EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-
CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-
SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE
UNDER THIS WARRANTY. SOME JURISDICTIONS DO NOT
ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EXCLU-
SIONS IDENTIFIED ABOVE, AS A RESULT, THEY MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS
WHICH MAY VARY FROM COUNTRY TO COUNTRY. (FOR
PRODUCTS PURCHASED IN AUSTRALIA REFER TO “FOR
PRODUCTS SOLD IN AUSTRALIA ONLY”, BELOW).
Neither the Ski-Doo Distributor/Dealer nor any other person has been
authorized to make any affirmation, representation or warranty regard-
ing the product, other than those contained in this limited warranty,
and if made, shall not be enforceable against BRP.
239
BRP INTERNATIONAL LIMITED WARRANTY: 2023 SKI-DOO®
SNOWMOBILES
BRP reserves the right to modify this warranty at any time, being
understood that such modification will not alter the warranty conditions
applicable to the products sold while this warranty is in effect.
EXCLUSIONS – ARE NOT WARRANTED
The following are not warranted under this limited warranty under any
circumstances:
-
Normal wear and tear;
Routine maintenance items, tune ups, adjustments;
Damage caused by negligence or failure to provide proper mainte-
nance and/or storage, as described in the operator's guide;
-
Damage resulting from removal of parts, improper repairs, service,
maintenance, modifications or use of parts or accessories not
manufactured or approved by BRP which in its reasonable judge-
ment are either incompatible with the product or adversely affect
its operation, performance and durability, or resulting from repairs
done by a person that is not an authorized servicing BRP snowmo-
bile distributor/ dealer;
-
Damage caused by abuse, abnormal use, neglect, racing or opera-
tion of the product on surfaces other than snow, or operation of the
product in a manner inconsistent with the recommended operation
described in the Operator’s Guide;
-
Damage resulting from accident, submersion, fire, snow or water
ingestion, theft, vandalism or any act of God;
-
Operation with fuels, oils or lubricants which are not suitable for
use with the product (see the Operator’s Guide);
-
Damage resulting from rust, corrosion or exposure to the
elements;
-
Incidental or consequential damages, or damages of any kind in-
cluding without limitation towing, storage, transportation expenses,
telephone, rental, taxi, inconvenience, insurance coverage, loan
payments, loss of time, loss of income; or time missed for down-
time experience due to service work.
-
And damage resulting from studs installed on tracks if the installa-
tion does not conform to BRP’s instructions.
WARRANTY COVERAGE PERIOD
This warranty will be in effect from (1) the date of delivery to the first
retail consumer or (2) the date the product is first put into use, which-
ever occurs first and for a period of:
TWELVE (12) CONSECUTIVE MONTHS, for private or commercial
use owners. However, the warranty coverage period on a snowmobile
delivered between June 1st and December 1st of a given year will ex-
pire November 30th of the following year.
240
BRP INTERNATIONAL LIMITED WARRANTY: 2023 SKI-DOO®
SNOWMOBILES
The repair or replacement of parts or the performance of service under
this warranty does not extend the life of this warranty beyond its origi-
nal expiration date.
Note that the duration and any other modalities of the warranty cover-
age are subject to the applicable national or local legislation in the cus-
tomer's country.
FOR PRODUCTS SOLD IN AUSTRALIA ONLY
Nothing in these Warranty terms and conditions should be taken to ex-
clude, restrict or modify the application of any condition, warranty,
guarantee, right or remedy conferred or implied under the Competition
and Consumer Act 2010 (Cth), including the Australian Consumer
Law or any other law, where to do so would contravene that law, or
cause any part of these terms and conditions to be void. The benefits
given to you under this limited warranty are in addition to other rights
and remedies that you have under Australian law.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund
for a major failure and for compensation for any other reasonably fore-
seeable loss or damage. You are also entitled to have the goods re-
paired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only if each of the following condi-
tions has been fulfilled:
- The 2023 Ski-Doo snowmobile must be purchased as new and un-
used by its first owner from a Ski-Doo Distributor/Dealer authorized
to distribute Ski-Doo snowmobiles in the country in which the sale
occurred;
- The BRP specified pre-delivery inspection process must be com-
pleted and documented;
- The product must have undergone proper registration by an au-
thorized Ski-Doo Distributor/Dealer;
- The 2023 Ski-Doo snowmobile must be purchased in the country
or union of countries in which the purchaser resides.
- Routine maintenance outlined in the Operator’s Guide must be
timely performed in order to maintain warranty coverage. BRP re-
serves the right to make warranty coverage contingent upon proof
of proper maintenance.
BRP will not honour this limited warranty to any private use owner or
commercial use owner if one of the preceding conditions has not been
met. Such limitations are necessary in order to allow BRP to preserve
both the safety of its products, and also that of its consumers and the
general public.
241
BRP INTERNATIONAL LIMITED WARRANTY: 2023 SKI-DOO®
SNOWMOBILES
WHAT TO DO TO OBTAIN WARRANTY
COVERAGE
The customer must cease using the snowmobile upon the appearance
of an anomaly. The customer must notify a servicing BRP snowmobile
distributor/ dealer within two (2) months of the appearance of a defect,
and provide it with reasonable access to the product and reasonable
opportunity to repair it. The customer must also present to the author-
ized BRP snowmobile distributor/ dealer, proof of purchase of the
product and must sign the repair/work order prior to starting the repair
in order to validate the warranty repair. All parts replaced under this
limited warranty become the property of BRP.
Note that the notification period is subject to the applicable national or
local legislation in customer's country.
WHAT BRP WILL DO
To the extent permitted by law, BRP’s obligations under this warranty
are limited to, at its sole discretion, repairing parts found defective
under normal use, maintenance and service, or replacing such parts
with new genuine Ski-Doo parts without charge for parts and labour, at
any authorized Ski-Doo Distributor/Dealer during the warranty cover-
age period under the conditions described herein. BRP’s responsibility
is limited to making the required repairs or replacements of parts. No
claim of breach of warranty shall be cause for cancellation or rescis-
sion of the sale of the snowmobile to the owner. You may have other
legal rights which may vary from country to country.
In the event that service is required outside of the country of original
sale, the owner will bear responsibility for any additional charges due
to local practices and conditions, such as, but not limited to, freight, in-
surance, taxes, license fees, import duties, and any and all other finan-
cial charges, including those levied by governments, states, territories
and their respective agencies.
BRP reserves the right to improve or modify products from time to time
without assuming any obligation to modify products previously
manufactured.
TRANSFER
If the ownership of a product is transferred during the warranty cover-
age period, this limited warranty, subject to its terms and conditions,
shall also be transferred and be valid for the remaining coverage peri-
od provided BRP or an authorized Ski-Doo Distributor/Dealer receives
a proof that the former owner agreed to the transfer of ownership, in
addition to the co-ordinates of the new owner.
242
BRP INTERNATIONAL LIMITED WARRANTY: 2023 SKI-DOO®
SNOWMOBILES
CONSUMER ASSISTANCE
In the event of a controversy or a dispute in connection with this limited
warranty, BRP suggests that you try to resolve the issue at the Ski--
Doo Distributor/Dealer level. We recommend discussing the issue with
the authorized Ski-Doo Distributor/Dealer's service manager or owner.
If the matter still remains unresolved, contact BRP by filling out the
customer contact form at www.brp.com or contact BRP by mail at one
of the addresses listed under the CONTACT US section of this guide.
243
BRP LIMITED WARRANTY FOR THE
EUROPEAN ECONOMIC AND THE
COMMONWEALTH OF THE INDEPENDENT
STATES (CIS) AREAS AND TURKEY: 2023
SKI-DOO® SNOWMOBILES
SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its 2023
Ski-Doo snowmobiles sold by distributors or dealers authorized by
BRP to distribute Ski-Doo snowmobiles ("Ski-Doo Distributor/Deal-
er") in member states of the European Economic Area (which is com-
prised of the member states of the European Union plus the United
Kingdom, Norway, Iceland and Liechtenstein) ("EEA"), in member
states of the Commonwealth of the Independent States (including Uk-
raine and Turkmenistan) ("CIS") and Turkey from defects in material
or workmanship for the period and under the conditions described
below.
Non-factory installed parts and accessories are not covered under this
limited warranty. Please refer to the applicable parts and accessories
limited warranty text.
This limited warranty will become null and void if: (1) the snowmobile
was used for racing or any other competitive activity, at any point,
even by a previous owner; or (2) the snowmobile has been altered or
modified in such a way so as to adversely affect its operation, perform-
ance or durability, or has been altered or modified to change its in-
tended use.
LIMITATIONS OF LIABILITY
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS
EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-
CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIFE OF THE EXPRESS WARRANTIES. INCIDENTAL AND
CONSEQUENTIAL DAMAGES ARE EXCLUDED FROM COVER-
AGE UNDER THIS WARRANTY. SOME JURISDICTIONS DO
NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-
CLUSIONS IDENTIFIED ABOVE, AS A RESULT, THEY MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS
WHICH MAY VARY FROM COUNTRY TO COUNTRY.
Neither the Ski-Doo Distributor/Dealer nor any other person has been
authorized to make any affirmation, representation or warranty
244
regarding the product, other than those contained in this limited war-
ranty, and if made, shall not be enforceable against BRP.
BRP reserves the right to modify this warranty at any time, being
understood that such modification will not alter the warranty conditions
applicable to the products sold while this warranty is in effect.
EXCLUSIONS – ARE NOT WARRANTED
The following are not warranted under this limited warranty under any
circumstances:
-
Normal wear and tear;
Routine maintenance items, tune ups, adjustments;
Damage caused by negligence or failure to provide proper mainte-
nance and/or storage, as described in the operator's guide;
-
Damage resulting from removal of parts, improper repairs, service,
maintenance, modifications or use of parts or accessories not
manufactured or approved by BRP which in its reasonable judge-
ment are either incompatible with the product or adversely affect
its operation, performance and durability, or resulting from repairs
done by a person that is not an authorized servicing BRP snowmo-
bile distributor/ dealer;
-
Damage caused by abuse, abnormal use, neglect, racing or opera-
tion of the product on surfaces other than snow, or operation of the
product in a manner inconsistent with the recommended operation
described in the Operator’s Guide;
-
Damage resulting from accident, submersion, fire, snow or water
ingestion, theft, vandalism or any act of God;
-
Operation with fuels, oils or lubricants which are not suitable for
use with the product (see the Operator’s Guide);
-
Damage resulting from rust, corrosion or exposure to the
elements;
-
Incidental or consequential damages, or damages of any kind in-
cluding without limitation towing, storage, transportation expenses,
telephone, rental, taxi, inconvenience, insurance coverage, loan
payments, loss of time, loss of income; or time missed for down-
time experience due to service work.
-
And damage resulting from studs installed on tracks if the installa-
tion does not conform to BRP’s instructions.
WARRANTY COVERAGE PERIOD
This warranty will be in effect from (1) the date of delivery to the first
retail consumer or (2) the date the product is first put into use, which-
ever occurs first and for a period of:
TWENTY-FOUR (24) CONSECUTIVE MONTHS, for private use own-
ers and TWELVE (12) CONSECUTIVE MONTHS for commercial use
owners. However, the warranty coverage period on a snowmobile
245
delivered between June 1st and December 1st of a given year will ex-
pire November 30th of the applicable year. A snowmobile is used com-
mercially when it is used in connection with generating income or any
work or employment during any part of the warranty period. A snow-
mobile is also used commercially when, at any point during the war-
ranty period, it has commercial tags or is licensed for commercial use.
The repair or replacement of parts or the performance of service under
this warranty does not extend the life of this warranty beyond its origi-
nal expiration date.
Note that the duration and any other modalities of the warranty cover-
age are subject to the applicable national or local legislation in the cus-
tomer's country.
CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only if each of the following condi-
tions has been fulfilled:
- The 2023 Ski-Doo snowmobile must be purchased as new and un-
used by its first owner from a Ski-Doo Distributor/Dealer authorized
to distribute Ski-Doo products in the country in which the sale
occurred;
- The BRP specified pre-delivery inspection process must be com-
pleted and documented;
- The product must have undergone proper registration by an au-
thorized Ski-Doo Distributor/Dealer;
- The 2023 Ski-Doo snowmobile must be purchased within the EEA
by an EEA resident, in the CIS for residents of the countries com-
prised in such area and in Turkey for residents of Turkey; and
- Routine maintenance outlined in the Operator’s Guide must be
timely performed in order to maintain warranty coverage. BRP re-
serves the right to make warranty coverage contingent upon proof
of proper maintenance.
BRP will not honour this limited warranty to any private use owner or
commercial use owner if one of the preceding conditions has not been
met. Such limitations are necessary in order to allow BRP to preserve
both the safety of its products, and also that of its consumers and the
general public.
WHAT TO DO TO OBTAIN WARRANTY
COVERAGE
The customer must cease using the snowmobile upon the appearance
of an anomaly. The customer must notify a servicing BRP snowmobile
distributor/ dealer within two (2) months of the appearance of a defect,
and provide it with reasonable access to the product and reasonable
opportunity to repair it. The customer must also present to the
246
authorized BRP snowmobile distributor/ dealer, proof of purchase of
the product and must sign the repair/work order prior to starting the re-
pair in order to validate the warranty repair. All parts replaced under
this limited warranty become the property of BRP.
Note that the notification period is subject to the applicable national or
local legislation in customer's country.
WHAT BRP WILL DO
To the extent permitted by law, BRP’s obligations under this warranty
are limited to, at its sole discretion, repairing parts found defective
under normal use, maintenance and service, or replacing such parts
with new genuine Ski-Doo parts without charge for parts and labour, at
any authorized Ski-Doo Distributor/Dealer during the warranty cover-
age period under the conditions described herein. BRP’s responsibility
is limited to making the required repairs or replacements of parts. No
claim of breach of warranty shall be cause for cancellation or rescis-
sion of the sale of the snowmobile to the owner. You may have other
legal rights which may vary from country to country.
In the event that service is required outside of the EEA, CIS or Turkey,
the owner will bear responsibility for any additional charges due to lo-
cal practices and conditions, such as, but not limited to, freight, insur-
ance, taxes, license fees, import duties, and any and all other financial
charges, including those levied by governments, states, territories and
their respective agencies.
BRP reserves the right to improve or modify products from time to time
without assuming any obligation to modify products previously
manufactured.
TRANSFER
If the ownership of a product is transferred during the warranty cover-
age period, this limited warranty, subject to its terms and conditions,
shall also be transferred and be valid for the remaining coverage peri-
od provided BRP or an authorized Ski-Doo Distributor/Dealer receives
a proof that the former owner agreed to the transfer of ownership, in
addition to the co-ordinates of the new owner.
CONSUMER ASSISTANCE
In the event of a controversy or a dispute in connection with this limited
warranty, BRP suggests that you try to resolve the issue at the Ski--
Doo Distributor/Dealer level. We recommend discussing the issue with
the authorized Ski-Doo Distributor/Dealer's service manager or owner.
247
If the matter still remains unresolved, contact BRP by filling out the
customer contact form at www.brp.com or contact BRP by mail at one
of the addresses listed under the CONTACT US section of this guide.
ADDITIONAL TERMS AND CONDITIONS FOR FRANCE ONLY
The following terms and conditions are applicable to products sold in
France only:
The seller shall deliver goods that are complying with the contract and
shall be responsible for defects existing upon delivery. The seller shall
also be responsible for defects resulting from packaging, assembling
instructions or the installation when it is its responsibility per the con-
tract or if accomplished under its responsibility. To be compliant with
the contract, the good shall:
1. Be fit for normal use for goods similar thereto and, if applicable:
- Correspond to the description provided by the seller and have
the qualities presented to the buyer though sample or model;
- Have the qualities that a buyer may legitimately expect consid-
ering the public declarations of the seller, the manufacturer of
its representative, including in advertising or labeling; or
2. Have the characteristics mutually agreed upon as between the par-
ties or be fit for the specific use intended by the buyer and brought
to the attention of the seller and which accepted
The action for failure to comply is prescribed after two years after de-
livery of the goods. The seller is responsible for the warranty for hid-
den defects of the good sold if such hidden defects are rendering the
good unfit for the intended use, or if they diminish its use in such a
way that the buyer would not have acquired the good or would have
given a lesser price, had he known. The action for such hidden defects
shall be taken by the buyer within 2 years of the discovery of the
defect.
248
CUSTOMER
INFORMATION
249
DATA PRIVACY INFORMATION
Bombardier Recreational Products inc., its affiliates and subsidiaries
(“BRP”) is committed to protecting your privacy and support a general
policy of openness about how we collect, use and disclose your per-
sonal information in the course of managing our relationship with you.
More details can be found by visiting BRP’s Privacy Policy at:
https://brp. com/en/privacy-policy. html or by scanning the QR
Code below.
Please be assured that we have appropriate security measures in
place to ensure that your personal information is protected against
loss and unauthorized access.
Your personal information that may be collected by BRP, directly from
you or from authorized dealers or authorized third parties, includes:
- Contact, Demographic & Registration Information (e.g., name,
full address, phone number, email, gender, ownership history, lan-
guage of communication)
- Vehicle Information (e.g., serial number, purchase and delivery
date, unit usage, vehicle location and movements)
- Third Party Information (e.g., information received from BRP
partners, joint-marketing activities information, social media)
- Technological Information (e.g., IP address, type of device, op-
erating system, browser type, webpages you view, cookies and
similar technologies when you use BRP or dealers’ websites or
mobile application)
- Interaction with BRP Information (e.g., information collected
when you call BRP’s in-house sales representatives, buy items on
a BRP web Site, sign up for BRP emails, participate in BRP-spon-
sored contests and sweepstakes or attend BRP-sponsored
events)
- Transactional Information (e.g., information necessary to handle
returns, payment information when you purchase our products or
services through our websites or mobile applications and other is-
sues related to your purchase of BRP products)
This information may be used and processed for the following
purposes:
- Safety & Security
- Customer Support for Sales & After Sales (e.g., complete or follow
up with you about your purchase or maintenance)
- Registration & Warranty
- Communication (e.g., sending you a BRP satisfaction survey)
- Online Behavioural Advertising, Profiling and Location-Based
Services
(e.g., offer customized experience)
- Compliance & Dispute Resolution
- Marketing & Advertising
- Assistance (e.g., help with any delivery issues, handle returns, and
other issues related to your purchase of BRP products).
250
DATA PRIVACY INFORMATION
We also may use personal information to generate aggregated or stat-
istical data that no longer identifies you personally.
Your personal information may be disclosed to the following:
BRP, BRP’s authorized dealerships, distributors, service pro-
viders, advertising & market research partners and other author-
ized third parties.
We may receive information about you from diverse sources, including
third parties, such as BRP’s authorized dealerships and partners, with
whom we offer services or engage in joint-marketing activities. We
may also receive information about you from social media platforms
such as Facebook and Twitter, when you interact with us on those
platforms.
Depending on the circumstances, your personal information may be
communicated outside the region where you reside. Your personal in-
formation is retained only for as long as necessary for the purpose for
which we obtained it and according to our retention policies.
To exercise your data privacy rights (e.g. right of access, right of recti-
fication), to withdraw your consent in order to be removed from the ad-
dress list for marketing purposes or for the satisfaction survey or for
general data privacy questions, please contact BRP’s Data Protection
Officer at or by mail at privacyofficer@brp.com or by mail at:
BRP Legal Service, 726 St-Joseph, Valcourt, Quebec, Canada, J0E
2L0.
When BRP processes your personal information, they do so in
compliance with its Privacy Policy available at: https://www.brp.
com/en/privacy-policy.html or by using the following
QR Code.
251
CONTACT US
Norway
Ingvald Ystgaardsvei 15
N-7484 Trondheim
Asiia Paciific
Salg, marketing, ettermarked
Australia
6 Lord Street
Sweden
Lakes Business Park
Spinnvägen 15
Botany, NSW 2019
903 61 Umeå
Sweden 90821
China
Room 3703, Tower 2,
Switzerland
Grand Gateway
Avenue d’Ouchy 4-6
3 Hong Qiao Road,
1006 Lausanne
Xuhui District,
Shanghai 200030
Latiin Ameriica
Japan
Brazil
21F Shinagawa East One
Av. James Clerck Maxwell, 230
Tower
Campinas, Sao Paulo
2-16-1 Konan, Minato-ku-ku,
CEP 13069-380
Tokyo 108-0075
Mexico
New Zealand
Av. Ferrocarril 202
Suite 1.6, 2-8 Osborne Street,
Parque Industrial Querétaro
Newmarket, Auckland 2013
Santo Rosa Jauregui, Querétaro
C.P. 76220
Europe, Middle East
and Africa
North Ameriica
Belgium
Canada
Oktrooiplein 1
3200A, rue King Ouest,
9000 Gent
Suite 300
Sherbrooke (Québec) J1L 1C9
Czech Republic
Stefanikova 43a
United States of America
Prague 5
10101 Science Drive
150 00
Sturtevant, Wisconsin
53177
Germany
Itterpark 11
40724 Hilden
Finland
Isoaavantie 7
PL 8040
96101 Rovaniemi
France
Arteparc Bâtiment B
Route de la côte d'Azur,
13590 Meyreuil
252
CHANGE OF ADDRESS/OWNERSHIP
If your address has changed or if you are the new owner of the snow-
mobile, be sure to notify BRP by either:
- Notifying an authorized BRP snowmobile dealer or distributor.
- North America Only: calling at 1 888 272-9222.
- Mailing one of the change of address cards on the following pages
at one of the BRP addresses indicated in the Contact Us section of
this guide.
In case of change of ownership, please join a proof that the former
owner agreed to the transfer.
Notifying BRP, even after the expiration of the limited warranty, is very
important as it enables BRP to reach the snowmobile owner if neces-
sary, like when safety recalls are initiated. It is the owner’s responsibil-
ity to notify BRP.
STOLEN UNITS: If your personal snowmobile is stolen, you should
notify BRP or an authorized BRP snowmobile dealer. We will ask you
to provide your name, address, phone number, the vehicle identifica-
tion number and the date it was stolen.
253















Content      ..      1      2
