PRIMARY CONTROLS

WARNING

Test the throttle lever operation each time before starting the

engine. The lever must return to the rest position once re-

leased. Otherwise, do not start engine.

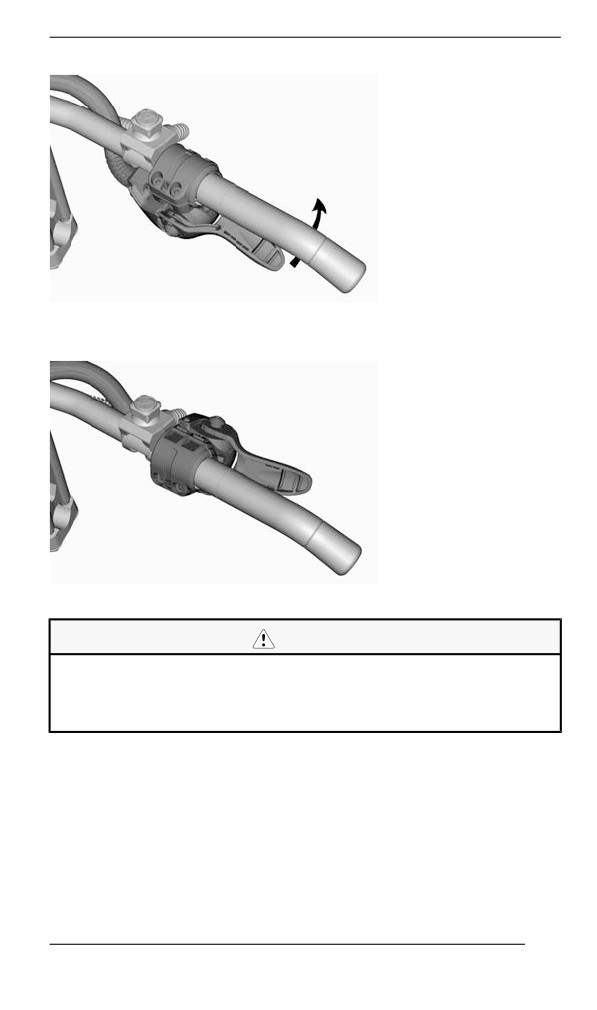

Switching from Thumb to Finger Throttle Position (ITC Throttle

Lever)

CAUTION

It is highly recommended to immobilize the snowmobile before

attempting any modification to the throttle position as it could

lead to a hazardous situation.

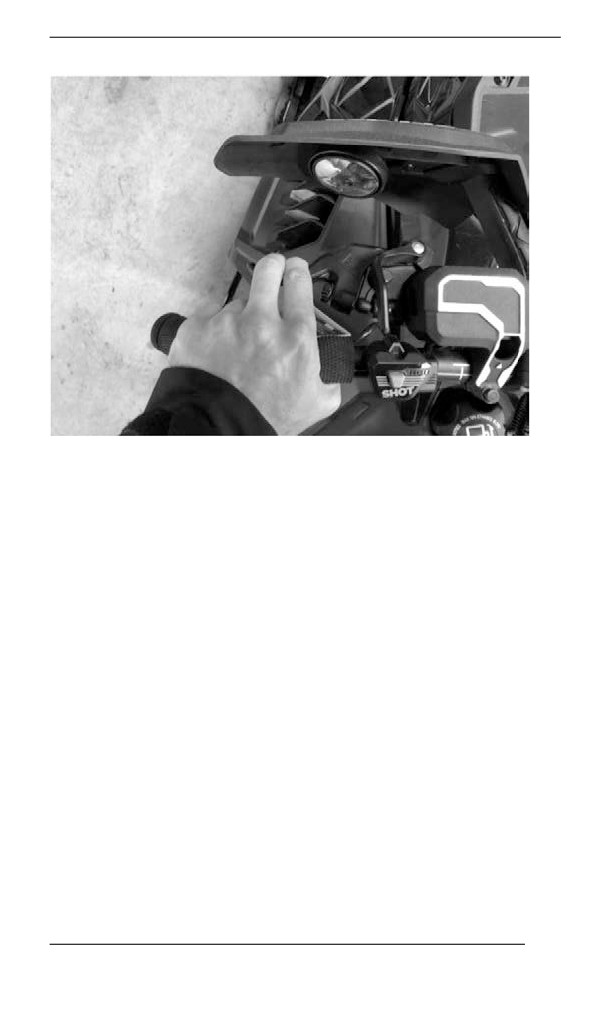

There are mainly three positions to choose from when going from the

thumb to the finger throttle position and the best one will be to the rid-

er's preference and in direct relation with the riding style and

conditions.

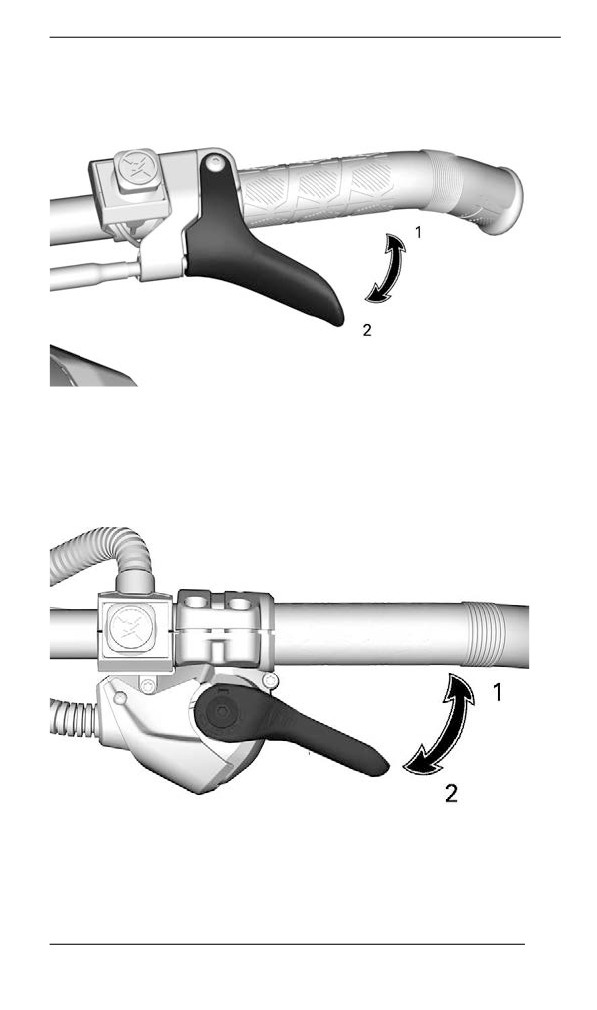

THUMB THROTTLE POSITION : PUSH DOWNWARD TO RO-

TATE THROTTLE HOUSING

122

PRIMARY CONTROLS

IF WANTED, CONTINUE TO ROTATE THE THROTTLE

HOUSING

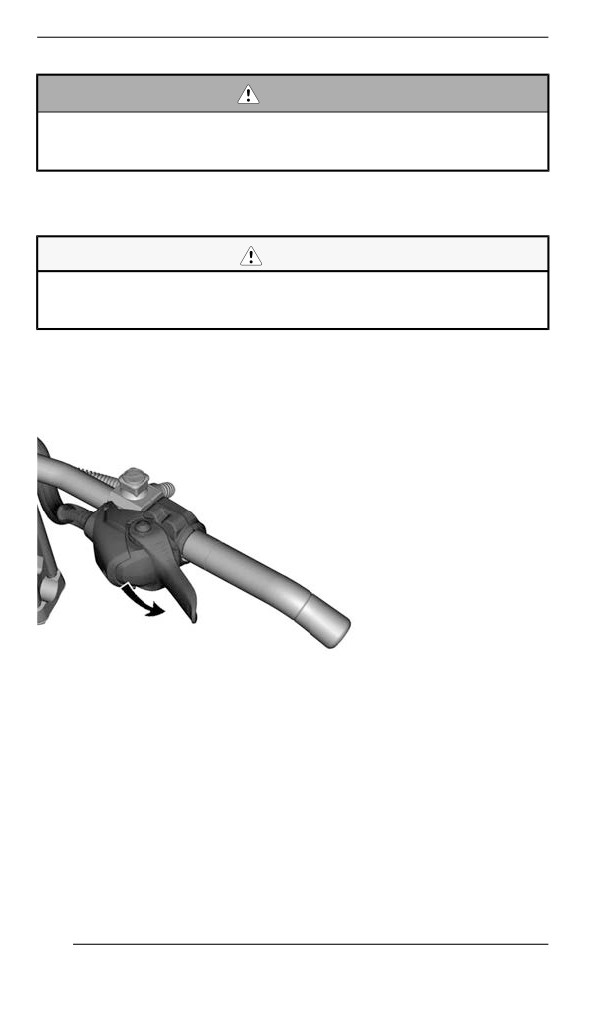

FINGER THROTTLE POSITION

CAUTION

It is HIGHLY recommended to use gloves and NOT mitts when

using the finger throttle position.

It is not recommended to use the finger throttle position while

riding in dense off trail areas.

The procedure to go back to the thumb throttle position is the reverse

of the one shown above.

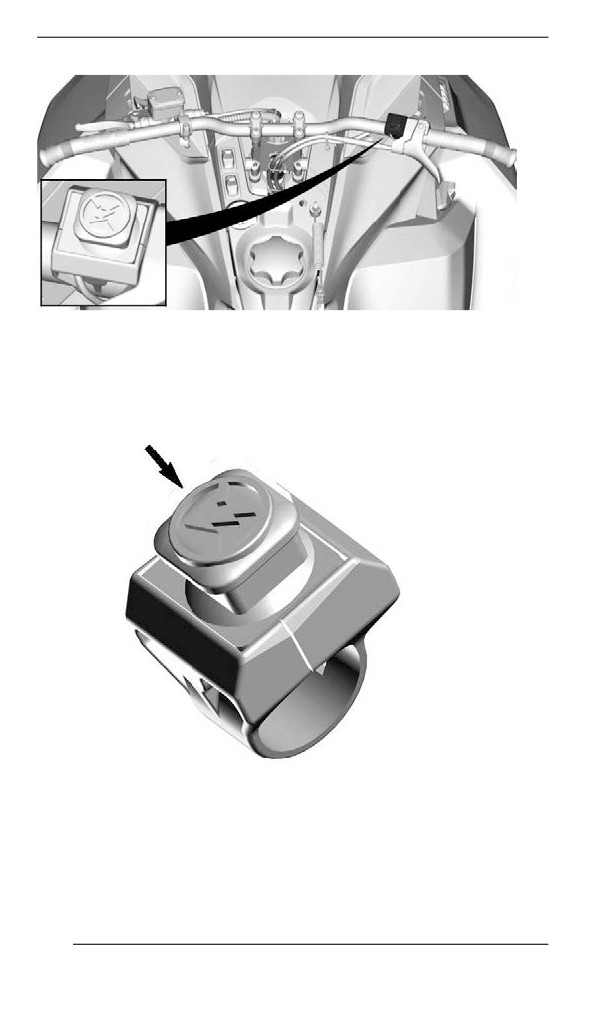

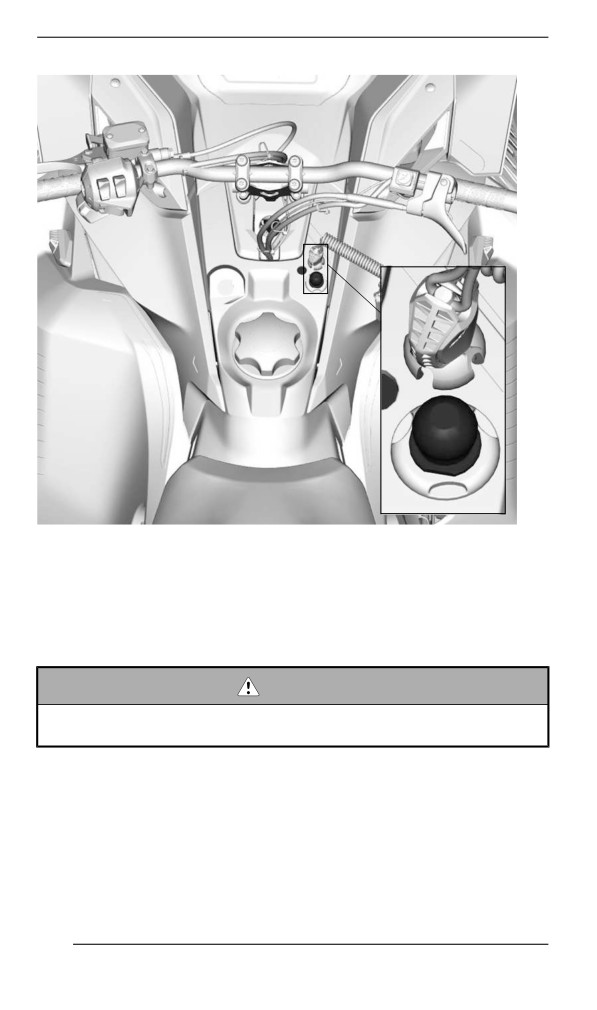

Emergency Engine Stop Switch

The emergency engine stop switch is located on the RH side of

handlebar.

123

PRIMARY CONTROLS

ON POSITION

All operators of the snowmobile should familiarize themselves with the

function of the emergency engine stop switch by using it several times

on first outing and whenever stopping the engine thereafter. This en-

gine stopping procedure will become a reflex and will prepare opera-

tors for emergency situations requiring its use.

WARNING

If the switch has been used in an emergency caused by a sus-

pected malfunction, the source of the malfunction should be de-

termined and corrected before restarting engine. Visit an

authorized BRP snowmobile dealer for servicing.

Brake Lever

Brake lever is located on the LH side of handlebar.

When squeezed, brake is applied. When released, it automatically re-

turns to the rest. Braking effect is proportional to the pressure applied

on the lever and to the type of terrain and its snow coverage.

125

PRIMARY CONTROLS

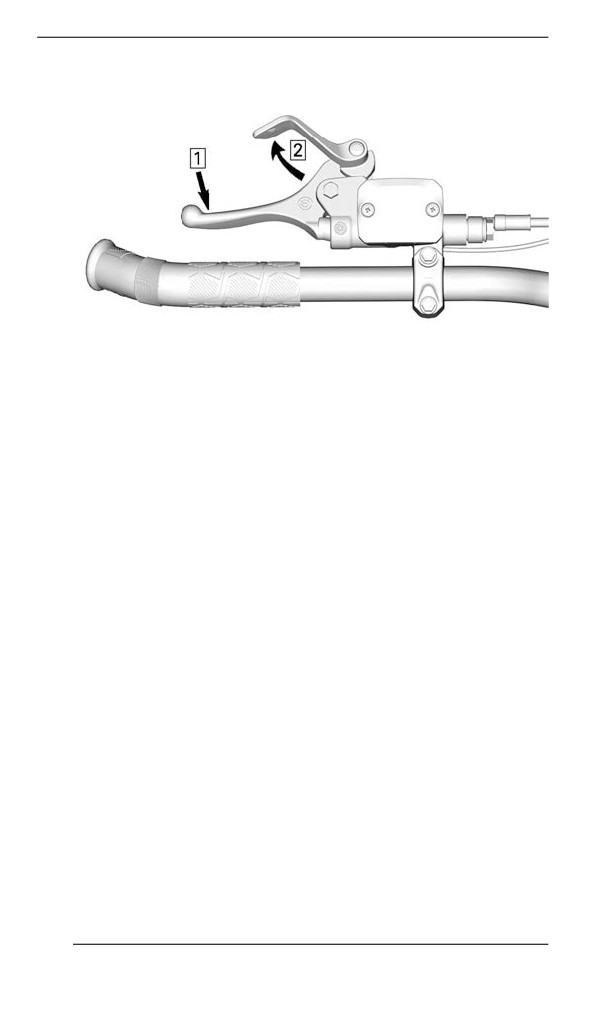

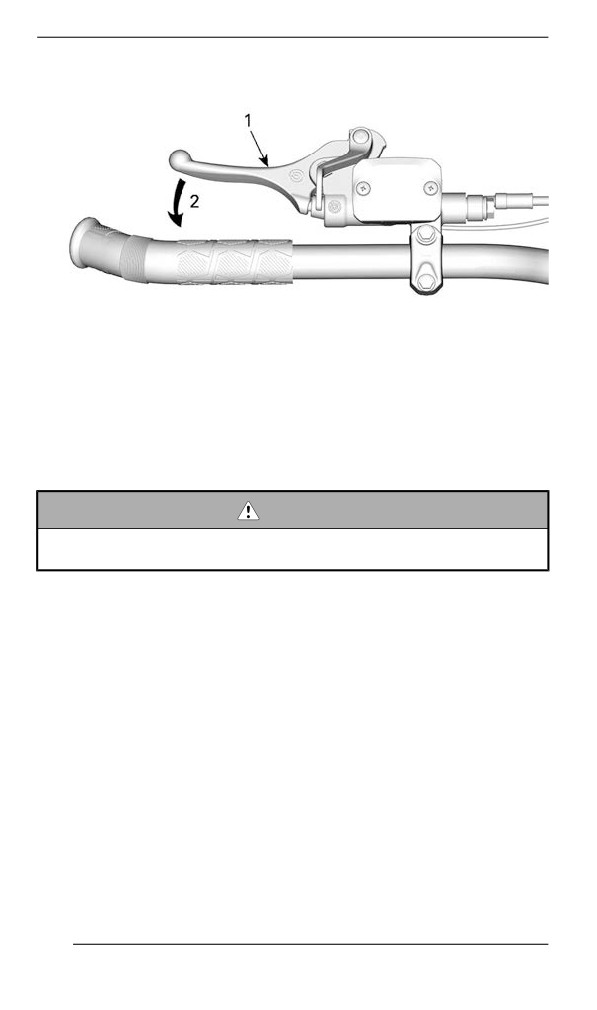

TYPICAL

1. Brake lever

2. To apply brake

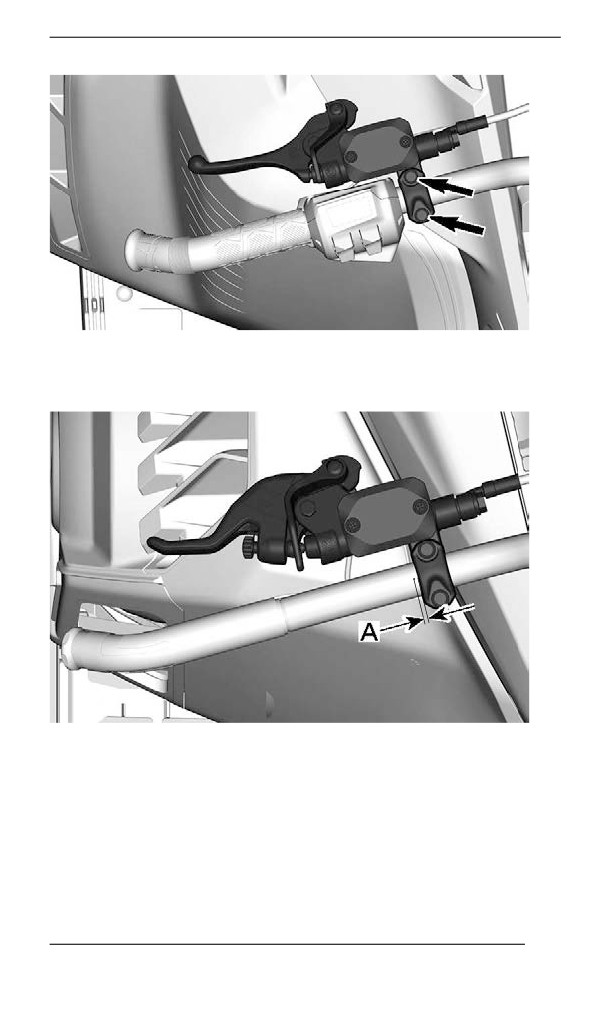

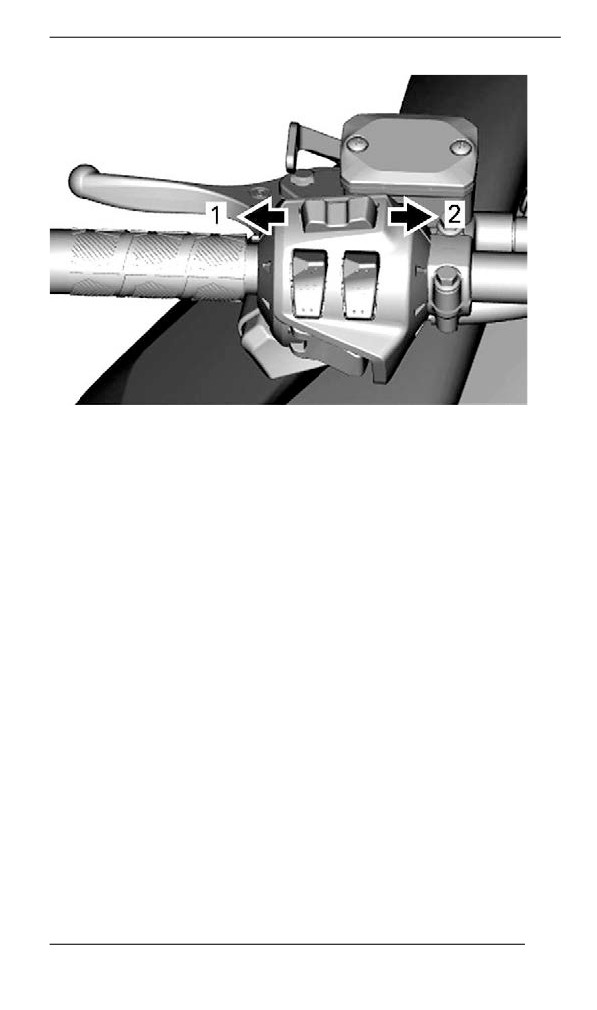

Brake Lever Adjustment

WARNING

It is important to adjust the brake lever to the user size and nor-

mal riding position.

Proper brake lever position should allow:

- Good support for the index and middle finger on the lever.

- Use the outer end of the lever to optimize the force.

- Proper wrist alignment.

Taking the time to adjust and try out the brake lever before your first

snowmobile outing improves user comfort.

126

PRIMARY CONTROLS

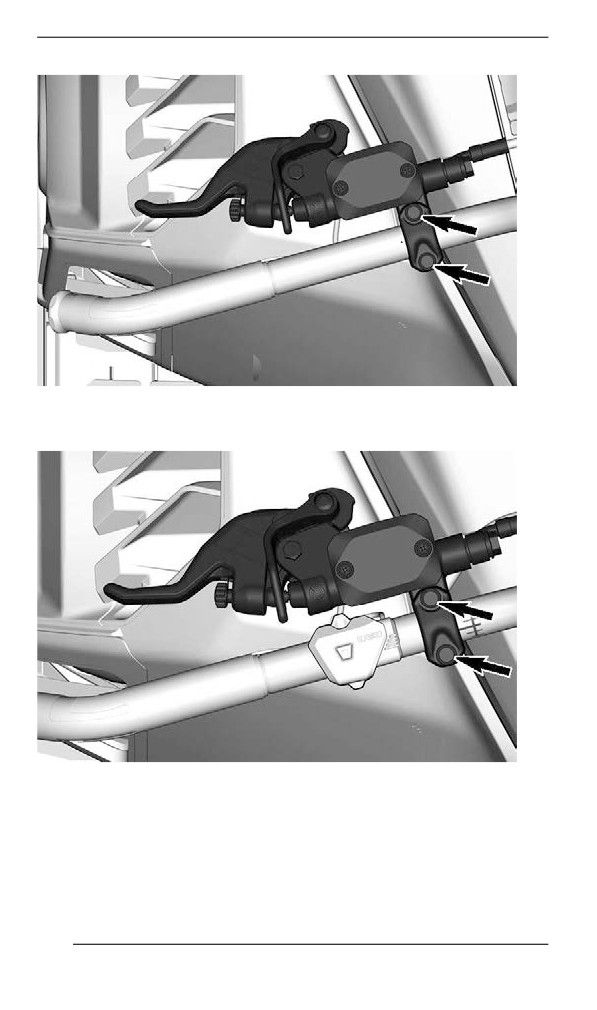

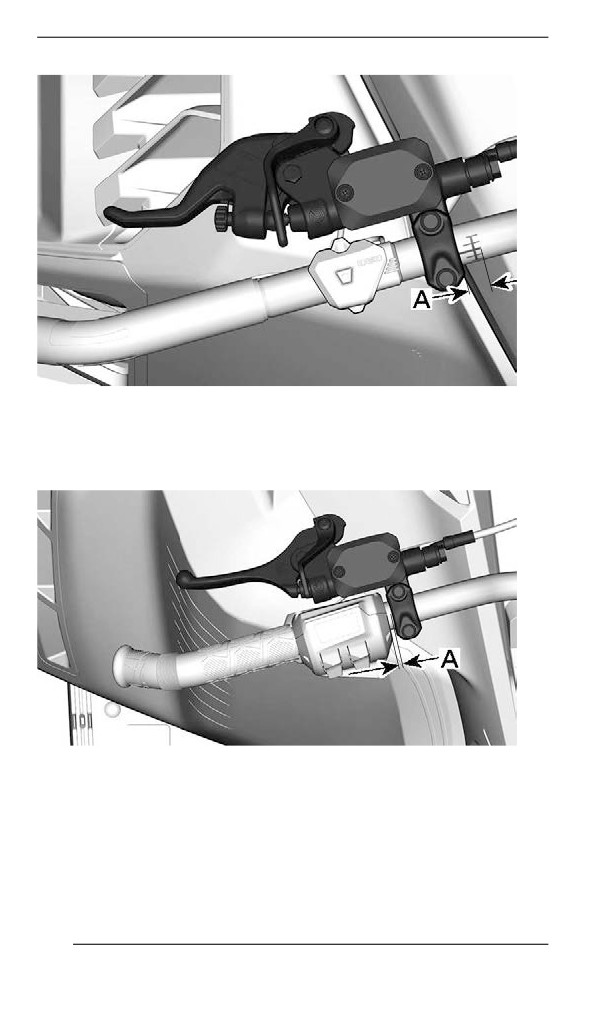

A. 0 to 9 mm (0 to 0.354 in) between the start of the handlebar mark

and side of the brake lever

Models with aluminum handlebar and with multifunction

switch

A. 0 to 15 mm (0 to 0.590 in) between the side of the multifunction

switch and the side of the brake lever

3. With the operator on the driver seat, put the brake lever in the de-

sired position.

4. Tighten the two bolts to specification.

130

PRIMARY CONTROLS

TIGHTENING TORQUE

Brake lever adjustment

8.5 ± 1.5 Nm (75 ± 13 lbf-in)

bolts

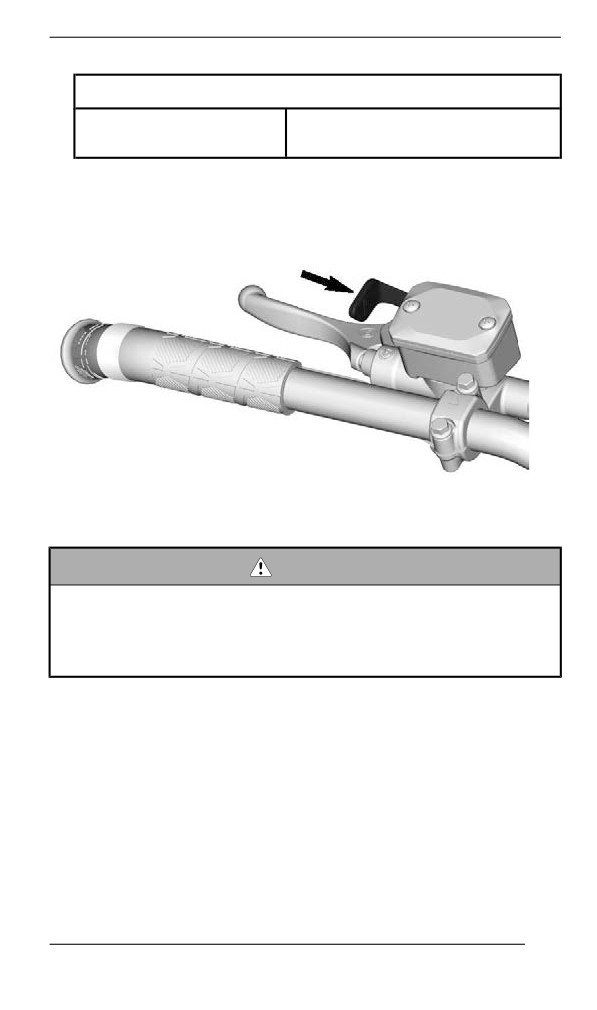

Parking Brake Lever

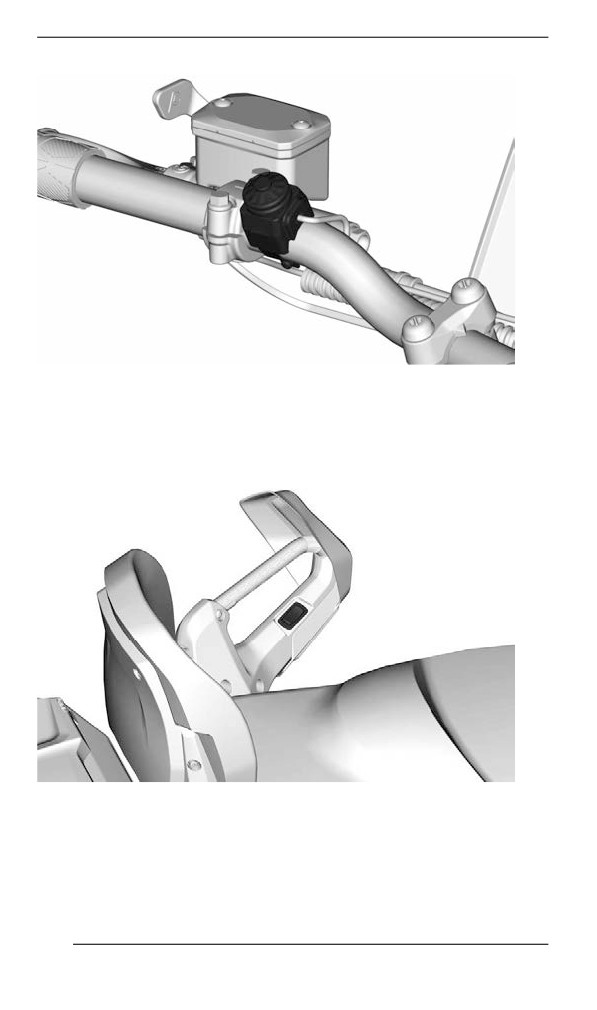

Parking brake lever is located on the LH side of handlebar.

TYPICAL

Parking brake should be used whenever snowmobile is parked.

WARNING

Make sure parking brake is fully disengaged before operating

the snowmobile. When you ride the vehicle, brake pads that are

caused to drag by a continuous pressure on the lever may

cause damage to the brake system and cause loss of braking

capacity and/or fire.

To Engage Parking Brake

Apply and hold brake, then lock brake lever using the parking brake

lever as shown.

131

PRIMARY CONTROLS

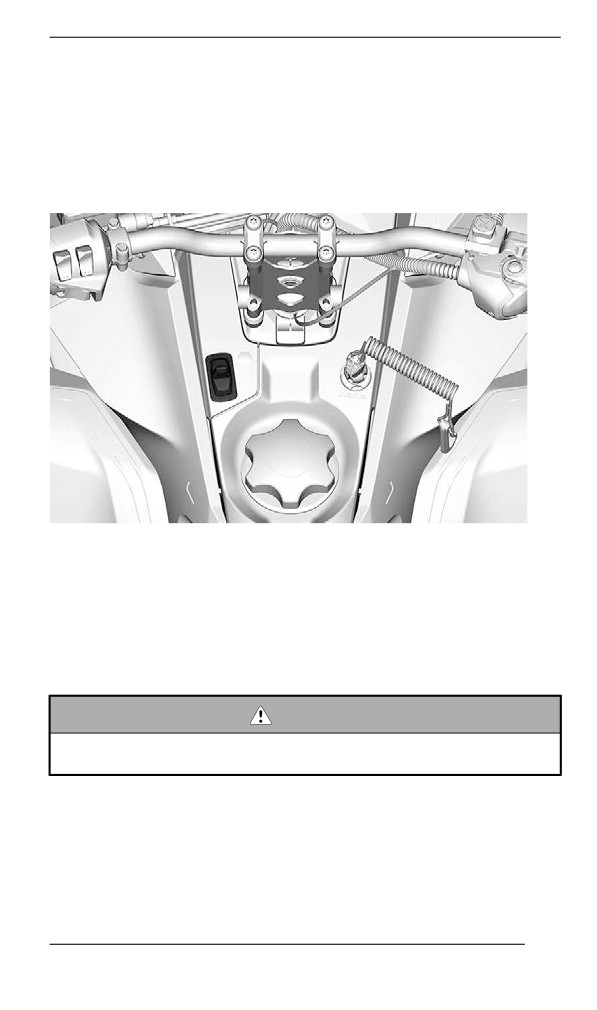

MECHANICAL SWITCH

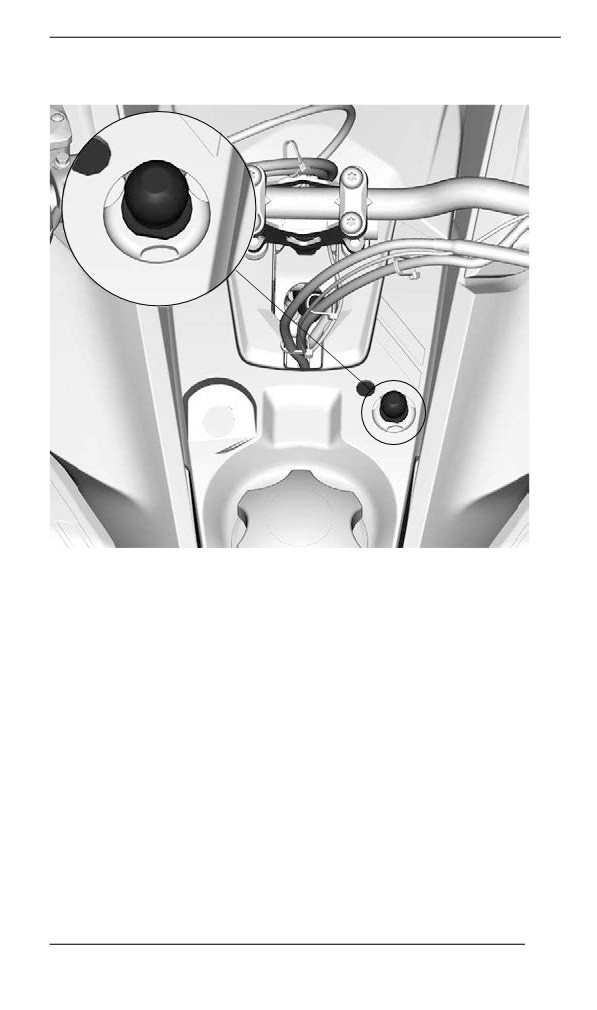

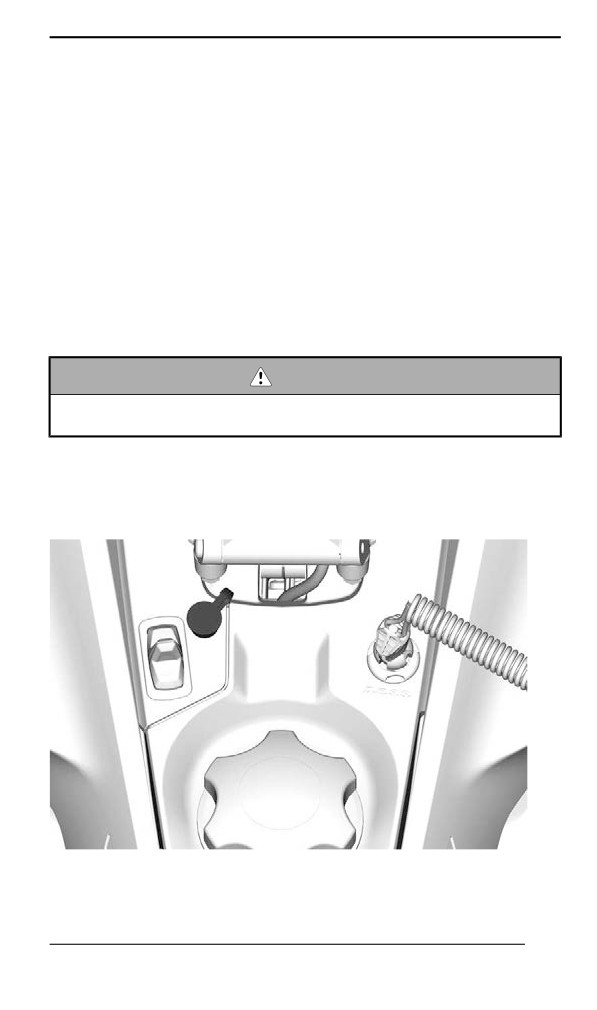

The engine cut-off switch (tether cord) is located on the console.

The tether cord cap must be securely snapped on the engine cut-off

switch to allow vehicle operation.

Pulling the tether cord cap from the switch shuts the engine off.

WARNING

Always attach the tether cord eyelet to clothing before starting

the engine.

D.E.S.S. (Digitally Encoded Security System)

The tether cord cap has an integrated D.E.S.S. key to provide you and

your snowmobile with the equivalent security of a conventional lock

key.

The D.E.S.S. key contains an electronic chip which features a unique

permanently memorized digital code.

134

PRIMARY CONTROLS

Your authorized BRP snowmobile dealer has programed the D.E.S.S.

of your snowmobile to recognize the D. E. S. S. key in the tether cord

cap to allow vehicle operation.

If another tether cord is used without programming the D.E.S.S., the

engine will start but will not reach drive pulley engagement speed to

move vehicle.

Make sure the tether cord cap is free of dirt or snow.

D.E.S.S. Flexibility

The D.E.S.S. of your snowmobile can be programmed by your author-

ized BRP snowmobile dealer to accept up to 8 different keys.

We recommend the purchase of additional tether cords from your au-

thorized BRP snowmobile dealer. If you have more than one D.E.S.S.

equipped BRP snowmobile, each can be programmed by your author-

ized BRP snowmobile dealer to accept the other vehicles D. E. S. S.

keys.

135

SECONDARY CONTROLS

Some features may not apply to your model or could be optional.

Vehicle safety labels are not shown on illustrations. For information on

vehicle safety labels, refer to Vehicle Safety Labels.

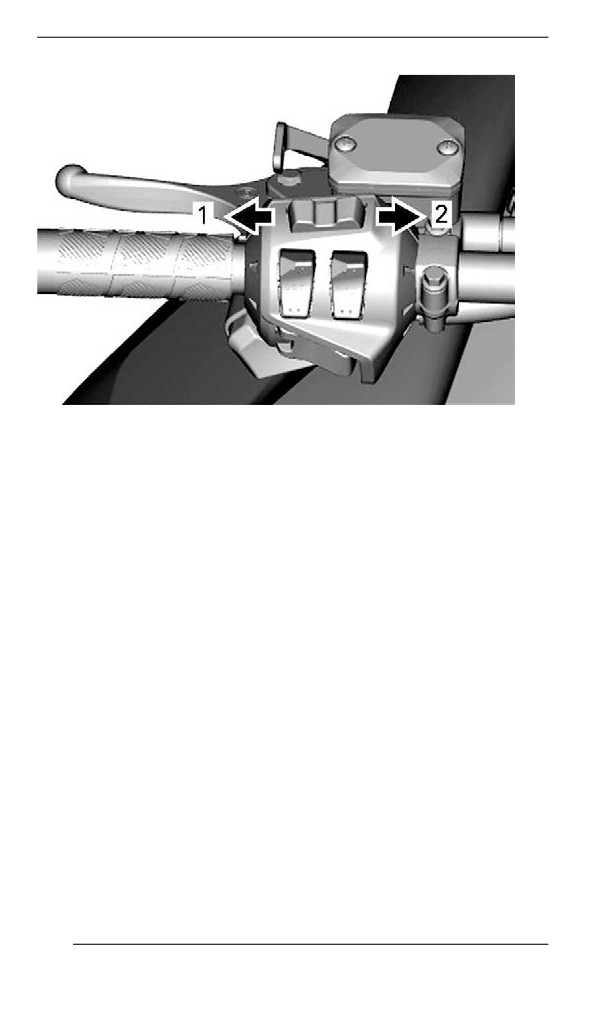

Handllebar Mulltiifunction Switch

Multifunction switch is located on the LH side of handlebar.

TYPICAL - MODELS WITHOUT THE LARGE PANORAMIC 7.8"

WIDE LCD DISPLAY

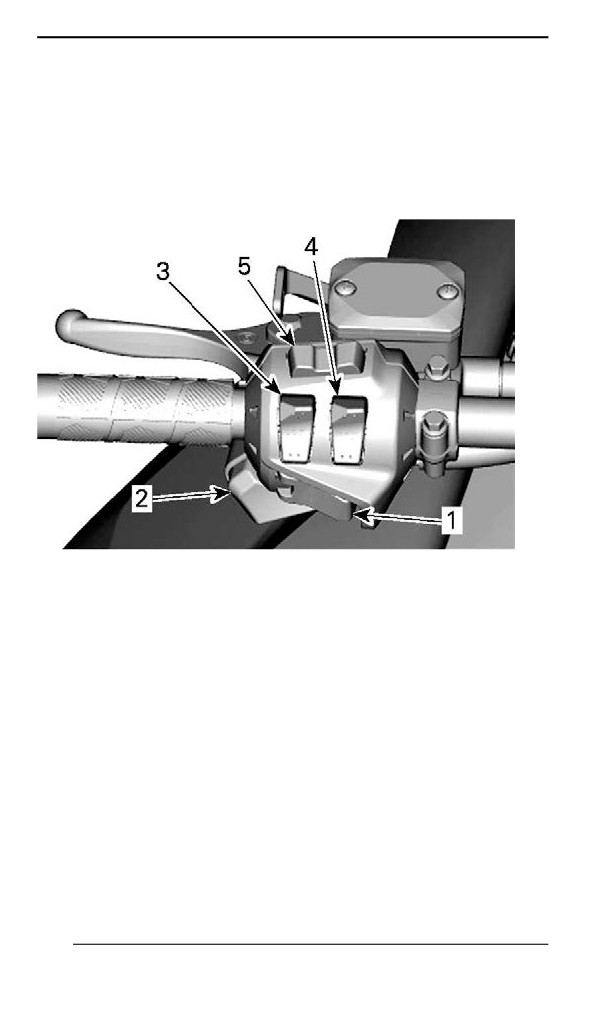

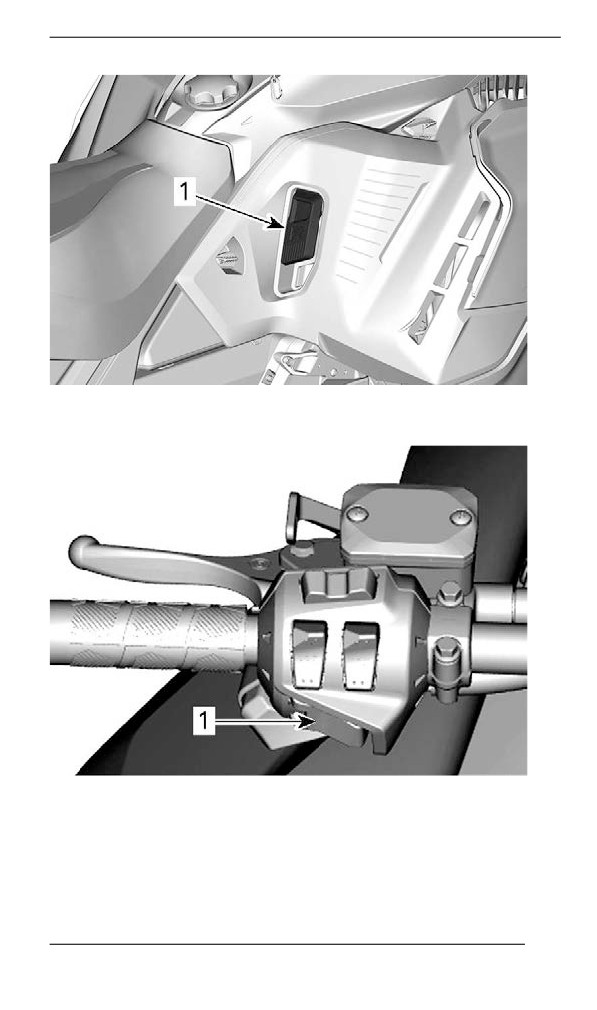

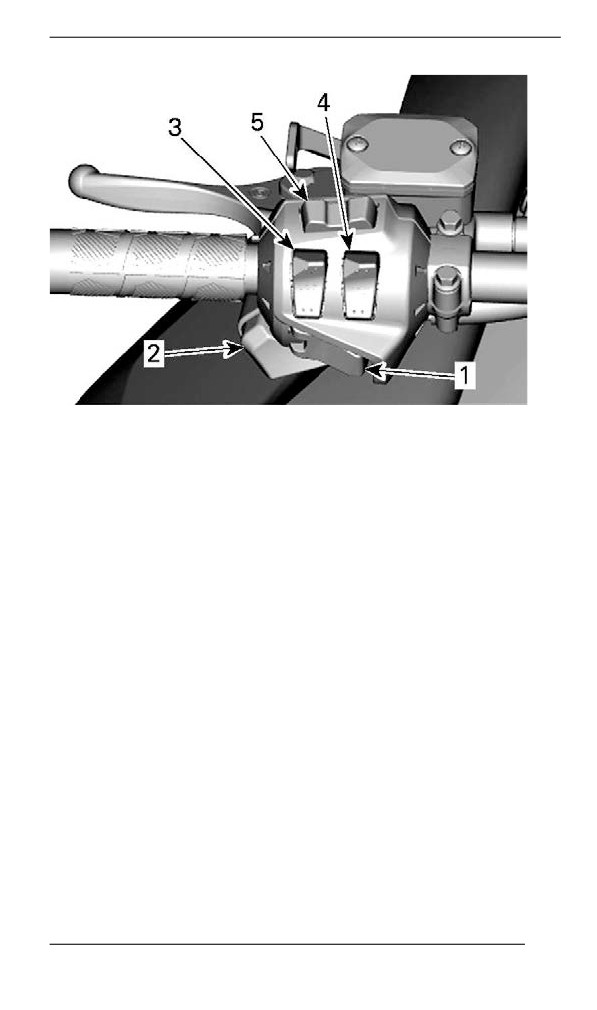

1. Start/Electronic Reverse button

2. Headlights dimmer switch

3. Heated grips switch

4. Heated throttle lever switch

5. Mode/set button (If equipped)

136

SECONDARY CONTROLS

MODELS WITH THE LARGE PANORAMIC 7.8" WIDE LCD

DISPLAY

1. Start/Electronic Reverse button

2. Headlights dimmer switch

3. Heated grips switch

4. Heated throttle lever switch

5. Audio Control and Phone call control

Start / Electronic Reverse Button

Press to start engine. Refer to Engine Starting Procedure in Basic

Procedures.

Once engine is started, press to engage the electronic reverse. Refer

to Shifting in Reverse in Basic Procedures for procedure.

Headlights Dimmer Button

Press to select HI or LOW beam. Lights are automatically ON when

the engine is running.

Heated Grips Switch

Depress switch as required to select heating intensity to keep your

hands at a comfortable temperature.

137

SECONDARY CONTROLS

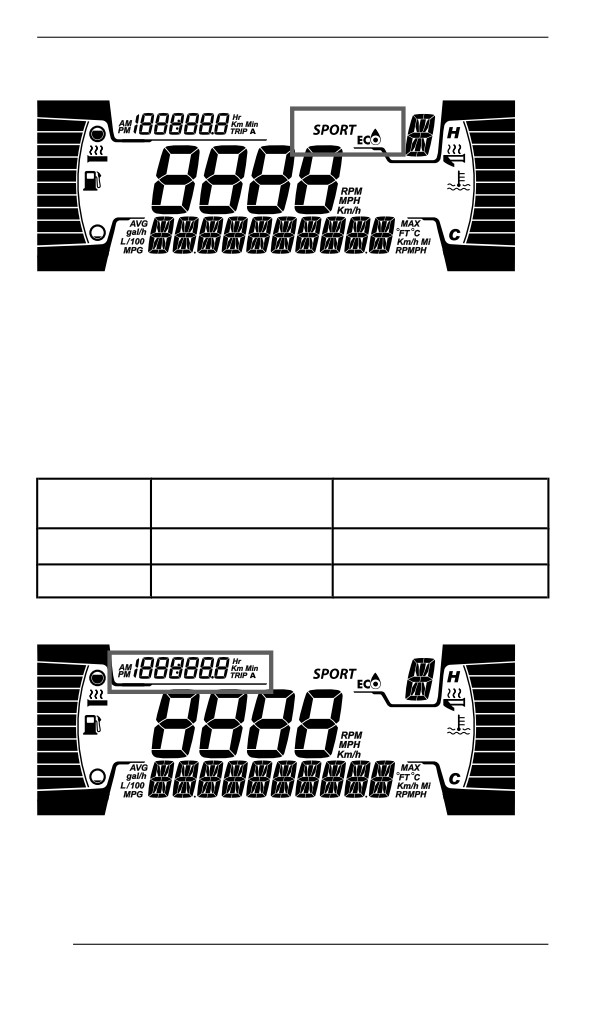

MODELS WITHOUT THE LARGE PANORAMIC 7.8" WIDE LCD

DISPLAY SHOWN

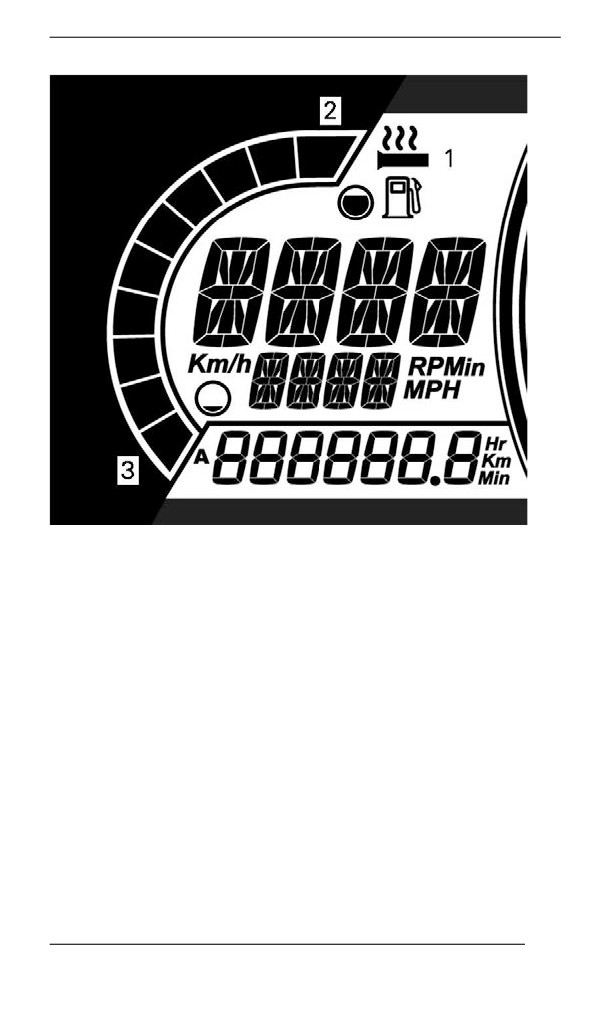

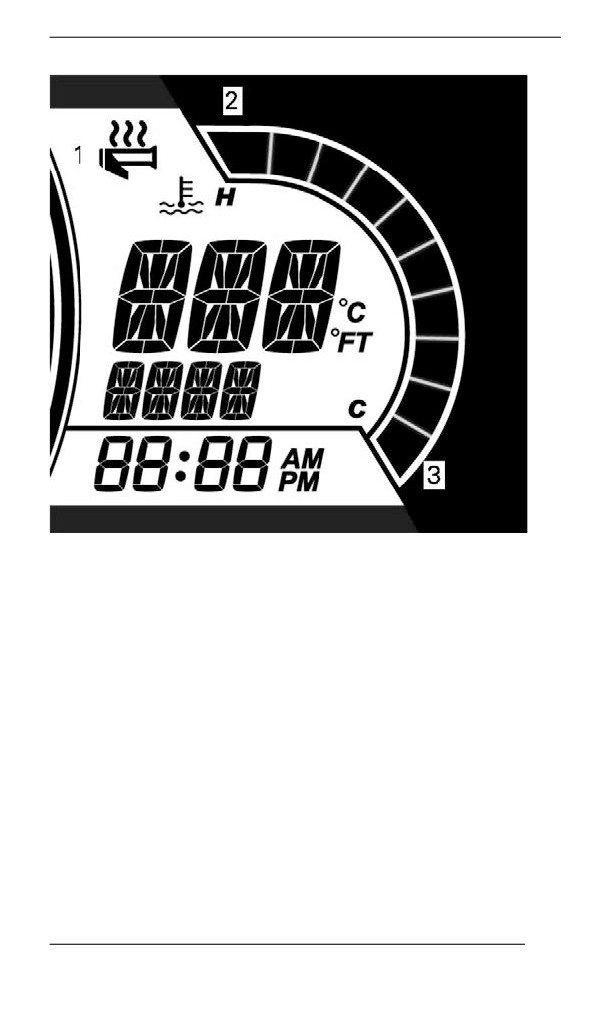

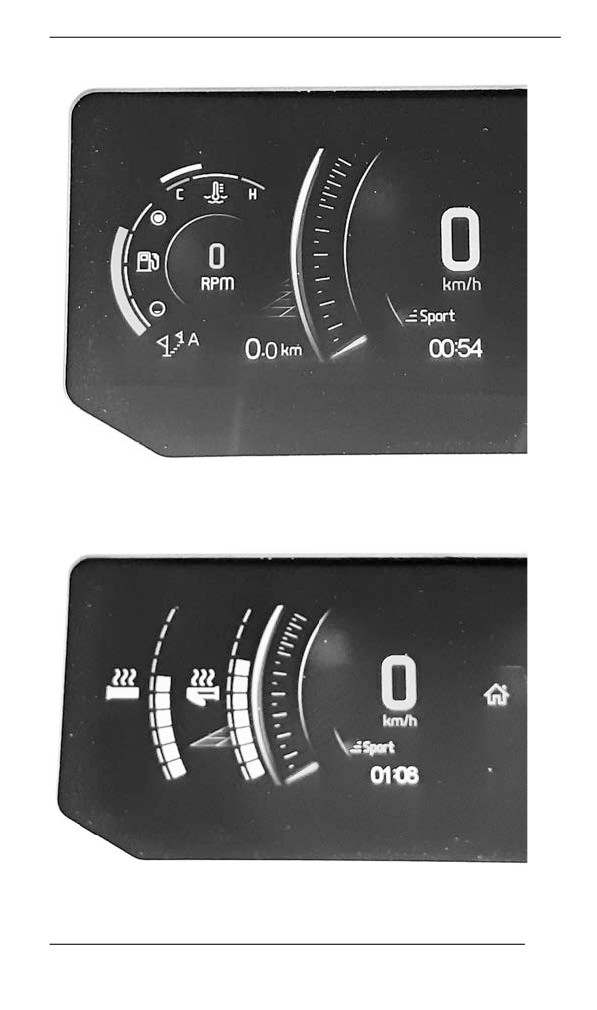

1. Heated grip icon

2. More heat

3. Less heat

Heated grips will be in OFF position when there are no bars displayed

on the gauge.

NOTE:

For models with the Large Panoramic 7.8" Wide LCD Display, refer to

Large Panoramic 7.8” Wide LCD Display section.

Heated Throttle Lever Switch

Depress switch as required to select heating intensity to keep your

thumb at a comfortable temperature.

139

SECONDARY CONTROLS

MODELS WITHOUT THE LARGE PANORAMIC 7.8" WIDE LCD

DISPLAY SHOWN

1. Heated grip icon

2. More heat

3. Less heat

Heated throttle lever will be in OFF position when there are no bars

displayed on the gauge.

NOTE:

For models with the Large Panoramic 7.8" Wide LCD Display, refer to

Large Panoramic 7.8” Wide LCD Display section.

Menu/Set Button

Models without the Large Panoramic 7.8" Wide LCD Display

This button is used to manage the information displayed on the multi-

function gauge.

141

SECONDARY CONTROLS

TYPICAL

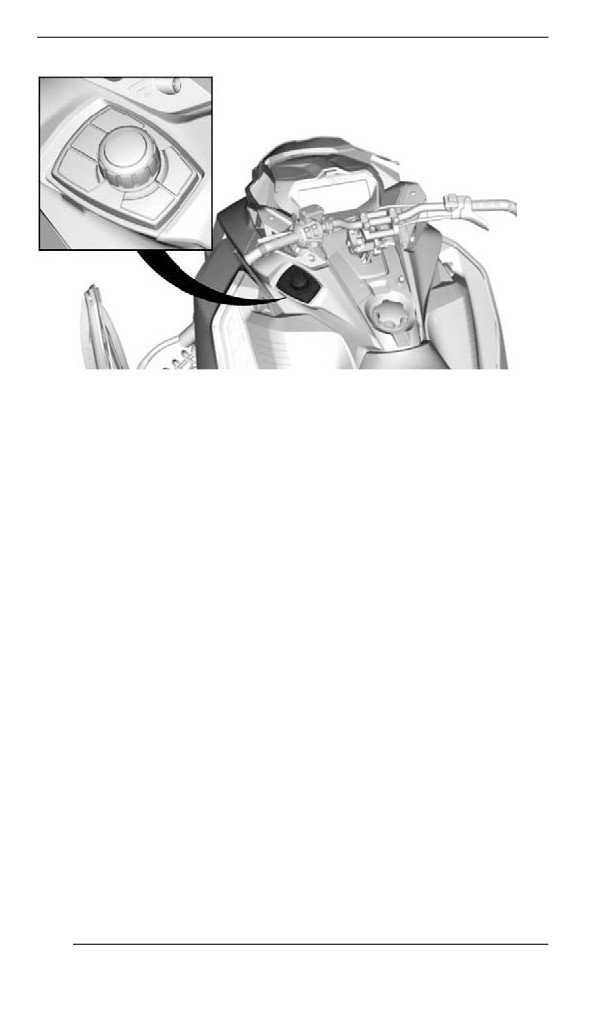

It is used to navigate into the LCD display and control the audio

system.

- Seek/Play/Pause buttons allow to control volume and music lis-

tened in the helmet audio system.

- The center knob can be used to navigate inside menu or select

and set settings.

- Specific vehicle data button allow to see engine temperature, and

battery voltage. It will also shown air suspension adjustment (if

equipped)

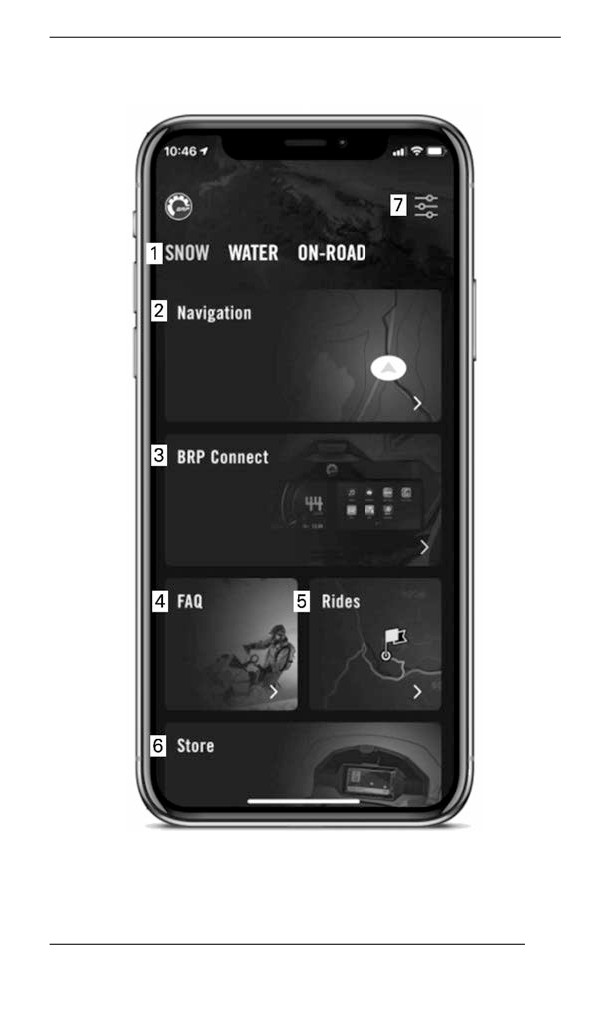

- BRP Connect button: quick access to already downloaded APPS.

144

SECONDARY CONTROLS

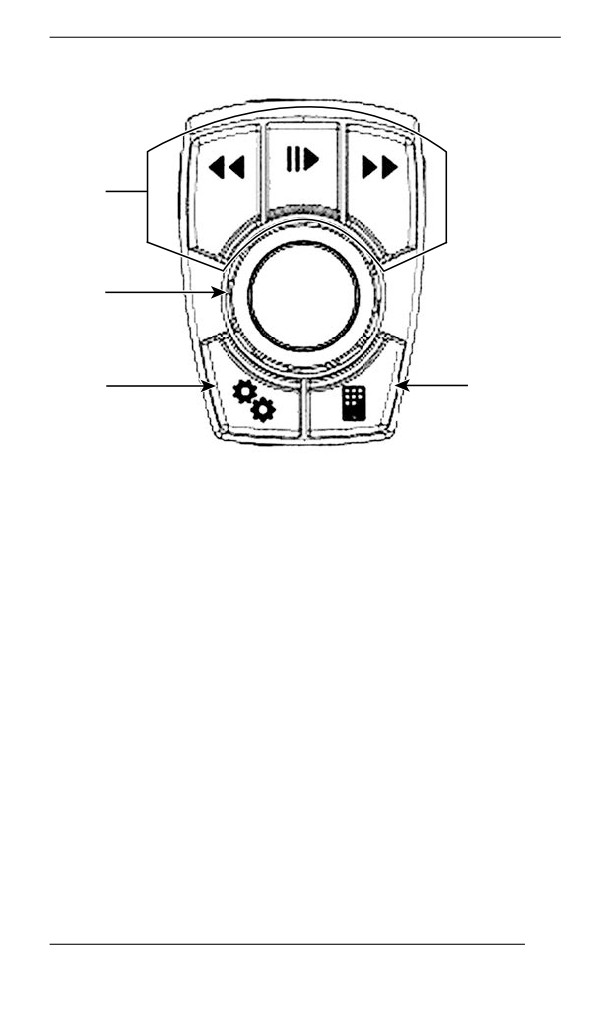

1. Audio control

2. Center knob

3. Vehicle data button

4. BRP Connect

When audio source is selected, the Preset/Seek buttons work as

follow:

- Short press: Previous or Next Preset

- Long press: Seek - up or down

When Bluetooth audio source is selected, the Preset/Seek buttons

work as follow:

- Left: Previous song

- Right: Next song

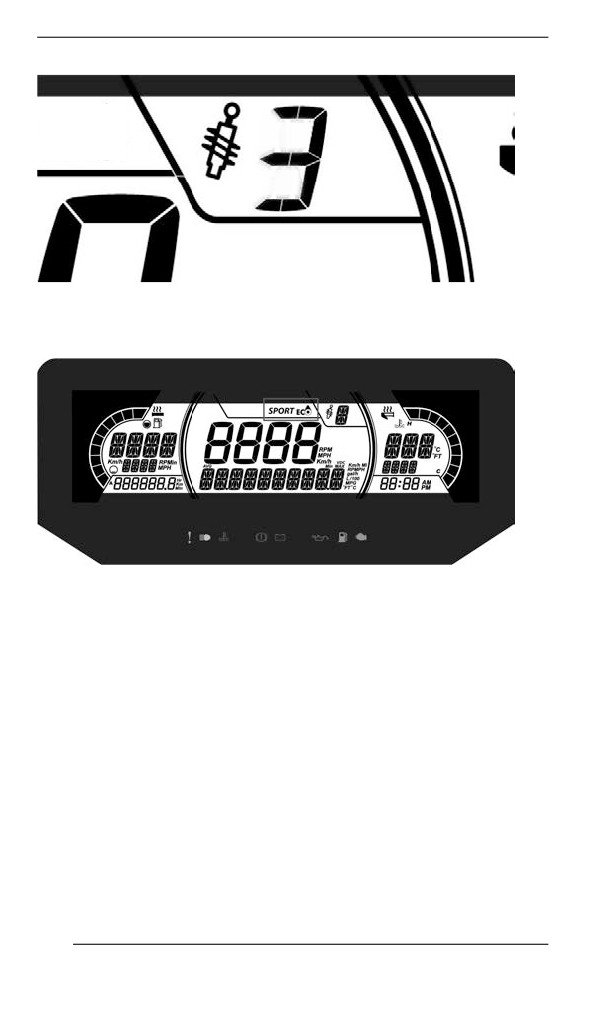

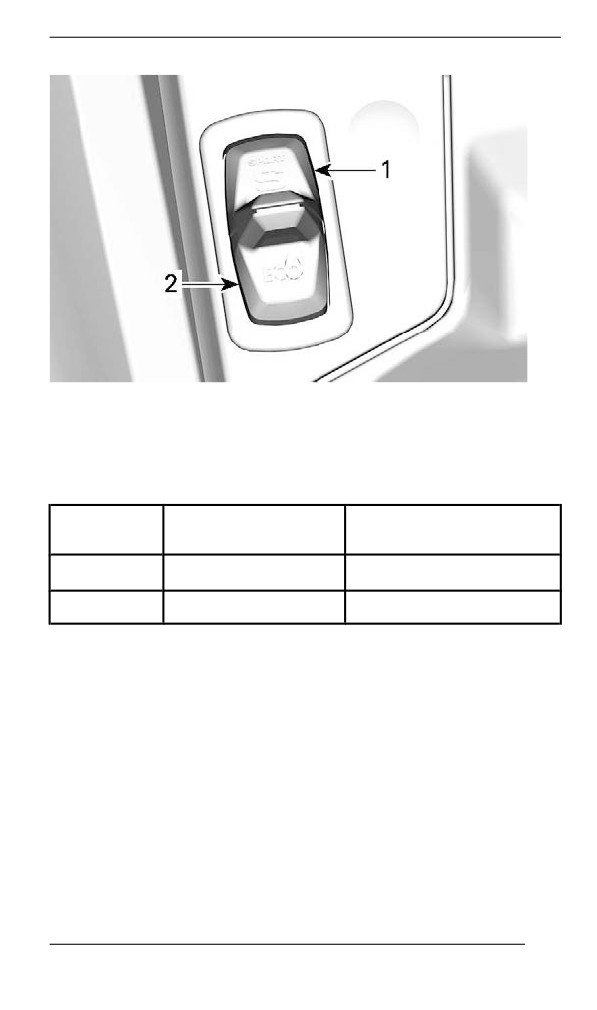

Driiving Modes Button

Allow to select SPORT or ECO mode.

145

SECONDARY CONTROLS

CAUTION

Shifting at a speed faster than 30 km/h (19 MPH) may cause

serious damage to the gearbox.

Neutral

The neutral position disengages the gearbox forward gears.

NOTE: The reverse gear still can be activated.

High Range (Forward)

This position selects the high speed range of the gearbox. It is the nor-

mal driving speed range. It allows the vehicle to reach its maximum

speed.

Low Range (Forward)

This position selects the low speed range of the gearbox. It allows the

vehicle to move slowly with maximum torque.

NOTICE

Use the low speed range to pull a cargo carrier, carry heavy

cargo, go over obstacles or drive uphill and downhill.

Reverse Lever (iif equiipped)

Refer to Shifting in Reverse in Basic Procedures for proper operation.

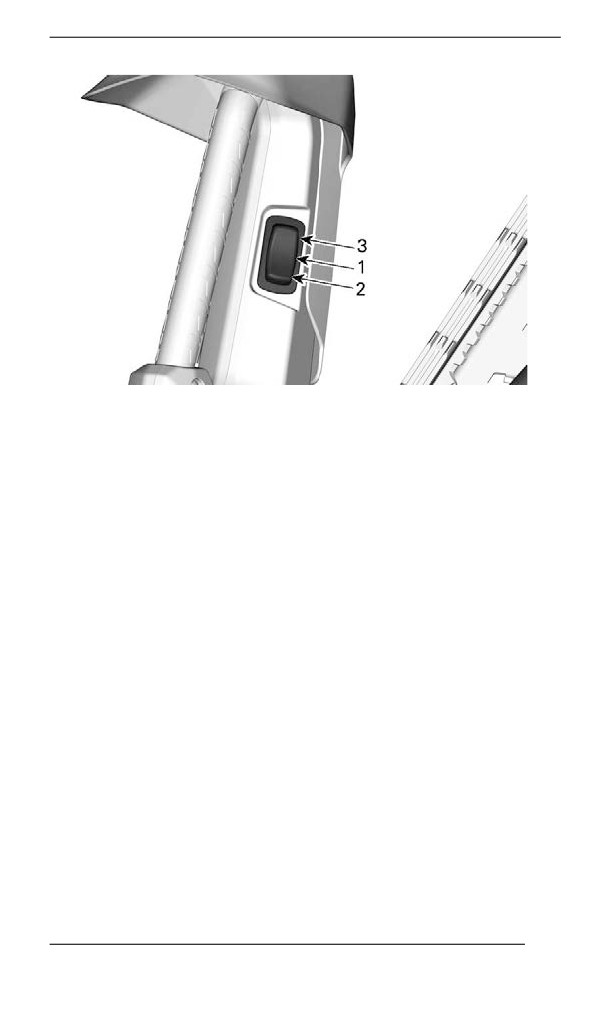

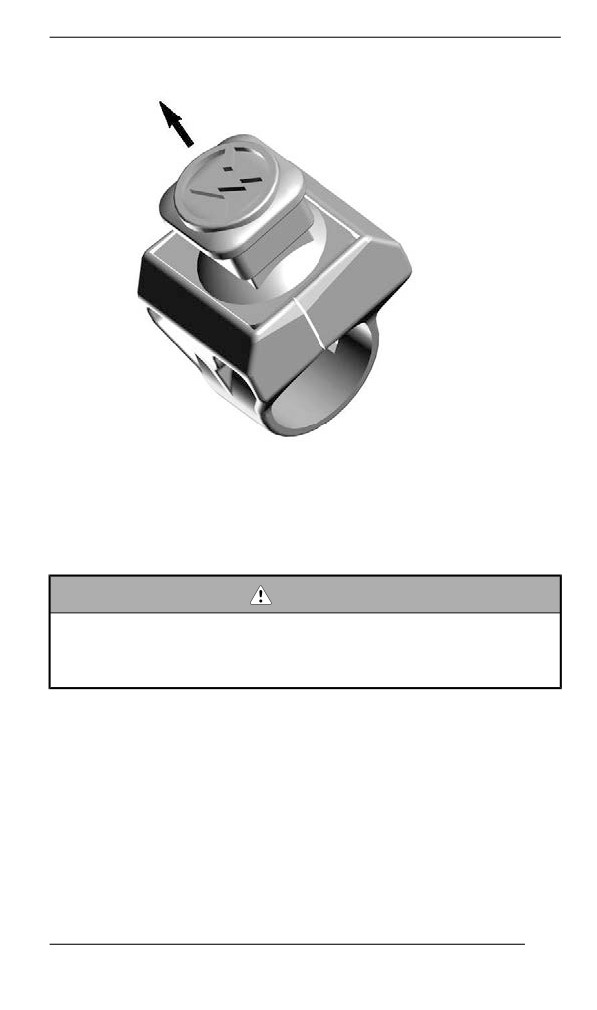

Horn Button (iif equipped)

For vehicles sold in Finland

Press on the horn button to activate the horn.

147

BODY AND SEAT

Front and Rear Bumpers

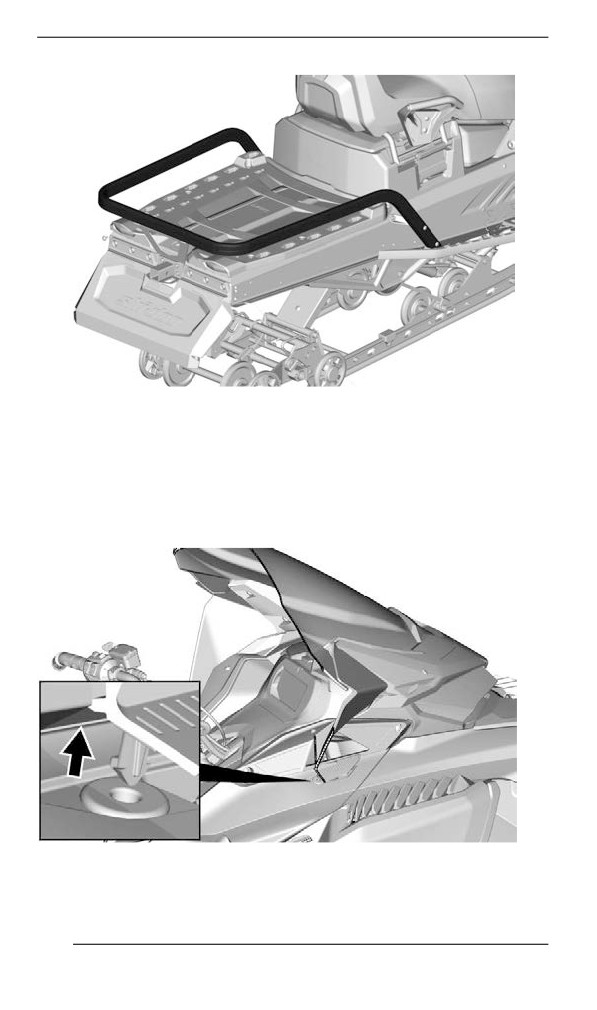

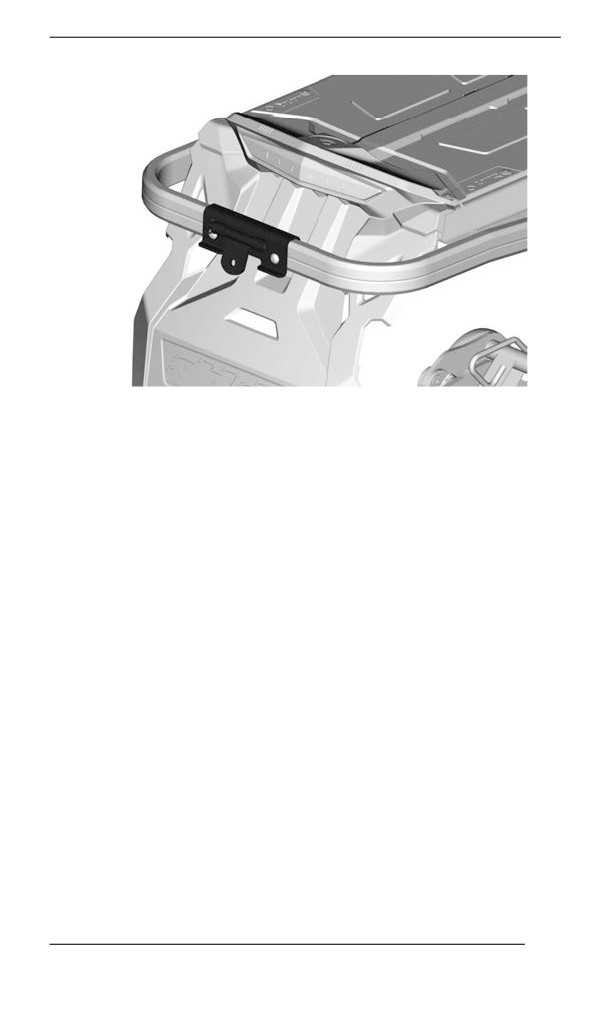

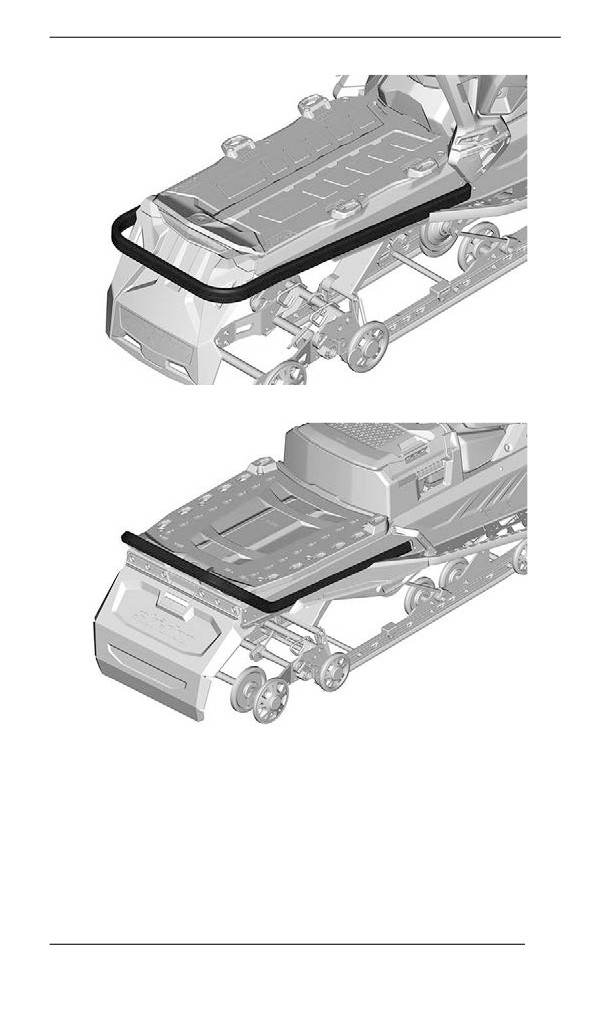

To be used whenever snowmobile requires manual lifting.

CAUTION

Beware of injuries by using proper lifting techniques, notably

using your legs force. Do not attempt to lift the rear of vehicle if

it is above your limits. Use appropriate lifting device or have as-

sistance to share lifting stress if possible.

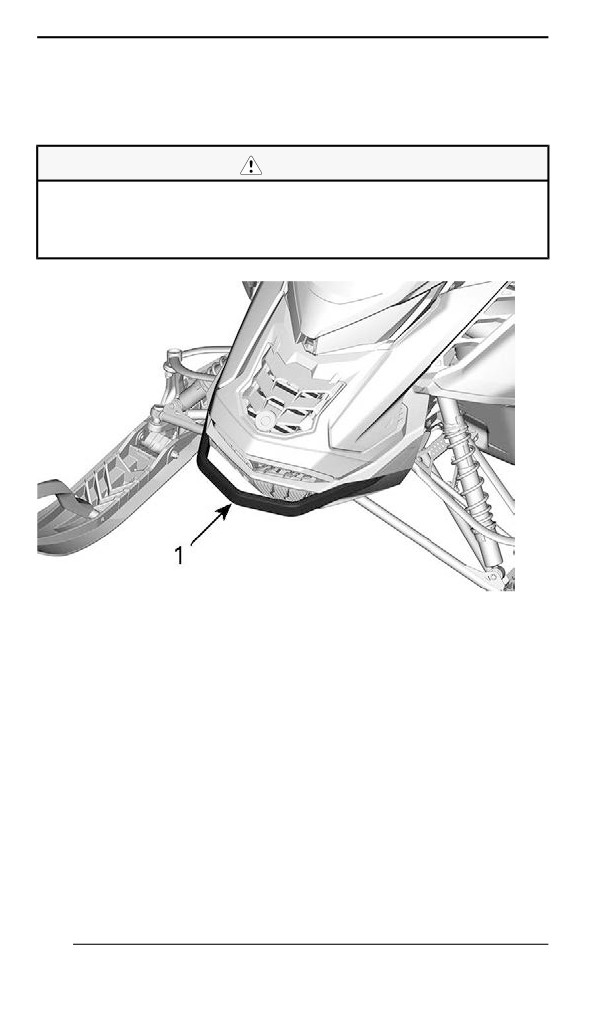

1. Front bumper

150

BODY AND SEAT

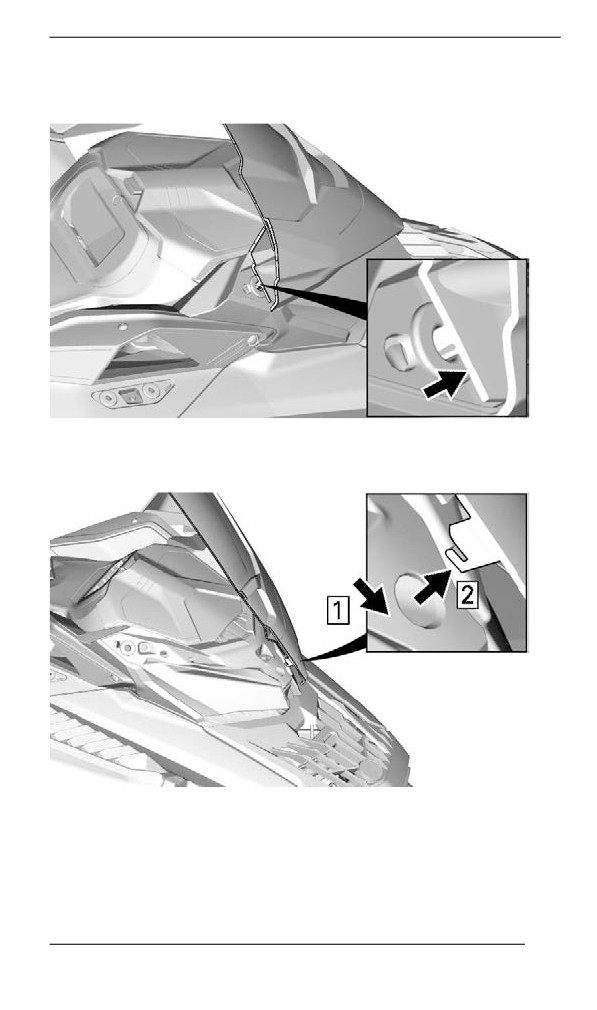

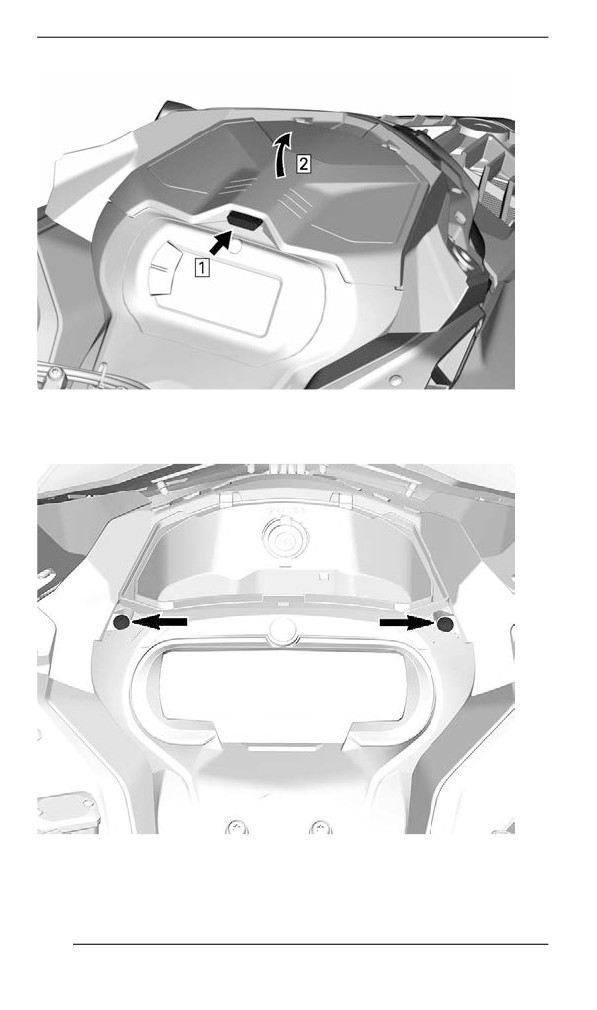

Front Storage Compartment

A storage compartment is located at the front of the vehicle, above the

gauge.

The Operator's Guide and the emergency starter rope are in the front

storage compartment.

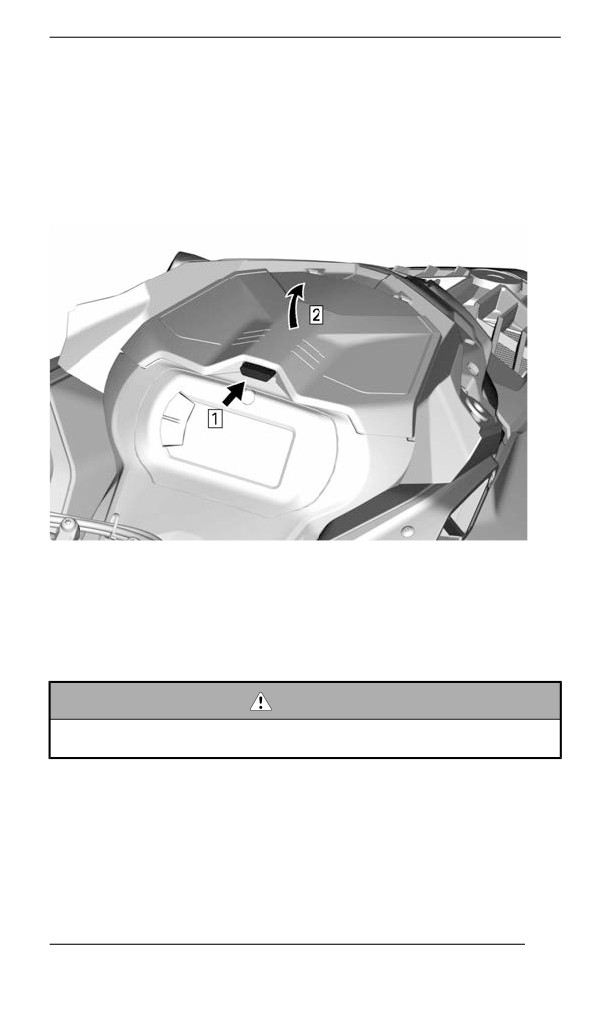

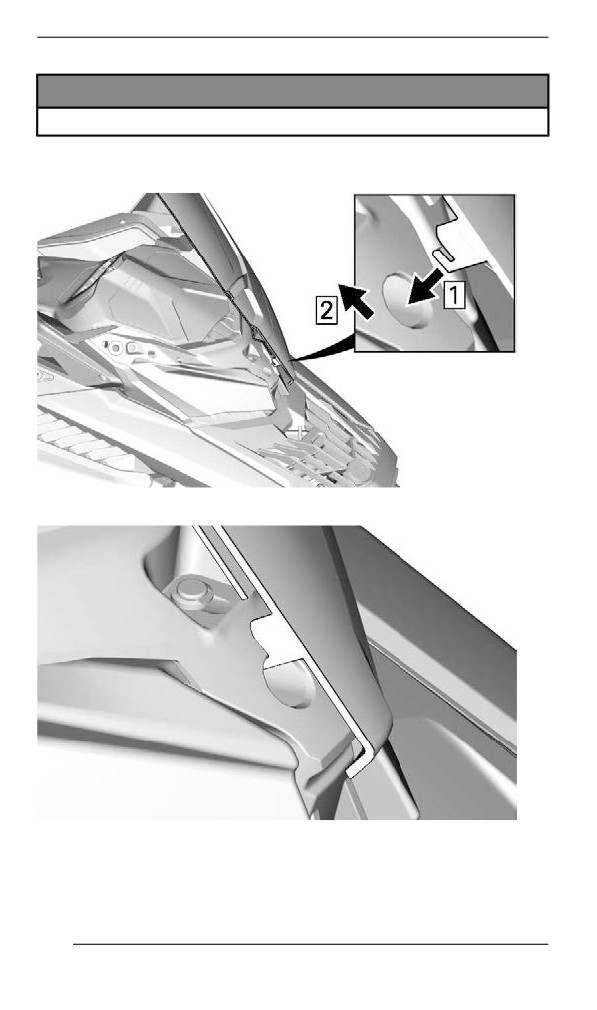

To open, push the button and lift the cover.

TYPICAL

NOTE:

When closing, make sure cover is secured properly. You will hear a

"click".

Siide Panels

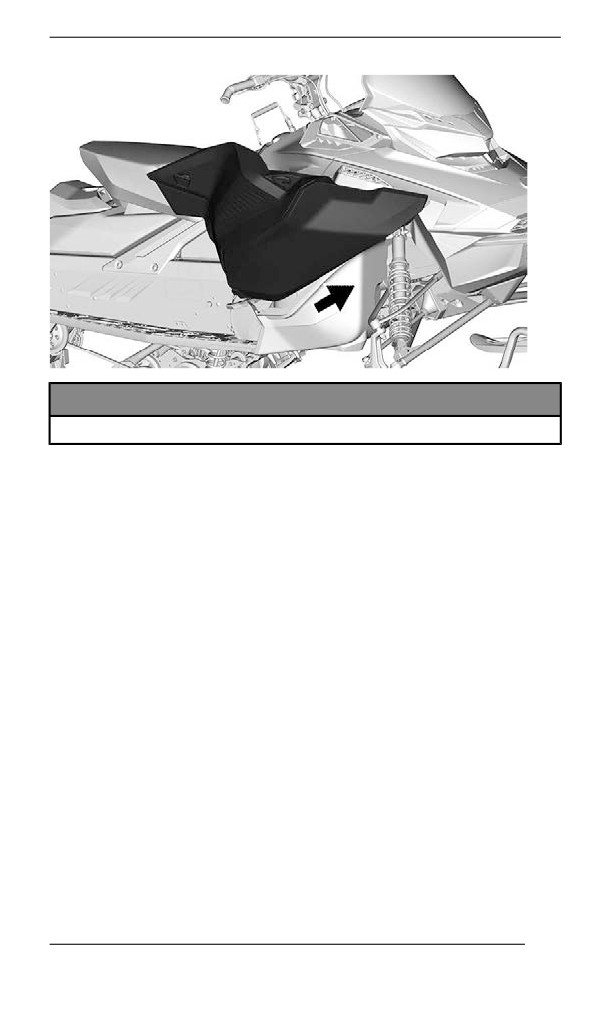

WARNING

Never operate engine with side panels opened or removed from

vehicle.

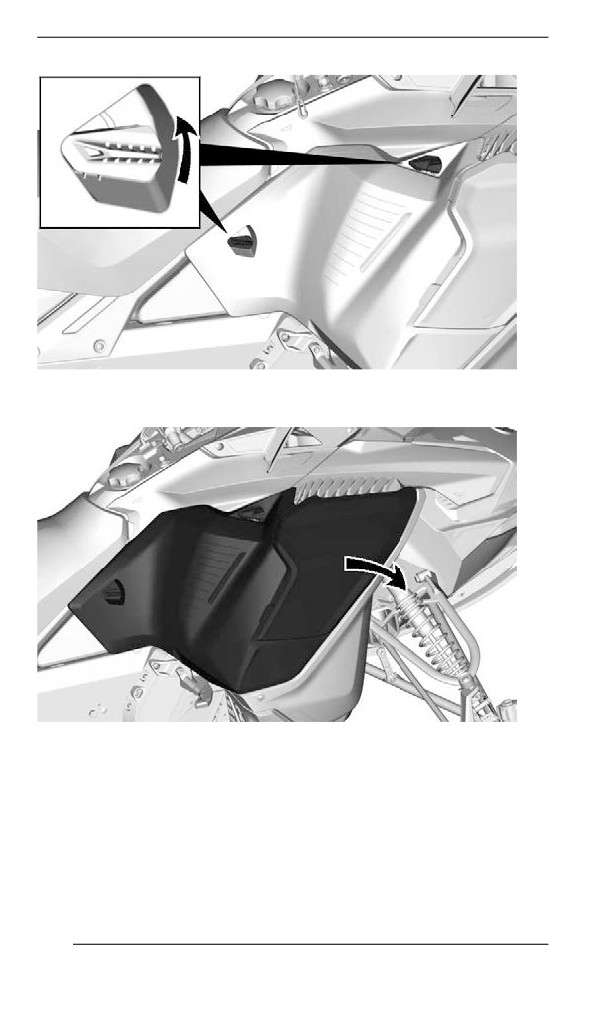

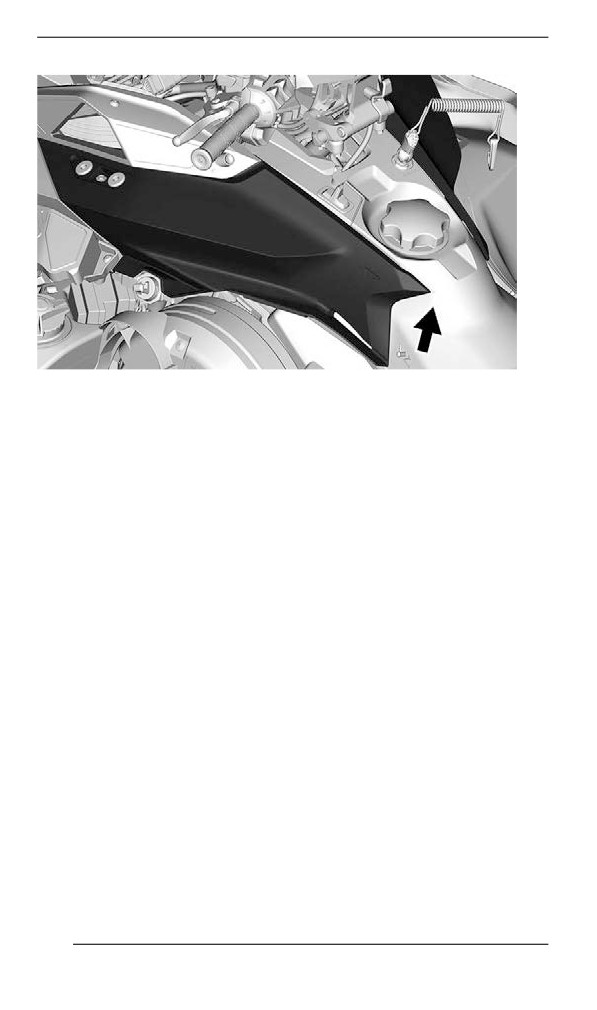

Removing the Side Panels

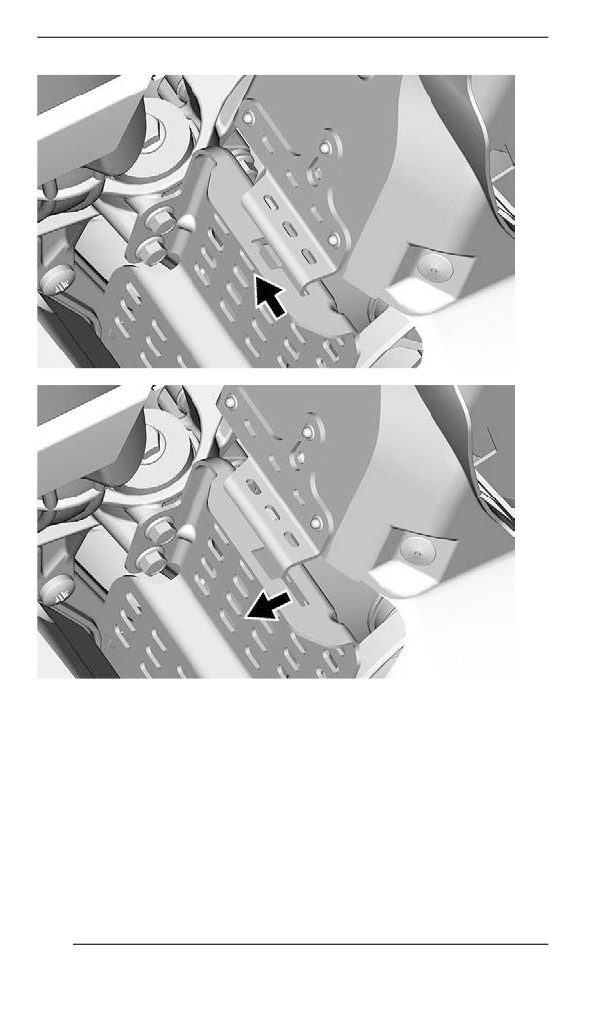

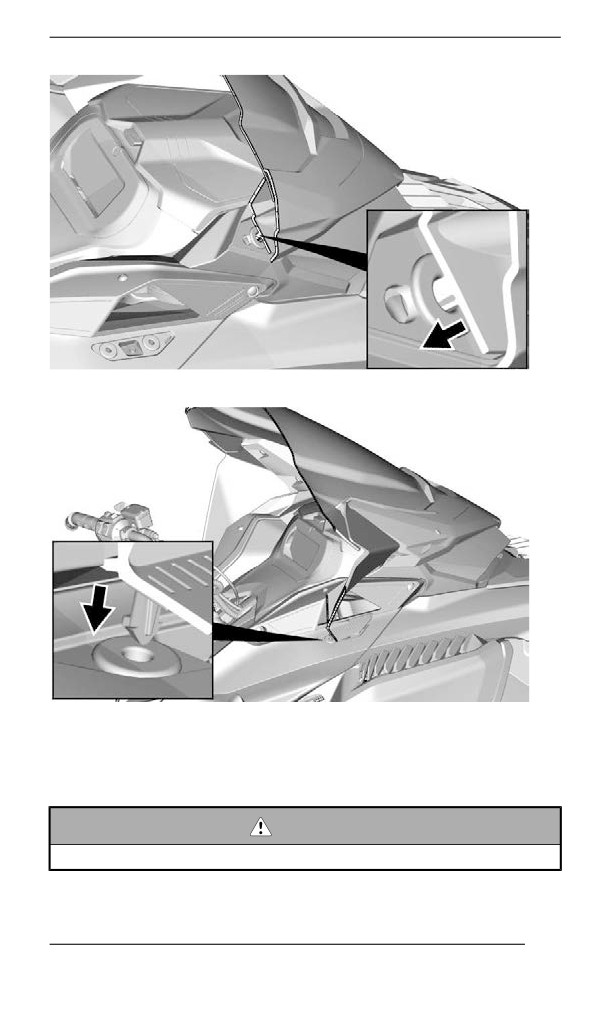

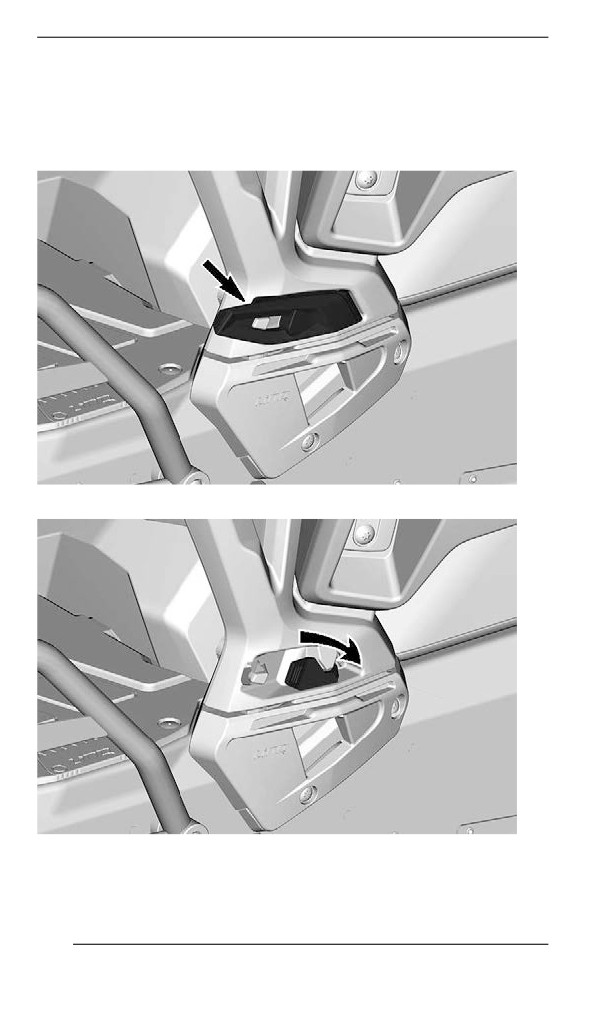

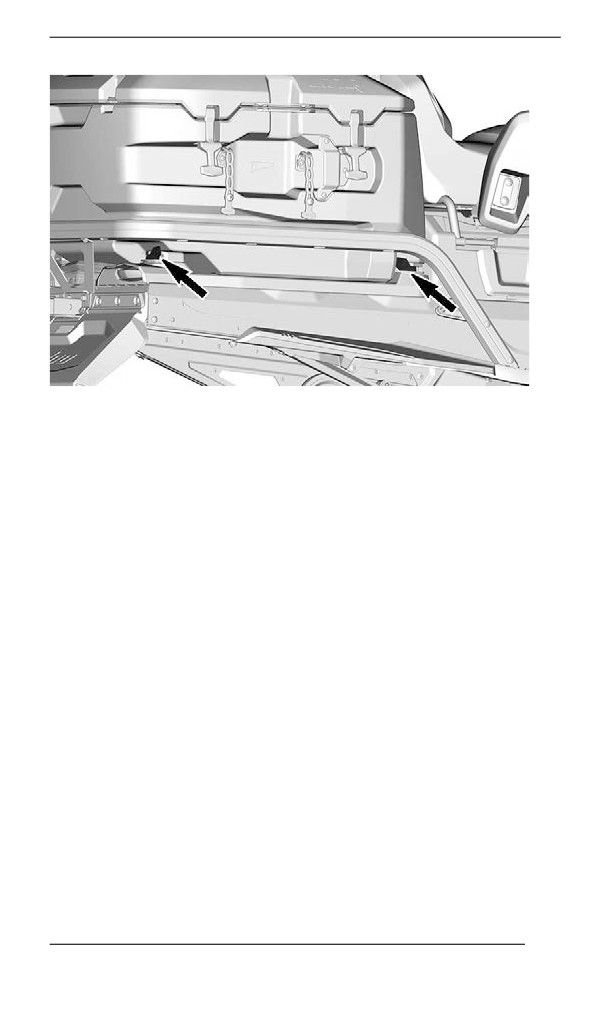

1. Unlock all latches, then open panel.

157

BODY AND SEAT

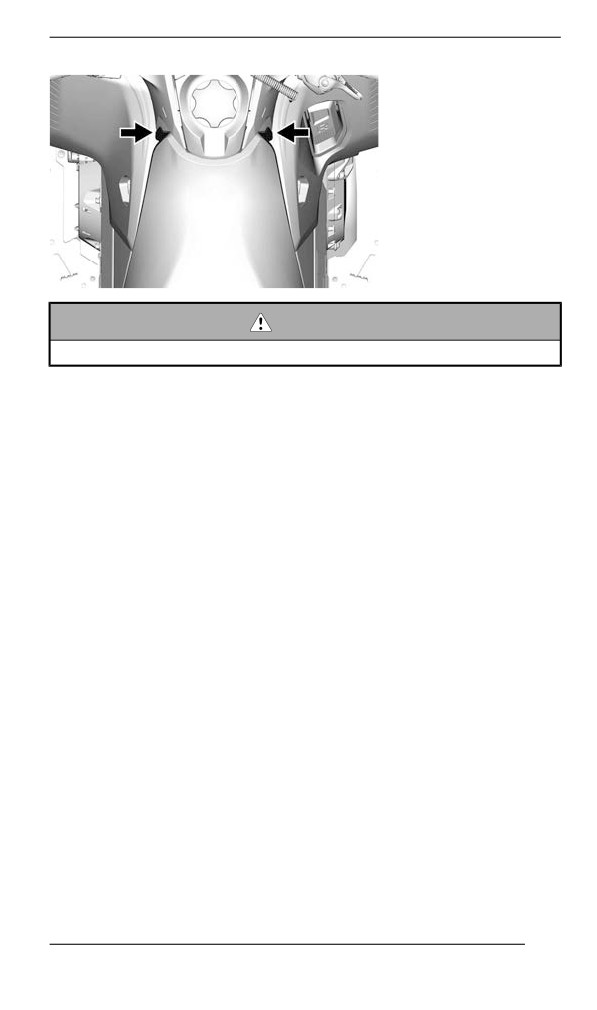

Installing the Upper Body Module

1. At front, insert the upper body module tabs into the bottom pan

openings.

FRONT HOOD TAB

2. Lower the rear end of the upper body module.

3. Insert the rear end hooks of the upper body module into the slots in

the console.

NOTE:

Make sure the air intake duct is positioned properly connected.

4. Tighten air intake duct clamp.

TIGHTENING TORQUE

Intake duct clamp

1.0 ± 0.2 Nm (9 ± 2 lbf-in)

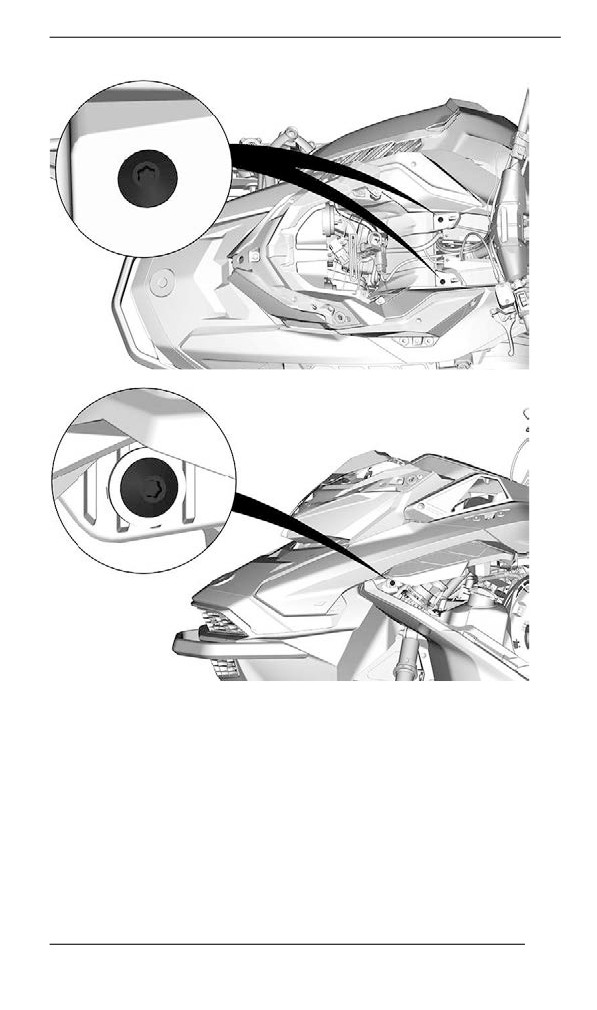

5. On both sides, install the upper body module retaining screws.

TIGHTENING TORQUE

Upper body screws

1.8 ± 0.2 Nm (16 ± 2 lbf-in)

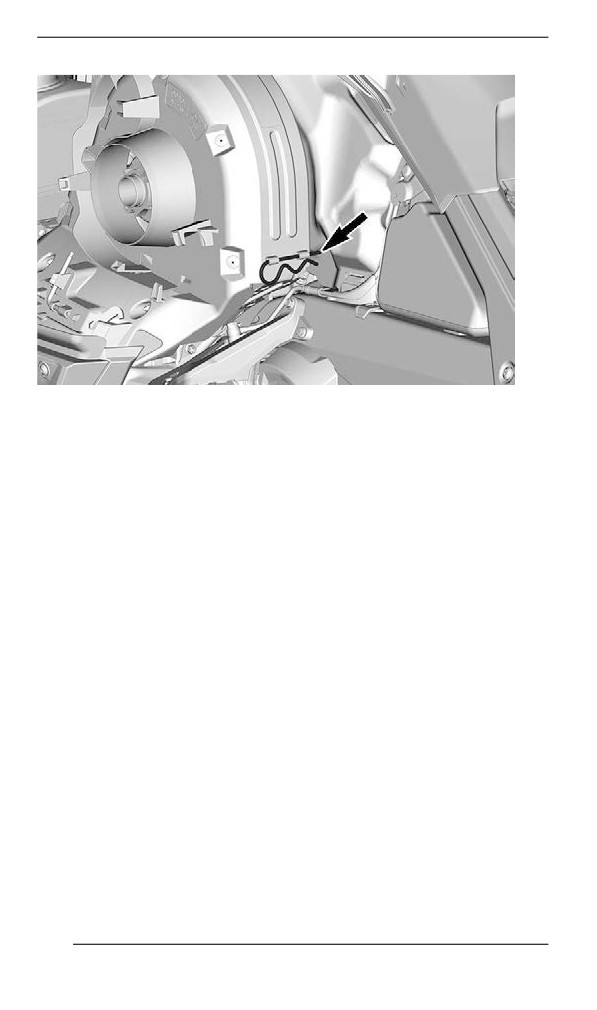

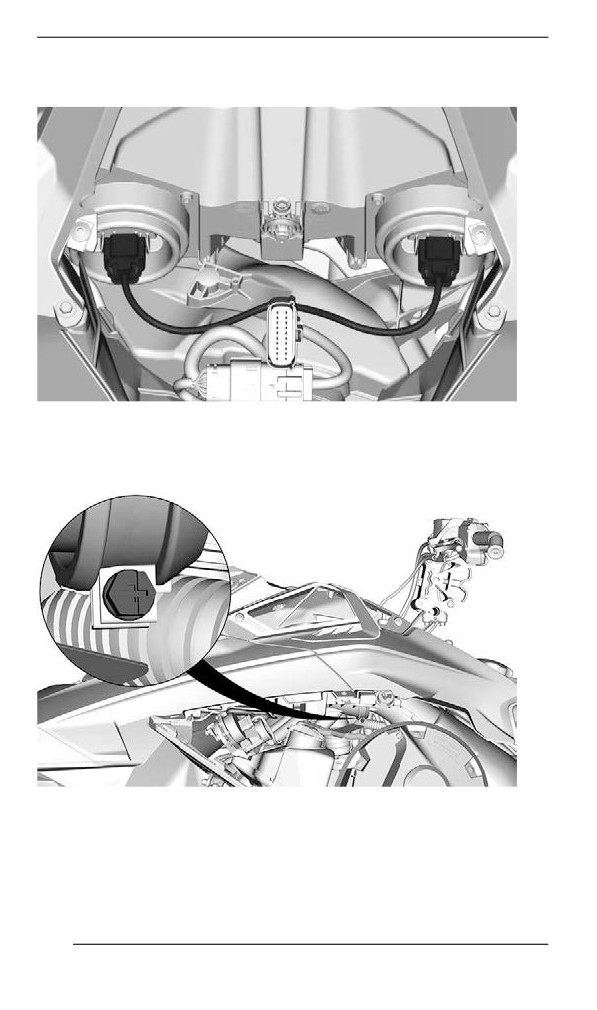

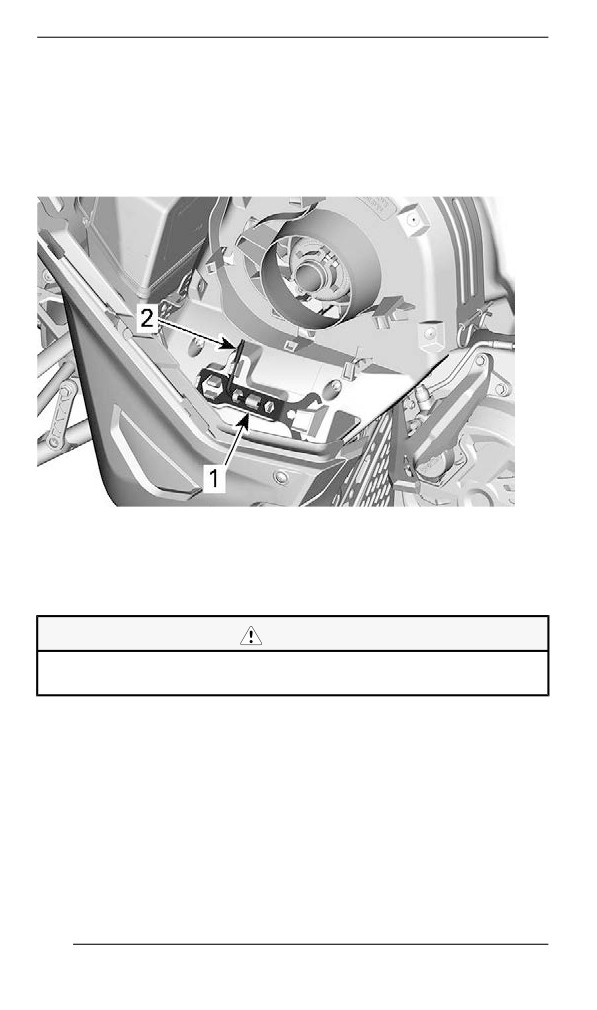

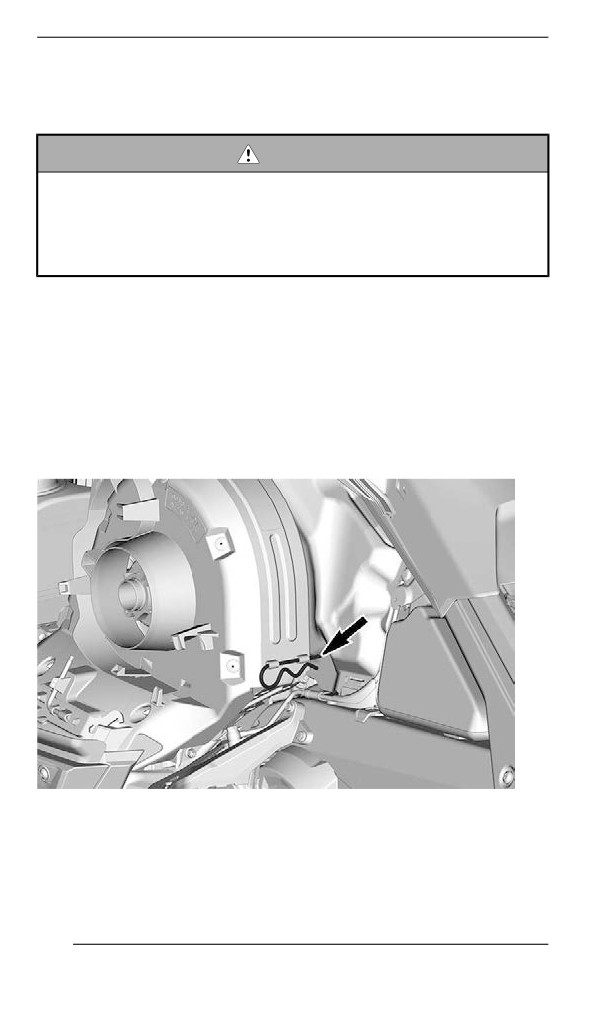

6. Connect the headlight connectors.

7. Install the storage compartment but leave the cover open.

8. Install gauge, secure with the screws.

165

BODY AND SEAT

TIGHTENING TORQUE

Gauge support screws

2.3 ± 0.2 Nm (20 ± 2 lbf-in)

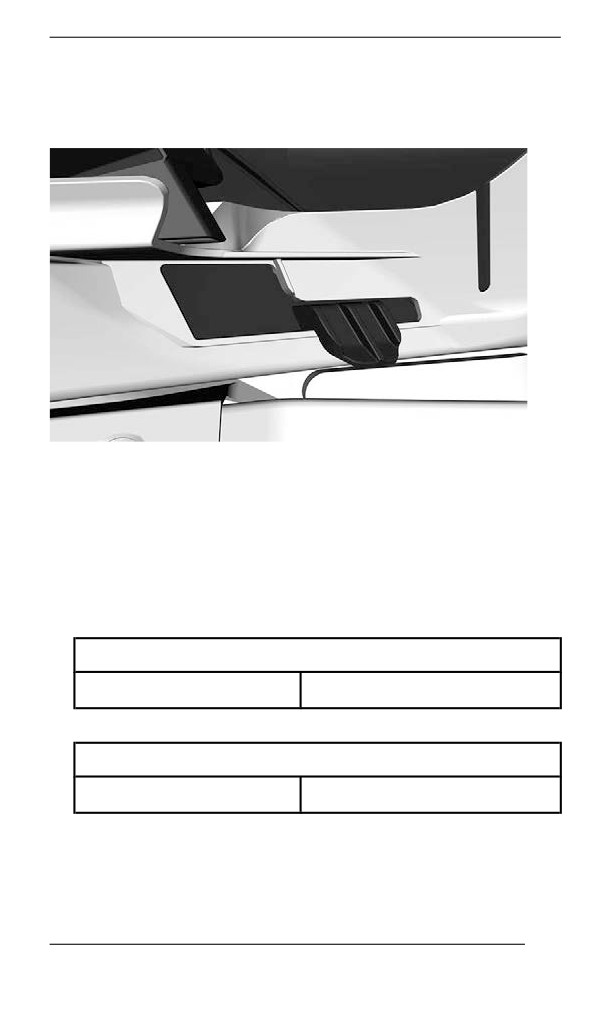

Seat

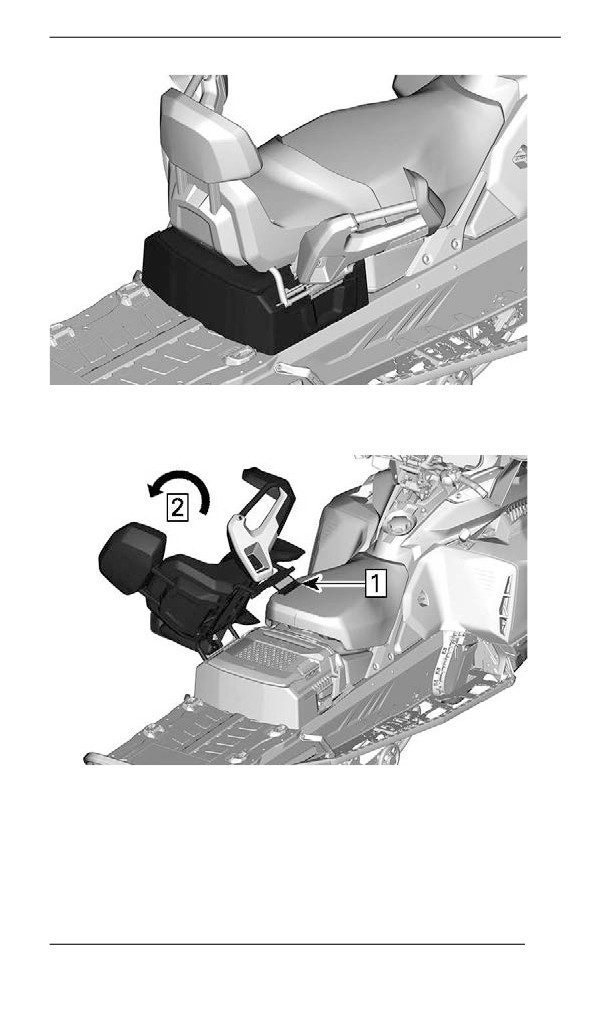

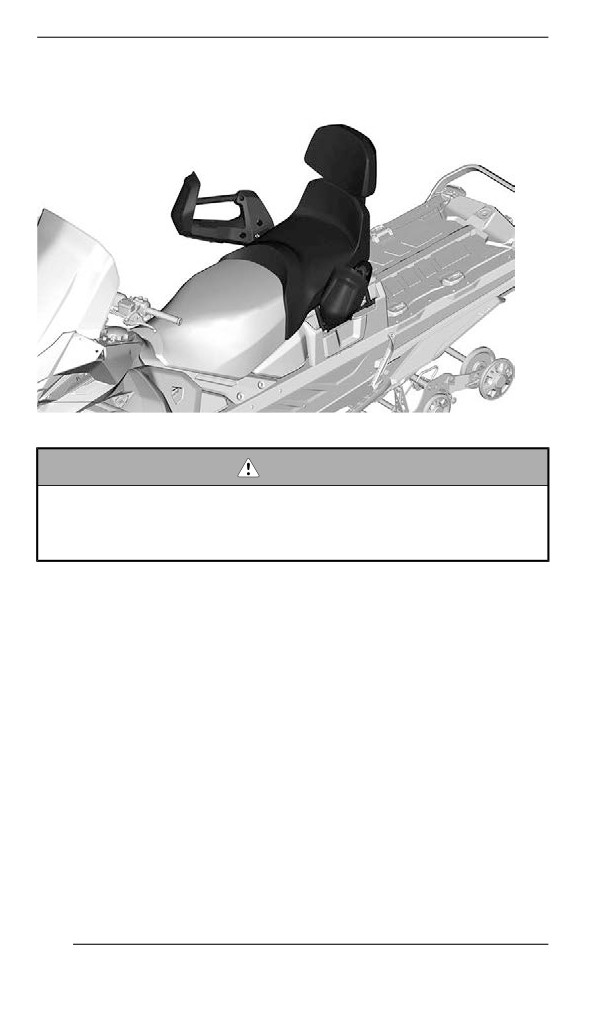

400 mm (16 in.) Tunnel Width

Removiing the Seat (balll stud llock)

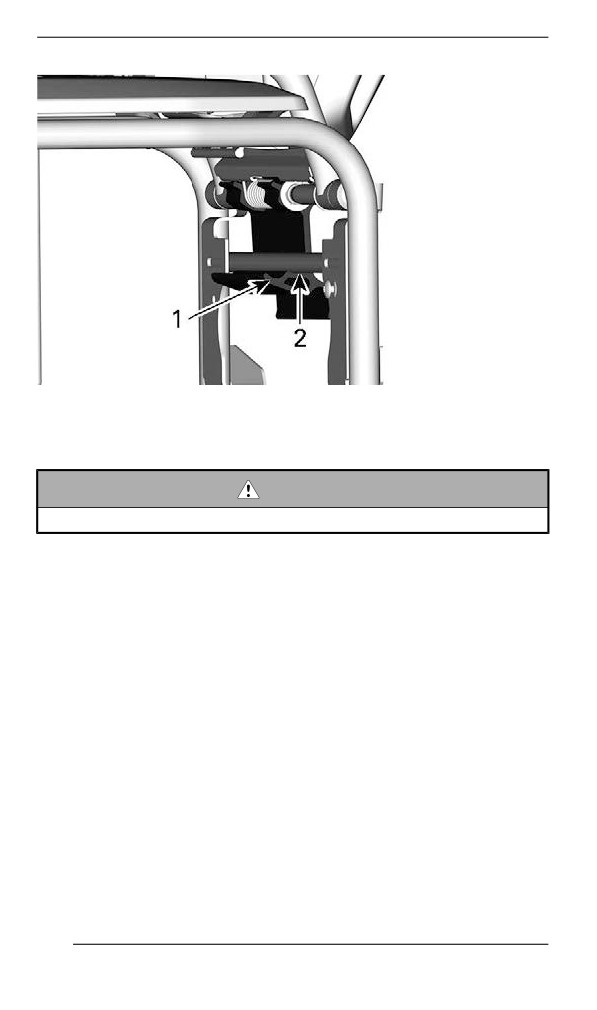

While pushing in the center of the seat towards front, pull on both

sides. Insert hand between seat and body to lift up and backward to

unlock.

1. Push

2. Pull

3. Lift up and backward to unlock seat

Slide seat rearwards to remove it.

Installling the Seat (balll stud lock)

NOTICE

Riding the vehicle with any objects between the seat and the

fuel tank could damage the fuel tank. NEVER place any objects

between seat and fuel tank.

Place seat over the hooks, then slide it forward.

Securely engage both ball studs at front.

166

BODY AND SEAT

Installliing the Backrest

The installation is the reverse of the removal procedure.

Passenger Handhollds (iif equipped)

The passenger handholds provide a strong holding point and comfort

for the passenger on long rides.

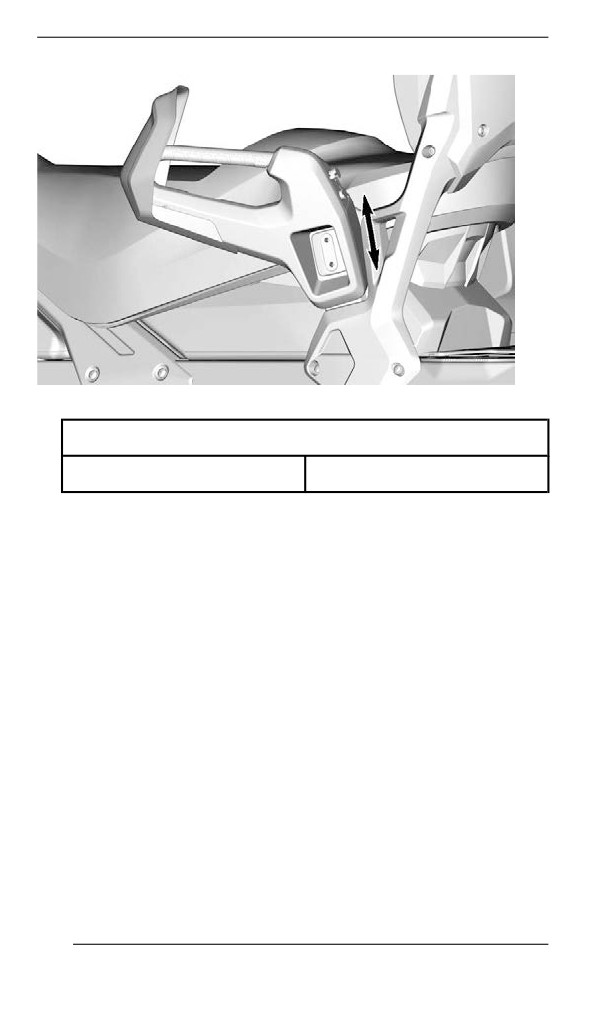

Adjusting the Passenger Handholds

To adjust the handhold height, proceed as follows:

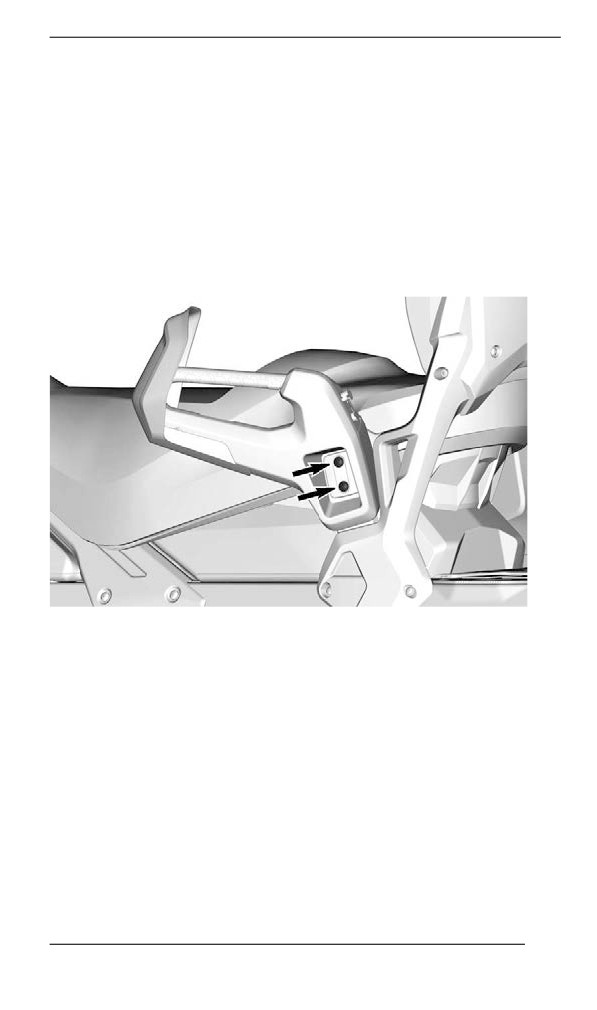

1. Remove the screws.

2. Raise or lower the handhold to suit passenger's comfort.

169

BODY AND SEAT

500 and 600 mm (20 and 24 in.) Tunnel Width

Operator’s Seat

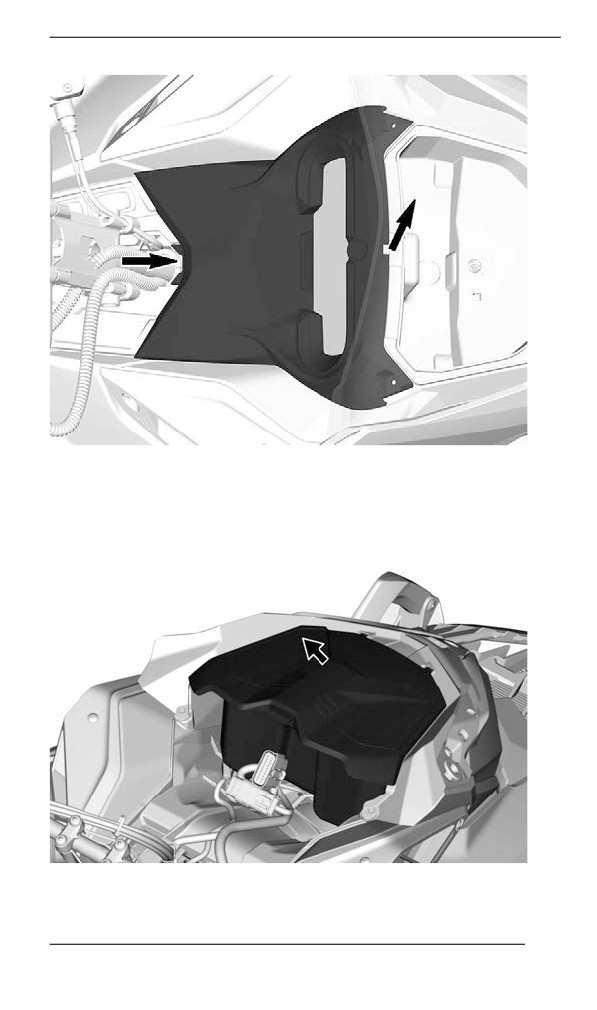

Removing the Seat

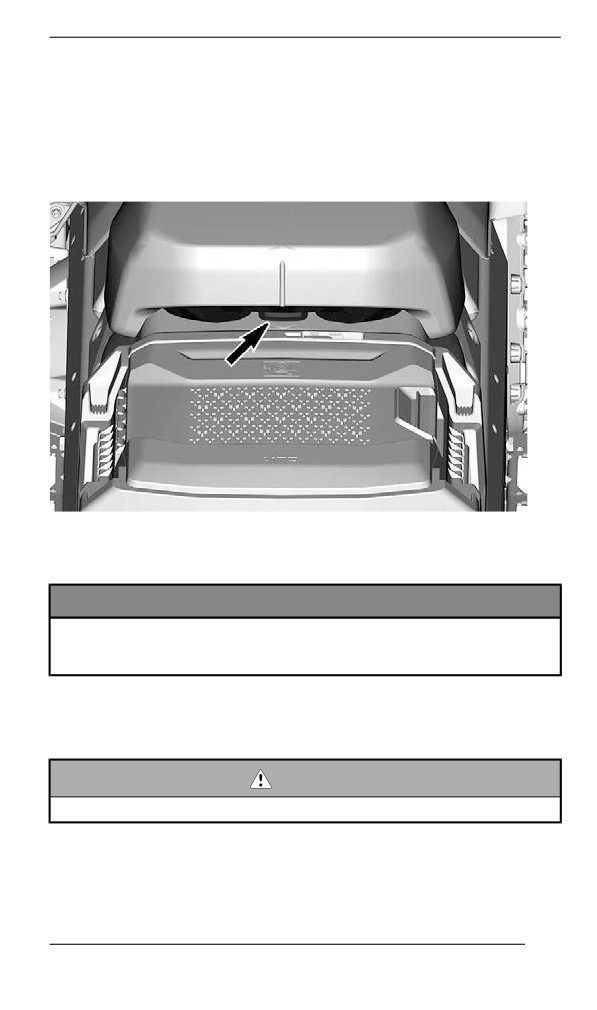

Release the latch at the back of the seat.

Slide seat rearwards to remove it.

Installliing the Seat

NOTICE

Riding the vehicle with any objects between the seat and the

fuel tank could damage the fuel tank. NEVER place any objects

between seat and fuel tank.

Place seat over the hooks, then slide it forward.

Securely engage the latch.

WARNING

Make sure seat is securely latched before riding.

171

BODY AND SEAT

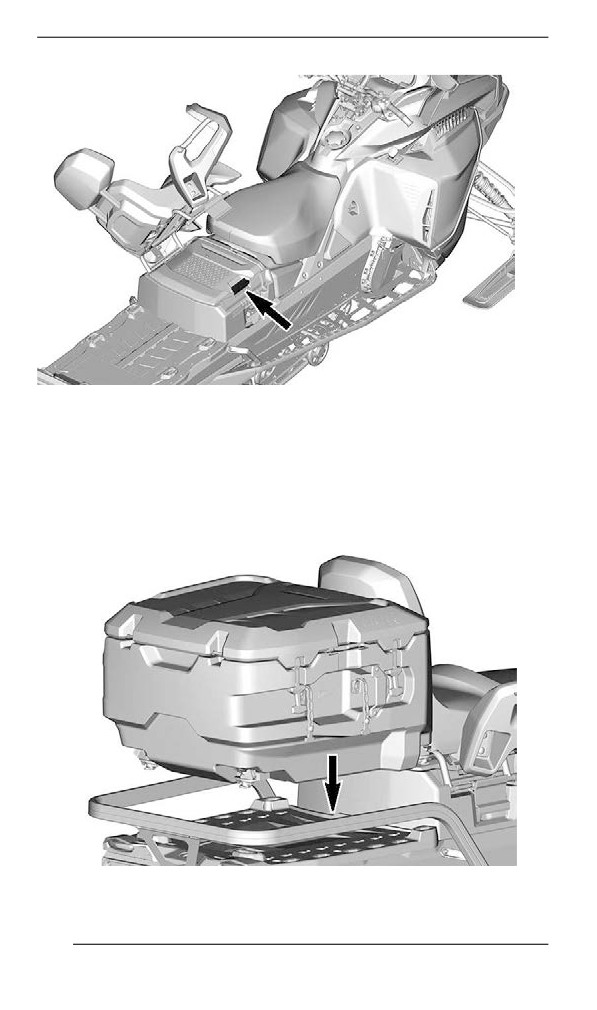

Passenger’s Seat

TYPICAL

WARNING

Any passenger must be able to firmly lay is feet on the footrests

and keep his hands on the handholds at all times when seated.

Respecting those physical criteria is important to ensures that

the passenger is stable and to reduce the risks of ejection.

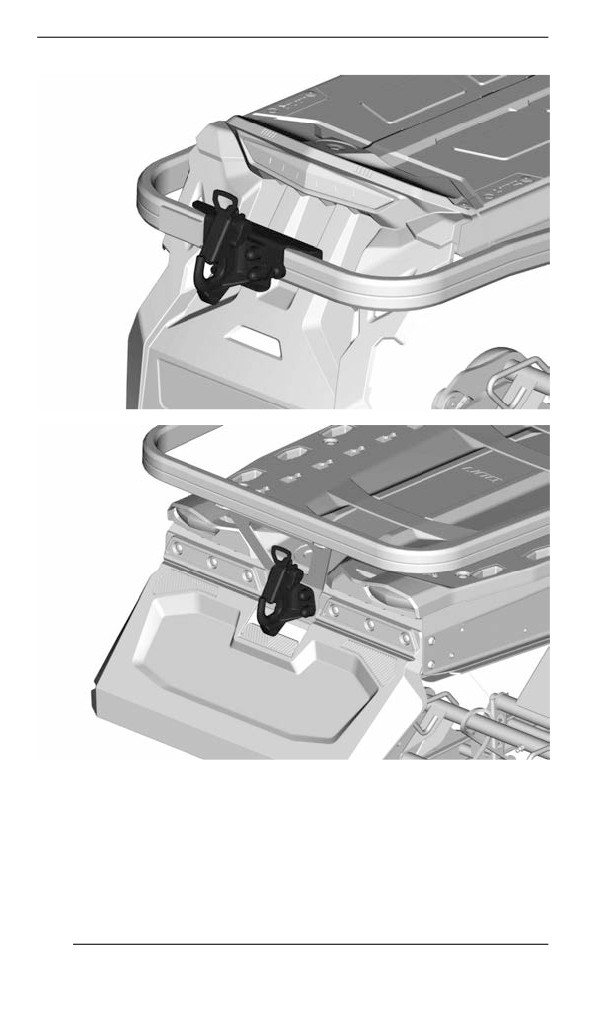

Removiing the Passenger Seat

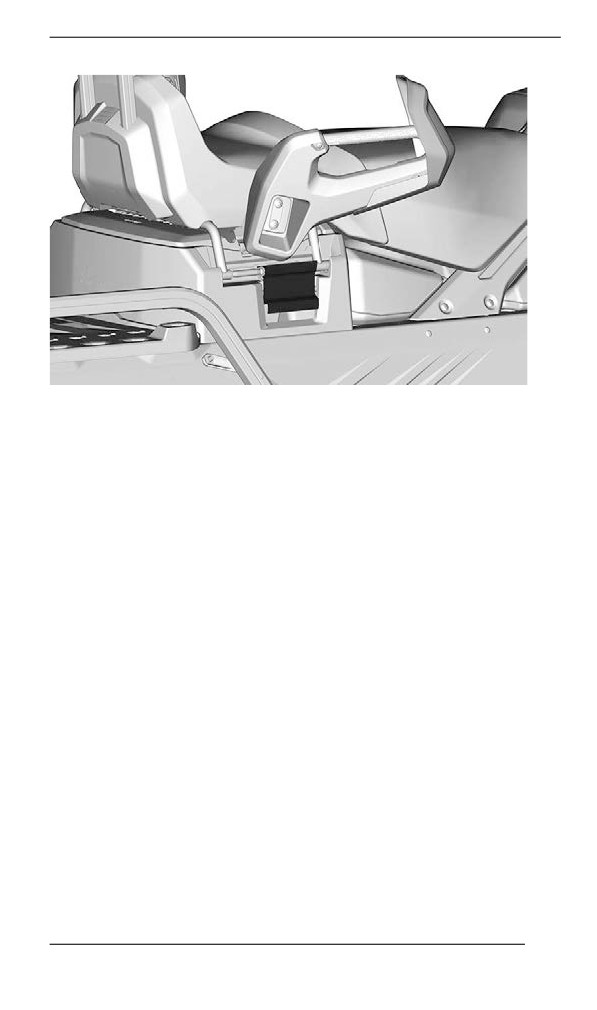

1. Unlock seat latch on both sides.

172

EQUIPMENT

Some features may not apply to your model or could be optional.

Operator''s Guide

The Operator's Guide should be stored in the Front Storage

Compartment.

Mountain Strap

This handlebar strap shall be used only to provide additional pulling

force when snowmobile is stuck in a slanted position. On an excep-

tional basis it can be used at very slow speed only, when standing on

the right running board to bring the vehicle back on its desired path.

When riding, both hands should remain on the handlebar grips to pro-

vide braking capability, as well proper steering and directional control.

Do not use handlebar strap for towing, lifting or side hilling.

WARNING

Do not use while riding at speed. Steering control is highly re-

duced and brake control is not possible.

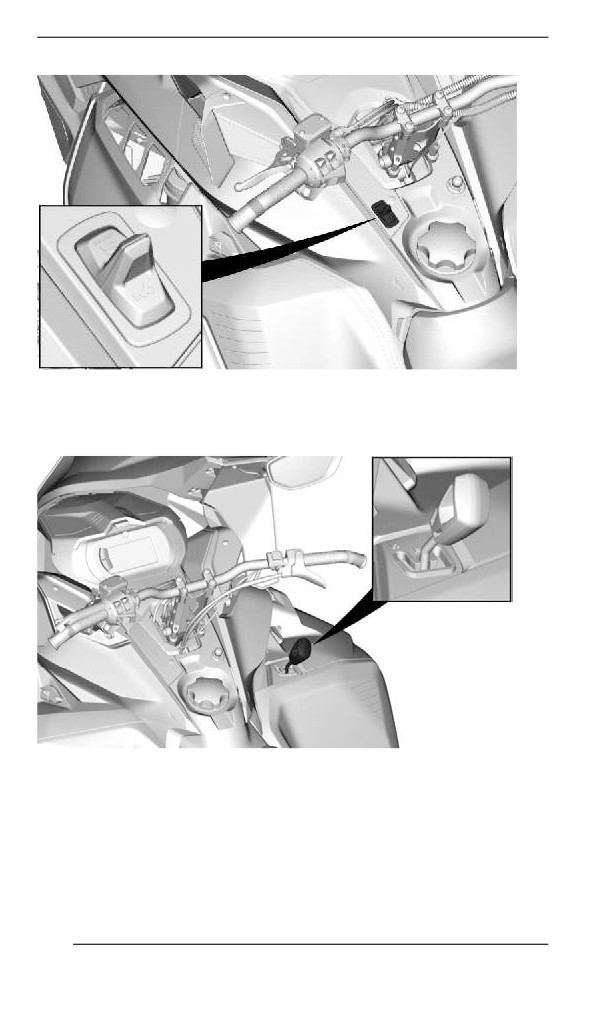

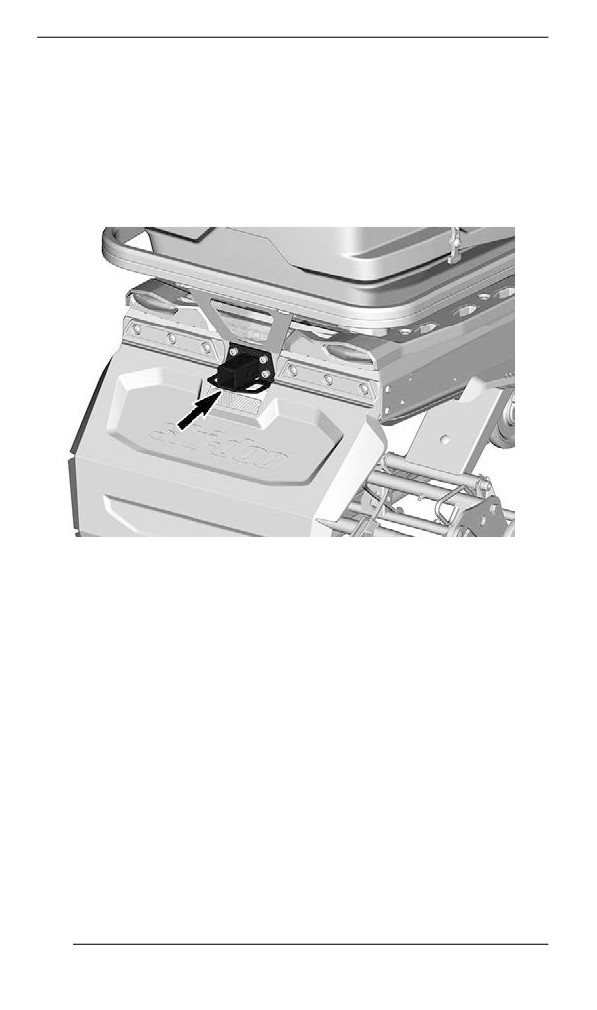

Ellectric Viisor Jack Connector

An electric visor can be connected to the jack connector. A stress re-

lief extension is supplied with the vehicle.

TYPICAL — DRIVER - ELECTRIC VISOR JACK CONNECTOR

LOCATION

175

EQUIPMENT

Drive Belt Guard

Removing the Drive Belt Guard

WARNING

NEVER operate engine:

– Without shields and belt guard securely installed.

– With hood and/or side panels opened or removed.

NEVER attempt to make adjustments to moving parts while en-

gine is running.

NOTE:

Belt guard is purposely made slightly oversize to maintain tension on

its pins and retainers preventing undue noise and vibration. It is impor-

tant that this tension be maintained when reinstalling.

Remove tether cord cap from engine cut-off switch.

Open the LH side panel. See procedure in this section.

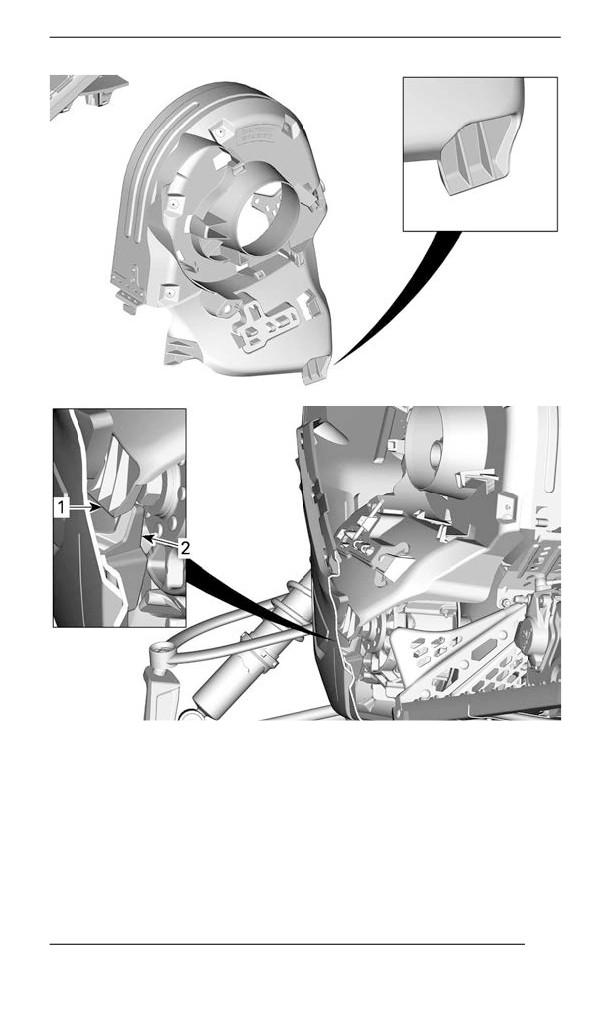

Remove retaining pin.

TYPICAL

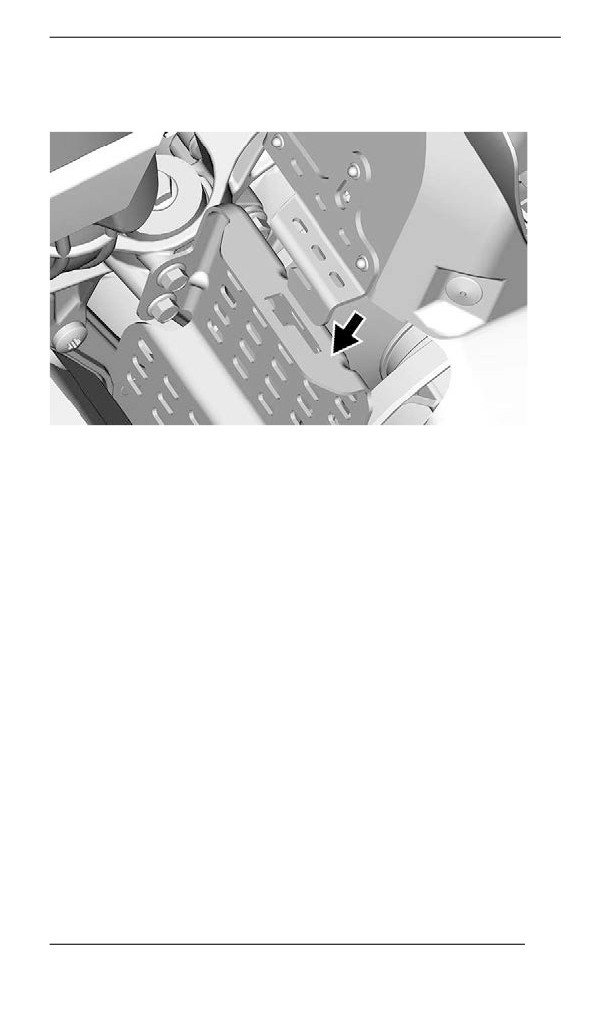

Lift rear portion of guard then release from front tab.

176

EQUIPMENT

Tools

A part of the drive belt guard is designed to hold the tools allowing for

basic maintenance.

The tools are supplied with the vehicle. They should always be in-

stalled in their proper location and orientation.

TYPICAL - DRIVE BELT GUARD TOOLS LOCATION

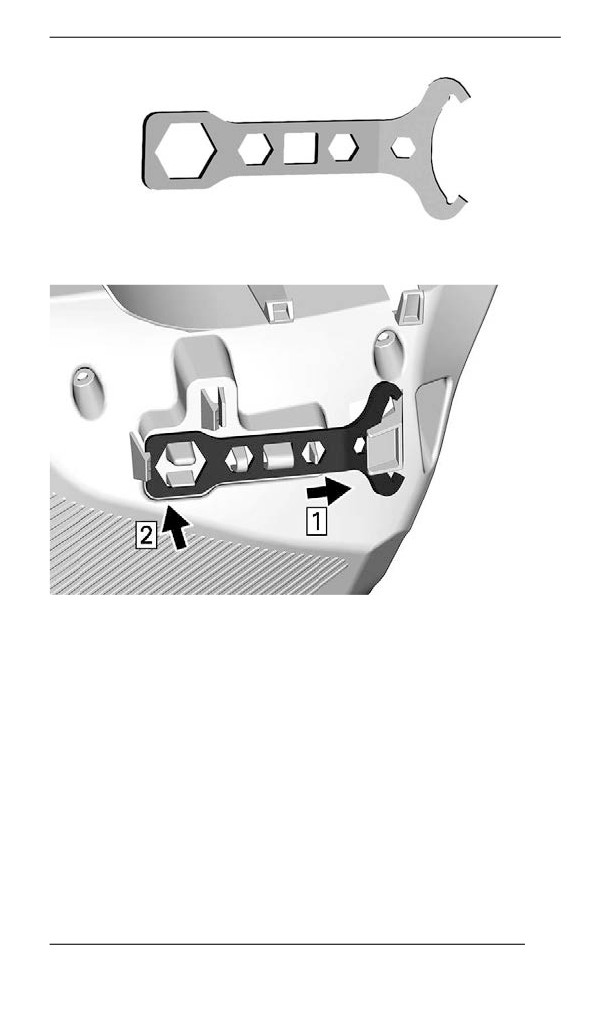

1. Suspension adjustment tool

2. Pulley expander and headlight adjustment tool

Install in the following sequence:

CAUTION

Make sure tools are secured properly. Tools may detach and

cause damage to rotating parts.

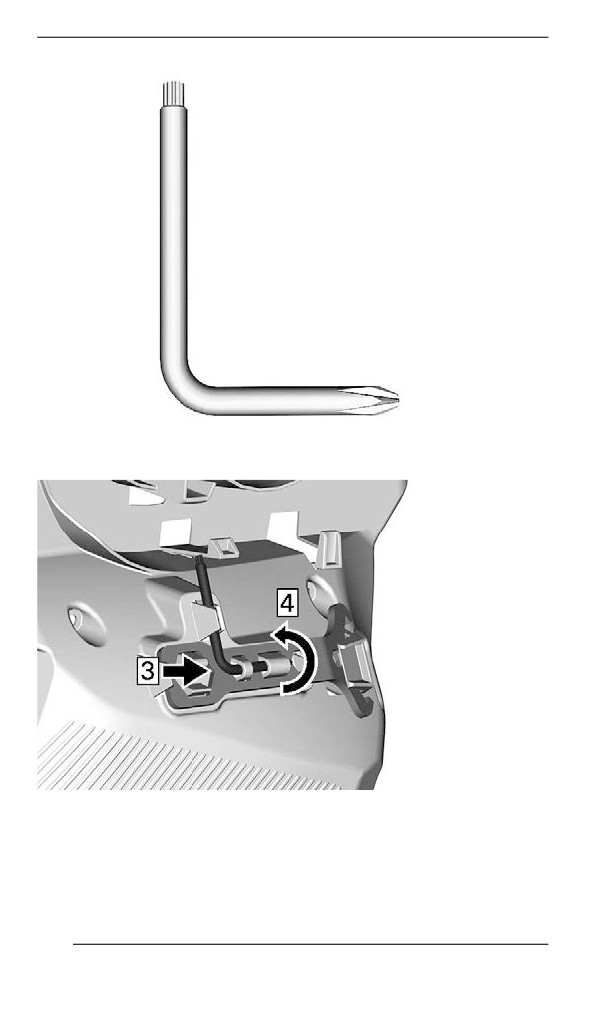

1. Slide the suspension adjustment tool open end under retaining tab.

182

GAUGE – 4.5” DIGITAL DISPLAY

Mulltiifunction Diispllay

Lower Display

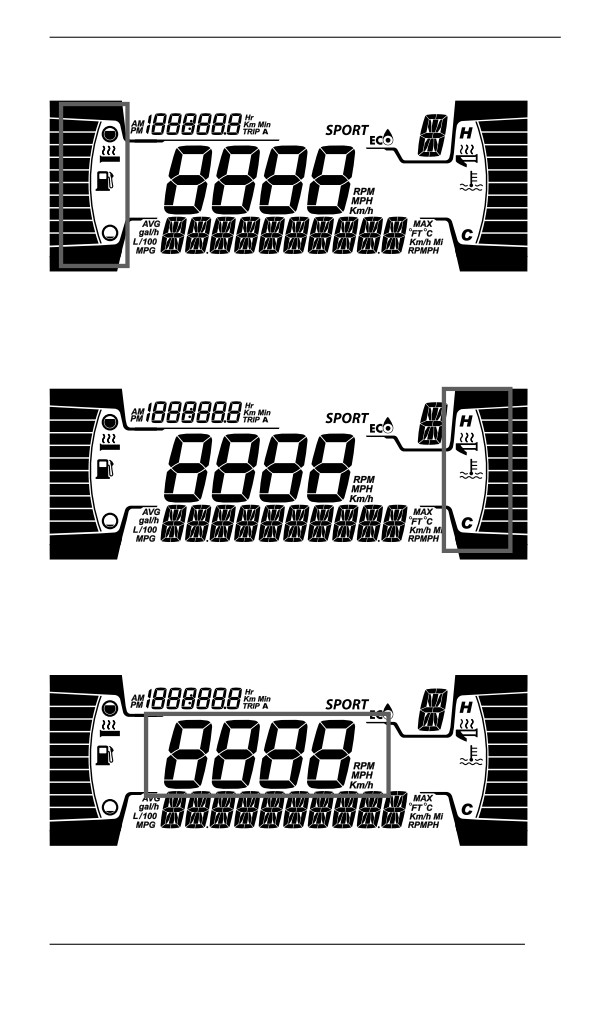

May display the following:

- RPM

- Speed

- Engine Temperature

- Fuel Statistics

- Settings

- Messages

- Outside temperature (if equipped)

To change the displayed information, use the gauge LOWER (M) but-

ton, or the Mode button on the handlebar multifunction switch, if

equipped.

The SPEED STAT display shows the maximum and the averaged

speed. Hold LOWER button for 3 seconds to reset.

When the SPEED display is chosen, the RPM is shown in the TRIP

display.

192

GAUGE - 4.5” DIGITAL DISPLAY

Driving Mode Display

The MODE display indicates the selected mode of operation:

- SPORT

- ECO

- STANDARD

NOTE:

When in STANDARD mode, no information is displayed.

A message of the selected mode will be displayed on the lower display

at activation and deactivation as follow:

DRIVING

MESSAGE AT

MODE

ACTIVATION

DEACTIVATION

Sport

Sport OFF

Eco

Eco OFF

Trip Display

This display shows trip informations:

- Cumulative distance odometer

- Trip A hours

194

GAUGE - 4.5” DIGITAL DISPLAY

- Trip A distance (Km or mph)

- Vehicle hour meter

- Clock (If battery equipped)

To change the displayed information, use the gauge UPPER (T) but-

ton, or the Trip button on the handlebar multifunction switch, if

equipped.

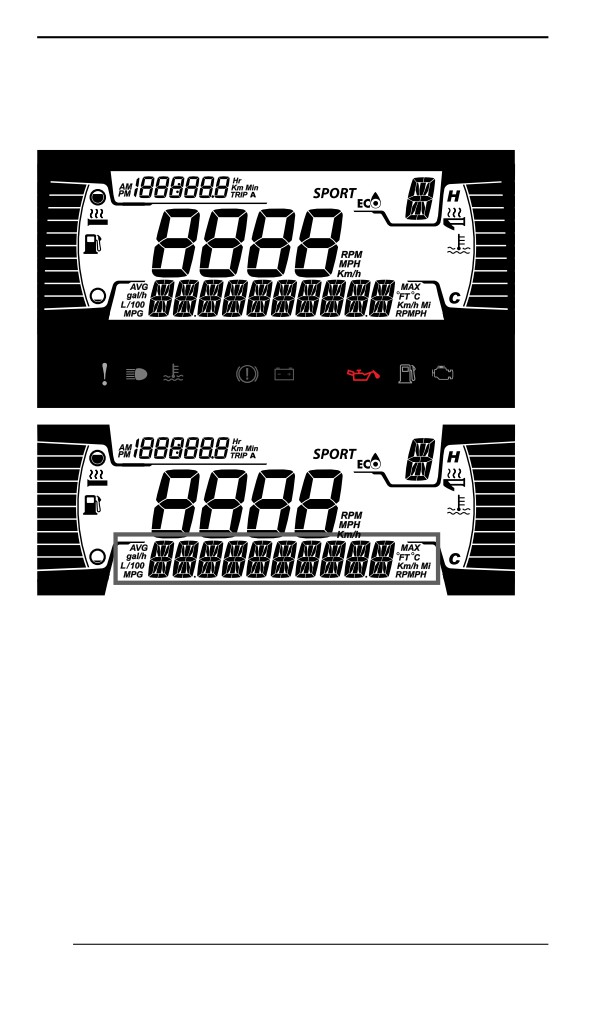

Warniing Lamps and Indiicators

The following indicator lamps will alert you to a vehicle condition that

may become serious. Some lamps will illuminate when starting the ve-

hicle to make sure they work. If any lamps remain on after starting the

vehicle, refer to the respective system warning lamp for further

information.

NOTE:

Some warning indicators appear in the display of the multifunction

gauge and function the same as an indicator lamp but do not display

when starting the vehicle.

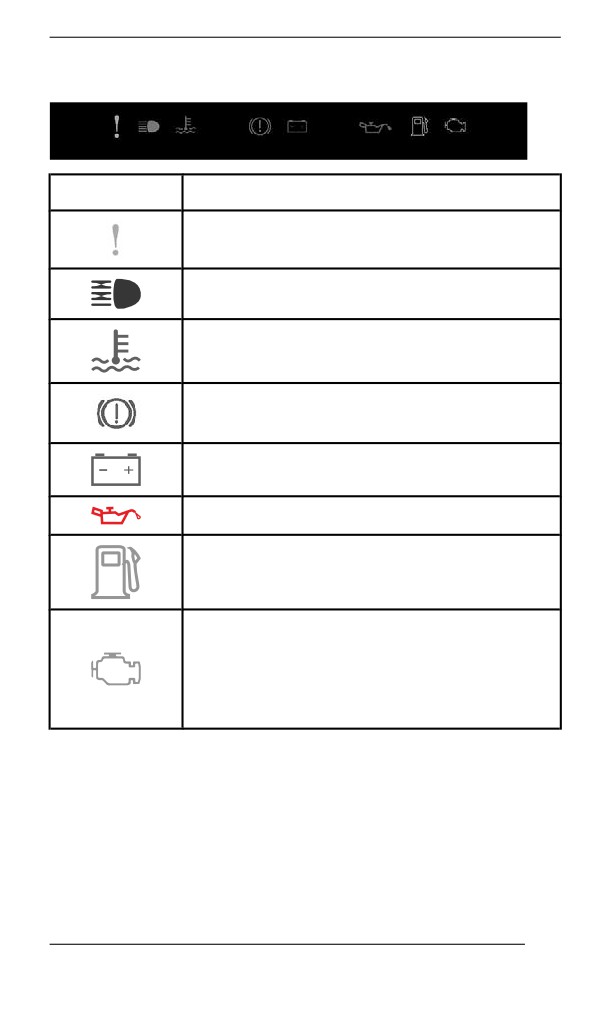

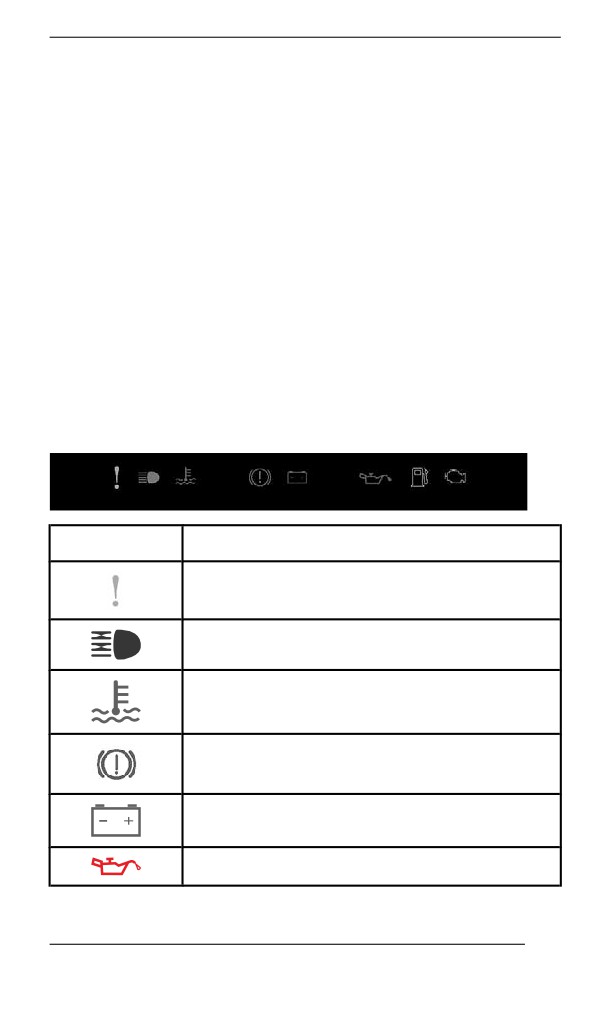

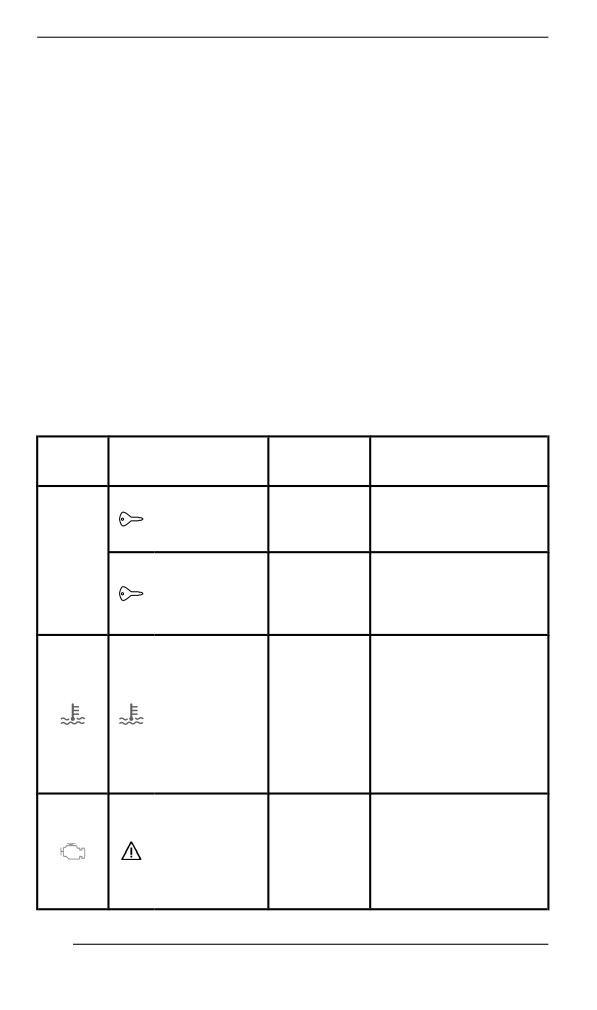

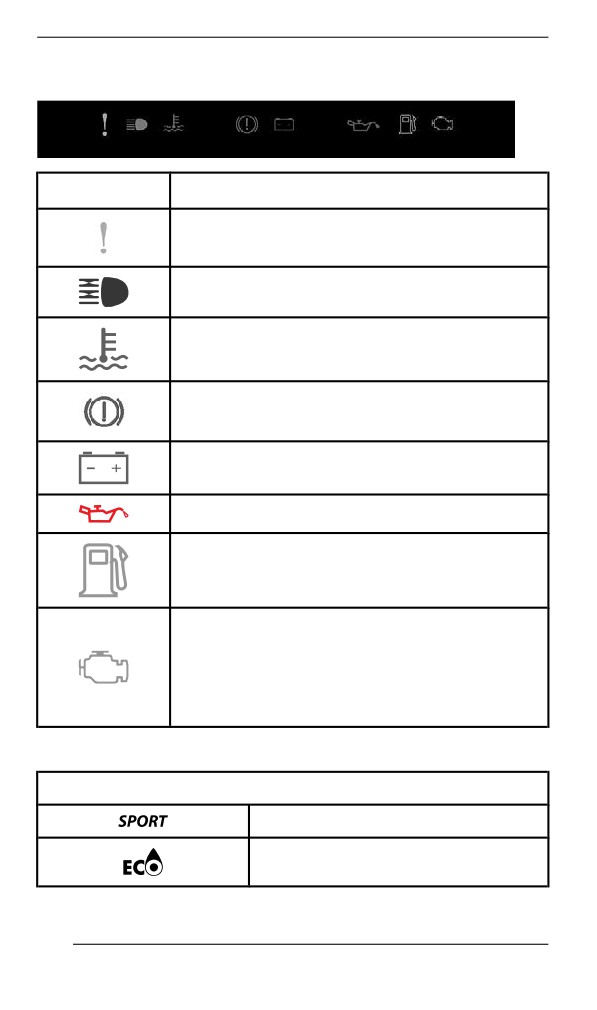

Telltale Lights - Lower Bar

Lights

Description

ORANGE - Vehicle malfunction

BLUE - The high beam are selected

RED - The engine temperature is too high.

RED - Parking brake is engaged or malfunction

of the brake system

RED - The battery voltage too low or problem

with the electrical system

RED - Low engine oil pressure (if applicable)

195

GAUGE - 4.5” DIGITAL DISPLAY

Lights

Description

ORANGE - Low fuel level

ORANGE

Turn on: Malfunction of the vehicle emissions

control system

Blink: Engine problems, the limp home mode is

activated. Have the vehicle serviced

immediately.

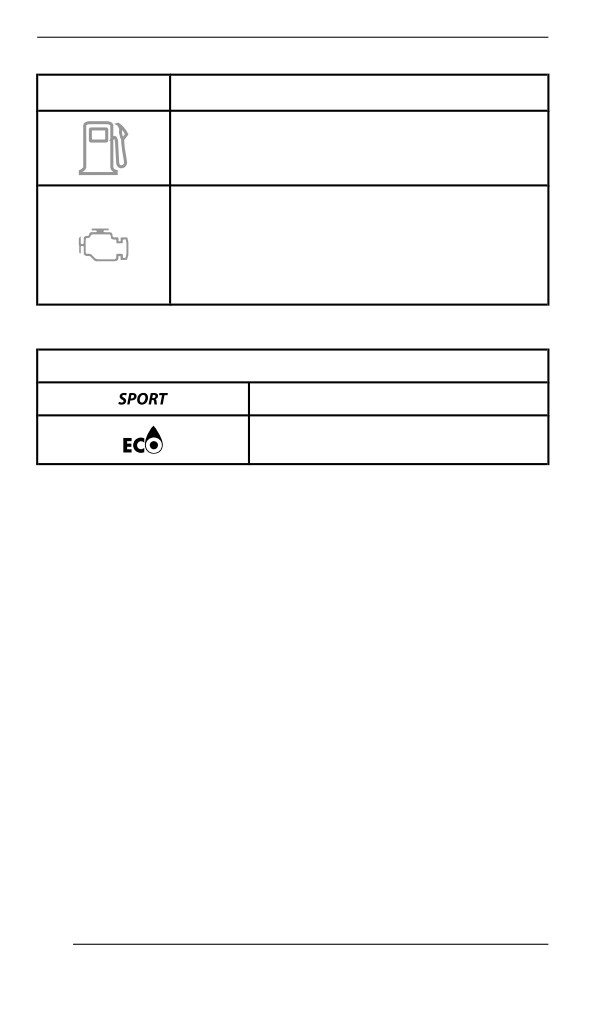

Icons and Indicators - Multifunction Display

Icons and Indicators

Denotes SPORT mode is selected.

Denotes ECO mode is selected.

196

GAUGE - 4.5” DIGITAL DISPLAY

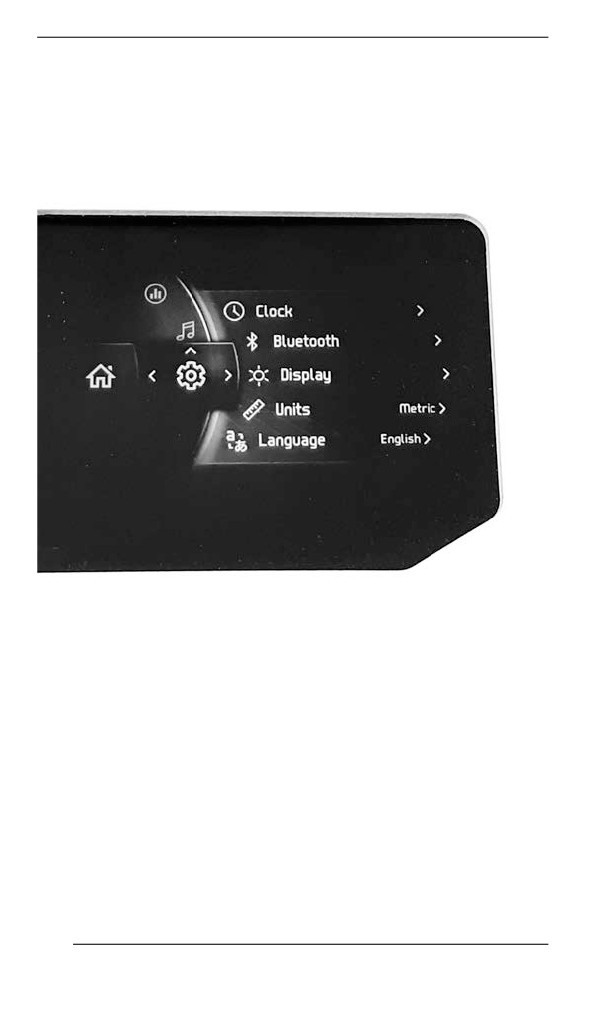

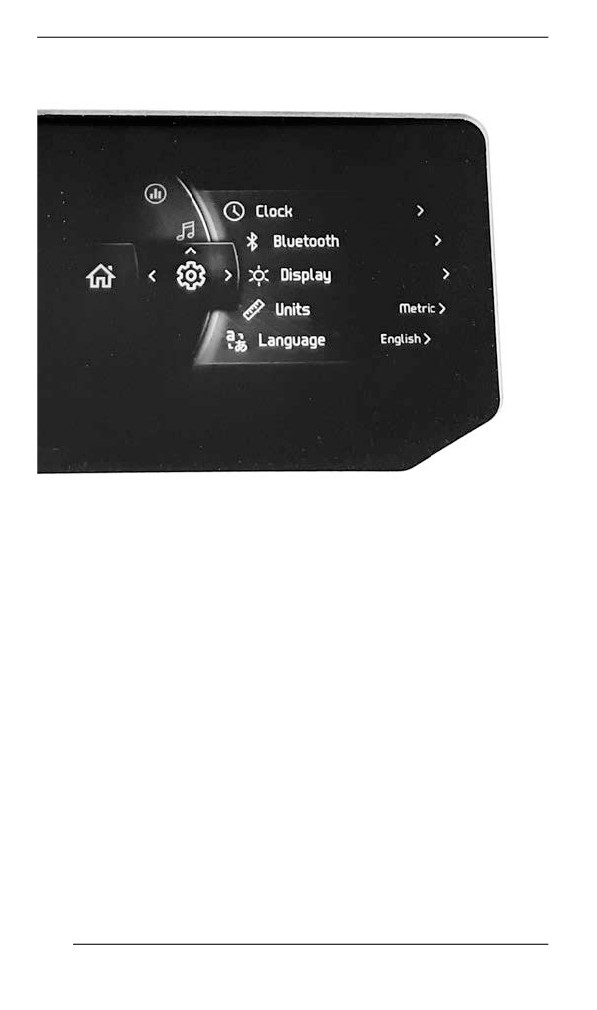

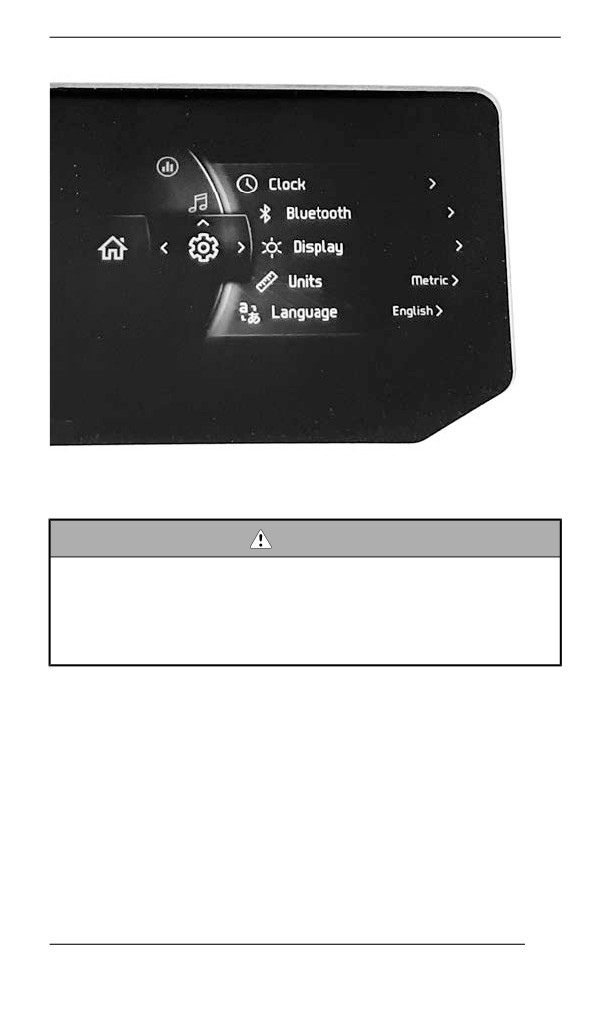

Settiings

Setup

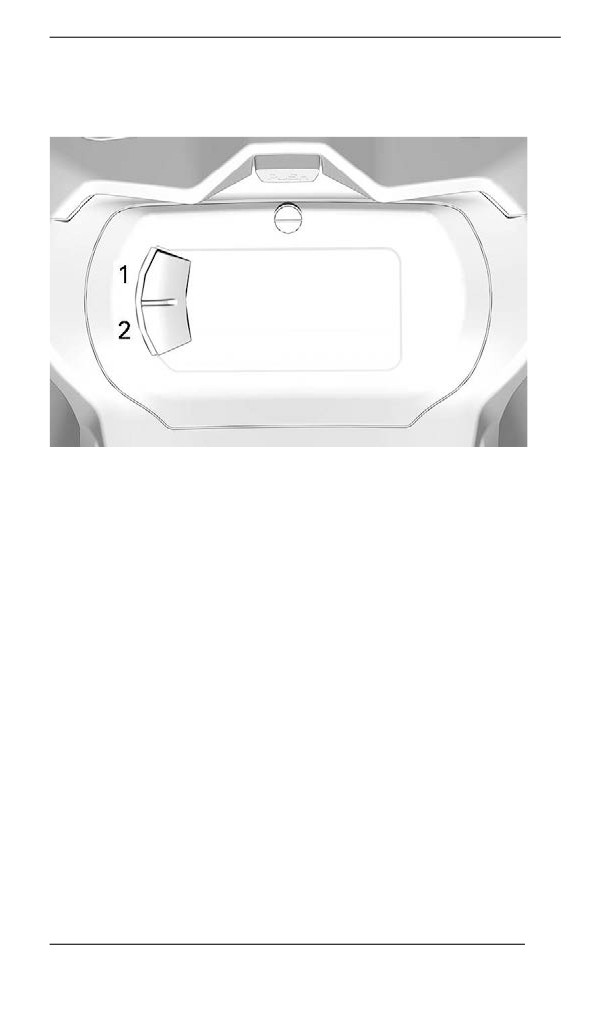

1. Upper button (Trip)

2. Lower button (Menu)

NOTE: A Trip and a Menu buttons can be found on the handlebar

multifunction switch, if equipped.

Using the LOWER (M) button, select SETTINGS and hold to enter

setting menu.

Reset Stats

Using LOWER button, select RESET STAT and hold to reset.

Unit Selection

This multifunction gauge is factory preset in metric units but it is possi-

ble to change it to imperial units.

Using LOWER button, select UNITS and hold button to change units.

Setting Clock

Using LOWER button, select CLOCK to change the clock.

1. Press LOWER button to select clock display.

2. Push and hold LOWER button for 1 second.

197

GAUGE - 4.5” DIGITAL DISPLAY

3. Press LOWER button to select 12:00 AM PM or 24:00 time base.

4. Push and hold LOWER button to acknowledge selection.

5. Press LOWER button to change hours (hours flash).

6. Push and hold LOWER button to acknowledge hour selection.

7. Press LOWER button to switch to minutes (minutes flash).

8. Push and hold LOWER button to acknowledge minutes selection.

Setting Language

The gauge display language can be changed. Refer to an authorized

BRP snowmobile dealer for language availability and to setup the

gauge to your preference.

198

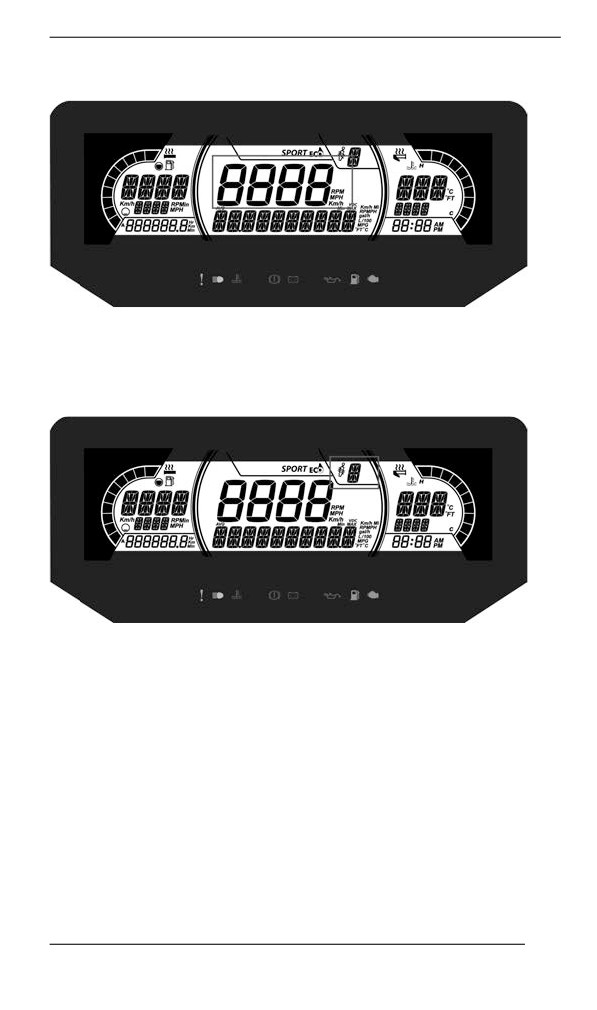

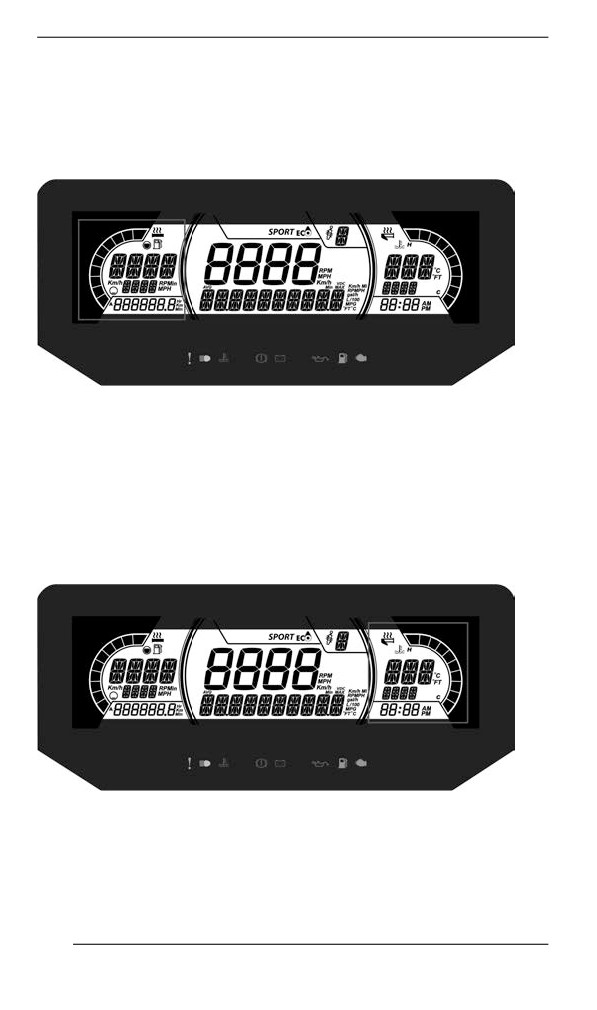

GAUGE – 7.2” DIGITAL DISPLAY

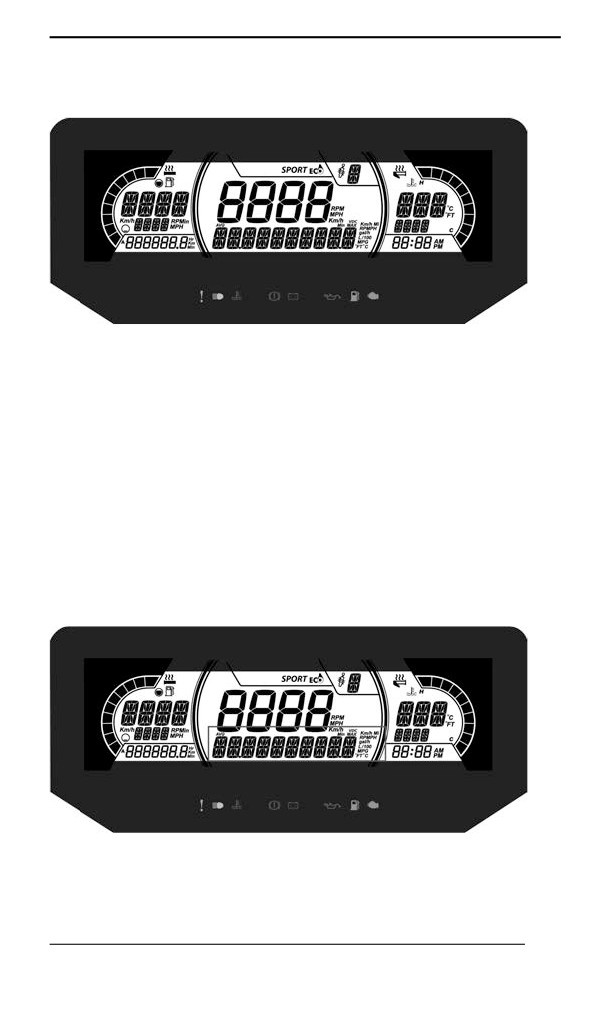

Multifunctiion Display

1. Select the upper or center display by using the MENU (M) button

on the multifunction switch. Refer to Secondary Controls for Menu/

Set button location.

2. While the desired display is flashing, navigate through the display,

by using the SET (S) button on the multifunction switch.

Once the desired information is displayed, press the MENU (M)

button or wait 5 seconds to confirm.

To reset

- Average speed

- Top speed

- Total fuel consumption

Press and hold the SET (S) button while display is flashing.

Lower Display

7.2" DIGITAL LOWER DISPLAY

May display the following:

- Settings

199

GAUGE - 7.2” DIGITAL DISPLAY

- Messages

The SPEED display shows the Maximum and the averaged speed.

Hold MENU button for 3 seconds to reset.

Left Lateral Display

The left lateral display includes:

- Fuel level indicator

- Heated Grip level

- Trip distance A and B (Km or mph)

- Cumulative hours

- Speed

- RPM

- Odometer

Right Lateral Display

The right lateral display includes:

- Engine Temperature

- Heated throttle indicator

- Clock

200

GAUGE - 7.2” DIGITAL DISPLAY

NOTE:

When in STANDARD mode, no information is displayed.

A message of the selected mode will be displayed on the lower display

at activation and deactivation as follow:

DRIVING

MESSAGE AT

MODE

ACTIVATION

DEACTIVATION

Sport

Sport OFF

Eco

Eco OFF

Warniing Lamps and Indiicators

The following indicator lamps will alert you to a vehicle condition that

may become serious. Some lamps will illuminate when starting the ve-

hicle to make sure they work. If any lamps remain on after starting the

vehicle, refer to the respective system warning lamp for further

information.

NOTE:

Some warning indicators appear in the display of the multifunction

gauge and function the same as an indicator lamp but do not display

when starting the vehicle.

203

GAUGE - 7.2” DIGITAL DISPLAY

Telltale Lights - Lower Bar

Lights

Description

ORANGE - Vehicle malfunction

BLUE - The high beam are selected

RED - The engine temperature is too high.

RED - Parking brake is engaged or malfunction

of the brake system

RED - The battery voltage too low or problem

with the electrical system

RED - Low engine oil pressure (if applicable)

ORANGE - Low fuel level

ORANGE

Turn on: Malfunction of the vehicle emissions

control system

Blink: Engine problems, the limp home mode is

activated. Have the vehicle serviced

immediately.

Icons and Indicators - Multifunction Display

Icons and Indicators

Denotes SPORT mode is selected.

Denotes ECO mode is selected.

204

GAUGE - 7.2” DIGITAL DISPLAY

Settiings

Setup

Using MENU button, select SETTINGS and hold to enter setting

menu. Various options are available such as swapping the SPEED

and RPM in the Central Display.

Unit Selection

This multifunction gauge is factory preset in metric units but it is possi-

ble to change it to imperial units.

Using MENU button, select UNITS and hold button to change units.

Setting Clock

Using MENU button, select CLOCK and hold to change units.

1. Press MENU button to select clock display.

2. Push and hold MENU button for 1 second.

3. Press MENU button to select 12:00 AM PM or 24:00 time base.

4. Push and hold MENU button or OK button to acknowledge

selection.

5. Press MENU button to change hours (hours flash).

6. Push and hold MENU button or OK button to acknowledge hour

selection

7. Push MENU button to switch to minutes (minutes flash).

8. Press MENU button to change minutes.

Setting Language

The gauge display language can be changed. Refer to an authorized

BRP snowmobile dealer for language availability and to setup the

gauge to your preference.

205

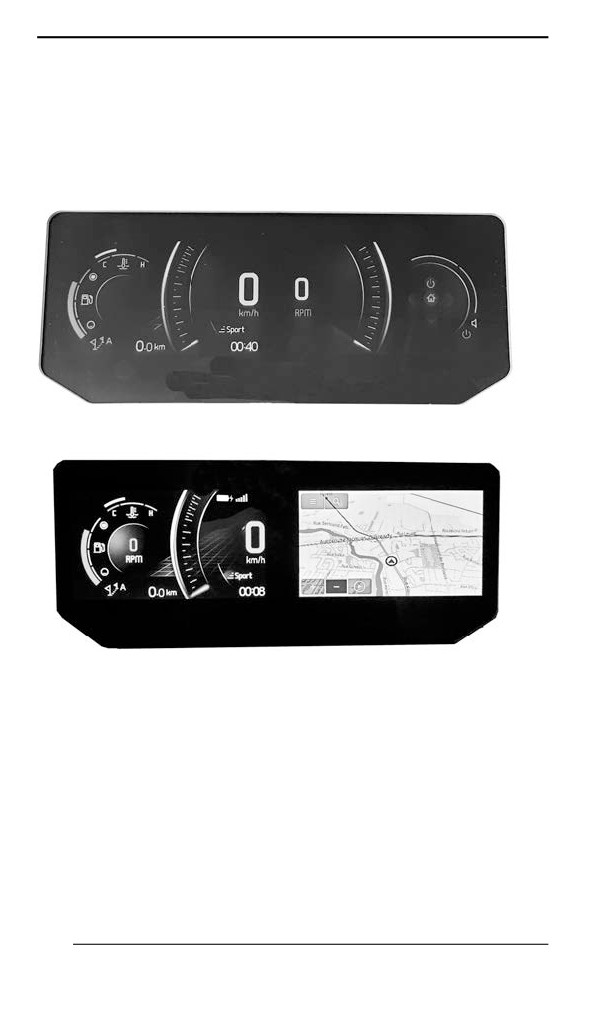

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

To select the value to be displayed in the tripmeter;

1. Access the Stats/Trip screen

2. Select and activate the desired set of statistic to be shown (Trip A,

Trip B or Total)

Right Lateral Display

The right lateral display includes:

- Tachometer

- Audio volume

- Audio output indicator

- Menu

- BRP Connect

- Phone

- Statistics

- Audio

- Settings

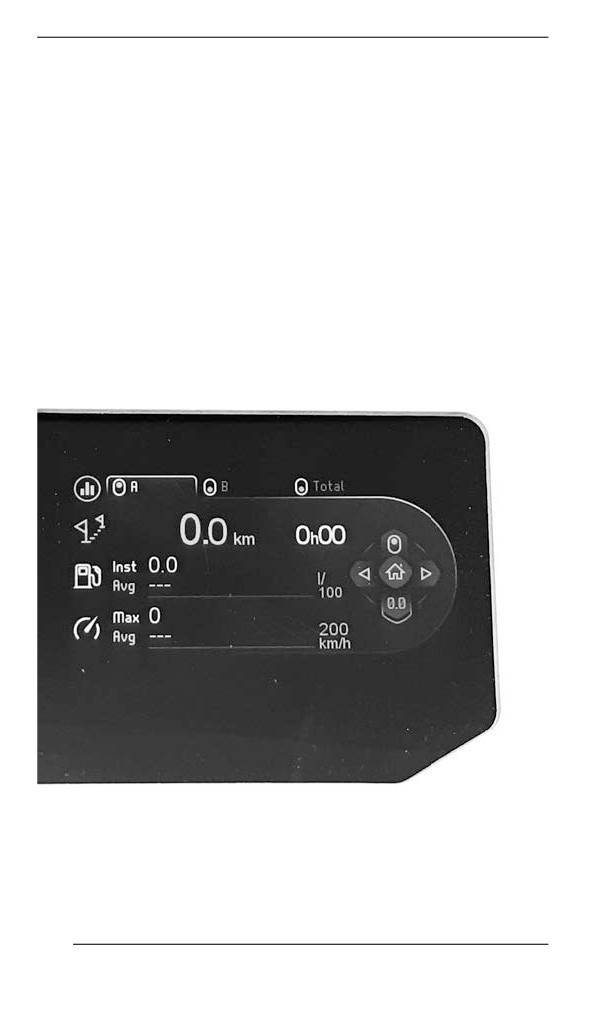

STATS/TRIPS VIEW

208

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

SETTINGS VIEW

Navigating in the Diigital Display

WARNING

Reading or tampering with the multifunction gauge can distract

you from the operation of the vehicle, particularly from con-

stantly scanning the environment. Always pay attention to road

conditions, ensure your environment is clear and free from ob-

stacles. Furthermore, when riding, only glance at the multifunc-

tion gauge briefly to maintain awareness of road conditions.

The multifunction gauge includes analog gauges (speedometer and

tachometer), indicator lamps and an infotainment center with a digital

screen.

We recommend you practice selecting some functions on the infotain-

ment center before getting on the road. You will get used to them and

they will be easier to use on the road.

Use the rotating control to control the display functions. Refer to Ro-

tary Control in Secondary Controls.

Pressing the center knob will get the Menu selection in the right

screen, in this order:

209

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

- BRP Connect

- Phone

- Statistics

- Audio

- Settings

When an icon is selected, its related screen will appear.

SETTINGS VIEW

When an item is selected, this sets the item to the current value.

Warning Lamps and Indicators

The following indicator lamps will alert you to a vehicle condition that

may become serious. Some lamps will illuminate when starting the ve-

hicle to make sure they work. If any lamps remain on after starting the

vehicle, refer to the respective system warning lamp for further

information.

NOTE:

Some warning indicators appear in the display of the multifunction

gauge and function the same as an indicator lamp but do not display

when starting the vehicle.

210

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

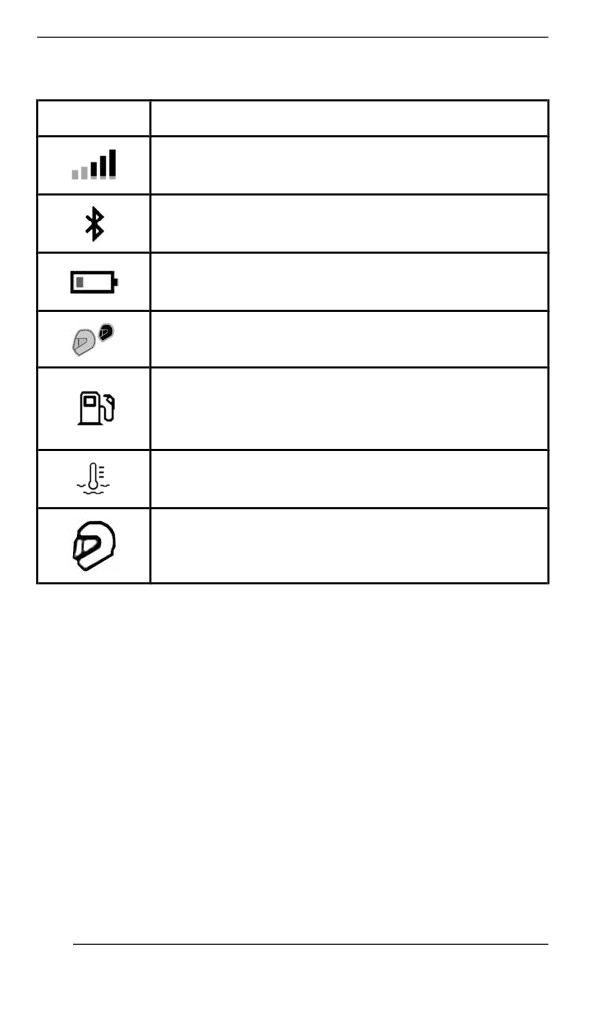

Tellltalle Liights - Lower Bar

Lights

Description

ORANGE - Vehicle malfunction

BLUE - The high beam are selected

RED - The engine temperature is too high.

RED - Parking brake is engaged or malfunction

of the brake system

RED - The battery voltage too low or problem

with the electrical system

RED - Low engine oil pressure (if applicable)

ORANGE - Low fuel level

ORANGE

Turn on: Malfunction of the vehicle emissions

control system

Blink: Engine problems, the limp home mode is

activated. Have the vehicle serviced

immediately.

211

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

Settiings

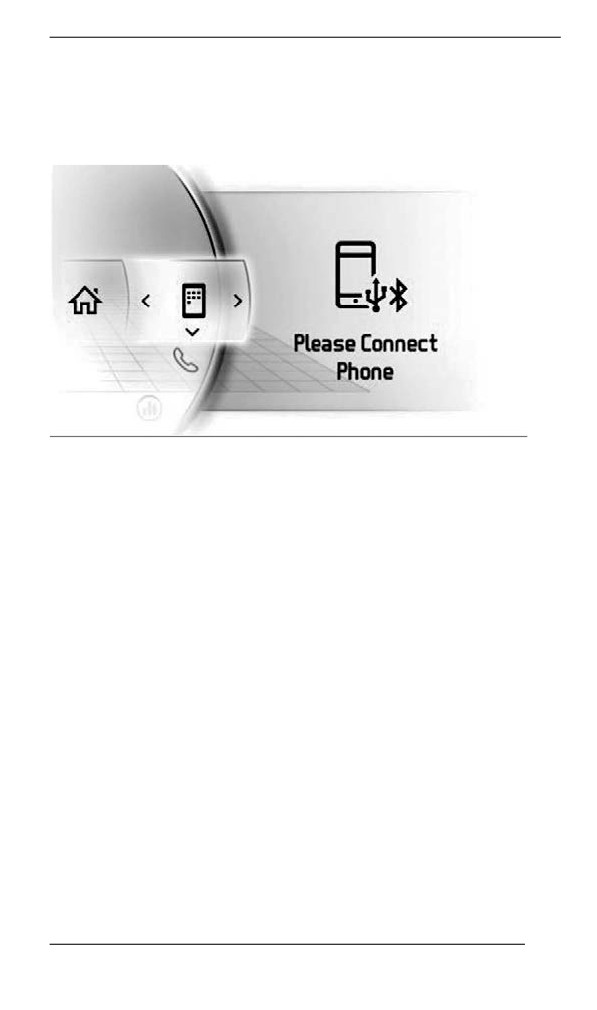

BRP Connect

Before using BRP Connect, the BRP GO! app must be downloaded to

the phone. The app can be downloaded from the Apple App Store or

Google Play Store via a simple search. Not all phones are compatible.

Visit our website for more details

www.brpconnecttutorial.com

NOTE:

The smartphone must be connected via Bluetooth and with a USB ca-

ble to the USB port located in the glove box.

User's personal data will be deleted from the cluster when phone pair-

ing is deleted.

User agree that personal data (contact list and call history) be trans-

ferred to the cluster when smartphone is connected.

Contact list and call history are stored in cluster permanently. To de-

lete these information you must un-pair your smartphone or overwrite

using another smartphone.

NOTE:

The apps can also reach directly by pressing the APPS button located

at the bottom of the rotary control.

213

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

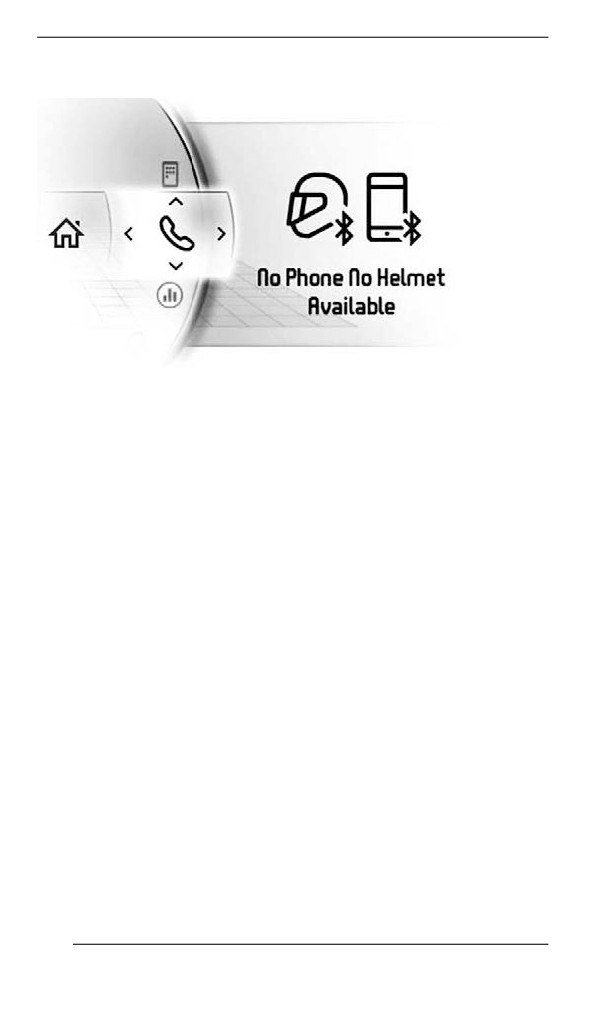

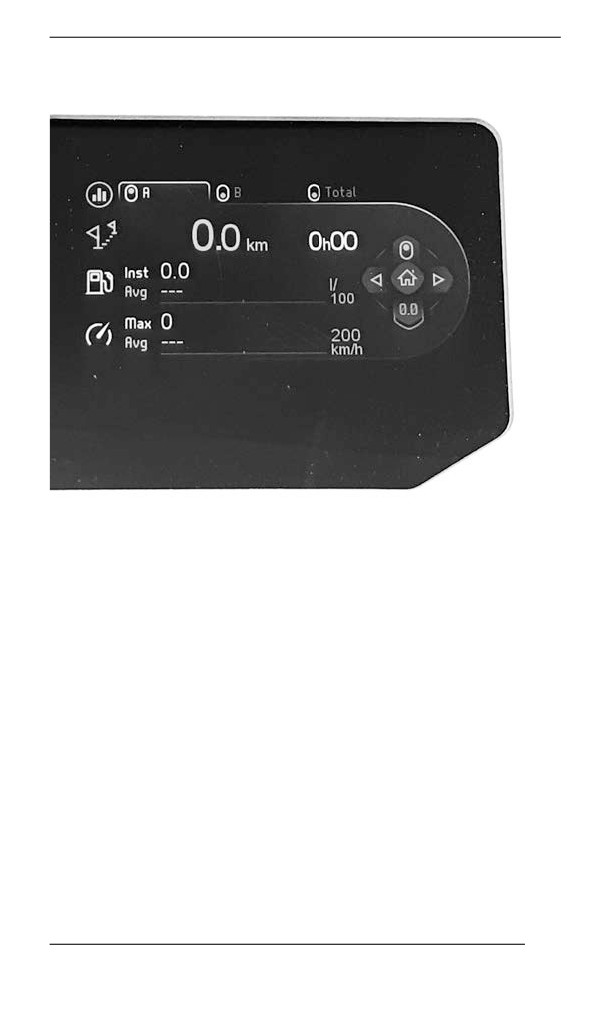

Statiistiics

The Statistics menu is used to get :

- Trip distance information

- Trip elapsed time information

- Instant fuel consumption

- Average fuel consumption

- Maximum speed

- Average speed

3 sets of statistics are kept in memory. Each set of statistic can be re-

set independently.

Press knob to enter into the stats/trip screen.

Move the knob left or right to select another trip.

Press the knob to exit this screen and validate your selection.

Audio

Allow to control volume and music listened in the helmet audio

system.

Gives also song informations when available.

215

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

Settings

The Settings menu is to:

- Adjust clock

- Pair Bluetooth devices

- Phone

- Rider headset

- Passenger headset

- Adjust the display (brightness and Mode (AUTO/DAY/NIGHT)

- Adjust the units (Imperial/Metric)

- Set the language

- Get information about firmware version and device regulatory

compliance

- Show vehicle fault codes.

Paiiring your Smartphone Via Blluetooth

On the Vehicle

1. Short press the rotary control knob to access menu.

2. Go to “Settings” and move the knob RIGHT.

3. Select “Bluetooth” and move the knob RIGHT.

4. Select “Phone” and move the knob RIGHT.

5. Select “Add Phone” and press the knob RIGHT.

216

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

Bluetooth is now visible.

On the Phone

1. Activate your phone's bluetooth function.

Refer to your manufacturer's user guide for detailed procedure.

2. Choose "BRP Connect"

3. A confirmation number will appear on your phone screen and the

vehicle gauge screen. Make sure these numbers match.

4. Press Pair on your phone and select the green check mark on the

vehicle gauge

5. Allow Contacts and Favorite Sync on your phone

Pairiing a Helmet

To pair a helmet, go to the “Settings” page and select “Add helmet”.

BRP GO! App

Follow these steps to setup your smartphone with BRP Connect.

1) Download the BRP GO! Smartphone App

Download the BRP GO! app via the App Store for Apple™ or the Goo-

gle™ Play Store for Android.

2) Download Apps Compatible With BRP Connect

Visit our website to know more about the compatible apps. These

apps will improve your riding experience. Some apps may require ad-

ditional purchase to be compatible with the system or may require ad-

ditional devices to be used.

www.brpconnecttutorial.com

3) Connect your smartphone using your charging / data transfer

cable

It is recommended to use an original charging cable from the smart-

phone OEM to optimize transfer between the phone and the vehicle.

Use the front USB port.

1. Unlock your phone screen

2. Connect your phone charging cable

3. A checkmark will appear on your phone screen once the connec-

tion is done.

4) Access your Apps

Quick press the JOYSTICK to access Menu.

217

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

Push the joystick UP to select “Launch BRP Connect” and push the

joystick RIGHT.

Select the app you would like to use and press the JOYSTICK.

- To leave the app, long press the JOYSTICK.

- To return to the Main Menu, press the BRP Connect Button.

NOTE:

The apps can also reach directly by pressing the APPS button located

at the bottom of the rotary control.

218

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

2. Navigation: Access all the navigation features of the app such as

route planning, turn-by-turn navigation, friends location, offline nav-

igation, and more. You can access thousands of snowmobile trails

across North America and Europe on the map.

3. BRP Connect: See the list of compatible apps that can be used on

the vehicle's display. You can also access from there the Vehicle

Connection Guide to help you connect your phone to your vehicle's

display.

4. FAQ: This link takes you to answers of common questions asked

by riders like you. An internet connection is required.

5. Rides: Easily access your planned and completed rides made with

the Navigation features of the BRP GO! app.

6. Store: This link takes you to the online store of your vehicle. An in-

ternet connection is required.

7. Settings: Manage your profile and your account settings.

Messages in Multiifunctiion Gauge

Important information about vehicle condition is displayed on the multi-

function gauge. When starting the engine, always look at the gauge

for any indicator lamps or special messages.

MESSAGE/

Icon

CAUSE

WHAT TO DO

WARNING

Contact an

Defective

BAD KEY

authorized BRP

key

snowmobile dealer.

Use the right key for

WRONG

the vehicle or contact

Wrong key

KEY

an authorized BRP

snowmobile dealer.

- Stop and wait for

engine to cool off.

HIGH

- Check for leaks.

Engine is

ENGINE

- Check coolant

overheat

TEMPERA

level

ing

TURE

and adjust (see

Maintenance

procedures).

Important

* Have the vehicle

engine

transported to the

LIMP HOME

manage

nearest authorized

MODE

ment

BRP snowmobile

compo

dealer.

nent

220

GAUGE - LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

MESSAGE/

Icon

CAUSE

WHAT TO DO

WARNING

- Check for oil

leaks.

LOW OIL -

Low oil

- Check oil level

STOP

pressure

and adjust (see

ENGINE

Maintenance

procedures.

A combination of two different warnings can occur.

NA = Not applicable

* BRP recommends having the vehicle transport when in LIMP

HOME. If you operate the vehicle in LIMP HOME, avoid abrupt

maneuvers and immediately go to the nearest authorized BRP

snowmobile dealer to have your vehicle serviced before riding

again. In LIMP HOME, the engine RPM is limited and therefore

the vehicle speed.

Important information messages can also be displayed temporarily to

assist indicator lamps.

When a digital warning appears, it will show the warning for 6 seconds

and then the warning will disappear for 60 seconds. During the 60 sec-

onds, the small digital indicator will flash. This sequence will be re-

peated three times and then will stop for 15 minutes. During the 15

minutes only the indicator lamps will be activated.

221

FUEL

Fuel Requirements

NOTICE

Always use fresh gasoline. Gasoline will oxidize; the result is

loss of octane, volatile compounds, and the production of gum

and varnish deposits which can damage the fuel system.

Alcohol fuel blending varies by country and region. Your vehicle has

been designed to operate using the recommended fuels, however, be

aware of the following:

- Use of fuel containing alcohol above the percentage specified by

government regulations is not recommended and can result in the

following problems in the fuel system components:

- Starting and operating difficulties.

- Deterioration of rubber or plastic parts.

- Corrosion of metal parts.

- Damage to internal engine parts.

- Inspect frequently for the presence of fuel leaks or other fuel sys-

tem abnormalities if you suspect the presence of alcohol in gaso-

line exceeds the current government regulations.

- Alcohol blended fuels attract and hold moisture which may lead to

fuel phase separation and can result in engine performance prob-

lems or engine damage.

Recommended Fuel

Use unleaded gasoline containing MAXIMUM 10% ethanol. The gaso-

line must have the following minimum octane requirements:

Fuel type

Engine

Minimum octane rating

600 ACE

87 AKI (RON+MON)/2

900 ACE

92 RON

Fuel with NO

ethanol

900 ACE Turbo

91 AKI (RON+MON)/2

900 ACE Turbo

95 RON

91 AKI (RON+MON)/2

95 RON

600 ACE

Fuel which may

900 ACE

contain up to 10%

900 ACE Turbo

MAX ethanol

900 ACE Turbo

222

FUEL

NOTICE

Never experiment with other fuels. Engine or fuel system dam-

ages may occur with the use of an inadequate fuel.

NOTICE

Do NOT use fuel from fuel pumps labeled E85.

Use of fuel labeled E15 is prohibited by U.S. EPA Regulations.

Fueliing Procedure

WARNING

Always stop engine before refueling.

WARNING

Fuel is flammable and explosive under certain conditions.

Never use an open flame to check fuel level.

Never smoke or allow flame or spark in vicinity.

Always work in a well-ventilated area.

NOTE:

Do not sit or lean on seat when fuel tank cap is not properly installed.

1. Stop engine.

2. Have operator and passenger get off vehicle.

WARNING

Do not allow anyone seated on the vehicle while fueling.

3. Unscrew slowly the fuel reservoir cap counterclockwise to stabilize

pressure before removing it.

NOTE:

A short whistling sound is normal.

223

FUEL

TYPICAL

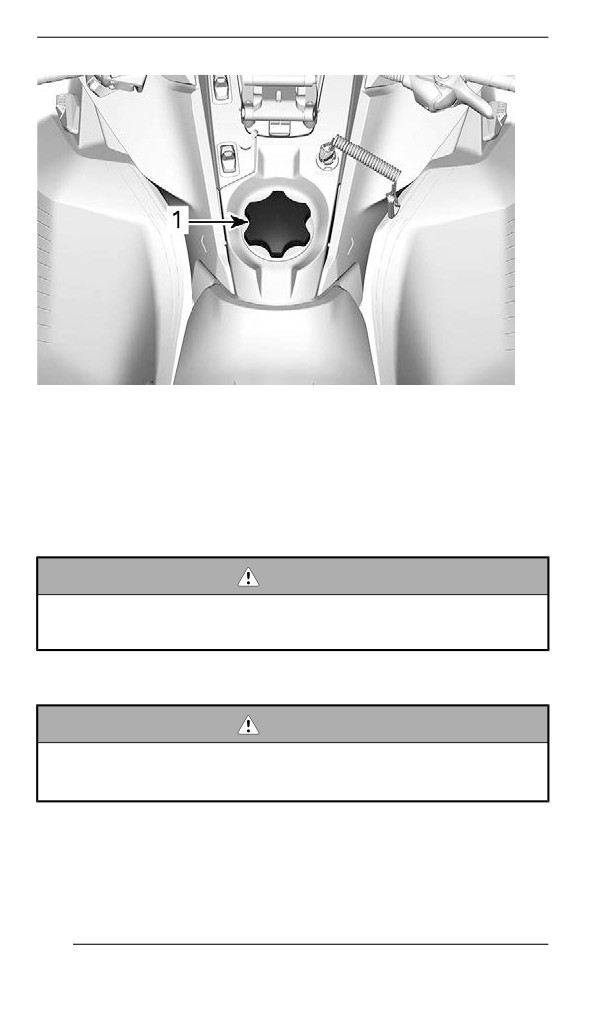

1. Fuel tank cap

4. Insert the spout into the filler neck.

5. Pour fuel slowly so that air can escape from the tank and prevent

fuel flow back. Be careful not to spill fuel.

6. Stop filling when the fuel reaches the bottom of filler neck. Do not

overfill.

WARNING

Never top up the fuel tank before placing the vehicle in a warm

area. As temperature increases, fuel expands and may

overflow.

7. Fully tighten fuel reservoir cap clockwise.

WARNING

Always wipe off any small fuel spillage from the vehicle. If a ma-

jor spillage occurs, remove side panels to remove fuel vapors

from engine compartment before starting.

NOTE:

Do not sit or lean on seat when fuel tank cap is not properly installed.

224

ENGINE OIL

Recommended Oill

Rotax^® engines were developed and validated using the XPS™ oil.

BRP recommends the use of its XPS engine oil or an equivalent at all

time. Do not add any oil additives to the recommended engine oil.

Damages caused by the use of an oil not suitable for the engine or by

adding of an oil additives may not be covered by the BRP Limited

Warranty.

XPS RECOMMENDED Engine Oil

4T 0W40 Synthetic oil

IF THE RECOMMENDED XPS ENGINE OIL IS NOT

AVAILABLE

Use a 0W40 4-stroke SAE synthetic engine oil meeting or

exceeding the following lubricant industry specifications.

Always check the API service label certification on the oil container,

it must contain at least the indicated standard.

- API service classification SN

225

DRIVING MODES

WARNING

Whenever changing operating mode, make sure to maintain sit-

uational awareness while riding.

ECO Mode

(Fuel Economy Mode)

When ECO mode is selected (fuel economy mode), vehicle torque

and speed are limited whereby an optimal cruising speed is main-

tained in order to reduce fuel consumption.

Once activated, ECO mode will remain active until it is deactivated by

the operator.

Standard Mode

When in Standard mode, no indicator is in the multifunction gauge.

Sport Mode

WARNING

Ensure passenger is advised to hold on tightly before activating

Sport mode. Sport mode provides increased acceleration.

When selected, Sport mode provides for instant throttle response and

more rapid accelerations than Standard or ECO mode.

Once activated, Sport mode will remain active until it is deactivated by

the operator.

A message of the selected mode will be displayed at activation and

deactivation as follow:

Operating mode

Message at Activation

Sport

SPORT MODE

Standard

STANDARD MODE

Eco

ECO MODE

226

DRIVING MODES

Navigating the Driviing Modes

Use ECO/ Standard/ Sport Mode switch to navigate between power

levels, from ECO (reduced power) to Standard (full power) to Sport (in-

creased response).

To increase power, press the switch upwards. To decrease power,

press the switch downwards.

TYPICAL

To activate Standard mode when in Sport mode, press bottom end of

switch once.

To activate ECO mode when in Sport mode, press bottom end of

switch twice.

To activate ECO mode when in Standard mode, press bottom end of

switch once.

WARNING

Ensure passenger is advised to hold on tightly before activating

Sport mode. Sport mode provides increased acceleration.

To activate Sport mode when in Standard mode, press top end of

switch once.

To activate Sport mode when in ECO mode, press top end of switch

twice.

227

BREAK-IN PERIOD

Operation Duriing Break-In

Engine

During the break-in period:

- Avoid prolonged full throttle operation.

- Avoid sustained accelerations.

- Avoid prolonged cruising speeds.

- Avoid engine overheating.

However, brief accelerations and speed variations contribute to a

good break-in.

During a predetermined period, the engine management system con-

trols some engine parameters.

The duration is based on fuel volume. It will take approximately two

fuel tanks to complete the break-in.

During this period:

- The engine performance and behavior will not be optimal.

- The fuel and oil consumption will be higher.

Drive Belt

A new drive belt requires a break in period of 50 km (30 mi).

During the break-in period:

- Avoid strong acceleration and deceleration.

- Avoid pulling a load.

- Avoid high speed cruising.

If the vehicle creeps, lower the drive belt height from the preliminary

setting. Refer to Drive Belt in maintenance procedure.

229

BASIC PROCEDURES

Engiine Starting Procedure

Procedure

1. Apply parking brake.

2. Recheck throttle control lever operation.

3. Put your helmet on.

4. Ensure that the tether cord cap is installed on the engine cut-off

switch and that the cord is attached to your clothing eyelet.

5. Ensure that the emergency engine stop switch is in the ON position

(up).

WARNING

Never depress throttle while starting engine.

6. Release parking brake.

NOTE:

For an initial cold start, do not release parking brake. Perform the ve-

hicle warm-up procedure as explained below.

7. Depress the START button to engage the electric starter and start

the engine. Release button immediately when engine has started.

NOTICE

Do not engage electric starter for more than 10 seconds at a

time. A rest period should be observed between the cranking

cycles to allow electric starter to cool down.

Emergency Starting

Do not attempt any emergency starting procedure. Have the battery

charged or replaced.

Vehiiclle Warm-Up

Before every ride, vehicle has to be warmed up as follows.

1. Start engine as explained in ENGINE STARTING PROCEDURE

(PAGE 230) ENGINE STARTING PROCEDURE above.

2. Allow engine to warm up one or two minutes at idle speed.

NOTE:

Engine will shut down after approximately 12 minutes of idling.

230

BASIC PROCEDURES

3. Disengage parking brake.

4. Apply throttle until drive pulley engages. Drive at low speed the first

two or three minutes.

NOTICE

If vehicle does not move when throttle is applied, stop engine,

remove tether cord cap from the engine cut-off switch, then do

the following.

– Check if skis are stuck on the ground. Lift one ski at a time

by the handle, then put it down.

– Check if track is stuck on the ground. Lift rear of snowmobile

enough to clear track from the ground, then drop.

– Check rear suspension for hard snow or ice accumulation

that could interfere with track rotation. Clean the area.

– Validate that transmission is engaged (not in neutral).

CAUTION

Beware of injuries by using proper lifting techniques, notably

using your legs force. Do not attempt to lift the rear of vehicle if

it is above your limits.

WARNING

Make sure tether cord cap is removed before standing in front

the vehicle, getting close to the track or rear suspension

components.

NOTE:

Warm-up is electronically controlled. During this period (up to 10 mi-

nutes depending on ambient temperature), engine RPM is limited.

Shifting in High or Low range

This transmission is designed to accept shifting while moving. How-

ever, shifting while the engine is under heavy load is not

recommended.

NOTICE

Shifting at a speed faster than 30 km/h (19 MPH) may cause

serious damage to the gearbox.

231

BASIC PROCEDURES

High Range

This position selects the high speed range of the gearbox. It is the nor-

mal driving speed range. It allows the vehicle to reach its maximum

speed.

Low Range

This position selects the low speed range of the gearbox. It allows the

vehicle to move slowly with maximum engine torque.

Low range should be used whenever:

- Pulling a cargo carrier or accessory

- Hauling a load

- Crossing obstacles

- Climbing onto trailer

- Hill climbing

It is also recommended to use low range if driving for prolonged peri-

ods at speeds under 24 km/h (15 MPH).

NOTICE

Use the low speed range to pull a cargo carrier, carry heavy

cargo, go over obstacles or drive uphill and downhill.

Shiiftiing iin Reverse

1. Bring vehicle to a complete stop.

2. Apply and hold brake. Remain seated, refer to Rider Position (Re-

verse Operation) in Riding the vehicle for posture information.

3. With engine at idle speed, select reverse (R) gear using the re-

verse lever or Start / RER button.

232

BASIC PROCEDURES

WARNING

The reverse speed is not limited. Always proceed with caution

as fast reverse could result in loss of vehicle stability. Come to

complete stop before activating the reverse. Always remain

seated and apply the brake before shifting. Ensure the path be-

hind is clear of obstacles or bystanders before proceeding.

Shiiftiing iin Forward from Reverse

1. Bring vehicle to a complete stop.

2. Apply and hold brake.

3. Press and release the RER button or reverse lever.

4. Apply throttle slowly and evenly. Allow drive pulley to engage then

accelerate carefully.

Shutting Off the Engiine

Release throttle lever and wait until engine has returned to idle speed.

Shut off the engine using either the emergency engine stop switch or

by pulling off the tether cord cap from the engine cut-off switch.

WARNING

Always remove the tether cord cap from engine cut-off switch

when vehicle is not in operation in order to prevent accidental

engine starting or to avoid unauthorized use by children or

others or theft.

234

RIDING CONDITIONS AND YOUR

SNOWMOBILE

Alltiitude

At factory, your snowmobile was calibrated to be used within an alti-

tude range (relative to sea level).

A new snowmobile has a tag attached to the handlebar indicating its

calibration. Refer to Safety Information on Vehicle.

If for any reason you don't know your snowmobile calibration, contact

an authorized BRP snowmobile dealer.

If your snowmobile is to be used at an altitude outside the specified

range, have it calibrated accordingly by an authorized BRP snowmo-

bile dealer.

NOTICE

An inappropriate altitude calibration would decrease perform-

ance and may cause serious damage to the snowmobile.

Temperature

The engine management of these engines provides the optimum air/

fuel ratio for all temperatures.

Hard Packed Snow

All models covered in this guide which are equipped with a minimum

track profile of 44 mm (1.75 in) are built for deep snow conditions and

should never be used during a prolonged period of time in marginal or

hard packed snow conditions.

In the event you have to ride in these types of conditions:

- Avoid exceeding a speed of 70 km/h (45 mph) in all conditions

- Avoid hard acceleration (over 75% of throttle)

- Ice scratchers should be applied

- Engine temperature should not exceed 75% on the temperature

gauge.

NOTICE

Running these types of tracks at high speed on a trail, on hard

packed surfaces or on ice puts more stress on the lugs, which

tends to heat up as a result. It also could drastically reduce the

life of specific wear parts. To avoid potential degradation, de-

lamination or damages to the track and wear parts, reduce your

speed and minimize the distance that is being ridden on these

types of surfaces.

235

RIDING CONDITIONS AND YOUR SNOWMOBILE

Vehicles Equipped with Ice Scratchers

Ice scratchers are equipped on the vehicle to increase engine cooling

efficiency, to lubricate and to cool track clips and sliders. They must

be used whenever on ice, hard packed snow, or any conditions that

do not lift enough snow particles into the rear suspension and the

tunnel.

NOTICE

Although it is not recommended to ride a snowmobile equipped

with a high lug profile track on trails or hard packed snow condi-

tions, it is highly suggested to combine idler wheels and ice

scratchers on a vehicle used in these conditions.

IMPORTANT

Ridding in these trail conditions puts the reliability of the track and

its warranty at risk

If equipped with the following track profile heights, never exceed the

recommended sustained vehicle speeds listed.

Track Profile Height

Maximum Sustained Speed

57 mm (2.25 in)

110 km/h (70 MPH)

60 mm (2.36 in)

64 mm (2.52 in)

95 km/h (60 MPH)

75 mm (3 in)

236

TUNE YOUR RIDE

Snowmobile handling and comfort depend upon multiple adjustments.

WARNING

Suspension adjustment could affect vehicle handling. Always

take time to familiarize yourself with the vehicle''s behavior after

any suspension adjustment have been made. Always adjust LH

and RH suspension components to the same setting.

Choice of suspension adjustments vary with carrying load, operator's

weight, personal preference, riding speed and field condition.

NOTE:

Some adjustments may not apply to your snowmobile.

WARNING

Before proceeding with any suspension adjustment, remember:

– Park in a safe place.

– Remove the tether cord cap from the engine cut-off switch.

– Use appropriate lifting device or have assistance to share

lifting stress. If a lifting device is not used, use proper lifting

techniques, notably using your legs force.

– Do not attempt to lift the front or rear of vehicle if it is above

your limits.

– Support front of vehicle off the ground with a suitable device

before adjusting suspension.

– Support rear of vehicle off the ground with a wide-base

snowmobile stand with a rear deflector panel.

– Make sure support device is stable and secure.

The best way to set up the suspension is to customize each adjust-

ment one at a time. Various adjustments are interrelated. It may be

necessary to readjust center spring after adjusting front springs for in-

stance. Test run the snowmobile under the same conditions; trail,

speed, snow, operator riding position, etc. Proceed methodically until

you are satisfied.

Following are guidelines to fine-tune suspension. Use suspension ad-

justment tool provided in the tool kit.

237

TUNE YOUR RIDE

Rear Suspensiion Adjustments

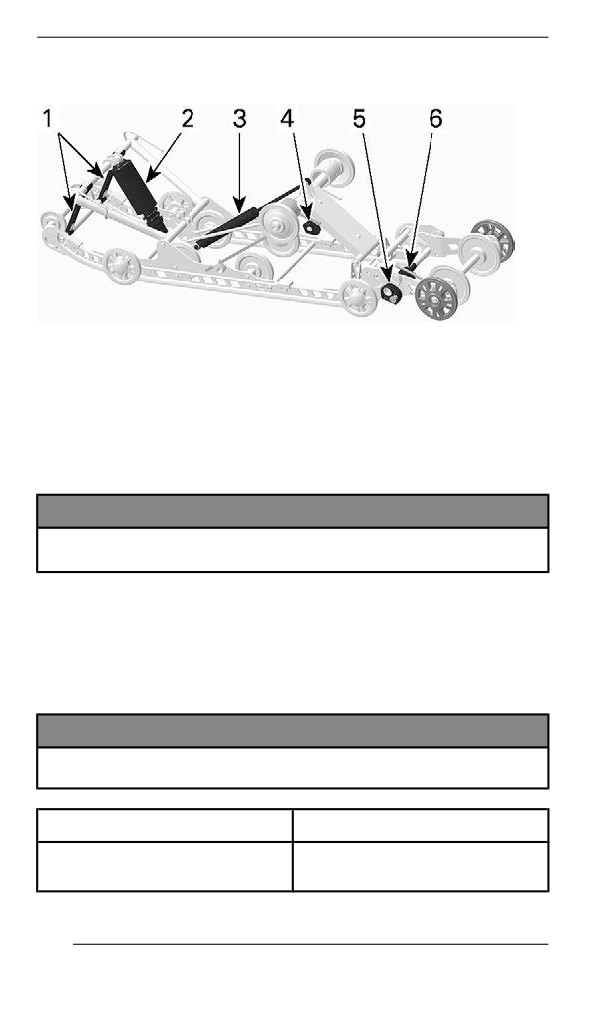

SC-5U - ADJUSTABLE COMPONENTS

1. Stopper straps

2. Center spring

3. Rear shock absorber

4. Rear springs

5. Extension stabilizer cam

6. Extension spring cam

NOTICE

Whenever adjusting rear suspension, check track tension and

adjust if necessary.

Stopper Strap – SC-5M

Stopper strap length has an effect on the amount of weight the center

spring has to carry especially during acceleration, therefore on the

front end uplift.

Stopper straps length also has an effect on center spring travel.

NOTICE

Whenever stopper strap length is changed, track tension must

be checked.

Action

Result

Lighter ski pressure under

Increasing stopper strap length

acceleration

238

TUNE YOUR RIDE

Action

Result

More center spring travel

More bump absorption

capability

Heavier ski pressure under

acceleration

Decreasing stopper strap length

Less center spring travel

Less bump absorption

capability

NOTE:

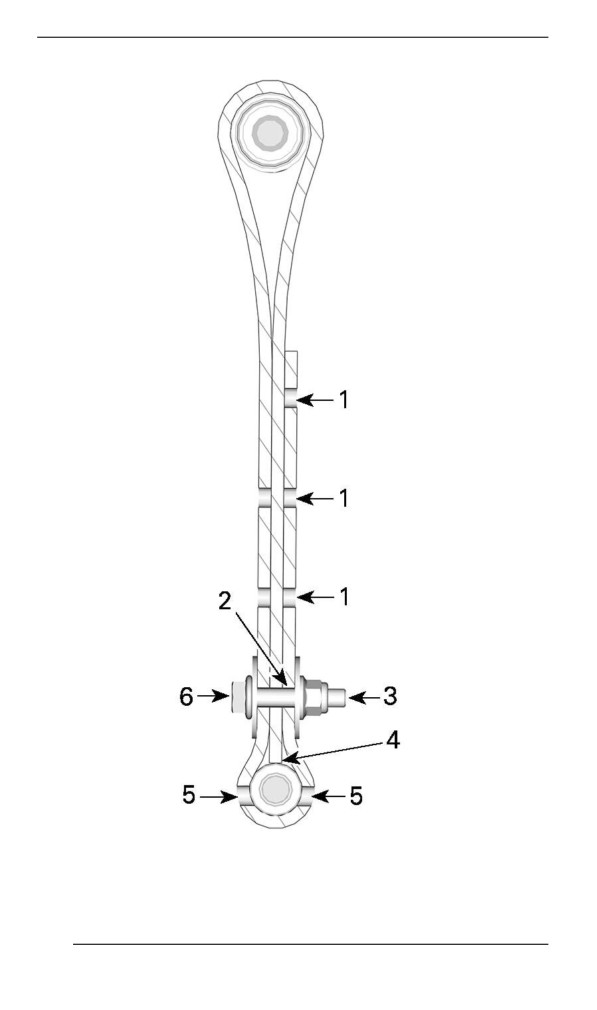

Stopper strap could be set to position 4, 5 and 6. Below are illustra-

tions for position 4 and 6. Smaller numbers correspond to a longer

strap setting.

239

Snowmobile Ski-Doo CROSSOVER ACE SERIES. OPERATOR’S GUIDE (2024) - page 2
