Vauxhall Vivaro C (2023 year). Manual in english

Seats, restraints

Activate seat heating by turning the

thumb wheel

for the respective

front seat. There are three intensity

levels of heating.
To deactivate the seat heating turn

the thumb wheel

to 0.

The heating works only when the

outside temperature is below 20 °C.
Prolonged use of the highest setting

for people with sensitive skin is not

recommended.
Seat heating is operational when

engine is running and during an

Autostop.
Stop-start system

224.

Massage

Activate the back massage function

by pressing

. The LED in the button

illuminates to indicate activation.
The massage function is activated for

a period of 1 hour. During this time,

massage is performed in six cycles

with breaks in between.
To adjust the intensity of the massage

press

. Two levels of massage are

available.
Pressing

once more deactivates

massage function. The LED goes off.

The massage function is operational

when engine is running and during an

Autostop.
Stop-start system

224.

Seats, restraints

Rear seats

Warning

When seats are being adjusted or

folded, keep hands and feet away

from the moving area. Risk of

injury.
Ensure that there are no objects

on the anchor points or rails.
Never adjust seats while driving as

they could move uncontrollably.
Drive only with engaged seats and

backrests.

Depending on version the levers of

the seats can be located at different

places. The illustrations show

examples.

Seat backrest

Folding backrest down to table

position

1. Push the head restraint down or

remove it before folding the

backrest.
Head restraints

32.

2. If available fold up the armrest.

Armrest

37.

3. Pull the front lever or push the rear

lever to release the backrest.

4. Fold the backrest fully down.

Unfolding the backrest

1. Pull the front lever or press the

rear lever.

2. Raise the backrest fully upwards

until it engages.

Fixed rear seats

Easy entry function

To permit an easy entrance to the

seats of the third row, the seats of the

second row can be tilted.

Pull the release lever and tilt seat to

the front.
To restore the original position tilt seat

back until it is engaged.

Tilted position

1. Fold the backrest down to the

table position.

Seats, restraints

2. Pull the release lever and tilt the

seat to the front.

Removing

Depending on version seats can be

removed.

1. Fold the backrest down to the

table position.

2. Move the seat to the tilted

position.

3. Release each front mount by

pulling the respective lever.

4. Remove the seat.

Installing

1. Engage front mounts in the

anchorages.

2. Push the levers to lock the front

mounts and tilt the seat back until

it is engaged.

3. Unfold the backrest.

Rear seats on rails

Longitudinal adjustment

The single seats as well as the seat

bench can be moved individually

forwards and backwards.

Seats, restraints

To release the seat, pull the front

handle upward or pull the loop on the

rear without going beyond the point of

resistance.
Slide the seat forwards or backwards.

Backrest inclination

Pull the front lever or push the rear

lever to release and adjust the

backrest.
Release the lever when the desired

position is obtained.

Removing

1. Pull the loop on the rear beyond

the point of resistance and tilt the

seat to the front.

2. Remove the seat.

Caution

Do not use the loop to lift the seat.

Installing

1. The loop on the rear has to be in

the release position.

Seats, restraints

2. Place the front of the seat on the

rails and then tip the rear down.

Caution

Do not use the loop to lift the seat.

3. Slide the seat until it engages.

Lounge position

The single seats on rails can be

placed facing forward or backward.

Caution

Avoid contact between two seats.

This could cause significant wear

of the parts in contact.

1. Pull the loop on the rear beyond

the point of resistance and tilt the

seat to the front.

2. Lift the seat and turn the seat by

180°.

3. Place the front of the seat on the

rails and then tip the rear down.

4. Slide the seat until it engages.

Seat belts

The seat belts are locked during

heavy acceleration or deceleration of

the vehicle, holding the occupants in

the seat position. Therefore the risk of

injury is considerably reduced.

Warning

Fasten seat belt before each trip.
In the event of an accident, people

not wearing seat belts endanger

their fellow occupants and

themselves.

Seats, restraints

Seat belts are designed to be used by

only one person at a time.
Child restraint system

52.

Periodically check all parts of the belt

system for damage, soiling and

proper functionality.
Have damaged components

replaced. After an accident, have the

belts and triggered belt pretensioners

replaced by a workshop.

Notice

Make sure that the belts are not

damaged by shoes or sharp-edged

objects or are trapped. Prevent dirt

from getting into the belt retractors.
Notice

Use the belt buckle intended for the

respective seat belt when fastening

in order to ensure proper

functionality.

Seat belt reminder

Not removable seats are equipped

with a seat belt reminder, indicated by

a control indicator

in the instrument

cluster and in the overhead console.
Seat belt reminder

99.

Belt force limiters

Stress on the body is reduced by the

gradual release of the belt during a

collision.

Belt pretensioners

In the event of a head-on, rear-end or

side-on collision of a certain severity,

the single front seat belts and the seat

belt of the outer front bench seat are

tightened by seat belt pretensioners.

Warning

Incorrect handling (e.g. removal or

fitting of belts) can trigger the belt

pretensioners.

Deployment of the belt pretensioners

is indicated by continuous illumination

of control indicator

Airbag and belt tensioners

99.

Triggered belt pretensioners must be

replaced by a workshop. Belt

pretensioners can only be triggered

once.

Notice

Do not affix or install accessories or

other objects that may interfere with

the operation of the belt

pretensioners. Do not make any

modifications to belt pretensioner

components as this will invalidate

the operating permit of your vehicle.

Three-point seat belt

Fasten

Withdraw the seat belt from the

retractor, guide it untwisted across

the body. With the other hand, pull the

seat belt down and forward so that the

latch plate is able to slide without

Seats, restraints

resistance. Insert the latch plate into

the buckle. Make sure the seat belt

lies across the shoulder and fits tightly

to the body while driving.

Loose or bulky clothing prevents the

seat belt from fitting snugly. Do not

place objects such as handbags or

mobile phones between the seat belt

and your body.

Warning

The seat belt must not rest against

hard or fragile objects in the

pockets of your clothing.

Seat belt reminder

99,

106.

Height adjustment

Press the release button and shift the

height adjuster upwards or

downwards till it engages at the

desired position.

Adjust the height so that the seat belt

lies across the shoulder. It must not

lie across the throat or upper arm.
Do not adjust while driving.

Seats, restraints

Airbag system

The airbag system consists of a

number of individual systems

depending on the scope of

equipment.
When triggered the airbags inflate

within milliseconds. They also deflate

so quickly that it is often unnoticeable

during the collision.

Warning

The airbag system deploys in an

explosive manner, repairs must be

performed by skilled personnel

only.

Warning

Adding accessories that change

the vehicle's frame, bumper

system, height, front end or side

sheet metal, may keep the airbag

system from working properly. The

operation of the airbag system can

also be affected by changing any

parts of the front seats, seat belts,

airbag sensing and diagnostic

module, steering wheel,

instrument panel, inner door seals

including the speakers, any of the

airbag modules, ceiling or pillar

trim, front sensors, side impact

sensors or airbag wiring.

Warning

Keep the area in which the airbag

inflates clear of obstructions.

Notice

The airbag systems and belt

pretensioner control electronics are

located in the centre console area.

Do not put any magnetic objects in

this area.
Do not affix any objects onto the

airbag covers and do not cover them

with other materials. Have damaged

covers replaced by a workshop.
Each airbag is triggered only once.

Have deployed airbags replaced by

a workshop. Furthermore, it may be

necessary to have the steering

wheel, the instrument panel, parts of

the panelling, the door seals,

handles and the seats replaced.
Do not make any modifications to

the airbag system as this will

invalidate the vehicle operating

permit.

Control indicator

for airbag

systems

99.

Child restraint systems on front

passenger seat with airbag

systems

Seats, restraints

EN: NEVER use a rearward-facing

child restraint on a seat protected by

an ACTIVE AIRBAG in front of it;

DEATH or SERIOUS INJURY to the

CHILD can occur.
DE: Nach hinten gerichtete

Kindersitze NIEMALS auf einem Sitz

verwenden, der durch einen davor

befindlichen AKTIVEN AIRBAG

geschützt ist, da dies den TOD oder

SCHWERE VERLETZUNGEN DES

KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège

d'enfant orienté vers l'arrière sur un

siège protégé par un COUSSIN

GONFLABLE ACTIF placé devant lui,

sous peine d'infliger des

BLESSURES GRAVES, voire

MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de

retención infantil orientado hacia

atrás en un asiento protegido por un

AIRBAG FRONTAL ACTIVO. Peligro

de MUERTE o LESIONES GRAVES

para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ

устанавливать детское

удерживающее устройство лицом

назад на сиденье автомобиля,

оборудованном фронтальной

подушкой безопасности, если

ПОДУШКА НЕ ОТКЛЮЧЕНА! Это

может привести к СМЕРТИ или

СЕРЬЕЗНЫМ ТРАВМАМ

РЕБЕНКА.
NL: Gebruik NOOIT een achterwaarts

gericht kinderzitje op een stoel met

een ACTIEVE AIRBAG ervoor, om

DODELIJK of ERNSTIG LETSEL van

het KIND te voorkomen.
DA: Brug ALDRIG en bagudvendt

autostol på et forsæde med AKTIV

AIRBAG, BARNET kan komme i

LIVSFARE eller komme ALVORLIGT

TIL SKADE.
SV: Använd ALDRIG en bakåtvänd

barnstol på ett säte som skyddas med

en framförvarande AKTIV AIRBAG.

DÖDSFALL eller ALLVARLIGA

SKADOR kan drabba BARNET.
FI: ÄLÄ KOSKAAN sijoita taaksepäin

suunnattua lasten turvaistuinta

istuimelle, jonka edessä on

AKTIIVINEN TURVATYYNY, LAPSI

VOI KUOLLA tai VAMMAUTUA

VAKAVASTI.

NO: Bakovervendt

barnesikringsutstyr må ALDRI brukes

på et sete med AKTIV

KOLLISJONSPUTE foran, da det kan

føre til at BARNET utsettes for

LIVSFARE og fare for ALVORLIGE

SKADER.
PT: NUNCA use um sistema de

retenção para crianças voltado para

trás num banco protegido com um

AIRBAG ACTIVO na frente do

mesmo, poderá ocorrer a PERDA DE

VIDA ou FERIMENTOS GRAVES na

CRIANÇA.
IT: Non usare mai un sistema di

sicurezza per bambini rivolto

all'indietro su un sedile protetto da

AIRBAG ATTIVO di fronte ad esso:

pericolo di MORTE o LESIONI

GRAVI per il BAMBINO!
EL: ΠΟΤΕ μη χρησιμοποιείτε παιδικό

κάθισμα ασφαλείας με φορά προς τα

πίσω σε κάθισμα που προστατεύεται

από μετωπικό ΕΝΕΡΓΟ ΑΕΡΟΣΑΚΟ,

διότι το παιδί μπορεί να υποστεί

ΘΑΝΑΣΙΜΟ ή ΣΟΒΑΡΟ

ΤΡΑΥΜΑΤΙΣΜΟ.

Seats, restraints

PL: NIE WOLNO montować fotelika

dziecięcego zwróconego tyłem do

kierunku jazdy na fotelu, przed

którym znajduje się WŁĄCZONA

PODUSZKA POWIETRZNA.

Niezastosowanie się do tego

zalecenia może być przyczyną

ŚMIERCI lub POWAŻNYCH

OBRAŻEŃ u DZIECKA.
TR: Arkaya bakan bir çocuk emniyet

sistemini KESİNLİKLE önünde bir

AKTİF HAVA YASTIĞI ile

korunmakta olan bir koltukta

kullanmayınız. ÇOCUK ÖLEBİLİR

veya AĞIR ŞEKİLDE

YARALANABİLİR.
UK: НІКОЛИ не використовуйте

систему безпеки для дітей, що

встановлюється обличчям назад,

на сидінні з УВІМКНЕНОЮ

ПОДУШКОЮ БЕЗПЕКИ, інакше це

може призвести до СМЕРТІ чи

СЕРЙОЗНОГО ТРАВМУВАННЯ

ДИТИНИ.
HU: SOHA ne használjon hátrafelé

néző biztonsági gyerekülést előlről

AKTÍV LÉGZSÁKKAL védett ülésen,

mert a GYERMEK HALÁLÁT vagy

KOMOLY SÉRÜLÉSÉT okozhatja.

HR: NIKADA nemojte koristiti sustav

zadržavanja za djecu okrenut prema

natrag na sjedalu s AKTIVNIM

ZRAČNIM JASTUKOM ispred njega,

to bi moglo dovesti do SMRTI ili

OZBILJNJIH OZLJEDA za DIJETE.
SL: NIKOLI ne nameščajte otroškega

varnostnega sedeža, obrnjenega v

nasprotni smeri vožnje, na sedež z

AKTIVNO ČELNO ZRAČNO

BLAZINO, saj pri tem obstaja

nevarnost RESNIH ali SMRTNIH

POŠKODB za OTROKA.
SR: NIKADA ne koristiti bezbednosni

sistem za decu u kome su deca

okrenuta unazad na sedištu sa

AKTIVNIM VAZDUŠNIM

JASTUKOM ispred sedišta zato što

DETE može da NASTRADA ili da se

TEŠKO POVREDI.
MK: НИКОГАШ не користете детско

седиште свртено наназад на

седиште заштитено со АКТИВНО

ВОЗДУШНО ПЕРНИЧЕ пред него,

затоа што детето може ДА ЗАГИНЕ

или да биде ТЕШКО ПОВРЕДЕНО.
BG: НИКОГА не използвайте

детска седалка, гледаща назад,

върху седалка, която е защитена

чрез АКТИВНА ВЪЗДУШНА

ВЪЗГЛАВНИЦА пред нея - може да

се стигне до СМЪРТ или

СЕРИОЗНО НАРАНЯВАНЕ на

ДЕТЕТО.
RO: Nu utilizaţi NICIODATĂ un scaun

pentru copil îndreptat spre partea din

spate a maşinii pe un scaun protejat

de un AIRBAG ACTIV în faţa sa;

acest lucru poate duce la DECESUL

sau VĂTĂMAREA GRAVĂ a

COPILULUI.
CS: NIKDY nepoužívejte dětský

zádržný systém instalovaný proti

směru jízdy na sedadle, které je

chráněno před sedadlem AKTIVNÍM

AIRBAGEM. Mohlo by dojít k

VÁŽNÉMU PORANĚNÍ nebo ÚMRTÍ

DÍTĚTE.
SK: NIKDY nepoužívajte detskú

sedačku otočenú vzad na sedadle

chránenom AKTÍVNYM AIRBAGOM,

pretože môže dôjsť k SMRTI alebo

VÁŽNYM ZRANENIAM DIEŤAŤA.
LT: JOKIU BŪDU nemontuokite atgal

atgręžtos vaiko tvirtinimo sistemos

sėdynėje, prieš kurią įrengta AKTYVI

ORO PAGALVĖ, nes VAIKAS GALI

ŽŪTI arba RIMTAI SUSIŽALOTI.

Seats, restraints

LV: NEKĀDĀ GADĪJUMĀ

neizmantojiet uz aizmuguri vērstu

bērnu sēdeklīti sēdvietā, kas tiek

aizsargāta ar tās priekšā uzstādītu

AKTĪVU DROŠĪBAS SPILVENU, jo

pretējā gadījumā BĒRNS var gūt

SMAGAS TRAUMAS vai IET BOJĀ.
ET: ÄRGE kasutage tahapoole

suunatud lapseturvaistet istmel, mille

ees on AKTIIVSE TURVAPADJAGA

kaitstud iste, sest see võib

põhjustada LAPSE SURMA või

TÕSISE VIGASTUSE.
MT: QATT tuża trażżin għat-tfal li

jħares lejn in-naħa ta’ wara fuq sit

protett b’AIRBAG ATTIV quddiemu;

dan jista’ jikkawża l-MEWT jew

ĠRIEĦI SERJI lit-TFAL.
GA: Ná húsáid srian sábháilteachta

linbh cúil RIAMH ar shuíochán a

bhfuil mála aeir ag feidhmiú os a

chomhair. Tá baol BÁIS nó GORTÚ

DONA don PHÁISTE ag baint leis.
Additionally, for safety reasons a

forward-facing child restraint system

must only be used subject to the

instructions and restrictions in the

table

56.

The airbag label is located on both

sides of the front passenger sun visor.
Airbag deactivation

51.

Front airbag system

The front airbag system consists of

one airbag in the steering wheel and

one in the instrument panel on the

front passenger side. These can be

identified by the word AIRBAG.
The front airbag system is triggered in

the event of a front-end impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and head of

the front seat occupants

considerably.

Warning

Optimum protection is only

provided when the seat is in the

proper position.
Seat position

33.

Keep the area in which the airbag

inflates clear of obstructions.
Fit the seat belt correctly and

engage securely. Only then is the

airbag able to protect.

Seats, restraints

Side airbag system

The side airbag system consists of an

airbag in each front seat backrest.

This can be identified by the word

AIRBAG.
The side airbag system is triggered in

the event of a side impact of a certain

severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and pelvis in

the event of a side-on collision

considerably.

Warning

Keep the area in which the airbag

inflates clear of obstructions.

Notice

Only use protective seat covers that

have been approved for the vehicle.

Be careful not to cover the airbags.

Curtain airbag system

The curtain airbag system consists of

an airbag in the roof frame on each

side.
The curtain airbag system is triggered

in the event of a side-on impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the head in the event of a

side-on impact considerably.

Seats, restraints

Warning

Keep the area in which the airbag

inflates clear of obstructions.
The hooks on the handles in the

roof frame are only suitable for

hanging up light articles of

clothing, without coat hangers. Do

not keep any items in these

clothes.

Airbag deactivation

The front passenger airbag system

must be deactivated for child restraint

system on the passenger seat

according to the instructions in the

table

56.

When the front passenger seat is in

the folded position, the front

passenger airbag system must be

deactivated.
Seat folding

36.

The side airbag and curtain airbag

systems, the belt pretensioners and

all driver airbag systems will remain

active.

The front passenger airbag system

can be deactivated via a switch on the

passenger side of the instrument

panel.
Use the ignition key to choose the

position:
OFF

: front passenger airbag is

deactivated and will not

inflate in the event of a

collision, control indicator

OFF

illuminates

continuously in the centre

console

: front passenger airbag is

active

Danger

Deactivate passenger airbag in

combination with the use of a child

restraint system, subject to the

instructions and restrictions in the

tables

56.

Otherwise, there is a risk of fatal

injury for a person occupying a

seat with a deactivated front

passenger airbag.

Seats, restraints

If the control indicator

illuminates

for approx. 60 seconds after the

ignition is switched on, the front

passenger airbag system will inflate

in the event of a collision.
If the control indicator

illuminates

after the ignition is switched on, the

front passenger airbag system is

deactivated. It stays on while the

airbag is deactivated.
Change status only when the vehicle

is stopped with the ignition off.
Status remains until the next change.
If

is indicated in the instrument

cluster permanently there is a fault in

the airbag system. Seek the

assistance of a workshop. The

airbags and belt pretensioners may

fail to trigger in the event of an

accident.
Control indicator for airbag and belt

tensioners

99.

Control indicator for airbag

deactivation

100.

Child restraints

Child restraint systems

Danger

Make sure that children below

sufficient size and weight are

protected using a suitable child

restraint system. Never place a

child on the lap.

Danger

If using a rear-facing child restraint

system on the front passenger

seat, the airbag system for the

front passenger seat must be

deactivated. This also applies to

certain forward-facing child

restraint systems as indicated in

the tables

56.

Airbag deactivation

51.

Airbag label

46.

We recommend a child restraint

system which is tailored specifically to

the vehicle. For further information,

contact your workshop.
In case of any interference of the child

restraint system with vehicle seat

head restraint, adjust or remove the

corresponding head restraint

32.

When a child restraint system is being

used, pay attention to the following

usage and installation instructions as

well as to those supplied with the child

restraint system. The given

restrictions in the table refer to a test

body, which is the maximum

envelope of all existing child restraint

systems. Make sure that the front

seats do not interfere with the used

child restraint system.
With a child seat installed usage of

one or more seats in the same row

may not be allowed.
Always comply with local or national

regulations. In some countries, the

use of child restraint systems is

forbidden on certain seats.
Only drive with the driver seat

correctly adjusted

33.

Seats, restraints

Child restraint systems can be

fastened with:

● Three-point seat belt
● ISOFIX brackets
● Top-tether

Three-point seat belt

Child restraint systems can be

fastened by using a three-point seat

belt. Depending on the size of the

used child restraint systems and the

equipment of car, up to six child

restraint systems can be attached to

the rear seats. After fastening the

child restraint system the seat belt

has to be tightened.

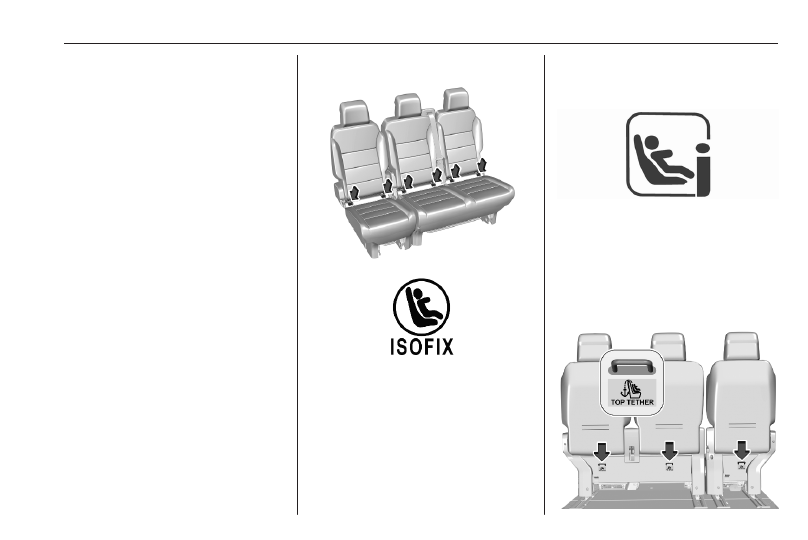

ISOFIX brackets

ISOFIX child seats and vehicle seats

with ISOFIX approval are marked with

ISOFIX symbol, see illustration.
Fasten vehicle-approved ISOFIX

child restraint systems to the ISOFIX

brackets. Specific vehicle ISOFIX

child restraint system positions are

marked in the ISOFIX table

56.

Either a Top-tether strap or a support

leg must be used in addition to the

ISOFIX brackets.

i-Size child seats and vehicle seats

with i-Size approval are marked with

i-Size symbol, see illustration.

Top-tether anchors

Top-tether anchors are marked with

the symbol

for a child seat.

Seats, restraints

In addition to the ISOFIX mounting

brackets, fasten the Top-tether strap

to the Top-tether anchors.
ISOFIX child restraint systems of

universal category positions are

marked in the table by IUF

56.

Selecting the right system

The rear seats are the most

convenient location to fasten a child

restraint system.
Children should travel facing

rearwards in the vehicle as long as

possible. This makes sure that the

child's backbone, which is still very

weak, is under less strain in the event

of an accident. Do not use forward

facing child restraint system at all

seats when child's weight is below 13

kg.
Suitable are child restraint systems

that comply with valid UN ECE

regulations. Check local laws and

regulations for mandatory use of child

restraint systems.

The following child restraints are

recommended for the following

weight classes:

● Group 0+:

Römer Baby-Safe Plus installed

in the rearward facing position

with or without ISOFIX base for

children up to 13 kg

● Group I:

RÖMER Duo Plus ISOFIX with or

without ISOFIX and Top-tether

for children from 9 kg to 18 kg

● Group II, Group III:

Römer Kidfix XP with or without

ISOFIX for children from 15 kg to

36 kg
The child is restrained by the seat

belt.
The installation is permitted only

on the outer rear seats. The head

restraint has to be removed.

● Group II, Group III:

Graco Booster for children from

15 kg to 36 kg
The child is restrained by the seat

belt.

The installation is permitted on

the front passenger seat or the

rear seats.

Ensure that the child restraint system

to be installed is compatible with the

vehicle type.
Child seat at the front: Adjust the front

passenger seat to the highest and

fully back longitudinal position with

the backrest straightened.
Child seat at the rear: Move the

vehicle's front seat forward and

straighten the backrest so that the

legs of the child in the forward facing

or the rearward facing child seat do

not touch the vehicle's front seat.
Please follow the child restraint

system manufacturer's instructions to

install the corresponding child

restraint system in the vehicle.
For semi-universal or vehicle specific

child restraint system (ISOFIX or

belted child restraint system), see the

vehicle list provided in the user

manual of the child restraint system.

Seats, restraints

Child restraint installation locations

Permissible options for fastening a child restraint system with a three-point seat belt

Vivaro, without third seat row

Weight class

On front passenger seat, passenger airbag deactivated with
single seat;
bench seat (outer seat)

bench seat (centre seat)

Group 0, Group 0+: up to 13 kg

1,2

Group I: 9 to 18 kg

1,2

Group II: 15 to 25 kg

1,2

Group III: 22 to 36 kg

1,2

Weight class

On seats in the second row

Group 0, Group 0+: up to 13 kg

Group I: 9 to 18 kg

3,4

Group II: 15 to 25 kg

3,4

Group III: 22 to 36 kg

3,4

Seats, restraints

Vivaro Life, Vivaro with third seat row

Weight class

On front passenger seat with
single seat;
bench seat (outer seat)

bench seat (centre seat)

activated airbag

deactivated airbag

Group 0, Group 0+: up to 13 kg

1,2

Group I: 9 to 18 kg

1,2

Group II: 15 to 25 kg

1,2

Group III: 22 to 36 kg

1,2

Weight class

On rear seats (row 2 and 3)

On single seat on rails (row 2 and 3)

Group 0, Group 0+: up to 13 kg

3,5

Group I: 9 to 18 kg

3,4,5

Group II: 15 to 25 kg

3,4,5

Group III: 22 to 36 kg

3,4,5

U : universal suitability for forward-facing or rearward-facing child restraint systems in conjunction with three-point seat

belt

UF : universal suitability for forward-facing child restraint systems in conjunction with three-point seat belt

X : no child restraint system permitted in this weight class

: move seat forwards as far as necessary and adjust seat backrest inclination as far as necessary to a vertical position

to ensure that the belt runs forwards from the upper anchorage point

Seats, restraints

Permissible options for fitting an ISOFIX child restraint system with ISOFIX brackets

Vivaro

Weight class

Size class

On front

passenger seat

On seats in the second row

with

passenger bench in front

with single passenger

seat in front

single

seats

outer seats

centre seat

outer seats centre seat

Group 0: up to 10 kg F

X
X

3,4

X
X

X
IL

Group 0+: up to 13 kg C

D
E

X
X
X

3,4

X
X
X

Group I: 9 to 18 kg

3,4

IUF

3,4

IUF

3,4

IUF, IL

IUF

3,4

IUF

3,4

IUF, IL

IUF

3,4

IUF

3,4

IUF, IL

Seats, restraints

Weight class

Size class

On seats in the third row
Fixed seat and bench seat

Fixed one-piece bench seat

Group 0: up to 10 kg

F
G

X
X

Group 0+: up to 13 kg

Group I: 9 to 18 kg

IUF, IL

4,5

IUF, IL

4,5

IUF, IL

4,5

Seats, restraints

Vivaro Life

Weight class

Size class

On front

passenger seat

On seats in the second

row with

fixed seats, bench seat 1/3 - 2/3 bench seats on rails

Single seats

on rails

outer seats centre seat

Group 0: up to 10 kg F

X
X

X
IL

1,2

1,2,3

X
X

Group 0+: up to 13 kg C

Group I: 9 to 18 kg

IUF, IL

4, 5

IUF, IL

4, 5

IUF, IL

4, 5

IUF, IL

4, 5

IUF, IL

4, 5

Seats, restraints

Weight class

Size class On seats in the third row

Fixed seat and

bench seat, fixed

seats

Fixed one-

piece bench

seat

1/3 - 2/3 bench seats on rails

Single seats on

rails

Outer seats

centre seat

Group 0: up to 10 kg F

X
X

1,2,3

X
X

Group 0+: up to 13 kg C

Group I: 9 to 18 kg

IUF, IL

4,5

IUF, IL

4,5

IUF, IL

4,5

IUF, IL

4, 5

IUF, IL

3,4, 5

IUF, IL

3,4, 5

IUF, IL

4, 5

IUF, IL

3,4, 5

IUF, IL

3,4, 5

Seats, restraints

: suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child

restraint system)

IUF : suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class

: no ISOFIX child restraint system approved in this weight class

N/A : not applicable

: with a child seat installed usage of one or more seats in the same row may not be allowed

: installation possible only behind the driver's seat

: move the respective front seat ahead of the child restraint system forwards as far as necessary

: adjust the respective headrest as necessary or remove if required

: with a child seat installed on the centre seat, usage of outer seats is not allowed

: fixed seat bench; folding seat bench is in process of being approved

ISOFIX size class and seat device

A – ISO//F3

: forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg

B – ISO//F2

: forward-facing child restraint system for smaller children in the weight class 9 to 18 kg

B1 – ISO//F2X : forward-facing child restraint system for smaller children in the weight class 9 to 18 kg

C – ISO//R3

: rear-facing child restraint system for children of maximum size in the weight class up to 18 kg

D – ISO//R2

: rear-facing child restraint system for smaller children in the weight class up to 18 kg

E – ISO/R1

: rear-facing child restraint system for young children in the weight class up to 13 kg

F– ISO/L1

: left lateral facing position child restraint system (carry-cot)

G – ISO/L2

: right lateral facing position child restraint system (carry-cot)

B2 – ISO//B2

: booster seat, reduced width (440 mm)

B3 – ISO//B3

: booster seat, full width (520 mm)

Seats, restraints

Permissible options for fitting an i-Size child restraint system

i-Size child restraint systems

On front

passenger seat On seats in the second row

On seats in the third

row

one-piece bench seat; seat and bench seat

single seats on

rails

one-piece bench

seat; seat and

bench seat

single

seats on

rails

passenger bench in

front

single seat in front

Vivaro,

without

third seat

row

N/A

Vivaro,

with third

seat row

i - UF

i - U

N/A

i - U

1, 3

N/A

Vivaro Life

i - U

i - UF

3, 4, 5

i - U

1, 3, 4

i - UF

i - U : suitable for i-Size 'universal' forward and rearward facing child restraint systems

i - UF : suitable only for i-Size 'universal' forward facing child restraint systems

: seating position not suitable for i-Size 'universal' child restraint systems

: with a child seat installed on the centre seat, usage of outer seats is not allowed

: adjust the respective headrest as necessary or remove if required

: usage of the seat in the second row is not allowed when an i-Size child seat is installed directly behind it

Storage

Storage compartments ................ 66

Glovebox ................................... 66

Cupholders ................................ 66

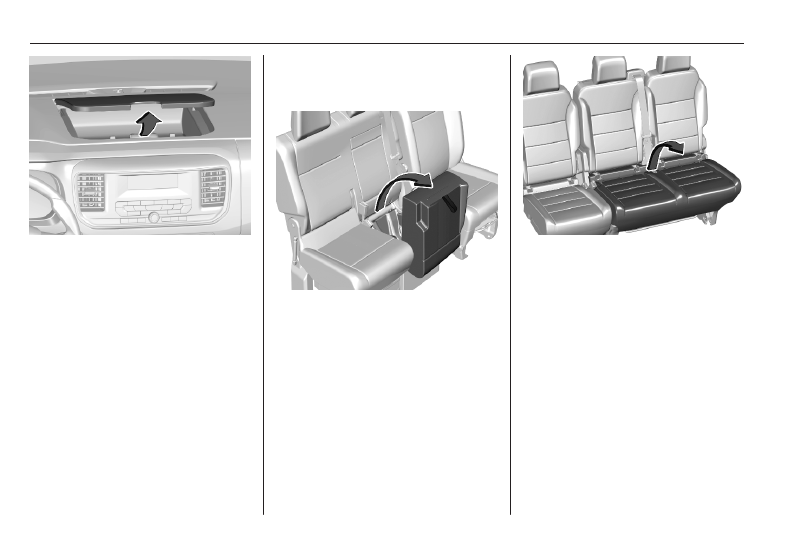

Front storage ............................. 67

Underseat storage ..................... 68

Load compartment ....................... 69

Load compartment cover ........... 69

Lashing eyes ............................. 70

Cargo management system ...... 70

Safety net .................................. 72

Additional storage features .......... 74

Folding tray ................................ 74

Table ......................................... 75

Roof rack system ......................... 78

Roof rack ................................... 78

Loading information ..................... 79

Storage compartments

Warning

Do not store heavy or sharp

objects in the storage

compartments.

Glovebox

To open the glovebox pull the handle.
Some versions have a power outlet,

AUX input and the switch for the front

passenger airbag deactivation in the

storage compartment.

The glovebox should be closed whilst

driving.

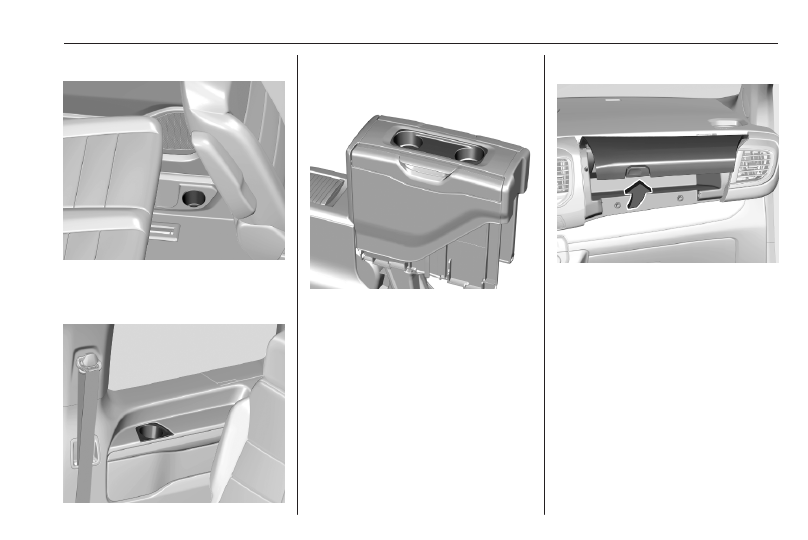

Cupholders

Front cupholder

Cup holders are located at the sides

of the instrument panel.

Storage

Load compartment

Depending on version, the load

compartment area can be increased

by folding up or removing the seats in

the second and third row.

Vehicle version with seat benches

in second and third row

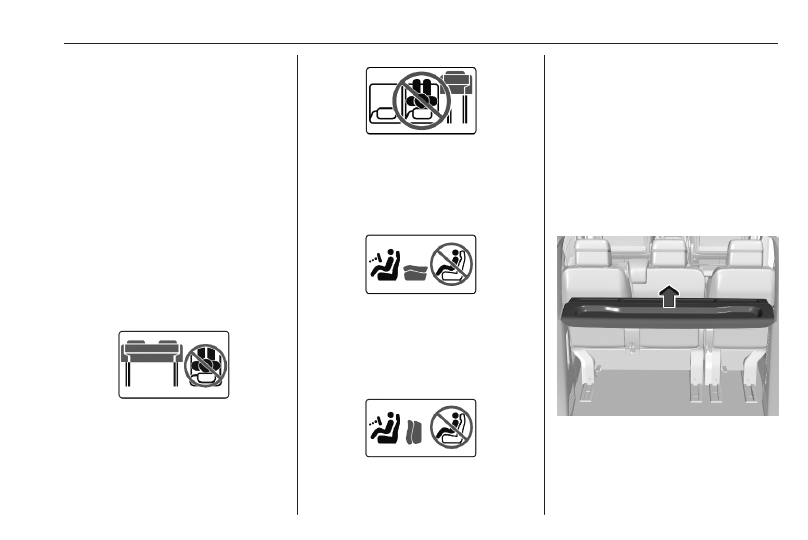

When loading the following has to be

observed:

● Only store objects on seats of the

third row folded down to the table

position, when the seats in the

second row are also folded down

to the table position.

● Bench seat in the second or third

row in the tilted position: the outer

seat must not be occupied.

● Single bench seat in the second

or third row in the tilted position:

the center seat must not be

occupied.

● Seat in the second row folded

down to the table position:

respective seat in the third row

must not be occupied.

● Seat in the second row in the

tilted position: respective seat in

the third row must not be

occupied.

Folding the passenger seat

36.

Folding or removing the rear seats

39.

Load compartment cover

Do not place any objects on the cover.

Raise the load compartment cover to

remove it.
To install the load compartment cover

insert it in the retainers on both sides.

Vauxhall Vivaro C (2023 year). Manual in english - page 2
