Introduction

Your vehicle is a designed

combination of advanced technology,

safety, environmental friendliness

and economy.
This Owner's Manual provides you

with all the necessary information to

enable you to drive your vehicle

safely and efficiently.
Some functions are only operational

when ignition is switched on, when

combustion engine is running or

when electric engine is ready.
Make sure your passengers are

aware of the possible risk of accident

and injury which may result from

improper use of the vehicle.
You must always comply with the

specific laws and regulations of the

country that you are in. These laws

may differ from the information in this

Owner's Manual.
Disregarding the description given in

this manual may affect your warranty.

When this Owner's Manual refers to a

workshop visit, we recommend your

Vauxhall Authorised Repairer.
All Vauxhall Authorised Repairers

provide first-class service at

reasonable prices. Experienced

mechanics trained by Vauxhall work

according to specific Vauxhall

instructions.
The customer literature pack should

always be kept ready to hand in the

vehicle.

Using this manual

● This manual describes all options

and features available for this

model. Certain descriptions,

including those for display and

menu functions, may not apply to

your vehicle due to model

variant, country specifications,

special equipment or

accessories.

● The table of contents at the

beginning of this manual and

within each section shows where

the information is located.

● The index will enable you to

search for specific information.

● This Owner's Manual depicts left-

hand drive vehicles. Operation is

similar for right-hand drive

vehicles.

● The Owner's Manual uses the

engine identifier code. The

corresponding sales designation

and engineering code can be

found in the section "Technical

data".

● Directional data, e.g. left or right,

or front or back, always relate to

the direction of travel.

● Displays may not support your

specific language.

● Display messages and interior

labelling are written in bold

letters.

Propulsion types

Internal combustion engine (ICE)

vehicle

ICE vehicles are propelled by an

internal combustion engine only.

CarManuals2.com

Introduction

Battery electric vehicle (BEV)

BEVs are propelled by an electric

engine only.
The high voltage battery is charged

using a charging cable and

additionally by engine braking.

Danger, Warnings and

Cautions

Danger

Text marked

Danger provides

information on risk of fatal injury.

Disregarding this information may

endanger life.

Warning

Text marked

Warning provides

information on risk of accident or

injury. Disregarding this

information may lead to injury.

Caution

Text marked Caution provides

information on possible damage to

the vehicle. Disregarding this

information may lead to vehicle

damage.

Symbols

Page references are indicated with

means "see page".

Page references and index entries

refer to the indented headings given

in the section table of content.
Thank you for choosing a Vauxhall.
We wish you many hours of

pleasurable driving.
Your Vauxhall Team

CarManuals2.com

Keys, doors and windows

Keys, doors and

windows

Keys, locks ..................................... 4

Keys ............................................ 4

Radio remote control ................... 5

Central locking system ................ 7

Automatic locking ........................ 9

Child locks ................................... 9

Doors ............................................. 9

Front doors .................................. 9

Sliding door ................................. 9

Rear doors ................................. 10

Vehicle security ............................ 12

Anti-theft locking system ........... 12

Anti-theft alarm system .............. 12

Immobiliser ................................ 13

Exterior mirrors ............................ 14

Convex shape ........................... 14

Electric adjustment .................... 14

Folding mirrors .......................... 15

Heated mirrors ........................... 15

Interior mirrors ............................. 16

Manual anti-dazzle .................... 16

Windows ...................................... 16

Windscreen ............................... 16

Power windows ......................... 17

Heated rear window .................. 17

Sun visors .................................. 17

Keys, locks

Keys

Caution

Do not attach heavy or bulky items

to the ignition key.

Danger

Never remove the key from

ignition switch during driving as

this will cause steering wheel lock.

Lock cylinders

Designed to free-wheel if they are

forcefully rotated without the correct

key or if the correct key is not fully

inserted. To reset, insert the correct

key only half way and turn cylinder

until its slot is vertical, remove key

then re-insert it. If the cylinder still

free-wheels, insert the key only half

way and turn the key through 180°

and repeat operation.

CarManuals2.com

Keys, doors and windows

Replacement keys

The key number is specified on a

detachable tag.
The key number must be quoted

when ordering replacement keys as it

is a component of the immobiliser

system.
Locks

178.

Central locking

Starting the engine

90.

Radio remote control

Mechanical key

The key locks and unlocks the doors,

the fuel filler flap and is used for the

ignition lock.

Key with foldaway key section

Press button to extend. To fold the

key, first press the button.

Radio remote control

The illustrations show different

variants of the radio remote control.

CarManuals2.com

Keys, doors and windows

: unlocks the vehicle

: unlocks the front doors

: unlocks the load compartment

: locks the vehicle

Enables operation of the following

functions:

● central locking system

● anti-theft locking system

● anti-theft alarm system

The radio remote control has a range

of up to 50 m, but may also be much

less due to external influences. The

hazard warning flashers confirm

operation.

Handle with care, protect from

moisture and high temperatures and

avoid unnecessary operation.

Replacing battery in radio remote

control

Replace the battery as soon as the

system no longer operates properly

or the range is reduced.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.

1. Extend the key.

2. Turn with a fine screwdriver the

screw from the lock to the open

position.

3. Extract the battery holder from the

housing.

4. Extract the flat battery from its

location.

5. Replace battery with a battery of

the same type. Pay attention to

the installation position.

6. Attach battery holder and turn the

screw to the lock position.

CarManuals2.com

Keys, doors and windows

Fault

If the central locking system cannot

be operated with the radio remote

control, the cause may be one of the

following:

● Fault in radio remote control.
● The battery voltage is too low.
● Interference from higher-power

radio waves from other sources.

Manual unlocking

Central locking system

Unlocks and locks doors, load

compartment and fuel filler flap.
A pull on an interior door handle

opens the respective door.

Radio remote control operation

Unlocking

Press

Locking

Close doors, load compartment and

fuel filler flap.

Press

If the vehicle is not closed properly,

the central locking system will not

work.

Keys, doors and windows

Cab

Press

to unlock.

Load compartment

Press

to unlock.

Press

to lock or unlock. The LED

illuminates when locked.

Confirmation

Operation of the central locking

system is confirmed by the hazard

warning flashers.

Central locking button

Locks or unlocks all doors, the load

compartment and fuel filler flap from

inside the passenger compartment.

Press

to lock. The LED in the button

illuminates with ignition on and

flashes with ignition off.
Press

again to unlock. The LED in

the button extinguishes.

Operation with the key

Insert key into driver's door lock to

lock or unlock the vehicle. When

vehicle battery is down or in case of a

central locking system fault, only the

driver's door is locked or unlocked.
The front passenger door can be

locked by inserting the key and

moving it upward.

CarManuals2.com

Keys, doors and windows

Operate inside handle to unlock the

passenger door.

Automatic locking

This system allows automatic locking

of the doors and tailgate as soon as

the speed of the vehicle exceeds a

certain speed.
If one of the doors or the tailgate is

open, the automatic central locking

does not take place. This is signalled

by the sound of the locks rebounding.

Child locks

Warning

Use the child locks whenever

children are occupying the rear

seats.

Move down the locking device

located at the rear edge of the door.

The door cannot be opened from the

inside.
To deactivate, move the locking

device up.

Doors

Front doors

Lock or unlock the vehicle with the

radio remote control or with the key in

the driver's door lock.
Central locking system

To open a door, pull the exterior

handle.

Sliding door

Open or close the sliding side door

only when the vehicle is at a standstill

with the parking brake applied.

CarManuals2.com

Keys, doors and windows

Lock or unlock the vehicle with the

radio remote control or with the key in

the driver's door lock.
Central locking system

Open the door from outside by pulling

the handle and sliding the door

towards the rear.

Open the door from inside by pushing

the handle and sliding the door

towards the rear.
The fully opened sliding side door is

locked. Operate handle to unlock and

slide the door towards the front.

Warning

Take care when operating the

sliding side door. Risk of injury.
Ensure that nothing becomes

trapped during operation and no-

one is standing within the moving

area.
If the vehicle is parked on a slope,

open sliding doors may move

accidentally on account of their

weight.
Close the sliding doors before

driving off.

Danger

Do not drive with the sliding side

door open or ajar, e.g. when

transporting bulky objects, since

toxic exhaust gases, which cannot

be seen or smelled, could enter

the vehicle. This can cause

unconsciousness and even death.

Side step

Warning

Take care when using the step,

particularly in wet and cold

weather conditions.

The side step operates automatically

when the sliding door is opened or

closed.

Rear doors

Lock or unlock the vehicle with the

radio remote control or with the key in

the driver's door lock.

CarManuals2.com

Keys, doors and windows

Central locking system

To open the right-hand rear door, pull

the exterior or the interior handle.

The left-hand rear door is then

released using the lever on it.

Warning

The rear lights may be obscured if

the rear doors are open and the

vehicle is parked on the roadside.
Make other road users aware of

the vehicle, by using a warning

triangle or other equipment

specified in the road traffic

regulations.

The doors are retained in the 90º

position by locking stays.

To open the doors to 180º or further

(depending on model) release locking

stays by pressing the button. Swing

doors open to the desired position.
When opening the doors to 270º, the

doors are retained in the fully open

position by magnets on the body side.

Warning

Ensure extended opening doors

are secured when fully opened.
Opened doors may slam due to

the force of the wind.

Always close the left-hand door

before the right-hand door.

Danger

Do not drive with the rear doors

open or ajar, e.g. when

transporting bulky objects, since

toxic exhaust gases, which cannot

be seen or smelled, could enter

the vehicle. This can cause

unconsciousness and even death.

Rear step

Warning

Take care when using the step,

particularly in wet and cold

weather conditions.

Slide out the rear step when needed,

slide in when not in use.

CarManuals2.com

Keys, doors and windows

Vehicle security

Anti-theft locking system

Warning

Do not use the system if there are

people in the vehicle. The doors

cannot be unlocked from the

inside.

The system deadlocks all the doors.

All doors must be closed otherwise

the system cannot be activated.
Unlocking the vehicle disables the

mechanical anti-theft locking system.

This is not possible with the central

locking button.

Activating

Press

on the radio remote control

twice within three seconds.
Activation is confirmed by three times

flashing of the hazard warning

flashers and the LED in the central

locking button in the passenger

compartment.

Anti-theft alarm system

The anti-theft alarm system monitors:

● doors, bonnet
● vehicle inclination, e.g. if it is

raised

● ignition

Activation

All doors, the load compartment and

the engine compartment must be

closed.

Press

on the radio remote control.

Indication

An acoustic signal indicates if the

anti-theft alarm system is activated.

Deactivation

Unlocking the vehicle deactivates the

anti-theft alarm system.

CarManuals2.com

Keys, doors and windows

The system is not deactivated by

unlocking the front door with the key

or with the central locking button in

the passenger compartment.

Alarm

When triggered, the alarm siren

sounds and the hazard warning lights

flash simultaneously. The number

and duration of alarm signals are

stipulated by legislation.
The anti-theft alarm can be

deactivated by pressing

switching on the ignition.
A triggered alarm, which has not been

interrupted by the driver, will be

indicated by illuminating

for about

ten seconds when the ignition is

switched on.

Fault

If another acoustic signal is given

after activation with properly closed

doors and bonnet, seek the

assistance of a workshop.

Locking the vehicle without

activation of the anti-theft alarm

Lock the vehicle by locking the front

door with the key.

Immobiliser

Notice

The immobiliser does not lock the

doors. Always lock the vehicle after

leaving it

Switch on the anti-theft alarm

system

12.

Key-integrated immobiliser

The system is part of the ignition

switch and checks whether the

vehicle is allowed to be started with

the key being used.
The immobiliser is activated

automatically.

Notice

Radio Frequency Identification

(RFID) tags may cause interference

with the key. Do not have it placed

near the key when starting the

vehicle.

Immobiliser with separate

transponder

The system prevents unauthorised

starting of the vehicle.
The immobiliser is activated

automatically when the transponder

is out of the detection range. The

transponder has a range of up to

5 m.
The immobiliser is deactivated

automatically when the transponder

is detected.

CarManuals2.com

Keys, doors and windows

The rear view mirror display shows

RESTART when the transponder is

not detected during vehicle start.

Restart the vehicle when the

transponder is detected.
In case the transponder is moved out

of the detection range while the

engine is running, the immobiliser is

only activated when the ignition key is

removed from the ignition switch.
Rear view mirror display

99.

Status LED

Flashes red: the system is active.

LED is off: the transponder is

detected and the vehicle can be

started.

Exterior mirrors

Convex shape

The shape of the mirror makes

objects appear smaller, which will

affect the ability to estimate

distances.
Side blind spot alert

118.

Electric adjustment

Select the relevant exterior mirror.
No mirror is selected when the control

is in the centre position.

CarManuals2.com

Keys, doors and windows

Then swivel the control to adjust the

mirror.

Folding mirrors

For pedestrian safety, the exterior

mirrors will swing out of their normal

mounting position if they are struck

with sufficient force. Reposition the

mirror by applying slight pressure to

the mirror housing.

Electric folding

Push

. Both exterior mirrors are

folded.
Push

. Both exterior mirrors return

to their original position.
An electrically folded mirror should be

only unfolded electrically. To unfold

manually folded mirrors, push

until a click sound is heard and then

push

Heated mirrors

Operated by pressing

Heating is switched off automatically

after a short time.
Heated rear window

17.

CarManuals2.com

Keys, doors and windows

Interior mirrors

To adjust the mirror, move the mirror

housing in the desired direction.

Manual anti-dazzle

To reduce dazzle, adjust the lever on

the underside of the mirror housing.

Windows

Windscreen

Windscreen stickers

Do not attach stickers such as toll

road stickers or similar on the

windscreen in the area of the interior

mirror. Otherwise the detection zone

of the sensor and the view area of the

camera in the mirror housing could be

restricted.

Windscreen replacement

Caution

If the vehicle has a front-looking

camera sensor for the driver

assistance systems, it is very

important that any windscreen

replacement is performed

accurately according to Vauxhall

specifications. Otherwise, these

systems may not work properly

and there is a risk of unexpected

behaviour and / or messages from

these systems.

CarManuals2.com

Keys, doors and windows

Power windows

Warning

Take care when operating the

power windows. Risk of injury,

particularly to children.
Keep a close watch on the

windows when closing them.

Ensure that nothing becomes

trapped in them as they move.

Operate the switch for the respective

window by pushing to open or pulling

to close.

Pushing for longer than approx. half a

second starts the automatic opening

operation. To stop movement, push

the switch again.

Heated rear window

Operated by pressing

Heating is switched off automatically

after a short time.
Heated mirrors

15.

Sun visors

The sun visors can be folded down or

swivelled to the side to prevent

dazzling.

If the sun visors have integral mirrors,

the mirror covers should be closed

when driving.
A ticket holder is located on the

backside of the sun visor.

CarManuals2.com

Seats, restraints

Head restraints ............................ 18
Front seats ................................... 19

Seat position .............................. 19

Seat adjustment ........................ 19

Armrest ...................................... 22

Heating ...................................... 22

Seat belts ..................................... 22

Three-point seat belt ................. 23

Airbag system .............................. 25

Front airbag system ................... 28

Side airbag system .................... 29

Curtain airbag system ............... 29

Airbag deactivation .................... 29

Child restraints ............................. 30

Child restraint systems .............. 30

Child restraint installation

locations ................................... 34

Head restraints

Position

Warning

Only drive with the head restraint

set to the proper position.

The upper edge of the head restraint

should be at upper head level. If this

is not possible for extremely tall

people, set to highest position, and

set to lowest position for small people.

Adjustment

Pull the head restraint upwards or

press the catch to release and push

the head restraint downwards.

Removal

Press both catches and pull the head

restraint upwards to remove.

CarManuals2.com

Seats, restraints

Front seats

Seat position

Warning

Only drive with the seat correctly

adjusted.

Danger

Do not sit closer than 25 cm to the

steering wheel, to permit safe

airbag deployment.

Warning

Never adjust seats while driving as

they could move uncontrollably.

Warning

Never store any loose objects

under the seats.
Underseat storage, storage box

37.

● Sit with buttocks as far back

against the backrest as possible.

Adjust the distance between the

seat and the pedals so that legs

are slightly angled when pressing

the pedals. Slide the front

passenger seat as far back as

possible.

● Set seat height high enough to

have a clear field of vision on all

sides and of all display

instruments. There should be at

least one hand of clearance

between head and the roof

frame. Thighs should rest lightly

on the seat without pressing into

it.

● Sit with shoulders as far back

against the backrest as possible.

Set the backrest rake so that it is

possible to reach the steering

wheel with arms slightly bent.

Maintain contact between

shoulders and the backrest when

turning the steering wheel. Do

not angle the backrest too far

back. We recommend a

maximum rake of approx. 25°.

● Adjust seat and steering wheel in

a way that the wrist rests on top

of the steering wheel while the

arm is fully extended and

shoulders on the backrest.

● Adjust the steering wheel

46.

● Adjust the head restraint

18.

● Adjust the height of the seat belt

23.

● Adjust the lumbar support so that

it supports the natural shape of

the spine

19.

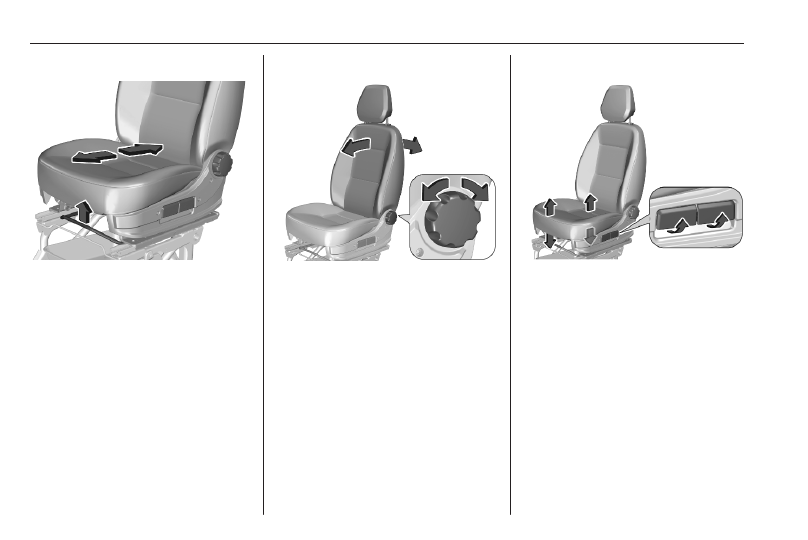

Seat adjustment

Drive only with engaged seats and

backrests.

CarManuals2.com

Seats, restraints

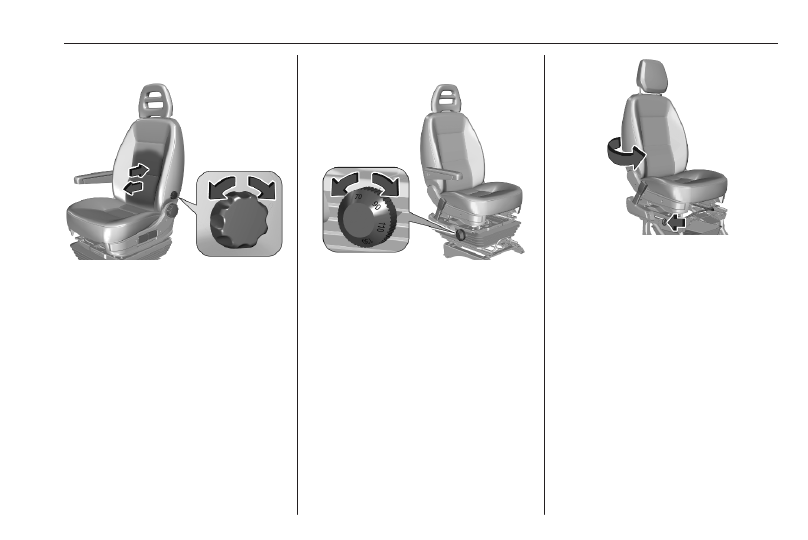

Lumbar support

Adjust lumbar support to suit personal

requirements.
Increasing and decreasing support:

turn the handwheel while relieving the

load on the backrest.

Suspension seat sensitivity

Rotate knob to adjust the sensitivity of

the suspension seat to the driver's

weight.

Swivelling the seat

The seat can be swivelled up to 180°

from the forward-facing position.
Before swivelling the seat, slide seat

forth. Slide the seat only in the

forward-facing position.

Press the control and swivel seat.
Always return the seat to the forward-

facing position before driving and

ensure the seat is locked in place

before starting off.

CarManuals2.com

Seats, restraints

Armrest

Armrests can be folded up when not

required.
Operate the wheel to adjust the lower

position.

Heating

Press button to switch on or off.
Prolonged use for people with

sensitive skin is not recommended.

Seat belts

The seat belts are locked during

heavy acceleration or deceleration of

the vehicle, holding the occupants in

the seat position. Therefore the risk of

injury is considerably reduced.

Warning

Fasten seat belt before each trip.
In the event of an accident, people

not wearing seat belts endanger

their fellow occupants and

themselves.

CarManuals2.com

Seats, restraints

Seat belts are designed to be used by

only one person at a time.
Child restraint system

30.

Periodically check all parts of the belt

system for damage, soiling and

proper functionality.
Have damaged components

replaced. After an accident, have the

seat belts and triggered belt

pretensioners replaced by a

workshop.

Notice

Make sure that the belts are not

damaged by shoes or sharp-edged

objects or are trapped. Prevent dirt

from getting into the belt retractors.
Notice

Use the belt buckle intended for the

respective seat belt when fastening

in order to ensure proper

functionality.

Seat belt reminder

Each seat is equipped with a seat belt

reminder, indicated by a control

indicator

for the respective seat

55.

Belt force limiters

On the front seats, stress on the body

is reduced by the gradual release of

the belt during a collision.

Belt pretensioners

In the event of a head-on or side-on

collision of a certain severity, the front

seat belts are tightened.

Warning

Incorrect handling (e.g. removal or

fitting of belts) can trigger the belt

pretensioners.

Deployment of the belt pretensioners

is indicated by continuous illumination

of control indicator

55.

Triggered belt pretensioners must be

replaced by a workshop. Belt

pretensioners can only be triggered

once.

Notice

Do not affix or install accessories or

other objects that may interfere with

the operation of the belt

pretensioners. Do not make any

modifications to belt pretensioner

components as this will invalidate

the operating permit of your vehicle.

Three-point seat belt

Fasten

Withdraw the seat belt from the

retractor, guide it untwisted across

the body and insert the latch plate into

the buckle. Make sure the seat belt

lies across the shoulder and fits tightly

to the body while driving.

CarManuals2.com

Seats, restraints

Loose or bulky clothing prevents the

belt from fitting snugly. Do not place

objects such as handbags or mobile

phones between the belt and your

body.

Warning

The seat belt must not rest against

hard or fragile objects in the

pockets of your clothing.

Seat belt reminder

55.

Height adjustment

Press the button to disengage and

adjust the seat belt height.

Adjust the height so that the belt lies

across the shoulder. It must not lie

across the throat or upper arm.
Do not adjust while driving.

Unfasten

To release seat belt, press red button

on seat belt buckle and guide the seat

belt back.

CarManuals2.com

Seats, restraints

Using seat belts while pregnant

Warning

The lap belt must be positioned as

low as possible across the pelvis

to prevent pressure on the

abdomen.

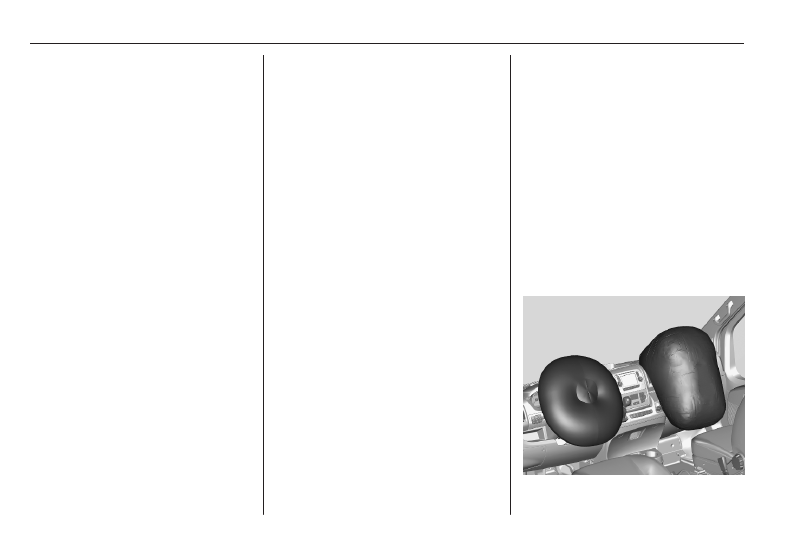

Airbag system

The airbag system consists of a

number of individual systems

depending on the scope of

equipment.
When triggered, the airbags inflate

within milliseconds. They also deflate

so quickly that it is often unnoticeable

during the collision.

Warning

The airbag system deploys in an

explosive manner, repairs must be

performed by skilled personnel

only.

Warning

Adding accessories that change

the vehicle's frame, bumper

system, height, front end or side

sheet metal, may keep the airbag

system from working properly. The

operation of the airbag system can

also be affected by changing any

parts of the front seats, seat belts,

airbag sensing and diagnostic

module, steering wheel,

instrument panel, inner door seals

including the speakers, any of the

airbag modules, ceiling or pillar

trim, front sensors, side impact

sensors or airbag wiring.

Warning

Keep the area in which the airbag

inflates clear of obstructions.

Notice

The airbag systems and belt

pretensioner control electronics are

located in the centre console area.

Do not put any magnetic objects in

this area.
Do not affix any objects onto the

airbag covers and do not cover them

with other materials. Have damaged

covers replaced by a workshop.
Each airbag is triggered only once.

Have deployed airbags replaced by

a workshop. Furthermore, it may be

necessary to have the steering

CarManuals2.com

Seats, restraints

wheel, the instrument panel, parts of

the panelling, the door seals,

handles and the seats replaced.
Do not make any modifications to

the airbag system as this will

invalidate the vehicle operating

permit.

Control indicator

for airbag systems

55.

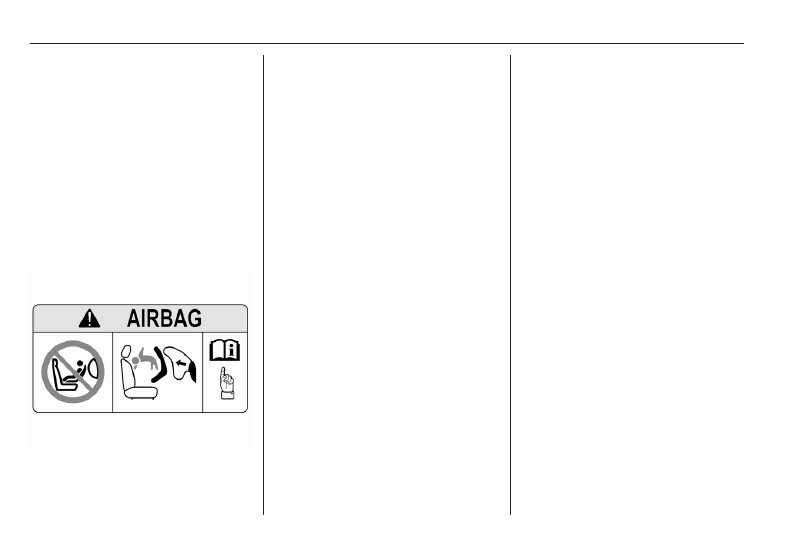

Child restraint systems on front

passenger seat with airbag

systems

EN: NEVER use a rearward-facing

child restraint on a seat protected by

an ACTIVE AIRBAG in front of it;

DEATH or SERIOUS INJURY to the

CHILD can occur.
DE: Nach hinten gerichtete

Kindersitze NIEMALS auf einem Sitz

verwenden, der durch einen davor

befindlichen AKTIVEN AIRBAG

geschützt ist, da dies den TOD oder

SCHWERE VERLETZUNGEN DES

KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège

d'enfant orienté vers l'arrière sur un

siège protégé par un COUSSIN

GONFLABLE ACTIF placé devant lui,

sous peine d'infliger des

BLESSURES GRAVES, voire

MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de

retención infantil orientado hacia

atrás en un asiento protegido por un

AIRBAG FRONTAL ACTIVO. Peligro

de MUERTE o LESIONES GRAVES

para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ

устанавливать детское

удерживающее устройство лицом

назад на сиденье автомобиля,

оборудованном фронтальной

подушкой безопасности, если

ПОДУШКА НЕ ОТКЛЮЧЕНА! Это

может привести к СМЕРТИ или

СЕРЬЕЗНЫМ ТРАВМАМ

РЕБЕНКА.
NL: Gebruik NOOIT een achterwaarts

gericht kinderzitje op een stoel met

een ACTIEVE AIRBAG ervoor, om

DODELIJK of ERNSTIG LETSEL van

het KIND te voorkomen.
DA: Brug ALDRIG en bagudvendt

autostol på et forsæde med AKTIV

AIRBAG, BARNET kan komme i

LIVSFARE eller komme ALVORLIGT

TIL SKADE.
SV: Använd ALDRIG en bakåtvänd

barnstol på ett säte som skyddas med

en framförvarande AKTIV AIRBAG.

DÖDSFALL eller ALLVARLIGA

SKADOR kan drabba BARNET.
FI: ÄLÄ KOSKAAN sijoita taaksepäin

suunnattua lasten turvaistuinta

istuimelle, jonka edessä on

AKTIIVINEN TURVATYYNY, LAPSI

VOI KUOLLA tai VAMMAUTUA

VAKAVASTI.

CarManuals2.com

Seats, restraints

NO: Bakovervendt

barnesikringsutstyr må ALDRI brukes

på et sete med AKTIV

KOLLISJONSPUTE foran, da det kan

føre til at BARNET utsettes for

LIVSFARE og fare for ALVORLIGE

SKADER.
PT: NUNCA use um sistema de

retenção para crianças voltado para

trás num banco protegido com um

AIRBAG ACTIVO na frente do

mesmo, poderá ocorrer a PERDA DE

VIDA ou FERIMENTOS GRAVES na

CRIANÇA.
IT: Non usare mai un sistema di

sicurezza per bambini rivolto

all'indietro su un sedile protetto da

AIRBAG ATTIVO di fronte ad esso:

pericolo di MORTE o LESIONI

GRAVI per il BAMBINO!
EL: ΠΟΤΕ μη χρησιμοποιείτε παιδικό

κάθισμα ασφαλείας με φορά προς τα

πίσω σε κάθισμα που προστατεύεται

από μετωπικό ΕΝΕΡΓΟ ΑΕΡΟΣΑΚΟ,

διότι το παιδί μπορεί να υποστεί

ΘΑΝΑΣΙΜΟ ή ΣΟΒΑΡΟ

ΤΡΑΥΜΑΤΙΣΜΟ.

PL: NIE WOLNO montować fotelika

dziecięcego zwróconego tyłem do

kierunku jazdy na fotelu, przed

którym znajduje się WŁĄCZONA

PODUSZKA POWIETRZNA.

Niezastosowanie się do tego

zalecenia może być przyczyną

ŚMIERCI lub POWAŻNYCH

OBRAŻEŃ u DZIECKA.
TR: Arkaya bakan bir çocuk emniyet

sistemini KESİNLİKLE önünde bir

AKTİF HAVA YASTIĞI ile

korunmakta olan bir koltukta

kullanmayınız. ÇOCUK ÖLEBİLİR

veya AĞIR ŞEKİLDE

YARALANABİLİR.
UK: НІКОЛИ не використовуйте

систему безпеки для дітей, що

встановлюється обличчям назад,

на сидінні з УВІМКНЕНОЮ

ПОДУШКОЮ БЕЗПЕКИ, інакше це

може призвести до СМЕРТІ чи

СЕРЙОЗНОГО ТРАВМУВАННЯ

ДИТИНИ.
HU: SOHA ne használjon hátrafelé

néző biztonsági gyerekülést előlről

AKTÍV LÉGZSÁKKAL védett ülésen,

mert a GYERMEK HALÁLÁT vagy

KOMOLY SÉRÜLÉSÉT okozhatja.

HR: NIKADA nemojte koristiti sustav

zadržavanja za djecu okrenut prema

natrag na sjedalu s AKTIVNIM

ZRAČNIM JASTUKOM ispred njega,

to bi moglo dovesti do SMRTI ili

OZBILJNJIH OZLJEDA za DIJETE.
SL: NIKOLI ne nameščajte otroškega

varnostnega sedeža, obrnjenega v

nasprotni smeri vožnje, na sedež z

AKTIVNO ČELNO ZRAČNO

BLAZINO, saj pri tem obstaja

nevarnost RESNIH ali SMRTNIH

POŠKODB za OTROKA.
SR: NIKADA ne koristiti bezbednosni

sistem za decu u kome su deca

okrenuta unazad na sedištu sa

AKTIVNIM VAZDUŠNIM

JASTUKOM ispred sedišta zato što

DETE može da NASTRADA ili da se

TEŠKO POVREDI.
MK: НИКОГАШ не користете детско

седиште свртено наназад на

седиште заштитено со АКТИВНО

ВОЗДУШНО ПЕРНИЧЕ пред него,

затоа што детето може ДА ЗАГИНЕ

или да биде ТЕШКО ПОВРЕДЕНО.
BG: НИКОГА не използвайте

детска седалка, гледаща назад,

върху седалка, която е защитена

CarManuals2.com

Seats, restraints

чрез АКТИВНА ВЪЗДУШНА

ВЪЗГЛАВНИЦА пред нея - може да

се стигне до СМЪРТ или

СЕРИОЗНО НАРАНЯВАНЕ на

ДЕТЕТО.
RO: Nu utilizaţi NICIODATĂ un scaun

pentru copil îndreptat spre partea din

spate a maşinii pe un scaun protejat

de un AIRBAG ACTIV în faţa sa;

acest lucru poate duce la DECESUL

sau VĂTĂMAREA GRAVĂ a

COPILULUI.
CS: NIKDY nepoužívejte dětský

zádržný systém instalovaný proti

směru jízdy na sedadle, které je

chráněno před sedadlem AKTIVNÍM

AIRBAGEM. Mohlo by dojít k

VÁŽNÉMU PORANĚNÍ nebo ÚMRTÍ

DÍTĚTE.
SK: NIKDY nepoužívajte detskú

sedačku otočenú vzad na sedadle

chránenom AKTÍVNYM AIRBAGOM,

pretože môže dôjsť k SMRTI alebo

VÁŽNYM ZRANENIAM DIEŤAŤA.
LT: JOKIU BŪDU nemontuokite atgal

atgręžtos vaiko tvirtinimo sistemos

sėdynėje, prieš kurią įrengta AKTYVI

ORO PAGALVĖ, nes VAIKAS GALI

ŽŪTI arba RIMTAI SUSIŽALOTI.

LV: NEKĀDĀ GADĪJUMĀ

neizmantojiet uz aizmuguri vērstu

bērnu sēdeklīti sēdvietā, kas tiek

aizsargāta ar tās priekšā uzstādītu

AKTĪVU DROŠĪBAS SPILVENU, jo

pretējā gadījumā BĒRNS var gūt

SMAGAS TRAUMAS vai IET BOJĀ.
ET: ÄRGE kasutage tahapoole

suunatud lapseturvaistet istmel, mille

ees on AKTIIVSE TURVAPADJAGA

kaitstud iste, sest see võib

põhjustada LAPSE SURMA või

TÕSISE VIGASTUSE.
MT: QATT tuża trażżin għat-tfal li

jħares lejn in-naħa ta’ wara fuq sit

protett b’AIRBAG ATTIV quddiemu;

dan jista’ jikkawża l-MEWT jew

ĠRIEĦI SERJI lit-TFAL.
GA: Ná húsáid srian sábháilteachta

linbh cúil RIAMH ar shuíochán a

bhfuil mála aeir ag feidhmiú os a

chomhair. Tá baol BÁIS nó GORTÚ

DONA don PHÁISTE ag baint leis.
Additionally, for safety reasons a

forward-facing child restraint system

must only be used subject to the

instructions and restrictions in the

table

34.

The airbag label is located on both

sides of the front passenger sun visor.
Airbag deactivation

29.

Front airbag system

The front airbag system consists of

one airbag in the steering wheel and

one in the instrument panel on the

front passenger side. These can be

identified by the word AIRBAG.
The front airbag system is triggered in

the event of a front-end impact of a

certain severity. The ignition must be

switched on.

CarManuals2.com

Seats, restraints

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and head of

the front seat occupants

considerably.

Warning

Optimum protection is only

provided when the seat is in the

proper position.
Seat position

19.

Fasten the seat belt correctly and

engage securely. Only then is the

airbag able to protect.

Side airbag system

The side airbag system consists of

airbags in the outer front seat

backrests. This can be identified by

the word AIRBAG.
The side airbag system is triggered in

the event of a side impact of a certain

severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and pelvis in

the event of a side-on collision

considerably.

Notice

Only use protective seat covers that

have been approved for the vehicle.

Be careful not to cover the airbags.

Curtain airbag system

The curtain airbag system consists of

an airbag in the roof frame on each

side. This can be identified by the

word AIRBAG on the roof pillars.

The curtain airbag system is triggered

in the event of a side-on impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the head in the event of a

side-on impact considerably.

Airbag deactivation

The front passenger airbag system

must be deactivated for child restraint

system on the passenger seat

according to the instructions in the

table

34.

CarManuals2.com

Seats, restraints

The curtain airbag system, the belt

pretensioners and all driver airbag

systems will remain active.
The front passenger airbag system

can be deactivated via the Driver

Information Centre.
Depending on version, it can also be

deactivated via the Info Display.
OFF : front passenger airbag is

deactivated and will not inflate

in the event of a collision.

ON : front passenger airbag is

active.

Danger

Deactivate passenger airbag only

in combination with the use of a

child restraint system, subject to

the instructions and restrictions in

the table

34.

Otherwise, there is a risk of fatal

injury for a person occupying a

seat with a deactivated front

passenger airbag.

If the control indicator

illuminates

approx. eight seconds after the

ignition is switched on, the front

passenger airbag system is

deactivated. It stays on while the

airbag is deactivated. During the first

eight seconds the LED will illuminate

as a functionality test.
Status remains until the next change.
Driver Information Centre

60.

Child restraints

Child restraint systems

Danger

Make sure that children below

sufficient size and weight are

protected using a suitable child

restraint system. Never place a

child on the lap.

Danger

If using a rear-facing child restraint

system on the front passenger

seat, the airbag system for the

front passenger seat must be

deactivated. This also applies to

certain forward-facing child

restraint systems as indicated in

the tables

34.

Airbag deactivation

29.

Airbag label

25.

We recommend a child restraint

system which is tailored specifically to

the vehicle.

CarManuals2.com

Seats, restraints

In case of any interference of the child

restraint system with vehicle seat

head restraint, adjust or remove the

corresponding head restraint

18.

When a child restraint system is being

used, pay attention to the following

usage and installation instructions

and also those supplied with the child

restraint system. The given

restrictions in the table refer to a test

body, which is the maximum

envelope of all existing child restraint

systems. Make sure that the seats do

not interfere with the used child

restraint system.
Always comply with local or national

regulations. In some countries, the

use of child restraint systems is

forbidden on certain seats.
Only drive with the driver seat

correctly adjusted

19.

Child restraint systems can be

fastened with:

● Three-point seat belt
● ISOFIX brackets
● Top-tether

Three-point seat belt

Child restraint systems can be

fastened by using a three-point seat

belt. After fastening the child restraint

system the seat belt has to be

tightened.

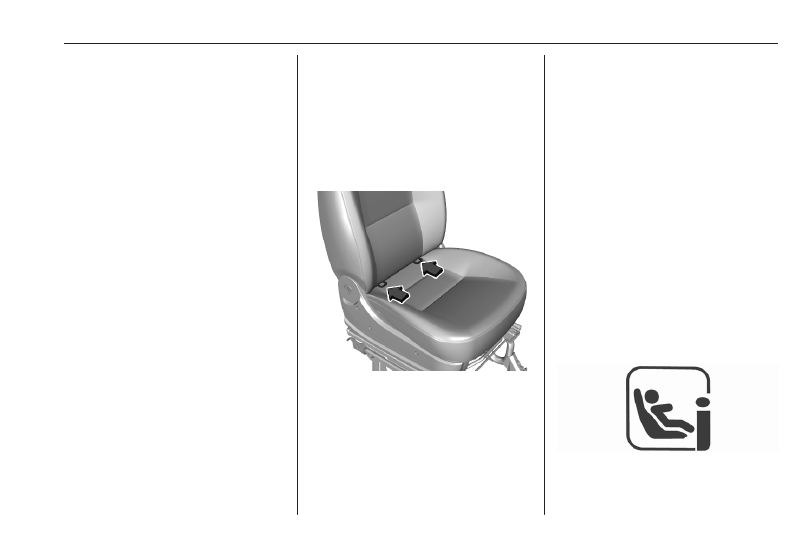

ISOFIX brackets

Fasten vehicle-approved ISOFIX

child restraint systems to the ISOFIX

brackets. Specific vehicle ISOFIX

child restraint system positions are

marked in the table

34.

ISOFIX brackets are indicated by a

label on the backrest.

When fastening ISOFIX child restraint

systems on adjustable passenger

seats, such as the front passenger

seat, first incline the backrest as far as

necessary backwards in order to get

access to the ISOFIX brackets. After

the proper fastening of the ISOFIX

child restraint system, incline the

backrest forward again.
An i-Size child restraint system is an

universal ISOFIX child restraint

system according UN Regulation No.

129.
All i-Size child restraint systems can

be used on any vehicle seat suitable

for i-Size, table

34.

Either a Top-tether strap or a support

leg must be used in addition to the

ISOFIX brackets.

i-Size child seats and vehicle seats

with i-Size approval are marked with

i-Size symbol, see illustration.

CarManuals2.com

Seats, restraints

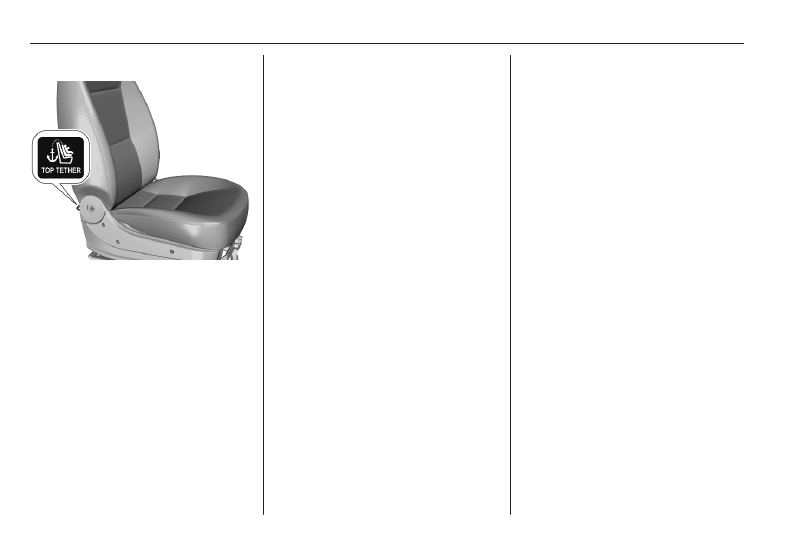

Top-tether anchors

Top-tether anchors are marked with

the symbol

for a child seat.

In addition to the ISOFIX brackets,

fasten the Top-tether strap to the

Top-tether anchors.
ISOFIX child restraint systems of

universal category positions are

marked in the table by IUF

34.

Selecting the right system

The rear seats are the most

convenient location to fasten a child

restraint system.

Children should travel facing

rearwards in the vehicle as long as

possible. This makes sure that the

child's backbone, which is still very

weak, is under less strain in the event

of an accident. Do not use forward

facing child restraint system at all

seats when child's weight is below 13

kg.
Suitable are child restraint systems

that comply with valid UN ECE

regulations. Check local laws and

regulations for mandatory use of child

restraint systems.
The following child restraints are

recommended for the following

weight classes:

● Group 0+:

Römer Baby-Safe Plus installed

in the rearward facing position

with or without ISOFIX base for

children up to 13 kg

● Group I:

RÖMER Duo Plus ISOFIX with or

without ISOFIX and Top-tether

for children from 9 kg to 18 kg

● Group II, Group III:

Römer Kidfix XP /

Römer Kidfix 2R with or without

ISOFIX for children from 15 kg to

36 kg,
Graco Booster for children from

15 kg to 36 kg.

Ensure that the child restraint system

to be installed is compatible with the

vehicle type.
Child seat at the single passenger

seat: Adjust the front passenger seat

to the highest and fully back

longitudinal position with the backrest

straightened.
Do not use forward facing child

restraints system when child's weight

is below 13 kg at all seats.
Follow child restraint manufacturer's

instructions to install corresponding

child restraints in vehicle.
For semi-universal or vehicle specific

child restraint system (ISOFIX or

belted child restraint system), see the

vehicle list provided in the user

manual of the child restraint system.
Ensure that the mounting location of

the child restraint system within the

vehicle is correct, see following table.

CarManuals2.com

Vauxhall Movano C (2023 year). Manual in english - page 1
