Vauxhall Mokka B (2023 year). Manual in english

Instruments and controls

fastened. The front passenger

seat is only displayed when

occupied.

● After driving off,

in the

instrument cluster and the

symbol for the respective seat in

the overhead console flash for a

certain time together with a

chime. After a certain time of

driving

illuminates constantly

until the seat belt of the

respective seat has been

fastened or if any passenger has

unfastened the seat belt.

Seat belts

30.

Airbag and belt tensioners

illuminates red.

When the ignition is switched on, the

control indicator illuminates for some

seconds. If it does not illuminate,

does not extinguish after some

seconds or illuminates whilst driving,

there is a fault in the airbag system.

Seek the assistance of a workshop.

The airbags and belt pretensioners

may fail to trigger in the event of an

accident.

Deployment of the belt pretensioners

or airbags is indicated by continuous

illumination of

Warning

Have the cause of the fault

remedied immediately by a

workshop.

Belt pretensioners

30.

Airbag system

33.

Airbag deactivation

illuminates yellow.

The front passenger airbag is

activated.

illuminates yellow.

The front passenger airbag is

deactivated.
Airbag deactivation

38.

Charging system

illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Stop, switch off engine. Vehicle

battery is not charging. Engine

cooling may be interrupted. The

brake servo unit may cease to be

effective. Seek the assistance of a

workshop.

Malfunction indicator light

illuminates or flashes yellow.

Instruments and controls

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Fault in the emission control system.

The permitted emission limits may be

exceeded. Seek the assistance of a

workshop immediately.

Flashes when the engine is

running

Fault that could lead to catalytic

converter damage. Ease up on the

accelerator until the flashing stops.

Seek the assistance of a workshop

immediately.

Service vehicle soon

illuminates yellow.

Illuminates briefly when the ignition is

switched on.
May illuminate together with other

control indicators and a

corresponding message in the Driver

Information Centre.

Seek the assistance of a workshop

immediately.

Illuminates permanently when the

ignition is switched on.
A fault of the electric engine or the

high voltage battery has been

detected.
Seek the assistance of a workshop

immediately.

Stop engine

illuminates red.

Illuminates briefly when the ignition is

switched on.
Illuminates together with other control

indicators, accompanied by a warning

chime and a corresponding message

in the Driver Information Centre.
Stop engine immediately and seek

the assistance of a workshop.

System check

illuminates yellow or red.

Illuminates yellow

A minor engine fault has been

detected.

Illuminates red

A major engine fault has been

detected.
Stop engine as soon as possible and

seek the assistance of a workshop.

Brake and clutch system

illuminates red.

The brake and clutch fluid level is too

low.

Warning

Stop. Do not continue your

journey. Consult a workshop.

Brake fluid

254.

Parking brake

illuminates or flashes red.

Instruments and controls

Illuminates

Parking brake is applied

183.

Flashes

Electric parking brake is not applied

automatically. The application or the

release are faulty.

Warning

Have the cause of the fault

remedied immediately by a

workshop.

Electric parking brake fault

illuminates yellow.

Illuminates

Electric parking brake has a fault

183.

Warning

Have the cause of the fault

remedied immediately by a

workshop.

Automatic operation of

electric parking brake off

illuminates yellow.

Illuminates

Automatic operation is deactivated or

faulty. In the event of a fault,

illuminates together with other control

indicators or it is accompanied by a

corresponding message in the Driver

Information Centre.
Activate automatic operation again or

have the cause remedied by a

workshop in the event of a fault.
Automatic operation

183.

Antilock brake system

(ABS)

illuminates yellow.

Illuminates for a few seconds after the

ignition is switched on. The system is

ready for operation when the control

indicator extinguishes.
If the control indicator does not

extinguish after a few seconds, or if it

illuminates while driving, there is a

fault in the ABS. The brake system

remains operational but without ABS

regulation.
Antilock brake system

182.

Gear shifting

with the number of a higher

or lower gear is indicated, when

upshifting or downshifting is

recommended for fuel saving

reasons.
On vehicles with automatic

transmission, the system is only

active in manual mode.
Automatic transmission

177.

Lane keep assist

illuminates or flashes yellow.

Illuminates yellow

A fault has been detected.

Flashes yellow

The system is correcting the

unintended lane change.
Lane keep assist

224.

Instruments and controls

Advanced lane keep assist

illuminates grey, green or yellow.

Illuminates grey

The system is paused. At least one

system limitation has been detected.

Illuminates green

The system is active and ready to

operate.

Illuminates yellow

The system has a fault.
Advanced lane keep assist

226.

Parking assist

flashes yellow as soon as an

obstacle gets closer to the vehicle.
Parking assist

205

Electronic Stability Control

and Traction Control system

illuminates or flashes yellow.

Illuminates

A fault in the system is present.

Continued driving is possible. Driving

stability, however, may deteriorate

depending on road surface

conditions.
Have the cause of the fault remedied

by a workshop.
After reconnecting the vehicle

battery, (e.g. after maintenance

work),

is illuminated for several

seconds. After this time period,

extinguishes. This is a normal

procedure, the vehicle does not need

any assistance.

Flashes

The system is actively engaged.

Engine output may be reduced and

the vehicle may be braked

automatically to a small degree.
Electronic Stability Control and

Traction Control system

186.

Engine coolant temperature

illuminates red.

Illuminates red when the engine is

running

Stop, switch off engine.

Caution

Coolant temperature too high.

Check coolant level immediately

253.

If there is sufficient coolant, consult a

workshop.

Preheating

illuminates yellow.

Preheating of diesel engine is

activated. Only activates when

outside temperature is low. Start the

engine when control indicator

extinguishes.
Starting the engine

166.

Exhaust filter

illuminates yellow.

The exhaust filter requires cleaning.

Instruments and controls

Continue driving until the control

indicator extinguishes.

Illuminates temporarily

Start of saturation of the exhaust filter.

Start cleaning process as soon as

possible by driving at a vehicle speed

of at least 40 mph.

Illuminates constantly

Indication of a low additive level. Seek

the assistance of a workshop.
Exhaust filter

171.

AdBlue

flashes or illuminates yellow.

Illuminates yellow

The remaining driving range is

between 500 miles and 1500 miles.

Flashes yellow

The remaining driving range is

between 0 and 500 miles.
AdBlue level is low. Refill AdBlue

soon to avoid prevention of the

engine start.

AdBlue

172.

Deflation detection system

illuminates or flashes yellow.

Illuminates

Tyre pressure loss in one or more

wheels. Stop immediately and check

tyre pressure.

Flashes

Fault in system. Consult a workshop.
Deflation detection system

263.

Engine oil pressure

illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Caution

Engine lubrication may be

interrupted. This may result in

damage to the engine and / or

locking of the drive wheels.

1. Select neutral gear.
2. Move out of the flow of traffic as

quickly as possible without

impeding other vehicles.

3. Switch off ignition.

Instruments and controls

Warning

When the engine is off,

considerably more force is needed

to brake and steer. During an

Autostop the brake servo unit will

still be operational.
Do not remove key until vehicle is

stationary, otherwise the steering

wheel lock could engage

unexpectedly.

Keep engine turned off and let the

vehicle be towed to a workshop.

Low fuel

illuminates yellow.

Level in fuel tank is too low.
Refuelling

241.

Bleeding the diesel fuel system

257.

Charging cable connected

illuminates red.

The vehicle plug of the charging cable

is still connected to the charge port.

The vehicle cannot be started.
Disconnect the vehicle plug from the

charge port and close the charge port

flap.
Charging

232.

Vehicle ready

READY illuminates green. The

vehicle is ready to be driven.

Reduced engine power

illuminates yellow.

The charging level of the high voltage

battery is low. Only reduced engine

power is available.

High voltage battery

temperature high

illuminates red.

Illuminates briefly when the ignition is

switched on.

Illuminates together with other control

indicators, accompanied by a warning

chime and a corresponding message

in the Driver Information Centre.
Stop engine immediately and

evacuate the vehicle.

Autostop

illuminates or flashes green.

Illuminates green

Engine is in an Autostop.

Flashes green

Autostop is temporarily unavailable,

or Autostop mode is invoked

automatically.
Stop-start system

167.

Exterior light

illuminates green.

The exterior lights are on

84.

Low beam

illuminates green.

Instruments and controls

Illuminated when low beam is on.

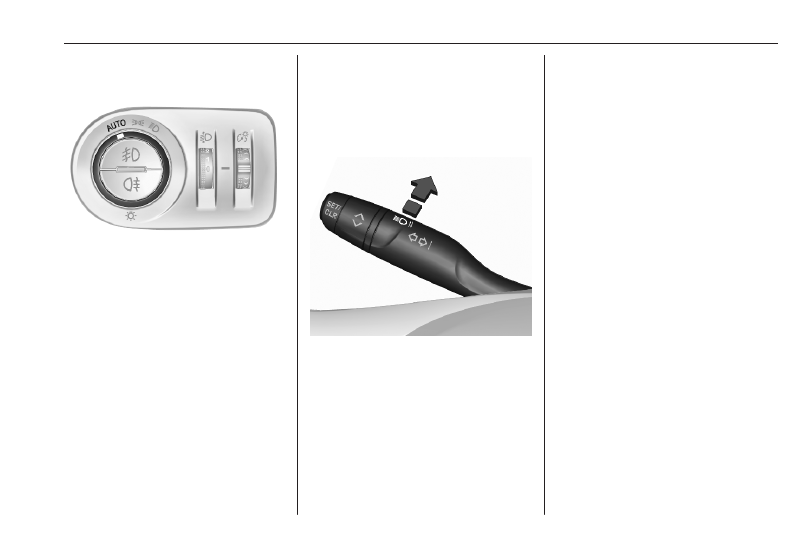

High beam

illuminates blue.

Illuminates when high beam is on or

during headlight flash

85.

High beam assist

illuminates green.

The high beam assist is activated

85.

LED headlights

illuminates and a warning

message is displayed in the Driver

Information Centre.
Seek the assistance of a workshop.

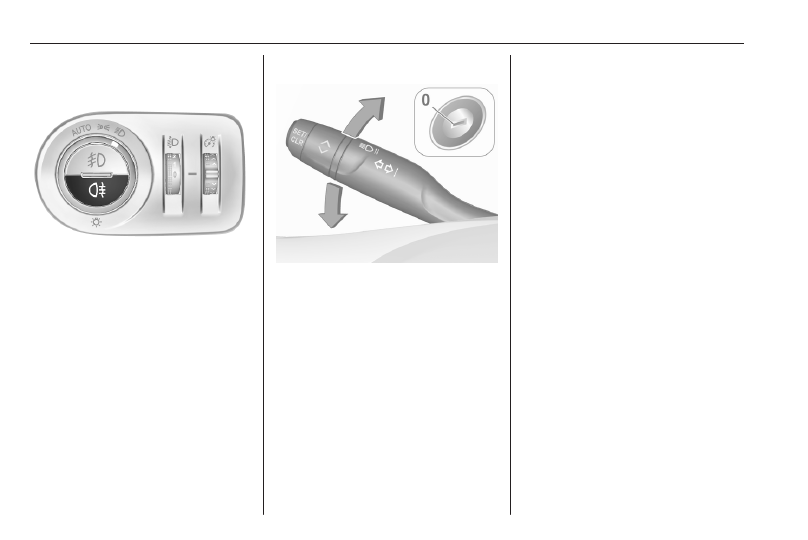

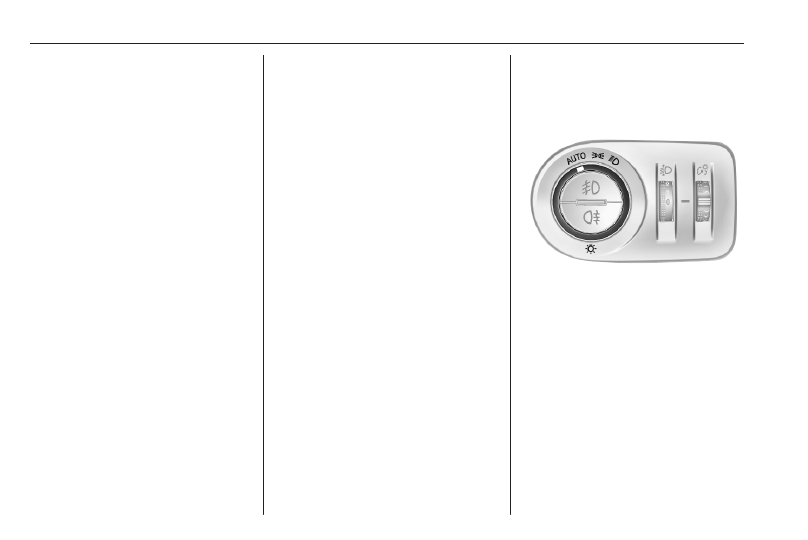

Front fog lights

illuminates green.

The front fog lights are on

89.

Rear fog light

illuminates yellow.

The rear fog light is on

90.

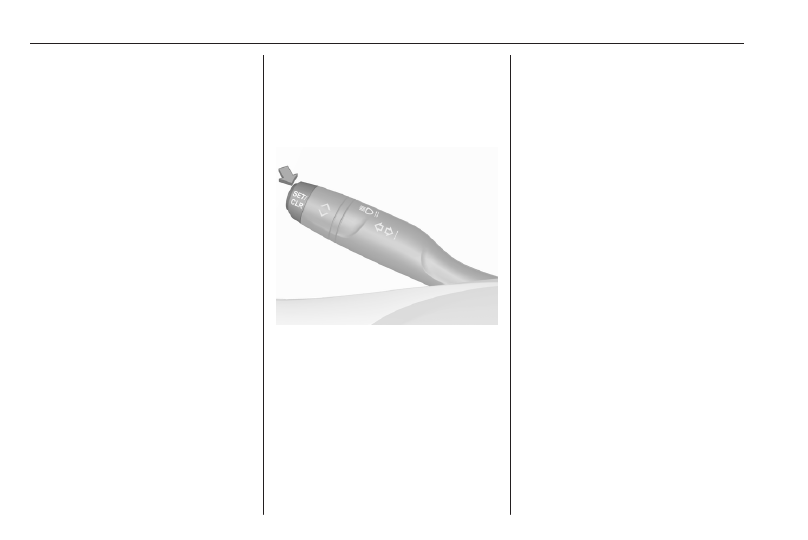

Rain sensor

illuminates green.

Illuminated when rain sensor position

on wiper lever is selected.
Windscreen wiper and washer

58.

Pedestrian safety alert fault

illuminates yellow.

The pedestrian safety alert is not

working.

Active emergency braking

illuminates or flashes yellow.

Illuminates

The system has been deactivated or

a fault has been detected.
Additionally, a warning message is

displayed in the Driver Information

Centre.
Check the reason of the deactivation

200 and in case of a system fault,

seek the assistance of a workshop.

Notice

also illuminates if the seat belts

of the front passengers are not

fastened. In this case, active

emergency braking is deactivated.

Flashes

The system is actively engaged and

brakes automatically the vehicle.
Active emergency braking

200.

Forward collision alert

198.

Front pedestrian protection

204.

Traffic sign assistant

illuminates for a few seconds or

permanently.

Illuminates for a few seconds

If the vehicle exceeds the speed limit

provided by the traffic sign assistant,

the speed limit displayed in the Driver

Information Centre flashes and an

audible signal is given. If flashing and

audible signal are deactivated,

illuminates for a few seconds.

Instruments and controls

Illuminates permanently

If the traffic sign assistant has a

failure,

illuminates permanently.

Consult a workshop.
Traffic sign assistant

220.

Door open

illuminates red.

A door or the tailgate is open.

Displays

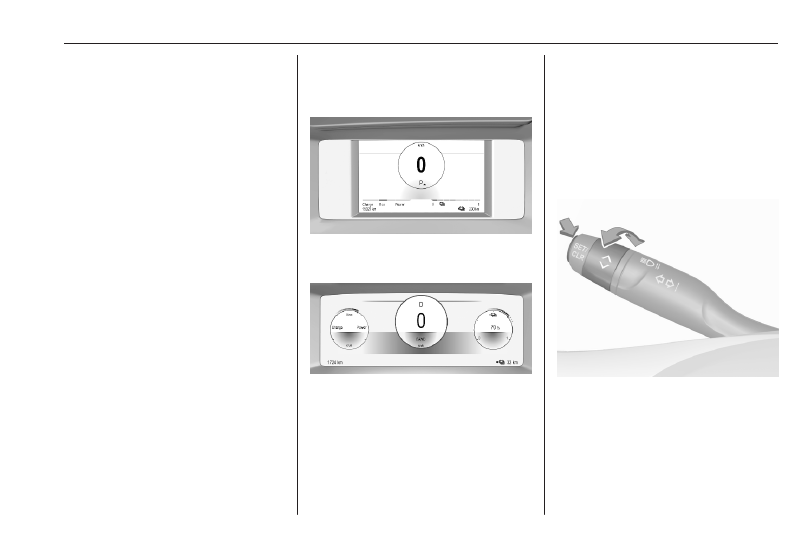

Driver Information Centre

Depending on version, two variants

are available.

In addition to warning lights, gauges

and indicators, the following

information is available:

● trip odometer
● gear shift indication
● service information
● vehicle and warning messages

● driver assistance systems
● pop-up messages
● infotainment information

Selecting menus and functions

The menus and functions can be

selected via the buttons on the

indicator lever.

Turn the adjuster wheel to select a

view of the Driver Information Centre.

Different views are available for

driving and navigation information.

Also a personalised view is

selectable.
Press SET / CLR to confirm or reset

a function.

Instruments and controls

Vehicle and service messages are

popped up in the Driver Information

Centre, if required. Scroll messages

by turning the adjuster wheel.

Confirm messages by pressing

SET / CLR.
Vehicle messages

80.

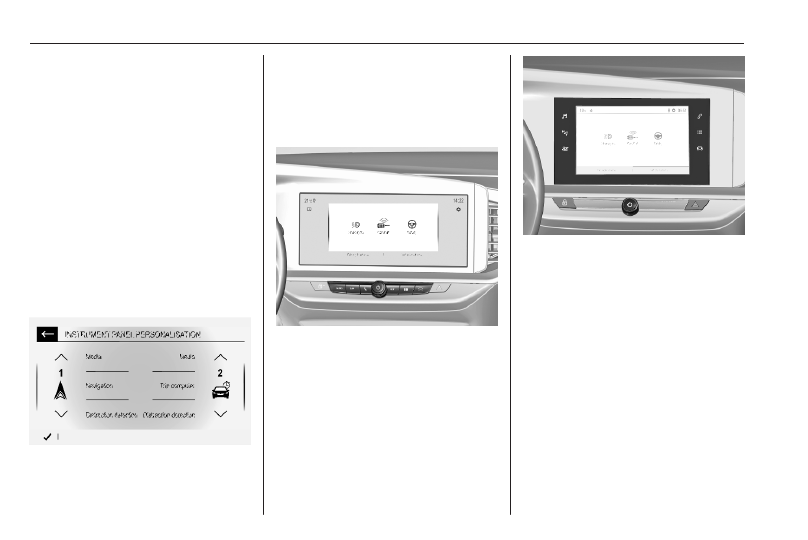

Personalised view

Personalised views can be selected

by turning the adjuster wheel.
The personalised views can be

adjusted in the settings menu in the

Info Display.

Choose the content, e.g. the

navigation map or current trip

information, and confirm the settings.

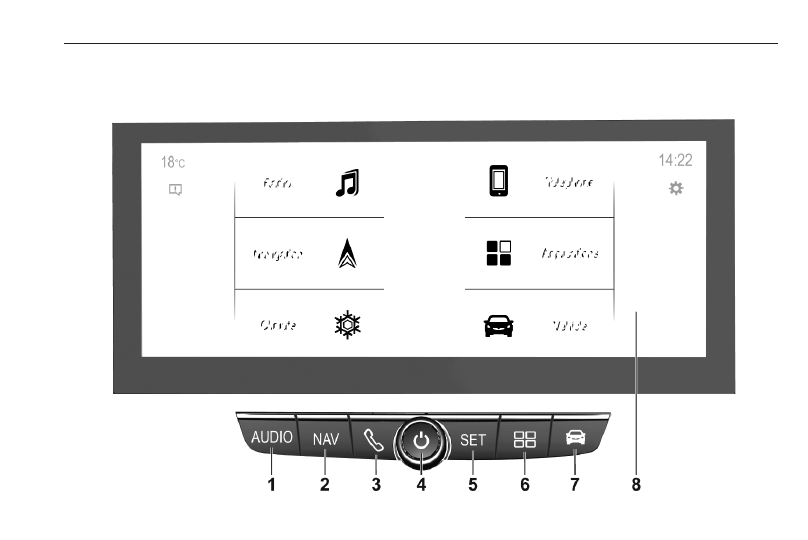

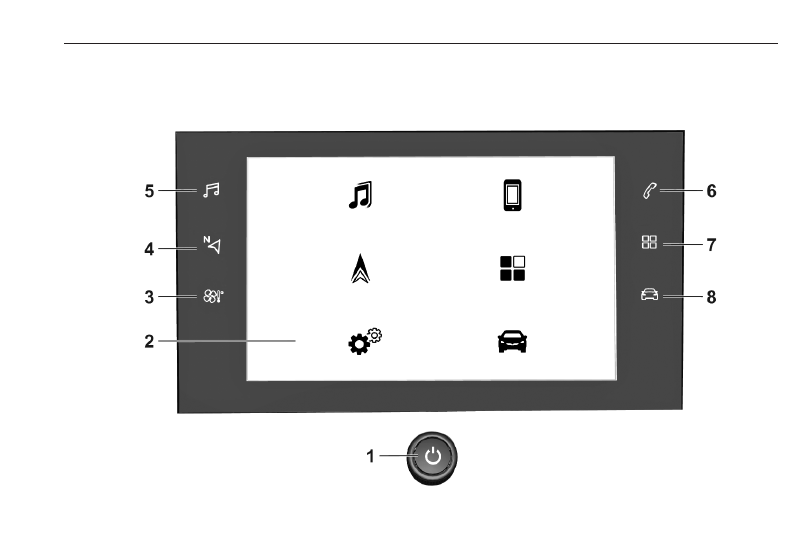

Info Display

The illustrations show different

variants of the infotainment system.

The Info Display can indicate:

● time

● outside temperature

● date

● infotainment system

● indication of rear view camera

217

● navigation

114

● vehicle and system messages

● settings for vehicle

personalisation

● AdBlue range

172

Instruments and controls

Selecting menus and settings

There are three options to operate the

display:

● via buttons next to the display
● by touching the touchscreen with

the finger

● via speech recognition

Notice

Some menu entries are only

available when ignition is switched

on, when combustion engine is

running or when electric engine is

ready or until a specific speed.

Button and touch operation

Press

)

to switch on the display.

Press

to select system settings

(units, language, time and date).
Press

to select vehicle settings or

driving functions.
Touch required menu display icon or

a function with the finger.
Confirm a required function or

selection by touching.
Touch

on the display to exit

a menu without changing a setting.

Infotainment system

93.

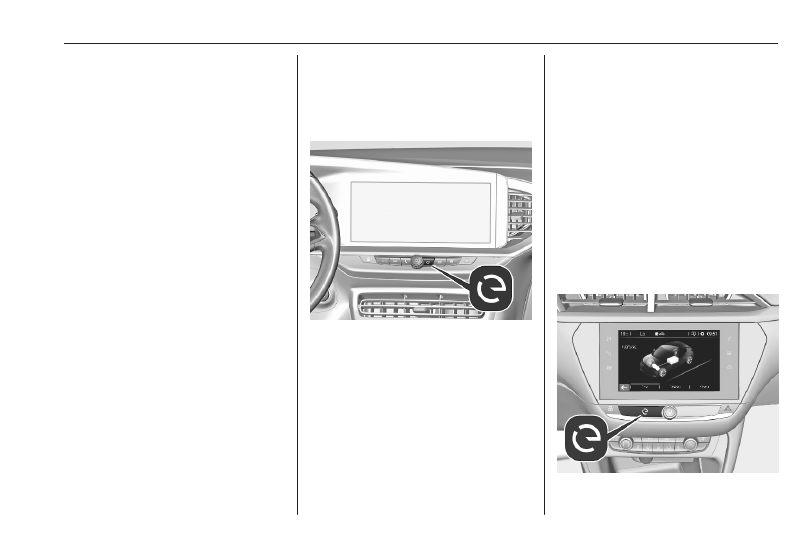

Flow

This menu displays the current

energy flow within the electric system.

1. Press

2. Select Flow.

Different colours show the engery

flow.

● green: electric engine operating
● blue: regenerating energy

Average consumption

This menu displays the average

power consumption during the

current trip.

● green: electric energy consumed
● blue: electric energy generated

from the braking and

deceleration phases of the

vehicle used to recharge the

battery

The current trip is subdivided into time

steps. For each time step, the

average consumption is displayed.

The time steps can be modified.

Instruments and controls

1. Press

2. Select Statistics.
3. Press + and - to modify the time

steps.

Vehicle messages

Messages are indicated in the Driver

Information Centre, in some cases

together with a warning chime.

Press SET / CLR to confirm a

message.

Vehicle and service messages

The vehicle messages are displayed

as text. Follow the instructions given

in the messages.

Messages in the Info Display

Some important messages may

appear additionally in the Info

Display. Some messages only pop-

up for a few seconds.

Warning chimes

The warning chime regarding not

fastened seat belts has priority over

any other warning chime.
Whenever a warning chime sounds,

pay attention to the messages

displayed and the warning lights in

the Driver Information Centre.
When a failure is detected in the

sound module

appears in the

Driver Information Centre,

accompanied by a display message.

No warning chime will sound, also not

for the driver assistance systems.

When starting the engine or whilst

driving

A warning chime will sound when

● a seat belt is not fastened
● a door or the tailgate is not fully

closed

Instruments and controls

● a certain speed is exceeded with

parking brake applied

● cruise control deactivates

automatically

● a programmed speed or speed

limit is exceeded

● a warning message appears in

the Driver Information Centre

● the electronic key is not in the

passenger compartment

● the parking assist detects an

object

● an unintended lane change

occurs

● hands-off driving is recognised
● drowsiness of the driver is

recognised

● a vehicle directly ahead is

approached too quickly

● the exhaust filter has reached the

maximum filling level

If several warnings appear at the

same time, only one warning chime

will sound.

When the vehicle is parked and /

or the driver's door is opened

A warning chime will sound when

● the exterior lights are on
● the key is in the ignition switch

During an Autostop

● If the driver's door is opened.
● If any condition for a restart of the

engine is not fulfilled.

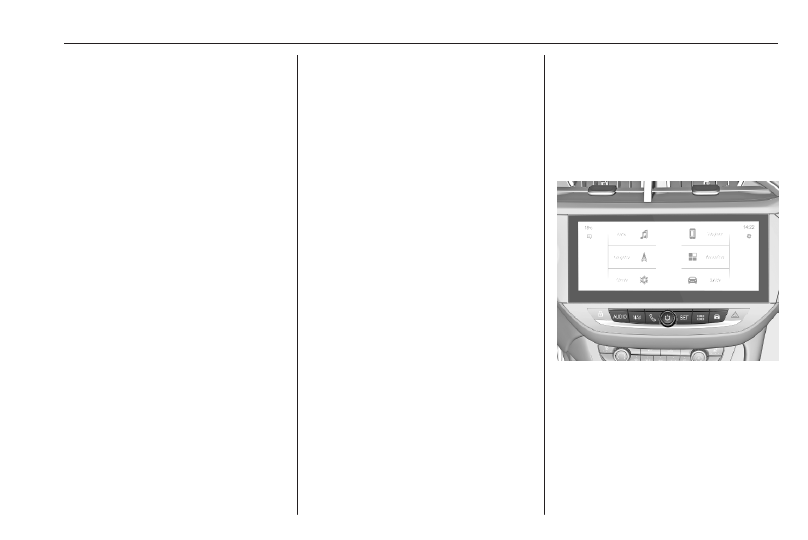

Vehicle personalisation

The vehicle's behaviour can be

personalised by changing the settings

in the Info Display.
Some functions are only displayed or

active when the engine is running.

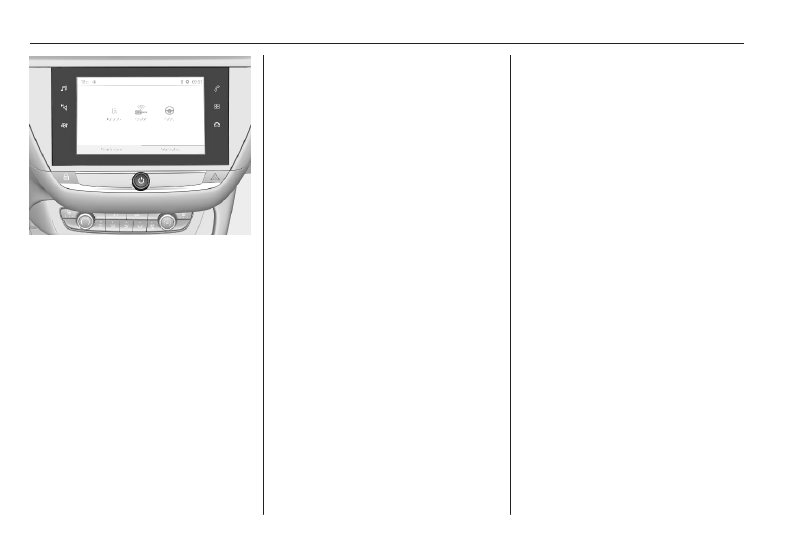

The illustrations show different

variants of the infotainment system.

Instruments and controls

Touch

to display the vehicle

personalisation menu.
Lighting, comfort and safety settings

are adjustable.

Telematics services

Vauxhall Connect

Vauxhall Connect comprises multiple

connected services accessible via

app, online or within the vehicle.

Notice

Full functionality of

Vauxhall Connect is subject to

registration and proper activation.

Connected services may include live

navigation such as online traffic

information and vehicle status and

information such as maintenance

alerts.
Services accessible within the vehicle

also include emergency call and

breakdown call. These functions are

automatically activated. Terms and

conditions apply.
Emergency call

82.

Breakdown call

Pressing the

button in the

overhead console for more than two

seconds connects to a roadside

assistance service provider.

For information about coverage and

scope of services of the roadside

assistance, please refer to the

information provided by the Vauxhall

Retailer with the order form.

Privacy settings

Privacy settings of Vauxhall Connect

can be configured. This will impact

the set of data being sent, e.g., in

case a breakdown call is triggered.

The emergency call function and the

traffic sign assistant will not be

impacted.
Depending on version, the privacy

settings can be changed by

simultaneously pressing

and

SOS in the overhead console or via

the system settings menu in the Info

Display.

Emergency call

Notice

In order to be available and

operational, the system requires

functioning vehicle electrics, mobile

service and GPS or GLONASS

Instruments and controls

satellite link. Depending on

equipment, a backup battery is

used.
Notice

The service is only available for

markets where it is legally required.

Furthermore, it depends on the

availability of the emergency centres

and the infrastructure in the country.

Status LED in the overhead

console

Illuminates green and red and

extinguishes after a short time, when

the ignition is switched on: the system

works properly.
Illuminates red: fault in the system.

Contact a workshop.
Flashes red: backup battery needs

replacement. Contact a workshop.

Emergency call

The emergency call function will

establish a connection to the nearest

public safety answering point (PSAP).

A minimum set of data including

vehicle and location information will

be sent to the PSAP.

In case of an emergency, press the

red SOS button in the overhead

console for more than two seconds.

The LED flashes green to confirm that

a connection to the nearest PSAP is

being established. The LED

illuminates steadily as long as the call

is active.
Pressing the SOS button immediately

a second time will terminate the call.

The LED switches off.

Automatic crash notification

In case of an accident with airbag

deployment and without damage of

needed hardware, an automatic

emergency call is established and an

automatic crash notification will be

transmitted to the next PSAP.

Lighting

Exterior lighting ............................ 84

Light switch ................................ 84

Automatic light control ............... 85

High beam ................................. 85

High beam assist ....................... 85

Headlight flash ........................... 86

Headlight range adjustment ...... 86

Headlights when driving

abroad ...................................... 86

Daytime running lights ............... 86

Matrix-LED headlights ............... 87

Hazard warning flashers ............ 88

Turn lights .................................. 89

Front fog lights ........................... 89

Rear fog light ............................. 90

Parking lights ............................. 90

Reversing lights ......................... 90

Misted light covers ..................... 90

Interior lighting ............................. 91

Instrument panel illumination

control ....................................... 91

Interior lights .............................. 91

Reading lights ............................ 91

Sunvisor lights ........................... 91

Lighting features .......................... 92

Entry lighting .............................. 92

Exit lighting ................................ 92

Vehicle locator lighting .............. 92

Peripheral lighting ...................... 92

Battery discharge protection ...... 92

Exterior lighting

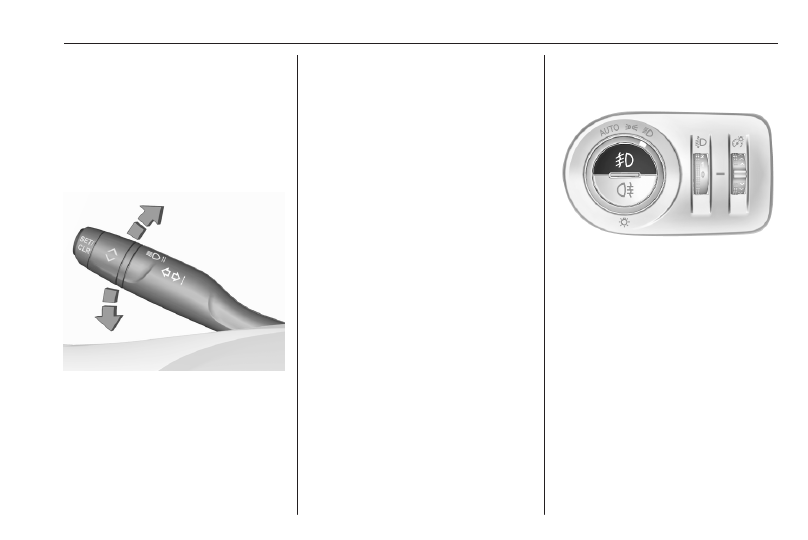

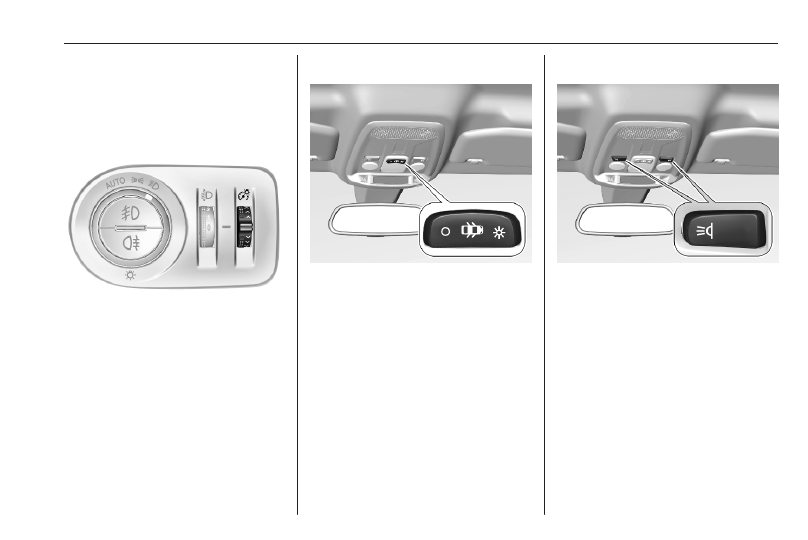

Light switch

Turn light switch:
AUTO : automatic light control

switches automatically

between daytime running

light and headlight

: sidelights

: headlights

Control indicator

75.

Lighting

Automatic light control

When the automatic light control

function is switched on, the system

switches between daytime running

lights and headlights automatically

depending on the external lighting

conditions and information given by

the wiper system.
Daytime running light

86.

Automatic headlight activation

During poor lighting conditions the

headlights are switched on.
Additionally, headlights are switched

on if the windscreen wipers have

been activated for several wipes.

Tunnel detection

When a tunnel is entered, headlights

are switched on immediately.

High beam

Push to switch from low to high beam.
Push again to deactivate high beam.

High beam assist

The system switches from low beam

to high beam and vice versa to

prevent glaring. Once activated, high

beam assist remains active and

switches high beam on and off

depending on surrounding

conditions. The latest setting of the

high beam assist will remain after the

ignition is switched on again.
Glare-free high beam for Matrix-LED

headlights

87.

Activation

The high beam assist can be

activated via the vehicle settings

menu in the Info Display.
Info Display

78.

High beam is switched on

automatically in dark surroundings at

a speed above 28 mph. High beam is

switched off at a speed below

22 mph, but high beam assist remains

active.
The green control indicator

illuminates continuously when the

high beam assist is activated, the blue

illuminates when high beam is on.

Control indicator

76,

76.

High beam assist switches

automatically to low beam when:

● Driving in urban areas.
● Camera detects heavy fog.

Lighting

● Rear fog light is switched on.
● Oncoming or preceding vehicles

are detected by the camera.

If there are no restrictions detected,

the system switches back to high

beam.

Deactivation

The system can be deactivated via

the vehicle settings menu in the Info

Display.
Info Display

78.

Headlight flash

Pull to activate the headlight flash.

Headlight range adjustment

Headlight range can be adjusted

manually if vehicle is not equipped

with Matrix-LED headlights. Matrix-

LED headlights are adjusted

automatically.
To adapt headlight range manually to

the vehicle load to prevent dazzling,

turn thumb wheel

to required

position.
ICE

0 : front seats occupied

1 : all seats occupied

2 : all seats occupied and load

compartment laden

3 : driver's seat occupied and load

compartment laden

BEV

0 : front seats occupied

1 : all seats occupied with or without

load compartment laden

2 : driver's seat occupied and load

compartment laden

3 : not used
Propulsion types

Headlights when driving

abroad

When driving in countries where

traffic drives on the opposite side of

the road, the headlights do not have

to be adjusted.

Daytime running lights

Daytime running lights increase

visibility of the vehicle during daylight.
Automatic light control

85.

Lighting

Matrix-LED headlights

The Matrix-LED headlight system

contains a variety of particular LEDs

in each headlight which enables the

control of the adaptive forward

lighting functions.
Light distribution and intensity of light

are variably triggered depending on

the lighting conditions, road type and

driving situation. The vehicle adapts

the headlights automatically to the

situation to enable optimal light

performance for the driver.
The adaptive forward lighting and the

Matrix-LED headlights functions can

be deactivated or activated in the

vehicle personalisation menu.
Vehicle personalisation

81.

Info Display

78.

The glare-free high beam function of

the Matrix-LED headlights are only

available with light switch in position

AUTO.

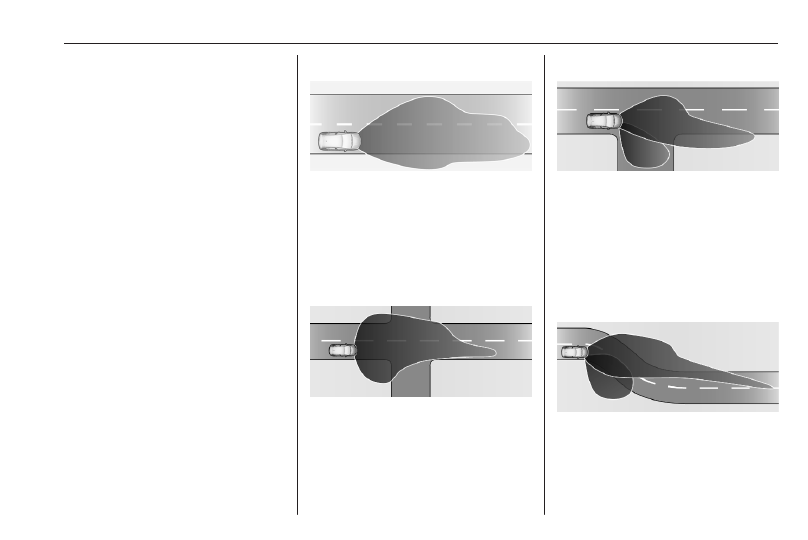

Country light

Activated automatically at a speed

above 30 mph when driving in rural

areas. The illumination of the current

lane and the side of the road is

adapted. Oncoming and preceding

vehicles are not dazzled.

Town light

Activated automatically at a speed up

to approx. 30 mph. The light is wide

and symmetrical.

Cornering light

Activated at a speed of up to 25 mph

when turning off. The light consists of

particular LEDs which illuminate the

direction of travel. These LEDs are

triggered depending on the steering

angle or the activation of the turn

lights.

Curve light

Particular LEDs, based on steering

angle and speed, are additionally

triggered to improve lighting in

curves. This function is activated at

speeds from 25 mph to 43 mph.

Lighting

Glare-free high beam

Warning

The glare-free high beam function

may dazzle other road users when

the vehicle is driven in countries

where traffic moves on the

opposite side of the road. E.g.

when the vehicle was designed for

left hand drive traffic and it is

driven in a country with right hand

drive traffic.
Switch off glare-free high beam

function whenever you are driving

in countries mentioned above!

The system enables a glare-free high

beam when driving in dark

surroundings.

Each LED on right or left side is

triggered or faded out particularly

according to the traffic situation. This

gives the best light distribution

without dazzling other road users.
Glare-free high beam is switched on

automatically at a speed above

28 mph. It is switched off at a speed

below 22 mph, but the system

remains active.

Motorway mode

Activated automatically at a speed

above 65 mph. Illumination is

adapted to the higher speed driven on

motorways. If there is no oncoming

traffic, the visibility on the side of the

vehicle is increased. When following

vehicles ahead or passing, dazzling

for these vehicles is reduced.

Fault in LED headlight system

When the system detects a failure in

the LED headlight system, it selects a

preset position to avoid dazzling of

oncoming traffic. A warning is

displayed in the Driver Information

Centre.
After reconnecting the vehicle

battery, the system needs a

recalibration by driving a short

distance.

Hazard warning flashers

Operated by pressing

Lighting

When braking in an emergency, the

hazard warning flashers are switched

on automatically, depending on the

force of deceleration. They are

switched off automatically, as soon as

the vehicle is accelerated again.

Turn lights

: right turn lights

down : left turn lights
A resistance point can be felt when

moving the indicator lever.
Constant flashing is activated when

the indicator lever is being moved

beyond the resistance point. It is

deactivated when the steering wheel

is moved in the opposite direction or

indicator lever is manually moved

back to its neutral position.
After 20 seconds the volume of the

audible signal will increase if the

speed is above 50 mph.
Activate temporary flashing by

holding the indicator lever just before

the resistance point. Turn lights will

flash until indicator lever is being

released.
To activate three flashes, tap the

indicator lever briefly without passing

the resistance point.

Front fog lights

Operated by pressing

Light switch in position AUTO:

switching on front fog lights will switch

headlights on automatically.

Lighting

Rear fog light

Operated by pressing

Light switch in position AUTO:

switching on rear fog light will switch

headlights on automatically.
Light switch in position

: rear fog

light can only be switched on with

front fog lights.
The vehicle rear fog light is

deactivated when a plug is connected

to the power outlet of the trailer hitch.

Parking lights

When the vehicle is parked, the

parking lights on one side can be

activated:

1. Switch off ignition.
2. Move the lever all the way up

(right parking lights) or down (left

parking lights).

Confirmed by a signal and the

corresponding turn lights control

indicator.

Reversing lights

The reversing light comes on when

reverse gear is selected.

Misted light covers

The inside of the light housing may

mist up briefly in poor, wet and cold

weather conditions, in heavy rain or

after washing. The mist disappears

quickly by itself. To help, switch on the

headlights.

Lighting

Interior lighting

Instrument panel

illumination control

Brightness of the following lights can

be adjusted when the exterior lights

are on:

● instrument panel illumination
● Info Display
● illuminated switches and

operation elements

Turn thumb wheel

and hold until

the desired brightness is obtained.

Interior lights

Operate rocker switch:

;

: automatic switching on

and off

press

: on

press

: off

Notice

In the event of an accident with

airbag deployment the courtesy

lights are turned on automatically.

Reading lights

Operated by pressing

Sunvisor lights

Illuminates when the cover is opened.

Lighting

Lighting features

Entry lighting

Welcome lighting

Some or all of the following lights are

switched on for a short time by

unlocking the vehicle with the radio

remote control:

● headlights
● interior lights

The number of activated lights

depends on the surrounding light

conditions.
The lighting switches off immediately

when the ignition is switched on.
Starting off

164.

This function can be activated or

deactivated in the vehicle

personalisation.
Vehicle personalisation

81.

The following lights will additionally

switch on when the driver's door is

opened:

● illumination of some switches
● Driver Information Centre
● door pocket lights

Exit lighting

The following lights are switched on

when the ignition is switched off:

● headlights
● interior lights
● centre console lighting

They will switch off automatically after

a delay. This function works only in

the dark.

Vehicle locator lighting

This function allows to locate the

vehicle, e.g., in weak lighting

conditions using the remote control.

The headlights come on and the turn

lights flash for 10 seconds.
Press

on the remote control.

Peripheral lighting

Peripheral lighting allows you to

switch on the position lights, low

beam and number plate lighting using

the remote control.
Press

on the remote control to

switch on peripheral lighting.
Press

a second time to switch off

peripheral lighting.

Battery discharge protection

To prevent discharge of the vehicle

battery when the ignition is switched

off, some interior lights are switched

off automatically after some time.

Infotainment system

Multimedia Navi Pro ..................... 93

Audio ....................................... 108

External devices ...................... 111

Navigation ............................... 114

Speech recognition .................. 125

Phone ...................................... 127

Multimedia ................................. 132

Audio ....................................... 141

External devices ...................... 143

Speech recognition .................. 146

Phone ...................................... 148

Multimedia Navi Pro

Introduction

Important information on operation

and traffic safety

Warning

Drive safely at all times. Only

operate the Infotainment system if

the traffic conditions allow a safe

usage.
In the interest of safety, it might be

appropriate to stop the vehicle

before operating the Infotainment

system (e.g. for entries of

addresses).

Warning

The usage of the navigation

system does not release the driver

from the responsibility for a

correct, vigilant attitude in road

traffic. Always follow the

applicable traffic rules.

Warning

In some areas one-way streets

and other roads and entrances

(e.g. pedestrian zones) that you

are not allowed to turn into are not

marked on the map. In such areas

the Infotainment system may

issue a warning that must be

accepted. Here you must pay

particular attention to one-way

streets, roads and entrances that

you are not allowed to drive into.

Radio reception

Radio reception may be disrupted by

static, noise, distortion or loss of

reception due to:

● changes in distance from the

transmitter

● multi-path reception due to

reflection

● shadowing

Theft-deterrent feature

The Infotainment system is equipped

with an electronic security system for

the purpose of theft deterrence.

Infotainment system

AUDIO
Open audio menu:
Radio ................................... 108
External devices (USB,

Bluetooth) ............................ 111

NAV
Display embedded

navigation map ................... 114

Open phone menu .............. 127
Display phone projection

screen when phone

projection is active .............. 111

)

If switched off: switch

power on / off
If switched on: mute system
Turn: adjust volume

SET /

Open settings menu
or open charging settings

(BEV) .................................... 78

Open apps menu ................ 111

Open vehicle settings menu . 81

Info Display
Home menu will be

displayed by a 3-finger

touch on screen

Infotainment system

)

If switched off: switch

power on / off
If switched on: mute system
Turn: adjust volume

Info Display
Home menu will be

displayed by a 3-finger

touch on screen

Open climate menu if available

Display embedded

navigation map ................... 114

Open audio menu:
Radio ................................... 108
External devices (USB,

Bluetooth) ............................ 111

Open phone menu .............. 127
Display phone projection

screen when phone

projection is active .............. 111

Open apps menu ................ 111

Open vehicle settings menu . 81

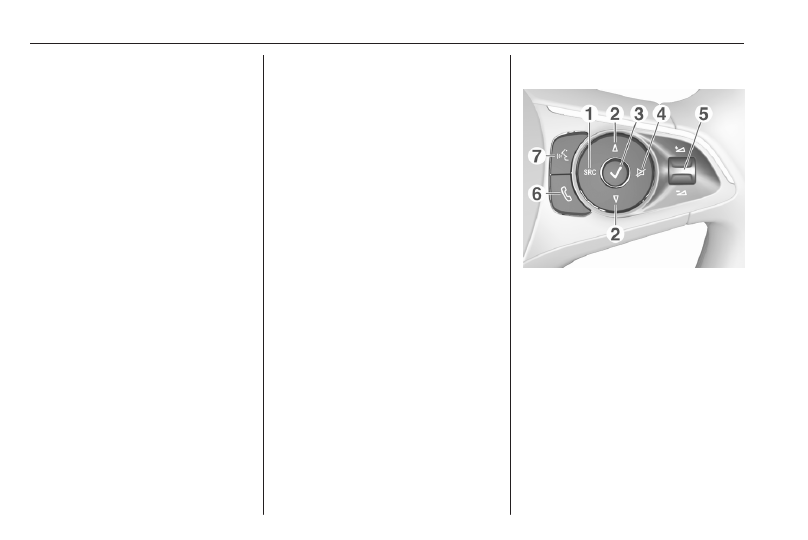

Steering wheel controls

SRC (Source)
Select audio source,

confirm selection with

Long press: mute system

Select next / previous

preset radio station when

radio active .......................... 108
or select next / previous

track / picture when

external devices active ....... 111

Infotainment system

or select next / previous

entry in station list, media

list, call / contacts list when

operation started via

steering wheel controls
Confirm selection with

Confirm selected item
or open station list, media list

Activate / deactivate mute

function

Turn upwards /

downwards: increase /

decrease volume

Short press: accept

incoming call
Long press: reject

incoming call, hang up call .. 127

or open call / contacts list . . . 127
If phone call active: open

call in progress menu

Short press: activate

embedded speech recognition
Long press: activate

speech recognition in

Apple CarPlay™ or

Android™ Auto if phone

connected via USB port ...... 125

Control elements

The Infotainment system is operated

via function buttons, a touch screen

and menus that are shown on the

display.
Inputs are made optionally via:

● the control panel on the

Infotainment system

● the touchscreen
● the steering wheel controls
● the speech recognition

125

Switching the Infotainment

system on or off

Press

)

. After switching on, the last

selected Infotainment source

becomes active.

Notice

Some functions of the Infotainment

system are only available if ignition

is switched on or engine is running.

100

Infotainment system

Automatic switch-off

If the Infotainment system has been

switched on pressing

)

while the

ignition is switched off, it will switch off

again automatically when the Eco

mode becomes active.

Setting the volume

Turn

)

. The current setting is shown

on the display.
When the Infotainment system is

switched on, the last selected volume

is set.

Speed compensated volume

When the speed compensated

volume is activated, the volume is

adapted automatically to make up for

the road and wind noise as you drive.

Mute

Press

)

to mute the Infotainment

system.
To cancel the mute function,

press

)

again. The last selected

volume is set again.

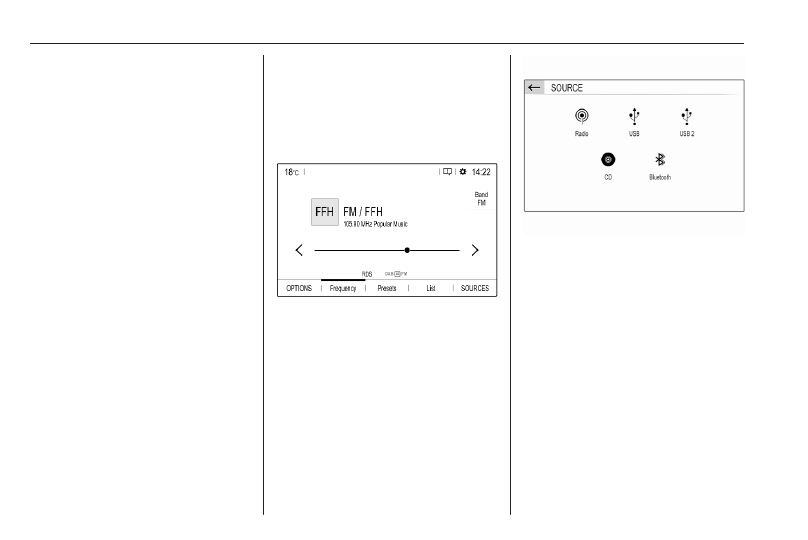

Modes of operation

Audio-Media

Press AUDIO /

to display the main

menu of the last selected audio mode.

Changing the media source

Select SOURCES to display the

menu for media source selection.

Select the desired media source.
For a detailed description of:

● Radio functions

108

● External devices

111

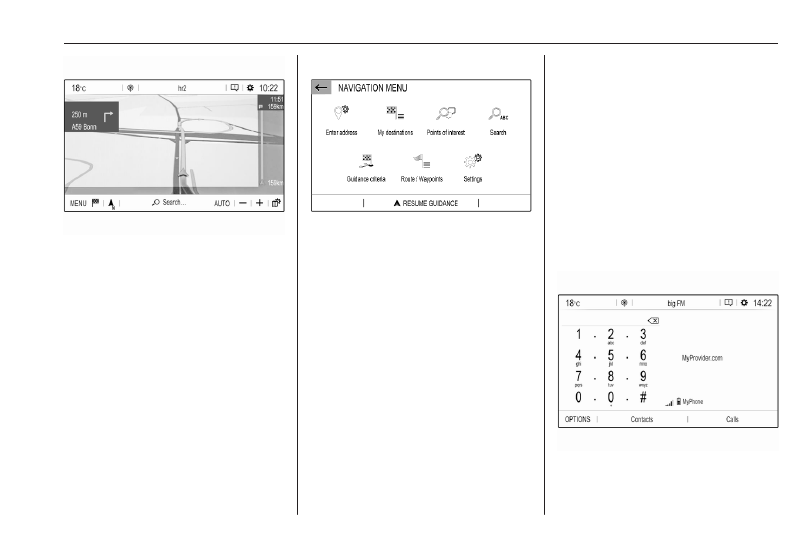

Navigation

Press NAV /

to display the

navigation map showing the area

around the current location.

Infotainment system

101

For a detailed description of basic

functions of the navigation system

114.

Navigation menu

Select MENU to display the

navigation menu.

The navigation menu serves as

central entry point for:

● Address search and input
● Defining trips with several

waypoints

● Defining criteria for route

guidance

● Cancelling and resuming route

guidance

For a detailed description of basic

functions of the navigation system

114.

Phone

Before the phone function can be

used, a connection has to be

established between the Infotainment

system and the mobile phone.
For a detailed description of

preparing and establishing a

Bluetooth connection between the

Infotainment system and a mobile

phone

127.

If the mobile phone is connected,

press

to display the main menu of

the phone function.

For a detailed description of mobile

phone operation via the Infotainment

system

127.

Vauxhall Mokka B (2023 year). Manual in english - page 3
