Seats, restraints

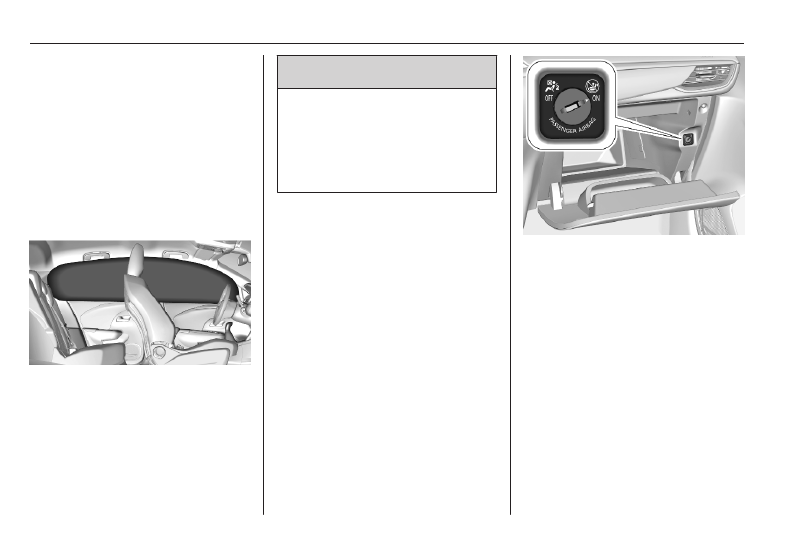

Curtain airbag system

The curtain airbag system consists of

an airbag in the roof frame on each

side. This can be identified by the

word AIRBAG on the roof pillars.
The curtain airbag system is triggered

in the event of a side-on impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the head in the event of a

side-on impact considerably.

Warning

The hooks on the handles in the

roof frame are only suitable for

hanging up light articles of

clothing, without coat hangers. Do

not keep any items in these

clothes.

Airbag deactivation

The front passenger airbag system

must be deactivated for child restraint

system on the passenger seat

according to the instructions in the

table

43.

The side airbag and curtain airbag

systems, the belt pretensioners and

all driver airbag systems will remain

active.

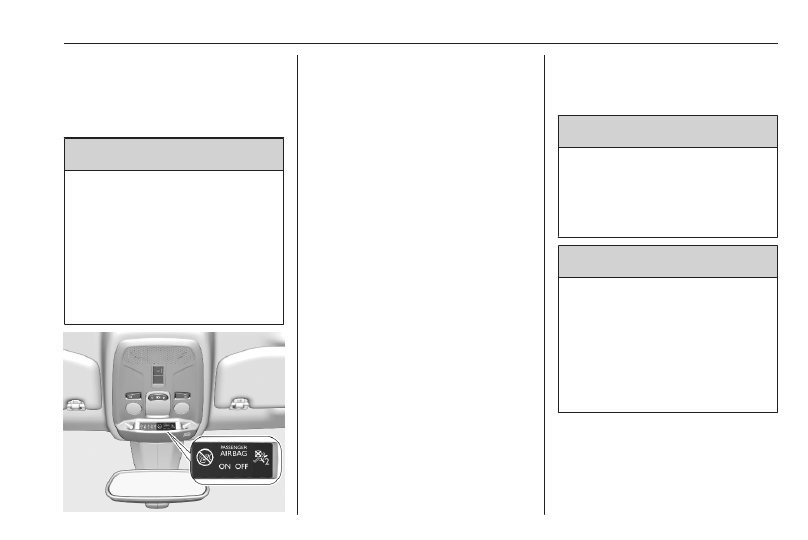

The front passenger airbag system

can be deactivated via a key-

operated switch in the glovebox.
Use the ignition key to choose the

position:
OFF

: front passenger airbag is

deactivated and will not

inflate in the event of a

collision, control indicator

OFF

illuminates

continuously in the centre

console.

: front passenger airbag is

active.

Seats, restraints

Notice

After turning the key-operated

switch to position OFF

, keep on

turning towards this position until

key is removed.

Danger

Deactivate passenger airbag only

in combination with the use of a

child restraint system, subject to

the instructions and restrictions in

the table

43.

Otherwise, there is a risk of fatal

injury for a person occupying a

seat with a deactivated front

passenger airbag.

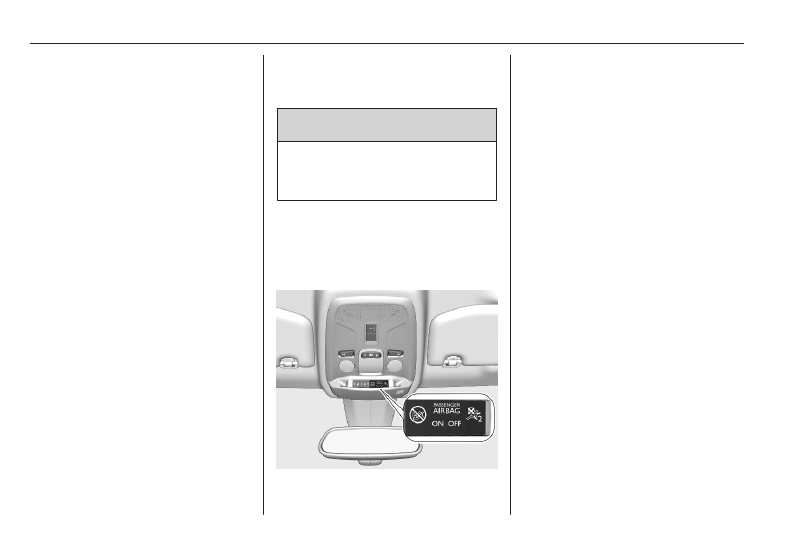

If the control indicator

illuminates

for approx. 60 seconds after the

ignition is switched on, the front

passenger airbag system will inflate

in the event of a collision.
If the control indicator

illuminates

after the ignition is switched on, the

front passenger airbag system is

deactivated. It stays on while the

airbag is deactivated.
If both control indicators are

illuminated at the same time, there is

a system failure. The status of the

system is not discernible, therefore

no person is allowed to occupy the

front passenger seat. Contact a

workshop immediately.
Consult a workshop immediately if

neither of the two control indicators

are illuminated.
Change status only when the vehicle

is stopped with the ignition off.
Status remains until the next change.
Control indicator for airbag

deactivation

68.

Child restraints

Child restraint systems

Danger

Make sure that children below

sufficient size and weight are

protected using a suitable child

restraint system. Never place a

child on the lap.

Danger

If using a rear-facing child restraint

system on the front passenger

seat, the airbag system for the

front passenger seat must be

deactivated. This also applies to

certain forward-facing child

restraint systems as indicated in

the tables

43.

Airbag deactivation

38.

Airbag label

33.

Seats, restraints

We recommend a child restraint

system which is tailored specifically to

the vehicle. For further information,

contact your workshop.
In case of any interference of the child

restraint system with vehicle seat

head restraint, adjust or remove the

corresponding head restraint

26.

When a child restraint system is being

used, pay attention to the following

usage and installation instructions

and also those supplied with the child

restraint system. The given

restrictions in the table refer to a test

body, which is the maximum

envelope of all existing child restraint

systems. Make sure that the front

seats do not interfere with the used

child restraint system.
Always comply with local or national

regulations. In some countries, the

use of child restraint systems is

forbidden on certain seats.
Only drive with the driver seat

correctly adjusted

27.

Child restraint systems can be

fastened with:

● Three-point seat belt
● ISOFIX brackets
● Top-tether

Three-point seat belt

Child restraint systems can be

fastened by using a three-point seat

belt. After fastening the child restraint

system the seat belt has to be

tightened.

ISOFIX brackets

Fasten vehicle-approved ISOFIX

child restraint systems to the ISOFIX

brackets. Specific vehicle ISOFIX

child restraint system positions are

marked in the ISOFIX table

43.

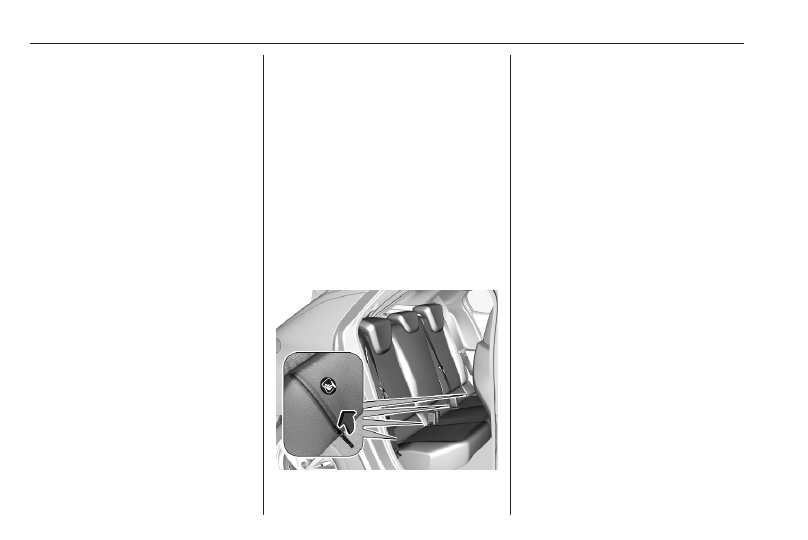

ISOFIX brackets are indicated by a

label on the backrest. To get access

to the ISOFIX brackets, first pull the

zipper.
When fastening ISOFIX child restraint

systems on adjustable passenger

seats, such as the front passenger

seat, first incline the backrest as far as

necessary backwards in order to get

access to the ISOFIX brackets. After

the proper fastening of the ISOFIX

child restraint system, incline the

backrest forward again.
An i-Size child restraint system is an

universal ISOFIX child restraint

system according UN Regulation No.

129.
All i-Size child restraint systems can

be used on any vehicle seat suitable

for i-Size, i-Size table

43.

Either a Top-tether strap or a support

leg must be used in addition to the

ISOFIX brackets.

Seats, restraints

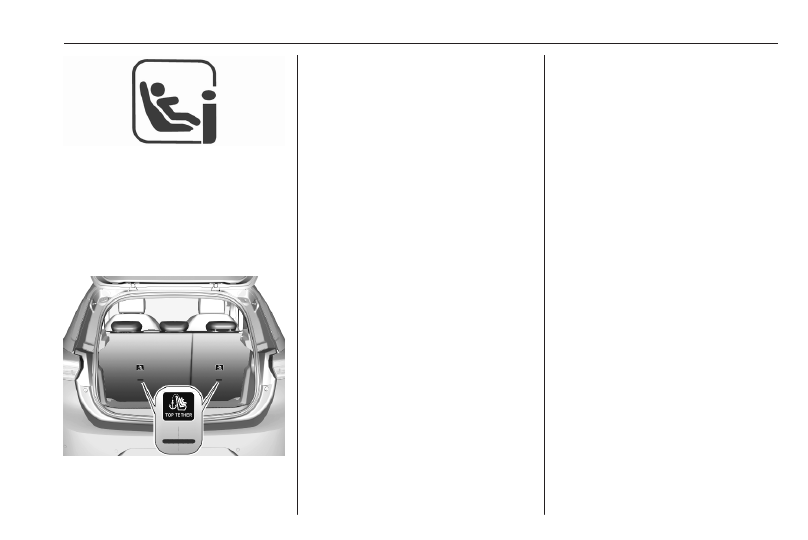

i-Size child seats and vehicle seats

with i-Size approval are marked with

i-Size symbol, see illustration.

Top-tether anchors

Top-tether anchors are marked with

the symbol

for a child seat.

In addition to the ISOFIX brackets,

fasten the Top-tether strap to the

Top-tether anchors.

ISOFIX child restraint systems of

universal category positions are

marked in the table by IUF

43.

Selecting the right system

The rear seats are the most

convenient location to fasten a child

restraint system.
Children should travel facing

rearwards in the vehicle as long as

possible. This makes sure that the

child's backbone, which is still very

weak, is under less strain in the event

of an accident. Do not use forward

facing child restraint system at all

seats when child's weight is below 13

kg.
Suitable are child restraint systems

that comply with valid UN ECE

regulations. Check local laws and

regulations for mandatory use of child

restraint systems.

The following child restraints are

recommended for the following

weight classes:

● Group 0, Group 0+:

Maxi Cosi Cabriofix with or

without ISOFIX base for children

up to 13 kg

● Group I: Duo Plus with ISOFIX

and Top-tether for children from

9 kg to 18 kg

● Group II, Group III: Kidfix XP with

or without ISOFIX for children

from 15 kg to 36 kg

Ensure that the child restraint system

to be installed is compatible with the

vehicle type.
Child seat at the front: Adjust the front

passenger seat to the highest and

fully back longitudinal position with

the backrest straightened.
Child seat at the rear: Move the

vehicle's front seat forward and

straighten the backrest so that the

legs of the child in the forward facing

or the rearward facing child seat do

not touch the vehicle's front seat.

Seats, restraints

Do not use forward facing child

restraints system when child's weight

is below 13 kg at all seats.
Follow child restraint system

manufacturer's instructions to install

corresponding child restraint systems

in vehicle.
For semi-universal or vehicle specific

child restraint system (ISOFIX or

belted child restraint system), see the

vehicle list provided in the user

manual of the child restraint system.
Ensure that the mounting location of

the child restraint system within the

vehicle is correct, see following table.
Allow children to enter and exit the

vehicle only on the side facing away

from the traffic.
When the child restraint system is not

in use, secure the seat with a seat belt

or remove it from the vehicle.

Notice

Do not affix anything on the child

restraint systems and do not cover

them with any other materials.
A child restraint system which has

been subjected to stress in an

accident must be replaced.

Seats, restraints

Child restraint installation locations

Installation of universal, ISOFIX and i-Size child seats

As required by European regulations, this table gives the options for installing child seats secured using the seat belt and

universally approved as well as the larger ISOFIX and i-Size child seats on seat positions equipped with ISOFIX mountings

in the vehicle.
Yes : Suitable for fitment of the designated catecory of the child restraint system.

No : Not suitable for fitment of the designated catecory of the child restraint system.

Child restraint system categories

Front passenger seat

with activated airbag

Front passenger seat

with deactivated airbag

OFF

Rear outer

seats

Rear centre

seat

Universal belted child restraint

system

Yes

i-size child restraint system

Yes

Position equipped with a Top-tether

fixing

Yes

Carry-cot (ISOFIX lateral facing child

restraint system)
ISOFIX child restraint fixture: L1, L2

ISOFIX rearward facing child

restraint system
ISOFIX child restraint fixture: R3

Yes

Seats, restraints

Child restraint system categories

Front passenger seat

with activated airbag

Front passenger seat

with deactivated airbag

OFF

Rear outer

seats

Rear centre

seat

ISOFIX forward facing child restraint

system
ISOFIX child restraint fixture: F3

Yes

Booster seat - full width: B3

Yes

Universal child seat: chiId seat that can be installed in all vehicles using the seat belt. Applies to all stature and mass groups.

Only forward facing child restraint system

For a seat with height adjustment, set it to the highest and fully back longitudinal position. For a seat without height adjustment, move

the seat fully back, with the backrest straightened.

Only rearward facing child restraint system.

Seats not fitted with ISOFIX / i-Size compliant mountings.

Adjust the driver seat ahead of the child restraint system to the longitudinal middle and maximum height position. If necessary, adjust

the driver's seat backrest angle. Ensure that inclination angle of the backrest does not exceed the corresponding torso angle of 15°.

Move the passenger seat ahead of the child restraint system forwards as far as necessary.

Move the passenger seat fully back.

Size of child restraint fixture (1, 2, 3):

● R1 means rearward facing child restraint fixture for mass group 0 up to 10 kg and mass group 0+ up to 13 kg, age

around 0-1 year.

● R2 means reduced size of rearward facing child restraint fixture for mass group 0+ up to 13 kg and mass group 1

from 9 to 18 kg, age around 2-4 years.

● R3 means full size of rearward facing child restraint fixture for mass group 0+ up to 13 kg and mass group 1 from 9

to 18 kg, age around 2-4 years.

● F2, F2X mean reduced height of forward facing child restraint fixture for mass group 1 from 9 to 18 kg, age around

6-7 years.

● F3 means full height of forward facing child restraint fixture for mass group 1 from 9 to 18 kg, age around 7-10 years.

Storage

Storage compartments ................ 45

Glovebox ................................... 45

Cupholders ................................ 45

Door panel storage .................... 46

Centre console storage ............. 46

Load compartment ....................... 47

Load compartment cover ........... 48

Rear floor storage cover ............ 48

Lashing eyes ............................. 49

Roof rack system ......................... 49

Roof rack ................................... 49

Loading information ..................... 50

Storage compartments

Warning

Do not store heavy or sharp

objects in the storage

compartments.

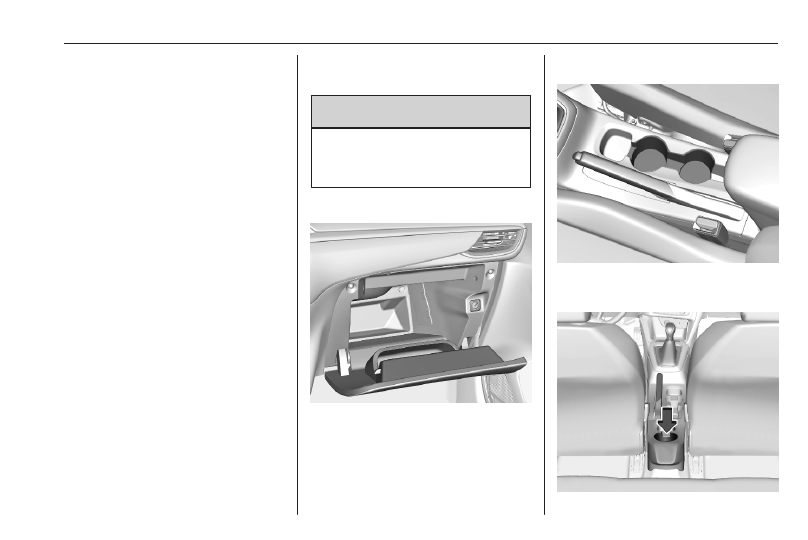

Glovebox

Pull lever to open the glovebox.
The glovebox should be closed whilst

driving.

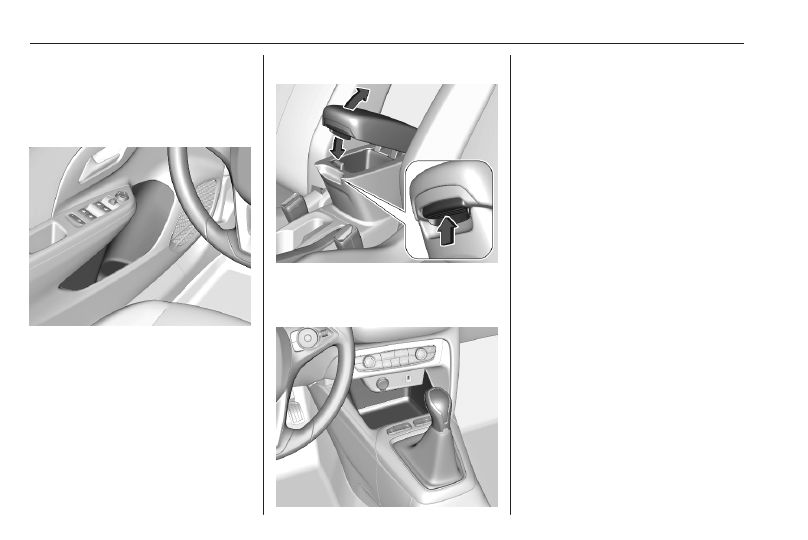

Cupholders

Cupholders are located in the centre

console.

Storage

Load compartment

The rear seat backrest is divided into

2/3 to 1/3 parts. Both parts can be

folded down individually to increase

the size of the load compartment.
Before folding rear seat backrests,

execute the following if necessary:

● Move front seats forward if

necessary.

● Remove the load compartment

cover

48.

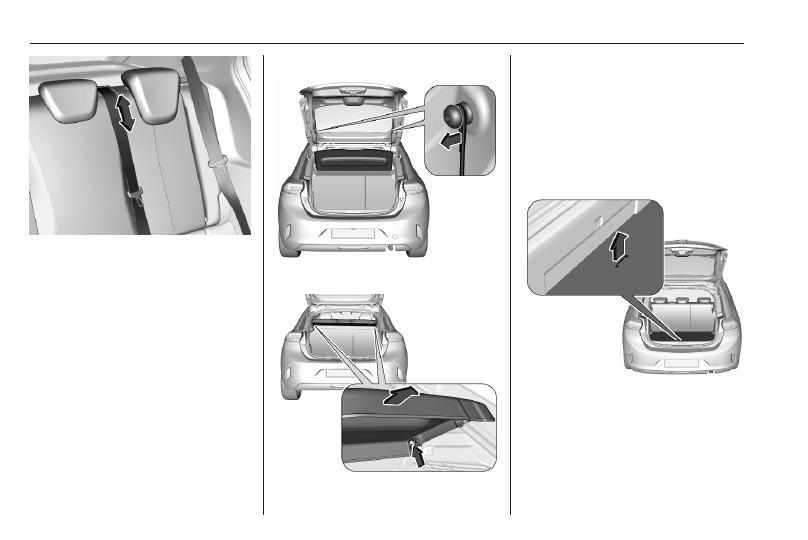

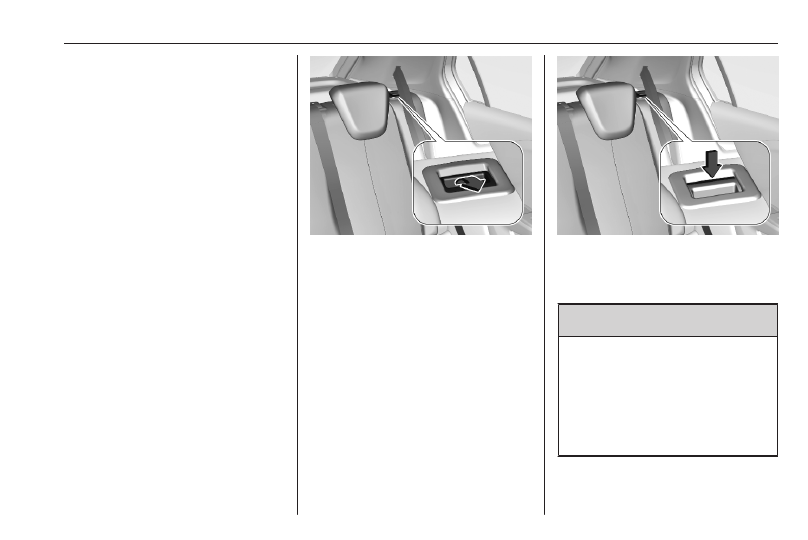

● Press and hold the catch to push

the head restraints down

26.

Folding down/up rear backrests

● Check that the seat belts are not

engaged in the seat belt buckles,

so that the backrests can be

moved.

● Pull the release lever on one or

both outer sides and fold down

the backrests onto the seat

cushion.

● To fold up, raise the backrests

and guide them into an upright

position until they engage

audibly. Make sure that the belts

are positioned correctly and stay

clear of the folding area.

The backrests are properly

engaged when the red marks

near the release levers are no

longer visible.

Warning

When folding up, ensure that

backrests are securely locked in

position before driving. Failure to

do so may result in personal injury

or damage to the load or vehicle in

the event of hard braking or a

collision.

Storage

The seat belt of the centre seat could

be blocked when the backrest is

folded up too quickly. To unlock the

retractor, push in the seat belt or pull

it out by approx. 20 mm then release.

Load compartment cover

Do not place any objects on the cover.

Removing cover

Unhook retaining straps from tailgate.

Lift cover at the front and push it

upwards at the rear.

Remove the cover.

Fitting cover

Engage cover in side guides and fold

downwards. Attach the retaining

straps to the tailgate.

Rear floor storage cover

The rear floor cover can be lifted and

removed. Use opening to raise the

rear floor cover and then remove it.

Storage

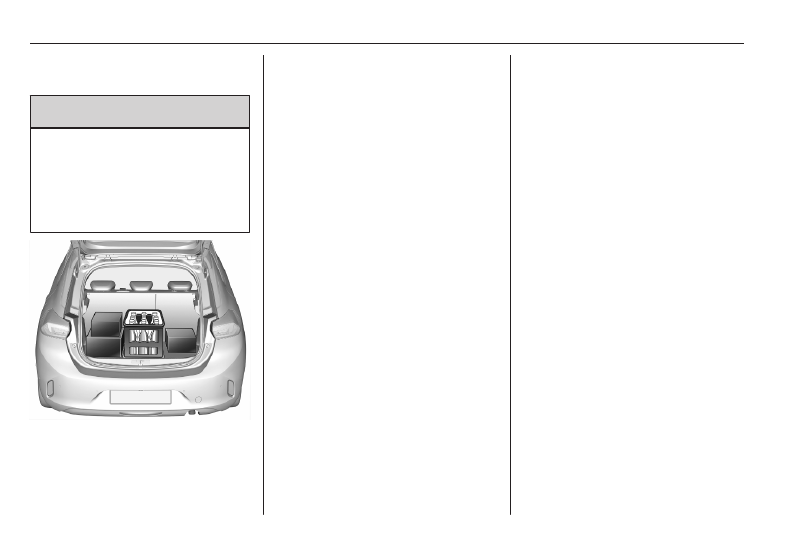

Loading information

Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

● Heavy objects in the load

compartment should be placed

against the seat backrests. Make

sure that the backrests are

securely engaged. If objects can

be stacked, heavier objects

should be placed at the bottom.

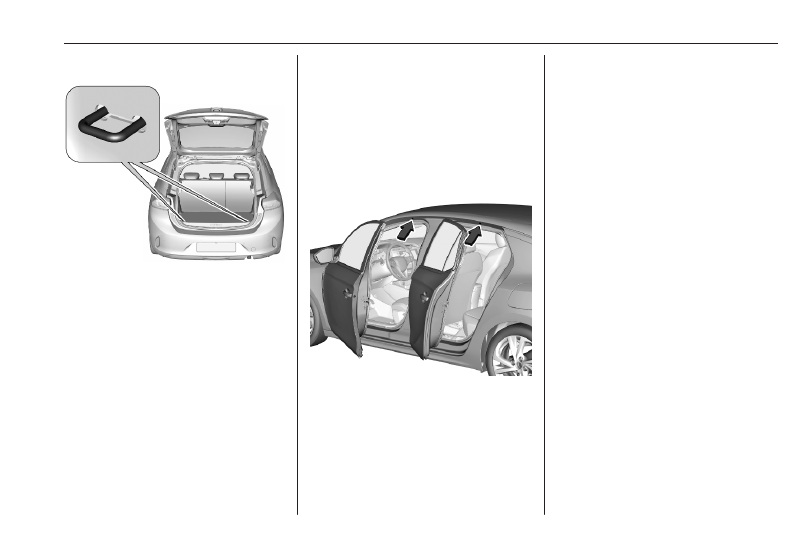

● Prevent sliding of loose objects

by securing them with straps

attached to the lashing eyes

49.

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

load compartment cover or the

instrument panel, and do not

cover the sensor on top of the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate

298) and the EC kerb

weight.

To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle's

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than 75 mph.
The permissible roof load is

70 kg. Do not exceed a loading

height of 40 cm. The roof load is

the combined weight of the roof

rack and the load.

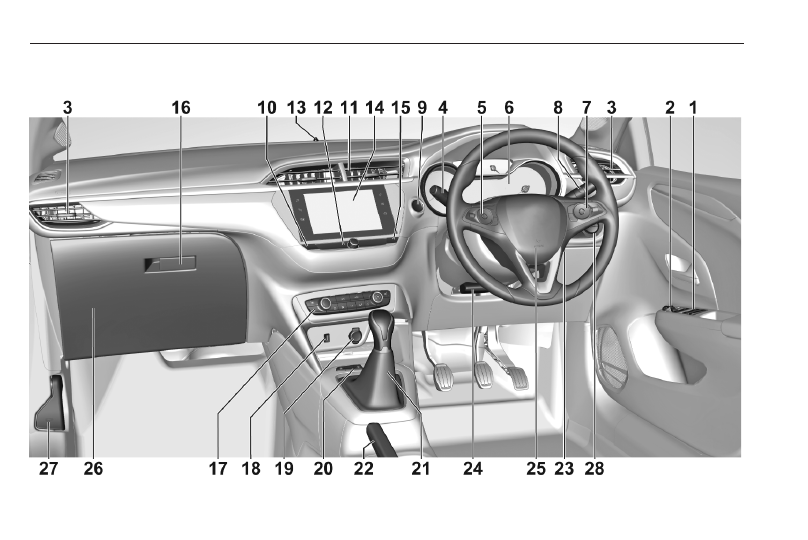

Instruments and controls

Power windows ..................... 23

Exterior mirrors ..................... 20

Side air vents ...................... 166

Turn lights, headlight

flash, low / high beam ........... 88
Parking lights ........................ 89
Buttons for Driver

Information Centre ................ 74

Cruise control ..................... 198
Speed limiter ....................... 201
Adaptive cruise control ....... 203
Heated steering wheel .......... 54

Instruments ........................... 60
Driver Information Centre ...... 74

Infotainment controls

Windscreen wiper and

washer, rear wiper and

washer ................................. 55

Power button ....................... 171

10 Central locking system ......... 10
11 Centre air vents .................. 166
12 Controls for Info Display

operation .............................. 77

13 Anti-theft alarm system

status LED ........................... 18

14 Info Display  .......................... 77
15 Hazard warning flashers  ...... 88
16 Glovebox  .............................. 45
17 Climate control system ........ 158
18 USB port  .............................. 58
19 Power outlet .......................... 58
20 Child locks ............................. 15

Parking assist ..................... 217
Lane keep assist ................. 237
Stop start system ................ 174
Sport mode ......................... 198
Anti-theft alarm system ......... 18

21 Selector ............................... 185
22 Parking brake  ..................... 193
23 Ignition switch ..................... 171
24 Steering wheel adjustment  . . 54
25 Horn  ..................................... 55
26 Fuse box
27 Bonnet release lever  .......... 260
28 Light switch  .......................... 83

Headlight range

adjustment ........................... 85

Front fog lights ...................... 88
Rear fog light ........................ 89
Instrument panel

illumination ............................ 90

Instruments and controls

Controls

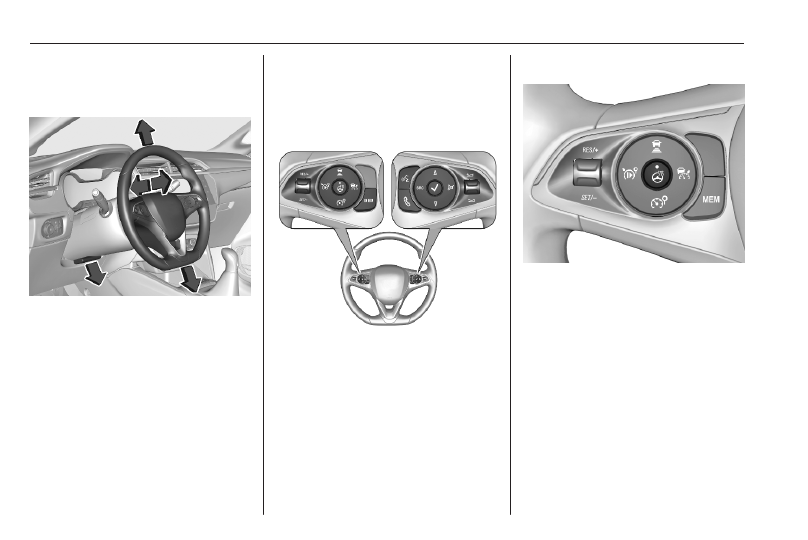

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and, depending

on version, the steering wheel lock

has been released.

Steering wheel controls

Some driver assistance systems,

Infotainment system and a connected

mobile phone can be operated via the

controls on the steering wheel.

Further information is available in the

Infotainment system section.
Cruise control

198.

Speed limiter

201.

Adaptive cruise control

203.

Heated steering wheel

Activate heating by pressing

Activation is indicated by the LED in

the button.
The heating works only when the

outside temperature is below 20 °C.
Stop-start system

174.

Instruments and controls

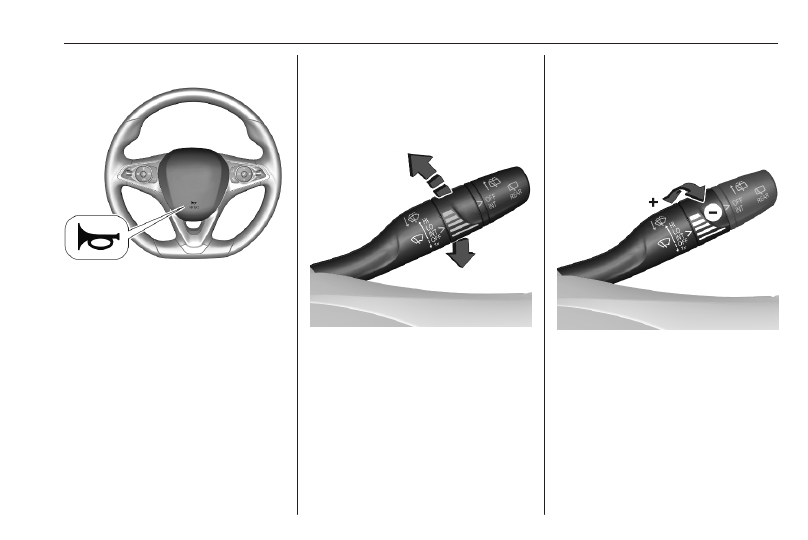

Horn

Press

Pedestrian safety alert

The sound of the pedestrian safety

alert is generated to indicate the

vehicle presence to pedestrians. It is

active up to 19 mph.

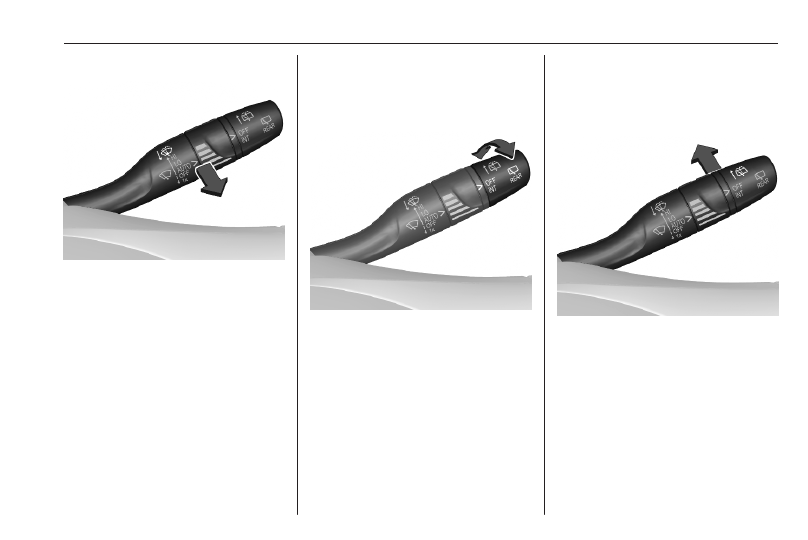

Windscreen wiper and

washer

Windscreen wiper with adjustable

wiper frequency

: fast

LO : slow

INT : interval wiping

OFF : off

: single wipe

Do not use if the windscreen is frozen.
Switch off in car washes.

To activate interval wiping mode the

next time ignition is switched on,

press the lever downwards to position

OFF and back to INT.

Adjustable wiper frequency

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

desired wipe frequency.

Instruments and controls

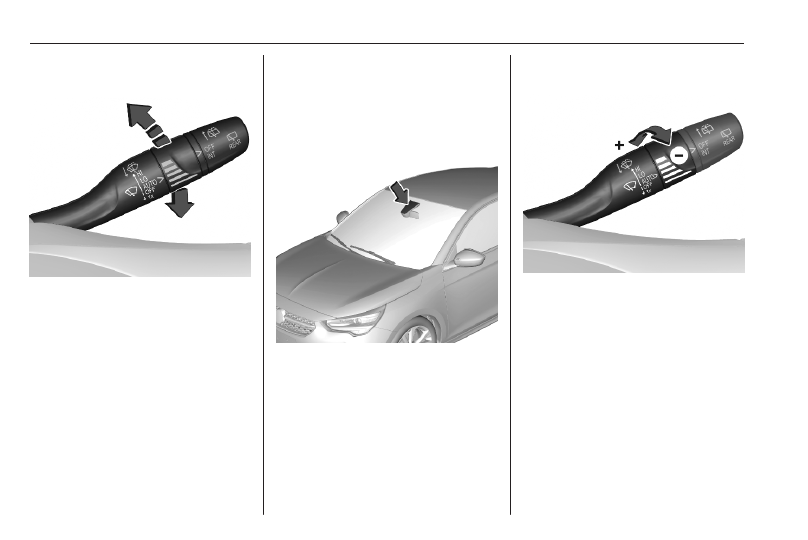

Windscreen wiper with rain

sensor

: fast

: slow

AUTO : automatic wiping with rain

sensor

OFF : off

: single wipe

In AUTO position, the rain sensor

detects the amount of water on the

windscreen and automatically

regulates the frequency of the

windscreen wiper. If ignition is

switched off for more than one

minute, automatic wiping mode is

deactivated. To activate automatic

wiping mode the next time ignition is

switched on, press the lever

downwards to position OFF and back

to AUTO.
Do not use if the windscreen is frozen.
Switch off in car washes.

Keep the sensor free from dust, dirt

and ice.
Control indicator

55.

Adjustable sensitivity of the rain

sensor

Turn the adjuster wheel to adjust the

sensitivity.

Instruments and controls

Windscreen washer

Pull lever. Washer fluid is sprayed

onto the windscreen and the wiper

wipes a few times.
Washer fluid

263.

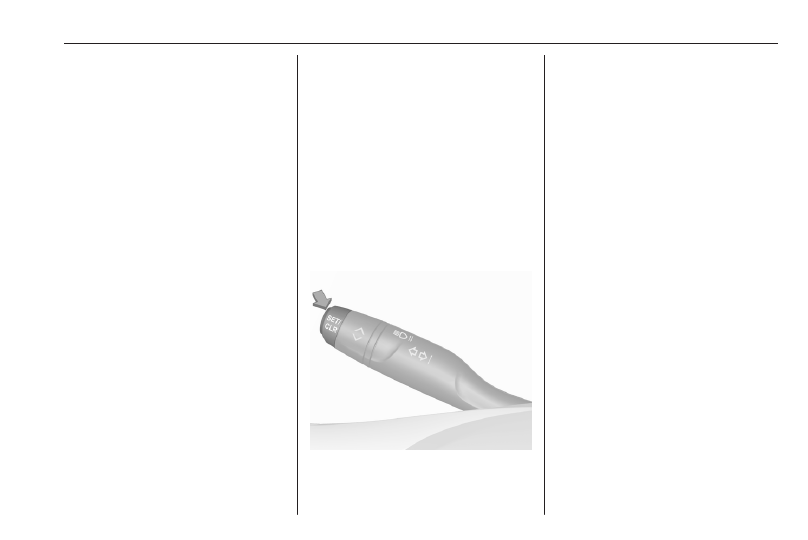

Rear window wiper and

washer

Rear window wiper

OFF : off

INT : intermittent operation
Do not use if the rear window is

frozen.
Switch off in car washes.
The rear window wiper comes on

automatically when the windscreen

wiper is switched on and reverse gear

is engaged.

Activation or deactivation of this

function can be changed in the

Vehicle personalisation menu

80.

Rear window washer

Push lever.
Washer fluid is sprayed onto the rear

window and the wiper wipes a few

times.
Washer fluid

263.

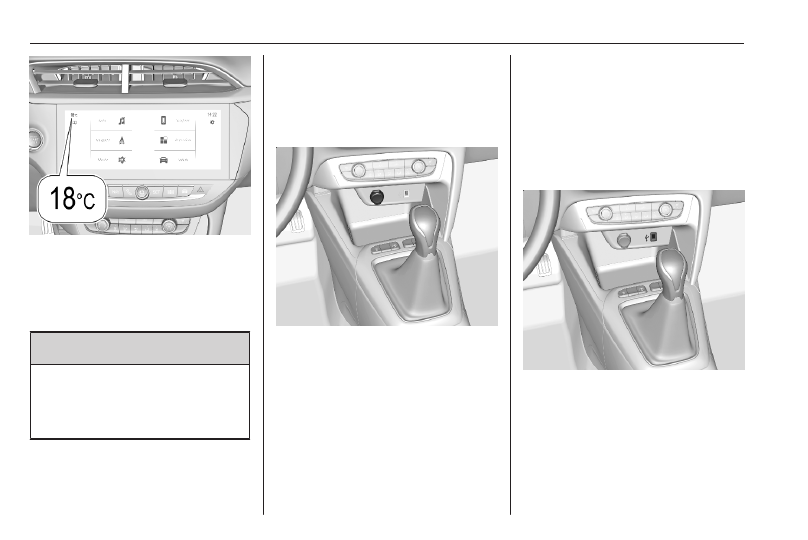

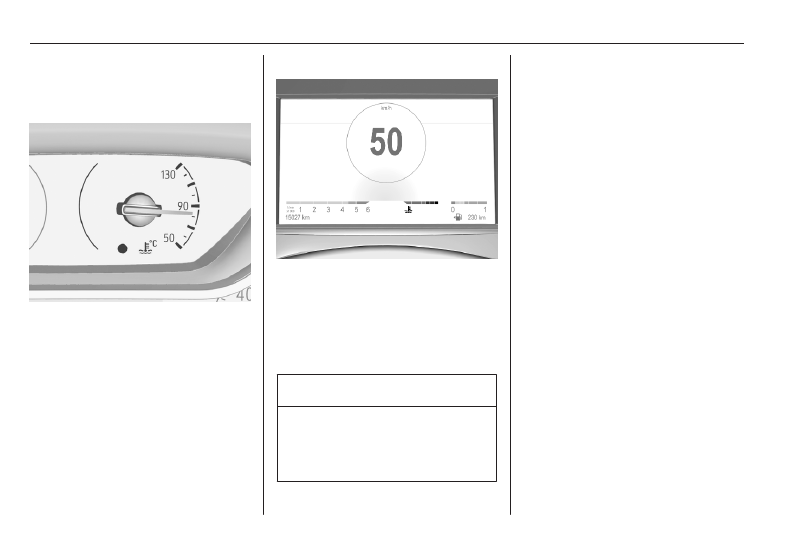

Outside temperature

A drop in temperature is indicated

immediately and a rise in temperature

after a time delay.

Instruments and controls

Illustration shows an example.
If outside temperature drops to a

certain temperature, a warning

message is displayed in the Driver

Information Centre.

Warning

The road surface may already be

icy even though the display

indicates a few degrees above 0

°C.

Clock

Date and time are shown in the Info

Display.

The adjustment of date and time is

described in the Infotainment system

section.

Power outlets

Do not exceed the maximum power

consumption of 120 W.
The 12 V power outlet is deactivated

in the event of low vehicle battery

voltage.
Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.

Do not connect any current-delivering

accessories, e.g. electrical charging

devices or batteries.
Do not damage the outlet by using

unsuitable plugs.
Stop-start system

174.

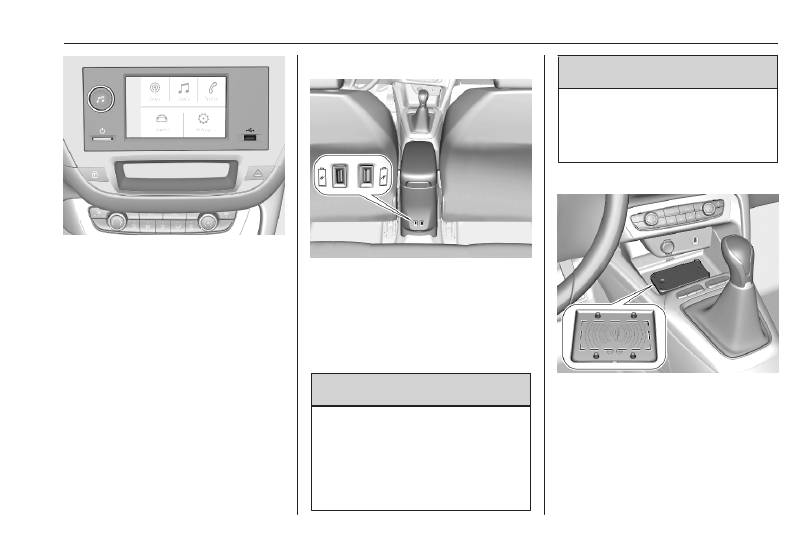

USB ports

The USB port provides 5 V.

Instruments and controls

Location depends on Infotainment

system.

Notice

The sockets must always be kept

clean and dry.

Rear USB ports

The slot below the USB ports on the

rear side of the storage container is

intented to attach an accessory

cupholder.

Inductive charging

Warning

Inductive charging can affect the

operation of implanted

pacemakers or other medical

devices. If applicable, seek

medical advice before using the

inductive charging device.

Warning

Remove any metal objects from

the charging device before

charging a mobile device, as these

objects could become very hot.

To charge a mobile device:

1. Remove all objects from the

charging device.

2. Place the mobile device with the

display facing upwards on the

charging area. Note that the

mobile device must be placed

between the positioning aids.

Instruments and controls

Qi compatible mobile devices can be

charged inductively.
On some mobile devices, a back

cover with an integrated coil or a

jacket may be required to use

inductive charging.
Protective cover for the mobile device

could have impact on the inductive

charging.
In the event that the mobile device is

not charging properly, rotate it 180°

and place it on the charging device

again.

Status LED

The LED indicates the current

charging status.

Illuminates green

The mobile device is charging.

Flashes yellow

The mobile device has not been

centred properly in the charging zone

or an unknown object has been

detected in the charging zone.

Illuminates yellow

There is a problem with the mobile

device's battery or a fault of the

inductive charger has been detected.
If the problem persists, seek the

assistance of a workshop.

Warning lights, gauges

and indicators

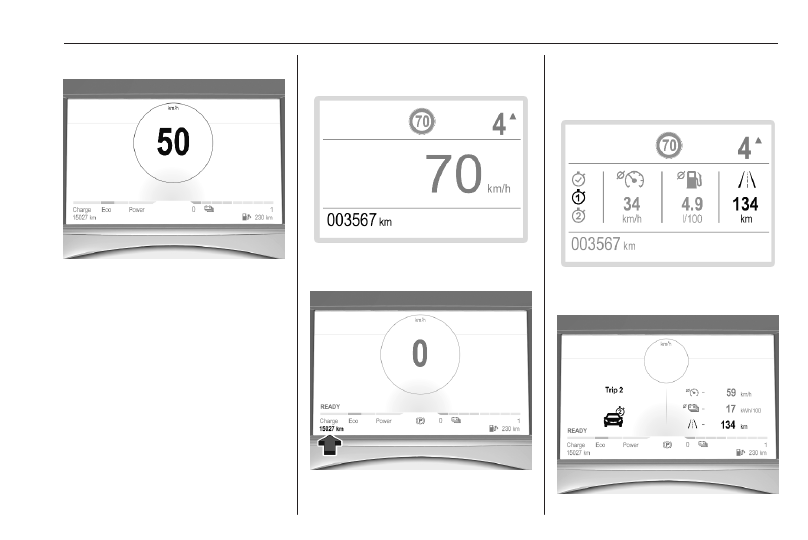

Speedometer

Midlevel instrument cluster

Instruments and controls

The recorded distance since the last

reset is displayed.
Two trip odometer pages are

selectable in the trip / fuel information

menu for different trips.
Trip odometer counts up to

9,999 miles.

Press SET / CLR for 2 seconds to

reset the trip odometer.
Driver Information Centre

74.

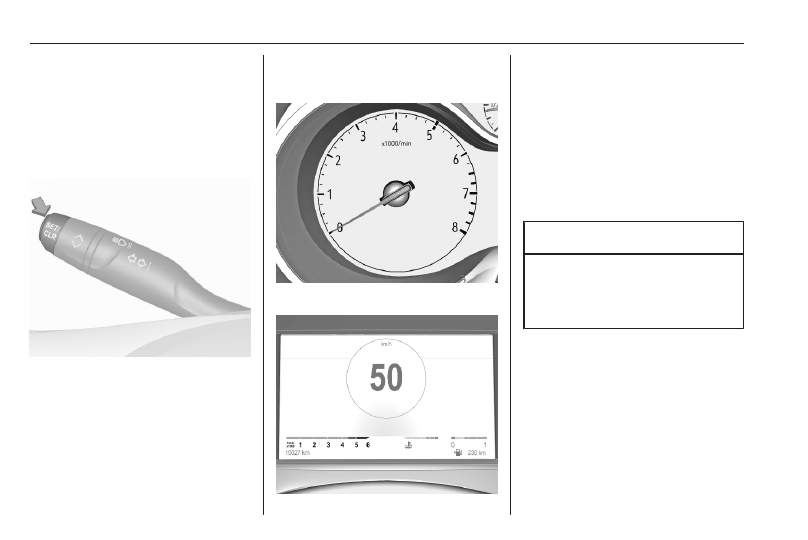

Tachometer

Midlevel instrument cluster

Uplevel instrument cluster

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.
A red marker indicates the beginning

of the warning zone of excessive

revolutions. For Diesel engines, the

warning zone starts at 5000

revolutions per minute. For petrol

engines, the warning zone starts at

6500 revolutions per minute.

Caution

If the indicator is in the red warning

zone, the maximum permitted

engine speed is exceeded. The

engine can be damaged.

Instruments and controls

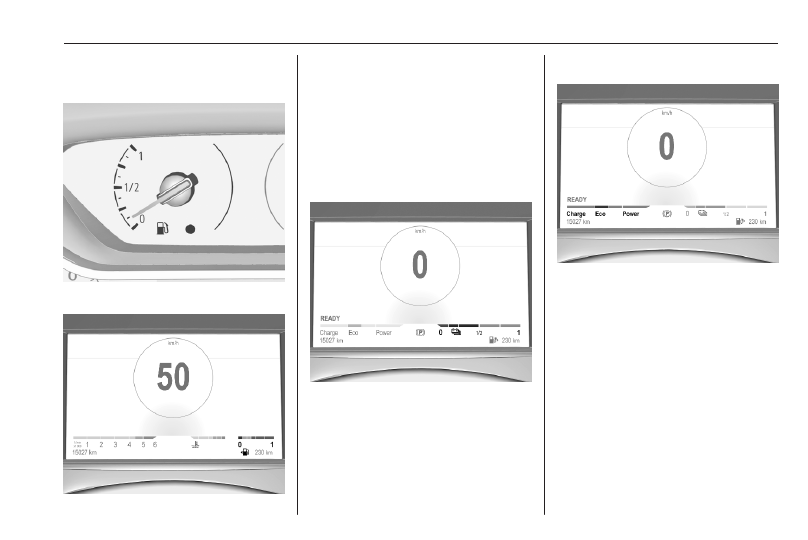

Fuel gauge

Midlevel instrument cluster

Uplevel instrument cluster

Control indicator

illuminates

yellow if the fuel level is low.
Never run the fuel tank dry.
The top-up quantity may be less than

the specified fuel tank capacity, due

to the remaining fuel in the tank.

High voltage battery gauge

Displays the high voltage battery

state of charge.

Power indicator gauge

The power indicator gauge informs

about the current energy situation of

the vehicle.
Charge : Battery is being charged

with energy resulting from

braking or deceleration of

the vehicle

Eco

: An optimum in energy is

accessible in all driving

modes

Power : Vehicle is driven in a

dynamic driving style with

focus on performance

Instruments and controls

Engine coolant temperature

gauge

Midlevel instrument cluster

Uplevel instrument cluster

Displays the coolant temperature.
The red zone indicates that the

operating temperature of the engine

is too high.
Control indicator

illuminates

red if coolant temperature is too high.

Caution

If engine coolant temperature is

too high, stop vehicle, switch off

engine. Danger to engine. Check

coolant level.

Engine oil level monitor

The state of the engine oil level is

displayed in the Driver Information

Centre for a few seconds following

the service information after switching

on the ignition.
A proper state of engine oil level is

indicated by a message.
If engine oil level is low,

flashes

and a message is indicated,

accompanied by the

indicator.

Confirm engine oil level by using the

dipstick and top up engine oil

respectively.
Engine oil

260.

A fault of measurement is indicated

by a message. Check engine oil level

manually by using the dipstick.

Service display

The service system informs when to

change the engine oil and filter or a

vehicle service is required. Based on

driving conditions, the interval at

which an engine oil and filter change

are required can vary considerably.
Service information

293.

Instruments and controls

A required service due is displayed in

the Driver Information Centre for

several seconds after switching on

the ignition.
If no service is required for the next

1800 miles or more, no service

information appears in the display.
If service is required within the next

1800 miles, the remaining distance to

the next service due, the distance

travelled since the last service due or

the time period that remains to the

next service due is indicated for

several seconds. Simultaneously

symbol

illuminates temporary as

reminder.
If service is required in less than

600 miles, the remaining distance to

the next service due, the distance

travelled since the last service due or

the time period that remains to the

next service due is indicated for

several seconds. Simultaneously

illuminates permanently as

reminder.
Overdued service is indicated by a

message in the Driver Information

Centre which indicates the overdued

distance.

flashes and then

illuminates permanently until service

is executed.

Reset of service interval

After each service, the service

indicator must be reset to ensure

proper functionality. It is

recommended to seek the assistance

of a workshop.
If service is executed by yourself,

operate as following:

● switch off ignition

● press and hold SET / CLR

● switch on ignition, the distance

indication begins a countdown

● when the display indicates =0,

release SET / CLR

The symbol

disappears.

Retrieving service information

The status of the service information

can be retrieved at any time via the

Info Display. Press Check in the

vehicle settings menu. The service

information is displayed for a few

seconds.
Info Display

77.

Service information

293.

Control indicators

The control indicators described are

not present in all vehicles. The

description applies to all instrument

versions. Depending on the

equipment, the position of the control

indicators may vary. When the

ignition is switched on, most control

indicators will illuminate briefly as a

functionality test.

Instruments and controls

The control indicator colours mean:
red

: danger, important reminder

yellow : warning, information, fault

green : confirmation of activation

blue

: confirmation of activation

white : confirmation of activation

grey

: system paused, at least one

system limitation has been

detected

Control indicators are located in the

Driver Information Centre.
Driver Information Centre

74.

Overview

The numbers in the overview table

indicate what to do, when a control

indicator illuminates or flashes.
1 : only for information

2 : information and warning

3 : seek the assistance of a

workshop

4 : stop engine and seek the

assistance of a workshop

5 : have the cause of the fault

remedied immediately by a

workshop

6 : stop vehicle, do not continue the

journey and seek the assistance

of a workshop

1 Turn lights

2 Seat belt reminder

5 Airbag and belt

tensioners

1 Airbag deactivation

4 Charging system

5 Malfunction indicator

light

5 Service vehicle soon

4 Stop engine

4 System check

6 Brake and clutch

system

1 /

Parking brake

2 Automatic operation of

electric parking break

off

5 Electric parking brake

fault

2 Antilock brake system

(ABS)

1 Gear shifting

2 Lane keep assist

1 Parking assist

2 /

Electronic Stability

Control and Traction

Control system

4 Engine coolant temper‐

ature high

1 Preheating

Instruments and controls

2 /

Exhaust filter

1 AdBlue

2 /

Deflation detection

system

4 Engine oil pressure

2 Low fuel

1 Autostop

1 Exterior light

1 Low beam

1 High beam

1 High beam assist

1 Front fog lights

1 Rear fog light

1 Rain sensor

2 /

Active emergency

braking

2 /

Traffic sign assistant

2 Door open

5 Service vehicle soon

2 Charging cable

connected

READY 1 Vehicle ready

2 Reduced engine power

3 Pedestrian safety alert

fault

Turn lights

illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

Turn lights or the hazard warning

flashers are activated.
Rapid flashing: failure of a turn light or

associated fuse.
Bulb replacement

267.

Turn lights

88.

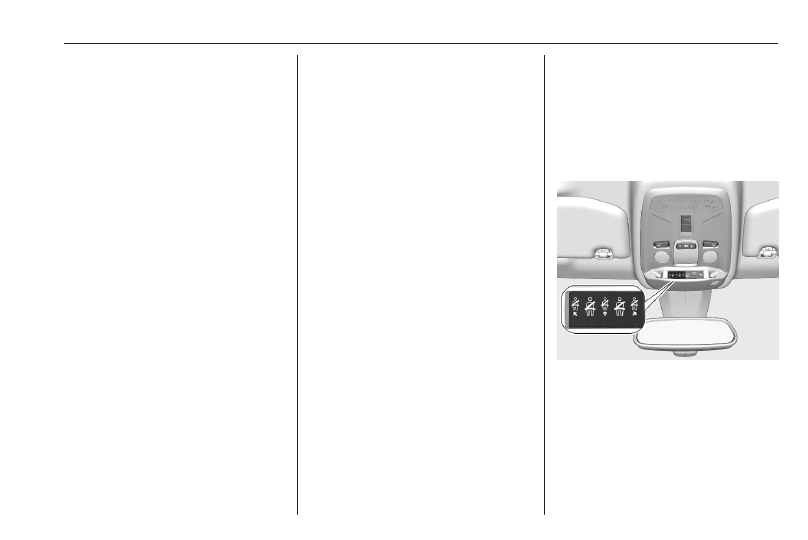

Seat belt reminder

Seat belt reminder on all seats

illuminates or flashes red in the

instrument cluster together with the

indication in the overhead console for

each seat belt.

● When the ignition is switched on,

in the instrument cluster and

the symbol for the respective

seat in the overhead console

come on, if a seat belt is not

Instruments and controls

fastened. The front passenger

seat is only displayed when

occupied.

● After driving off,

in the

instrument cluster and the

symbol for the respective seat in

the overhead console flash for a

certain time together with a

chime. After a certain time of

driving

illuminates constantly

until the seat belt of the

respective seat has been

fastened or if any passenger has

unfastened the seat belt.

Seat belts

31.

Airbag and belt tensioners

illuminates red.

When the ignition is switched on, the

control indicator illuminates for some

seconds. If it does not illuminate,

does not extinguish after some

seconds or illuminates whilst driving,

there is a fault in the airbag system.

Seek the assistance of a workshop.

The airbags and belt pretensioners

may fail to trigger in the event of an

accident.

Deployment of the belt pretensioners

or airbags is indicated by continuous

illumination of

Warning

Have the cause of the fault

remedied immediately by a

workshop.

Belt pretensioners

31.

Airbag system

33.

Airbag deactivation

illuminates yellow.

The front passenger airbag is

activated.

illuminates yellow.

The front passenger airbag is

deactivated.
Airbag deactivation

38.

Charging system

illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Stop, switch off engine. Vehicle

battery is not charging. Engine

cooling may be interrupted. The

brake servo unit may cease to be

effective. Seek the assistance of a

workshop.

Malfunction indicator light

illuminates or flashes yellow.

Instruments and controls

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Fault in the emission control system.

The permitted emission limits may be

exceeded. Seek the assistance of a

workshop immediately.

Flashes when the engine is

running

Fault that could lead to catalytic

converter damage. Ease up on the

accelerator until the flashing stops.

Seek the assistance of a workshop

immediately.

Service vehicle soon

illuminates yellow.

Illuminates briefly when the ignition is

switched on.
May illuminate together with other

control indicators and a

corresponding message in the Driver

Information Centre.

Seek the assistance of a workshop

immediately.

Illuminates permanently when the

ignition is switched on.
A fault of the electric engine or the

high voltage battery has been

detected.
Seek the assistance of a workshop

immediately.

Stop engine

illuminates red.

Illuminates briefly when the ignition is

switched on.
Illuminates together with other control

indicators, accompanied by a warning

chime and a corresponding message

in the Driver Information Centre.
Stop engine immediately and seek

the assistance of a workshop.

System check

illuminates yellow or red.

Illuminates yellow

A minor engine fault has been

detected.

Illuminates red

A major engine fault has been

detected.
Stop engine as soon as possible and

seek the assistance of a workshop.

Brake and clutch system

illuminates red.

The brake and clutch fluid level is too

low.

Warning

Stop. Do not continue your

journey. Consult a workshop.

Brake fluid

263.

Parking brake

illuminates or flashes red.

Vauxhall Corsa F (2023 year). Manual in english - page 2
