102. When the obstacle is very

Indication

Depending on which side of the

vehicle is closer to an obstacle, you

will hear acoustic warning signals in

the vehicle on the respective side.

The interval between the sounds

becomes shorter as the vehicle gets

closer to that obstacle. When the

distance is less than approx. 30 cm,

the sound is continuous.

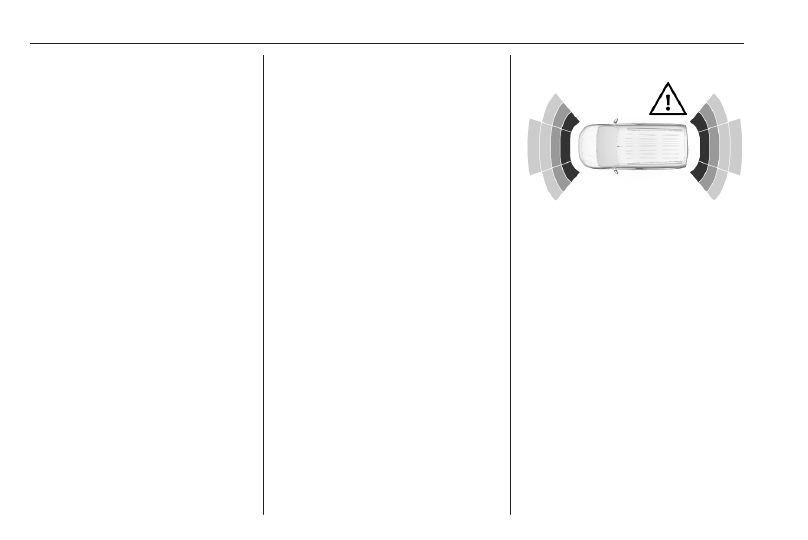

Additionally, the distance to rear

obstacles is displayed by changing

distance lines in the Info Display

close,

for danger is displayed.

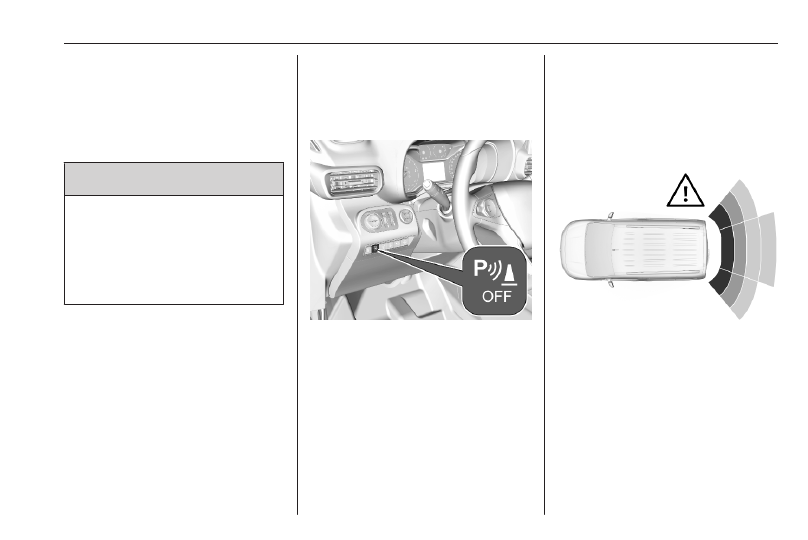

Deactivation

The system is switched off when

reverse gear is disengaged. Press

to deactivate the system manually.

The LED in the button illuminates

264

Driving and operating

when the system is deactivated. If the

system has been deactivated

manually, it is not reactivated

automatically the next time the

ignition is switched on.
Graphic Info Display: The system is

switched off when the LED in the

parking assist button

is illuminated.

Colour Info Display: Deactivate the

parking assist in the vehicle

107. The state of

the system

Front-rear parking assist

The front-rear parking assist

measures the distance between the

vehicle and obstacles in front and

behind the vehicle. It informs and

warns the driver by giving audible

signals and display indication.
It uses two different acoustic warning

signals for the front and rear

monitoring areas, each with a

different tone frequency.

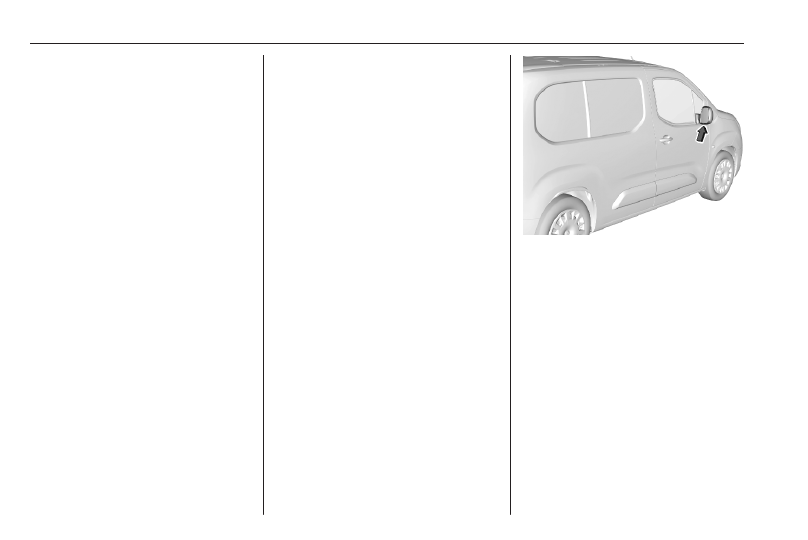

The system operates with ultrasonic

parking sensors in the rear and front

bumper.

Activation

In addition to the rear parking assist,

the front parking assist is triggered

when an obstacle is detected in front

and the speed of the vehicle is below

6 mph.
Graphic Info Display: The system is

ready to operate when the LED in the

parking assist button

is not

illuminated.
Colour Info Display: Activate the

parking assist is in the vehicle

Indication

Depending on which side of the

vehicle is closer to an obstacle, you

will hear acoustic warning signals in

the vehicle on the respective side.

The interval between the sounds

becomes shorter as the vehicle gets

closer to that obstacle. When the

distance is less than approx. 30 cm,

the sound is continuous.

Additionally, the distance to rear and

front obstacles is displayed by

changing distance lines in the Info

Display

If the vehicle stops for more than

three seconds in a forward gear, if

automatic transmission is in P or if no

further obstacles are detected, no

acoustic warning signals are given.

Deactivation

The system is deactivated

automatically when vehicle speed

exceeds 6 mph, by applying the

electric parking brake or by pressing

the parking assist button

Driving and operating

265

Graphic Info Display: The system is

switched off when the LED in the

parking assist button

is illuminated.

Colour Info Display: Deactivate the

parking assist in the vehicle

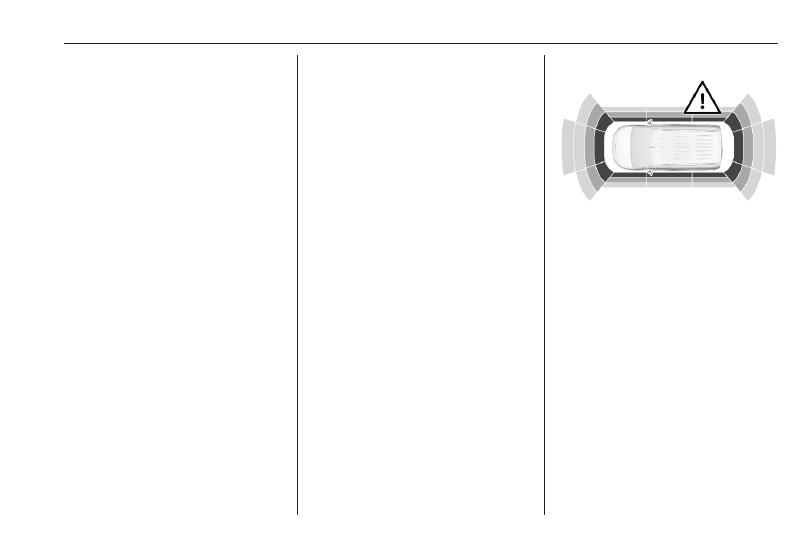

Front-rear-lateral parking assist

The front-rear-lateral parking parking

assist measures the distance

between the vehicle and obstacles in

front, behind and at the sides of the

vehicle. It informs and warns the

driver by giving acoustic signals and

display indication.
The system operates with ultrasonic

parking sensors in the rear and front

bumper and on the flanks of the

vehicle.

Activation

In addition to the rear parking assist

and the front-rear assist, the front-

rear-lateral parking assist is triggered

when the system detects fixed

obstacles located to one or both sides

of the vehicle.

Graphic Info Display: The system is

ready to operate when the LED in the

parking assist button

is not

illuminated.
Colour Info Display: Activate the

parking assist is in the vehicle

Indication

Depending on which side of the

vehicle is closer to an obstacle, you

will hear acoustic warning signals in

the vehicle on the respective side.

The interval between the sounds

becomes shorter as the vehicle gets

closer to that obstacle. When the

distance is less than approx. 30 cm,

the sound is continuous.

Additionally, the distance to rear, front

and lateral obstacles is displayed by

changing distance lines in the Colour

Info Display

Deactivation

The system is deactivated

automatically when vehicle speed

exceeds 6 mph, by applying the

electric parking brake or by pressing

the parking assist button

Graphic Info Display: The system is

switched off when the LED in the

parking assist button

is illuminated.

266

Driving and operating

Colour Info Display: Deactivate the

parking assist in the vehicle

System limitations

In the event of a fault or if the system

does not work temporarily, e.g.

because of high external noise level

or other interference factors,

illuminates in the Driver Information

Centre. A message is displayed in the

Driver Information Centre and a

warning chime sounds.
In the case of a permanent fault, seek

the assistance of a workshop.

Warning

Under certain circumstances,

various reflective surfaces on

objects or clothing as well as

external noise sources may cause

the system to fail to detect

obstacles.
Special attention must be paid to

low obstacles which can damage

the lower part of the bumper.

Caution

In the case of a severe failure of

the vehicle with the need to stop

the vehicle, the system is

deactivated.
In the case of a gearbox failure,

the parking assist system is not

active, when reverse gear is

engaged.
In the case of a loudspeaker

failure, the audible signals may not

be given.
Performance of the system can be

reduced when sensors are

covered, e.g. by ice or snow.
If a sensor is covered, a message

is displayed indicating that the

sensors have to be cleaned.
Performance of the parking assist

system may be limited or the

functionality may not be available

at all if

illuminates or if the

image shown on the Info Display

is frozen or if the screen is black.

Performance of the parking assist

system can be reduced due to

heavy loading.
Special conditions apply if there

are taller vehicles in the vicinity

(e.g. off-road vehicles, mini vans,

vans). Object identification and

correct distance indication in the

upper part of these vehicles

cannot be guaranteed.
Objects with a very small reflection

cross-section, e.g. objects of

narrow size or soft materials, may

not be detected by the system.
Parking assist systems do not

detect objects outside the

detection range, e.g. below the

bumper or underneath the vehicle.
During a reverse parking

manoeuvre, the system does not

consider a mounted coupling ball

bar. The driver has to consider this

additional length.

Driving and operating

267

Notice

It is possible that the sensor detects

a non-existing object caused by

echo disturbance from external

acoustic noise or mechanical

misalignments (sporadic false

warnings may occur).
Make sure that the front number

plate is properly mounted (not bent

and no gaps to the bumper on the left

or right side) and the sensors are

firmly in place. The performance of

the parking assist may be reduced if

the license plate is bent or a license

plate support is used.
Low curbs and surface irregularities,

e.g. on construction zones, are not

detected by the system. The driver

accepts responsibility.

Advanced parking assist

Warning

The driver bears full responsibility

for accepting the parking slot

suggested by the system and the

parking manoeuvre.

Always check the surrounding

area in all directions when using

the advanced parking assist.

The advanced parking assist

measures a suitable parking slot

while passing, calculates the

trajectory and automatically steers

the vehicle while parking.
Advanced parking assist provides

assistance for the following

manoeuvres:

● entry into a parallel parking slot
● entry into a perpendicular parking

slot

● exit from a parallel parking slot

The driver must control acceleration,

braking and gear shifting, while

steering is done automatically. The

driver can take control at any time by

gripping the steering wheel.
It may be necessary to move forwards

and backwards more than once.
Instructions are given in the Info

Display

Advanced parking assist can only be

activated when driving forwards.

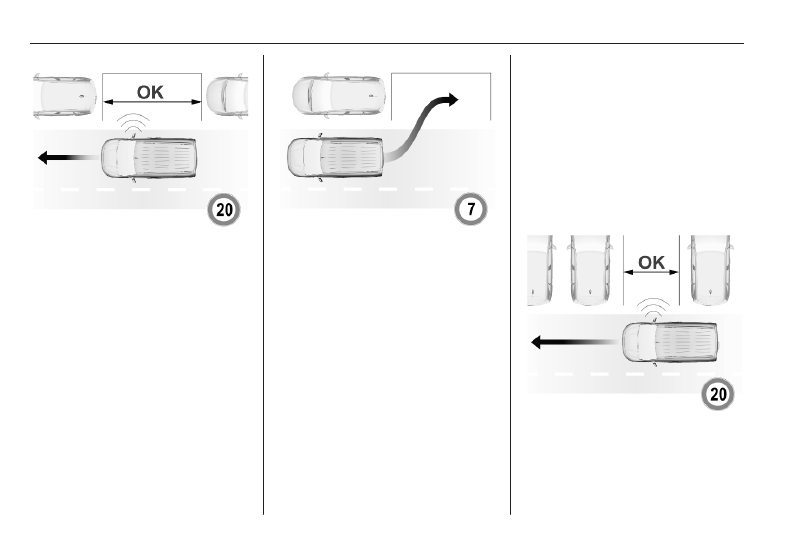

Entry into a parallel parking slot

Activation

Slow down the vehicle speed below

19 mph.
To search for a parking slot, activate

the system in the Info Display

Select the parallel parking slot menu.
Select parking side by switching on

the turn light on the respective side.
The allowed parallel distance

between the vehicle and a row of

parked cars is between 0.5 m and

1.5 m.
For entering into a parallel parking

slot, the minimum length of the slot

must be equal to the length of your

vehicle plus 0.6 m. The system will

not identify slots that are clearly

smaller or larger than the vehicle.

268

Driving and operating

When a free slot is detected, a visual

feedback on the Info Display and a

first acoustic signal is given. Drive

slowly forwards. When the second

acoustic signal is given, stop the

vehicle, select reverse gear, release

the steering wheel and start moving

slowly. A visual feedback is given on

the Info Display.

Move forwards and backwards while

observing the warnings of the Parking

assist until the end of manoeuvre is

indicated.

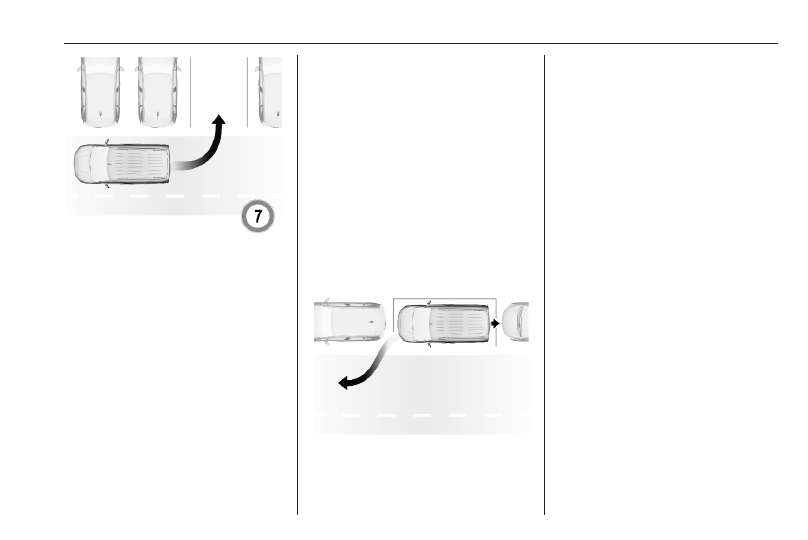

Entry into a perpendicular parking

slot

Activation

Slow down the vehicle speed below

19 mph.
To search for a parking slot, activate

the system in the Info Display

Select the perpendicular parking slot

menu.
Select parking side by switching on

the turn light on the respective side.

The allowed parallel distance

between the vehicle and a row of

parked cars is between 0.5 m and

1.5 m.
For entering into a perpendicular

parking slot, the minimum width of the

slot must be equal to the width of your

vehicle plus 0.7 m. When several

successive slots are found, the

vehicle will be directed towards the

last one.

When a free slot is detected, a visual

feedback on the Info Display and an

acoustic signal is given. Stop the

vehicle, select reverse gear, release

the steering wheel and start moving

without exceeding 4 mph.

Driving and operating

269

Move forwards and backwards as

instructed by observing the warnings

of the parking assist and paying

attention to the acoustic signals until

the end of manoeuvre is indicated.

When finished,

extinguishes in the

instrument cluster.
During the parking manoeuvre, the

system is automatically deactivated

once the rear of the vehicle is within

50 cm of an obstacle.

Exiting a parallel parking slot

Activation

When exiting a parallel parking slot,

activate the system in the Info Display

Select the exiting a parallel parking

slot menu.
Select exit side by switching on the

respective turn light.
Engage reverse or forward gear,

release the steering wheel and start

moving without exceeding 3 mph.

Move forwards and backwards while

observing the warnings of the Parking

assist until the end of manoeuvre is

indicated. The manoeuvre is

complete when the vehicle's front

wheels are out of the parking slot.
After deactivation ensure to take

control over the vehicle.

Display indication

The instructions on the display show:

● general hints and warning

messages

● the demand to stop the vehicle,

when a parking slot is detected

● the direction of driving during the

parking manoeuvre

● the demand to shift into reverse

or first gear

● the demand to stop or to drive

slowly

● the successful completion of the

parking manoeuvre indicated by

a pop-up symbol and a chime

● the cancelling of a parking

manoeuvre

270

Driving and operating

Deactivation

Do not use the advanced parking

assist when a temporary spare wheel

is mounted. The rear view camera

may not work properly.
The current park assist manoeuvre is

cancelled via the button to return to

the previous screen in the Info

Display. To deactivate the system

completely, press

in the centre

console.
The system is deactivated

automatically:

● if the ignition is switched off
● if stalling the engine
● if no manoeuvre is started within

five minutes of selection of the

type of manoeuvre

● after a prolonged stop of the

vehicle during a manoeuvre

● if the Electronic Stability Control

is triggered

● if the speed of the vehicle

exceeds the stated limit

● when the driver interrupts

movement of the steering wheel

● after seven manoeuvres for

entering a perpendicular parking

slot (a manoeuvre consists of

one rear move or one forward

move)

● after ten manoeuvres for entering

or exiting a parallel parking slot

● on opening a door or the load

compartment

● if one of the front wheels

encounters an obstacle

● parking manoeuvre successfully

ended

Deactivation by the driver or by the

system during manoeuvring will be

indicated on the display. Additionally,

an audible signal sounds.
The system is deactivated when a

plug is connected to the power outlet

of the trailer hitch.
Contact your dealer to switch off the

system for a prolonged period.

Fault

In the event of a fault, a message is

displayed in the Colour Info Display,

accompanied by an audible signal.

In the event of a fault in the power

steering,

illuminates and a

message is displayed in the Driver

Information Centre.

Notice

Advanced parking assist system

may not respond to changes in the

available parking space after

initiating a parking manoeuvre. The

system may recognize an entry, a

gateway, a courtyard or even a

crossing as a parking slot. Take care

regarding the availability of the

suggested parking slot.

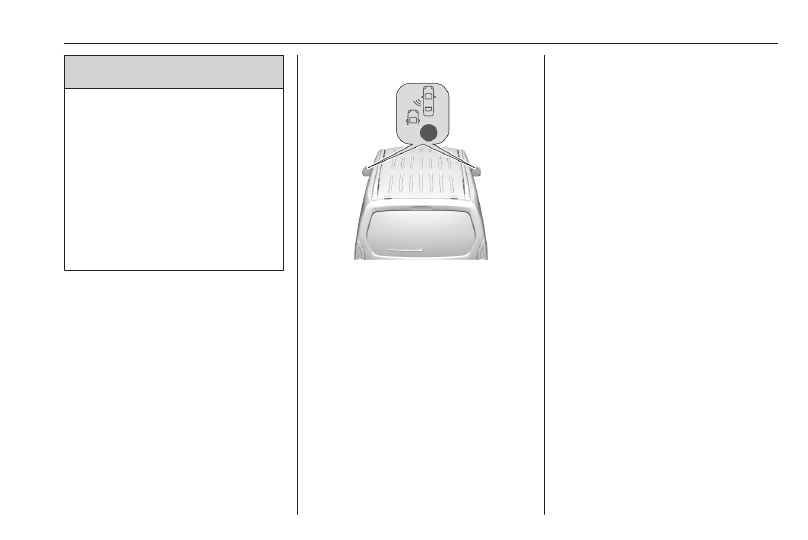

Side blind spot alert

The side blind spot alert system

detects and reports objects on either

side of the vehicle, within a specified

blind spot zone. The system displays

a visual alert in each exterior mirror,

when detecting objects that may not

be visible in the interior and exterior

mirrors.
Side blind spot alert uses some of the

advanced parking assist sensors

which are located in the front and rear

bumper on both sides of the vehicle.

Driving and operating

271

Warning

Side blind spot alert does not

replace driver vision.
The system does not detect:

● vehicles outside the side blind

zones which may be rapidly

approaching

● pedestrians, cyclists or animals

Before changing a lane, always

check all mirrors, look over the

shoulder and use the turn signal.

Activation

Colour Info Display: press

. Select

Driving functions on the Info Display

and then Blind spot sensors. Activate

the function.

illuminates continously green in the

instrument cluster to confirm the

function.

Functionality

When the system detects a vehicle in

the side blind zone while driving

forwards, an LED will illuminate in the

relevant exterior mirror.
The LED comes on immediately when

being passed.
The LED comes on after a delay when

passing another vehicle slowly.

Operation conditions

The following conditions must be

fulfilled for proper operation:

● all vehicles are moving in the

same direction and in adjacent

lanes

● the speed of your vehicle is

between 7 and 87 mph

● passing a vehicle with a speed

difference of less than 6 mph

● another vehicle is passing with a

speed difference of less than

15 mph

● the traffic flow is normal
● driving on a straight or slightly

curved road

● the vehicle is not pulling a trailer
● the sensors are not covered by

mud, ice or snow

● the warning zones in the door

mirrors or the detection zones on

front and rear bumper ar not

covered with adhesive labels or

other objects

272

Driving and operating

No alert will be given in the following

situations:

● in the presence of non-moving

objects, e.g. parked vehicles,

barriers, street lamps, road signs

● in very dense traffic, when

moving vehicles might be

confused with a stationary object

● with vehicles moving in the

opposite direction

● driving on a winding road or a

sharp corner

● when passing or being passed by

a very long vehicle, e.g. lorry,

coach, which is at the same time

detected at the rear in the blind

spot angle and present in the

driver's forward field of vision

● when passing too quickly

Deactivation

The system is deactivated in the

vehicle personalisation

extinguishes in the instrument cluster.

Additionally, an acoustic signal

sounds.
The state of the system is stored

when switching off the ignition.

The system is automatically

deactivated when towing an

electrically connected trailer.
Due to adverse weather conditions

such as heavy rain, false detections

may occur.

Fault

In the event of a fault,

flashes for a

few moments in the instrument panel,

accompanied by

and a display

message. Have the cause of the fault

remedied by a workshop.

Passenger side camera

The passenger side camera monitors

the side of the vehicle.

The camera is mounted at the bottom

of the exterior mirror on the

passenger side.
The area displayed by the camera is

limited. The distance of the image that

appears on the display differs from

the actual distance.

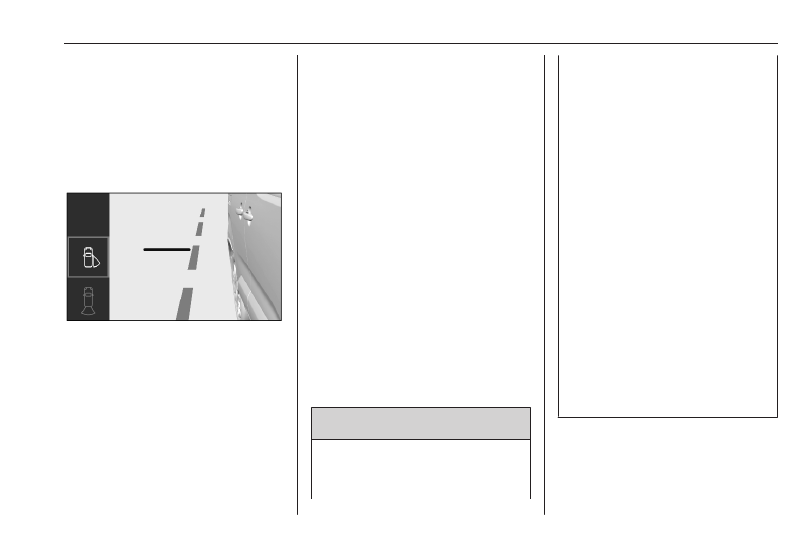

Camera with view to the rear

The camera shows the blind spot

area of the passenger side.
The passenger side view is displayed

in the rear view display

105.

Driving and operating

273

Switching on

The camera is switched on when the

vehicle is running in forward gear and

the passenger side view is selected

from the rear view display.

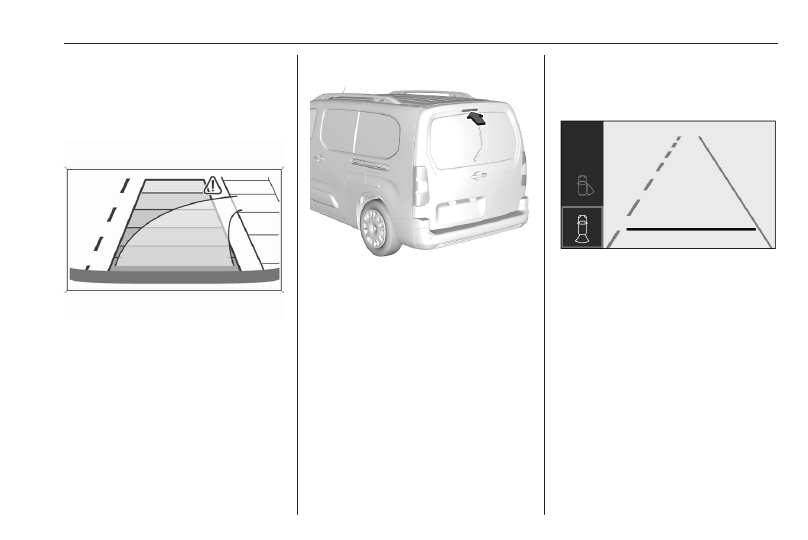

Guidelines

The line represents a distance of

about 4 m beyond the edge of

vehicle's rear bumper.

Switching off

The camera is deactivated when

another view type is selected.

System limitations

The passenger side camera may not

operate properly when:

● the surrounding is dark
● the beam of headlights is shining

directly into the camera lenses

● weather limits visibility, such as

fog, rain, or snow

● the camera lenses are blocked

by snow, ice, slush, mud, dirt.

Clean the lense, rinse with water,

and wipe with a soft cloth

● there are extreme temperature

changes

Panoramic view system

This system allows views of the

vehicle's surroundings to be

displayed as a nearly 180° picture in

the Info display, like a bird's eye view.

Warning

The panoramic view system does

not replace driver vision. It will not

display children, pedestrians,

cyclists, crossing traffic, animals,

or any other objects outside of the

camera view area, e. g. below the

bumper, or underneath the

vehicle.
Do not drive or park the vehicle

using only the panoramic view

system.
Always check the surrounding of

the vehicle before and during

driving.
Displayed images may be further

or closer than they appear. The

area displayed is limited and

objects that are close to either

edge of the bumper or under the

bumper are not displayed on the

screen.
Depending on the load of the

vehicle, the inclination of the

vehicle may be changed including

the view of the camera.

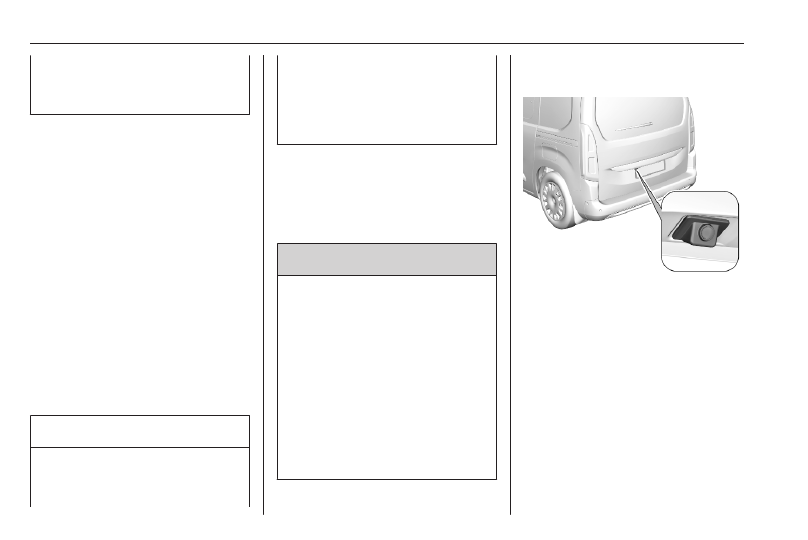

The system uses:

● rear camera, installed in the

tailgate

● ultrasonic parking sensors in the

rear bumper

274

Driving and operating

The screen in the Info display is

divided into two parts. On the right

there is a view from above the vehicle,

and on the left there is the view from

the rear displayed. The parking

sensors complete the information on

the view from above the vehicle.
Change the volume of the acoustic

signals by pressing

in the right

lower zone of the display.

Activation

Panoramic view system is activated

by:

● engaging reverse gear
● driving up to 6 mph

Functionality

Different views can be selected in the

left part of the display. Change the

type of view at any time during a

manoeuvre by pressing the touch

field in the left lower zone of the

display:

● Standard view
● AUTO Mode
● Zoom view
● 180° view

The display is immediately updated

with the type of view selected.
AUTO Mode is activated by default. In

this mode, the system selects the

best view, standard or zoom, to

display according to the information

from the parking sensors.
The state of the system is not kept in

memory when the ignition is switched

off.

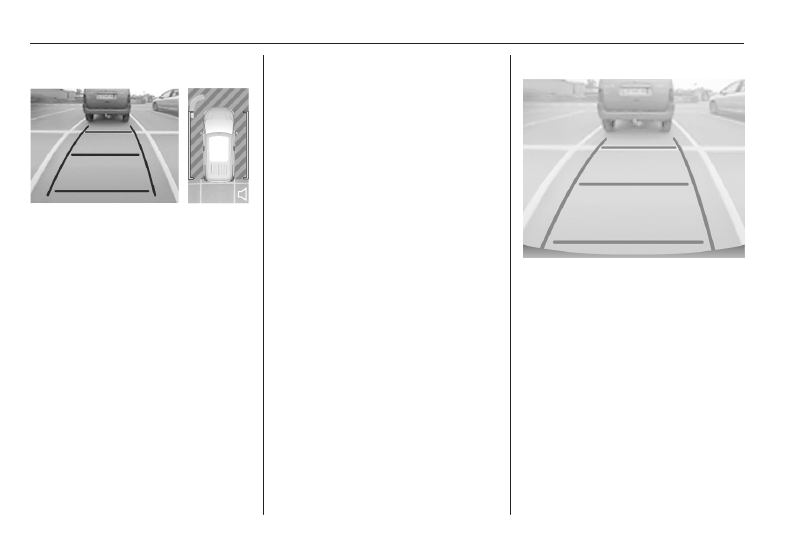

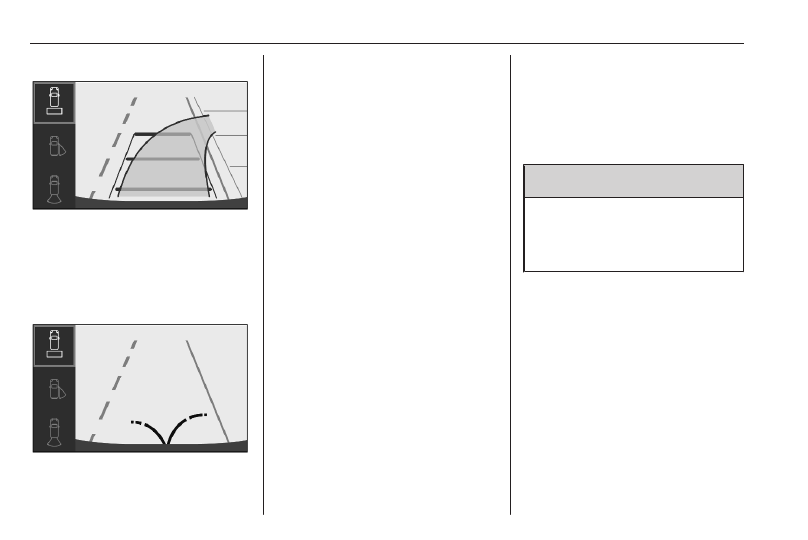

Rear view / Standard view

The area behind the vehicle is

displayed in the screen. The vertical

lines represent the width of the

vehicle with mirrors unfolded. The

direction of the lines changes with the

position of the steering wheel.
The first horizontal line represents a

distance of about 30 cm beyond the

edge of vehicle's rear bumper. The

upper horizontal lines represent

distances of about 1 and 2 m beyond

the edge of your vehicle's rear

bumper.
This view is available in AUTO Mode

or in the view selection menu.

Driving and operating

275

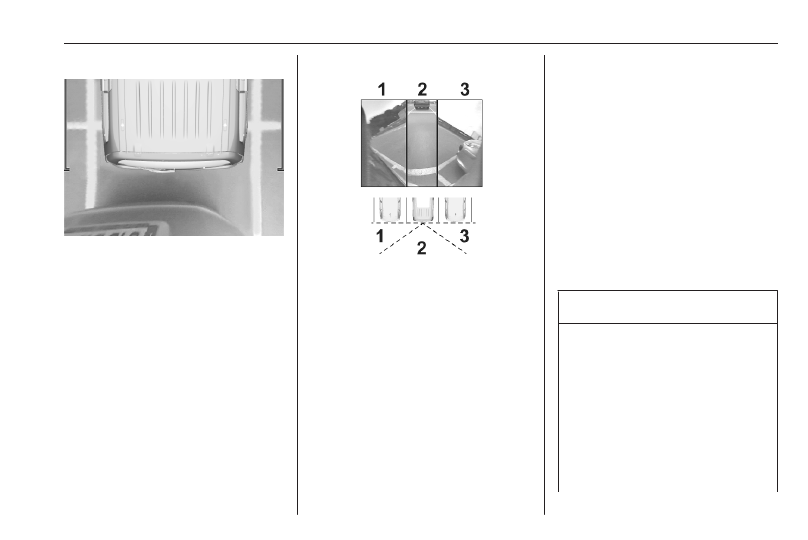

Rear zoom view / Zoom view

The camera records the vehicle's

surroundings during the manoeuvre

in order to reconstruct a view from

above the rear of the vehicle in its

near surroundings, allowing the

vehicle to be manoeuvred around

obstacles nearby. This view is

available with AUTO Mode or in the

view selection menu.

Rear side view / 180° view

The 180° view facilitates reversing

out of a parking bay, making it

possible to see the approach of

vehicles, pedestrians and cyclists.

This view is not recommended for

carrying out a complete manoeuvre.

It is made up of three areas: left 1,

centre 2 and right 3. This view is

available from the view selection

menu only.

Deactivation

Panoramic view system is

deactivated when:

● driving faster than 6 mph
● seven seconds after disengaging

reverse gear

● by pressing the icon

in the left

upper corner of the touch screen

and then

● opening the tailgate
● attaching a trailer or a bike carrier

System limitations

Caution

For optimal operation of the

system, it is important to keep the

lenses of all cameras always

clean. For the rear view camera,

there is a washer nozzle which will

be activated when the rear window

washer is operating.
If manually cleaning the lenses of

the cameras, rinse the lenses with

water and wipe with a soft cloth.

276

Driving and operating

Do not clean the lenses with a

steam-jet or high-pressure jet

cleaner.

The panoramic view system may not

operate properly when:

● The surrounding is dark.
● The sun or the beam of

headlights is shining directly into

the camera lenses.

● Weather limits visibility, such as

fog, rain, or snow.

● The camera lenses are blocked

by snow, ice, slush, mud, dirt.

● The vehicle is towing an

electrically connected trailer,

bicycle carrier, etc.

● The vehicle had an accident.

Contact a workshop.

● There are extreme temperature

changes.

Caution

It is very important that any repair

to the panoramic view system is

performed accurately according to

Vauxhall specifications.

Otherwise, the system may not

work properly and there is a risk of

unexpected behaviour and / or

messages from the system.

Rear view camera

Depending on version, camera is

mounted above the license plate in

the tailgate / left rear door or at the top

of the left rear door.

Warning

The rear view camera does not

replace driver vision. Note that

objects that are outside the

camera's field of view and the

parking assist sensors, e.g. below

the bumper or underneath the

vehicle, are not displayed.
Do not reverse or park the vehicle

using only the rear view camera.
Always check the surrounding of

the vehicle before and during

driving.

Camera above the license plate

on the tailgate / left rear door

The view of the camera is displayed

in the Info Display

The area displayed by the camera is

limited. The distance of the image that

appears on the display differs from

the actual distance.

Switching on

Rear view camera is automatically

activated when reverse gear is

engaged.

Driving and operating

277

Guidelines

Dynamic guidelines are horizontal

lines at one metre intervals projected

onto the picture to define the distance

to displayed objects.

Trajectory lane of the vehicle is

shown in accordance with the

steering angle.

Switching off

The camera is switched off when a

forward gear is engaged.

Camera at top of the left rear door

The view of the camera is displayed

in the rear view display

105.

Switching on

The rear view camera is automatically

switched on.
The standard rear view is activated

when a forward gear is engaged.
The close rear view is activated when

selected via

in the rear view

display or when the reverse gear is

engaged.
When operating with a trailer, the

close rear view is no longer operable.

Guidelines

Standard rear view

The horizontal line represents a

distance of about 4 m beyond the

edge of vehicle's rear bumper.
Close rear view

The lower horizontal line represents a

distance of about 30 cm beyond the

edge of vehicle's rear bumper. The

upper horizontal lines represent a

distance of about 1 m and 2 m.

278

Driving and operating

Trajectory lane of the vehicle is

shown in accordance with the

steering angle.

Additionally the opening radius of the

rear doors are shown in the rear view

display.

Switching off

The rear view camera is switched off

when the rear view display is

switched off.

System limitations

The rear view camera may not

operate properly when:

● the surrounding is dark
● the beam of headlights is shining

directly into the camera lenses

● weather limits visibility, such as

fog, rain, or snow

● the camera lenses are blocked

by snow, ice, slush, mud, dirt.

Clean the lense, rinse with water,

and wipe with a soft cloth

● the tailgate will be opened
● the vehicle is towing an

electrically connected trailer,

bicycle carrier, etc.

● the vehicle had a rear end

accident

● there are extreme temperature

changes

Traffic sign assistant

Warning

The actual traffic sign always

takes priority over the traffic sign

displayed in the Driver Information

Centre.

Speed limit

Using the camera at the top of the

windscreen and the vehicle's

integrated navigation system, this

system provides speed limits and end

of speed limits in the Driver

Information Centre.
The system can be activated or

deactivated in the vehicle

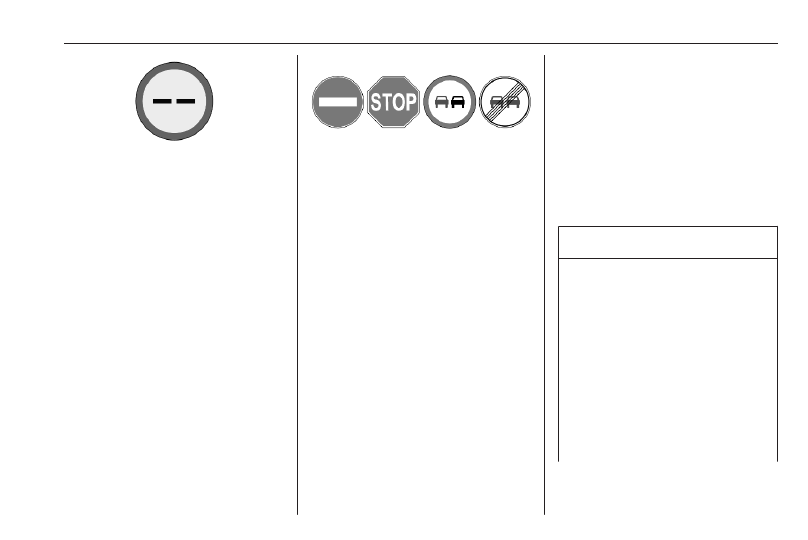

If the system is activated but does not

detect a speed limit sign, the following

sign is displayed:

Driving and operating

279

If the vehicle exceeds the speed limit

by at least 3 mph, the speed limit

displayed flashes about ten seconds.
Speed limiter

248.

Cruise control

246.

Adaptive cruise control

251.

Updating navigation map data

To maintain the performance of the

system, the navigation map should be

updated in periodical intervals. A

navigation map update is available

twice per year.
Further information is avaialble in the

Infotainment system section.

Other traffic signs

The system detects traffic signs and

displays them in specific page of the

Driver Information Centre.

This system can be activated or

deactivated in the vehicle

Driver Information Centre

99.

System limitations

Traffic sign assistant may not operate

properly when:

● Driving on winding or hilly roads.
● Driving during nighttime.
● Driving with snow chains.
● Driving with a trailer.
● The area of the windscreen,

where the front camera is

located, is not clean or affected

by foreign items, e.g. stickers.

● The visibility is limited because of

the weather, such as fog, rain, or

snow.

● The sun is shining directly into

the camera lens.

● Traffic signs are completely or

partially covered or difficult to

discern.

● Traffic signs are incorrectly

mounted or damaged.

● Traffic signs do not comply with

the Vienna Convention on Road

Signs and Signals.

● The navigation map data is

outdated.

Caution

The system is intended to help the

driver within a defined speed

range to recognise certain traffic

signs. Do not ignore traffic signs

which are not displayed by the

system.
Do not let this special feature

tempt you into taking risks when

driving.
Always adapt speed regarding

road, traffic and weather

conditions.

280

Driving and operating

The driver assistance systems do

not relieve the driver from full

responsibility for vehicle

operation.
When driving abroad make sure

the vehicle uses the speed unit of

the respective country. If

necessary, select the correct units

in the Info Display.

Lane keep assist

Lane keep assist supports the driver

to avoid unintended leaving of the

lane. The front camera observes road

edges, as well as the lane markings

between which the vehicle is driving.

If the vehicle approaches a road edge

or a lane marking, the steering wheel

is gently turned so that the vehicle

turns back into the lane. The driver

will notice a turning movement of the

steering wheel. Turn steering wheel

in same direction, if the system does

not steer sufficiently. Turn steering

wheel gently into opposite direction, if

lane change is intended.

When the system steers to correct the

trajectory of the vehicle,

flashes

yellow in the Driver Information

Centre. Lane keep assist does not

continuously steer the vehicle.
Unintended lane departure is not

assumed by the system when the turn

lights are operated and during few

seconds after turn lights have been

switched off.
If the system detects that the steering

wheel is not held permanently, it

interrupts the correction.
A lane departure warning in the Driver

Information Centre alerts when the

system cannot hold the vehicle within

the lane and immediate driver´s

action is required.

Notice

The system may be switched off if it

detects lanes which are too narrow,

too wide or too curved.

Following preconditions have to be

fulfilled that the system corrects:

● vehicle speed must be between

40 mph and 112 mph

● the turn lights are not activated

● the electronic stability control is

activated and not in operation

● no plug is connected to the power

outlet of the trailer hitch

● no dynamic driving, i.e. pressure

on the brake or accelerator pedal

● roads with good lane markings
● no temporary spare wheel is

used

● the vehicle is not driven in a tight

corner

● no system fault is present which

prevents corrections

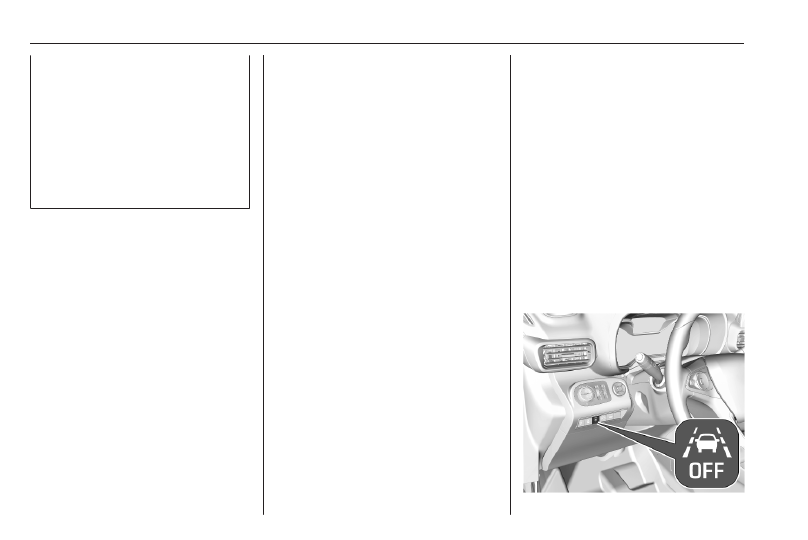

Activation

Driving and operating

281

If the system is activated, the LED in

the button

is not illuminated. To

activate the system when the system

is deactivated, press

Deactivation

To deactivate the system, press

until LED in the button is illuminated.

Recommended deactivation

It is recommended to deactivate the

system in the following situations:

● Road surface in poor condition
● Unfavourable climatic conditions
● Slippery surfaces, e.g., ice

The system is not designed for driving

in the following situations:

● Driving on a speed circuit
● Driving with a trailer
● Driving on a rolling stand
● Driving on unstable surfaces

Fault

In the event of a fault,

and

appear in the instrument panel,

accompanied by a display message

and a warning chime. CSeek the

assistance of a workshop.

System limitations

The system performance may be

affected by:

● covered camera by snow, ice,

slush, mud, dirt, or affected by

windscreen damage or foreign

items, e.g. stickers

● close vehicles ahead
● banked roads
● winding or hilly roads
● poor lighting conditions
● sudden lighting changes
● shining sun directly into the

camera lens

● adverse environmental

conditions, e.g. heavy rain, fog,

or snow

● vehicle modifications, e.g. tyres
● roads with poor lane markings

A warning message may appear

when the vehicle is travelling in a long

straight lane on a smooth road

surface even if the driver is holding

the steering wheel properly.
Deactivate the system if the system is

disturbed by tar marks, shadows,

road cracks, temporary or

construction lane markings, or other

road imperfections.

Warning

Always keep your attention on the

road and maintain proper vehicle

position within the lane, otherwise

vehicle damage, injury or death

could occur.
The system may not keep the

vehicle in the lane or give an alert,

even if a lane marking is detected.
The steering of the system may

not be sufficient to avoid a lane

departure.
The system may not detect hands-

off driving due to external

influences (road condition and

surface, weather etc). The driver

282

Driving and operating

has full responsibility to control the

vehicle and is always required to

keep the hands on the steering

wheel while driving.
Using the system while towing a

trailer or on slippery roads could

cause loss of control of the vehicle

and a crash. Switch the system off.

Driver alert

The driver alert system monitores the

driving time and the vigilance of the

driver. Monitoring the vigilance of the

driver is based on the trajectory

variations of the vehicle compared to

the lane markings.
The system cannot replace the need

for vigilance on the part of the driver.

Taking a break is recommended as

soon as feeling tired or at least every

two hours. Do not take the steering

wheel when feeling tired.

Activation or Deactivation

The system can be activated or

deactivated in the vehicle

The state of the system stays in

memory when the ignition is switched

off.

Driving time alert

The driver gets notified by a pop-up

reminder symbol

€

in the Driver

Information Centre simultaneously

with an acoustic alert if the driver has

not taken a break after 2 hours of

driving at a speed above 40 mph. The

alert is repeated hourly until the

vehicle is stopped, no matter how

vehicle speed evolves.
The counting of driving time alert is

reset if one of the following conditions

is met:

● The vehicle has been stationary

for more than 15 minutes with the

engine running.

● The ignition has been switched

off for a few minutes.

● The driver's seat belt has been

unfastened and the driver's door

is open.

Notice

If the vehicle speed drops below

40 mph, the system is paused. The

driving time is counted again once

the speed is above 40 mph.

Driver drowsiness detection

The system monitors the driver's level

of vigilance. A camera at the top of the

windscreen detects variations in

trajectory compared to the lane

markings. This system is particularly

suited to fast roads (speed higher

than 40 mph).
If the trajectory of the vehicle

suggests a certain level of

drowsiness or inattention by the

driver, the system triggers the first

level of alert. The driver is notified by

a message and an audible signal is

given.
After three first level alerts, the

system triggers a new alert with a

message, accompanied by a more

pronounced audible signal.
In certain driving conditions (poor

road surface or strong winds), the

system may give alerts independent

of the driver's level of vigilance.

Driving and operating

283

The driver drowsiness detection is

reinitialised when the ignition has

been switched off for a few minutes or

the speed remains below 40 mph for

a few minutes.

System limitations

In the following situations, the system

may not operate properly or even not

operate at all:

● poor visibility caused by

inadequate lighting of the

roadway, falling snow, heavy

rain, dense fog etc.

● dazzle caused by headlamps of

oncoming vehicles, low sun,

reflections on damp roads,

leaving a tunnel, alternating

shade and light etc.

● no lane markings detected or

multiple lane markings due to

roadworks

● close vehicles ahead
● winding roads or narrow roads

● advanced lane keep assist is

active

● covered camera by snow, ice,

slush, mud, dirt, or affected by

windscreen damage or foreign

items, e.g. stickers

Charging

General information

Warning

Persons with a pacemaker should

consult a doctor for possible

precautions.

Charging the vehicle's high voltage

battery depends upon several factors:

● high voltage battery of the vehicle
● internal onboard charger (OBC)
● charging cable
● external charging device

The charging cable connects the

vehicle with an external charging

device providing electric power. This

284

Driving and operating

may be a domestic electrical outlet, a

Green'Up socket, a wall box or a

public charging station.
The high voltage battery is charged

with direct current (DC) only. When

charging the vehicle with alternating

current (AC), AC has to be converted

into DC. This is done by the vehicle's

onboard charger. The onboard

charger is available with 7.4 kW

(single-phase) and 11 kW (3-phase).
If the vehicle is charged at a public DC

charging station, no DC conversion is

required. The high voltage battery

can be directly charged with DC

provided by the DC charging station.
The speed of charging the vehicle's

high voltage battery depends upon

the weakest element of the charging

chain. To achieve the maximum

charging speed, charging cable and

charging device have to be attuned to

each other.

Notice

Make sure that the charging cable

used fits to the vehicle's onboard

charger.

Electric power consumption and

range

The electric power consumption

(combined) is within a range of 22.5

to 19.8 kWh/100 km, CO

emission 0

g/km.
The range is up to 174 miles for

Combo-e Life and 170 miles for

Combo-e Cargo.
For the values specific to your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The determination of electric power

consumption is regulated by directive

R (EC) No. 715/2007 and No.

2017/1151 (in the latest applicable

version).

Charging types

There are different types of charging

the vehicle's high voltage battery.

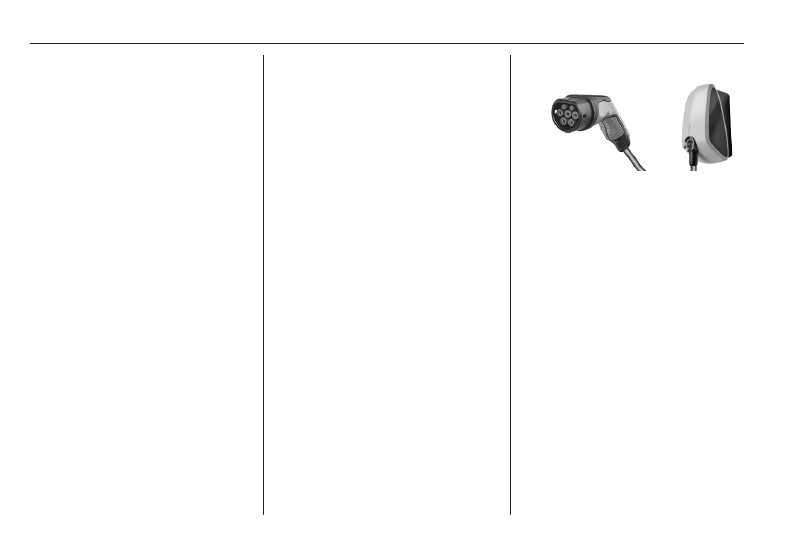

Charging at wallboxes

A wallbox is a charging unit for private

households. It provides a charging

cable which has to be connected to

the vehicle's charging port. Some

wallboxes do not provide a charging

cable. In this case, a separate

charging cable is required which has

to be connected to both the wallbox

and the charging port of the vehicle.
Charging time may take approx. 5

hours with a charging power of 11 kW

or 7.5 hours with a charging power of

7.4 kW.

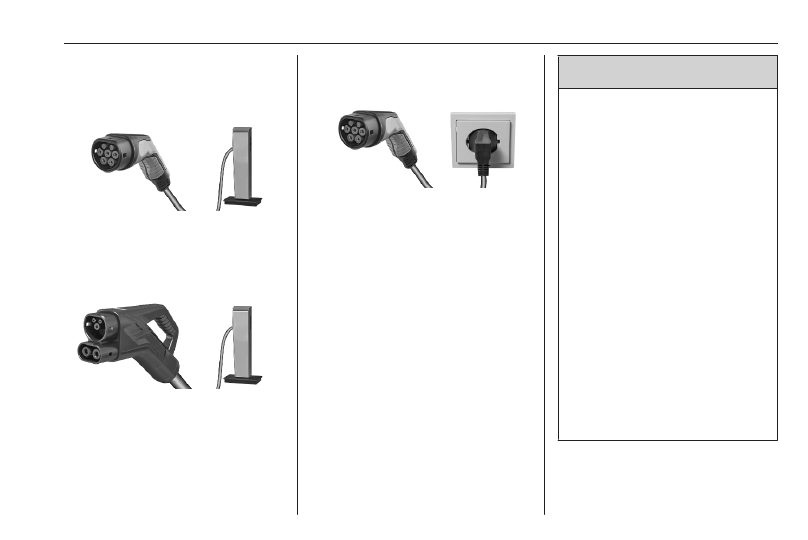

Charging at charging stations

Charging stations may provide

alternating current (AC) or direct

current (DC). Charging time may vary

depending on the charging station,

DC charging stations provide the

fastest charging. To charge the

Driving and operating

285

vehicle's battery, the charging cable

of the charging station has to be

connected to the charging port of the

vehicle.

● AC charging station: Charging

time may take approx. 5 hours

with a charging power of 11 kW

or 7.5 hours with a charging

power of 7.4 kW.

● DC charging station: Up to

approx. 80% of battery capacity

may be charged in approx. 30

minutes at a charging power of

100 kW.

Charging at domestic electrical

outlets

The vehicle's high voltage battery can

be charged at a domestic electrical

outlet. Connect the charging cable to

the vehicle's charging port and to the

domestic electrical outlet.
Charging time may take approx. 30

hours with a charging power of 1.8

kW.

Charging cable

Depending on the charging type,

different charging cables are used.

Warning

Improper use of portable charging

cables may cause a fire, electrical

shock, or burns, and may result in

damage to property, serious

injury, or death.

● Do not use extension cables,

multi-outlet power strips,

splitters, grounding adaptors,

surge protectors, or similar

devices.

● Do not use an electrical socket

that is worn or damaged, or one

that will not hold the plug firmly

in place.

● Do not immerse the charging

cable into any liquid.

● Do not use an electrical socket

that is not properly grounded.

● Do not use an electrical socket

that is on a circuit with other

electrical loads.

286

Driving and operating

Warning

Read all the safety warnings and

instructions before using this

product. Failure to follow the

warnings and the instructions may

result in electric shock, fire, and /

or serious injury.
Never leave children unattended

near the vehicle while the vehicle

is charging and never allow

children to play with the charging

cable.
If the plug provided does not fit the

electrical outlet, do not modify the

plug. Arrange for a qualified

electrician to inspect the electrical

outlet.
Do not put fingers into the electric

vehicle connector.

Danger

There is a risk of electric shock

that may cause personal injury or

death.

Do not use the charging cable if

any part of the charging cable is

damaged.
Do not open or remove the

charging cable cover.
Service by qualified personnel

only. Connect the charging cable

to a properly grounded outlet with

cables that are not damaged.

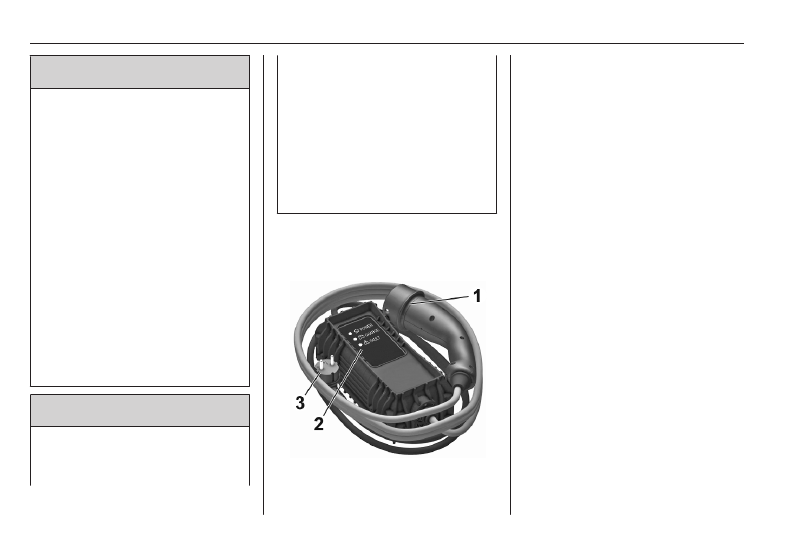

Basic domestic cable (mode 2) /

enhanced domestic cable (mode

1. Vehicle plug
2. Status indicators
3. Wall plug

Basic domestic cables (mode 2) are

used for charging at domestic

electrical outlets. A basic domestic

cable (mode 2) consists of a vehicle

plug, a control box and a plug for the

domestic electrical outlet. The control

box has an intergrated charge

controller and several LEDs

indicating the charging status.
Enhanced domestic cables (mode 2)

are similar to basic domestic cables

(mode 2). However, the charging

performance of enhanced domestic

cables (mode 2 charging) is better

than the charging performance of

basic domestic cables (mode 2).

Enhanced domestic cables (mode 2)

are used at Green'Up sockets which

have to be installed by a certified

electrician at the customer's site.

Charging cable status indicators

After plugging in the charging cable,

it will perform a quick self test and all

status indicators illuminate for a

Driving and operating

287

moment. For the functions of the

status indicators, refer to the manual

of the charging cable manufacturer.

Important information about

portable electric vehicle charging

● Charging an electric vehicle can

stress a building's electrical

system more than a typical

household appliance.

● Before you plug in to any

electrical outlet, have a qualified

electrician inspect and verify the

electrical system (electrical

outlet, wiring, junctions and

protection devices) for heavy-

duty service at a 10 A continuous

load.

● Electrical outlets may wear out

with normal usage or be

damaged over time, making them

unsuitable for electric vehicle

charging.

● Check the electrical outlet / plug

while charging and discontinue

use if the electrical outlet / plug is

hot, then have the electrical

outlet serviced by a qualified

electrician.

● When outdoors, plug into an

electrical outlet that is weather-

proof while in use.

● Mount the charging cable to

reduce strain on the electrical

outlet / plug.

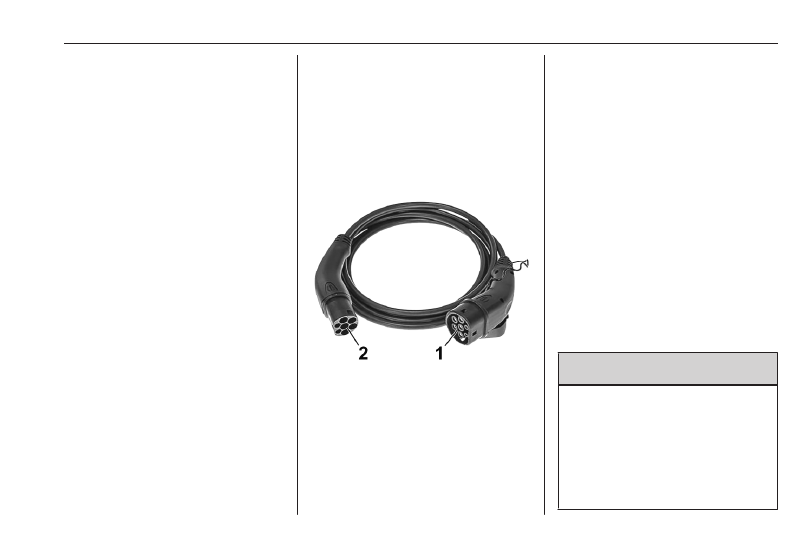

Mode 3 charging cable

1. Vehicle plug
2. Plug for wall box / AC charging

station

Mode 3 charging cables are used for

charging at wall boxes and AC

charging stations. A mode 3 charging

cable provides a vehicle plug and a

plug for the wall box / AC charging

station. Wall boxes / AC charging

stations may provide an integrated

mode 3 charging cable. For more

information on the mode 3 charging

cable, refer to the manual of the

charging cable manufacturer.

Mode 4 charging cable

Notice

Only use DC charging cables shorter

than 30 metres.

Mode 4 charging cables are used for

DC charging. Since mode 4 charging

cables are integrated within DC

charging stations, they only provide a

vehicle plug.

Charging

Warning

Persons with a pacemaker or

similar devices should consult a

doctor for possible precautions.
If in doubt, during charging do not

remain inside or near the vehicle,

near the charging cable or the

charging unit.

288

Driving and operating

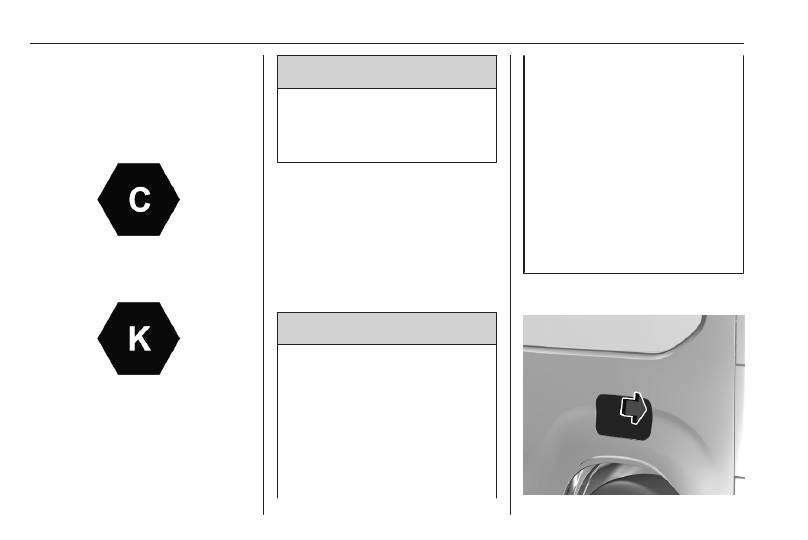

In order to ensure the compatibility of

plug and outlet, different labels are

used. The labels are located on the

inside of the vehicle's charging port

flap. Make sure to connect only a

cable of the same type.

Type 2 plug or outlet used for AC

charging

FF plug or outlet used for DC charging

Warning

Avoid any entry of fluids into the

charging port of the vehicle, the

vehicle plug of the charging cable

and the domestic electrical outlet.

When charging at a public AC

charging station / public DC charging

station, follow the instructions for the

use of the respective charging

station. Public AC charging stations

may not provide an integrated

charging cable. In this case, a

portable mode 3 charging cable is

required.

Warning

When charging at a domestic

electrical outlet, only use an outlet

which is properly grounded and

protected by a 30 mA differential

switch.
Only use a domestic electrical

outlet protected by a circuit

breaker adapted to the amperage

of the electrical circuit.

Have a qualified electrician check

the electrical installation to be

used. The installation has to be in

compliance with national

standards and compatible with the

vehicle.
When using a dedicated domestic

electrical outlet, have it installed

by a qualified electrician.
Make sure that the electrical

outlet, the plug and the cable do

not support the weight of the

control box.

1. Shift into P and switch off the

vehicle.

Driving and operating

289

2. Push the charging port flap to

release it.

3. If necessary, take the charging

cable out of the load

compartment.

4. If necessary, plug in the plug of

the charging cable into the

corresponding port of the external

power source.
Charging cable

291.

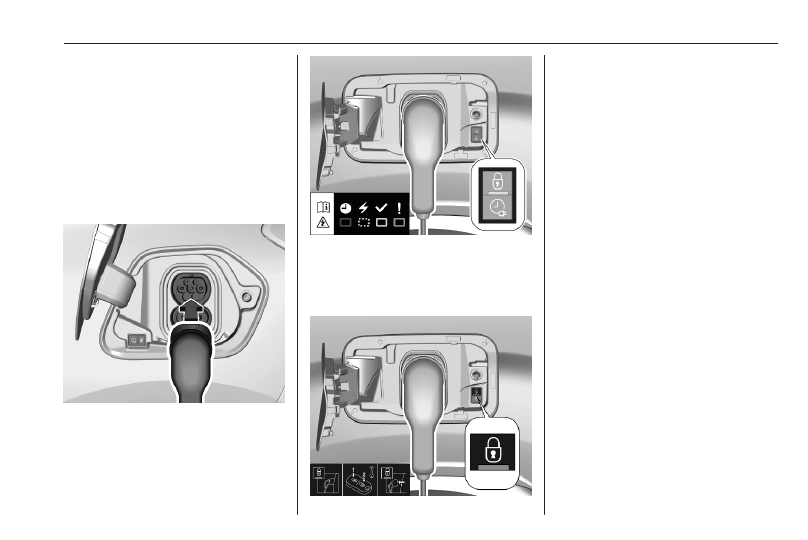

5. Plug in the vehicle plug of the

charging cable into the charging

port of the vehicle.
Charging status

291.

The start of charging is indicated

by the green flashing of the status

indicator at the charging port and

at the control box of the charging

cable if available.

Once charging, the vehicle plug will

be locked to the charging port and

cannot be disconnected while

charging is active.

indicator

illuminates.
Charging types

284.

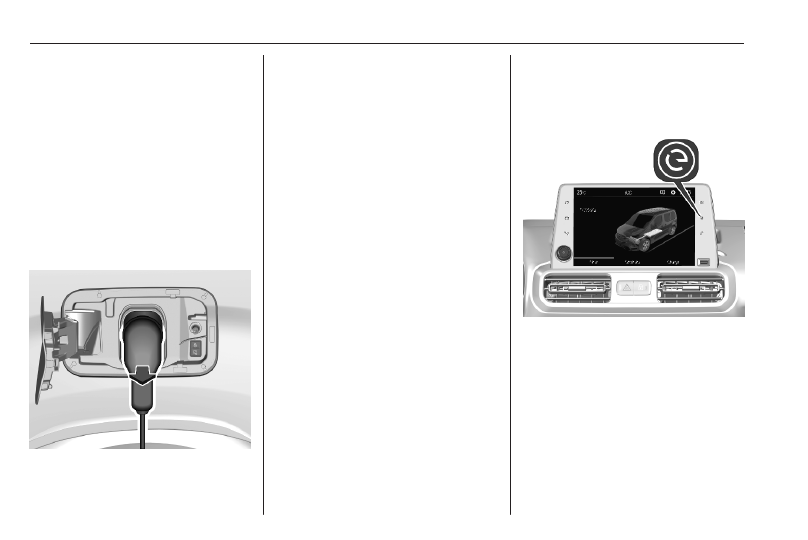

Cancelling the charging process

Notice

At public charging stations, the

cancelling and subsequent

resuming of the charging process

may cause additional costs.
Once the charging process has

started, only the driver's door can be

unlocked without cancelling the

charging process. Therefore,

activate the driver's door only

function in the vehicle

personalisation.

Press

on the remote control to

cancel the charging process at any

time.
Press

twice to cancel the charging

process at any time if the function

driver's door only is activated in the

vehicle personalisation.
Central locking system

10.

290

Driving and operating

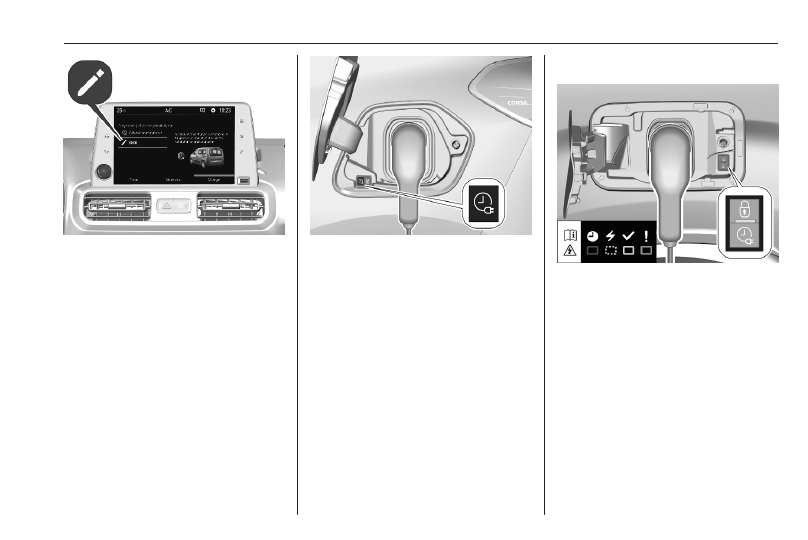

Vehicle personalisation
