Airbus A320. AIRCRAFT CHARACTERISTICS AIRPORT AND MAINTENANCE PLANNING (2016-2023)

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320neo

43?

45?

1: THRUST REVERSER

OPEN

POSITION

MIN.

MAX.

4.26 m

0.80 m

0.90 m

43?

(13.98 ft)

(2.62 ft)

(2.95 ft)

SEE AC SECTION

2−3−0

4.33 m

0.84 m

0.95 m

45?

(14.21 ft)

(2.76 ft)

(3.12 ft)

NOTE:

B AND C DEPENDING ON AIRCRAFT CONFIGURATION.

N_AC_021200_1_0480101_01_00

Power Plant Handling

Thrust Reverser Halves - PW 1100G Engine

FIGURE-2-12-0-991-048-A01

Page 16

Dec 01/20

2-12-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320neo

3548 mm

(139.68 in)

3327 mm

(130.98 in)

1352 mm

(53.23 in)

FAN AND

BOOSTER

COMPRESSOR

FWD

COMBUSTOR

HANDLING

TURBINE

POINT

FRAME

DIA 1084 mm

(42.68 in)

AGB TGB

TURBINE

ACCESSORY

DRIVE

2152 mm

(84.72 in)

FWD

2242 mm

(88.27 in)

1165 mm

(45.87 in)

1236 mm

(48.66 in)

2487 mm

(97.91 in)

N_AC_021200_1_0540101_01_00

Power Plant Handling

Major Dimensions - CFM LEAP-1A Engine

FIGURE-2-12-0-991-054-A01

Page 17

Dec 01/20

2-12-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320neo

THRUST

NOSE COWL

FAN COWL

REVERSER

PRIMARY

NOZZLE

PLUG

0.98 m

(3.22 ft)

0.49 m

(1.61 ft)

0.67 m

(2.20 ft)

1.58 m

1.98 m

(5.18 ft)

(6.50 ft)

0.23 m

(0.75 ft)

FWD

2.52 m

(8.27 ft)

SEE

CHAPTER

2−3

2.60 m

(8.53 ft)

N_AC_021200_1_0550101_01_01

Power Plant Handling

Major Dimensions - CFM LEAP-1A Engine

FIGURE-2-12-0-991-055-A01

Page 18

Dec 01/20

2-12-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

2-13-0

Leveling, Symmetry and Alignment

**ON A/C A320-200 A320neo

Leveling, Symmetry and Alignment

Quick Leveling

There are three alternative procedures to level the aircraft:

Quick leveling procedure with Air Data/Inertial Reference Unit (ADIRU).

Quick leveling procedure with a spirit level in the passenger compartment.

Quick leveling procedure with a spirit level in the FWD cargo compartment.

Precise Leveling

For precise leveling, it is necessary to install sighting rods in the receptacles located under the

fuselage (points 11 and 12 for longitudinal leveling) and under the wings (points 2LH and 2RH for

lateral leveling) and use a sighting tube. With the aircraft on jacks, adjust the jacks until the

reference marks on the sighting rods are aligned in the sighting plane (aircraft level).

Symmetry and Alignment Check

Possible deformation of the aircraft is measured by photogrammetry.

Page 1

Dec 01/20

2-13-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

2-14-0

Jacking

**ON A/C A320-200 A320neo

Jacking for Maintenance

Aircraft Jacking Points for Maintenance

General

(1) The A320 can be jacked:

At not more than 59 000 kg (130 073 lb),

Within the limits of the permissible wind speed when the aircraft is not in a closed

environment.

Primary Jacking Points

(1) The aircraft is provided with three primary jacking points:

One located under the forward fuselage (FR8),

Two located under the wings (one under each wing, located at the intersection of RIB9

and the datum of the rear spar).

(2) Three jack adapters are used as intermediary parts between the aircraft and the jacks:

One male spherical jack adapter of 19 mm (0.75 in) radius, forming part of the aircraft

structure (FR8),

Two wing jack pads (one attached to each wing at RIB9 with 2 bolts) for the location

of the jack adaptor.

Wing jack pads are ground equipment.

Auxiliary Jacking Points (Safety Stay)

(1) When the aircraft is on jacks, it is recommended that a safety stay be placed under the

fuselage, between FR73 and FR74, to prevent tail tipping caused by accidental

displacement of the center of gravity.

(2) The safety stay must not be used to lift the aircraft.

(3) A male spherical ball pad with a 19 mm (0.75 in) radius, forming part of the aircraft

structure, is provided for using the safety stay.

Jacks and Safety Stay

A. Jack Design

(1) The maximum permitted loads given in the table in FIGURE 2-14-0-991-030-A are the

maximum loads applicable on jack fittings.

(2) In the fully retracted position (jack stroke at minimum), the height of the jack is such that

the jack may be placed beneath the aircraft in the most adverse conditions, namely, tires

deflated and shock absorbers depressurized. In addition, there must be a clearance of

approximately 50 mm (1.97 in) between the aircraft jacking point and the jack upper end.

Page 1

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

(3) The lifting jack stroke enables the aircraft to be jacked up so that the fuselage longitudinal

datum line (aircraft center line) is parallel to the ground, with a clearance of 100 mm (3.94

in) between the main landing gear wheels and the ground. This enables the landing gear

extension/retraction tests to be performed.

Shoring Cradles

When it is necessary to support the aircraft in order to relieve the loads on the structure to do

modifications or major work, shoring cradles shall be placed under each wing and the fuselage as

necessary.

NOTE : The aircraft must not be lifted or supported by the wings or fuselage alone without

adequate support of the other.

Page 2

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

WING JACKING

POINT

RIB9

FR74

FR73

FR8

FWD JACKING

SAFETY

POINT

STAY

B’

RIB9

WING JACKING

POINT

MAXIMUM

LOAD ELIGIBLE

daN

FORWARD FUSELAGE

2.74

8.99

6 800

JACKING POINT

17.56

57.61

6.50

21.33

28 500

WING JACKING

POINT

B’

17.56

57.61

−6.50

−21.33

28 500

SAFETY STAY

32.57

106.86

2 000

NOTE:

SAFETY STAY IS NOT USED FOR JACKING.

N_AC_021400_1_0300101_01_02

Jacking for Maintenance

Jacking Point Locations

FIGURE-2-14-0-991-030-A01

Page 3

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

WING JACK PAD

LOWER SURFACE

POINT BB’ DETAIL

RIB9INTERSECTION WITH REAR

SPAR DATUM

Z−828.35

Z−895

SPHERICAL RADIUS

32 mm (1.26 in)

NOTE:

TYPICAL

N_AC_021400_1_0320101_01_01

Jacking for Maintenance

Wing Jacking Points

FIGURE-2-14-0-991-032-A01

Page 5

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

FR73 FR74

FR8

FUSELAGE

DATUM LINE

FORWARD JACK

WING JACK

SAFETY STAY N

RIB9

WING JACK

FORWARD WING JACK

JACK

TYPICAL JACK INSTALLATION SHOWN

DISTANCE BETWEEN

JACKING/SAFETY POINTS

AND THE GROUND

CONFIGURATION

DESCRIPTION

(FORWARD

(WING

(SAFETY

JACK)

STAY)

− NLG SHOCK ABSORBER DEFLATED AND

NLG TIRES FLAT

1 588 mm

3 113 mm

3 656 mm

− MLG STANDARD TIRES, WITH STANDARD

(62.52 in)

(122.56 in)

(143.00 in)

SHOCK ABSORBERS

−AIRCRAFT ON WHEELS

TIRES FLAT

1 660 mm

2 735 mm

2 834 mm

SHOCK ABSORBERS DEFLATED

(65.35 in)

(107.68 in)

(111.57 in)

STANDARD TIRES

1 880 mm

3 112 mm

3 364 mm

STANDARD SHOCK ABSORBERS

(74.02 in)

(122.52 in)

(132.44 in)

STANDARD TIRES

−

AIRCRAFT ON JACKS

MLG SHOCK ABSORBERS EXTENDED WITH

2 554 mm

3 655 mm

3 779 mm

(FORWARD JACK AND

WHEEL CLEARANCE OF 120 mm (4.72 in)

(100.55 in)

(143.90 in)

(148.78 in)

WING JACKS)

FOR MLG RETRACTION OR EXTENSION

−

FUSELAGE DATUM LINE

PARALLEL TO THE GROUND

STANDARD TIRES

MLG SHOCK ABSORBERS EXTENDED WITH

3 204 mm

4 305 mm

4 429 mm

WHEEL CLEARANCE OF 770 mm (30.31 in)

(126.14 in)

(169.49 in)

(174.37 in)

FOR REPLACEMENT OF THE MLG

−

AIRCRAFT ON FORWARD

STANDARD TIRES

JACK

NLG SHOCK ABSORBERS EXTENDED WITH

2 387 mm

2 854 mm

−

MLG WHEELS ON THE

WHEEL CLEARANCE OF 60 mm (2.36 in)

(93.98 in)

(112.36 in)

GROUND

FOR NLG RETRACTION OR EXTENSION

NOTE:

THE SAFETY STAY IS NOT USED FOR JACKING.

N_AC_021400_1_0340101_01_02

Jacking for Maintenance

Jacking Design

FIGURE-2-14-0-991-034-A01

Page 7

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

LOAD AT FORWARD

FUSELAGE JACKING POINT

1000 kg

CG 15 %

MAX PERMISSIBLE LOAD

6.93

CG 25 %

CG 35 %

CG 45 %

1000 kg

1000 lb

110

121

132

143

154

165

A/C WEIGHT

NOTE: AS AN EXAMPLE ASSUME THAT THE AIRCRAFT HAS A GROSS WEIGHT

OF 66 000 kg AND THE CENTER OF GRAVITY (CG) IS AT 25 %. THUS THE

FORCE AT THE FORWARD FUSELAGE JACKING POINT IS 5 300 kg.

N_AC_021400_1_0350101_01_00

Loads at the Aircraft Jacking Points

Forward Fuselage Jacking Point - Twin Wheel/Bogie

FIGURE-2-14-0-991-035-A01

Page 8

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

LOAD AT WING JACKING POINT AT

STA4067 / FR8

1000 kg

CG 45 %

CG 35 %

CG 25 %

CG 15 %

MAX PERMISSIBLE LOAD

29.06

EXAMPLE:

GROSS WT: 60 000 kg

CG 25 %

FORCE AT EACH WING

JACKING POINT 27 350 kg

1000 kg

1000 lb

110

121

132

143

154

165

A/C WEIGHT

N_AC_021400_1_0360101_01_00

Loads at the Aircraft Jacking Points

Wing Jacking Point Rib 8 - Twin Wheel/Bogie

FIGURE-2-14-0-991-036-A01

Page 9

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

FR73/FR74

(SAFETY STAY)

FR64

FR63

FR42

RIB4

RIB22

RIB13

FR33

FR15

NOTE: THE SHORING CRADLE MUST BE INSTALLED AT THE EXACT LOCATION OF THE FRAME.

N_AC_021400_1_0370101_01_00

Jacking for Maintenance

Location of Shoring Cradles

FIGURE-2-14-0-991-037-A01

Page 10

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

Jacking of the Landing Gear

General

Landing gear jacking will be required to lift the landing gear wheels off the ground.

NOTE : You can lift the aircraft at Maximum Ramp Weight (MRW).

NOTE : The load at each jacking position is the load required to give a 25.4 mm (1 in) clearance

between the ground and the tire.

**ON A/C A320-200

Main Gear Jacking (Twin Wheel)

The main gears are normally jacked up by placing a jack directly under the ball pad.

The ball spherical radius is 19 mm (0.75 in).

It is also possible to jack the main gear using a cantilever jack.

The reactions at each of the jacking points are shown in the table, see FIGURE 2-14-0-991-060-A.

**ON A/C A320neo

Main Gear Jacking (Twin Wheel)

The main gears are normally jacked up by placing a jack directly under the ball pad.

The ball spherical radius is 19 mm (0.75 in).

It is also possible to jack the main gear using a cantilever jack.

The reactions at each of the jacking points are shown in the table, see FIGURE 2-14-0-991-063-A.

**ON A/C A320-200

Main Gear Jacking (4-Wheel Bogie)

The fore and aft pairs of MLG wheels can be jacked by placing a jack directly under the ball pads

located at each end of the bogie beam.

Page 11

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

The ball spherical radius is 19 mm (0.75 in).

The leading dimensions and environmental distances of these jacking points are shown on FIGURE

2-14-0-991-048-A, FIGURE 2-14-0-991-049-A and FIGURE 2-14-0-991-050-A.

The reactions at each of the jacking points are shown in the table, see FIGURE 2-14-0-991-060-A.

Nose Gear Jacking

For nose gear jacking, a 19 mm (0.75 in) radius ball pad is fitted under the lower end of the shock-

absorber sliding tube. Jacking can be accomplished either by placing a jack directly under the ball

pad, or using an adapter fitting provided with an identical ball pad.

The reactions at each of the jacking points are shown in the table, see FIGURE 2-14-0-991-060-A.

**ON A/C A320neo

Nose Gear Jacking

For nose gear jacking, a 19 mm (0.75 in) radius ball pad is fitted under the lower end of the shock-

absorber sliding tube. Jacking can be accomplished either by placing a jack directly under the ball

pad, or using an adapter fitting provided with an identical ball pad.

The reactions at each of the jacking points are shown in the table, see FIGURE 2-14-0-991-063-A.

Page 12

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

49 x 19 R20

600 mm

(23.62 in)

FULLY

EXTENDED

45 x 16 R20

200 mm

218 mm

25 mm

38 mm

552 mm

(7.87 in)

(8.58 in)

(1 in)

(1.5 in)

(21.73 in)

FULLY

DIA. BALL

RETRACTED

180 mm

INFLATED TIRES

(7.09 in)

ON THE RIM

FLAT TIRES

NOTE: TWIN WHEEL TRACK IS 927 mm (36.5 in).

THE FLAT TIRES VIEW SHOWS THE MINIMUM HEIGHT TO ENGAGE JACK WITH 2 FLAT TIRES.

THE INFLATED TIRES VIEW SHOWS THE JACKING HEIGHT TO GIVE 25 mm (1 in)

CLEARANCE BETWEEN THE TIRE AND GROUND.

N_AC_021400_1_0450101_01_00

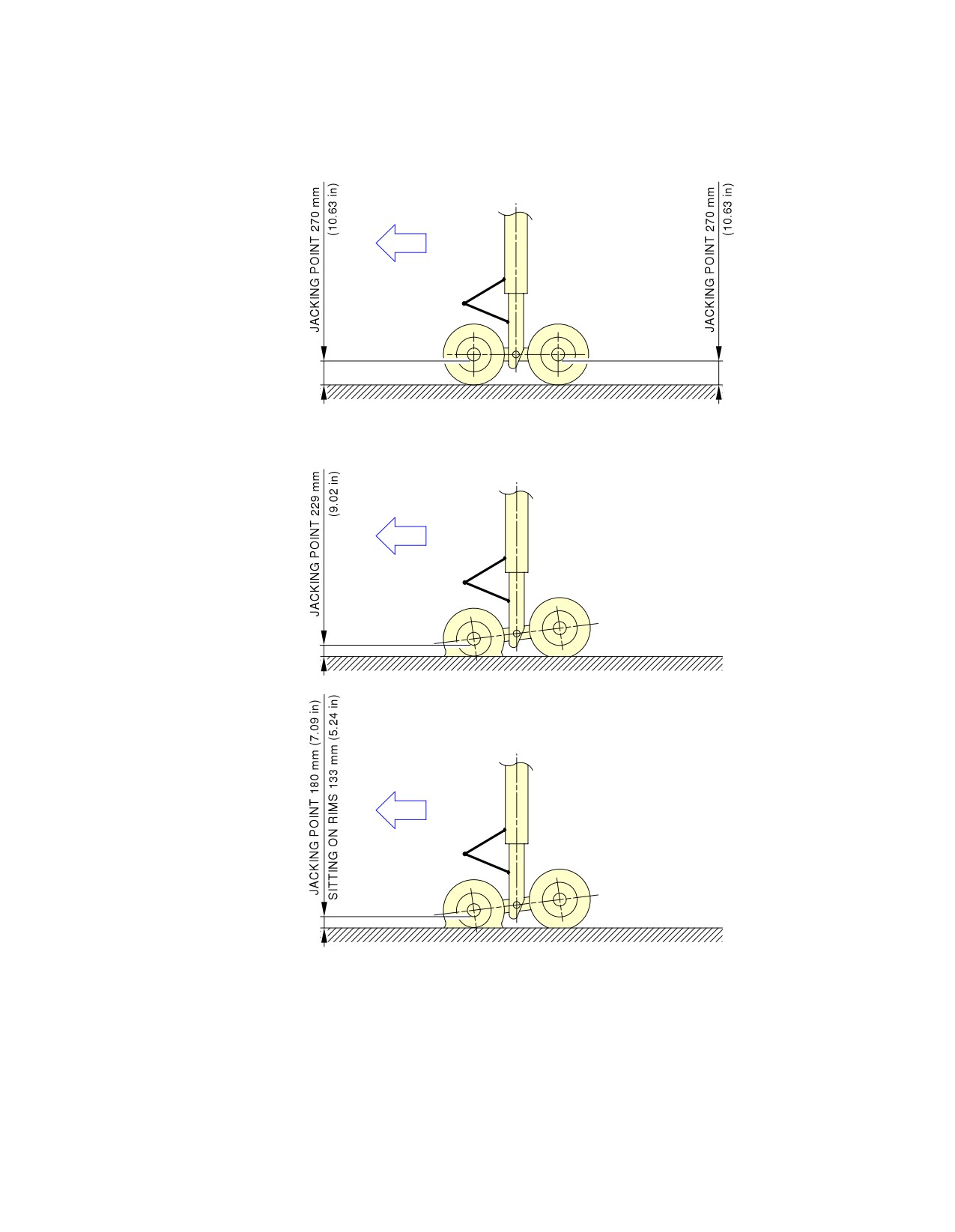

Jacking of the Landing Gear

MLG Jacking Point Location - Twin Wheels

FIGURE-2-14-0-991-045-A01

Page 13

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

643 mm

(25.32 in)

MLG TIRE 49 x 19 R20

CANTILEVER

ARM

552 mm

(21.73 in)

25 mm

FWD

(1 in)

TWIN WHEEL TRACK

927 mm

(36.5 in)

DOUBLE FLAT MLG TIRES

218 mm (8.58 in)

(180 mm (7.09 in)

ON RIM)

409 mm

FORK

(16.1 in)

25 mm

1 620 mm

25 mm

MIN

APPROX

MIN

(1 in)

(63.78 in)

(1 in)

CONTOUR OF TIRES ON GROUND

N_AC_021400_1_0460101_01_00

Jacking of the Landing Gear

MLG Jacking with Cantilever Jack - Twin Wheels

FIGURE-2-14-0-991-046-A01

Page 14

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

FRONT WHEELS JACKED UP

MAX DIAMETER

915 mm (36.02 in)

REAR WHEELS JACKED UP

MAX DIAMETER

915 mm (36.02 in)

FLAT TIRE DIMENSIONS

780 mm

(30.71 in)

140 mm

(5.51 in)

330 mm

(12.99 in)

1 230 mm

(48.43 in)

N_AC_021400_1_0500101_01_00

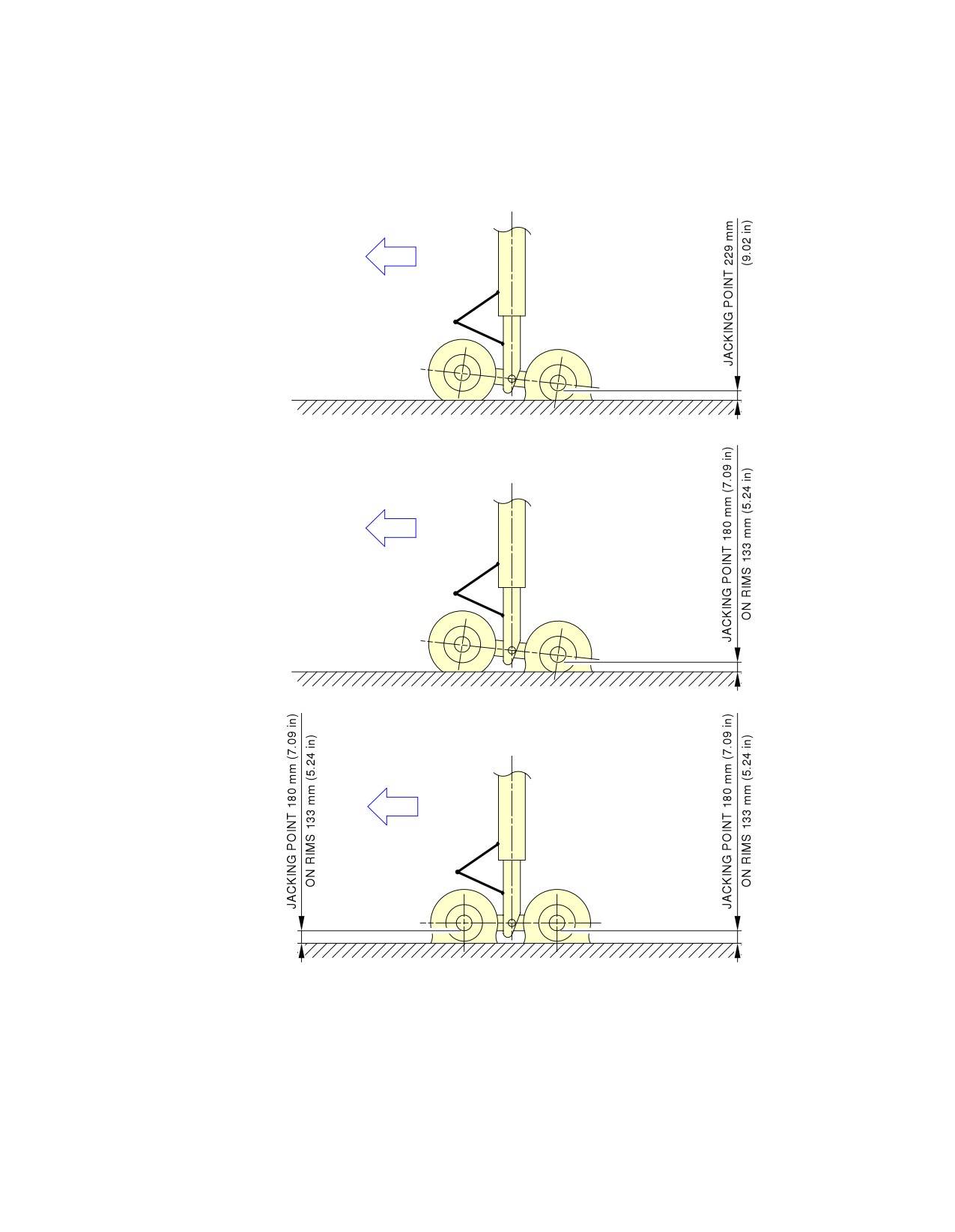

Jacking of the Landing Gear

MLG Jacking Point Location Bogie

FIGURE-2-14-0-991-050-A01

Page 17

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

40 mm

128 mm

25 mm

38 mm

326 mm

APPROX

(1.57 in)

(5.06 in)

(1 in)

(1.5 in)

(12.83 in)

DIA. BALL

SAE AS 33559

FWD

500 mm (19.69 in)

264 mm MIN (10.39 in)

289 mm MAX (11.38 in)

198 mm

(7.8 in)

FLAT TIRES

INFLATED TIRES

NOTE:

THE FLAT TIRES VIEW SHOWS THE MINIMUM HEIGHT TO ENGAGE JACK WITH 2 FLAT TIRES.

THE INFLATED TIRES VIEW SHOWS THE JACKING HEIGHT TO GIVE 25 mm (1 in)

CLEARANCE BETWEEN THE TIRE AND GROUND.

N_AC_021400_1_0530101_01_00

Jacking of the Landing Gear

NLG Jacking - Point Location

FIGURE-2-14-0-991-053-A01

Page 18

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

A320−200

WV017

78 400 kg

MAXIMUM DESIGN TAXI WEIGHT (MTW)

(172 842 lb)

78 000 kg

MAXIMUM DESIGN TAKE−OFF WEIGHT (MTOW)

(171 960 lb)

MAXIMUM LOAD VALUE TO BE APPLIED ON NLG

9 900 kg

JACKING POINT

(21 826 lb)

NUMBER OF JACKING POINTS ON ONE MLG

MAXIMUM LOAD VALUE TO BE APPLIED ON MLG

36 000 kg

JACKING POINT (LEFT OR RIGHT)

(79 366 lb)

NOTE:

A320 EQUIPPED WITH BOGIE MLG IS NOT LISTED SINCE JACKING CAPABILITY REQUESTED FOR LIFTING

ONE AXLE WILL BE LOWER THAN A320 EQUIPPED WITH TWIN WHEELS.

N_AC_021400_1_0600101_01_01

Jacking of the Landing Gear

Maximum Load Capacity to Lift Each Jacking Point

FIGURE-2-14-0-991-060-A01

Page 19

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320neo

A320 NEO

WV054 AND WV055

79 400 kg

MAXIMUM DESIGN TAXI WEIGHT (MTW)

(175 047 lb)

79 000 kg

MAXIMUM DESIGN TAKE−OFF WEIGHT (MTOW)

(174 165 lb)

MAXIMUM LOAD VALUE TO BE APPLIED ON NLG

9 900 kg

JACKING POINT

(21 826 lb)

NUMBER OF JACKING POINTS ON ONE MLG

MAXIMUM LOAD VALUE TO BE APPLIED ON MLG

36 250 kg

JACKING POINT (LEFT OR RIGHT)

(79 917 lb)

N_AC_021400_1_0630101_01_00

Jacking of the Landing Gear

Maximum Load Capacity to Lift Each Jacking Point

FIGURE-2-14-0-991-063-A01

Page 20

Dec 01/20

2-14-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

AIRCRAFT PERFORMANCE

3-1-0

General Information

**ON A/C A320-200 A320neo

General Information

Standard day temperatures for the altitudes shown are tabulated below:

Standard Day Temperatures for the Altitudes

Altitude

Standard Day Temperature

FEET

METERS

˚F

˚C

59.0

15.0

2 000

610

51.9

11.1

4 000

1 220

44.7

7.1

6 000

1 830

37.6

3.1

8 000

2 440

30.5

-0.8

Page 1

Dec 01/20

3-1-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

THESE CURVES ARE GIVEN FOR INFORMATION ONLY

NOTE:

THE APPROVED VALUES ARE STATED IN THE "OPERATING

MANUALS" SPECIFIC TO THE AIRLINE OPERATING THE AIRCRAFT.

1 000 kg

1 000 lb

110

230

100

220

210

200

190

180

170

160

150

140

130

120

110

1 000 ft

RUNWAY LENGTH

1 000 m

N_AC_030301_1_0050101_01_01

Take-Off Weight Limitation - ISA Conditions

CFM56 Series Engine

FIGURE-3-3-1-991-005-A01

Page 2

Dec 01/20

3-3-1

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

THESE CURVES ARE GIVEN FOR INFORMATION ONLY

NOTE:

THE APPROVED VALUES ARE STATED IN THE "OPERATING

MANUALS" SPECIFIC TO THE AIRLINE OPERATING THE AIRCRAFT.

1 000 kg

1 000 lb

110

230

100

220

210

200

190

180

170

160

150

140

130

120

110

1 000 ft

RUNWAY LENGTH

1 000 m

N_AC_030301_1_0060101_01_01

Take-Off Weight Limitation - ISA Conditions

IAE V2500 Series Engine

FIGURE-3-3-1-991-006-A01

Page 3

Dec 01/20

3-3-1

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320neo

1 000 kg

1 000 lb

110

230

100

220

210

200

190

180

170

160

150

140

130

120

110

1 000 ft

RUNWAY LENGTH

1 000 m

NOTE:

THESE CURVES ARE GIVEN FOR INFORMATION ONLY

THE APPROVED VALUES ARE STATED IN THE "OPERATING

MANUALS" SPECIFIC TO THE AIRLINE OPERATING THE AIRCRAFT.

N_AC_030301_1_0090101_01_00

Take-Off Weight Limitation - ISA Conditions

LEAP-1A Series Engine

FIGURE-3-3-1-991-009-A01

Page 4

Dec 01/20

3-3-1

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

THESE CURVES ARE GIVEN FOR INFORMATION ONLY

NOTE:

THE APPROVED VALUES ARE STATED IN THE "OPERATING

MANUALS" SPECIFIC TO THE AIRLINE OPERATING THE AIRCRAFT.

1000 kg

1000 lb

110

230

100

220

210

200

190

180

170

160

150

140

130

120

110

1000 ft

RUNWAY LENGTH

1000 m

N_AC_030302_1_0050101_01_01

Take-Off Weight Limitation - ISA +15˚C (+27˚F) Conditions

CFM56 Series Engine

FIGURE-3-3-2-991-005-A01

Page 2

Dec 01/20

3-3-2

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

THESE CURVES ARE GIVEN FOR INFORMATION ONLY

NOTE:

THE APPROVED VALUES ARE STATED IN THE "OPERATING

MANUALS" SPECIFIC TO THE AIRLINE OPERATING THE AIRCRAFT.

1000 kg

1000 lb

110

230

100

220

210

200

190

180

170

160

150

140

130

120

110

1000 ft

RUNWAY LENGTH

1000 m

N_AC_030302_1_0060101_01_00

Take-Off Weight Limitation - ISA +15˚C (+27˚F) Conditions

IAE V2500 Series Engine

FIGURE-3-3-2-991-006-A01

Page 3

Dec 01/20

3-3-2

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320neo

1000 kg

1000 lb

110

230

100

220

210

200

190

180

170

160

150

140

130

120

110

1000 ft

RUNWAY LENGTH

1000 m

NOTE:

THESE CURVES ARE GIVEN FOR INFORMATION ONLY

THE APPROVED VALUES ARE STATED IN THE "OPERATING

MANUALS" SPECIFIC TO THE AIRLINE OPERATING THE AIRCRAFT.

N_AC_030302_1_0090101_01_00

Take-Off Weight Limitation - ISA +15˚C (+27˚F) Conditions

LEAP-1A Series Engine

FIGURE-3-3-2-991-009-A01

Page 4

Dec 01/20

3-3-2

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

3-3-3

Aerodrome Reference Code

**ON A/C A320-200 A320neo

Aerodrome Reference Code

For A320-200:

If the aircraft take-off weight is less than or equal to 73 500 kg (162 040 lb), the aircraft is

classified as code 3C as per ICAO Aerodrome Reference Code.

If the aircraft take-off weight is more than 73 500 kg (162 040 lb), the aircraft is classified as

code 4C as per ICAO Aerodrome Reference Code.

A320neo is classified as code 3C as per ICAO Aerodrome Reference Code.

Page 1

Dec 01/20

3-3-3

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

(x 1 000 m)

(x 1 000 ft)

2.5

LANDING FIELD LENGTH = ACTUAL DISTANCE

AIRPORT PRESSURE

0.6

ALTITUDE

(x 1 000 ft)

2.0

SEA

LEVEL

1.5

1.0

100

120

140

160

180

GROSS WEIGHT (x 1 000 lb)

GROSS WEIGHT (x 1 000 kg)

NOTE:

THESE CURVES ARE GIVEN FOR INFORMATION ONLY.

THE APPROVED VALUES ARE STATED IN THE "OPERATING

MANUALS" SPECIFIC TO THE AIRLINE OPERATING THE AIRCRAFT.

N_AC_030401_1_0050101_01_01

Landing Field Length - ISA Conditions

CFM56 Series Engine

FIGURE-3-4-1-991-005-A01

Page 2

Dec 01/20

3-4-1

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

(x 1 000 m)

(x 1 000 ft)

2.5

LANDING FIELD LENGTH = ACTUAL DISTANCE

AIRPORT PRESSURE

0.6

ALTITUDE

(x 1 000 ft)

2.0

SEA

LEVEL

1.5

1.0

100

120

140

160

180

GROSS WEIGHT (x 1 000 lb)

GROSS WEIGHT (x 1 000 kg)

NOTE:

THESE CURVES ARE GIVEN FOR INFORMATION ONLY.

THE APPROVED VALUES ARE STATED IN THE "OPERATING

MANUALS" SPECIFIC TO THE AIRLINE OPERATING THE AIRCRAFT.

N_AC_030401_1_0060101_01_01

Landing Field Length - ISA Conditions

IAE V2500 Series Engine

FIGURE-3-4-1-991-006-A01

Page 3

Dec 01/20

3-4-1

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

3-5-0

Final Approach Speed

**ON A/C A320-200 A320neo

Final Approach Speed

This section provides the final approach speed. It is defined as the indicated airspeed at threshold in

the landing configuration, at the certificated maximum flap setting and Maximum Landing Weight

(MLW), in standard atmospheric conditions. The approach speed is used to classify the aircraft into

an Aircraft Approach Category, a grouping of aircraft based on the indicated airspeed at threshold.

**ON A/C A320-200

The final approach speed is 136 kt at a MLW of 66 000 kg (145 505 lb) and classifies the aircraft

into the Aircraft Approach Category C.

NOTE : This value is given for information only.

**ON A/C A320neo

The final approach speed is 131.5 kt at a MLW of 67 400 kg (148 592 lb) and classifies the aircraft

into the Aircraft Approach Category C.

NOTE : This value is given for information only.

Page 1

Dec 01/20

3-5-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

GROUND MANEUVERING

4-1-0

General Information

**ON A/C A320-200 A320neo

General Information

This section provides aircraft turning capability and maneuvering characteristics.

For ease of presentation, this data has been determined from the theoretical limits imposed by the

geometry of the aircraft, and where noted, provides for a normal allowance for tire slippage. As such,

it reflects the turning capability of the aircraft in favorable operating circumstances. This data should

only be used as a guideline for the method of determination of such parameters and for the

maneuvering characteristics of this aircraft type.

In ground operating mode, varying airline practices may demand that more conservative turning

procedures be adopted to avoid excessive tire wear and reduce possible maintenance problems. Airline

operating techniques will vary in the level of performance, over a wide range of operating

circumstances throughout the world. Variations from standard aircraft operating patterns may be

necessary to satisfy physical constraints within the maneuvering area, such as adverse grades, limited

area or a high risk of jet blast damage. For these reasons, ground maneuvering requirements should

be coordinated with the airlines in question prior to layout planning.

Page 1

Dec 01/20

4-1-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

50?

7.59 m

60?

(24.9 ft)

70?

12.64 m

(41.47 ft)

NOTE:

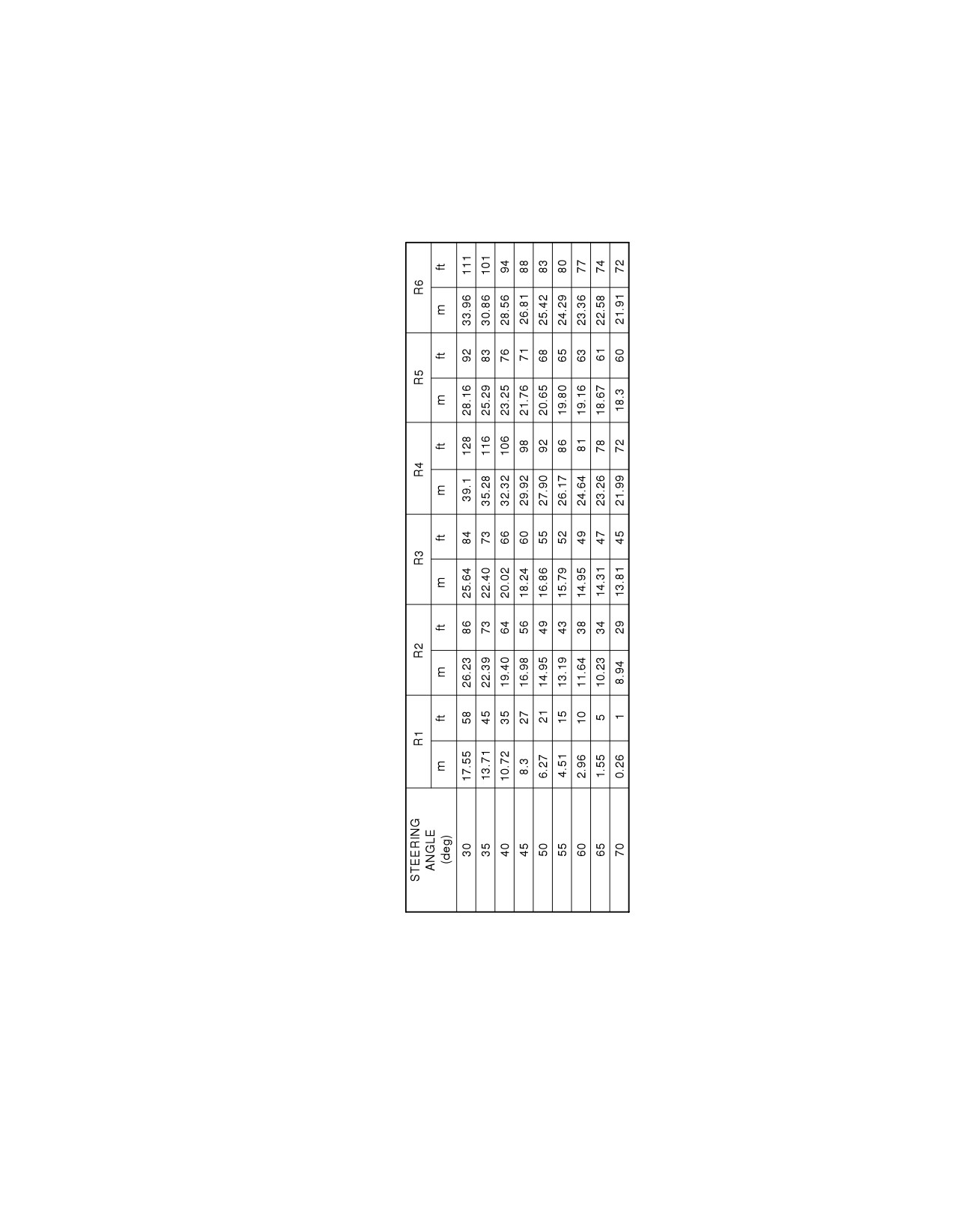

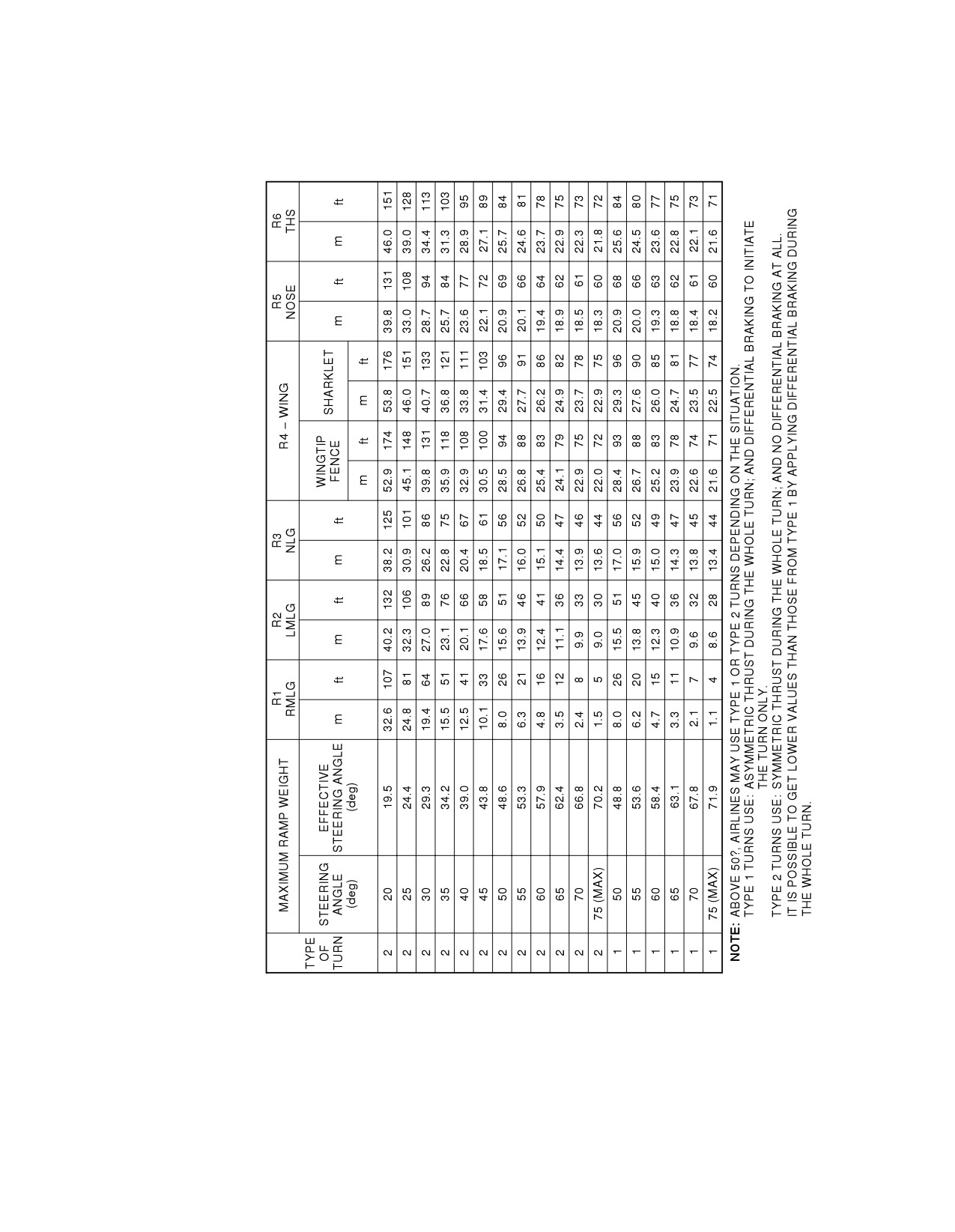

FOR STEERING DIMENSION TABLE SEE SHEET 2.

TURN TYPE:

1. ASYMMETRIC THRUST DIFFERENTIAL BRAKING

(PIVOTTING ON ONE MAIN GEAR).

2. SYMMETRIC THRUST NO BRAKING.

N_AC_040200_1_0050101_01_01

Turning Radii, No Slip Angle

Dual Landing Gear (Sheet 1)

FIGURE-4-2-0-991-005-A01

Page 2

Dec 01/20

4-2-0

Airbus A320. AIRCRAFT CHARACTERISTICS AIRPORT AND MAINTENANCE PLANNING (2016-2023) - page 11
