Lesson 4 - Wireless Networks

Introduction

This lesson presents basic information about wireless networks.

Topics covered include:

 How wireless networks work

 The different types of wireless networks

 The components that makeup a wireless network

 Security concerns

Purpose of this

This lesson expands on the earlier lesson on wireless media by

Lesson

providing insight on wireless networks and how they can be used

with good and bad intentions.

Objectives

After successfully completing this lesson, you will be able to:

 Explain what a wireless network is and how it works

 Explain the 802.11 standard

 Explain the difference between infrastructure and ad-hoc

modes

 Discuss security concerns of implementing wireless networks

In this Lesson

The following table shows the contents of this lesson.

Topic

See Page

About Wireless Networks

3-36

Types of Wireless Networks

3-37

Hardware Components

3-38

Security Concerns

3-40

Vulnerabilities

3-45

01/09

For Official Use Only - Law Enforcement Sensitive

3-35

Network Connectivity and Protocols

Network Intrusion Responder Program

About Wireless Networks

Definition

As the name implies, a wireless network does not require cables to

connect computers and peripherals. Instead, network

communications are transmitted across the airwaves using infrared

and various forms of radio technology. As discussed earlier,

wireless technology uses radio frequencies between 2 and 5

gigahertz and is growing in popularity. It has an effective range

between 300 and 1,500 feet.

802.11

Wireless network technology has evolved as a result of a standard

published by the Institute of Electrical and Electronics Engineers

(IEEE) in 1997. This standard, known as 802.11, established

global rules for wireless networking at a speed of 2 megabits per

second.

Two years later, in 1999, the IEEE ratified 802.11b, an extension

of the original standard that increased the throughput from 2

megabits per second to 11 megabits per second. 802.11b is

backward compatible with the original slower speed standard

(802.11) and operates at a frequency of 2.4 gigahertz. Additional

extensions to the original 802.11 standard have been ratified which

include 802.11a and 802.11g, which both offer throughput as high

as 54 megabits per second. 802.11g, although faster, is backward

compatible with 802.11b. Both operate at 2.4 gigahertz.

Further development of the 802.11 standard continues with

802.11n, which claims to be twice as fast as 802.11g, and 802.11i

which addresses the many security concerns over the current

802.11 standards. 802.11n incorporates Multiple Input Multiple

Output (MIMO) antennas.

Hot Spots

Both desktop and notebook computers on today’s market offer

802.11 networking capability. This feature is often packaged under

the label Wi-Fi and Centrino, an Intel trademark. To expand the

wireless market, Intel has partnered with companies like Hilton

Hotels & Resorts, Borders Group, and McDonalds to develop a

concept called hot spots. These enable users of wireless-enabled

notebooks and PDAs to connect to the Internet while using the

other services the business offers. The strategy is two-fold:

wireless hardware sales increase, and the hosting businesses attract

more customers.

3-36

For Official Use Only - Law Enforcement Sensitive

01/09

Network Intrusion Responder Program

Network Connectivity and Protocols

Types of Wireless Networks

Introduction

In general, there are two types of wireless networks: ad-hoc and

infrastructure. The type of network simply indicates how the

wireless devices are configured to communicate. The

configuration can be changed very easily from one type to the

other, making wireless networking flexible and easy to use. The

two types of wireless networks are discussed below.

Ad-Hoc

When a group of wireless computers are configured to

communicate with each other in a peer-to-peer configuration, the

result is an independent wireless network. The combination of

wireless computers and modern operating systems allow the

network to be flexible enough for other wireless computers to

join the network with ease. This feature provides an easy setup,

ideal for groups who wish to collaborate on a project. It is from

the ad-hoc nature of this independent network that this wireless

network type gets its name.

Infrastructure

A more common use of wireless networking that takes full

advantage of wireless device mobility is the infrastructure

wireless network. Wireless computers configured to

communicate in an infrastructure wireless network look for other

wireless devices that are also attached to a wired network. These

devices, called access points, are usually attached directly to a

hub or switch in a wired network. Their primary function is to

provide wireless computers with access to the wired network.

Once connected to the wired network, wireless devices can use

all of the resources available on that wired network, including

Internet access.

01/09

For Official Use Only - Law Enforcement Sensitive

3-37

Network Connectivity and Protocols

Network Intrusion Responder Program

Hardware Components

Introduction

A wireless local area network (WLAN) is rarely wireless.

Although notebook computers, PDAs, and other devices

communicate wirelessly, there are usually key components that are

connected to the network by some form of cable. The shared

resources, such as the Internet gateway, printers, file servers, etc.,

are all typically interconnected with cables. So how does the

wireless notebook computer access the Internet gateway, or the

shared files residing on a file server?

This part of the lesson on wireless networks will discuss the

various components that are used in wireless networking and

where they might be found. The function and properties of these

devices will also be discussed.

Wireless NIC

The network interface card (NIC) is an essential part of any

wireless network. Like its cable-based counterpart, the wireless

NIC functions as the interface between the PC and the media used

to connect the PC to a network. These NICs typically have visible

antennae as shown in the examples pictured below.

(The wireless NIC images from left to right are 3COM 3CRDW696

Wireless NIC; LINKSYS Wireless NIC 802.11B; CNET PCI Wireless

Network Card CWP-854.)

3-38

For Official Use Only - Law Enforcement Sensitive

01/09

Network Intrusion Responder Program

Network Connectivity and Protocols

Hardware Components, continued

Wireless Access

The wireless NIC must connect to the wired network through

Points (WAP)

another device that has both wired and wireless connectivity. This

device, the wireless access point (WAP), is generally a small

hardware device that is connected by cable to a hub or switch that

is part of the wired network. The WAP can also be a wireless

cable/DSL router that provides routing protection and functionality

to your broadband Internet service. The WAP is usually equipped

with one or two visible antenna. These antennae receive signals

from the wireless NIC and convert it to a format compatible with

the cable that connects the WAP to the network. A single WAP

can support connections from multiple wireless devices. Here are

several examples of WAPs.

(The Wireless Access Points images from left to right are Linksys

WAP54G-UK Wireless Access Point; AirPlus XtremeG 2.4GHz

Wireless Access Point; Motorola WA840G Wireless Access Point;

Netgear 802.11b Wireless Access Point.)

01/09

For Official Use Only - Law Enforcement Sensitive

3-39

Network Connectivity and Protocols

Network Intrusion Responder Program

Security Concerns

Introduction

The very principles that facilitate wireless network

communications also make them extremely vulnerable to

eavesdropping and attack. In a broadcast network, data

transmissions are sectioned into packets that are broadcast to all

devices attached to the network. When packets are broadcast over

wireless connections, they can easily be intercepted and examined.

As a result of the packet interception, the data being transmitted

can be viewed and reassembled by the intercepting party.

WEP

Networking devices manufactured under the 802.11 standards

employ a method of encryption called wired equivalent privacy or

simply WEP. This provides encryption of communications based

on either a 64 bit or a 128-bit key. In essence, both the wireless

computer and the WAP must use the same key in order for them to

communicate. Encryption and encryption keys will be covered in

greater detail in the Security section of this lesson.

Wireless devices have the ability to turn WEP on or off.

Unfortunately, the default state of WEP for most devices is off,

meaning the end user is required to understand WEP and how to

configure it before the first step toward securing a wireless

network is taken.

Although WEP is intended to secure wireless networks, its flaws

are well documented, making it slightly better than no security at

all. With the right combination of hardware and software, along

with 25,000 to 50,000 captured data packets, a WEP key can be

cracked within minutes.

3-40

For Official Use Only - Law Enforcement Sensitive

01/09

Network Intrusion Responder Program

Network Connectivity and Protocols

Security Concerns, continued

WPA

Since WEP has been determined to be inadequate in securing

wireless networks, the Wi-Fi Alliance, in cooperation with several

members of the IEEE 802.11i task group, developed Wi-Fi

Protected Access (WPA) to address wireless security concerns

pending the release of the IEEE 802.11i standard.

While WEP uses a static key for encrypted transmission (the major

flaw in WEP), WPA uses dynamic keys so that the same

encryption key is never used twice. The difference is that under

WEP, captured packets can be analyzed using readily available

programs from the Internet to determine the encryption key. Under

WPA, the encryption key is derived from up to 500 trillion

possibilities.

The result is a key that is virtually uncrackable, if a strong

password is used. This would mean 12 or more characters, using

upper case, lower case, numbers and special characters.

Tests have shown that dictionary words used as passwords can be

captured from the key exchange packets within minutes.

LEAP

Developed by Cisco Systems, the Lightweight Extensible

Authentication Protocol (LEAP) is a protocol that provides

authentication services on a wireless network. What makes LEAP

different from WPA is the authentication process that occurs.

When a wireless client attempts to access the network, the wireless

access point (WAP) blocks all ports except for the authentication

ports to allow the user to securely provide authentication

credentials. Once these credentials are received, the WAP

forwards the credentials to a special authentication server for

validation. If the credentials are valid, a unique key is generated

for the session and access to the network through the WAP is

granted.

The key that is generated is per-user and per-session, complicating

and hopefully frustrating any hacking attempts to discern the key

from captured packets. To further secure the network, the time-out

settings of the key can be adjusted to force devices to

re-authenticate frequently. Each re-authentication results in a new

session, which results in a new key. Subsequently, the keys change

so frequently and the sessions become so short that packet sniffing

becomes useless as a means of deriving session keys.

01/09

For Official Use Only - Law Enforcement Sensitive

3-41

Network Connectivity and Protocols

Network Intrusion Responder Program

Security Concerns, continued

SSID

The term SSID is used to refer to the Service Set Identifier, a

unique, user configurable name that must be used to communicate

with a WAP. Most wireless access points have an SSID that is

indicative of the manufacturer or model of the device. For

example, the Linksys brand of WAP uses the name LINKSYS as

its default SSID, while Siemens uses the SSID SPEEDSTREAM

to identify its SpeedStream model line. The SSID can be any

combination of alpha and numeric characters with a maximum

length of 32 characters.

When a WAP is powered on, it begins broadcasting its SSID to

any wireless device within range. This feature, intended to

simplify connectivity by mobile devices, can be disabled in some

WAPs, thus eliminating the necessity for the notebook PC or PDA

user to know the SSID before attempting to connect.

MAC Filtering

Enabling WPA and MAC filtering are methods that can be used to

harden your wireless network against attack. The term MAC refers

to the unique identifier address encoded into every network device.

As each wireless device connects to a WAP in an attempt to

communicate, its MAC address is read by the WAP. If MAC

filtering is enabled, (this is disabled by default), the system

administrator creates a list of MAC addresses for devices that are

allowed to join the network and saves the list as part of the

device’s MAC filtering configuration. As each device attempts to

connect, the MAC address of that device is validated against the

list created by the administrator. If the connecting device’s MAC

address is not on the MAC filter list, the device is denied access.

This can be circumvented through MAC spoofing, which is

manually changing the transmitted MAC address of your device.

3-42

For Official Use Only - Law Enforcement Sensitive

01/09

Network Intrusion Responder Program

Network Connectivity and Protocols

Security Concerns, continued

Detection Systems The security concerns of using 802.11 wireless networks have

driven entrepreneurs and researchers to develop a myriad of

solutions to the wireless security threat. Among these solutions are

small inexpensive wireless network detectors like the two

examples shown here. Both of these devices cost less than $25 and

only detect the presence of 802.11 wireless signals and signal

strength.

Although useful for determining if 802.11 wireless activity is

present in a given area, these devices are not well suited for

determining the WAP SSID, the MAC address of the WAP, or any

other information that can be detected using more sophisticated

and expensive solutions.

(The Wireless Network Detectors shown above are Kensington Wireless

Network Finder and Smart ID Wi-Fi Detector.)

01/09

For Official Use Only - Law Enforcement Sensitive

3-43

Network Connectivity and Protocols

Network Intrusion Responder Program

Security Concerns, continued

Detection Systems, Additionally, unauthorized or rogue wireless devices can appear

continued

on a network for short durations, making them hard to detect. To

address this problem, a number of solutions providers have

developed detection systems that are comprised of specialized

software and customized sensors. These sensors are placed

strategically throughout the network, constantly monitoring for

rogue devices. When an unauthorized device is detected, its

location is triangulated using the strategically placed sensors, and

the network administrator is immediately alerted.

Once a rogue device has been identified and its approximate

position determined, the network administrator could use a

notebook computer or PDA equipped with a directional antenna to

pinpoint the device. This can be accomplished by sweeping the

antenna in a 360-degree rotation while monitoring signal strength.

A number of freeware applications are available to perform such

functions. These include Net Stumbler for MS Windows and

Pocket PC, and Kismet for Linux.

3-44

For Official Use Only - Law Enforcement Sensitive

01/09

Network Intrusion Responder Program

Network Connectivity and Protocols

Vulnerabilities

Introduction

Despite the security that has been engineered into wireless

(802.11) networks, they are still vulnerable to attack and

unauthorized access. The vulnerabilities will be examined in this

section, along with the issue of unintentional and accidental

access.

War Driving

In the early 1980s, before the Internet emerged as the primary

method for distributing files and information, corporations,

universities, government agencies, and hobbyists configured

computers to function as a central distribution point for various

files, news, and information. These computers, called bulletin

board systems (BBS), were equipped with modems that were set to

automatically answer when a ring was detected, and to establish a

connection with the calling computer. Once connected, the caller

could login and access the files and data stored on the BBS.

Hackers in the late seventies and early eighties knew that there

were thousands, if not hundreds of thousands of computers waiting

to communicate with anyone who connected. The lure of an

unexplored frontier and the treasures that awaited anyone who

found them were driving forces for the hacker to find ways to

discover them. As a result, hacker groups collaborated to develop

software that could be configured to search for any BBS or

modem-enabled mainframe computer by sequentially dialing every

telephone number within a given area code and exchange.

As each number was dialed, the hacker’s computer waited

momentarily for the carrier signal of a modem on the other end. If

no carrier was detected, the call was ended and the next number in

the sequence dialed. Once a carrier was detected, the calling

computer would save the telephone number to a log file,

disconnect, and move onto the next number in the sequence. This

process was called war dialing and eventually became the

foundation for many hacking applications that would attempt to

compromise long distance billing codes from companies like

Sprint, MCI, Americall, and AT&T.

01/09

For Official Use Only - Law Enforcement Sensitive

3-45

Network Connectivity and Protocols

Network Intrusion Responder Program

Vulnerabilities, continued

War Driving,

The concept of war dialing was applied to wireless networks, but

continued

without modems. Just as modems sat waiting for someone to

connect, in a wireless network, the WAP waits for someone to

connect as well. Anyone with the right hardware, software, and

authentication configuration can connect. Even without the

configuration information, the airwaves can be scanned for

802.11 signals, and SSIDs. Tools, such as the previously

mentioned Net Stumbler and Kismet, can be used with a notebook

computer to scan for, and identify wireless networks. The data

that these programs collect includes the SSID (if broadcasted),

which of the 14 wireless channels or frequencies are used (only

11 are used in the U.S.), whether or not WEP or WPA is enabled,

and the MAC address of the WAP. This information can later be

used to target specific networks for attack.

Today, wireless networks are used frequently in the business

community and most businesses rely on some type of Internet

connectivity. The possibility that these businesses have not

secured their wireless access points has driven hackers to

engineer ways to identify unsecured wireless networks. Their

primary motive: free Internet access.

Hackers have developed software similar to the war dialer that

attempts to connect to computers or WAPs. The name War

Driving is derived from running these programs on a laptop with

a wireless NIC and external antenna while driving along the

major traffic routes in an effort to locate wireless networks. It is

common for War Drivers to record the GPS coordinates of the

wireless networks for use with mapping software and for

publication to various sites on the Internet.

3-46

For Official Use Only - Law Enforcement Sensitive

01/09

Network Intrusion Responder Program

Network Connectivity and Protocols

Vulnerabilities, continued

Overlapping

One problem, of which wireless network administrators are usually

Signals

aware, is that of overlapping signals. Wireless network signals

typically radiate in an elliptical pattern. This can vary depending

upon the physical structure in which the WAP is deployed because

walls, floors, ceilings, and other obstacles affect radio waves.

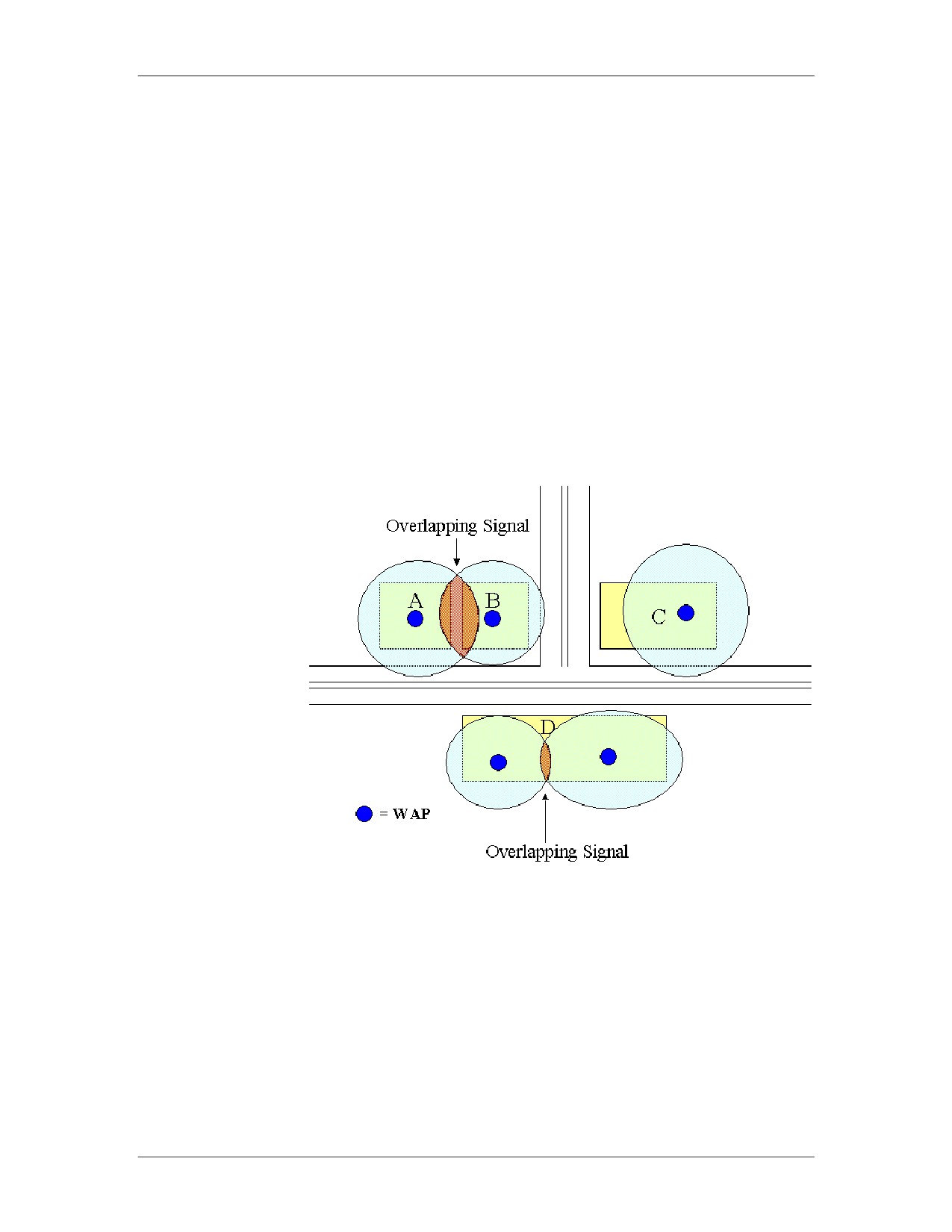

In the illustration below, there are four buildings with wireless

networks. Building C is far enough away from other buildings that

overlapping signals are not an issue. Building D, because of its

size, has two wireless access points deployed with minimal signal

overlap. If the two signals are owned by two different businesses

within building D, this could pose a significant problem. Likewise,

buildings A and B have wireless access points generating

overlapping signals.

Some examples of corrective action that can be taken to address

overlapping signals are:

 Relocation of the WAP

 Reducing power output of the WAP

01/09

For Official Use Only - Law Enforcement Sensitive

3-47

Network Connectivity and Protocols

Network Intrusion Responder Program

Vulnerabilities, continued

Accidental Access

Because wireless signals can overlap, and because operating

systems like Microsoft Windows XP are made to seek out network

devices as well as advertise themselves as available network

devices, a wireless end user operating in an overlapping signal area

could possibly connect to the wrong network accidentally. If the

wireless networks are configured to use WEP, the possibility of

accidental access is eliminated.

Windows Vista has changed the way it tries to connect to access

points as compared to XP. Vista will no longer try to connect to

any open access point available the way XP may have. If the

access point is not secured and is open, Vista requires that the

users manually connect and accept the security warning each and

very time it is to connect.

Vista has also improved its security by allowing the user to

configure the wireless policies to know if the access point is

configured to broadcast or not. For access points that are

broadcasting their Service Set Identifier (SSID) information, Vista

will not send out probe request trying to connect. If an access point

is configured to not broadcast its SSID, then Vista will send out

probe requests searching to the access point, thus exposing

valuable information about the systems wireless configurations.

From a client perspective, it is more secure to configure access

points to broadcast their SSID.

These changes in Vista’s wireless capabilities and default settings

greatly increase the security over previous versions of Microsoft

operating systems.

3-48

For Official Use Only - Law Enforcement Sensitive

01/09

Network Intrusion Responder Program

Network Connectivity and Protocols

Vulnerabilities, continued

Known Attacks

Wireless network technology is constantly improving. Like most

networking technologies, there are known vulnerabilities that lead

to attack. The following examples of known wireless network

attacks usually result from improperly managed or improperly

secured wireless technology. The actual steps taken by a hacker

are not detailed here as they are considered too complicated to be

within the scope of the lesson.

Session Hijacking

An attacker monitors active sessions, connections between WAP

and a remote station, for identifying information that can be used

to facilitate his or her attack. Once enough information has been

collected, the attacker sends a spoofed message to the workstation

to be disconnected. The workstation responds by ending the

session, allowing the attacker to masquerade as the disconnected

workstation.

Man-in-the-Middle

This attack exploits the one-way authentication of the 802.11

design and allows the attacker to configure his or her computer to

act as a wireless access point. The attacker’s computer then waits

for unsuspecting users to connect to the wireless network. As a

result, the remote computers will pass the WEP key to the

attacker’s computer. The attacker’s computer will then establish a

connection with the real WAP and pass the remote computers

packets transparently between the user and the WAP. The result is

a captured WEP key that will allow the attacker access to the

wireless network.

01/09

For Official Use Only - Law Enforcement Sensitive

3-49

Network Connectivity and Protocols

Network Intrusion Responder Program

Vulnerabilities, continued

Known Attacks,

WEP Key Cracking

continued

As previously mentioned, when WEP is enabled, an encrypted

key is used to connect to, and transfer data across a wireless

network. Only computers with the WEP key are allowed to

communicate. Software tools, such as Airsnort and WEPcrack,

simplify the job of cracking the WEP key.

By monitoring the packets transmitted across the airwaves, the

attacker can save the packets to a log file. After several thousand

packets have been collected, cracking tools can analyze the

collected packets to determine the WEP key. It’s possible to crack

a WEP key with 100% success.

WPA-PSK Cracking

WPA-PSK uses a pre-shared key for its encryption algorithm.

This method is much more secure than using WEP, but it still is

susceptible to cracking attacks. The attack method used to crack

WPA-PSK is a dictionary attack, which uses a large database of

common words and phrases to guess the password. Therefore, if

the data from the transmitting access point and connected user is

captured, the data can be run through a dictionary to find the

correct key to unlock the data. It is recommended that

administrators use a long key that would not be found in any

dictionary, such a complete phrase with additional special

characters, etc.

3-50

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Module 4

IP Addresses and Subnets

Overview

In this module, we will explain Internet Protocol (IP) addresses

and how they are constructed. We will also introduce subnet

masks.

Purpose of this

The purpose of this module is to introduce you to IP addressing

Module

and the classes of networks in IP addressing schemes. You will

also learn about subnets and the IP addressing schemes for subnet

masks.

Objectives

After successfully completing this module, you will be able to:

 Explain IP addresses and how they are constructed

 Name the classes of IP addresses and their characteristics

 Describe Domain Name Service functions

 Define subnetting

 Explain how subnet masking is used

 Name the types of firewalls used today and their characteristics

In this Module

The following table shows the contents of this module.

Topic

See Page

Lesson 1 - IP Addresses

4-3

Lesson 2 - Ports

4-13

Lesson 3 - Subnets

4-21

Lesson 4 - Network Security

4-27

01/09

For Official Use Only - Law Enforcement Sensitive

4-1

IP Addresses and Subnets

Network Intrusion Responder Program

Lesson 1 - IP Addresses

Introduction

In a TCP/IP network, IP (Internet Protocol) addressing is essential

to the physical routing of network communications. Every device

on a LAN (Local Area Network) must have a unique IP address.

Each address is essential for internetworking over WANs (Wide

Area Networks).

Purpose of this

In this lesson, you will learn about the importance of IP

Lesson

addressing. You will discuss the three classes of IP addresses and

explore the concepts of domain name services (DNS).

Objectives

After successfully completing this lesson, you will be able to:

 Define IP addresses

 Identify the various classes of IP addresses

 Explain the functions of DNS and Classless Inter-Domain

Routing (CIDR)

In this Lesson

The following table shows the contents of this lesson.

Topic

See Page

IP Address Basics

4-4

IP Address Classes

4-6

More about IP Addresses

4-9

01/09

For Official Use Only - Law Enforcement Sensitive

4-3

Network Intrusion Responder Program

IP Addresses and Subnets

IP Address Basics

Network

Locating computers on a network is an important function of all

Addressing

networks. With networks, there are two basic addressing schemes:

Overview

a MAC address and an IP address.

 A Media Access Control (MAC) address is a unique hardware

identification number that is specific for each network device.

To send a data packet to a computer on a LAN, the sending

device must first know the receiver’s MAC address. MAC

addresses exist at the Data Link Layer 2 of the OSI model.

 IP addresses identify every device attached to a TCP/IP

network, including PCs, servers, switches, printers, and any

other networked device. Each device has a unique IP address

that identifies it for internetwork data packet routing. IP

addresses exist at the Network Layer 3 of the OSI model.

Workstations can have either a permanent (static) IP address or

one that is dynamically assigned each time a network connection is

established. For clients on an isolated LAN, the administrator can

assign unique static IP addresses. However, to communicate with

the Internet, you must have a unique, registered IP address that is

routable through the Internet.

4-4

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

IP Address Basics, continued

What’s in an IP

An IP address is a 32-bit numeric address written as four sets of

Address

numbers, called octets, separated by periods. For example,

131.160.10.240 is an example of a class B IP address. Each octet

can range from 0 to a maximum of 255. A valid IP address cannot

consist of all zeros or all ones.

For each networked device, the IP address consists of the network

address (netid) and the host address (hostid). Each octet of the IP

address contains eight bits equaling one byte. Therefore, an IP

address has a total of four bytes. The following illustration

indicates the various components of an IP address.

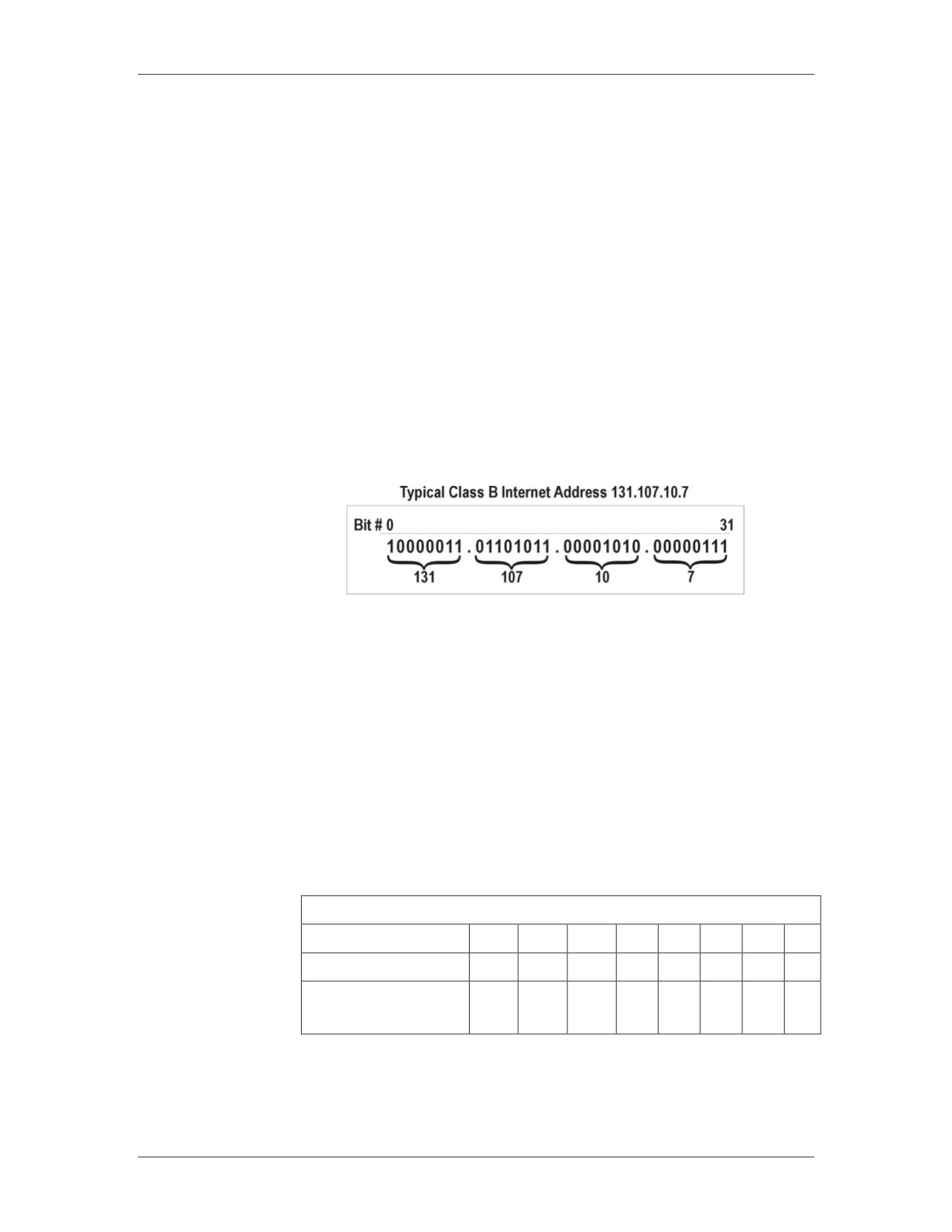

Example Class B IP Address 131.107.10.7

Binary IP

IP addresses are read as a set of four decimals. The computer can

Addressing

only read ones and zeros. Therefore, IP addresses are binary;

meaning each of the four decimals is translated into eight binary

numbers consisting of ones and zeros.

The binary numbering system used in IP addresses is based on the

number 2, called Base2. Because each octet in an address is

limited to eight bits, the corresponding binary numbers range from

2⁰to 2⁷ (1 to 255). The following chart illustrates the use of Base2

in converting the decimal 131 to its binary number equivalent of

10000011.

Binary Conversion of Decimal 131

Base2

2⁷

2⁶

2⁵

2⁴

2³

2²

2¹

2⁰

Decimal

128

Binary Number is

10000011

01/09

For Official Use Only - Law Enforcement Sensitive

4-5

Network Intrusion Responder Program

IP Addresses and Subnets

IP Address Classes

Classes of IP

IP addresses are divided into several class types. Class A, B, and C

Addresses

are used for government and commercial addresses. Class D and E

are reserved for multicasting, which is the transmission of data to

many recipients simultaneously. Class D and E are not commonly

used.

Each class allows for a specific maximum number of subnets and

end nodes.

4-6

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

IP Address Classes, continued

Classes of IP

The following table describes the characteristics of each IP address

Addresses,

class type.

continued

Classes of IP Addresses Defined

Class

First

Maximum

Other

Octet

Networks

Hosts

Characteristics

1 -

126

16,777,214

Most often

126

allocated to

government and

large institutions;

Address Range:

1.X.X.X to

126.X.X.X

128 -

16,384

65,534

Most often

191

allocated for

commercial use

and ISPs;

Address Range:

128.X.X.X to

191.X.X.X

192 -

2,097,152

254

Most often

223

allocated for

commercial use

and ISPs;

Address Range:

192.X.X.X to

223.X.X.X

224 -

N/A

Reserved class

239

used for

multicasting;

does not contain

network or host

IDs

240 -

N/A

Reserved class

247

used for

experimentation;

does not contain

network or host

IDs

01/09

For Official Use Only - Law Enforcement Sensitive

4-7

Network Intrusion Responder Program

IP Addresses and Subnets

IP Address Classes, continued

Reserved IP

The following IP addresses are reserved for specific functions:

Addresses

Description

IP Address Range

Reserved for non-



10.0.0.0 to 10.255.255.255

routable networks



172.16.0.0 to 172.31.255.255



192.168.0.0 to 192.168.255.255

Reserved for loopback

127.0.0.1

NIC testing

Reserved for routing

128.5.0.0

tables; refers to entire

network

IDs an entire network

X.0.0.0 (Class A)

X.X.0.0 (Class B)

X.X.X.0 (Class C)

Broadcast

X.255.255.255 (Class A)

X.X.255.255 (Class B)

X.X.X.255 (Class C)

4-8

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

More about IP Addresses

New Methods for

Because the class system provides a finite number of IP addresses,

IP Addressing

the number of unassigned Internet addresses is running out. A new

scheme called Classless Inter-Domain Routing (CIDR) has been

introduced as a replacement for the system based on classes A, B,

and C.

With CIDR, IP addresses are assigned in blocks. A single IP

address can be used to identify many unique IP addresses. A CIDR

IP address looks like a normal IP address except that it ends with a

slash followed by a number. This end number is called the IP

prefix length because it represents how many bits are used for the

network partition of the address. An example of a CIDR address is

162.200.0.0/12.

The prefix length designates how many addresses are available for

the network and the hosts in the CIDR address. In the previous

example 162.200.0.0/12, the first 12 bits of the address identify the

network and the remaining 20 bits identify the host.

10100010.1100|1000.00000000.00000000

2¹² = 4098 Networks

2²⁰ = 1,048,576 Hosts per Network

CIDR addresses also reduce the size of routing tables and allows

for more IP addresses for subnetting and supernetting within

organizations.

IPv6

Internet Protocol version 6 (IPv6) is another new method for IP

addressing that significantly increases the amount of available IP

addresses. IP version 6 expands an IP address from 32 bits to 128

bits. This will provide over 3.4x10**38 power new addresses.

With IPv6, there will be enough IP addresses generated that every

cell of a human body could be assigned one and there would still

be addresses to spare.

Addresses for IPv6 are presented in hexadecimal format, such as

FE80:325B:134C:5555:678D:9C4D:3EEE:2D5F. This format

consists of eight groups of hexadecimal digits. Initially, many

addresses will have zeros in the groups.

01/09

For Official Use Only - Law Enforcement Sensitive

4-9

Network Intrusion Responder Program

IP Addresses and Subnets

More about IP Addresses, continued

IPv6, continued

A shorthand notation exists that expresses the groups of zeros, ::

(the colon-colon operator). For example, an IPv6 address,

FE80::3E4F, is using the colon-colon operator. All the groups

within the colons are zeros. Hence, the first group is FE80, the 2nd

through 7th groups are all zeros and the 8th group is 3E4F.

IPv6 Special

Here are some special addresses and prefixes used in IPv6:

Addresses and

Prefixes

Address

Description

::FFFF:0:0/96

Used for IPv4 mapped addresses

FC00::/7

Unique local IPv6 unicast addresses.

Routable only within set of

cooperating sites. Replaced “site-

local” used in earlier implementation

of IPv6.

FE80::/10

Local link for use within a LAN.

Similar to 169.254.x.x, the autoconfig

IP address in IPv4.

FF00::/8

Multicast prefix. No address ranges

reserved for broadcast. Applications

are to use multicast.

::1 /128

Loopback or “localhost” address.

Similar to 127.0.0.1 IPv4 loopback

address.

FE80::/10 through

Private address ranges. Similar to IPv4

FEB0::/10

private LAN addresses. Local link

addresses. Stateless and

autoconfigured for use within LAN

segment.

FEC0::/10 through

Private address ranges. Similar to IPv4

FEF0::/10

private LAN addresses. Local site

addresses.

FF00::/8 prefix

Multi-cast prefix

( 2000 to 3FFF )::/16

Global unicast prefix

prefix

2001::/16

Assigned to Regional Internet

Registrar (RIR)

2002::/16

Assigned to 6to4 Transition Methods

3FFE::/16

Temporary address assigned to 6bone

4-10

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

More about IP Addresses, continued

Dual Stacks

As IPV6 is being implemented, routers and computers can be

configured to use both IPv4 and IPv6. Routers which route both

IPv4 and IPv6 packets are called dual-stack.

There is no need for a subnet mask address or NAT (Network

Address Translation) with IPv6, although NAT can be

implemented.

Pseudo-Interfaces

A network card can be configured with multiple IPv6 addresses.

For example, one address can be just for the segment, another can

be for the site, and a third can be for the Internet.

The IPv6 protocol assigns pseudo-interfaces or zone IDs for each

of these. An address may look like ABCD::1234:B2C3 %4. The

%4 would be its zone ID.

Domain Name

Most networks and Web sites have text-based domain names that

Service

people can remember, such as www.google.com. Because the

Internet is based on numerical IP addresses, the domain name

service (DNS) translates text domain names into numerical IP

addresses before an Internet connection can be made.

For example, when you type the Web address to your favorite site,

the DNS server receives your site request and translates it into the

corresponding IP address.

Dynamic Host

Network administrators use Dynamic Host Configuration Protocol

Configuration

(DHCP) to assign dynamic IP addresses to individual devices on a

Protocol

network. Addresses are assigned from a pool of pre-registered

addresses.

DHCP saves time by eliminating the steps to manually assign IP

addresses to new network equipment. It also tracks all assigned

addresses automatically.

With DHCP, a computer or other device can be assigned a

different IP address every time it accesses the network. In some

cases, a device can change its IP address between logon and

logoff. ISPs frequently use DHCP for their dial-up and broadband

users. DHCP6 will run in networks that have implemented IPv6.

01/09

For Official Use Only - Law Enforcement Sensitive

4-11

IP Addresses and Subnets

Network Intrusion Responder Program

Lesson 2 - Ports

Introduction

This lesson presents information about network ports, what they

are, and how they are used, misused, and managed.

Purpose of this

The purpose of this lesson is to provide a basic level of

Lesson

understanding about network ports.

Objectives

After successfully completing this lesson, you will be able to:

 Discuss the definition of a port

 Explain how ports are used in network administration

 Discuss how hackers can identify open ports and what this

means to network security

In this Lesson

The following table shows the contents of this lesson.

Topic

See Page

Overview of Ports

4-14

How Ports are Used

4-16

Configuring TCP/IP

4-19

01/09

For Official Use Only - Law Enforcement Sensitive

4-13

Network Intrusion Responder Program

IP Addresses and Subnets

Overview of Ports

Ports

Imagine trying to engage in a telephone conversation with

someone over a party line (a telephone circuit shared by more than

one person) being used by thousands of people. At the very least,

you would have great difficulty communicating with that person.

Trying to filter out the thousands of other conversations would be

impossible. Thankfully, the days of the party line have long passed

and communicating by telephone is generally a two-way

conversation between parties.

Understanding the person on the other end of the telephone

connection is effortless because you are only listening to that one

person and not the thousands of other conversations taking place

over the phone system at any given time.

Communications over a computer network are similar to the

telephone system in the sense that thousands of conversations

between computers are occurring every second. In order for your

computer to communicate with other computers, and more

specifically, other applications, computers use a means of

channeling communications, called service ports, or simply ports.

When a computer receives data from a network, the TCP/IP

protocol stack must know the data’s user application destination.

For example, when a Web server sends a Web page to your

computer, TCP/IP must know that the Web page data is supposed

to go to your Web browser. Otherwise, your computer might

receive the data, but you would never actually see it displayed.

TCP/IP maps data to an application using a port, which is a

number that represents an application. Each data transmission is

labeled with a source and a destination port. The source port

identifies which application sent the data, and the destination port

identifies which application should process the data at the

receiving end.

4-14

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Overview of Ports, continued

Well-Known Ports There are over 65,000 ports available to network applications.

Ports 1 - 1023 usually map to specific applications, regardless of

the computers involved. For this reason, they are often called well-

known ports. Here are several examples:

Service

Protocol

Port Number

World Wide Web

TCP

(HTTP)

Telnet

TCP

Simple Mail Transfer

TCP

Protocol (SMTP)

File Transfer Protocol

UDP

(FTP) Control

Example

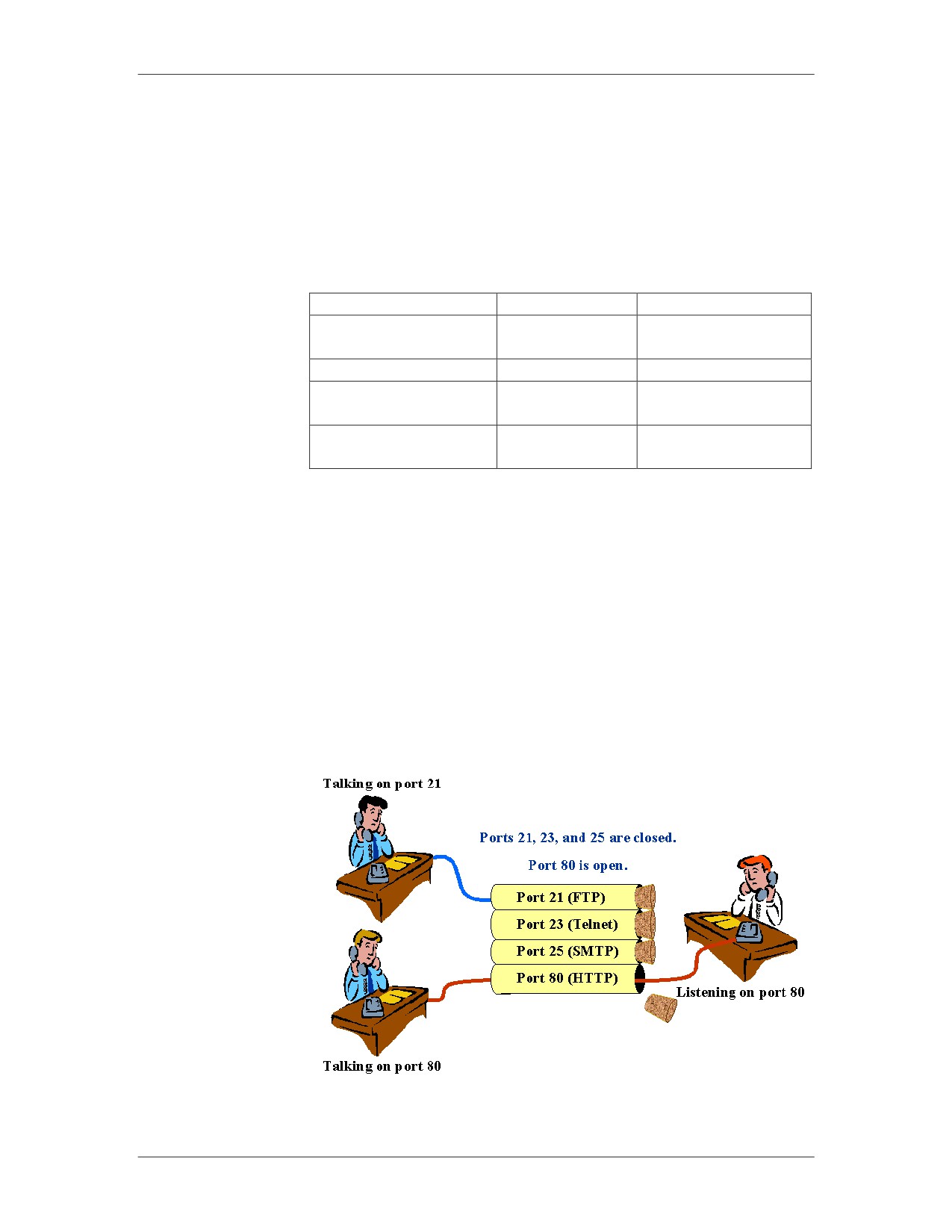

Referring to the graphic below, two applications (on the left) are

attempting to communicate with similar applications on the

receiving device (on the right) through well-known ports. While

one application is communicating through port 80 (the standard

port for World Wide Web traffic), another application is

communicating through port 21, the well-known port for File

Transfer Protocol.

As you can see in the graphic, the receiver has blocked port 21, 23,

and 25, disallowing communications, while port 80 is open and

transmitted data is received.

01/09

For Official Use Only - Law Enforcement Sensitive

4-15

Network Intrusion Responder Program

IP Addresses and Subnets

How Ports are Used

Port Use

With an understanding of how applications like Web servers and

Web browsers exchange data through a specific port, you can

expand on this knowledge to learn how ports are used.

At various layers of the OSI model, network hardware devices

such as firewalls, routers and gateways offer the ability to protect

your network by closing certain ports, or opening certain ports to

provide access to specific types of information. Some network

devices can open a port, but restrict the packets traveling through

that port in such a way that certain instructions are blocked, while

others are allowed to pass through unaltered.

For example, 21 (File Transfer Protocol) can be opened, but

monitored to disallow any packets carrying the put command, an

FTP command that writes to the FTP server’s hard drive.

Conversely, the get command, an FTP command to copy a file

from the FTP server, would not be blocked. This allows files to be

downloaded from the FTP server, but not uploaded.

4-16

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

How Ports are Used, continued

Port Management

The network administrator usually performs management of ports

in a network environment. A computer’s ports can be enabled or

disabled using features of the operating system.

Windows XP, for example, allows users to enable a built-in

software firewall that automatically restricts port access.

Terminating an active service on a server can also disable ports.

For example, FTP service can be disabled using features of the

operating system, thus disabling port 21.

Quite often, ports are managed through configuration of hardware

devices called firewalls. Hardware devices that are configured by

the network administrator can be managed locally by attaching a

special cable from a PC to the network device and running

standard communications software, such as Telnet or

HyperTerminal.

These devices can also be managed remotely with Telnet. In many

instances, they can be managed through a Web browser, such as

Internet Explorer, and point the browser to the device’s IP address.

Regardless of whether the management is performed locally or

remotely, the device will most likely have an administration

account that requires a login ID and password to configure the

device.

The Windows XP firewall has rules that block inbound

communication attempts. The Windows Vista firewall goes one

step further with rules that block both inbound and outbound

communication attempts.

01/09

For Official Use Only - Law Enforcement Sensitive

4-17

Network Intrusion Responder Program

IP Addresses and Subnets

How Ports are Used, continued

Port Misuse

Most government agencies and large corporations have published

policies specifying port configurations for computer network

devices. The blocking of certain ports is mandatory in many

instances. These policies, intended to minimize the risk of

intrusion, are standard.

Although policies exist to maintain a safe network, technical

personnel with good intentions might “bend the rules” to

accomplish a specific task, the completion of which is crucial to

the mission of the organization. In bending the rules, technical

personnel might be tempted to temporarily open an unauthorized

port on a network device just long enough to accomplish the task

at hand. In so doing, the policies protecting the network have been

violated and the network has become vulnerable, albeit briefly.

Other examples of misuse might include opening ports for

personal use that are required by such applications as instant

messengers, file sharing programs, and Internet chat programs.

These programs can be detrimental to maintaining a secure

network.

4-18

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Configuring TCP/IP

Procedure: Create

Use these steps to configure your TPC/IP protocol to function

a TCP/IP LAN via

correctly with the classroom router.

a Router with

Microsoft Vista

Step

Action

Right click on Network and then click Properties.

Left click on Manage Network Connections.

Right click on Local Area Connection and then click

Properties.

Highlight Internet Protocol (TCP/IP) and then click

Properties.

Team 1 will use the IP range and subnet mask listed

below:

11.0.0.1 - 11.0.0.15

255.255.255.0

Team 2 will use the IP range and subnet mask listed

below:

134.120.0.21 - 134.120.0.25

255.255.0.0

Team 3 will use the IP range and subnet mask listed

below:

198.168.112.31- 198.168.112.35

255.255.255.0

Team 4 will use the IP range and subnet mask listed

below:

223.14.6.41 - 223.14.6.45

255.255.255.0

Note: There is no gateway address set at this time

01/09

For Official Use Only - Law Enforcement Sensitive

4-19

IP Addresses and Subnets

Network Intrusion Responder Program

Lesson 3 - Subnets

Introduction

Understanding subnets is important to computer crime

investigations. When the crime scene includes a networked

computer, you must know the subnet to which that computer

belongs and identify all of the other computers on the same subnet.

Within the subnet, the suspect computer has access to other

connected computers where evidence may be stored.

Purpose of this

Networks can be logically divided into sub-networks (subnets) to

Lesson

enhance efficiency and security. This lesson introduces subnetting

and the use of subnet masks.

Objectives

After successfully completing this lesson, you will be able to:

 Define subnetting and explain its benefits

 Explain the value of subnet masks

 Identify the components of a subnet mask

In this Lesson

The following table shows the contents of this lesson.

Topic

See Page

Subnet Overview

4-22

Subnet Masks

4-24

Virtual LAN

4-25

01/09

For Official Use Only - Law Enforcement Sensitive

4-21

Network Intrusion Responder Program

IP Addresses and Subnets

Subnet Overview

Subnets Defined

To increase efficiency, Class A, B, and C networks can be

subdivided into subnets. A subnet is a segment of a network that

shares a common IP network address component with all other

devices on the same subnet. On a TCP/IP network, all devices with

the same IP address prefix belong to the same subnet.

Networks on the Internet only view other networks as single

entities. They have no way of viewing another network’s subnet

structure. This helps reduce the size of routing tables.

When a data packet is sent over the Internet, it goes to the router of

the destination network. The router then determines the destination

node by deciphering the packet’s subnet address.

Advantages of Subnetting

 Enhances security by creating subnets that have restricted

access

 Extends the capabilities of the network

 Enhances network performance because routers determine the

destination network thereby eliminating traffic on other

segments

 Allows subnets to be invisible to the outside world

 Provides flexibility by allowing administrators to deploy

additional subnets without registering new network numbers

 Allows data route changes within a network without affecting

the Internet routing table

4-22

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Subnet Overview, continued

Subnet Addressing Like IP addresses, each subnet address is unique. As you recall,

each IP address has four octets and the address is divided into two

major segments: a network address and a host address. By

comparison, a subnet address contains three segments: the network

address, subnet address, and the host address as illustrated here.

IP Address vs. Subnet Address

Creating Subnets Network administrators create subnets as extensions of the

network number. To create a subnet address, the administrator

takes bits from the host number and reassigns them to the subnet

field. Therefore, the more bits taken from the host number, the

fewer host addresses that can be assigned to that subnet.

Note: Any user with administrator-level access can modify a

computer’s subnet configuration.

01/09

For Official Use Only - Law Enforcement Sensitive

4-23

Network Intrusion Responder Program

IP Addresses and Subnets

Subnet Masks

Definition

A subnet mask conceals a subnet from outside networks. As you

recall, every subnet address consists of the network prefix, subnet

number (including mask), and host number. The two main

functions of a subnet mask are as follows:

 Identify the subnet of an IP address

 Notify communicating devices which part of an IP address is

the network ID (including subnet) and which part is the host ID

Classes of Subnet Masks

There are three default classes of subnet masks. They are as

follows:

 Class A - 255.0.0.0

 Class B - 255.255.0.0

 Class C - 255.255.255.0

Subnet Masks

Subnet masks use the same 32-bit, four-octet structure as IP

Components

addresses. Subnet mask addresses have three parts: network

address, subnet address, and host address. A subnet mask has all

ones in the network and subnet segments of the address and

contains all zeros in the host segment.

With subnetting, part of the host address is used to identify the

subnet. The subnet mask is the network address plus the bits

reserved to identify the subnet.

4-24

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Virtual LAN

Definition

Virtual LAN (VLAN) is another way to divide a local area

network into logical subgroups. VLAN uses software to connect a

group of computers and devices together instead of manually

moving cables and wiring. It can be used to combine workstations

and other devices into a single group regardless of their physical

location. The result improves traffic flow within the workgroup.

VLANs are used in LAN switches. Network changes and additions

are quickly implemented with the VLAN software making

proprietary group solutions easy to create. VLANs operate at the

Data Link Layer 2 and Network Layer 3 of the OSI model.

01/09

For Official Use Only - Law Enforcement Sensitive

4-25

IP Addresses and Subnets

Network Intrusion Responder Program

Lesson 4 - Network Security

Introduction

Network security, an essential component for network

management, strives to protect network resources through layered

defenses. These defenses generally contain encryption, anti-virus

software, firewalls, and Intrusion Detection System (IDS) devices.

This lesson focuses on the network security methods available

today.

Purpose of this

The purpose of this lesson is to gain an understanding of how

Lesson

networks are secured. You will learn about the types of evidence

available in the form of logs. Various types of firewalls and

Intrusion Detection Systems (IDS) are also introduced.

Objectives

After completing this lesson, you will be able to:

 Explain the various firewall architectures

 Name the types of firewalls used today and their characteristics

 Explain data encryption

 Define the security methods of IDS

 Identify various types of network logs

In this Lesson

The following table shows the contents of this lesson.

Topic

See Page

Data Encryption

4-28

Anti-Virus Software

4-29

Firewalls

4-30

IDS

4-37

Logs

4-39

Network Security Summary

4-41

01/09

For Official Use Only - Law Enforcement Sensitive

4-27

Network Intrusion Responder Program

IP Addresses and Subnets

Data Encryption

Data encryption is the conversion of data into a form that cannot

be easily deciphered. Encrypted text is called cipher text.

Decryption converts encrypted data into plain text that can be

easily understood. Encryption provides a highly effective method

for data protection. There are two types of encryption:

1. Asymmetric encryption uses two types of cryptographic keys to

encode messages. The public key is known to everyone. The

private key is only known to the recipient. These methods

work because the public key relates to the private key in order

to decrypt messages upon receipt.

2. Symmetric encryption uses the same key to encode and decode

messages.

4-28

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Anti-Virus Software

Viruses

A virus is a small piece of code that executes when opening a real

program or file. For example, a virus might attach itself to a word

processing file. When the file is opened, the virus code then

attaches itself to the word processing program. Each time the

program runs, the virus runs, too. It then has the chance to

replicate by attaching to other programs or wreak havoc, such as

deleting the entire contents of the hard drive.

E-mail Viruses

An e-mail virus spreads in e-mail messages, usually by

automatically mailing itself to every address in the victim's e-mail

address book.

Worms

A worm is a small piece of code that uses computer networks and

vulnerabilities, known as security holes, to replicate itself. The

worm scans the network for any machine that has a specific

security hole. It copies itself to the new machine using the security

hole, and then starts replicating from there, as well.

Trojan Horses

A Trojan horse is not a virus; it is a computer program. The

program claims to do one thing, but instead does damage when

you run it. For example, a Trojan horse may claim to be a game,

but instead may erase your hard disk or create a backdoor. Trojan

horses have no way to replicate automatically.

Boot Sector Viruses

Boot sector viruses spread by infecting the boot sector of the boot

media, usually a hard drive or a floppy diskette. Once infected,

every time the computer boots, the virus is loaded automatically

into memory. Thereafter, it attempts to infect every other program

and file opened.

01/09

For Official Use Only - Law Enforcement Sensitive

4-29

Network Intrusion Responder Program

IP Addresses and Subnets

Firewalls

Introduction

A firewall is a method of securing a network from unauthorized

access. Most often, firewalls protect against intruders who seek

access via the Internet. Enterprises install firewalls to offer secure

Internet access for employees and to separate and protect their

intranet from unauthorized public Web site traffic. Firewalls can

also be installed to protect an organization’s internal departments

or domains, such as a firewall that secures the accounting

department.

Firewall protection can be software, hardware, or a combination of

both. Each one performs specific security activities. Firewalls are

access control devices that only detect failed attempts at access. If

an intruder defeats the corporate firewall, the intrusion may or may

not be logged, depending on the firewall configurations.

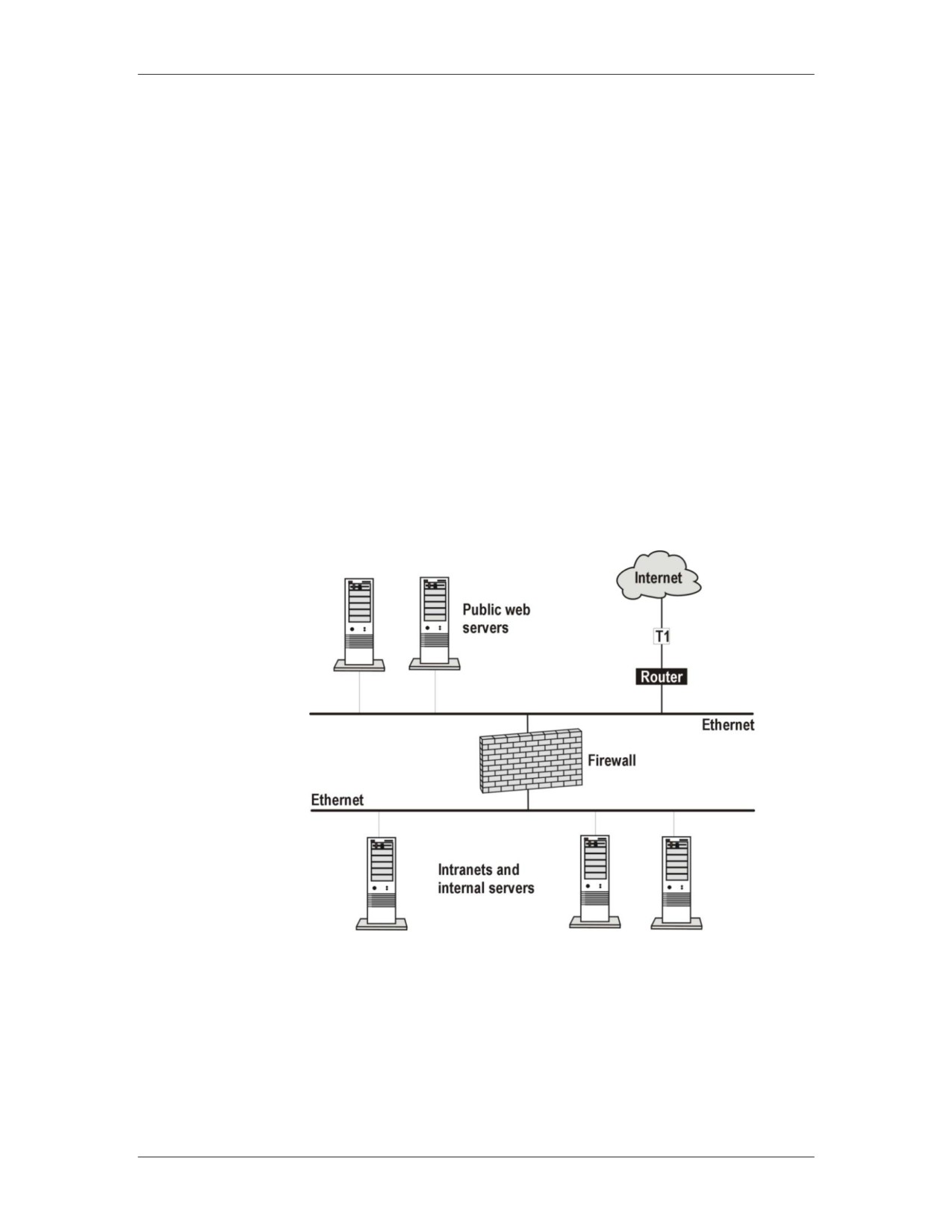

Intranet protected by firewall

4-30

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Firewalls, continued

How Firewalls

All messages going in or out of the network pass through the

Work

firewall. Messages are checked using specified security criteria.

The firewall blocks those that do not meet the criteria. Different

types of firewalls work at various layers of the OSI model or the

TCP/IP protocol. The following sections define each type of

firewall.

Network Address NAT allows you to use internal non-routable IP addresses on your

Translation (NAT) intranet and connect to the Internet with one registered IP address.

The registered IP address is assigned to the software or hardware

device running NAT. This process allows any computer behind the

NAT device to be invisible to the Internet because only the NAT

device’s registered IP address is being used.

OSI Model: NAT firewalls operate at Network Layer 3.

TCP/IP Model: NAT firewalls operate at Network Layer 2.

How NAT Works

The following table describes the NAT process for intranet

messaging via the Internet.

Stage

Activity

The intranet computer sends data packet to NAT device.

The NAT device examines the packet header and

records which intranet computer made the request.

The NAT device then replaces the IP address with its

own registered IP address and sends the request to the

Internet.

When the information packet returns, it goes to the IP

address of the NAT device.

The NAT device then examines the packet, places the

appropriate IP address for the intranet computer, and

sends it the computer.

01/09

For Official Use Only - Law Enforcement Sensitive

4-31

Network Intrusion Responder Program

IP Addresses and Subnets

Firewalls, continued

Stateful Inspection Stateful inspection firewall architecture has the ability to look into

the packet and allow only certain types of application commands

while rejecting others. For example, a stateful packet-filtering

firewall allows the FTP command get and rejects the put

command.

Stateful inspection firewalls record the User Datagram Protocol

(UDP) packet request that is permitted to cross the firewall in a

state table. Incoming UDP packets are then examined and verified

against the ones waiting for a response in the state table. If the

information matches, the request is permitted to enter the network.

Otherwise the packet is rejected.

OSI Model: Stateful inspection firewalls operate at Network

Layer 3.

TCP/IP Model: Stateful inspection firewalls operate at Network

Layer 2.

4-32

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Firewalls, continued

Packet-filtering

A packet-filtering firewall checks the header of each packet for

Firewalls

specific information and then either accepts or rejects the packets

based on user-defined rules. Checks are made for:

 Source and destination IP address

 Source and destination port numbers

 Protocol type

 Direction of the packet (inbound or outbound)

OSI Model: Packet-filtering firewalls operate at Network Layer 3.

TCP/IP Model: Packet-filtering firewalls operate at Network

Layer 2.

Advantages

 Good performance

 NAT shields internal addresses from external users

 No code modifications are needed

 Closes ports when not in use

 Stateful inspection checks the packets and only allows those

through that were requested

Disadvantages

 Subject to IP spoofing or port spoofing

 Cannot filter or authenticate URL information

 Little or no auditing or alert mechanisms

 Rules need to be entered for stateful inspection type firewalls

and then changed

01/09

For Official Use Only - Law Enforcement Sensitive

4-33

Network Intrusion Responder Program

IP Addresses and Subnets

Firewalls, continued

Circuit-level

A circuit-level firewall validates TCP and UDP sessions before

Firewall

opening a connection. After the validation, it passes everything

through until the session has ended.

A circuit-level firewall establishes a virtual circuit between the

client and the host on a session-by-session basis. The firewall

maintains a table of connections that includes session and

sequencing information. When the session ends, the table

information is removed and the virtual connection is closed. Only

packets associated with the session are allowed through. If the

packet is valid according to the session table, the packet is passed

through without any further security checks.

The circuit-level firewall session consists of two connections: one

between the client and the firewall and one between the firewall

and server. All outgoing packets appear to have originated from

the firewall in a method similar to NAT.

OSI Model: Circuit-level firewalls operate at Session Layer 5.

TCP/IP Model: Circuit-level firewalls operate at the Transport

Layer 3.

Advantages

 Good performance because the packets are not examined after

the initial connection is allowed

 No direct connection between client and the application server

 Similar to NAT’s method of shielding internal IP address

Disadvantages

 Client programs need to be recompiled and relinked to a

special library containing the set of rules for sessions

 Does not examine the application level information in the

packets allowing them to be subverted by an inside user or

outside hacker

4-34

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Firewalls, continued

Application-

Application-gateway firewalls run a proxy server application that

Gateway Firewall

acts as an intermediary between two systems. The proxy server

evaluates all requests from internal computers to connect to an

external service, such as FTP, and determines whether to permit or

deny the request based on the rules defined for the individual

network.

The application-gateway running on the proxy server understands

the protocols of the service it is evaluating and can deny any

packets that do not comply with the protocol for that service. It

also provides detailed audit records or session information, user

authentication, URL filtering, and caching.

Application-gateway firewalls are application specific and require

proxy addresses for FTP, HTTP, SMTP, etc. Because they work

through a proxy, they also perform NAT services. In addition,

these firewalls operate at the OSI model Application Layer and

have the ability to look down through the packets to the

application layer information and determine if the packet is altered

or not complying with the appropriate protocol rules. These

additional steps cause the application-gateway firewall to be

slower then other types of firewalls.

OSI Model: Application-gateway firewalls operate at Application

Layer 7.

TCP/IP Model: Application-gateway firewalls operate at the

Application Layer 4.

01/09

For Official Use Only - Law Enforcement Sensitive

4-35

Network Intrusion Responder Program

IP Addresses and Subnets

Firewalls, continued

Application-

 No direct connection between the internal client and external

Gateway Firewall

server

Advantages

 Can deny packets that do not comply with the protocol for a

service, such as FTP, HTTP, SMTP, etc.

 Ability to screen data streams for potential threats, such as

send mail attacks, and Java or ActiveX scripts riding on top of

HTTP services

 Provide NAT services

 Transparent to the individual user

 Can implement features such as HTTP object caching, URL

filtering and user authentication

 Provide audit logs for administrators to monitor for violations

of security policy

Application-

 Slower than other firewall methods

Gateway Firewall

 Vulnerable to operating system and application level bugs

Disadvantages

because they are highly dependant on the operating system,

TCP/IP stacks, and runtime libraries

 New services require new proxy servers

4-36

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

IDS

Intrusion

Unlike firewalls that attempt to block entry into the network,

Detection Systems

Intrusion Detection Systems (IDS) monitor the network for

(IDS)

attacks. There are two basic types of IDSs:

 Network-based IDS monitors the entire network for signs of an

intrusion

 Host-based IDS monitors an individual computer

IDS must be installed consistent with the network’s type and

topology.

Network-based

A network-based IDS monitors the entire network and uses the

IDS

information in the data packets to detect an intrusion. It analyzes

the packets for an attack signature, a known pattern in the packet

or packets that match a specific attack type.

The IDS analyzes the packets in real time using its recognition

files. The most common method used by IDS pattern expression is

byte code matching, also known as signature analysis or misuse

detection.

An IDS looks for a substring of data within the network packets

that matches known attack signatures. A match between a

substring and an attack signature signals an attack on the network.

When an attack is identified, the IDS can be programmed to

perform any of the following actions:

 Send an alert to the console

 Log the event and send an email

 Initiate a connection kill (TCP reset)

 Reconfigure a firewall or router, or use an SNMP trap

In the same way that you keep virus definition files up-to-date in

your virus protection software, it is equally as important to keep a

list of known attack signatures current.

01/09

For Official Use Only - Law Enforcement Sensitive

4-37

Network Intrusion Responder Program

IP Addresses and Subnets

IDS, continued

Host-based IDS

Host-based IDS is installed on an individual computer to monitor

only that computer. Host-based IDSs are used to:

 Monitor logs

 Detect file access

 Detect attempts to install executables

 Monitor remote user activities

Host-based IDSs are specific to the operating system that is

installed on the computer. On a computer with NT operating

system, IDS will monitor the system, event, and security logs. On

a computer with a Unix OS, it will monitor the syslog. The host-

based IDS examines each log’s entry to see if it matches any

known attack patterns.

Some host-based systems can also monitor the ports on the

computer. When certain ports are accessed, the host-based IDS

takes action depending on the system’s configuration. Security

actions include:

 Log the event

 Alert the console and send an e-mail

 Initiate a SNMP trap

 Terminate the user login and disable the user account

Host-based IDSs can also detect attacks initiated from the local

keyboard. Keyboard attacks should be rare if the computer is

located in a secure area, the user logs off correctly, and user

passwords are changed frequently.

4-38

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Logs

Introduction

Logs are a record of network activity that provide system

administrators with details of computer transactions and network

traffic. Logs are routinely used for backup, recovery, and statistical

purposes. They can also be used to detect failed and successful

intrusions, abnormal network activity, and system activities.

Networks have many different types of logs that can be generated

by both software and hardware devices. Logs can be an integral

part of computer forensic investigations. Some of the more

common logs that you may encounter are:

 System logs

 Firewall logs

 Router logs

 IDS logs

System Logs

Most networking operating systems have the ability to maintain

log files. Those files can include system activities, application

activities, and security activities. They can also be configured to

maintain logs for Internet access, FTP sessions, etc.

For example, Windows NT/2000/XP maintains three main logs

that can be accessed through the Event Viewer. Those logs are:

1. System log

2. Security log

3. Application log

The logs can be configured to capture both successful and failed

logon attempts.

01/09

For Official Use Only - Law Enforcement Sensitive

4-39

Network Intrusion Responder Program

IP Addresses and Subnets

Logs, continued

Firewall Logs

All firewalls have the ability to capture failed network access and

send the information to a log file. The firewall log file provides

information on:

 Type of attempted access (Web access, FTP access, Telnet

access etc.)

 Port that the attempted access originated from and was directed

 Date and time of attempted access

 IP address from which the attempt came

 Application-level firewall logs can also provide you with

detailed information of session information, user

authentication, and security policy violations

Router Logs

Routers can log information about network traffic and any

potential network problems that occur. They can also be

configured to log abnormal activity that contains host information

of a possible intruder and what was accessed on the network

during the attempt.

Dial-up-access routers, such as those used by Internet Service

Providers, can log dial-up connection information including the

username, IP address assigned, date, time, and duration of the

connection. This information can be very beneficial during an

intrusion investigation.

IDS Logs

IDS can be configured to log a wide variety of information. IDS

examines all packets on the network; therefore, IDS logs can

contain large amounts of log information that can be of useful to

the investigator. Some of the information that can be obtained

from IDS logs include:

 Intrusions

 Intrusion attempts

 Unauthorized access to a computer

 Attempts to access unauthorized data

 Attempts to manipulate privileged files

 Attempts to render a network system inoperable

4-40

For Official Use Only - Law Enforcement Sensitive

01/09

IP Addresses and Subnets

Network Intrusion Responder Program

Network Security Summary

Network Security Most network administrators implement a layered approach to

Summary

network security:

 Intrusion Detection to provide real-time monitoring of the

network

 Firewalls to restrict unauthorized access to the network

 Anti-virus protection to reduce the risk of infection

 Encryption to prevent stolen data packets from being read

 Logs to record activity and provide documentation should a

breach of security occur

01/09

For Official Use Only - Law Enforcement Sensitive

4-41

Network Intrusion Responder Program

Common Network Crimes

Module 5

Common Network Crimes

Overview

Similar to physical crimes, network-based crimes fall into

categories. These categories for common network crimes include

e-mail scams, online fraud, identity theft, social threats, internal

threats, malicious code, denial of service attacks, extortion,

network attacks, and terrorism. In this module, we will examine

and discuss the characteristics of the most commonly perpetrated

crimes involving network communications.

Purpose of this

This module examines ten of the most common network-based

Module

crimes that you may encounter as an investigator. You will learn

about typical methodologies used for each crime and some of the

traditional investigative responses.

Objectives

After completing this module, you will be able to:

 Describe each of the crimes

 Discuss the methodologies of each crime

 Explain the traditional responses to these crimes

In this Module

The following table shows the contents of this module.

Topic

See Page

Lesson 1 - E-Mail Scams

5-3

Lesson 2 - Online Fraud

5-9

Lesson 3 - Identity Theft

5-15

Lesson 4 - Social Threats

5-19

Lesson 5 - Internal Threats

5-23

Lesson 6 - Malicious Code

5-27

Lesson 7 - Denial of Service Attacks

5-31

Lesson 8 - Extortion

5-35

Lesson 9 - Network Attacks

5-39

Lesson 10 - Terrorism

5-43

01/09

For Official Use Only - Law Enforcement Sensitive

5-1

Network Intrusion Responder Program

Common Network Crimes

Lesson 1 - E-Mail Scams

Introduction

Today‟s criminals use the Internet and know a majority of victims

do not look closely at e-mail headers or question the authenticity

of the sender. E-mails contain headers that document who sent an

e-mail and from which IP address and server. This information can

be used to help detect suspicious e-mails sent by unreliable

sources.

Purpose of this

The purpose of this lesson is to describe the ways that e-mail can

Lesson

be used for illicit purposes.

Objectives

After completing this lesson, you will be able to:

 Describe e-mail scams

 Explain how e-mail scams are perpetrated

 Explain how investigators typically respond to these attacks

In this Lesson

The following table shows the contents of this lesson.

Topic

See Page

Overview of E-mail Scams

5-4

Attack Methodologies

5-5

Investigative Response

5-7

01/09

For Official Use Only - Law Enforcement Sensitive

5-3

Common Network Crimes

Network Intrusion Responder Program

Overview of E-Mail Scams

Definition

A scam is defined as a fraudulent business act. Using the postal

system for fraudulent means has been around since the 1660s. It

was a simple step for surface-mail scammers to make the leap to

the Internet when e-mail became popular.

Why E-mail Scams E-mail scams work because people often do not look at e-mail

Work

headers. If they did, they could compare the information in the

header to see if it matches the sender.

For example, a common scam is an e-mail purportedly sent by a

bank that is in fact sent by a scammer. Upon careful inspection of

the header, a user could notice that the e-mail stating it is from a

bank has a header that shows the origination to be from an

individual‟s e-mail address.

These e-mail scams often use HTML-encoded graphics to display

logos and other items that give the illusion of authenticity. They

use copyrighted images to hide the fact that the communication is

not from the stated source. An attacker could also easily hide code

in HTML formatted e-mail. This code could launch trojans or

other malicious code, such as a virus, when the e-mail is viewed.

Just like the chain letters that the U.S. Postal Service combats

daily, chain e-mails and solicitations for money using every

imaginable story and trick are prevalent on the Internet.

5-4

For Official Use Only - Law Enforcement Sensitive

01/09

Network Intrusion Responder Program

Common Network Crimes

Attack Methodologies

The Nigerian or

The Nigerian Scam, which is also known as the 419 or Advance

419 Scam

Fee Fraud Scam, is a true legend among e-mail frauds. Here are

the typical components of the scam:

 Foreign Nation: Virtually all of the e-mails originate from a

country other than the United States. Countries that have no

agreements with the U.S. pertaining to prosecution of these

frauds are the most popular.

 Government connected source: Usually the person making the

request will claim to either be a government official or a

relative of a deposed leader or potentate.

 Large sums of money: The requests always involve large,

usually multi-million dollar, sums of money.

 Money Access: Usually the person making the request has a

reason why he or she cannot get to the money, but the

recipient, being an upstanding American, can.

 Advance Fee: The sender will request that a sum of money be

deposited to an account in the other country. The recipient

transfers the money to the account and waits for the big payoff.

Of course, the requestor has ran off with the money and is

outside the reach of U.S. law enforcement.

Origins of 419

The Nigerian government has taken a harder line against these

frauds. Section 419 of the Nigerian Criminal Code outlaws this

activity.

According to Nigerian law, it is also illegal to try to remove funds

from Nigeria. People who have gone to Nigeria to try and recover

their money back have been imprisoned for doing so.

01/09

For Official Use Only - Law Enforcement Sensitive

5-5

Common Network Crimes

Network Intrusion Responder Program

Attack Methodologies, continued

Phishing

Phishing is when a perpetrator sends e-mail that appears legitimate

in an attempt to gain financial or personal information on the

recipient. This information can then be used for other network

crimes.

Examples

There are many types of phishing attacks. Here are some

examples:

eBay/PayPal - The recipient receives an e-mail that appears to be

from eBay online auctions. In the e-mail, the recipient is told to

change his password for security reasons. The e-mail includes a

form to enter the current and new passwords, in addition to other

personal identification information. The recipient fills out the form

and sends it back to the attacker, who can now use that information

to empty the person‟s account or steal his identity.

Banks - The recipient receives an e-mail with the bank logo and

other items that the attacker copied from the bank‟s real Web site.

The e-mail offers a low refinance rate or interest loan. The

recipient is asked to fill out a form with personal information that

would usually be on a loan request. If the recipient fills out the

form, the attacker now has more than enough information to steal

the person‟s identity. In some cases, these attackers obtain a loan

from the bank using this information and leave the recipient

holding the note.

Cross Site Scripting - The recipient receives an e-mail that

appears to be from a legitimate entity. However, when the

recipient logs into the site using his ID and PIN, he becomes a

victim of a cross-site scripting attack. This attack, also known as

an XSS attack, uses custom code to track information in a client‟s

Web browser windows. The perpetrator has code in the e-mail that

captures the information and passes the recipient to the real Web

site. Then the attacker can enter the Web site at a later time and

use the victim‟s account information.

Spam

At first you may not consider spam, which is an unsolicited

advertisement or bulk e-mail, an attack. But consider the fact of

how much bandwidth is consumed and how much storage space is

used by spam each day. It is estimated that spam costs companies

in the U.S. over $12 billion dollars a year.

5-6

For Official Use Only - Law Enforcement Sensitive

01/09

Network Intrusion Responder Program

Common Network Crimes

Investigative Response

Capture

As you investigate e-mail scams, it is important to know how to

view the complete original message. Most e-mail clients and Web-

based clients have either a menu option or a button that you can

click to view the complete original message.

Preservation

In some cases, you may have to obtain the original e-mail and/or

the Internet Service Provider logs from the server. This usually

requires for you to present a preservation letter to the ISP‟s point-

of-contact for law enforcement.

Warrants

Once preservation letters have been delivered, you need to secure

the warrants to seize the data. Note that in some cases the data you

are trying to obtain may already be deleted from the ISP‟s server

by the time you investigate the crime.

Reporting

First and foremost you should refer to your agency‟s Standard

Operating Procedures for internal reporting methods for these

offenses. Depending on your agency, you may be required to

report offenses up the chain to State and/or Federal enforcement

agencies. In the case of offenses that reach outside the borders of

the United States, you should seek assistance from international

enforcement groups.

Education

Where possible, provide victims with information on classes or

other places where they can find assistance with learning how to

protect themselves from e-mail fraud attacks.

01/09

For Official Use Only - Law Enforcement Sensitive

5-7

Network Intrusion Responder Program

Common Network Crimes

Lesson 2 - Online Fraud

Introduction

Virtually all major businesses rely upon a Web presence to sell

products or bring customers into stores. Many companies establish

“virtual storefronts” that allow an entire business to run without a

brick and mortar store, relying completely upon the Internet. Many

virtual businesses are created by single individuals to sell goods

over Web sites and auction sites such as eBay, as well as through

e-mail. Due to the large variety of online businesses there are

numerous ways in which a victim can be defrauded in the world of

e-commerce.

Purpose of this

The purpose of this lesson is to learn the common types of online

Lesson

fraud.

Objectives

After completing this lesson, you will be able to:

 Describe some of the common online fraud techniques

 Discuss the methodologies used in these cases

 Explain some of the responses to these attacks

In this Lesson

The following table shows the contents of this lesson.

Topic

See Page

Online Fraud Overview

5-10

Attack Methodologies

5-11

Investigative Responses

5-13

01/09

For Official Use Only - Law Enforcement Sensitive

5-9

Common Network Crimes

Network Intrusion Responder Program

Online Fraud Overview

Online Fraud

Defining online fraud can be fairly easy. It is any form of fraud

that is practiced on the Internet. Such fraud generally involves

creating elaborate situations in which to deceive online users into

giving money to criminals. Explaining all the possible ways in

which this can occur can be much harder.

In this section, we will describe some of the common fraud

attacks. As new online frauds are constantly developed, you will

probably see numerous new attacks in the field.

Common Attack

The attack vectors in an online fraud case can include:

Vectors



Price too good to be true: In many of the online auction frauds

you will find that a popular item is priced much lower than

normal. When the victim buys the item nothing is sent once the

winning bid is paid.



Short time to decide: The attacker may make the offer

available only for a short period of time, thereby making the

victim act before he or she has time to think it through.



Fine print: Lawyers aren‟t the only ones that like to put clauses

in small type. Many times attackers will put important

information in very small type, or change the type to a color

that is only a few shades different than the backg0round color,

making the type very hard to read.



Hijacked sites: Some attackers will take over a Web site,

known as hijacking, and use the site for their own gain until the

real owner discovers and fixes the site.



Box-of-rocks: Just like older postal frauds, online criminals

will offer a product, collect the money and send a box of

worthless goods, or even rocks instead of the promised item.



Stall tactics: If the criminal thinks that the victim is not

Internet savvy, the criminal may try to stall to get more money.

He may also stall the resolution of the problem until the victim

gives up in frustration.

5-10

For Official Use Only - Law Enforcement Sensitive

01/09

Network Intrusion Responder Program

Common Network Crimes

Attack Methodologies

Bogus Web Sites

An attacker or criminal can generate a new Web site in a matter of

minutes. There are numerous Web site providers that will accept a

credit card or PayPal money transfer and provide the criminal with

a domain name in less than a day. Additionally, through a process

known as domain tasting, a new domain name can be registered

for a five-day “test” period for free through many domain name

registrars. This site can then be very quickly populated with

whatever fraudulent information or services the criminal wants.

The criminal can potentially be making money within 48 hours.

When the criminal is no longer willing to accept the risk of

detection for the fraudulent site, he erases the site and moves to a

new provider with a modified name the next day.

If the criminals used bogus names and addresses, then they are

virtually untraceable using normal investigative techniques. In

many cases, you will find that the criminal has used numerous

forms of obfuscation to hide his identities and locations. The only

way you may be able to locate the criminal is to literally follow the

money through banking records.

Auctions

eBay is a global marketplace and it is also a haven for fraud. eBay,

and other online auction services, have made great improvements

in addressing fraud and trying to keep it to a minimum. In many

cases, these auction sites will use insurance money to pay back the

victim rather than have the negative publicity impact business.

Putting a picture of an expensive, desirable item on an auction

page and then selling it for less than fair market value is a popular

fraud scenario. Often, product descriptions and images are simply

copied from other auctions to give a legitimate look to the

fraudulent auction.

Advertising pictures of a similar item that is in much better

condition is another popular tactic. Frauds can also offer one item

but show pictures of another. Notably, popular video game

systems have appeared on eBay with pictures of the actual console

but small text stating that bidders will receive only an empty box.

In these cases, depending on the wording of the auction

advertisement, there may be no recourse for the victim. It is

important to thoroughly read any disclaimers about what you are

buying.

01/09

For Official Use Only - Law Enforcement Sensitive

5-11

Network Intrusions Responder Program (NITRO). Instructor Guide - page 4
